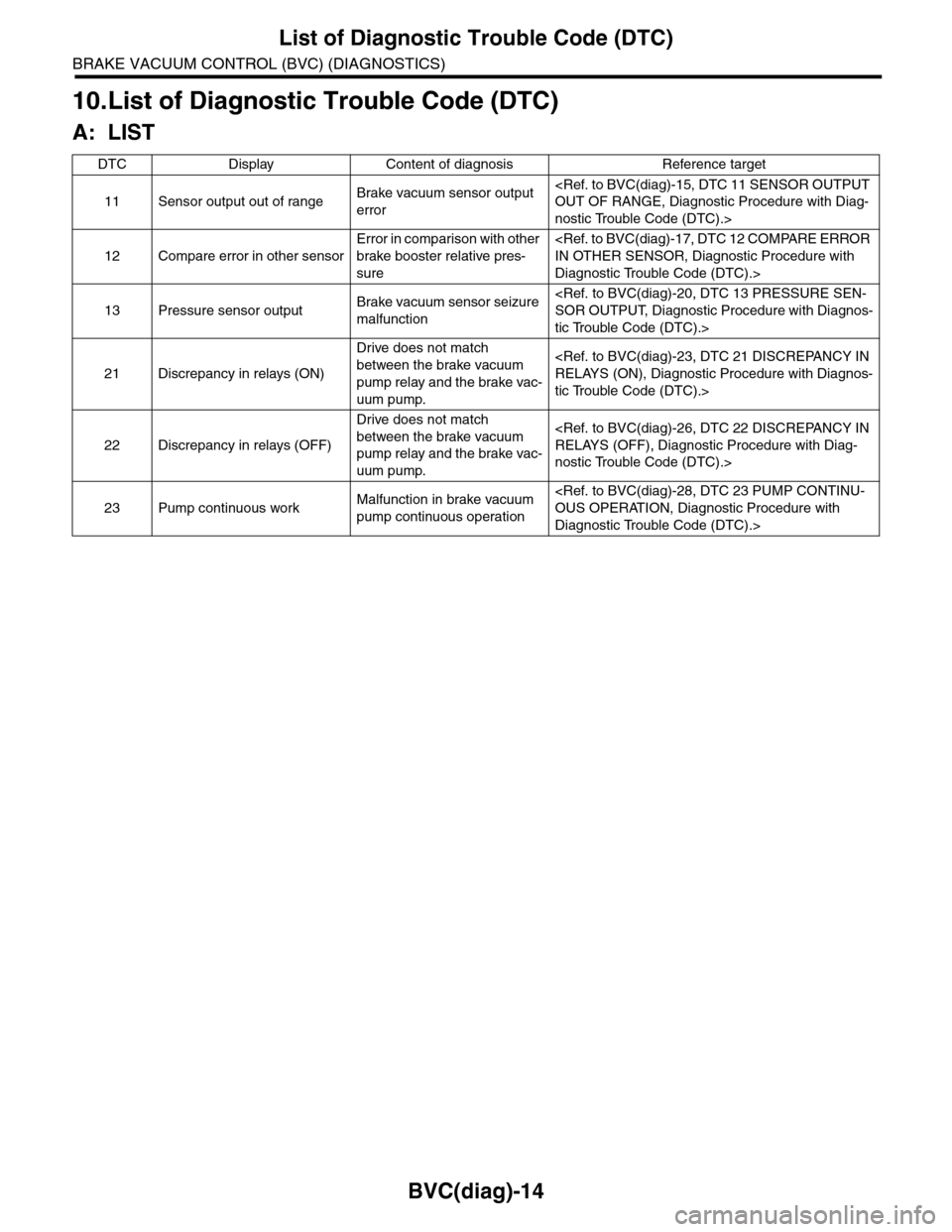

BVC(diag)-14
List of Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
10.List of Diagnostic Trouble Code (DTC)
A: LIST
DTC Display Content of diagnosis Reference target
11 Sensor output out of rangeBrake vacuum sensor output
error
OUT OF RANGE, Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
12 Compare error in other sensor
Error in comparison with other
brake booster relative pres-
sure
IN OTHER SENSOR, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
13 Pressure sensor outputBrake vacuum sensor seizure
malfunction
SOR OUTPUT, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
21 Discrepancy in relays (ON)
Drive does not match
between the brake vacuum
pump relay and the brake vac-
uum pump.
RELAYS (ON), Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
22 Discrepancy in relays (OFF)
Drive does not match
between the brake vacuum
pump relay and the brake vac-
uum pump.
RELAYS (OFF), Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
23 Pump continuous workMalfunction in brake vacuum
pump continuous operation
OUS OPERATION, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>

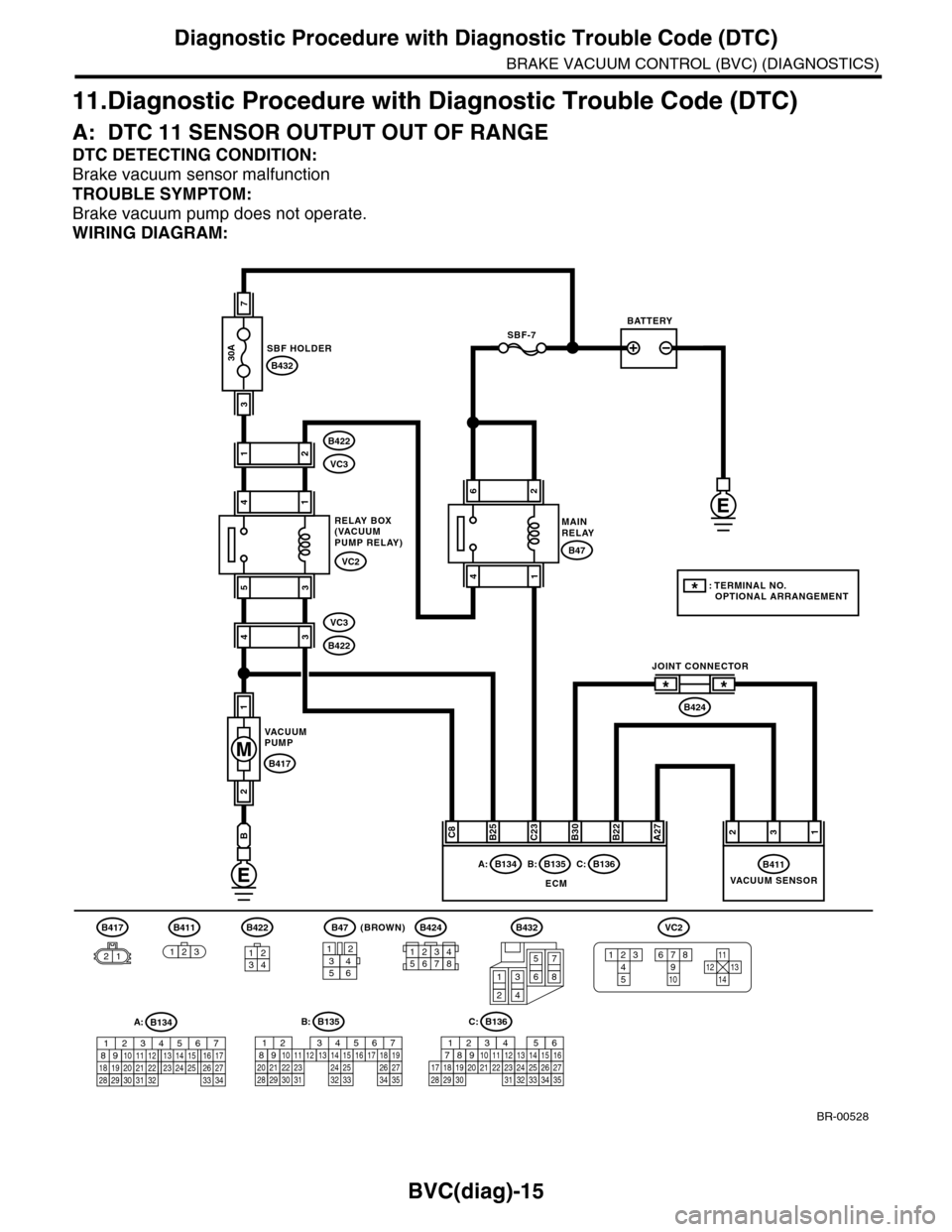

BVC(diag)-15
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
11.Diagnostic Procedure with Diagnostic Trouble Code (DTC)
A: DTC 11 SENSOR OUTPUT OUT OF RANGE
DTC DETECTING CONDITION:
Brake vacuum sensor malfunction
TROUBLE SYMPTOM:
Brake vacuum pump does not operate.
WIRING DIAGRAM:
BR-00528
2
1
B25B
B422
1234
B432
2
1
4
36
5
8
7
B432
SBF HOLDER
3
7
14
21
53
43
VC2
VC3
B422
B422
VC3
RELAY BOX(VACUUMPUMP RELAY)
B417
VAC U U MPUMP
26
41
B47
MAINRELAY
B411
VAC U U M S E N S O RECM
A: B134B: B135C: B136
C23B30B22A27C8312
JOINT CONNECTOR
B424
**
B417B411
213
B: C:B135
5672134
29
101112131415252416
30
98171819202821222332312627333435
B136
16101112131415252430
9871718192028212223293231
123456
2726333435
VC2
A:B134
85610 11 12 13 14 157213416
3019 20 2228 29
91718252123 24323126 2733 34
B424
34561278
(BROWN)
21
5436
B47
* : TERMINAL NO. OPTIONAL ARRANGEMENT
21
SBF-7BATTERY
30A
3412
5
8967
10131211
14

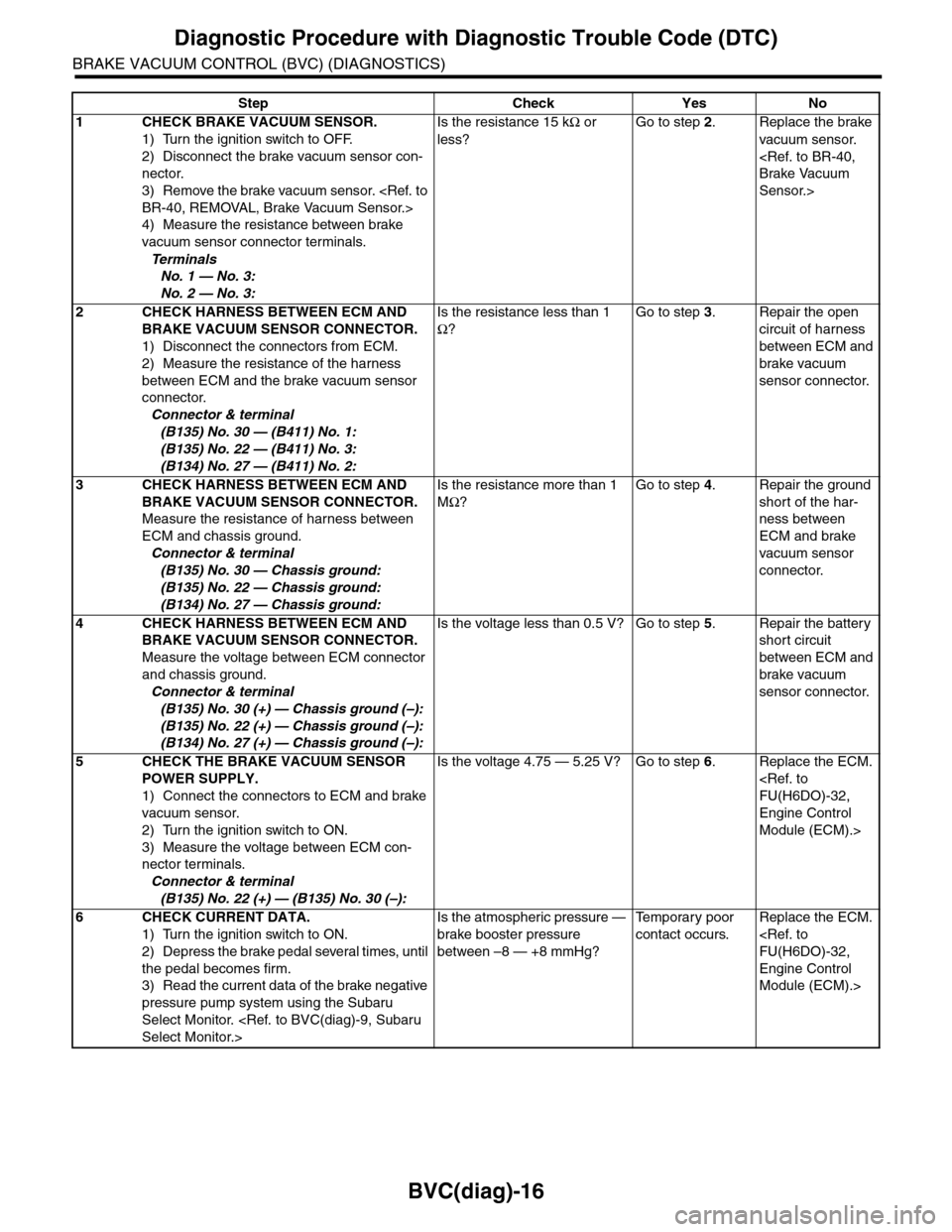

BVC(diag)-16
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
Step Check Yes No
1CHECK BRAKE VACUUM SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the brake vacuum sensor con-
nector.
3) Remove the brake vacuum sensor. BR-40, REMOVAL, Brake Vacuum Sensor.>
4) Measure the resistance between brake
vacuum sensor connector terminals.
Te r m i n a l s
No. 1 — No. 3:
No. 2 — No. 3:
Is the resistance 15 kΩ or
less?
Go to step 2.Replace the brake
vacuum sensor.
Brake Vacuum
Sensor.>
2CHECK HARNESS BETWEEN ECM AND
BRAKE VACUUM SENSOR CONNECTOR.
1) Disconnect the connectors from ECM.
2) Measure the resistance of the harness
between ECM and the brake vacuum sensor
connector.
Connector & terminal
(B135) No. 30 — (B411) No. 1:
(B135) No. 22 — (B411) No. 3:
(B134) No. 27 — (B411) No. 2:
Is the resistance less than 1
Ω?
Go to step 3.Repair the open
circuit of harness
between ECM and
brake vacuum
sensor connector.
3CHECK HARNESS BETWEEN ECM AND
BRAKE VACUUM SENSOR CONNECTOR.
Measure the resistance of harness between
ECM and chassis ground.
Connector & terminal
(B135) No. 30 — Chassis ground:
(B135) No. 22 — Chassis ground:
(B134) No. 27 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 4.Repair the ground
short of the har-
ness between
ECM and brake
vacuum sensor
connector.
4CHECK HARNESS BETWEEN ECM AND
BRAKE VACUUM SENSOR CONNECTOR.
Measure the voltage between ECM connector
and chassis ground.
Connector & terminal
(B135) No. 30 (+) — Chassis ground (–):
(B135) No. 22 (+) — Chassis ground (–):
(B134) No. 27 (+) — Chassis ground (–):
Is the voltage less than 0.5 V? Go to step 5.Repair the battery
short circuit
between ECM and
brake vacuum
sensor connector.
5CHECK THE BRAKE VACUUM SENSOR
POWER SUPPLY.
1) Connect the connectors to ECM and brake
vacuum sensor.
2) Turn the ignition switch to ON.
3) Measure the voltage between ECM con-
nector terminals.
Connector & terminal
(B135) No. 22 (+) — (B135) No. 30 (–):
Is the voltage 4.75 — 5.25 V? Go to step 6.Replace the ECM.
FU(H6DO)-32,
Engine Control
Module (ECM).>
6CHECK CURRENT DATA.
1) Turn the ignition switch to ON.
2) Depress the brake pedal several times, until
the pedal becomes firm.
3) Read the current data of the brake negative
pressure pump system using the Subaru
Select Monitor. Select Monitor.>
Is the atmospheric pressure —
brake booster pressure
between –8 — +8 mmHg?
Te m p o r a r y p o o r
contact occurs.
Replace the ECM.
FU(H6DO)-32,
Engine Control
Module (ECM).>

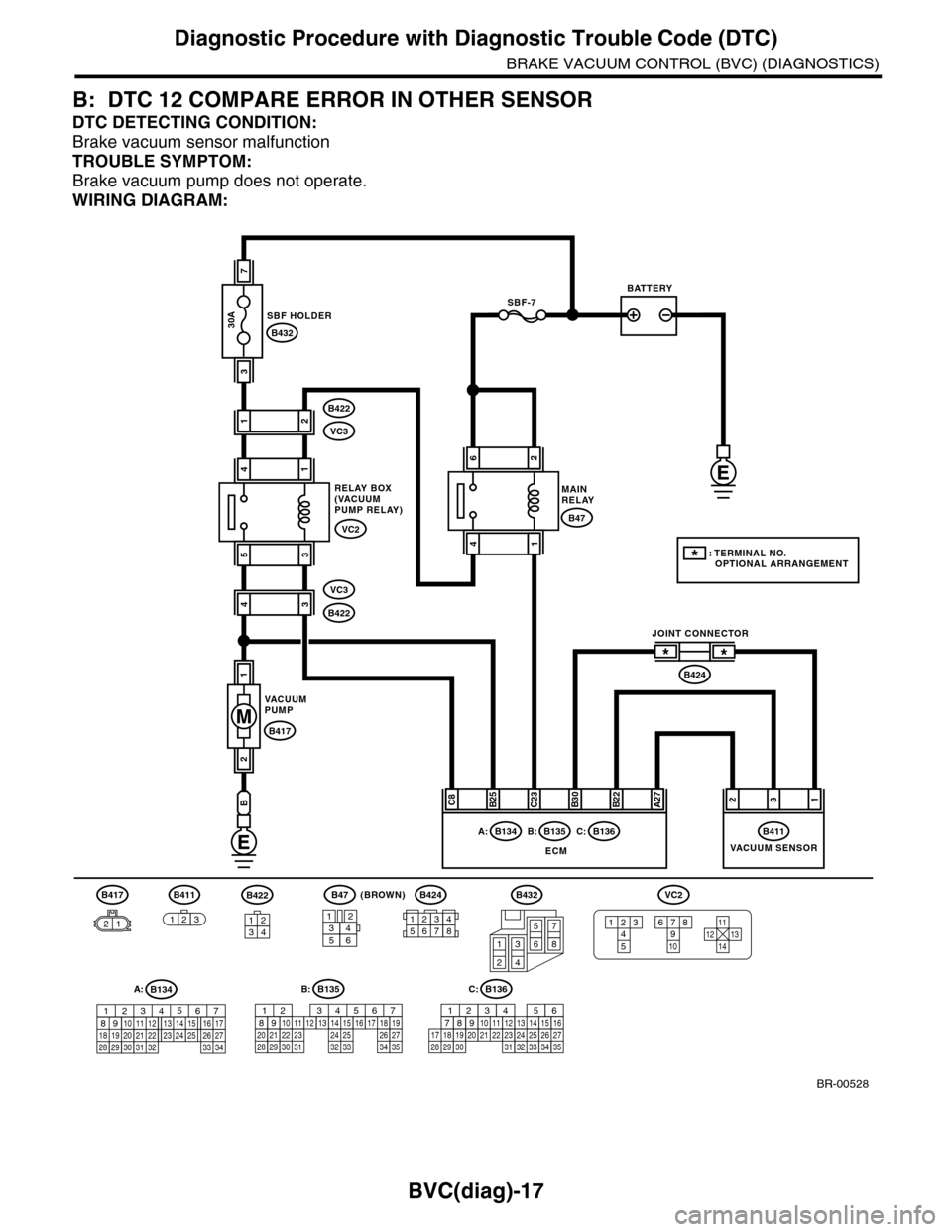

BVC(diag)-17
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
B: DTC 12 COMPARE ERROR IN OTHER SENSOR
DTC DETECTING CONDITION:
Brake vacuum sensor malfunction
TROUBLE SYMPTOM:
Brake vacuum pump does not operate.
WIRING DIAGRAM:
BR-00528
2
1
B25B
B422
1234
B432
2
1
4
36
5
8
7
B432
SBF HOLDER
3
7
14
21
53
43
VC2
VC3
B422
B422
VC3
RELAY BOX(VACUUMPUMP RELAY)
B417
VAC U U MPUMP
26
41
B47
MAINRELAY
B411
VAC U U M S E N S O RECM
A: B134B: B135C: B136
C23B30B22A27C8312
JOINT CONNECTOR
B424
**
B417B411
213
B: C:B135
5672134
29
101112131415252416
30
98171819202821222332312627333435
B136
16101112131415252430
9871718192028212223293231
123456
2726333435
VC2
A:B134
85610 11 12 13 14 157213416
3019 20 2228 29
91718252123 24323126 2733 34
B424
34561278
(BROWN)
21
5436
B47
* : TERMINAL NO. OPTIONAL ARRANGEMENT
21
SBF-7BATTERY
30A
3412
5
8967
10131211
14

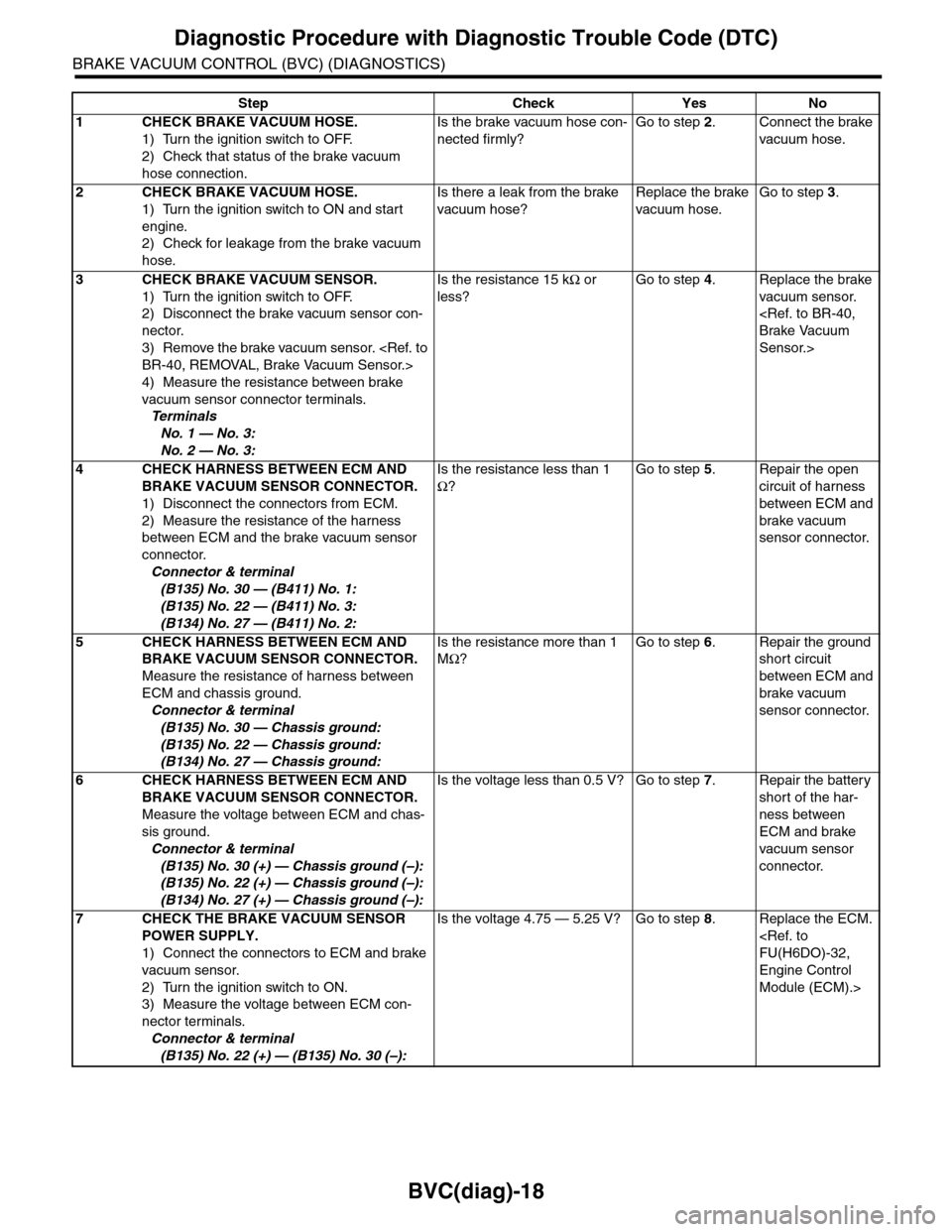

BVC(diag)-18
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
Step Check Yes No
1CHECK BRAKE VACUUM HOSE.
1) Turn the ignition switch to OFF.
2) Check that status of the brake vacuum
hose connection.
Is the brake vacuum hose con-
nected firmly?
Go to step 2.Connect the brake
vacuum hose.
2CHECK BRAKE VACUUM HOSE.
1) Turn the ignition switch to ON and start
engine.
2) Check for leakage from the brake vacuum
hose.
Is there a leak from the brake
vacuum hose?
Replace the brake
vacuum hose.
Go to step 3.
3CHECK BRAKE VACUUM SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the brake vacuum sensor con-
nector.
3) Remove the brake vacuum sensor. BR-40, REMOVAL, Brake Vacuum Sensor.>
4) Measure the resistance between brake
vacuum sensor connector terminals.
Te r m i n a l s
No. 1 — No. 3:
No. 2 — No. 3:
Is the resistance 15 kΩ or
less?
Go to step 4.Replace the brake
vacuum sensor.
Brake Vacuum
Sensor.>
4CHECK HARNESS BETWEEN ECM AND
BRAKE VACUUM SENSOR CONNECTOR.
1) Disconnect the connectors from ECM.
2) Measure the resistance of the harness
between ECM and the brake vacuum sensor
connector.
Connector & terminal
(B135) No. 30 — (B411) No. 1:
(B135) No. 22 — (B411) No. 3:
(B134) No. 27 — (B411) No. 2:
Is the resistance less than 1
Ω?
Go to step 5.Repair the open
circuit of harness
between ECM and
brake vacuum
sensor connector.
5CHECK HARNESS BETWEEN ECM AND
BRAKE VACUUM SENSOR CONNECTOR.
Measure the resistance of harness between
ECM and chassis ground.
Connector & terminal
(B135) No. 30 — Chassis ground:
(B135) No. 22 — Chassis ground:
(B134) No. 27 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 6.Repair the ground
short circuit
between ECM and
brake vacuum
sensor connector.
6CHECK HARNESS BETWEEN ECM AND
BRAKE VACUUM SENSOR CONNECTOR.
Measure the voltage between ECM and chas-
sis ground.
Connector & terminal
(B135) No. 30 (+) — Chassis ground (–):
(B135) No. 22 (+) — Chassis ground (–):
(B134) No. 27 (+) — Chassis ground (–):
Is the voltage less than 0.5 V? Go to step 7.Repair the battery
short of the har-
ness between
ECM and brake
vacuum sensor
connector.
7CHECK THE BRAKE VACUUM SENSOR
POWER SUPPLY.
1) Connect the connectors to ECM and brake
vacuum sensor.
2) Turn the ignition switch to ON.
3) Measure the voltage between ECM con-
nector terminals.
Connector & terminal
(B135) No. 22 (+) — (B135) No. 30 (–):
Is the voltage 4.75 — 5.25 V? Go to step 8.Replace the ECM.
FU(H6DO)-32,
Engine Control
Module (ECM).>

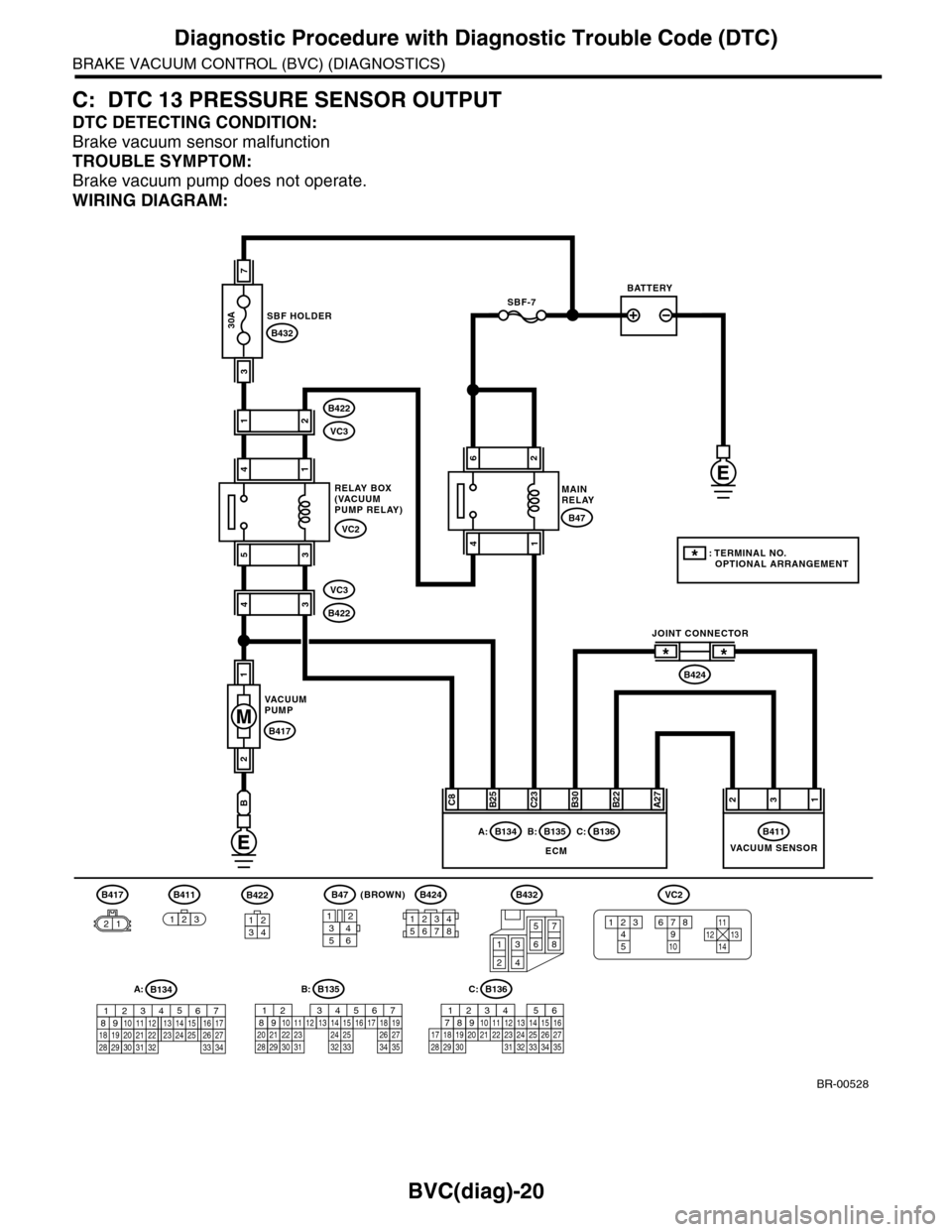

BVC(diag)-20
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
C: DTC 13 PRESSURE SENSOR OUTPUT
DTC DETECTING CONDITION:
Brake vacuum sensor malfunction
TROUBLE SYMPTOM:
Brake vacuum pump does not operate.
WIRING DIAGRAM:
BR-00528
2
1
B25B
B422
1234
B432
2
1
4
36
5
8
7
B432
SBF HOLDER
3
7
14
21
53
43
VC2
VC3
B422
B422
VC3
RELAY BOX(VACUUMPUMP RELAY)
B417
VAC U U MPUMP
26
41
B47
MAINRELAY
B411
VAC U U M S E N S O RECM
A: B134B: B135C: B136
C23B30B22A27C8312
JOINT CONNECTOR
B424
**
B417B411
213
B: C:B135
5672134
29
101112131415252416
30
98171819202821222332312627333435
B136
16101112131415252430
9871718192028212223293231
123456
2726333435
VC2
A:B134
85610 11 12 13 14 157213416
3019 20 2228 29
91718252123 24323126 2733 34
B424
34561278
(BROWN)
21
5436
B47
* : TERMINAL NO. OPTIONAL ARRANGEMENT
21
SBF-7BATTERY
30A
3412
5
8967
10131211
14

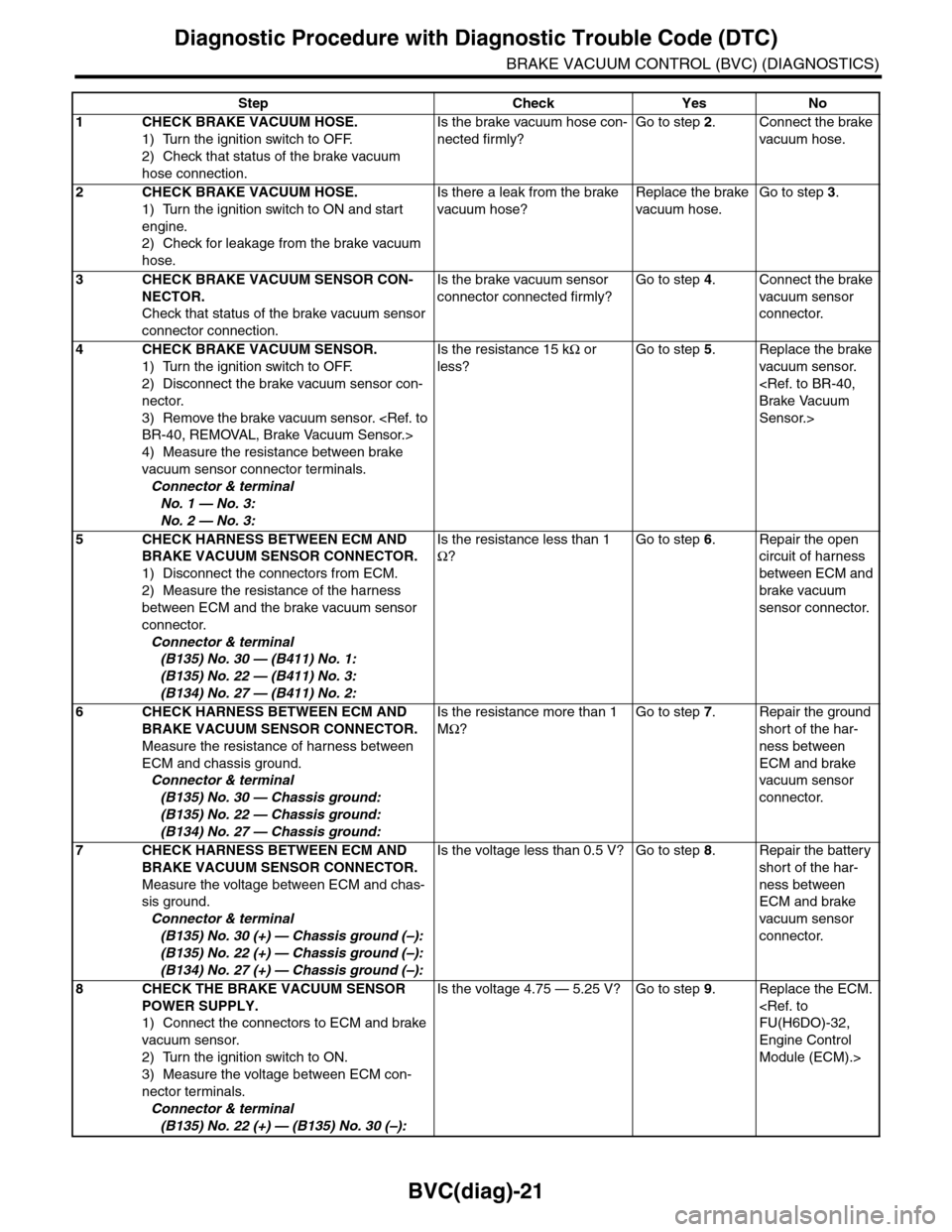

BVC(diag)-21
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
Step Check Yes No
1CHECK BRAKE VACUUM HOSE.
1) Turn the ignition switch to OFF.
2) Check that status of the brake vacuum
hose connection.
Is the brake vacuum hose con-
nected firmly?
Go to step 2.Connect the brake
vacuum hose.
2CHECK BRAKE VACUUM HOSE.
1) Turn the ignition switch to ON and start
engine.
2) Check for leakage from the brake vacuum
hose.
Is there a leak from the brake
vacuum hose?
Replace the brake
vacuum hose.
Go to step 3.
3CHECK BRAKE VACUUM SENSOR CON-
NECTOR.
Check that status of the brake vacuum sensor
connector connection.
Is the brake vacuum sensor
connector connected firmly?
Go to step 4.Connect the brake
vacuum sensor
connector.
4CHECK BRAKE VACUUM SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the brake vacuum sensor con-
nector.
3) Remove the brake vacuum sensor. BR-40, REMOVAL, Brake Vacuum Sensor.>
4) Measure the resistance between brake
vacuum sensor connector terminals.
Connector & terminal
No. 1 — No. 3:
No. 2 — No. 3:
Is the resistance 15 kΩ or
less?
Go to step 5.Replace the brake
vacuum sensor.
Brake Vacuum
Sensor.>
5CHECK HARNESS BETWEEN ECM AND
BRAKE VACUUM SENSOR CONNECTOR.
1) Disconnect the connectors from ECM.
2) Measure the resistance of the harness
between ECM and the brake vacuum sensor
connector.
Connector & terminal
(B135) No. 30 — (B411) No. 1:
(B135) No. 22 — (B411) No. 3:
(B134) No. 27 — (B411) No. 2:
Is the resistance less than 1
Ω?
Go to step 6.Repair the open
circuit of harness
between ECM and
brake vacuum
sensor connector.
6CHECK HARNESS BETWEEN ECM AND
BRAKE VACUUM SENSOR CONNECTOR.
Measure the resistance of harness between
ECM and chassis ground.
Connector & terminal
(B135) No. 30 — Chassis ground:
(B135) No. 22 — Chassis ground:
(B134) No. 27 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 7.Repair the ground
short of the har-
ness between
ECM and brake
vacuum sensor
connector.
7CHECK HARNESS BETWEEN ECM AND
BRAKE VACUUM SENSOR CONNECTOR.
Measure the voltage between ECM and chas-
sis ground.
Connector & terminal
(B135) No. 30 (+) — Chassis ground (–):
(B135) No. 22 (+) — Chassis ground (–):
(B134) No. 27 (+) — Chassis ground (–):
Is the voltage less than 0.5 V? Go to step 8.Repair the battery
short of the har-
ness between
ECM and brake
vacuum sensor
connector.
8CHECK THE BRAKE VACUUM SENSOR
POWER SUPPLY.
1) Connect the connectors to ECM and brake
vacuum sensor.
2) Turn the ignition switch to ON.
3) Measure the voltage between ECM con-
nector terminals.
Connector & terminal
(B135) No. 22 (+) — (B135) No. 30 (–):
Is the voltage 4.75 — 5.25 V? Go to step 9.Replace the ECM.
FU(H6DO)-32,
Engine Control
Module (ECM).>

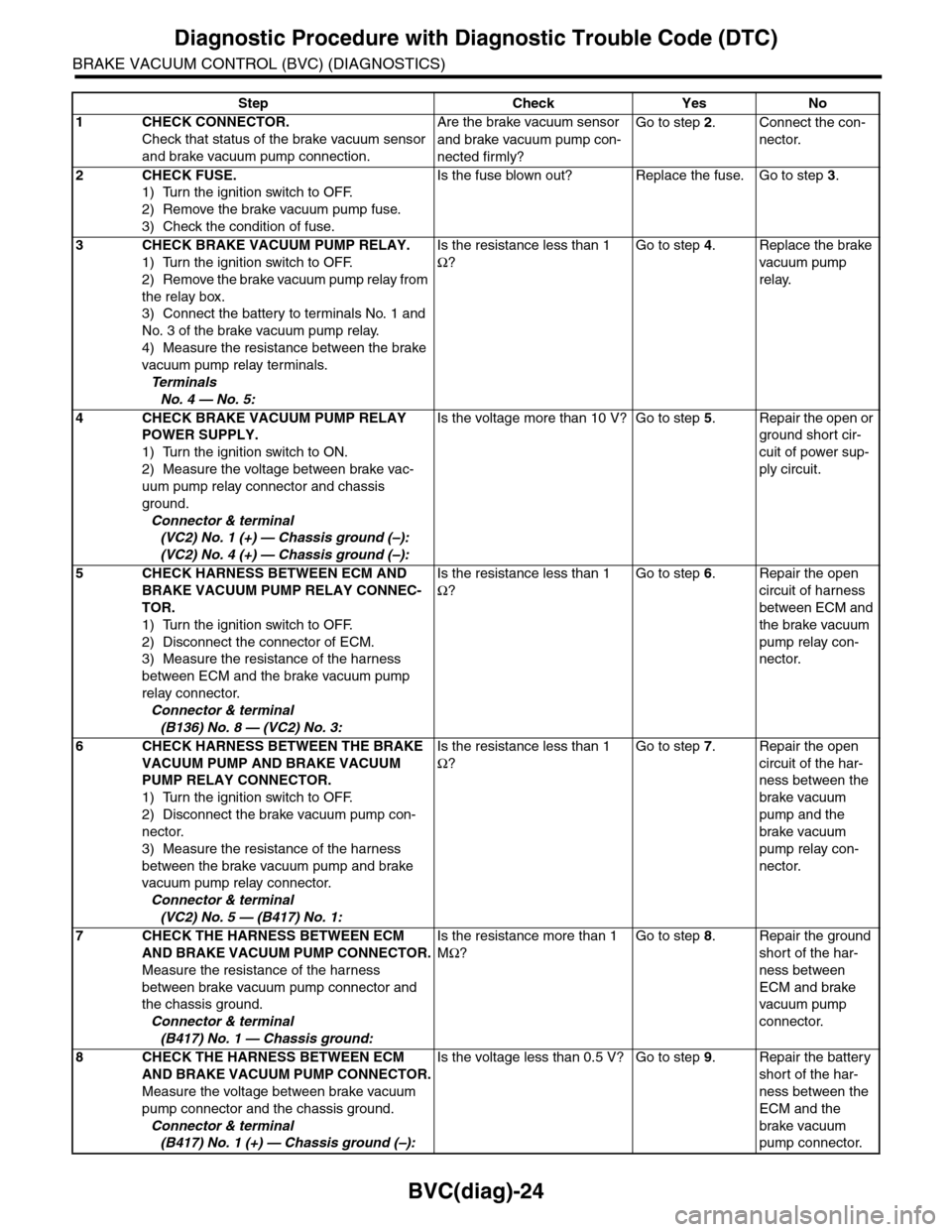

BVC(diag)-24
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
Step Check Yes No
1CHECK CONNECTOR.
Check that status of the brake vacuum sensor
and brake vacuum pump connection.
Are the brake vacuum sensor
and brake vacuum pump con-
nected firmly?
Go to step 2.Connect the con-
nector.
2CHECK FUSE.
1) Turn the ignition switch to OFF.
2) Remove the brake vacuum pump fuse.
3) Check the condition of fuse.
Is the fuse blown out? Replace the fuse. Go to step 3.
3CHECK BRAKE VACUUM PUMP RELAY.
1) Turn the ignition switch to OFF.
2) Remove the brake vacuum pump relay from
the relay box.
3) Connect the battery to terminals No. 1 and
No. 3 of the brake vacuum pump relay.
4) Measure the resistance between the brake
vacuum pump relay terminals.
Te r m i n a l s
No. 4 — No. 5:
Is the resistance less than 1
Ω?
Go to step 4.Replace the brake
vacuum pump
relay.
4CHECK BRAKE VACUUM PUMP RELAY
POWER SUPPLY.
1) Turn the ignition switch to ON.
2) Measure the voltage between brake vac-
uum pump relay connector and chassis
ground.
Connector & terminal
(VC2) No. 1 (+) — Chassis ground (–):
(VC2) No. 4 (+) — Chassis ground (–):
Is the voltage more than 10 V? Go to step 5.Repair the open or
ground short cir-
cuit of power sup-
ply circuit.
5CHECK HARNESS BETWEEN ECM AND
BRAKE VACUUM PUMP RELAY CONNEC-
TOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector of ECM.
3) Measure the resistance of the harness
between ECM and the brake vacuum pump
relay connector.
Connector & terminal
(B136) No. 8 — (VC2) No. 3:
Is the resistance less than 1
Ω?
Go to step 6.Repair the open
circuit of harness
between ECM and
the brake vacuum
pump relay con-
nector.
6CHECK HARNESS BETWEEN THE BRAKE
VACUUM PUMP AND BRAKE VACUUM
PUMP RELAY CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the brake vacuum pump con-
nector.
3) Measure the resistance of the harness
between the brake vacuum pump and brake
vacuum pump relay connector.
Connector & terminal
(VC2) No. 5 — (B417) No. 1:
Is the resistance less than 1
Ω?
Go to step 7.Repair the open
circuit of the har-
ness between the
brake vacuum
pump and the
brake vacuum
pump relay con-
nector.
7CHECK THE HARNESS BETWEEN ECM
AND BRAKE VACUUM PUMP CONNECTOR.
Measure the resistance of the harness
between brake vacuum pump connector and
the chassis ground.
Connector & terminal
(B417) No. 1 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 8.Repair the ground
short of the har-
ness between
ECM and brake
vacuum pump
connector.
8CHECK THE HARNESS BETWEEN ECM
AND BRAKE VACUUM PUMP CONNECTOR.
Measure the voltage between brake vacuum
pump connector and the chassis ground.
Connector & terminal
(B417) No. 1 (+) — Chassis ground (–):
Is the voltage less than 0.5 V? Go to step 9.Repair the battery
short of the har-
ness between the
ECM and the
brake vacuum
pump connector.

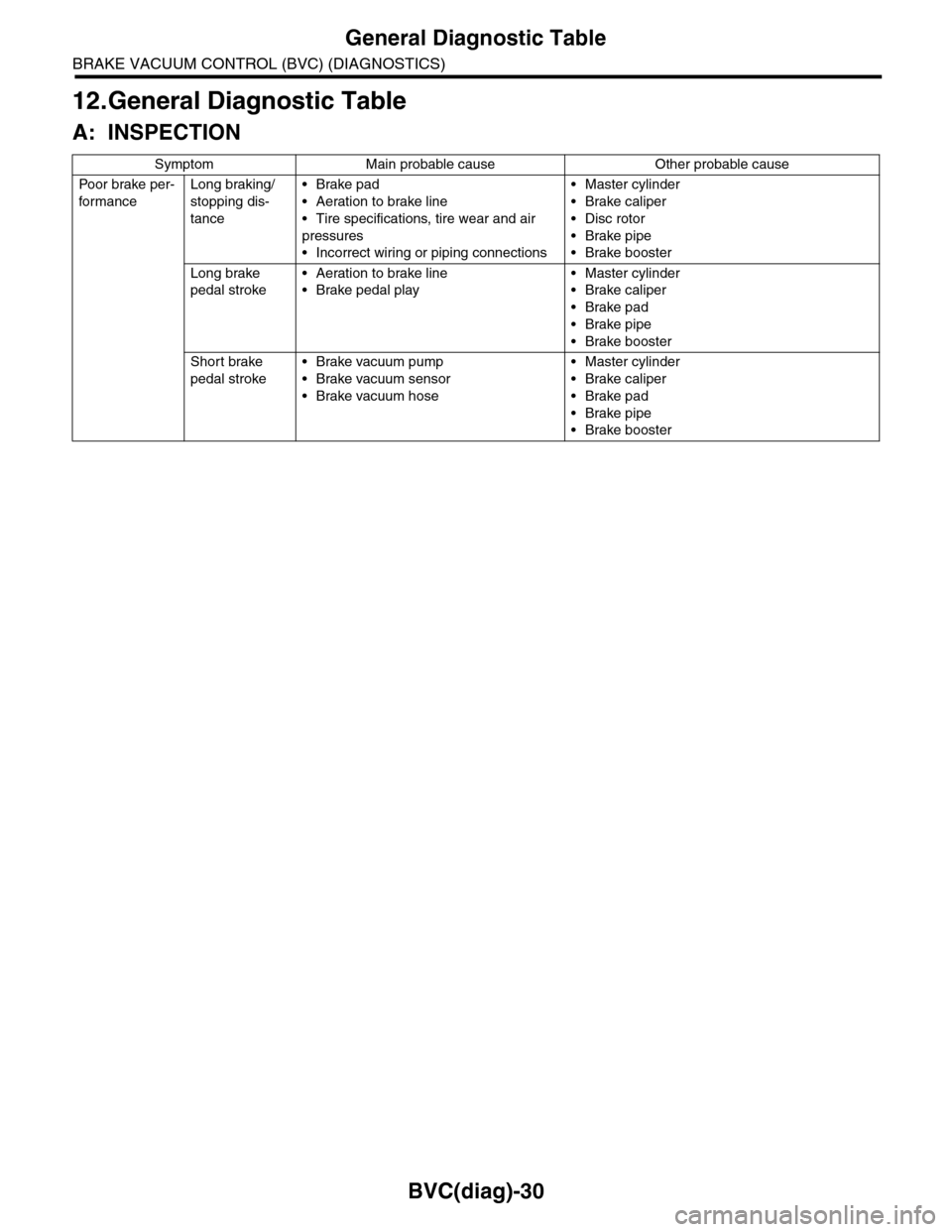

BVC(diag)-30
General Diagnostic Table
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
12.General Diagnostic Table
A: INSPECTION
Symptom Main probable cause Other probable cause
Po or b rake pe r -
for mance
Long braking/
stopping dis-
tance
•Brake pad
•Aeration to brake line
•Tire specifications, tire wear and air
pressures
•Incorrect wiring or piping connections
•Master cylinder
•Brake caliper
•Disc rotor
•Brake pipe
•Brake booster
Long brake
pedal stroke
•Aeration to brake line
•Brake pedal play
•Master cylinder
•Brake caliper
•Brake pad
•Brake pipe
•Brake booster
Short brake
pedal stroke
•Brake vacuum pump
•Brake vacuum sensor
•Brake vacuum hose
•Master cylinder
•Brake caliper
•Brake pad
•Brake pipe
•Brake booster

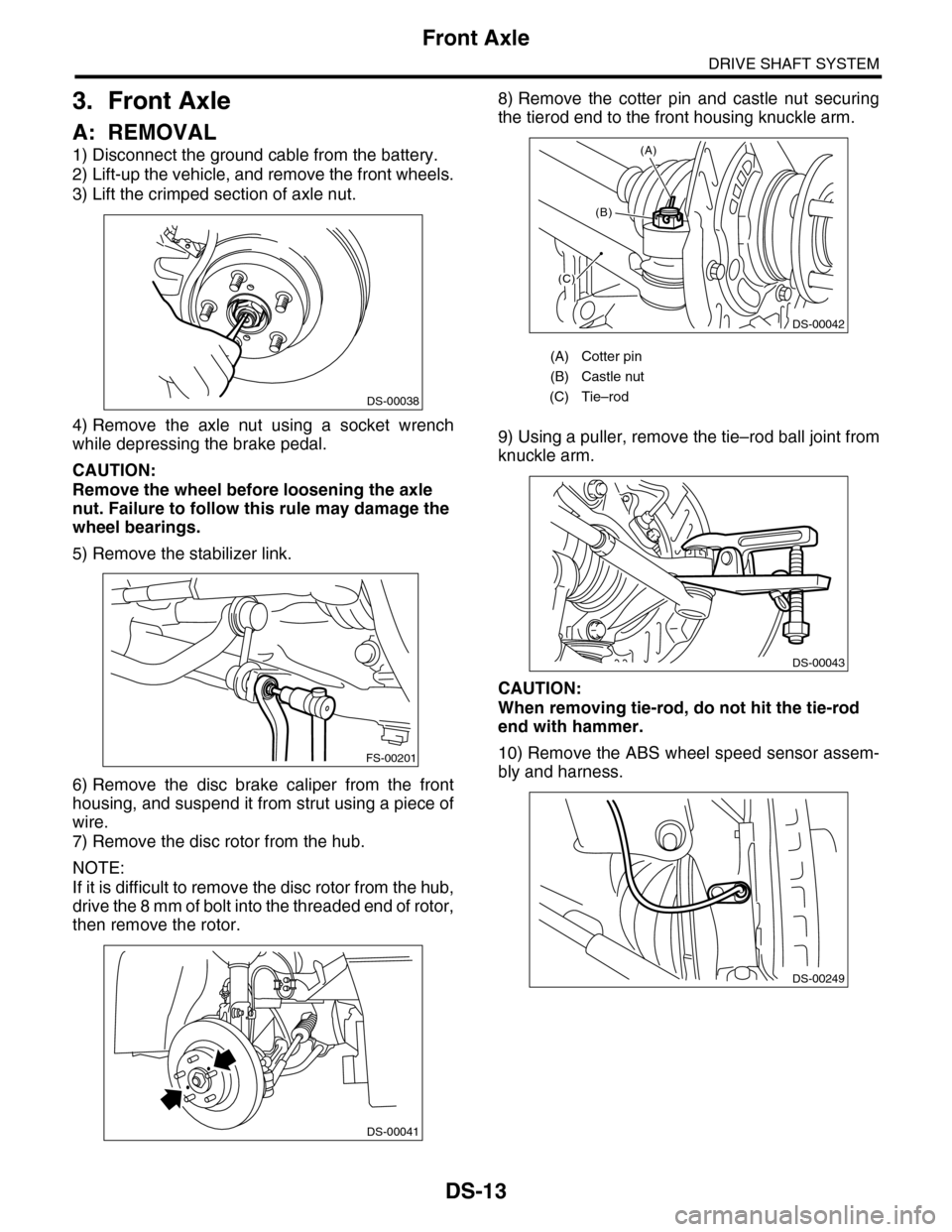

DS-13
Front Axle
DRIVE SHAFT SYSTEM
3. Front Axle
A: REMOVAL
1) Disconnect the ground cable from the battery.
2) Lift-up the vehicle, and remove the front wheels.
3) Lift the crimped section of axle nut.
4) Remove the axle nut using a socket wrench
while depressing the brake pedal.
CAUTION:
Remove the wheel before loosening the axle
nut. Failure to follow this rule may damage the
wheel bearings.
5) Remove the stabilizer link.
6) Remove the disc brake caliper from the front
housing, and suspend it from strut using a piece of
wire.
7) Remove the disc rotor from the hub.
NOTE:
If it is difficult to remove the disc rotor from the hub,
drive the 8 mm of bolt into the threaded end of rotor,
then remove the rotor.
8) Remove the cotter pin and castle nut securing
the tierod end to the front housing knuckle arm.
9) Using a puller, remove the tie–rod ball joint from
knuckle arm.
CAUTION:
When removing tie-rod, do not hit the tie-rod
end with hammer.
10) Remove the ABS wheel speed sensor assem-
bly and harness.
DS-00038
FS-00201
DS-00041
(A) Cotter pin
(B) Castle nut
(C) Tie–rod
DS-00042
(C)
(B)
(A)
DS-00043
DS-00249
