Page 1441 of 1632

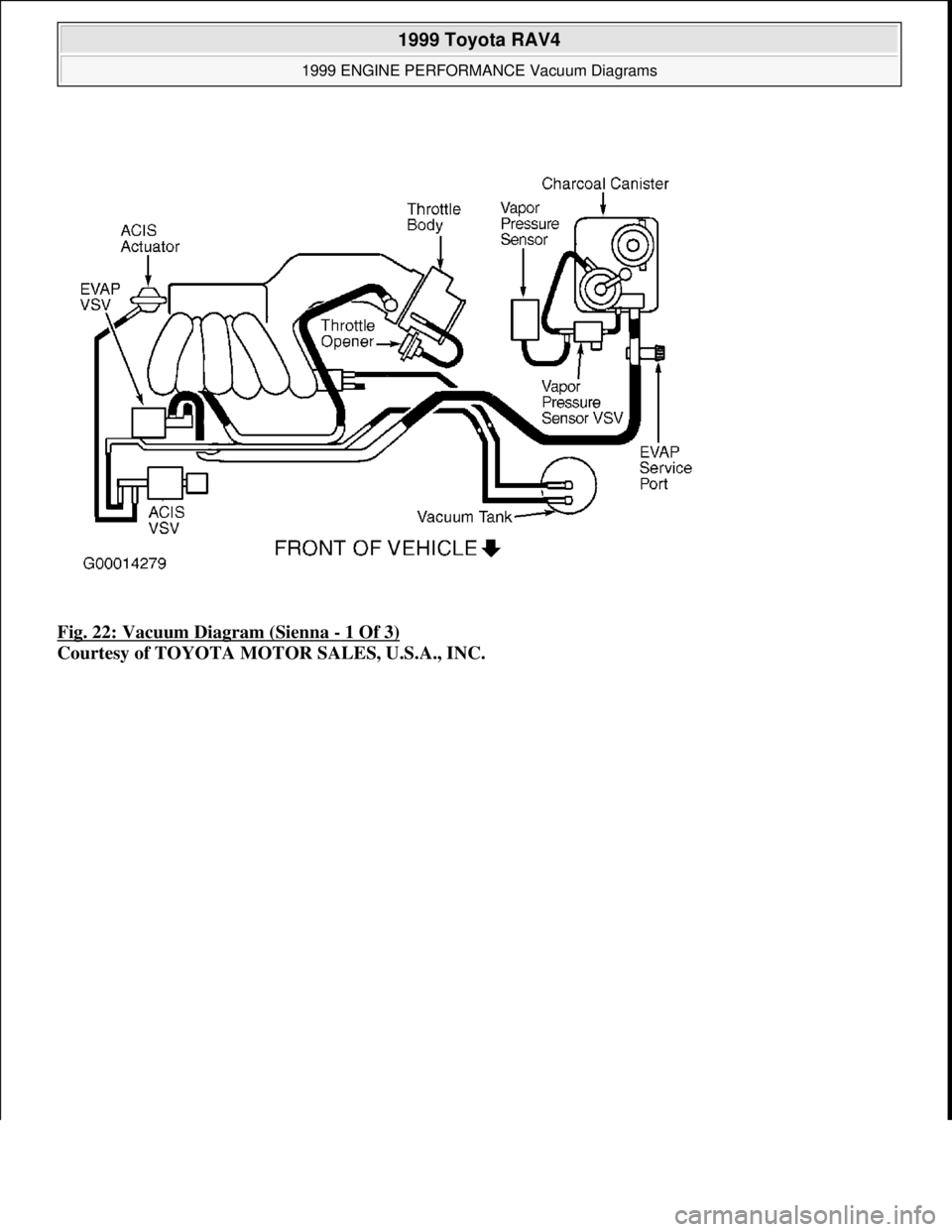

TOYOTA RAV4 1996 Service Repair Manual Fig. 22: Vacuum Diagram (Sienna - 1 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999 ENGINE PERFORMANCE Vacuum Diagrams Microsoft Sunday, November 22, 2009 10:28:32 AMP

Page 1442 of 1632

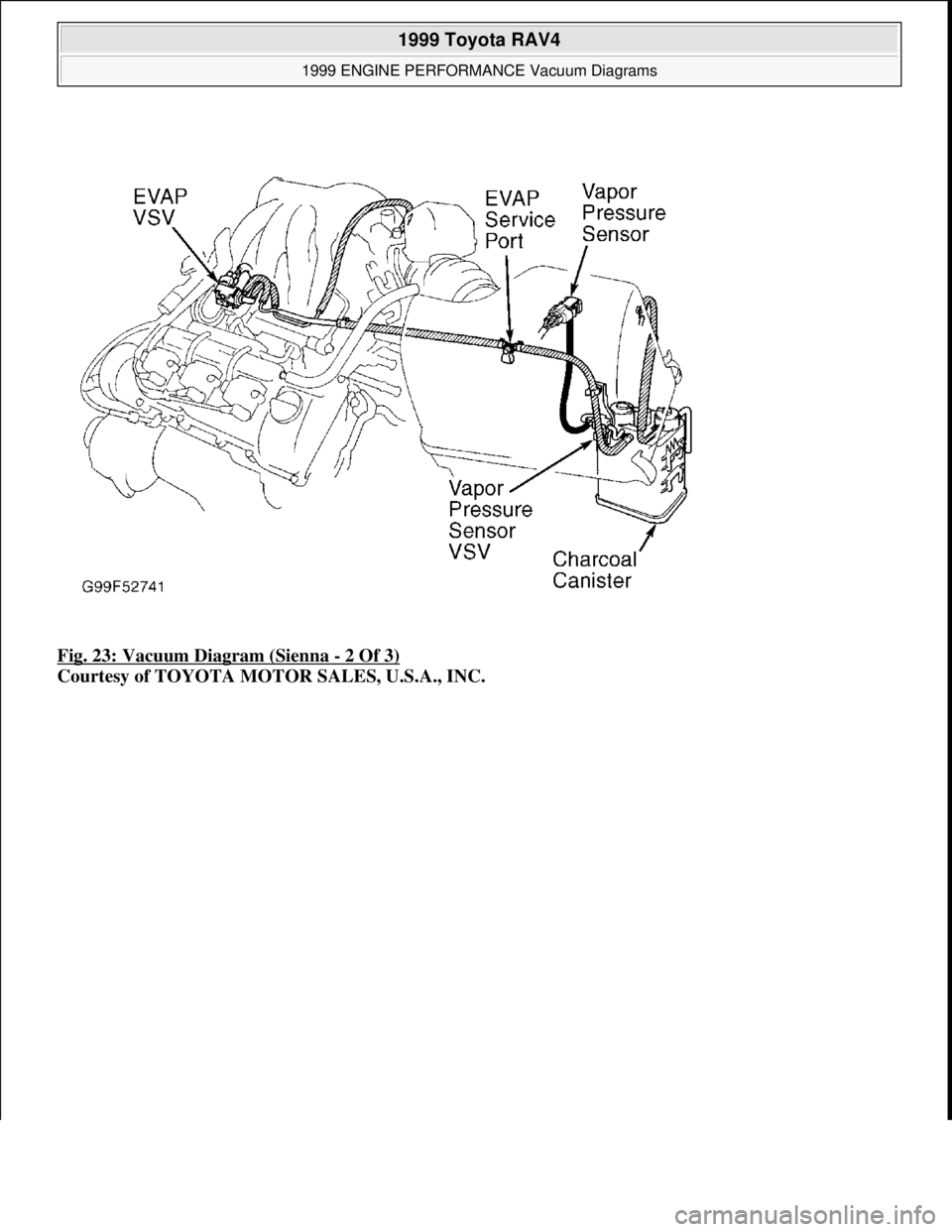

TOYOTA RAV4 1996 Service Repair Manual Fig. 23: Vacuum Diagram (Sienna - 2 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999 ENGINE PERFORMANCE Vacuum Diagrams Microsoft Sunday, November 22, 2009 10:28:32 AMP

Page 1443 of 1632

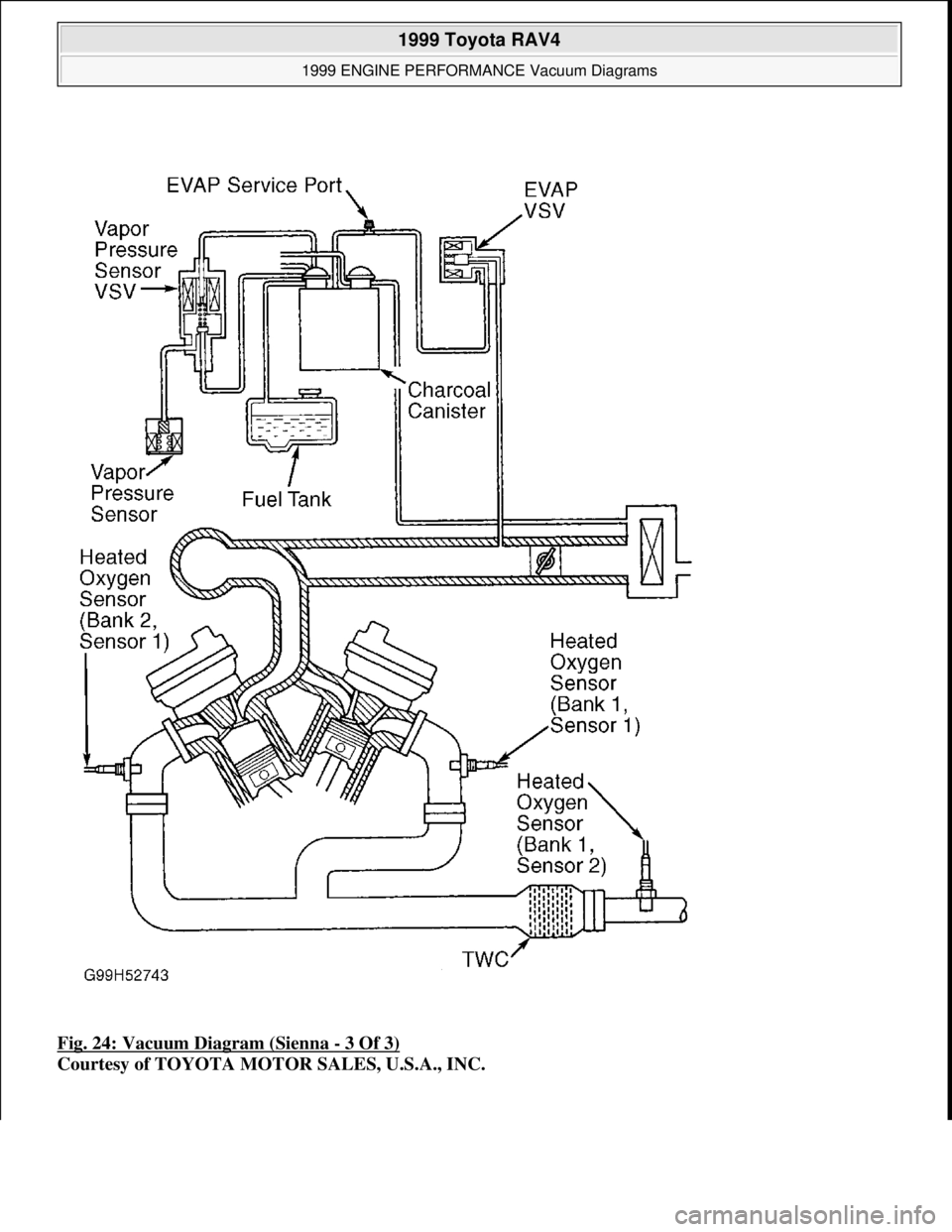

TOYOTA RAV4 1996 Service Repair Manual Fig. 24: Vacuum Diagram (Sienna - 3 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999 ENGINE PERFORMANCE Vacuum Diagrams Microsoft Sunday, November 22, 2009 10:28:32 AMP

Page 1444 of 1632

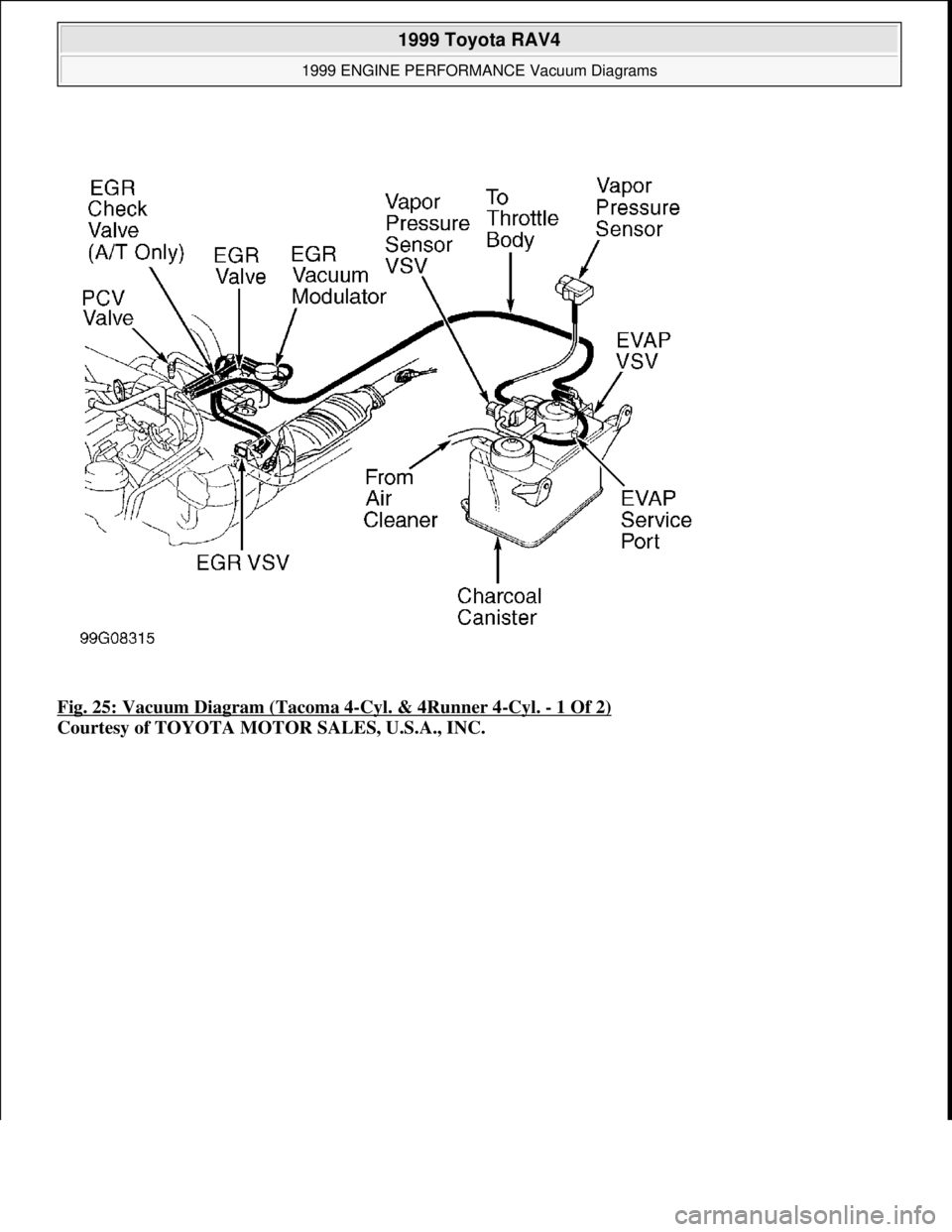

TOYOTA RAV4 1996 Service Repair Manual Fig. 25: Vacuum Diagram (Tacoma 4-Cyl. & 4Runner 4-Cyl. - 1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999 ENGINE PERFORMANCE Vacuum Diagrams Microsoft Sunday, Novemb

Page 1445 of 1632

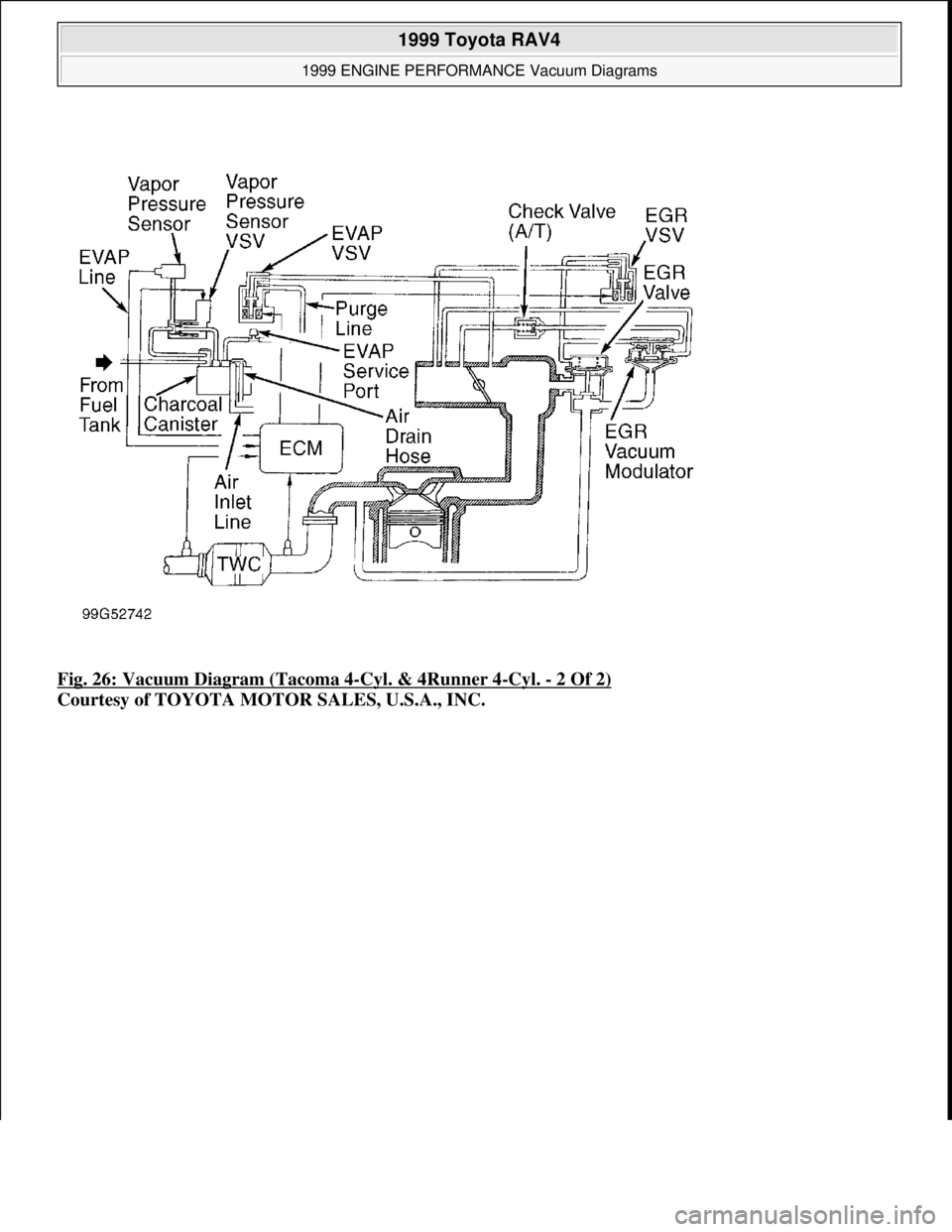

TOYOTA RAV4 1996 Service Repair Manual Fig. 26: Vacuum Diagram (Tacoma 4-Cyl. & 4Runner 4-Cyl. - 2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999 ENGINE PERFORMANCE Vacuum Diagrams Microsoft Sunday, Novemb

Page 1446 of 1632

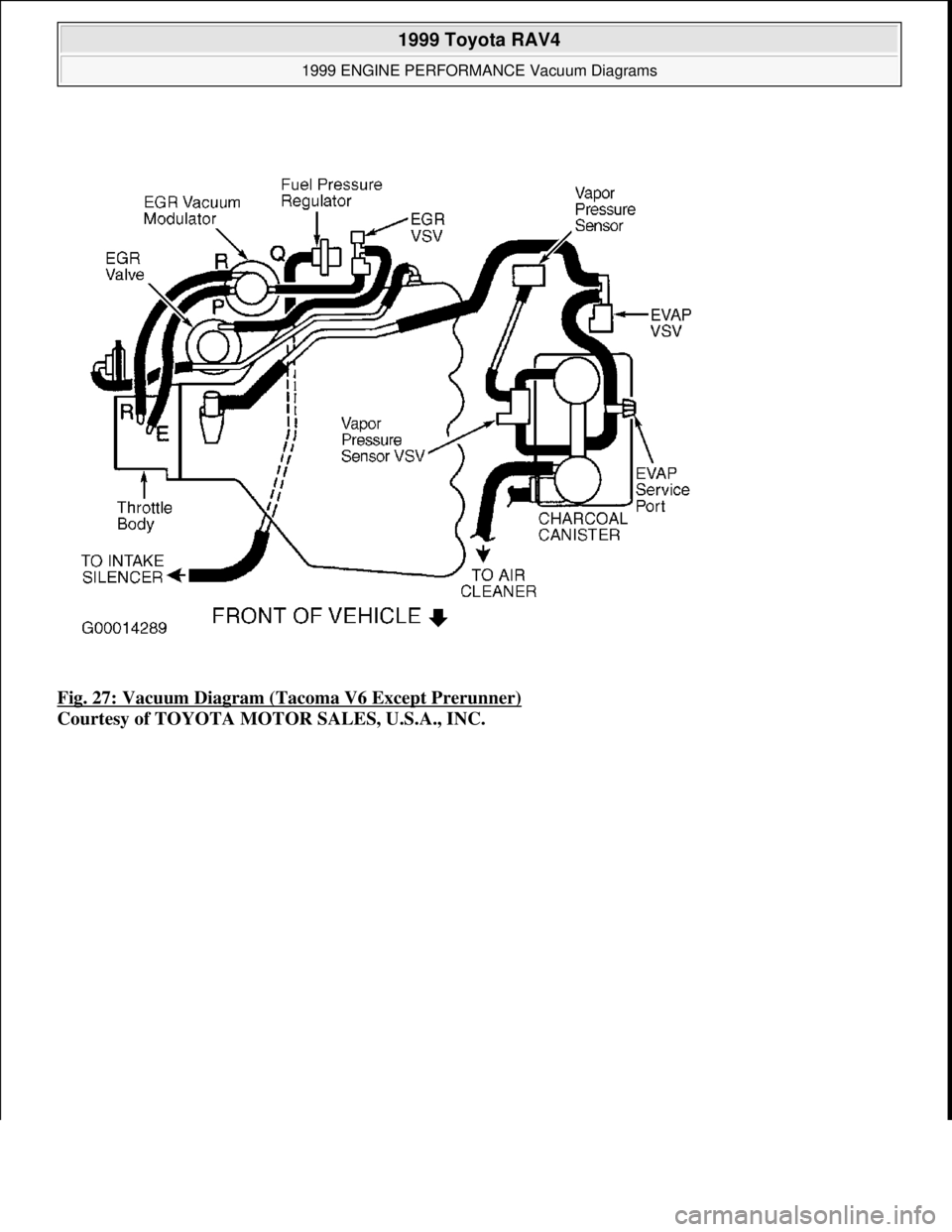

TOYOTA RAV4 1996 Service Repair Manual Fig. 27: Vacuum Diagram (Tacoma V6 Except Prerunner) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999 ENGINE PERFORMANCE Vacuum Diagrams Microsoft Sunday, November 22, 2009 1

Page 1447 of 1632

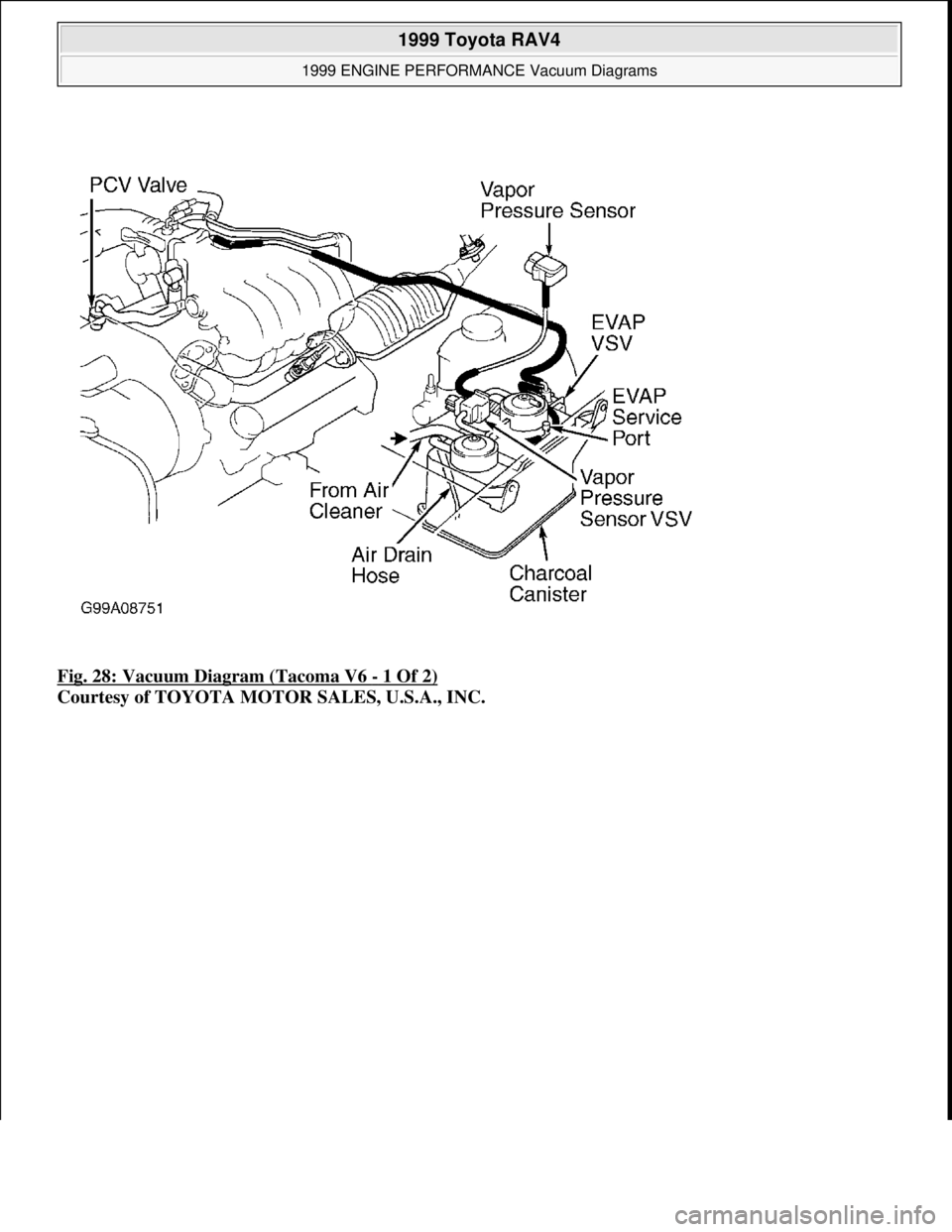

TOYOTA RAV4 1996 Service Repair Manual Fig. 28: Vacuum Diagram (Tacoma V6 - 1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999 ENGINE PERFORMANCE Vacuum Diagrams Microsoft Sunday, November 22, 2009 10:28:32

Page 1448 of 1632

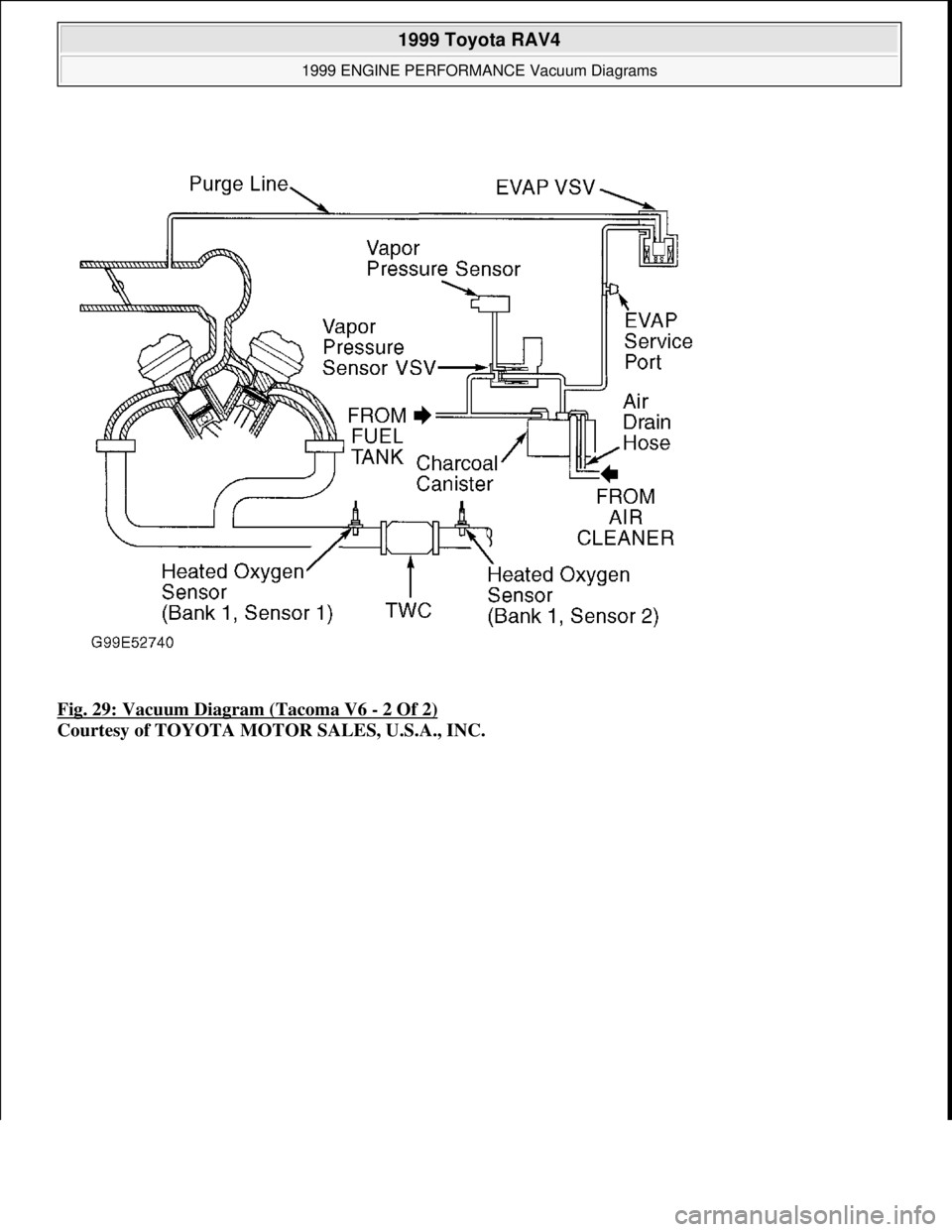

TOYOTA RAV4 1996 Service Repair Manual Fig. 29: Vacuum Diagram (Tacoma V6 - 2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999 ENGINE PERFORMANCE Vacuum Diagrams Microsoft Sunday, November 22, 2009 10:28:32

Page 1449 of 1632

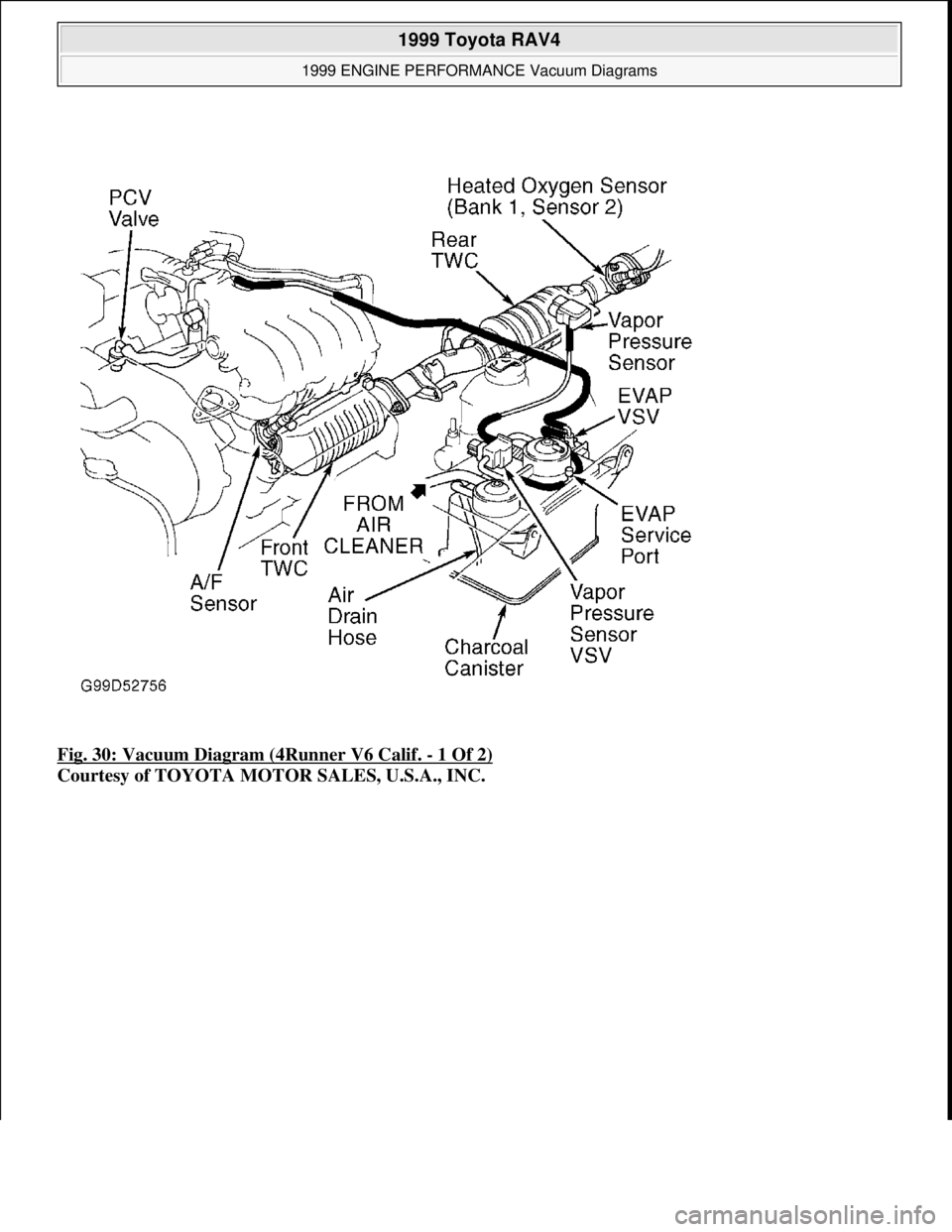

TOYOTA RAV4 1996 Service Repair Manual Fig. 30: Vacuum Diagram (4Runner V6 Calif. - 1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999 ENGINE PERFORMANCE Vacuum Diagrams Microsoft Sunday, November 22, 2009 1

Page 1450 of 1632

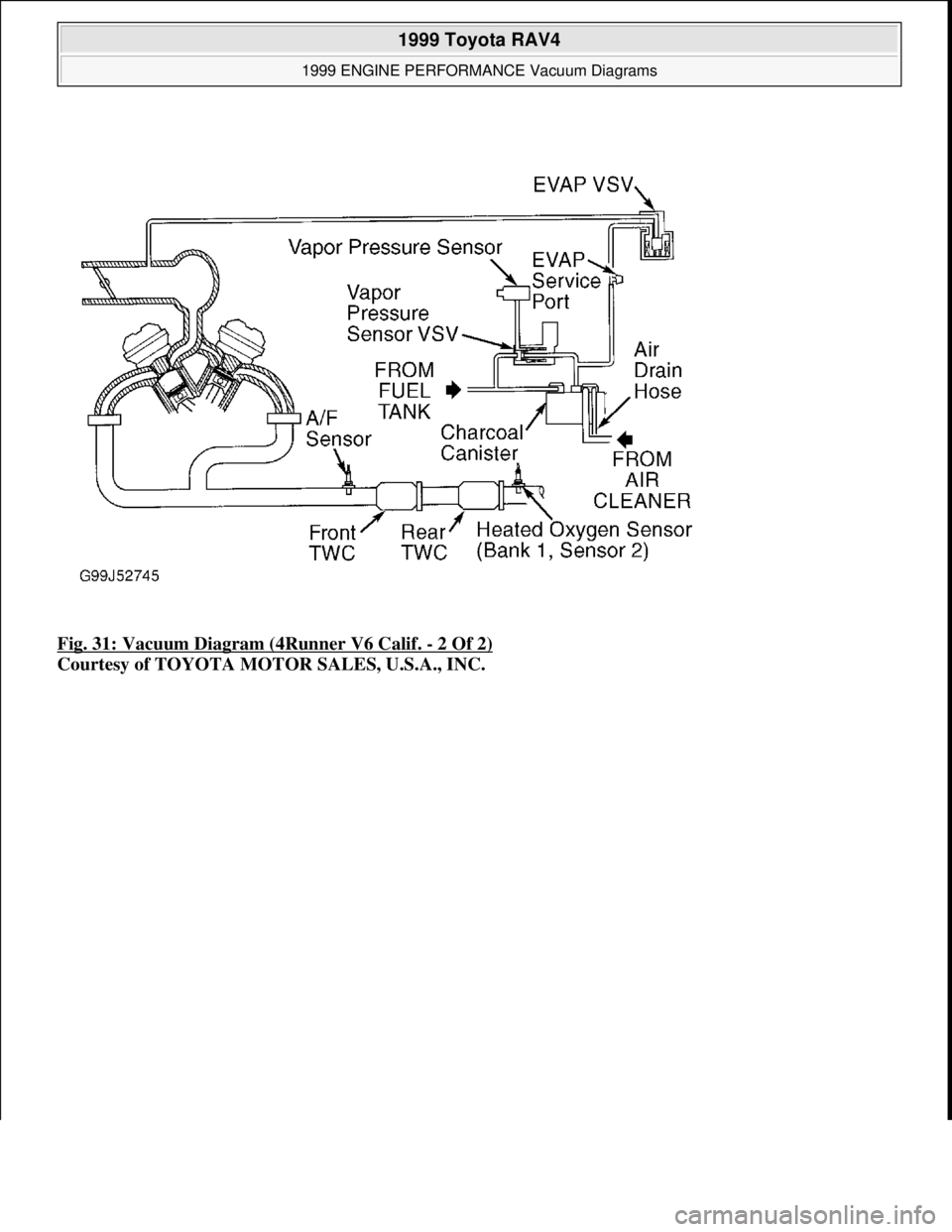

TOYOTA RAV4 1996 Service Repair Manual Fig. 31: Vacuum Diagram (4Runner V6 Calif. - 2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999 ENGINE PERFORMANCE Vacuum Diagrams Microsoft Sunday, November 22, 2009 1
