Page 1611 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 54 © 2005 Mitchell Repair Information Company, LLC.

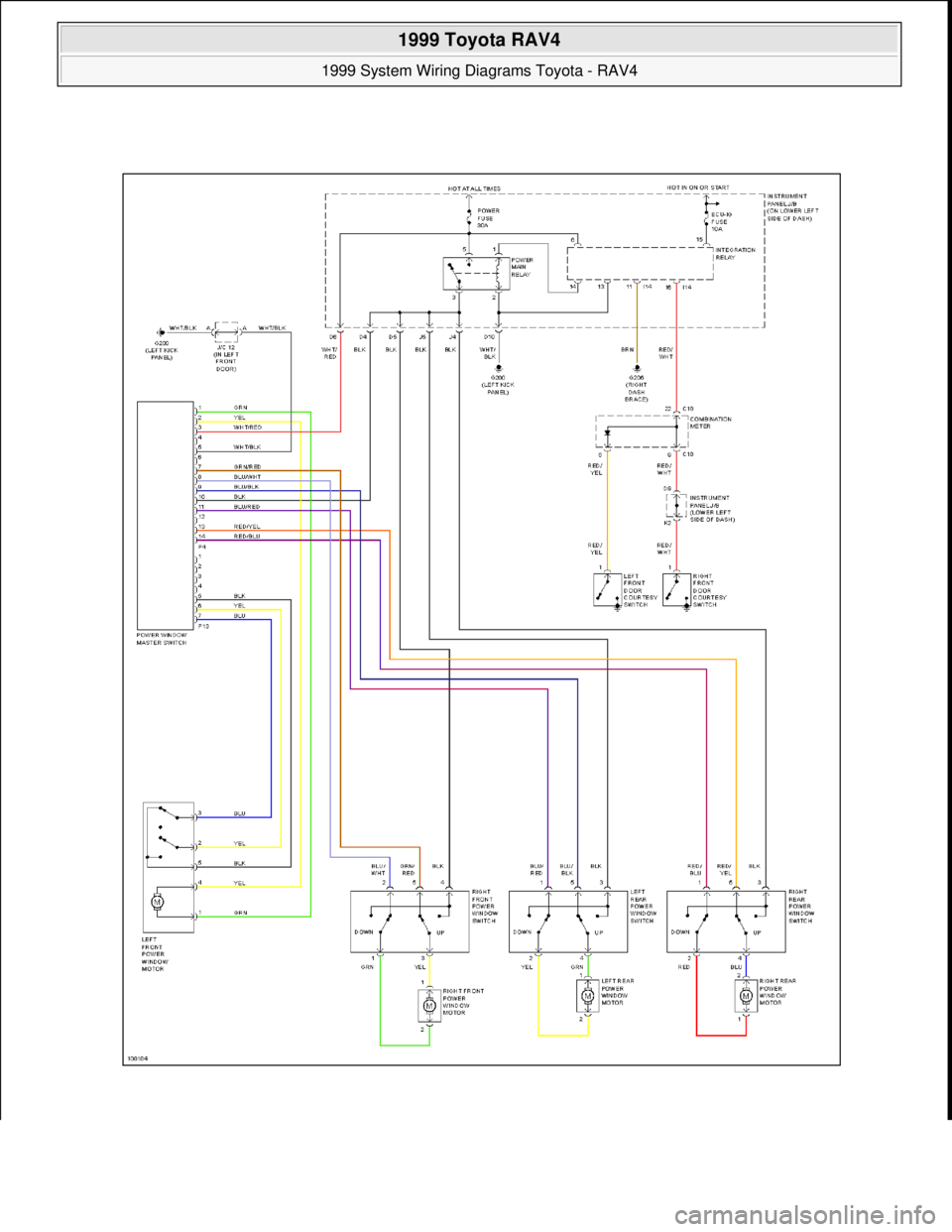

Page 1612 of 1632

TOYOTA RAV4 1996 Service Repair Manual Fig. 27: Power Window Circuit, 4 Door RADIO 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 55 © 2005 Mitchell Repair Informati

Page 1613 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 56 © 2005 Mitchell Repair Information Company, LLC.

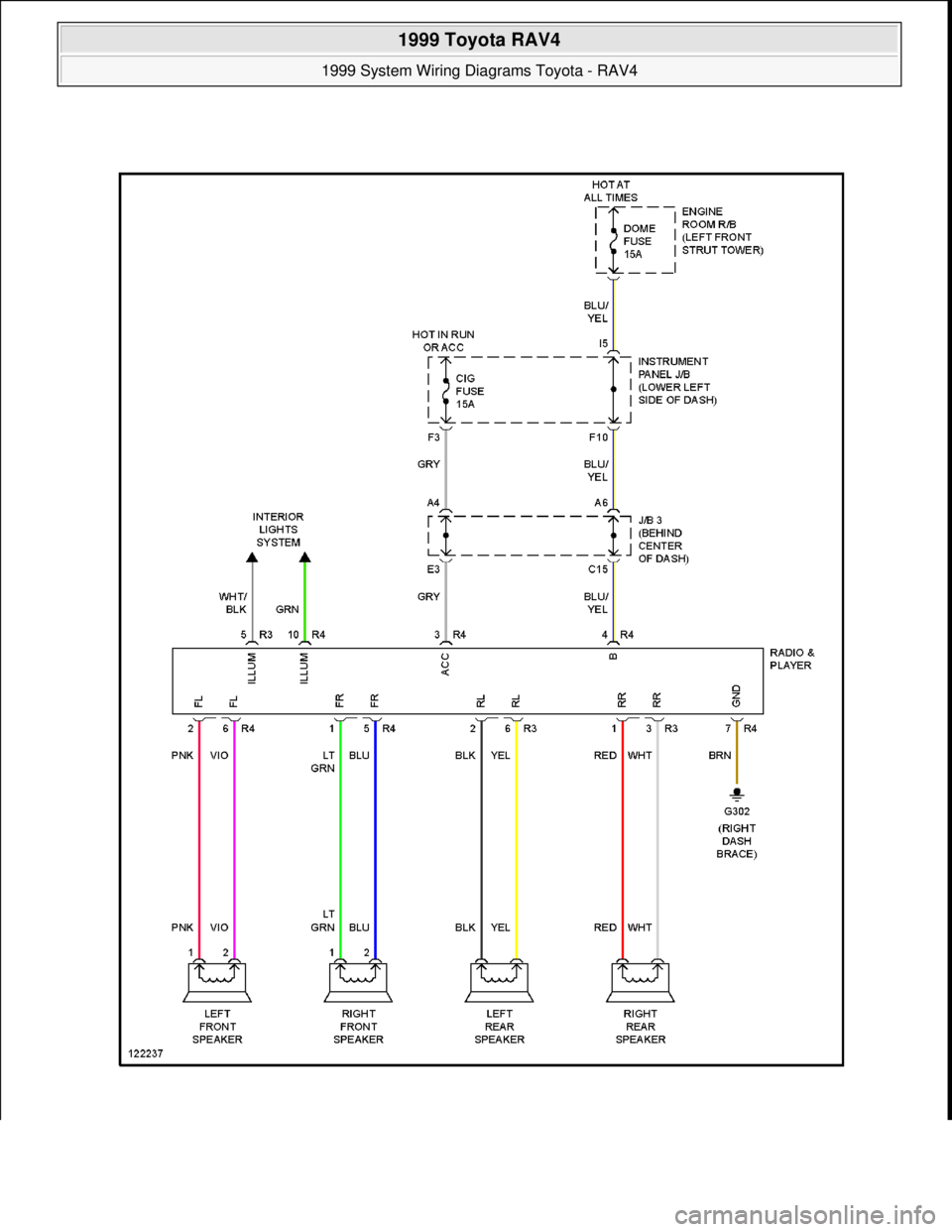

Page 1614 of 1632

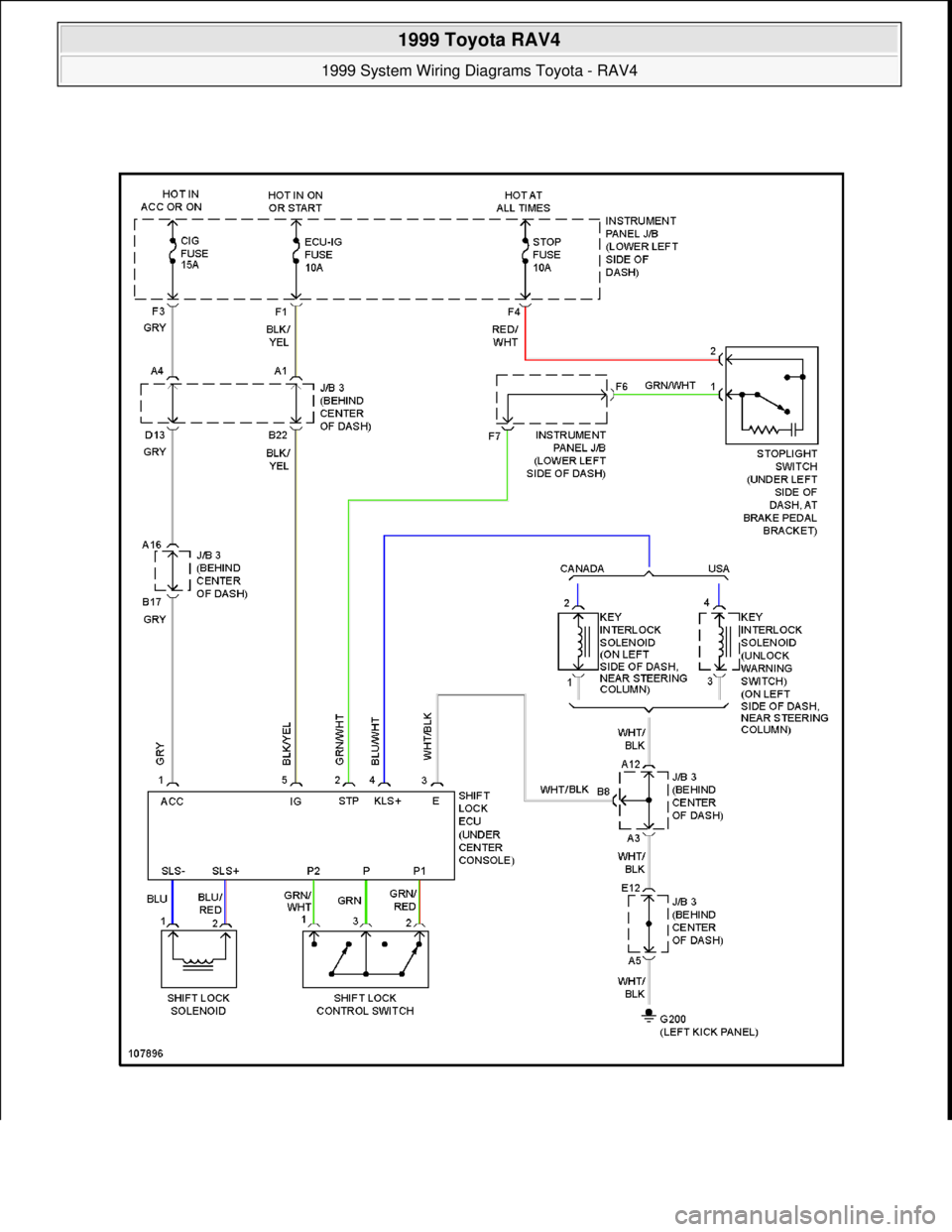

TOYOTA RAV4 1996 Service Repair Manual Fig. 28: Radio Circuits SHIFT INTERLOCKS 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 57 © 2005 Mitchell Repair Information

Page 1615 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 58 © 2005 Mitchell Repair Information Company, LLC.

Page 1616 of 1632

TOYOTA RAV4 1996 Service Repair Manual Fig. 29: Shift Interlock Circuit STARTING/CHARGING 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 59 © 2005 Mitchell Repair In

Page 1617 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 60 © 2005 Mitchell Repair Information Company, LLC.

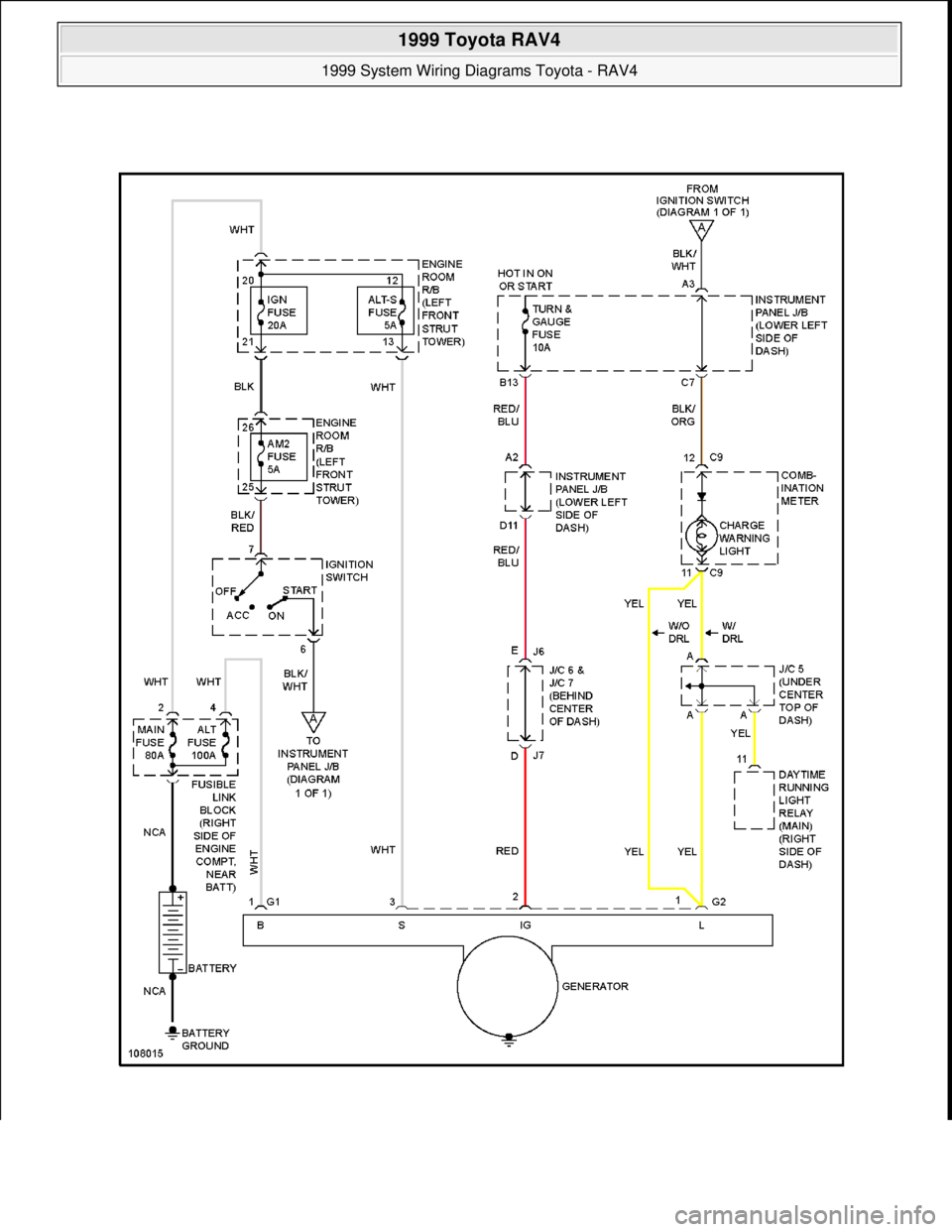

Page 1618 of 1632

TOYOTA RAV4 1996 Service Repair Manual Fig. 30: Charging Circuit 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 61 © 2005 Mitchell Repair Information Company, LLC.

Page 1619 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 62 © 2005 Mitchell Repair Information Company, LLC.

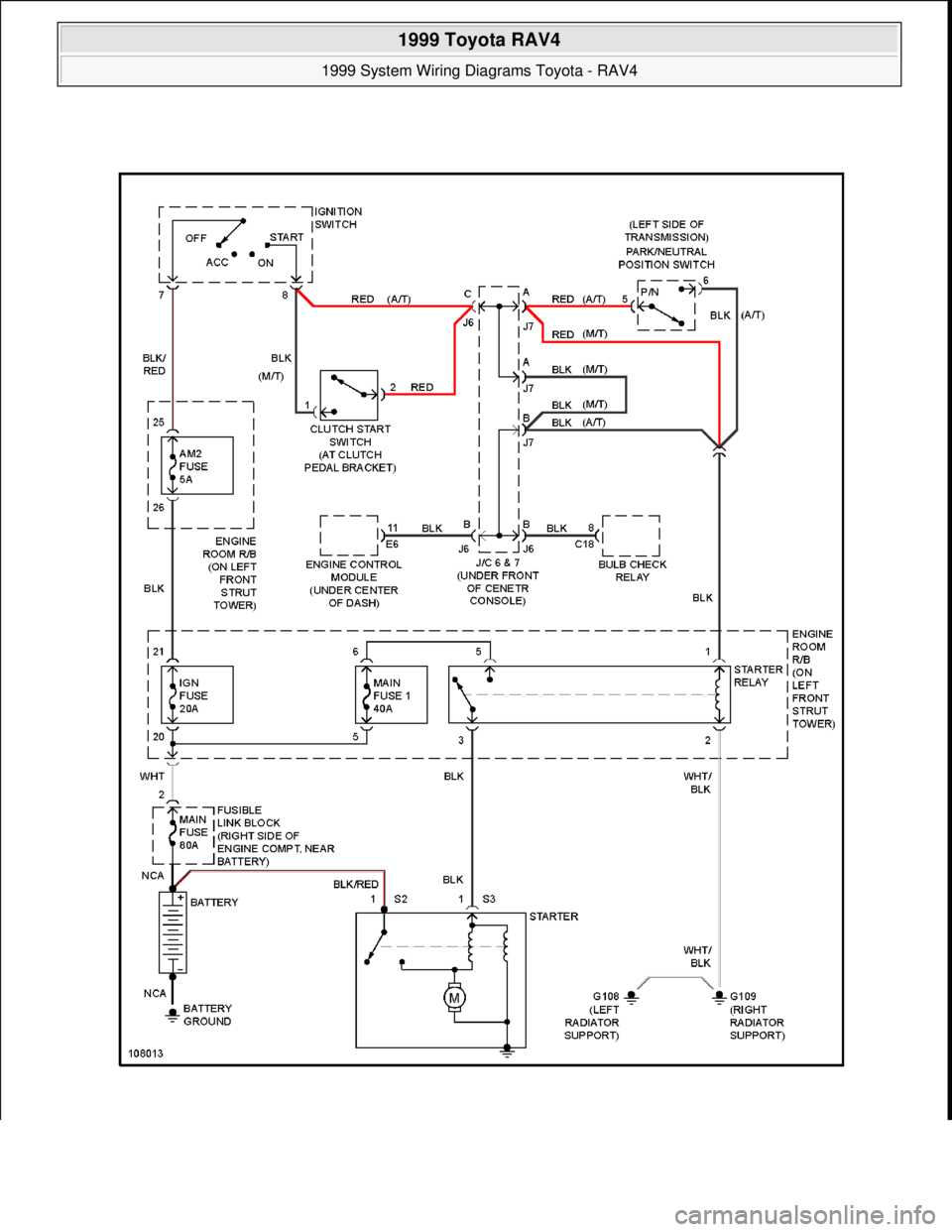

Page 1620 of 1632

TOYOTA RAV4 1996 Service Repair Manual Fig. 31: Starting Circuit SUPPLEMENTAL RESTRAINTS 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 63 © 2005 Mitchell Repair Info
