Page 1601 of 1632

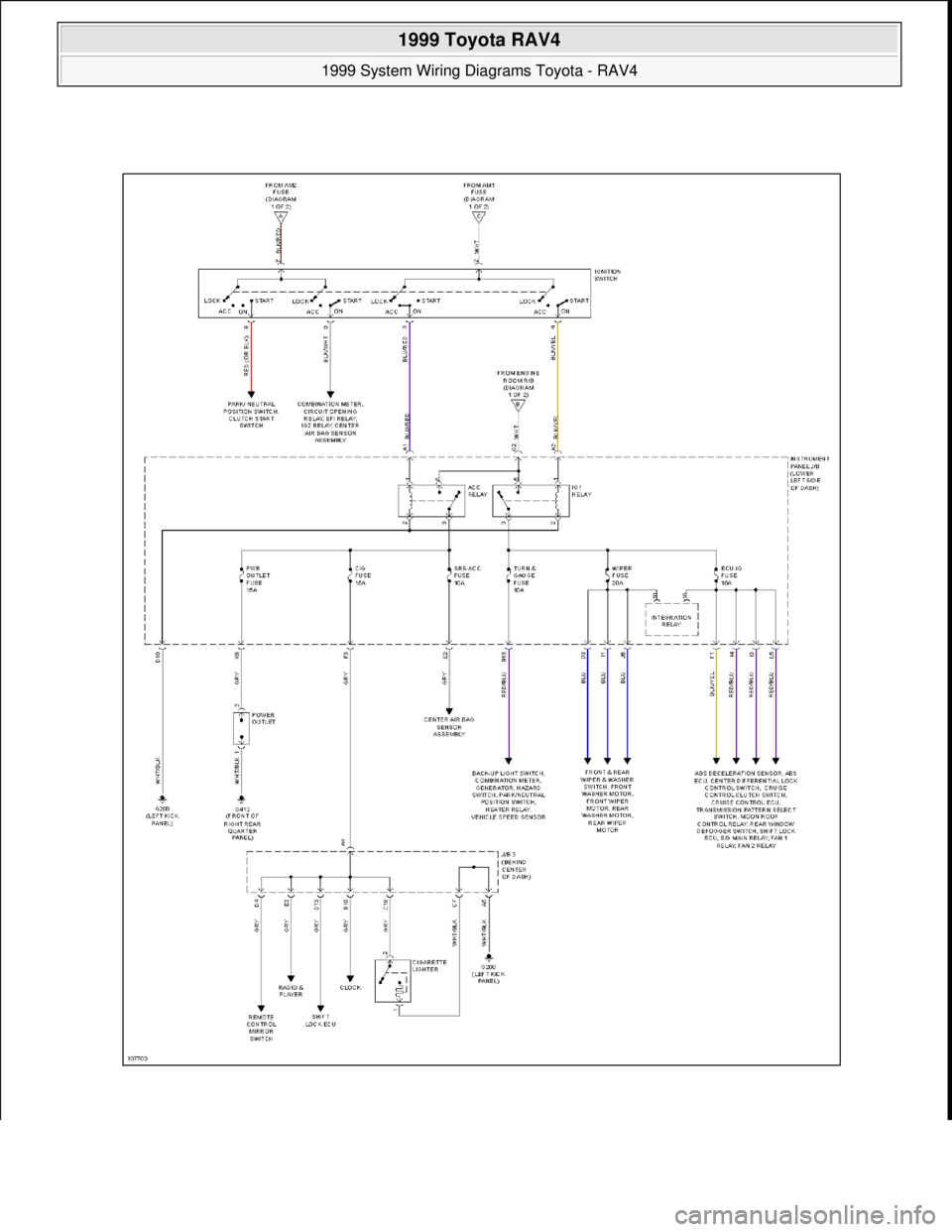

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 44 © 2005 Mitchell Repair Information Company, LLC.

Page 1602 of 1632

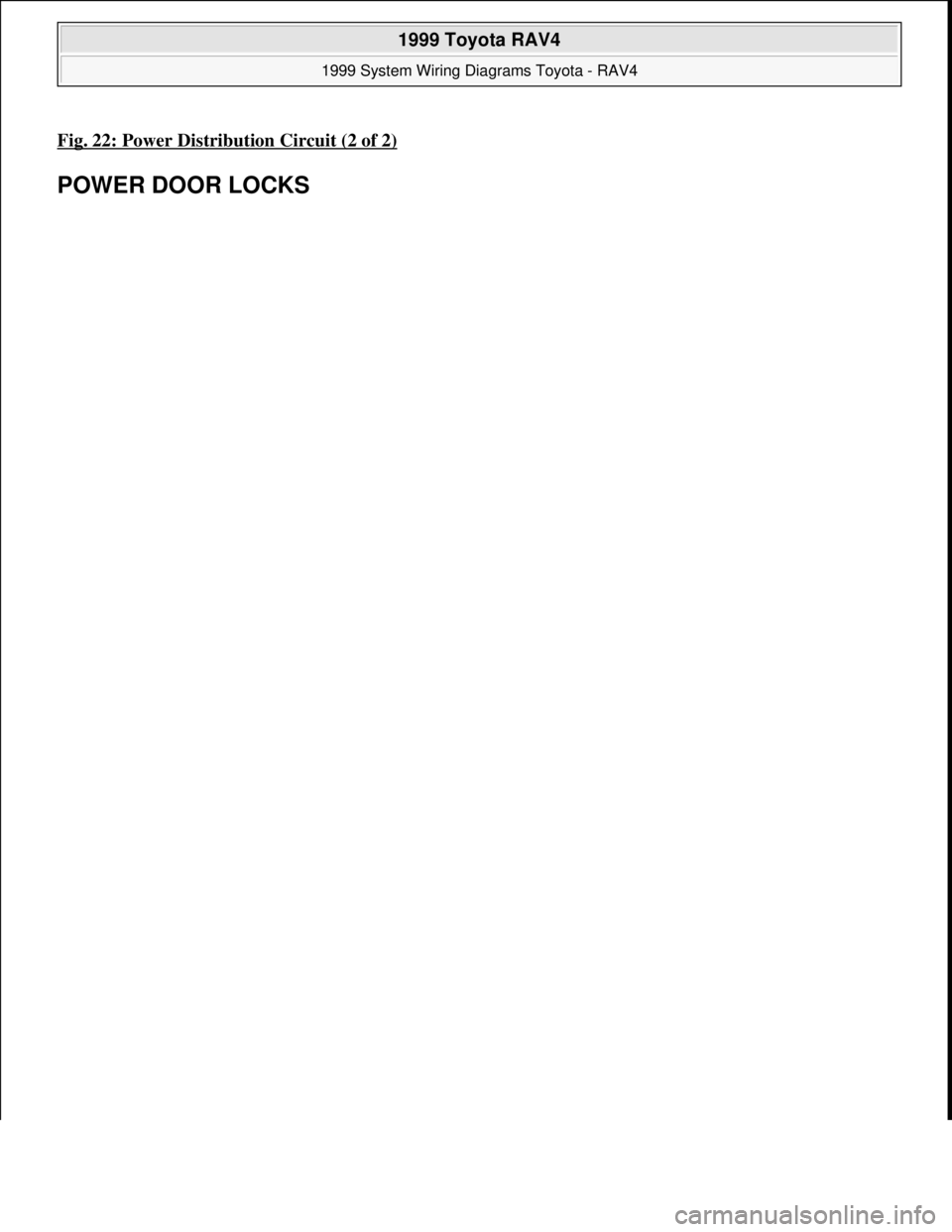

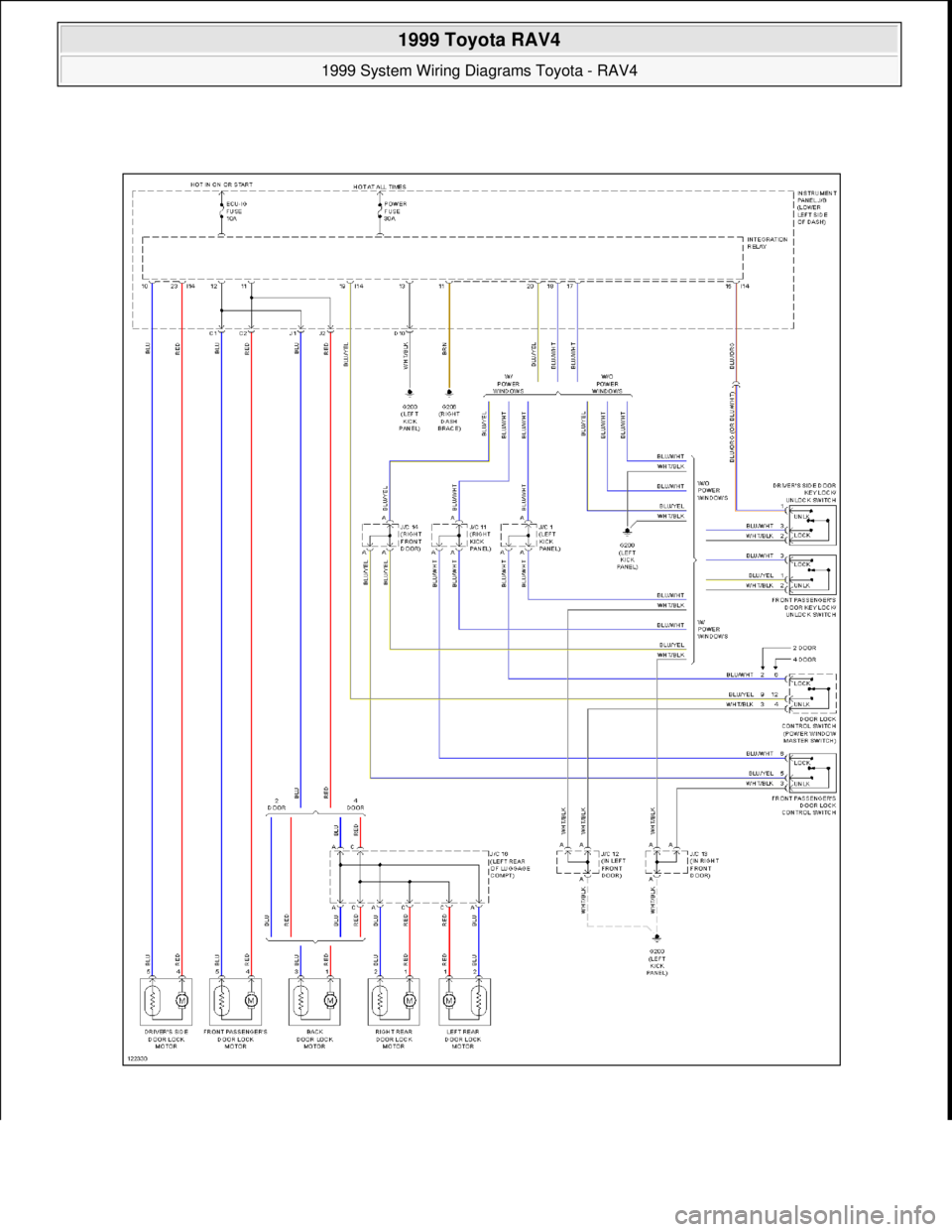

TOYOTA RAV4 1996 Service Repair Manual Fig. 22: Power Distribution Circuit (2 of 2) POWER DOOR LOCKS 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 45 © 2005 Mitchell

Page 1603 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 46 © 2005 Mitchell Repair Information Company, LLC.

Page 1604 of 1632

TOYOTA RAV4 1996 Service Repair Manual Fig. 23: Power Door Lock Circuit POWER MIRRORS 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 47 © 2005 Mitchell Repair Inform

Page 1605 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 48 © 2005 Mitchell Repair Information Company, LLC.

Page 1606 of 1632

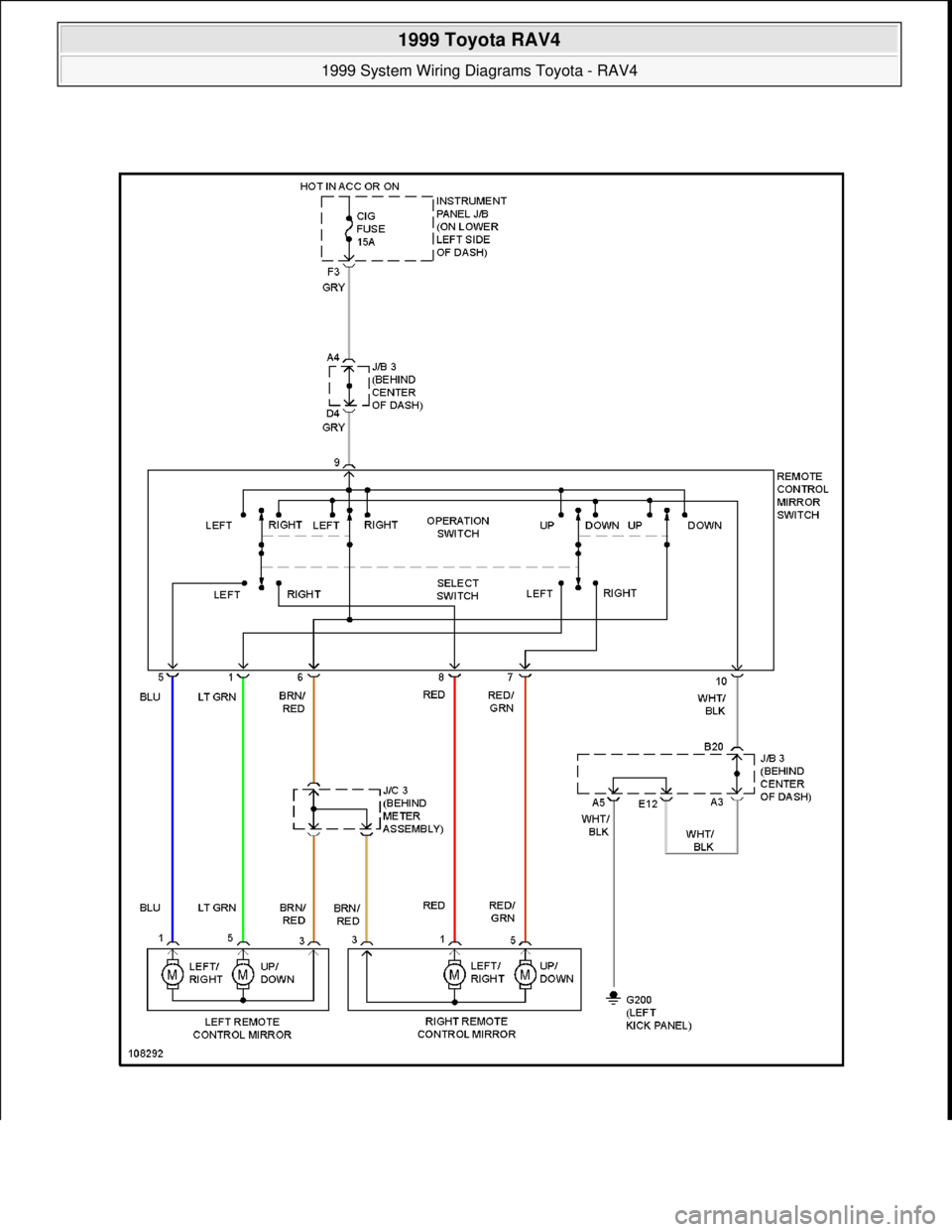

TOYOTA RAV4 1996 Service Repair Manual Fig. 24: Power Mirror Circuit POWER TOP/SUNROOF 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 49 © 2005 Mitchell Repair Infor

Page 1607 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 50 © 2005 Mitchell Repair Information Company, LLC.

Page 1608 of 1632

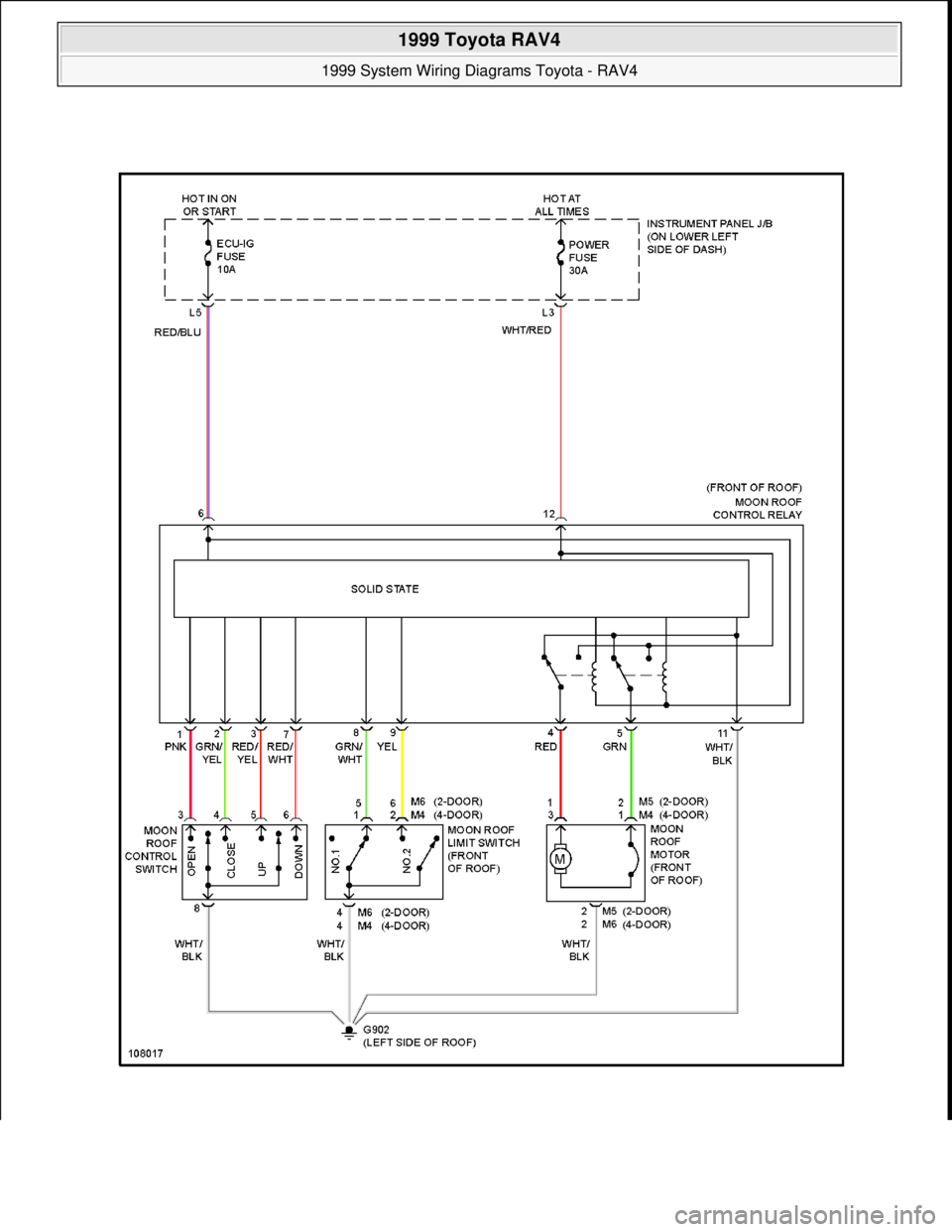

TOYOTA RAV4 1996 Service Repair Manual Fig. 25: Power Top/Sunroof Circuits POWER WINDOWS 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 51 © 2005 Mitchell Repair Inf

Page 1609 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 52 © 2005 Mitchell Repair Information Company, LLC.

Page 1610 of 1632

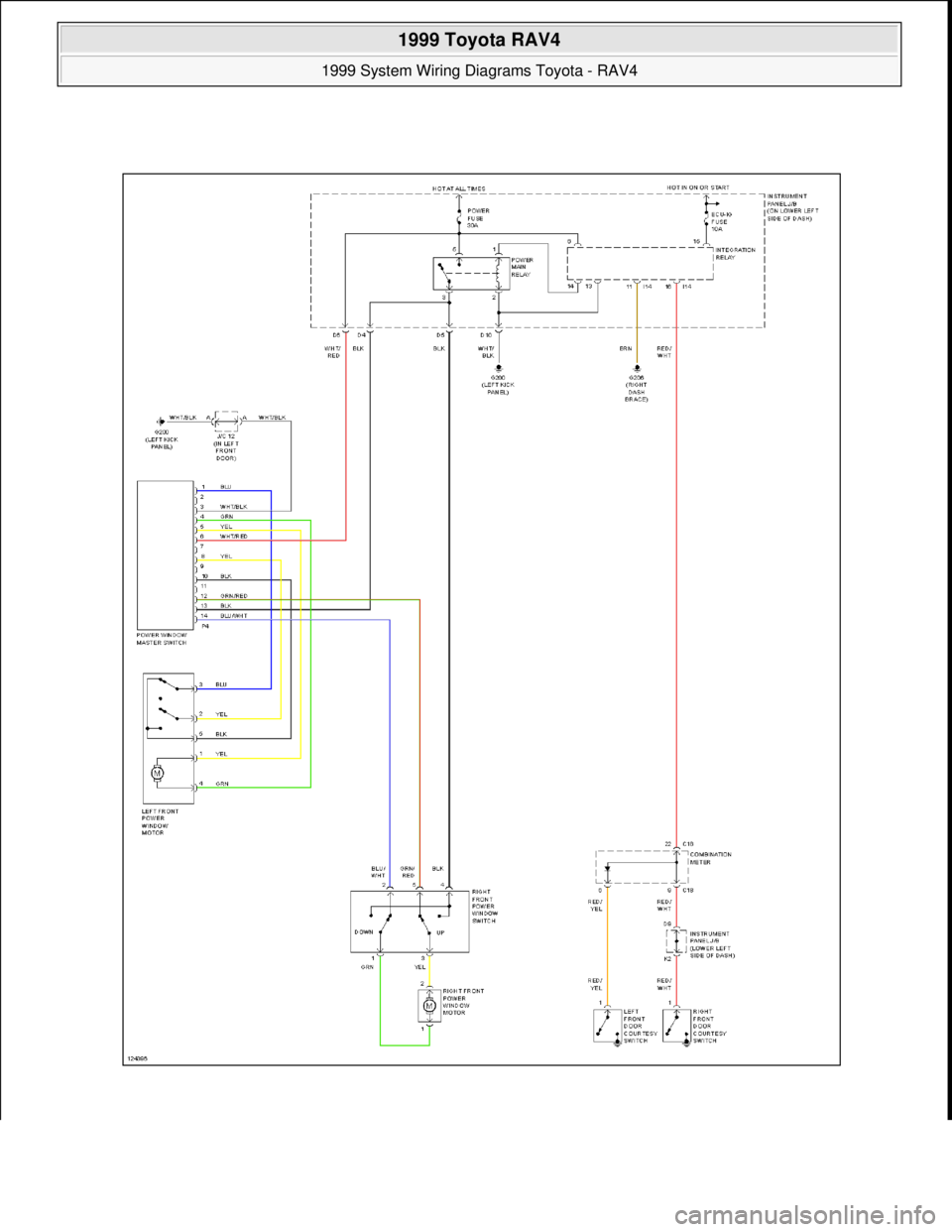

TOYOTA RAV4 1996 Service Repair Manual Fig. 26: Power Window Circuit, 2 Door 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 53 © 2005 Mitchell Repair Information Comp
