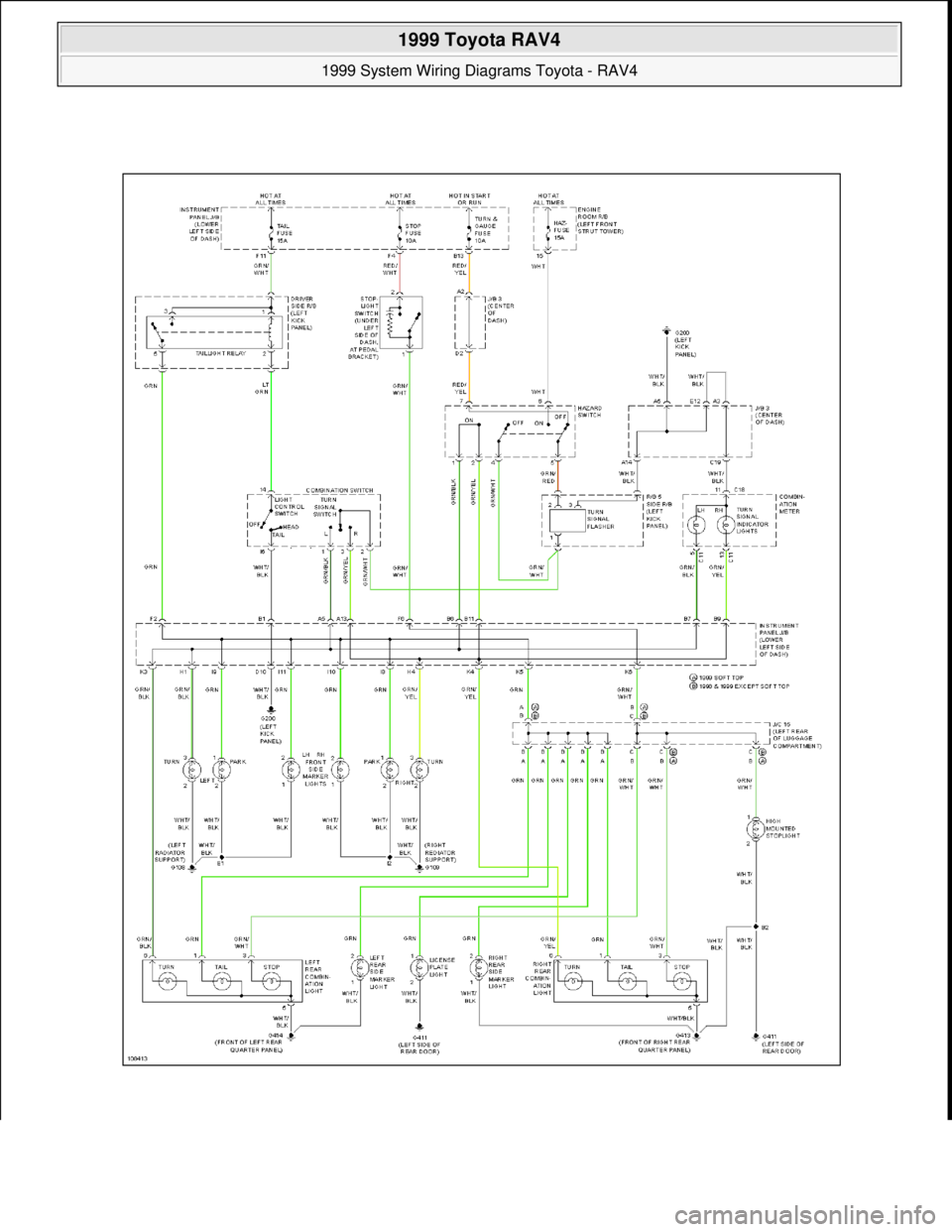

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 24 © 2005 Mitchell Repair Information Company, LLC.

Page 1582 of 1632

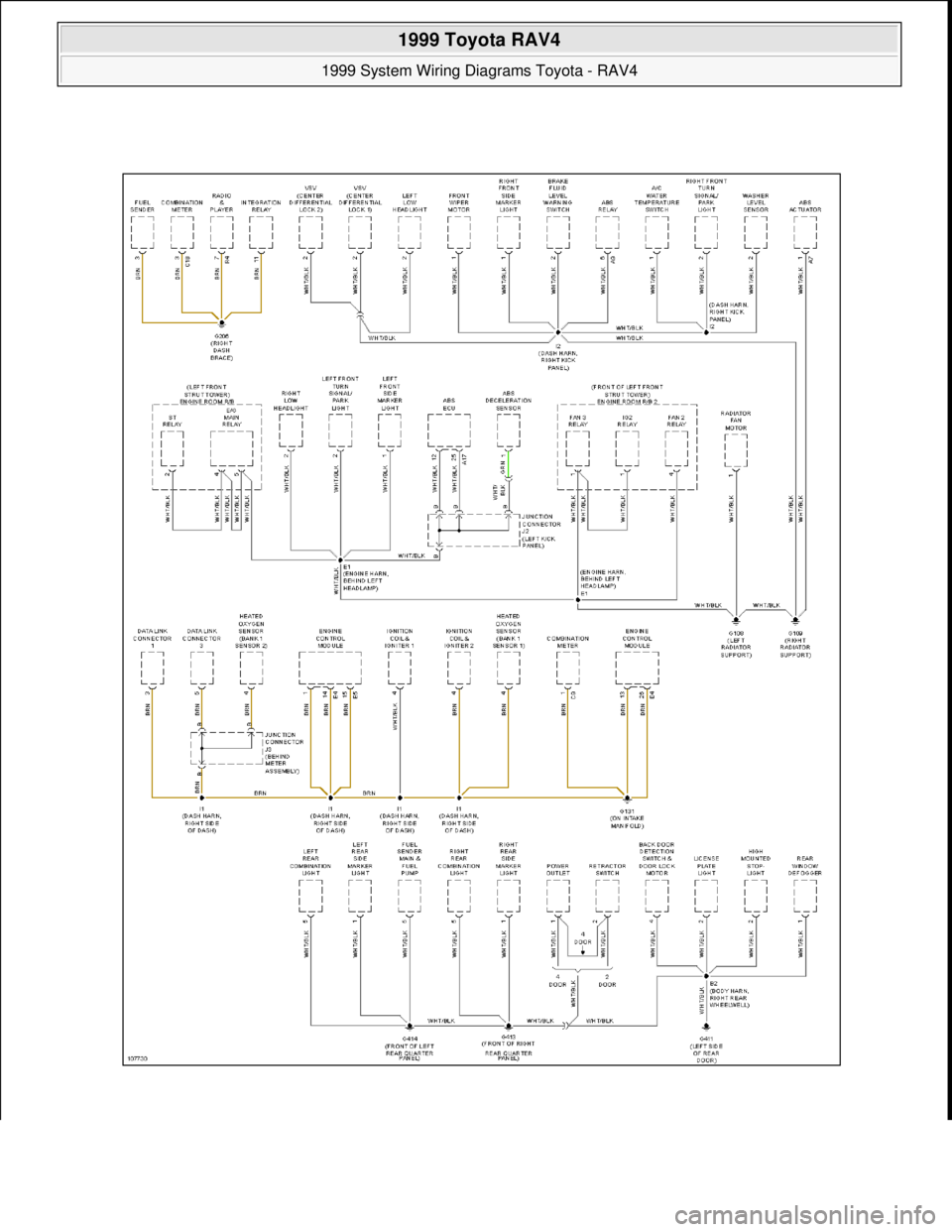

TOYOTA RAV4 1996 Service Repair Manual Fig. 12: Exterior Lamps Circuit GROUND DISTRIBUTION 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 25 © 2005 Mitchell Repair I

Page 1583 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 26 © 2005 Mitchell Repair Information Company, LLC.

Page 1584 of 1632

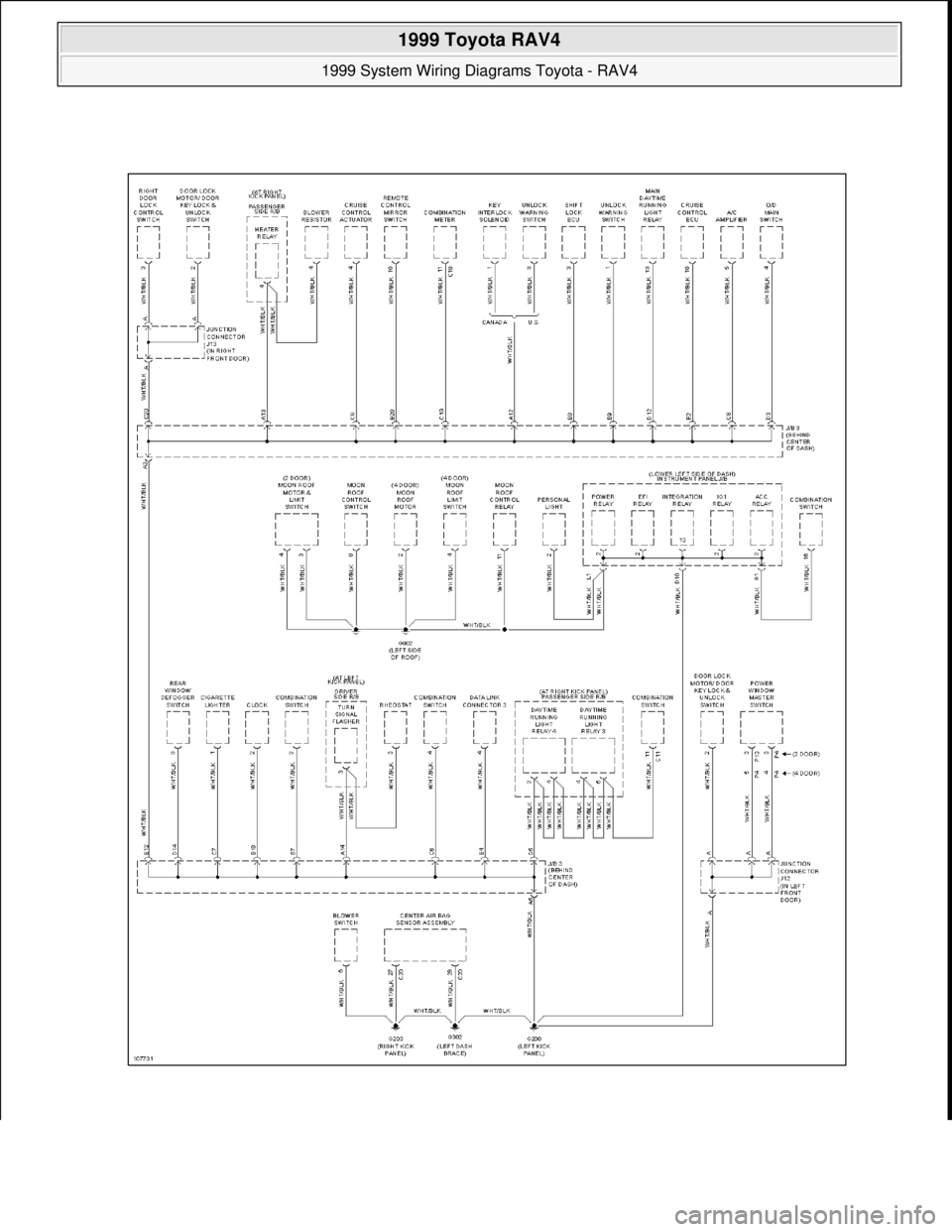

TOYOTA RAV4 1996 Service Repair Manual Fig. 13: Ground Distribution Circuit (1 of 2) 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 27 © 2005 Mitchell Repair Informati

Page 1585 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 28 © 2005 Mitchell Repair Information Company, LLC.

Page 1586 of 1632

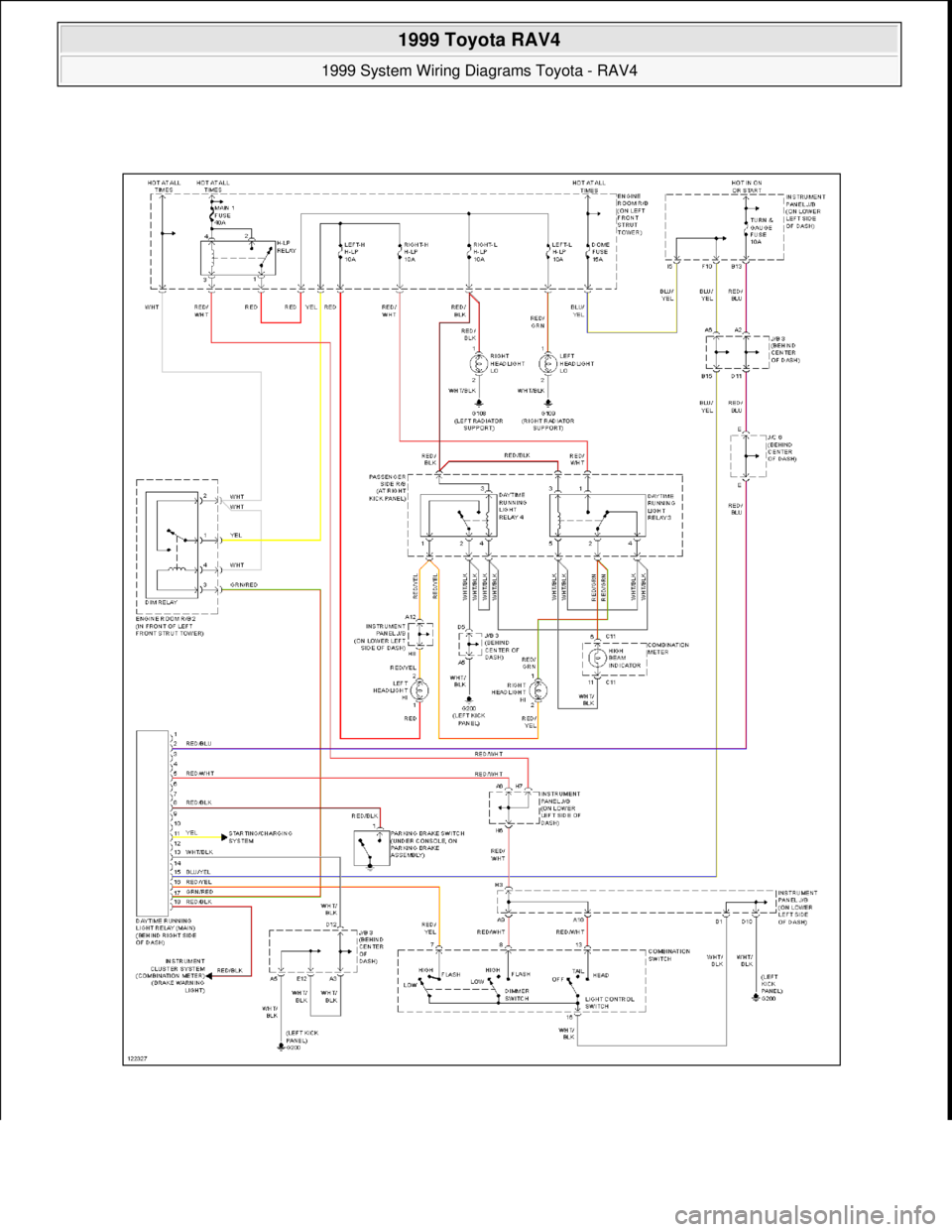

TOYOTA RAV4 1996 Service Repair Manual Fig. 14: Ground Distribution Circuit (2 of 2) HEADLIGHTS 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 29 © 2005 Mitchell Repa

Page 1587 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 30 © 2005 Mitchell Repair Information Company, LLC.

Page 1588 of 1632

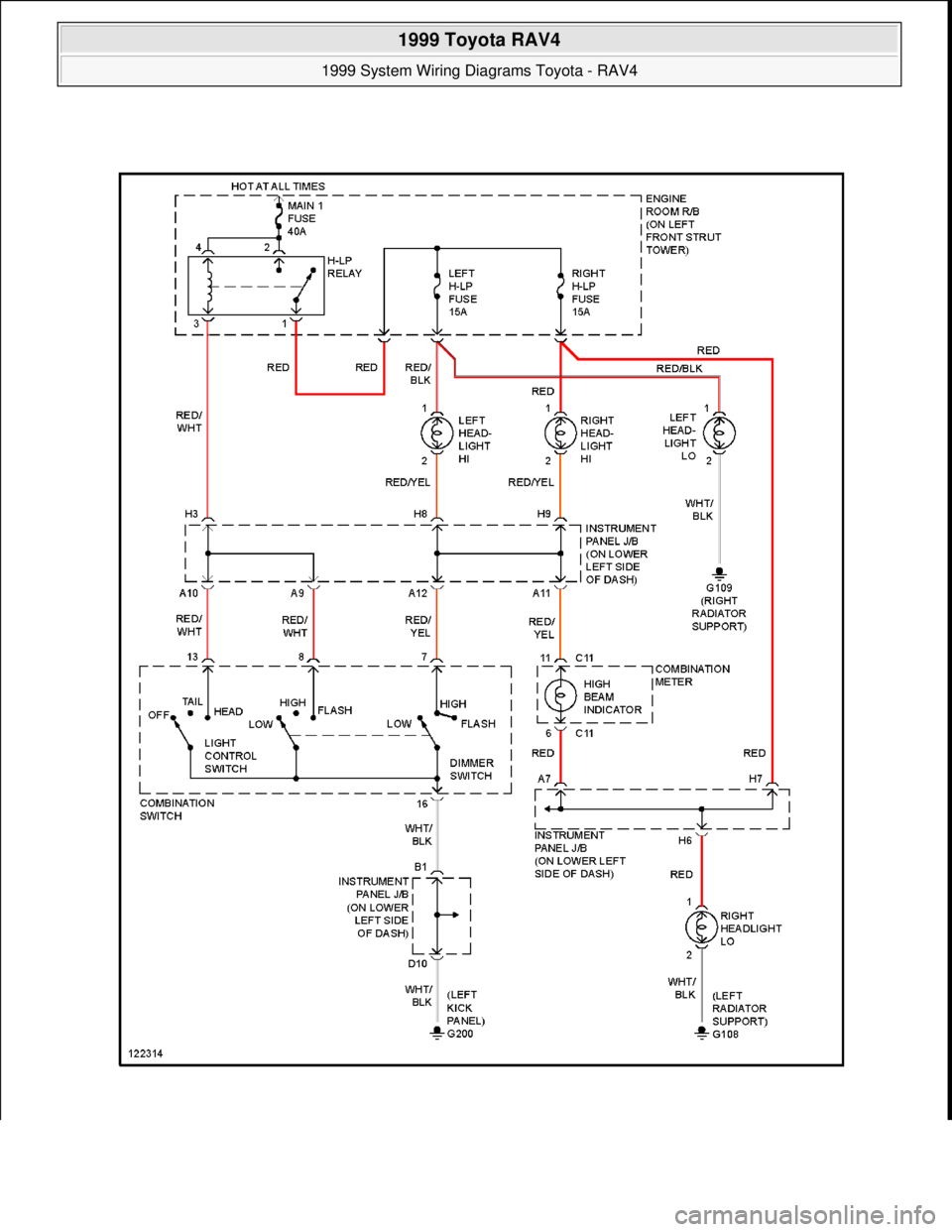

TOYOTA RAV4 1996 Service Repair Manual Fig. 15: Headlight Circuit, W/ DRL 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 31 © 2005 Mitchell Repair Information Company

Page 1589 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 32 © 2005 Mitchell Repair Information Company, LLC.

Page 1590 of 1632

TOYOTA RAV4 1996 Service Repair Manual Fig. 16: Headlight Circuit, W/O DRL HORN 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 33 © 2005 Mitchell Repair Information
