Page 1591 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 34 © 2005 Mitchell Repair Information Company, LLC.

Page 1592 of 1632

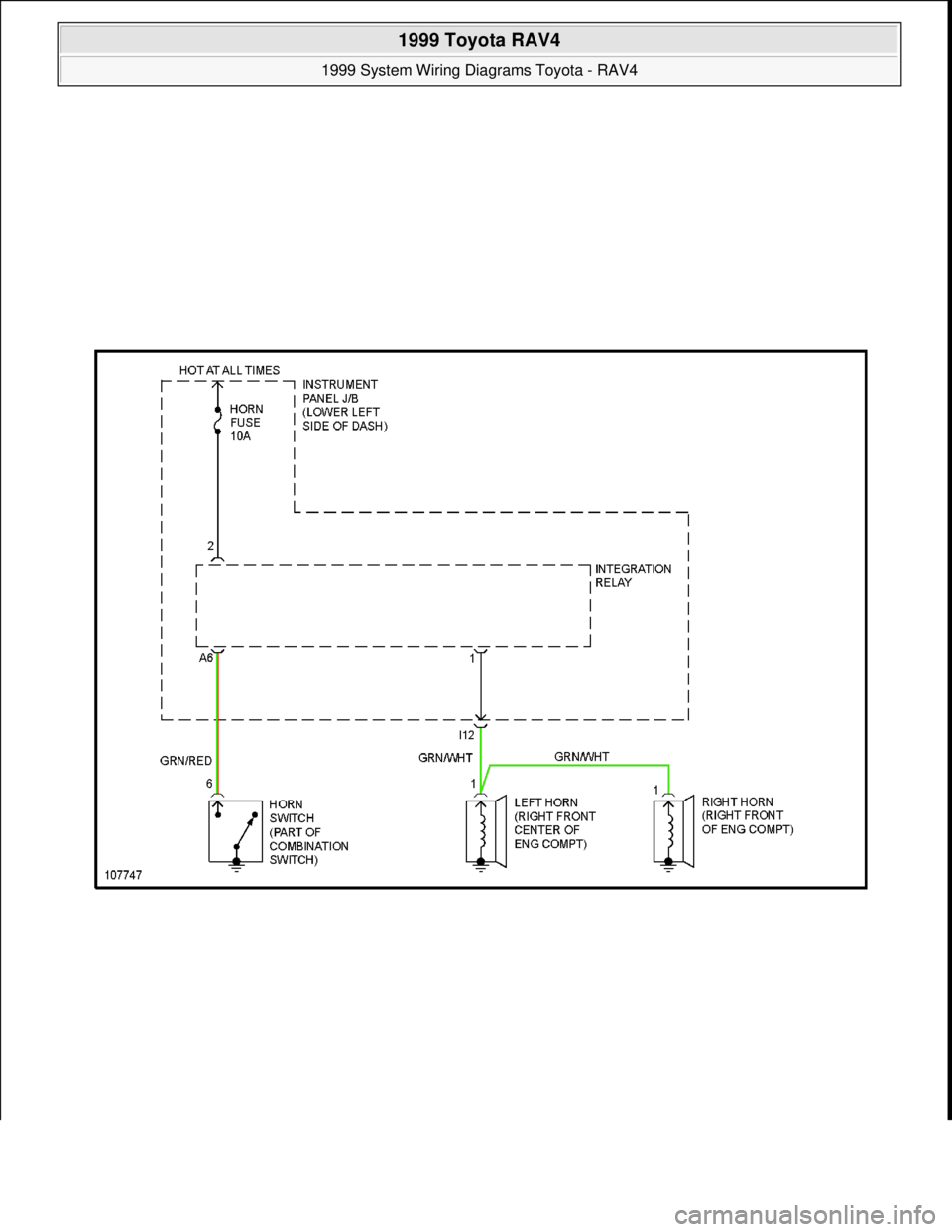

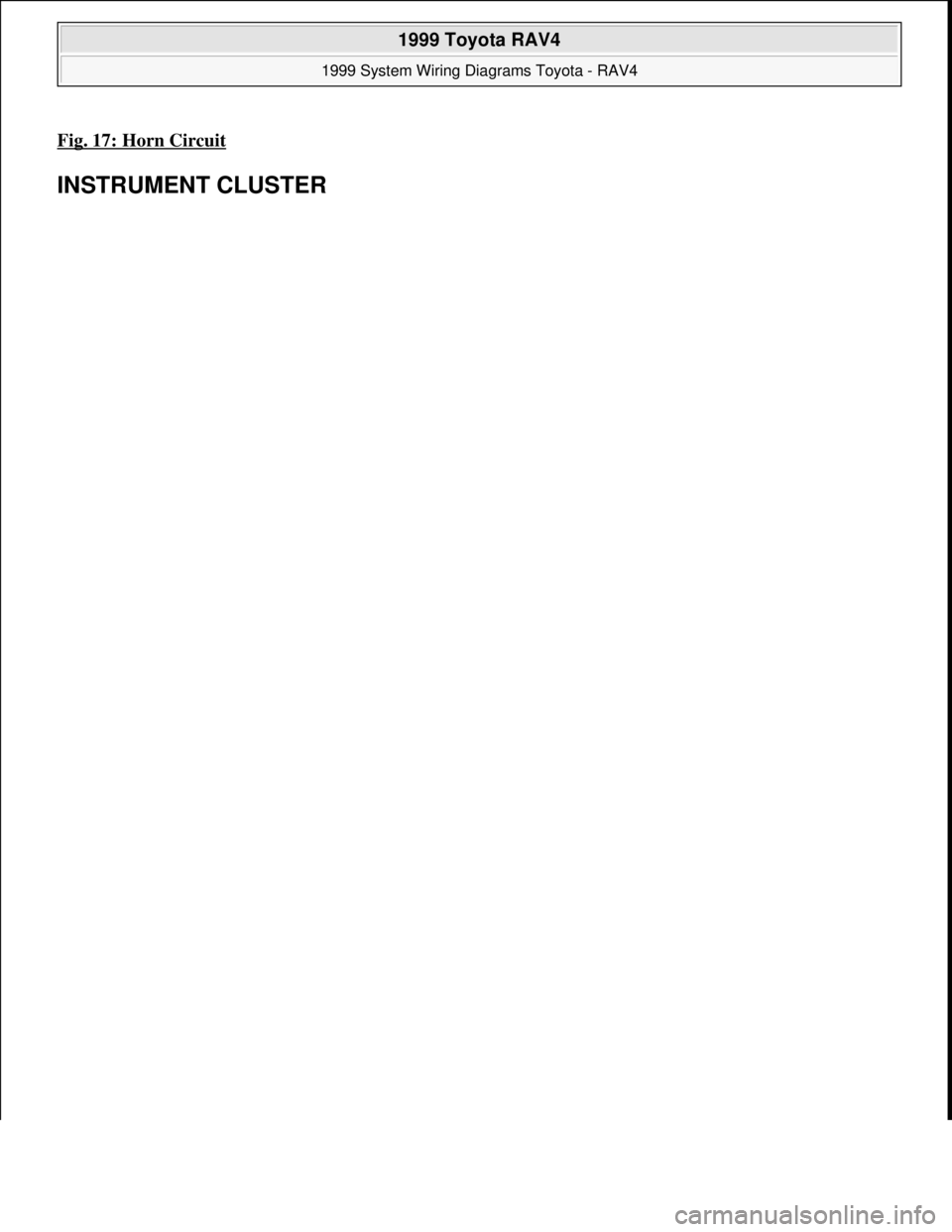

TOYOTA RAV4 1996 Service Repair Manual Fig. 17: Horn Circuit INSTRUMENT CLUSTER 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 35 © 2005 Mitchell Repair Information

Page 1593 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 36 © 2005 Mitchell Repair Information Company, LLC.

Page 1594 of 1632

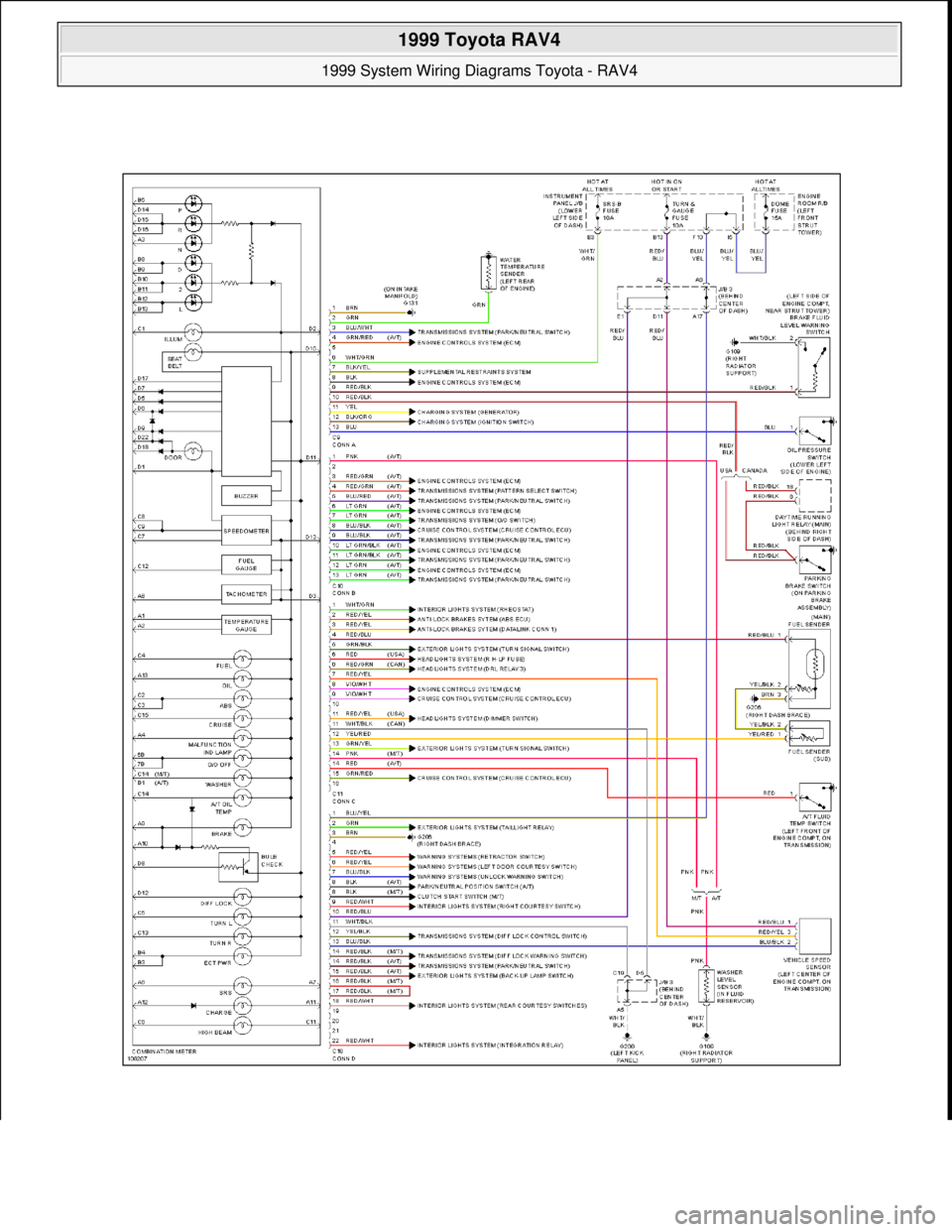

TOYOTA RAV4 1996 Service Repair Manual Fig. 18: Instrument Cluster Circuit INTERIOR LIGHTS 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 37 © 2005 Mitchell Repair I

Page 1595 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 38 © 2005 Mitchell Repair Information Company, LLC.

Page 1596 of 1632

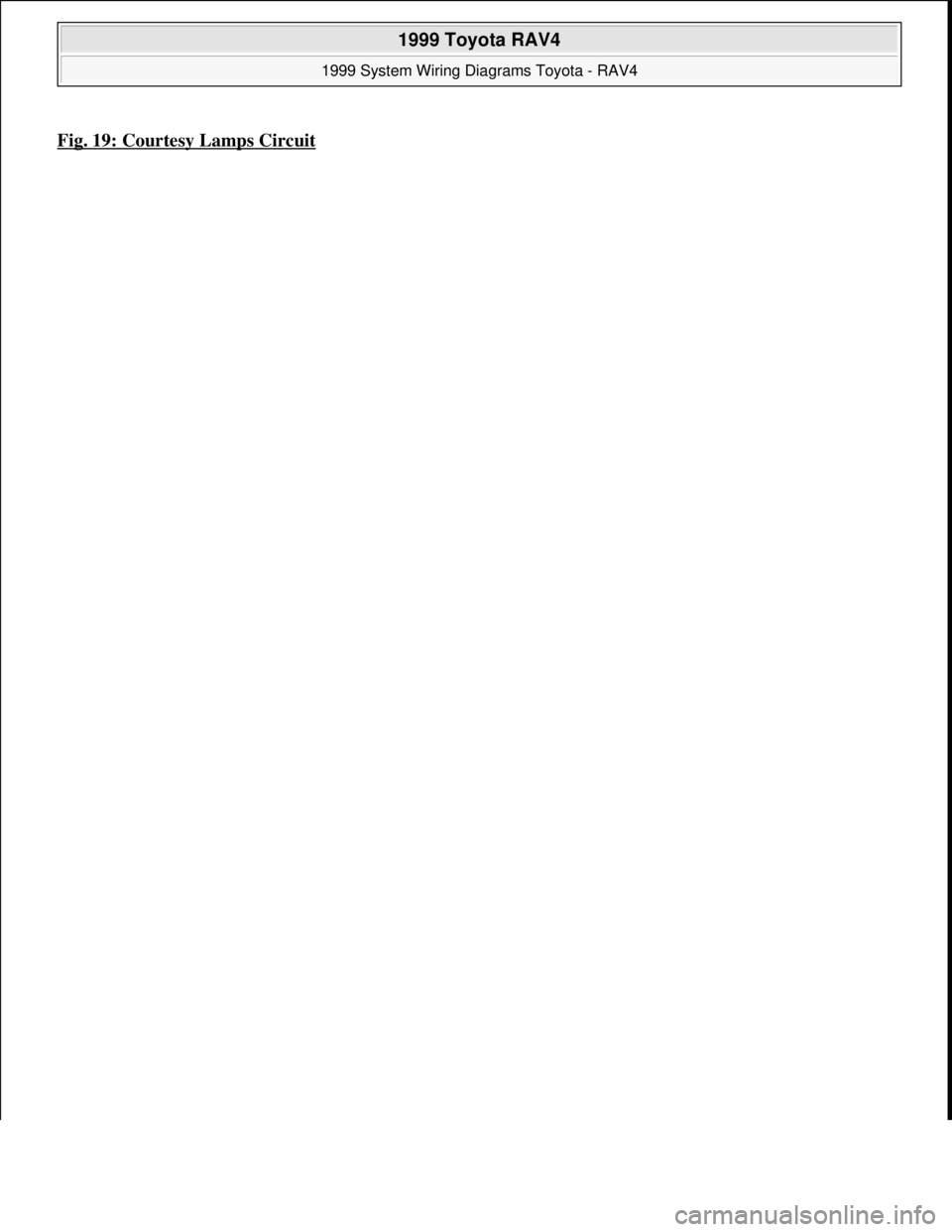

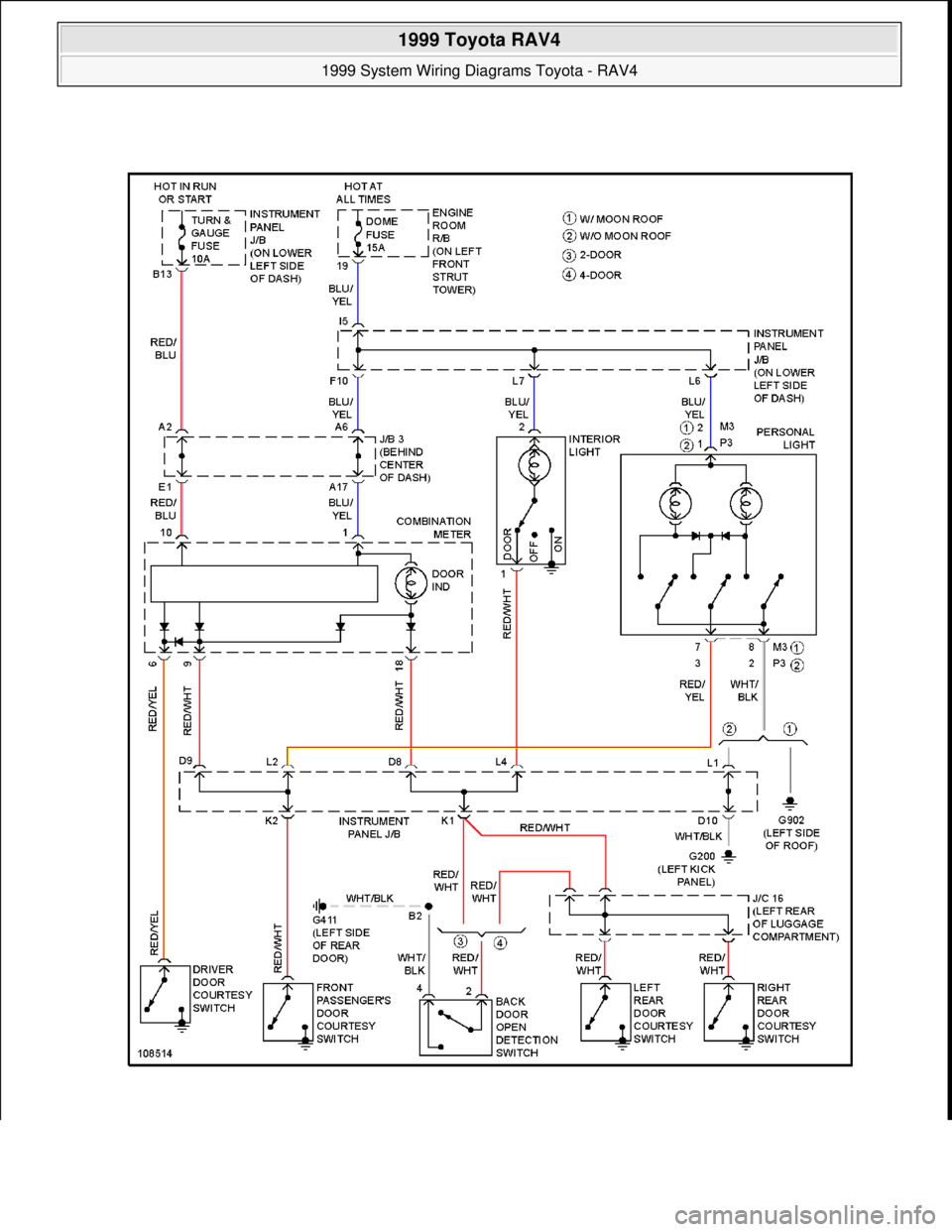

TOYOTA RAV4 1996 Service Repair Manual Fig. 19: Courtesy Lamps Circuit 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 39 © 2005 Mitchell Repair Information Company, L

Page 1597 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 40 © 2005 Mitchell Repair Information Company, LLC.

Page 1598 of 1632

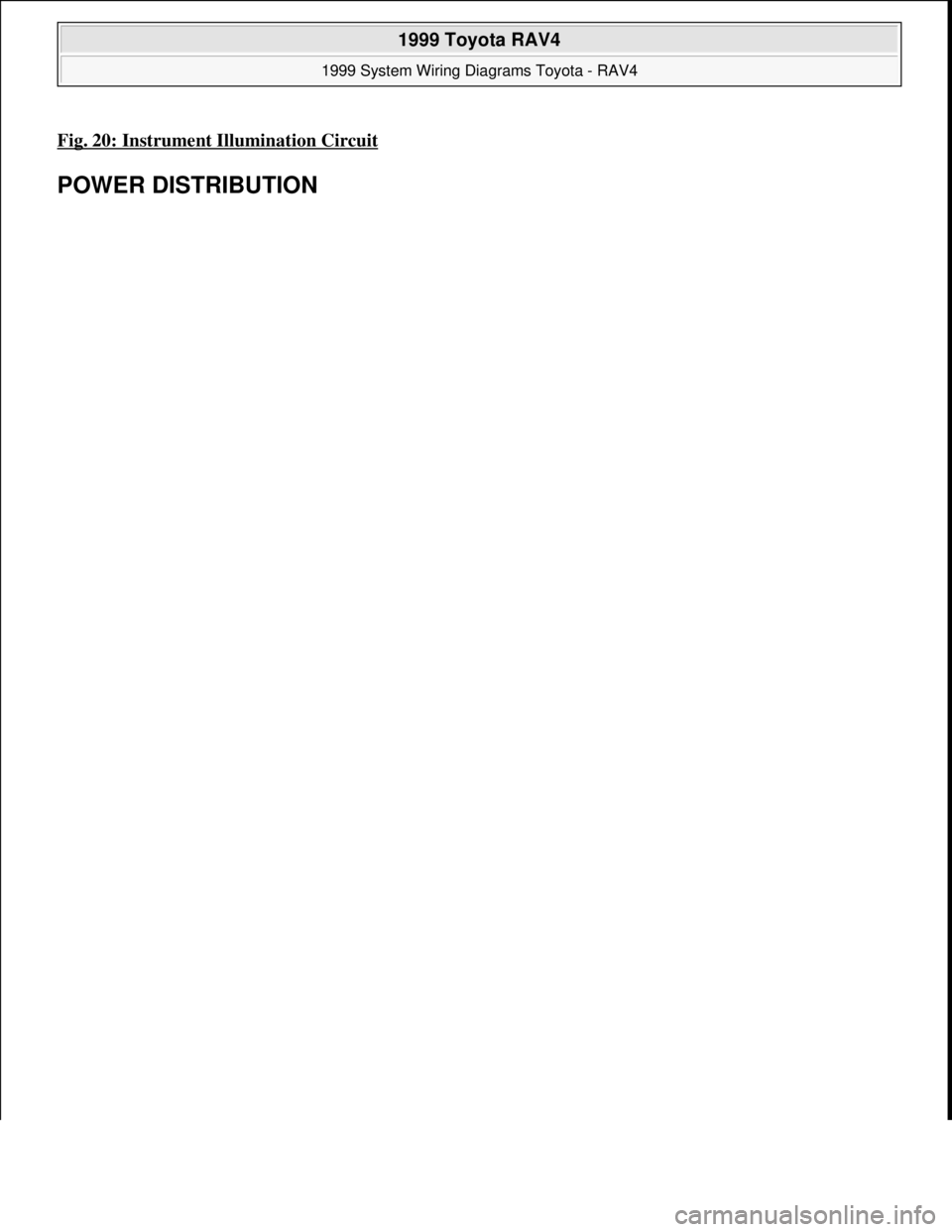

TOYOTA RAV4 1996 Service Repair Manual Fig. 20: Instrument Illumination Circuit POWER DISTRIBUTION 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 41 © 2005 Mitchell

Page 1599 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 42 © 2005 Mitchell Repair Information Company, LLC.

Page 1600 of 1632

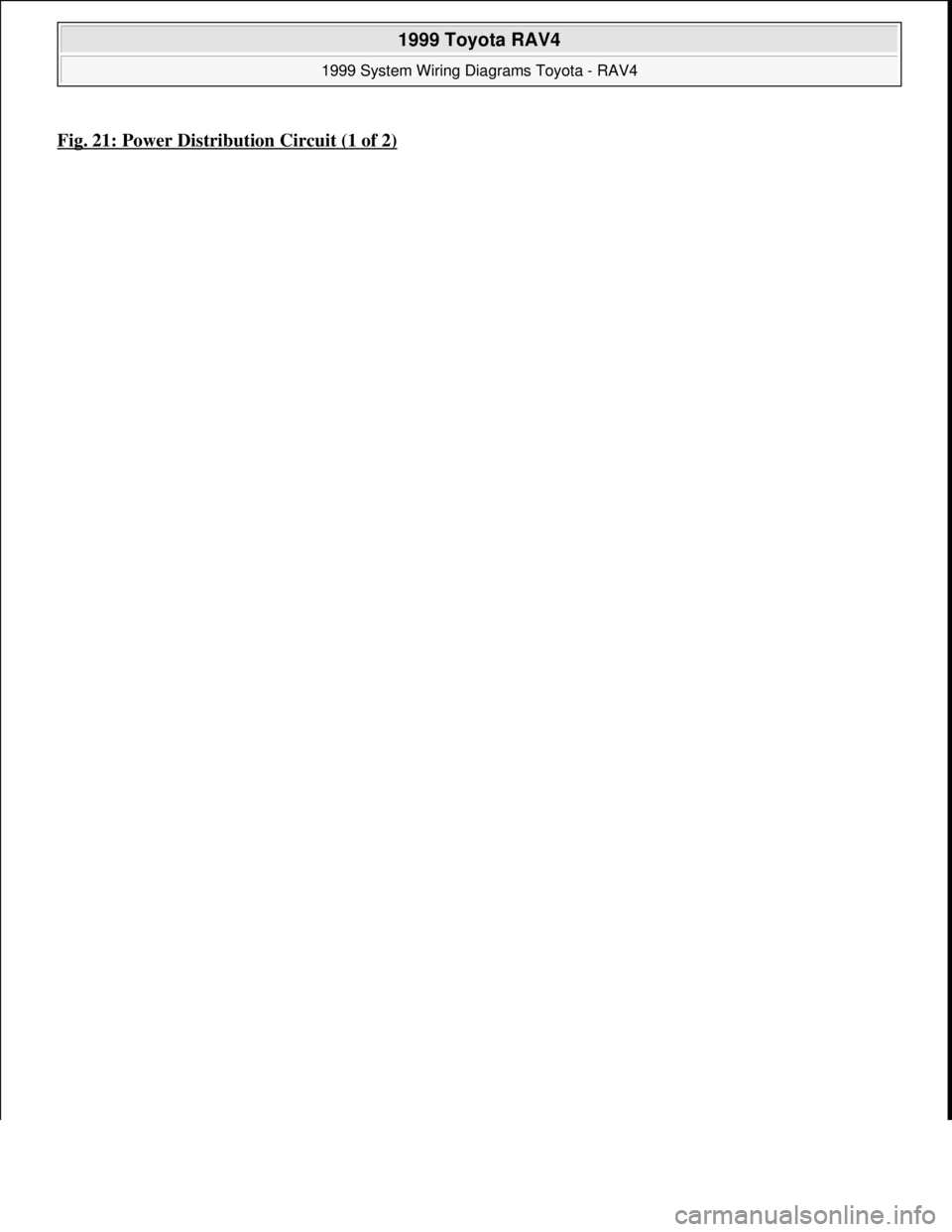

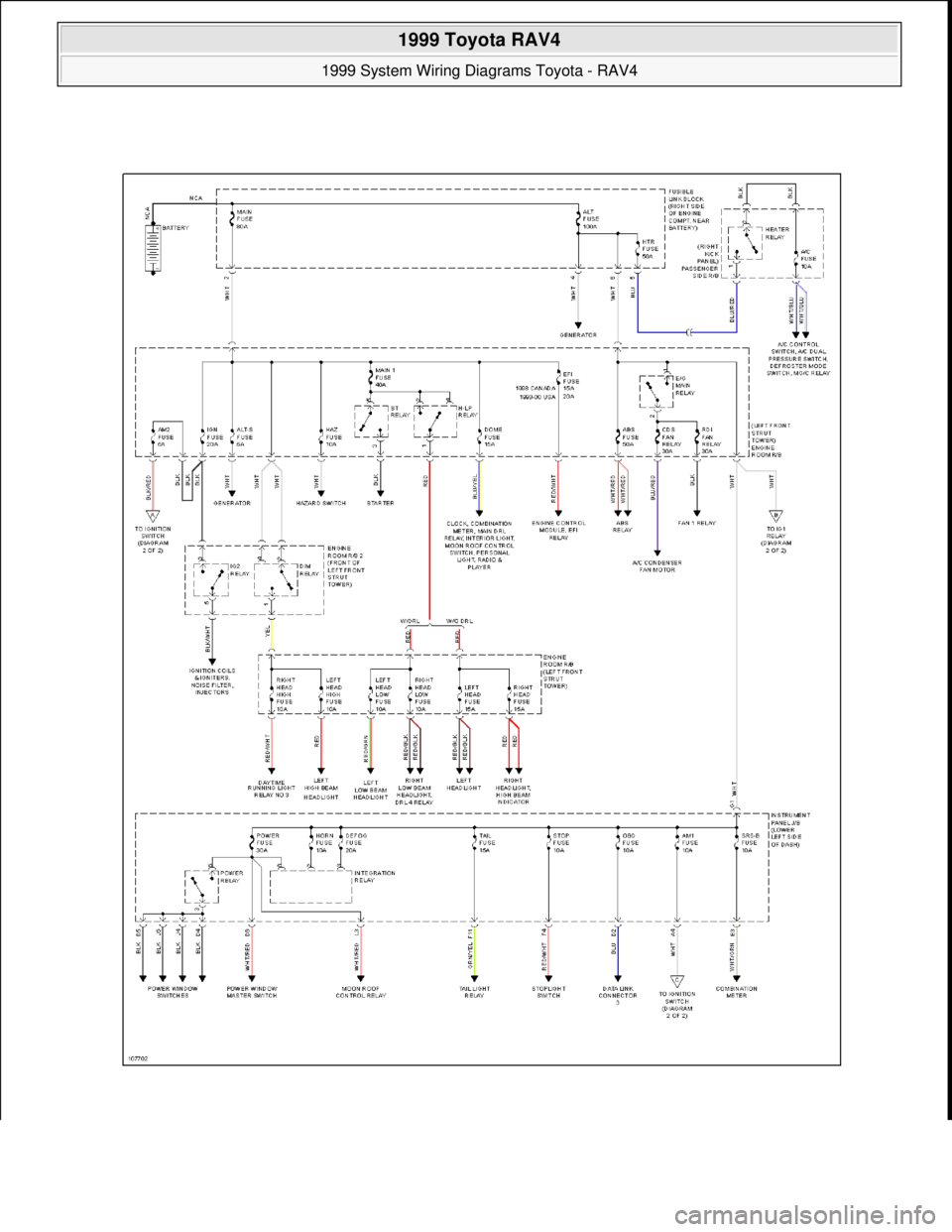

TOYOTA RAV4 1996 Service Repair Manual Fig. 21: Power Distribution Circuit (1 of 2) 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 43 © 2005 Mitchell Repair Informatio
