Page 481 of 1632

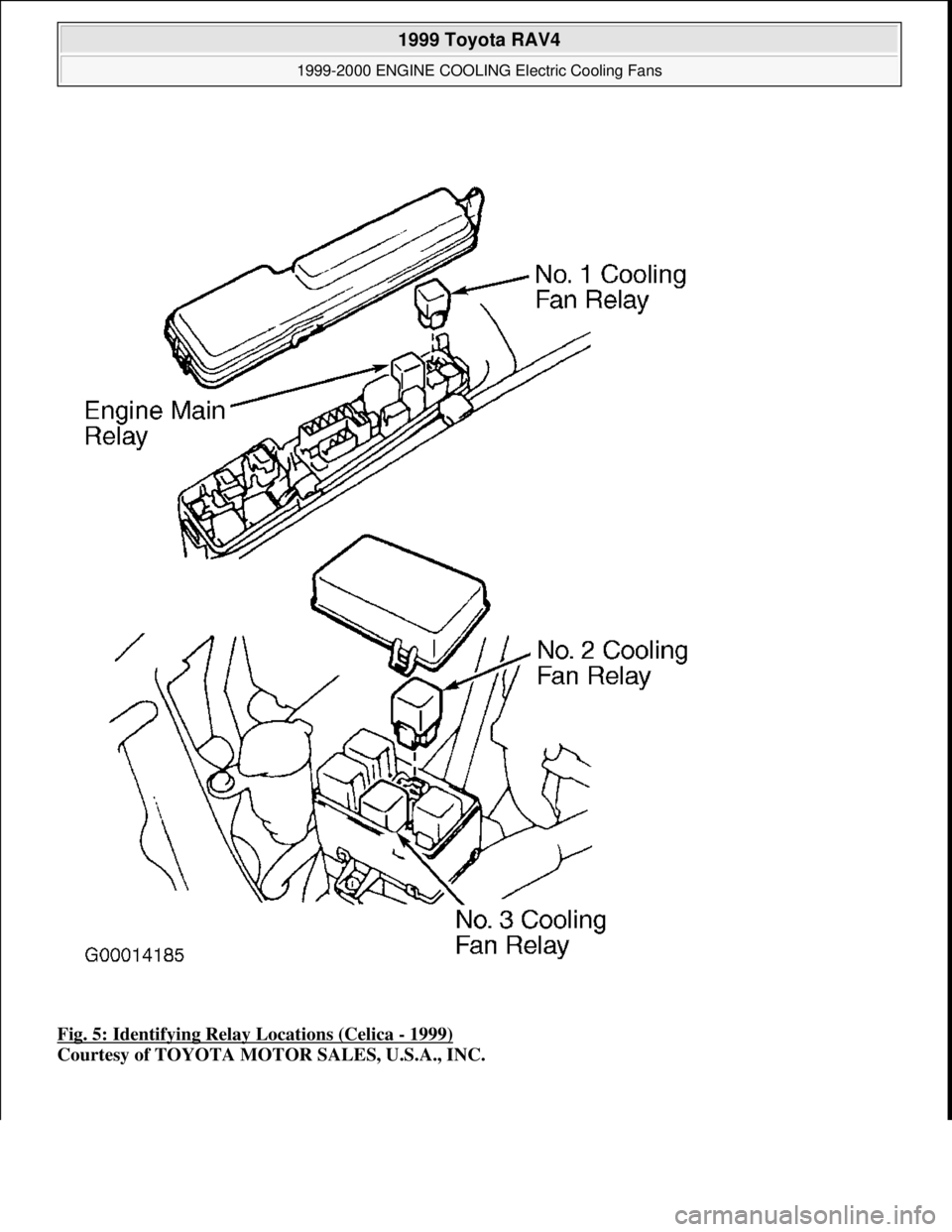

TOYOTA RAV4 1996 Service Repair Manual Fig. 5: Identifying Relay Locations (Celica - 1999) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999-2000 ENGINE COOLING Electric Cooling Fans Microsoft Sunday, November 22,

Page 482 of 1632

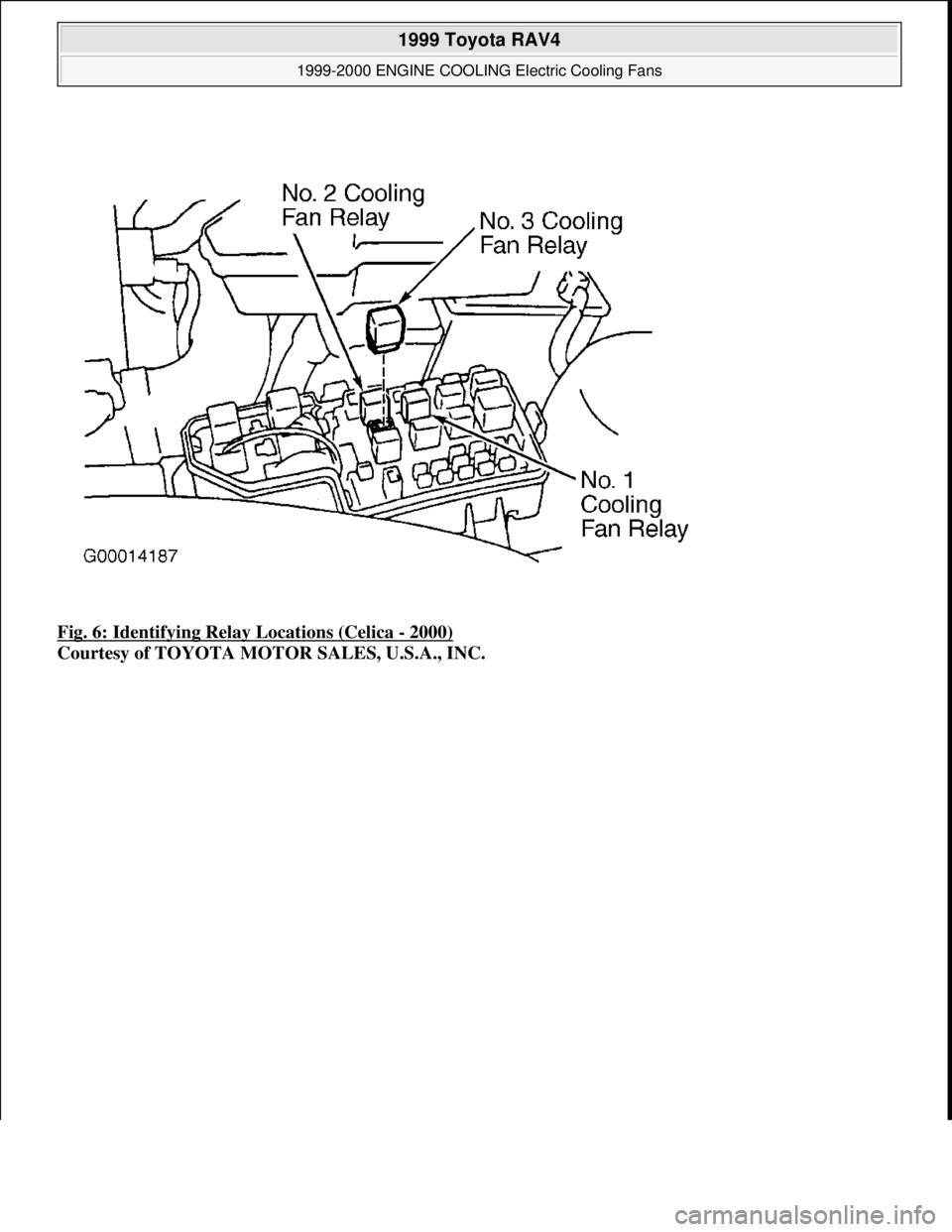

TOYOTA RAV4 1996 Service Repair Manual Fig. 6: Identifying Relay Locations (Celica - 2000) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999-2000 ENGINE COOLING Electric Cooling Fans Microsoft Sunday, November 22,

Page 483 of 1632

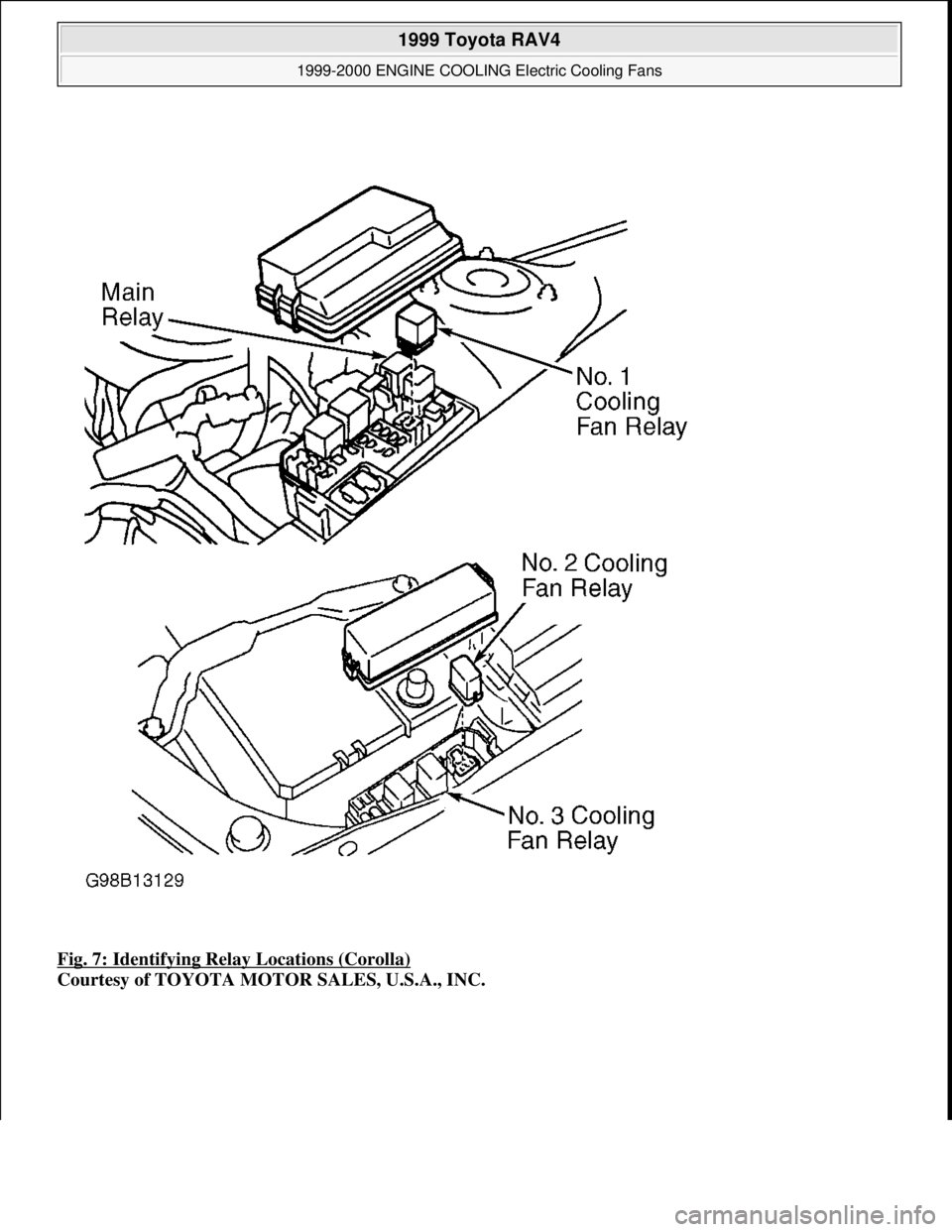

TOYOTA RAV4 1996 Service Repair Manual Fig. 7: Identifying Relay Locations (Corolla) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999-2000 ENGINE COOLING Electric Cooling Fans Microsoft Sunday, November 22, 2009 1

Page 484 of 1632

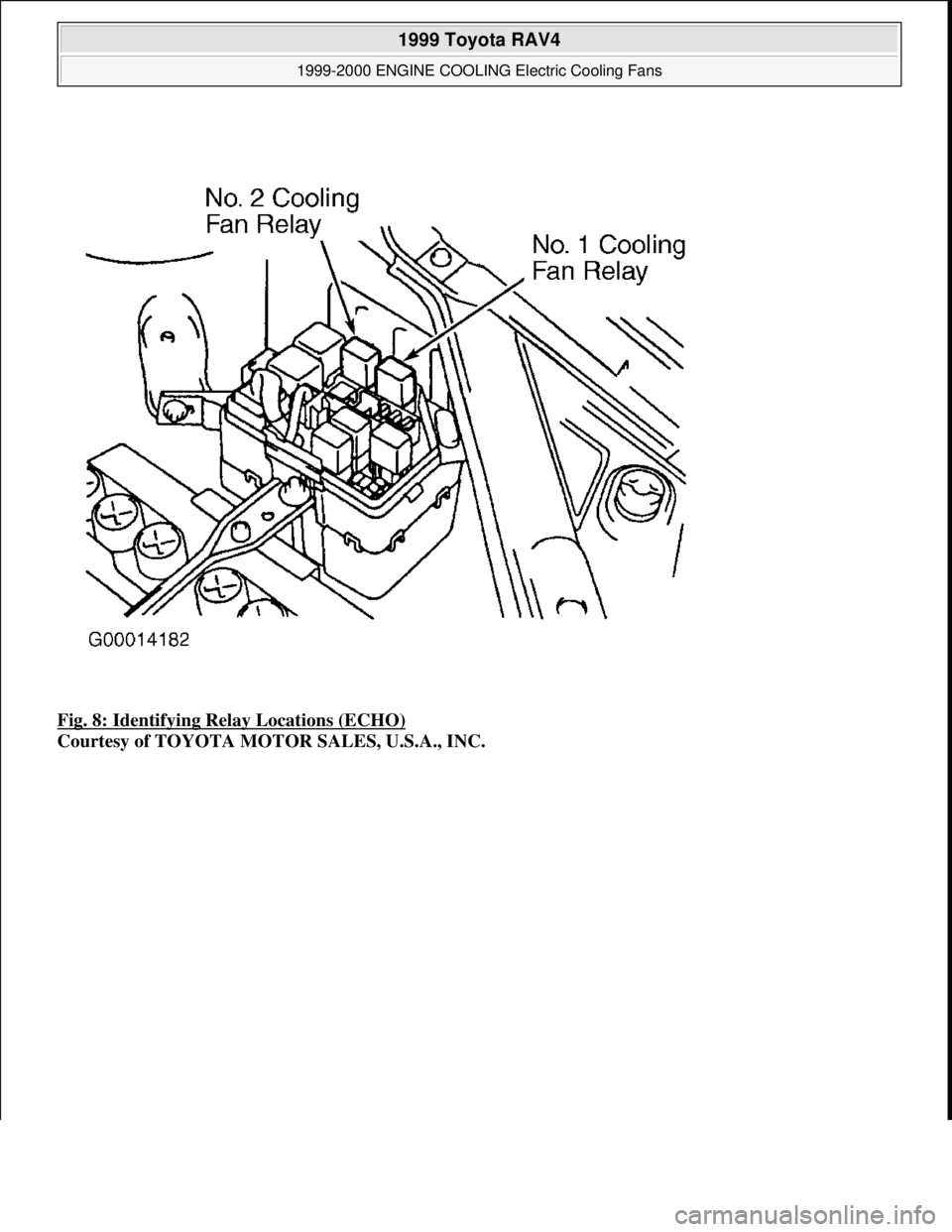

TOYOTA RAV4 1996 Service Repair Manual Fig. 8: Identifying Relay Locations (ECHO) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999-2000 ENGINE COOLING Electric Cooling Fans Microsoft Sunday, November 22, 2009 10:2

Page 485 of 1632

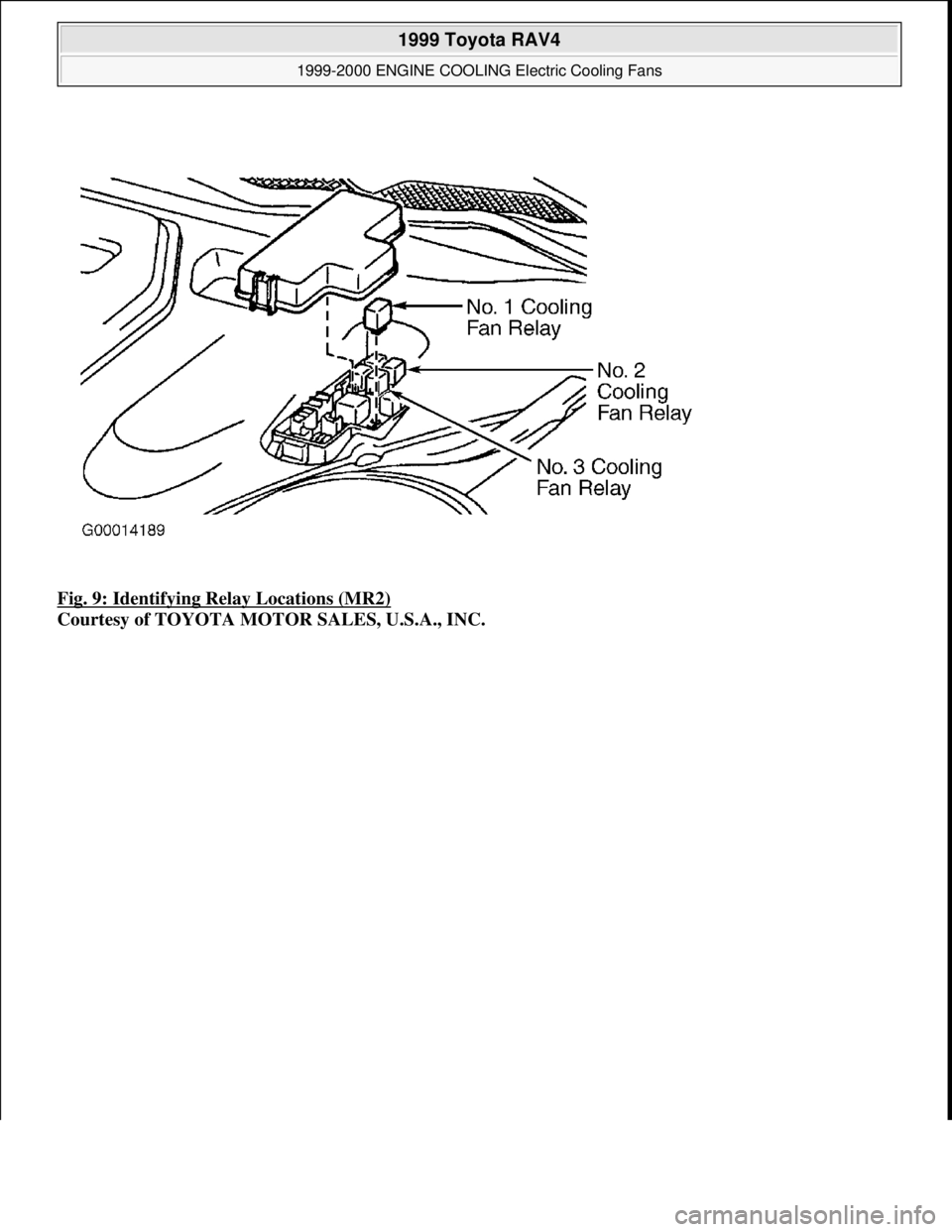

TOYOTA RAV4 1996 Service Repair Manual Fig. 9: Identifying Relay Locations (MR2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999-2000 ENGINE COOLING Electric Cooling Fans Microsoft Sunday, November 22, 2009 10:21

Page 486 of 1632

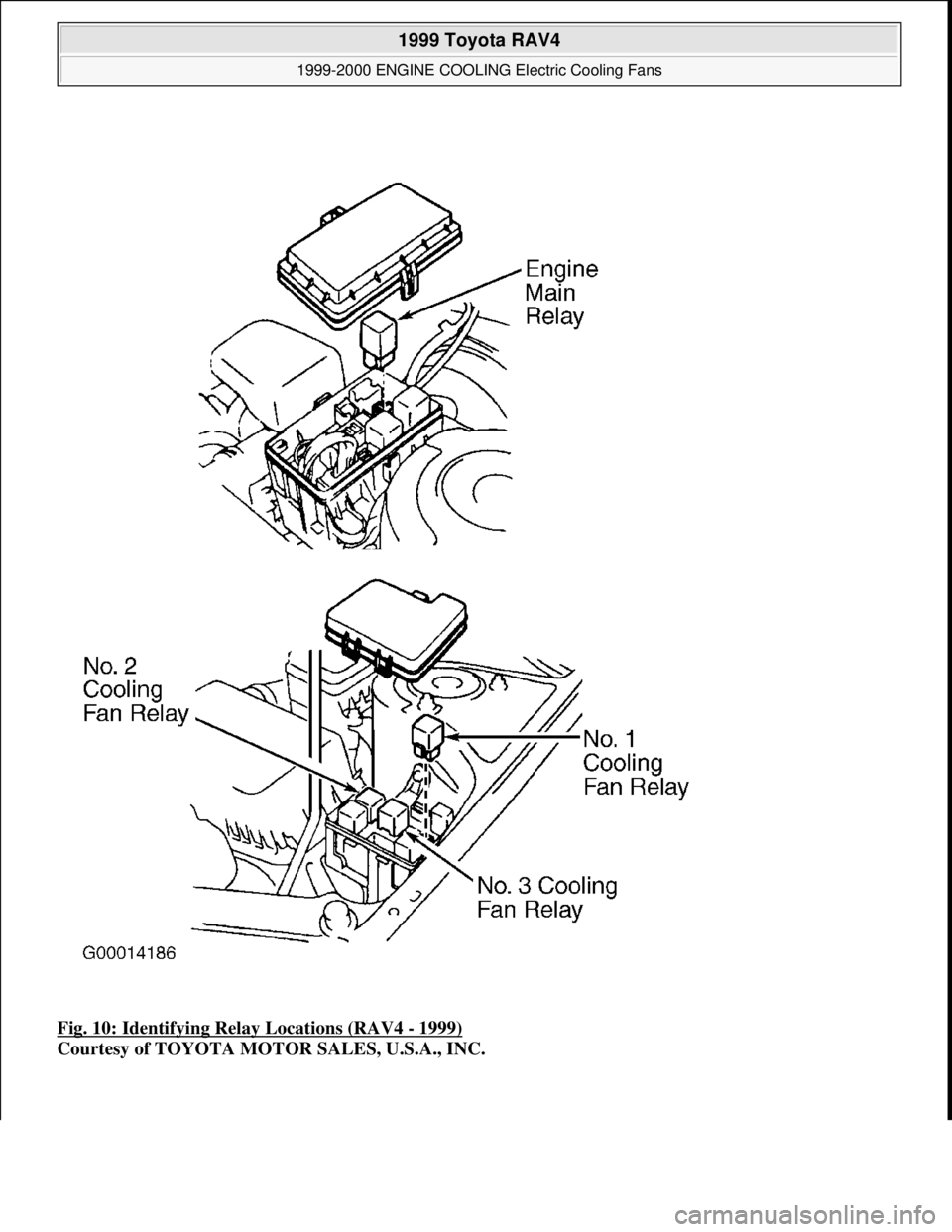

TOYOTA RAV4 1996 Service Repair Manual Fig. 10: Identifying Relay Locations (RAV4 - 1999) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999-2000 ENGINE COOLING Electric Cooling Fans Microsoft Sunday, November 22, 2

Page 487 of 1632

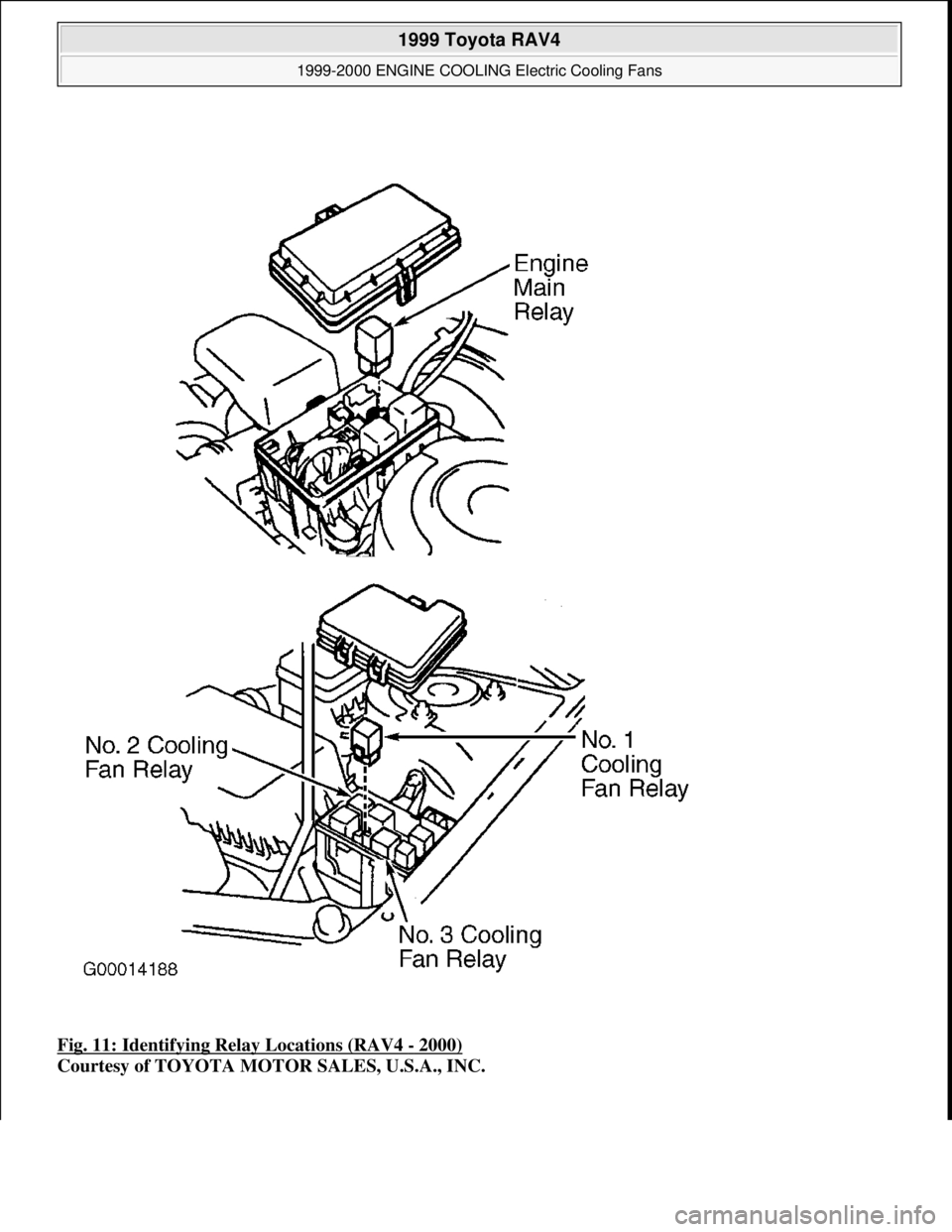

TOYOTA RAV4 1996 Service Repair Manual Fig. 11: Identifying Relay Locations (RAV4 - 2000) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999-2000 ENGINE COOLING Electric Cooling Fans Microsoft Sunday, November 22, 2

Page 488 of 1632

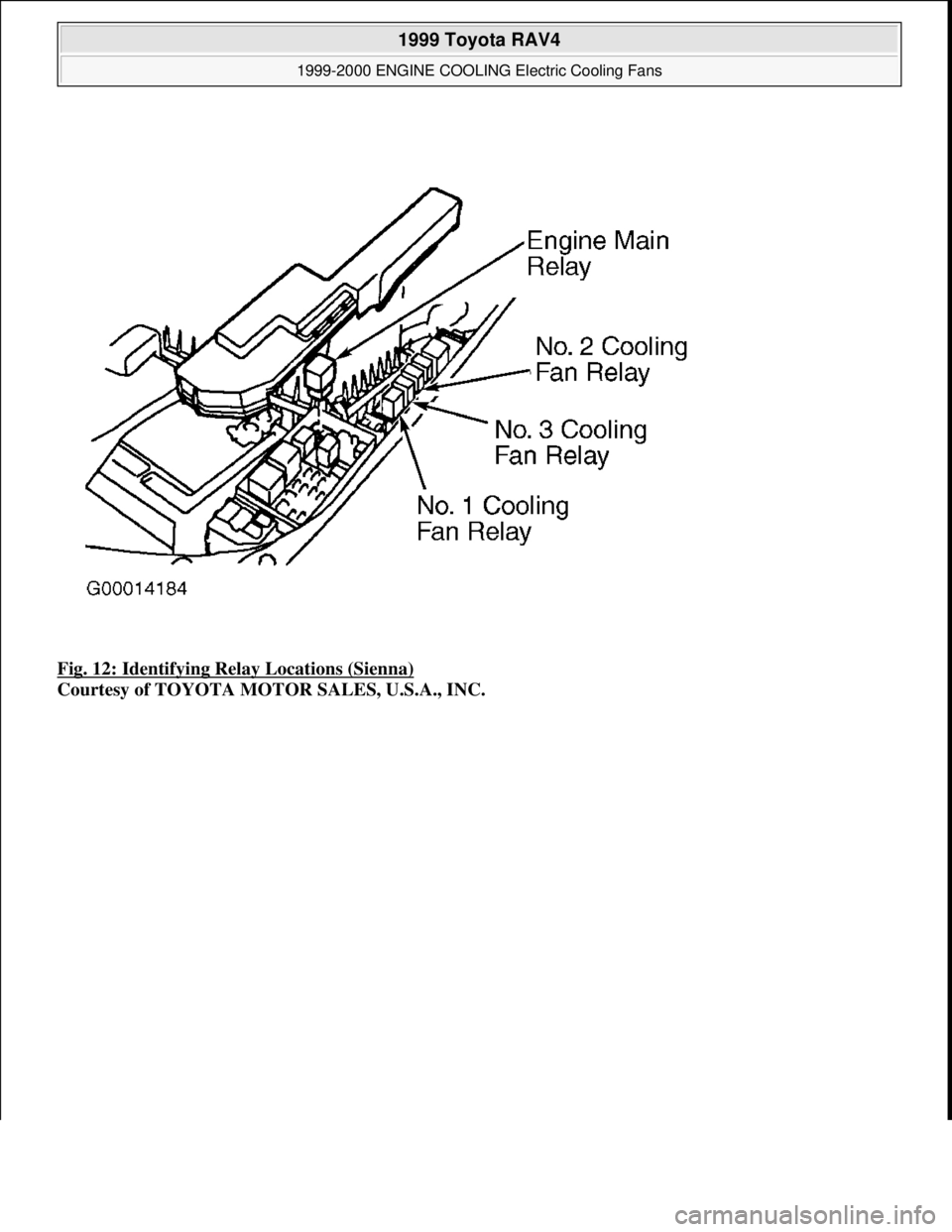

TOYOTA RAV4 1996 Service Repair Manual Fig. 12: Identifying Relay Locations (Sienna) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1999 Toyota RAV4 1999-2000 ENGINE COOLING Electric Cooling Fans Microsoft Sunday, November 22, 2009 1

Page 489 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999-2000 ENGINE COOLING Electric Cooling Fans Microsoft Sunday, November 22, 2009 10:21:41 AMPage 19 © 2005 Mitchell Repair Information Company, LLC.

Page 490 of 1632

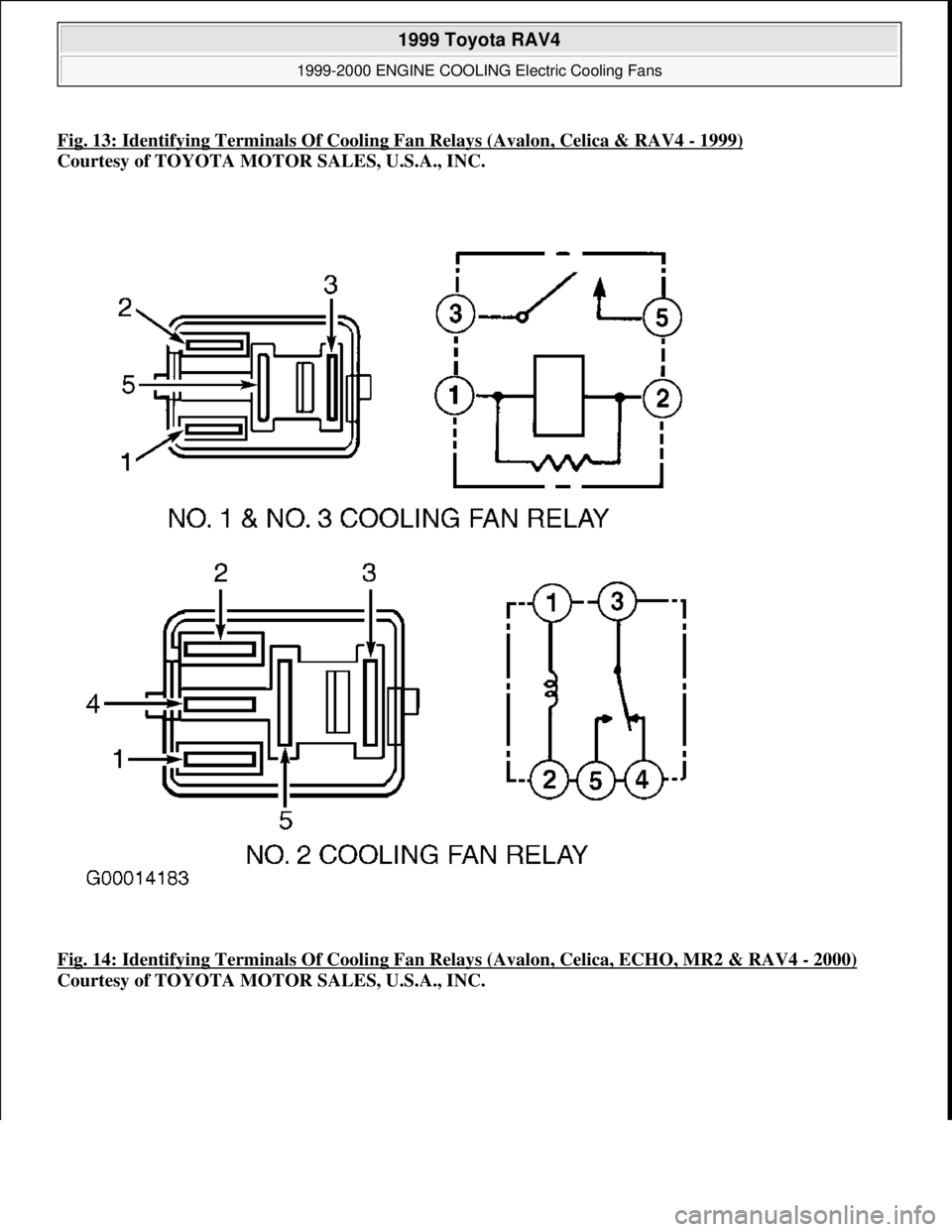

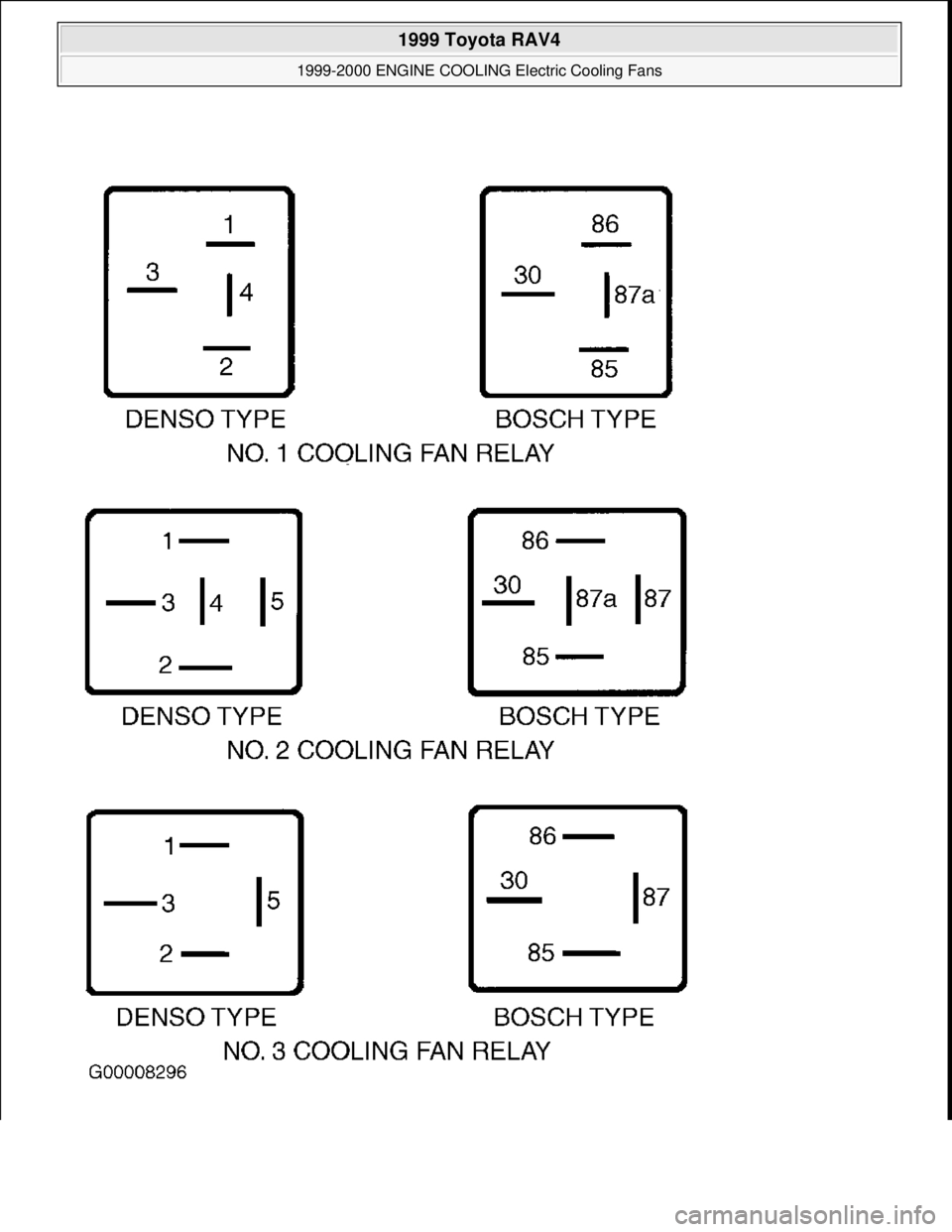

TOYOTA RAV4 1996 Service Repair Manual Fig. 13: Identifying Terminals Of Cooling Fan Relays (Avalon, Celica & RAV4 - 1999) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fig. 14: Identifying Terminals Of Cooling Fan Relays (Avalon, Celica,
