TOYOTA RAV4 1996 Service Repair Manual

1999-2000 ELECTRICAL
Fuses & Circuit Breakers - RAV4
IDENTIFICATION
DRIVER SIDE J/B

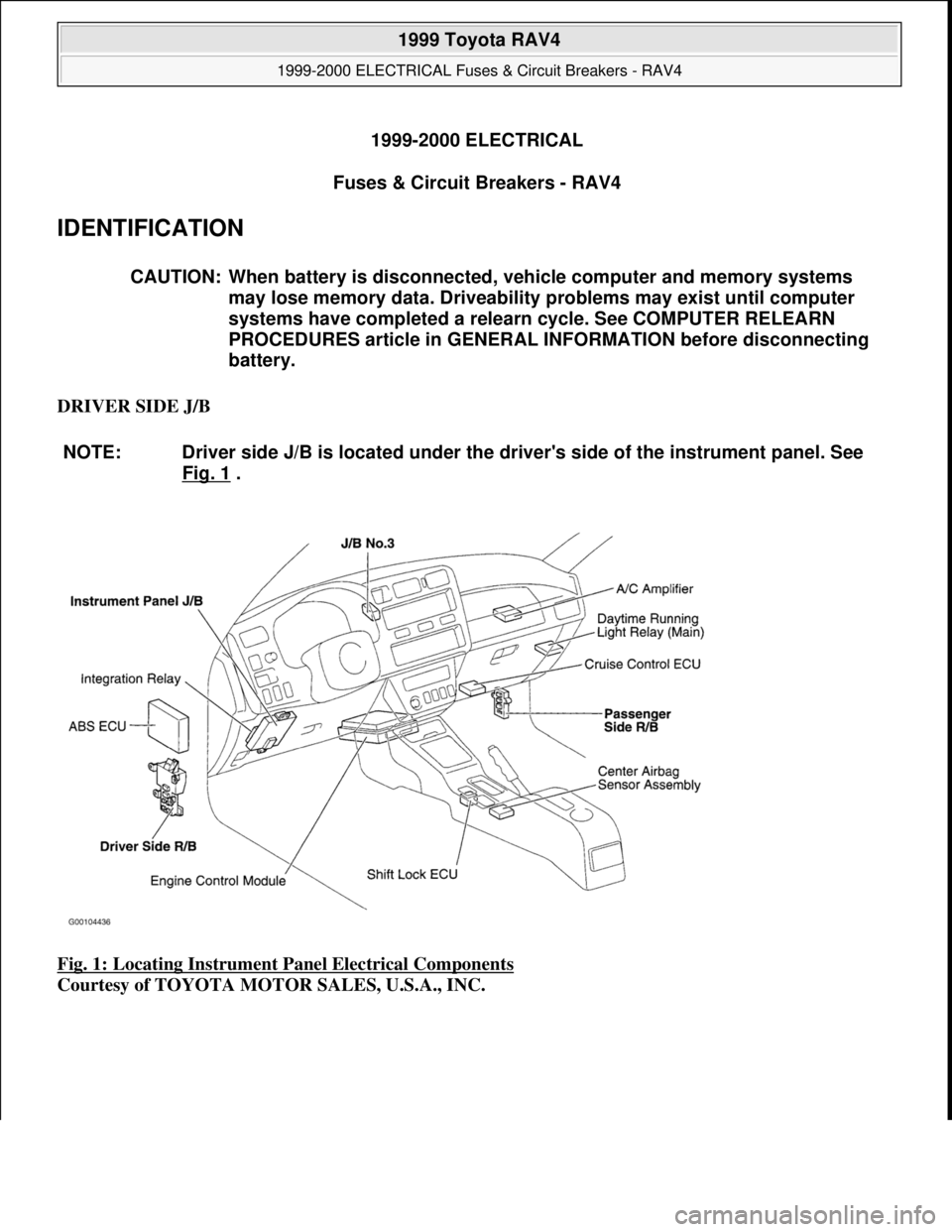

Fig. 1: Locating Instrument Panel Electrical Components

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. CAUTION: When battery is disconnected, vehicle computer and memory systems
may lose memory data. Driveability problems may exist until computer
systems have completed a relearn cycle. See COMPUTER RELEARN
PROCEDURES article in GENERAL INFORMATION before disconnecting
battery.
NOTE: Driver side J/B is located under the driver's side of the instrument panel. See
Fig. 1
.

1999 Toyota RAV4
1999-2000 ELECTRICAL Fuses & Circuit Breakers - RAV4

1999 Toyota RAV4
1999-2000 ELECTRICAL Fuses & Circuit Breakers - RAV4
Microsoft
Sunday, November 22, 2009 10:18:30 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, November 22, 2009 10:18:36 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.

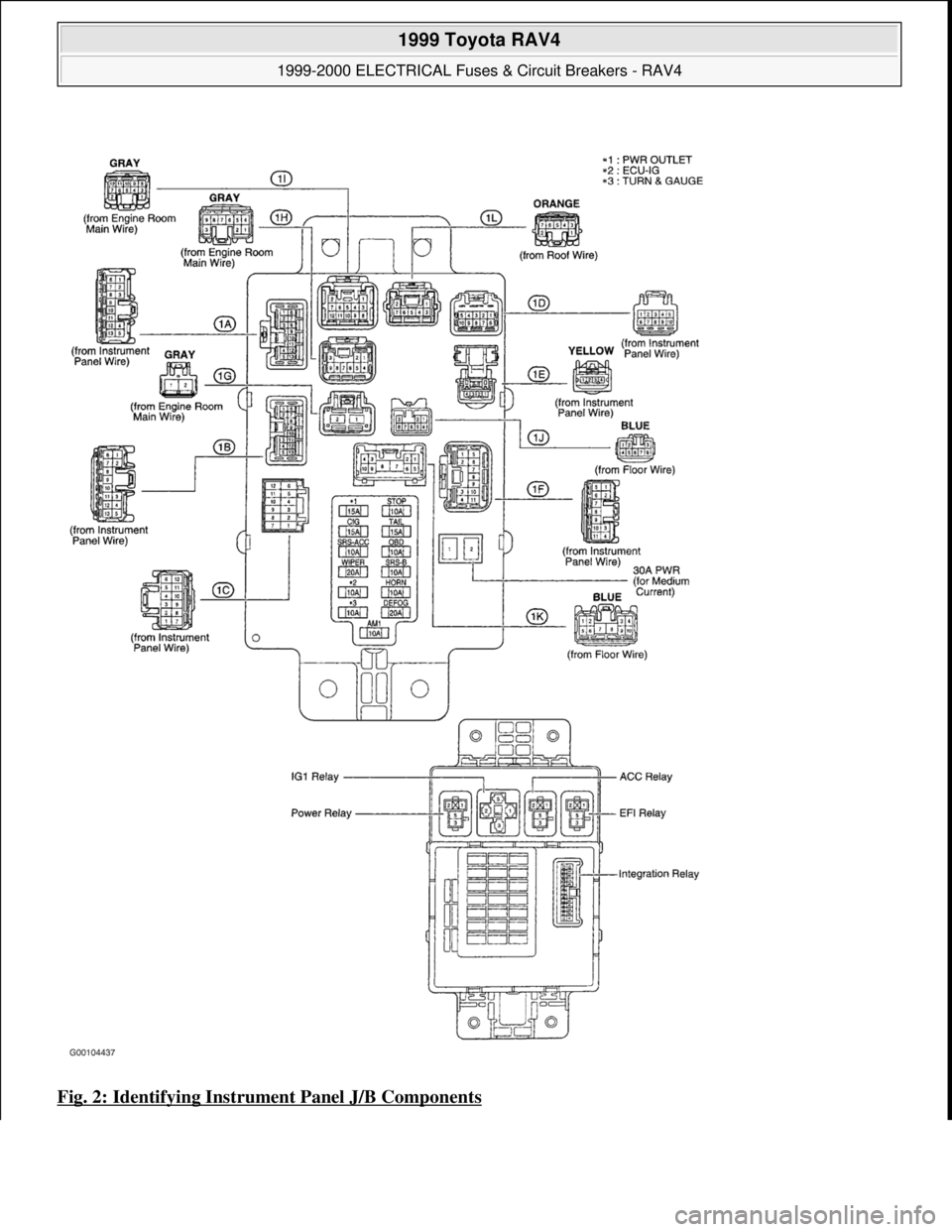

Fig. 2: Identifying Instrument Panel J/B Components

1999 Toyota RAV4
1999-2000 ELECTRICAL Fuses & Circuit Breakers - RAV4
Microsoft
Sunday, November 22, 2009 10:18:30 AMPage 2 © 2005 Mitchell Repair Information Company, LLC.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1999-2000 ELECTRICAL Fuses & Circuit Breakers - RAV4
Microsoft
Sunday, November 22, 2009 10:18:30 AMPage 3 © 2005 Mitchell Repair Information Company, LLC.

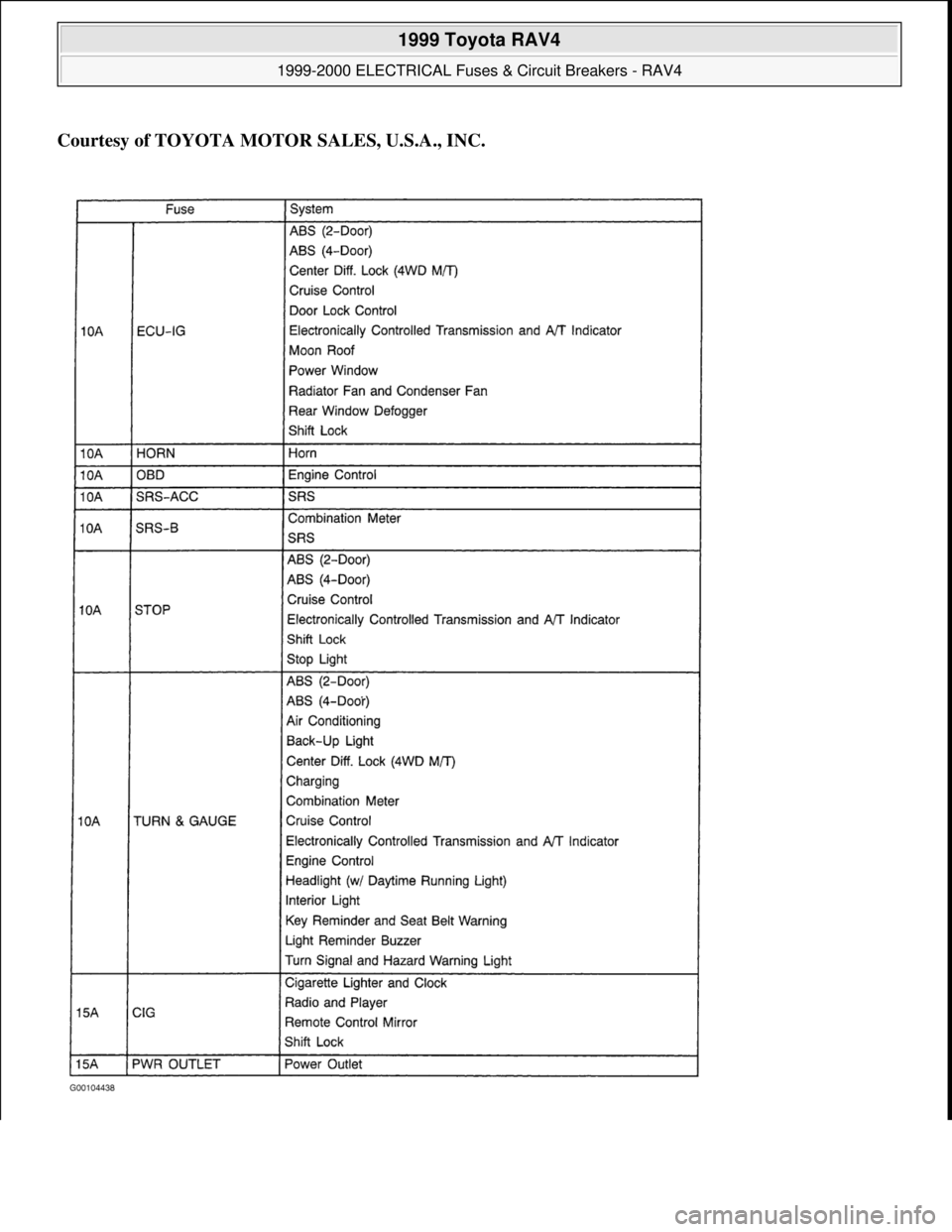

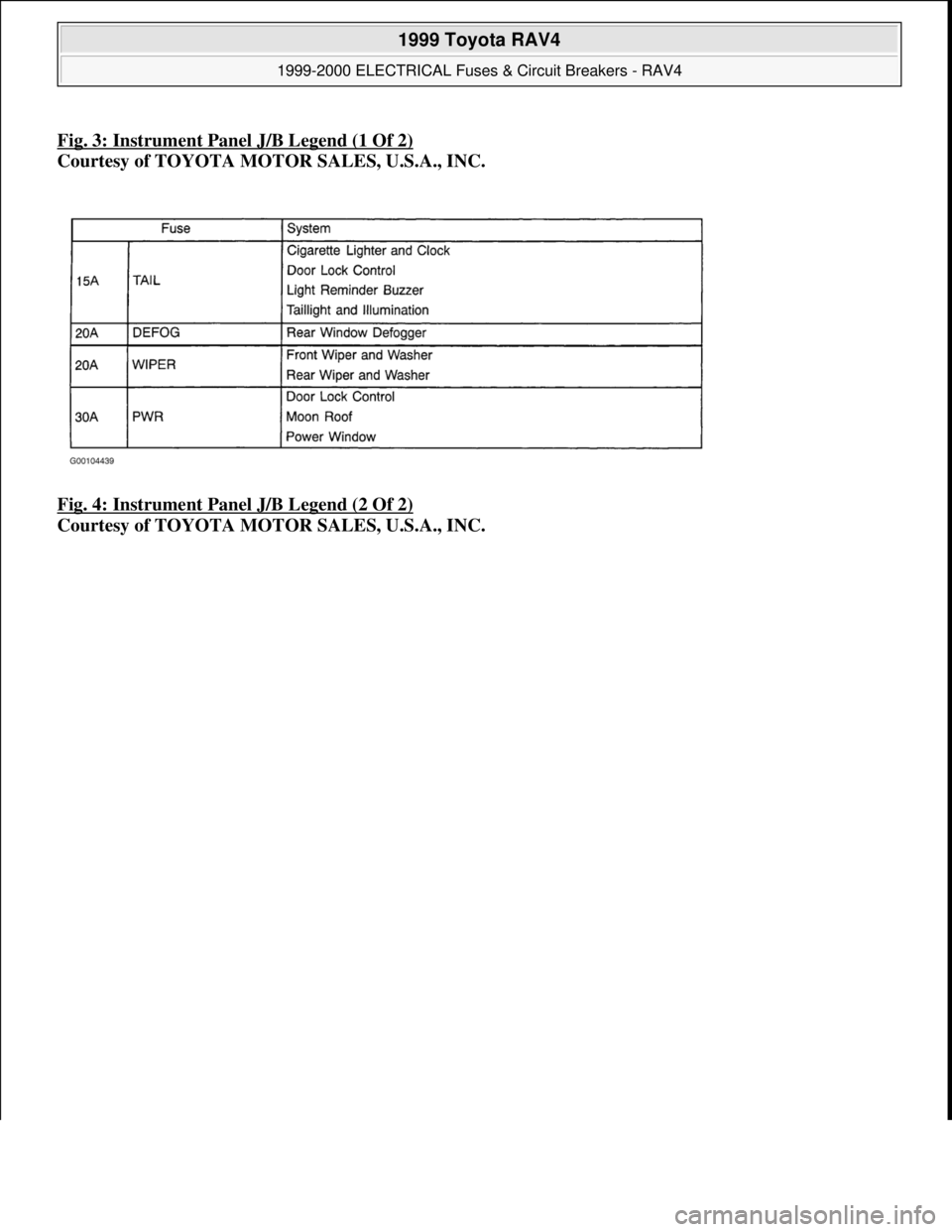

Fig. 3: Instrument Panel J/B Legend (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 4: Instrument Panel J/B Legend (2 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1999-2000 ELECTRICAL Fuses & Circuit Breakers - RAV4
Microsoft
Sunday, November 22, 2009 10:18:30 AMPage 4 © 2005 Mitchell Repair Information Company, LLC.

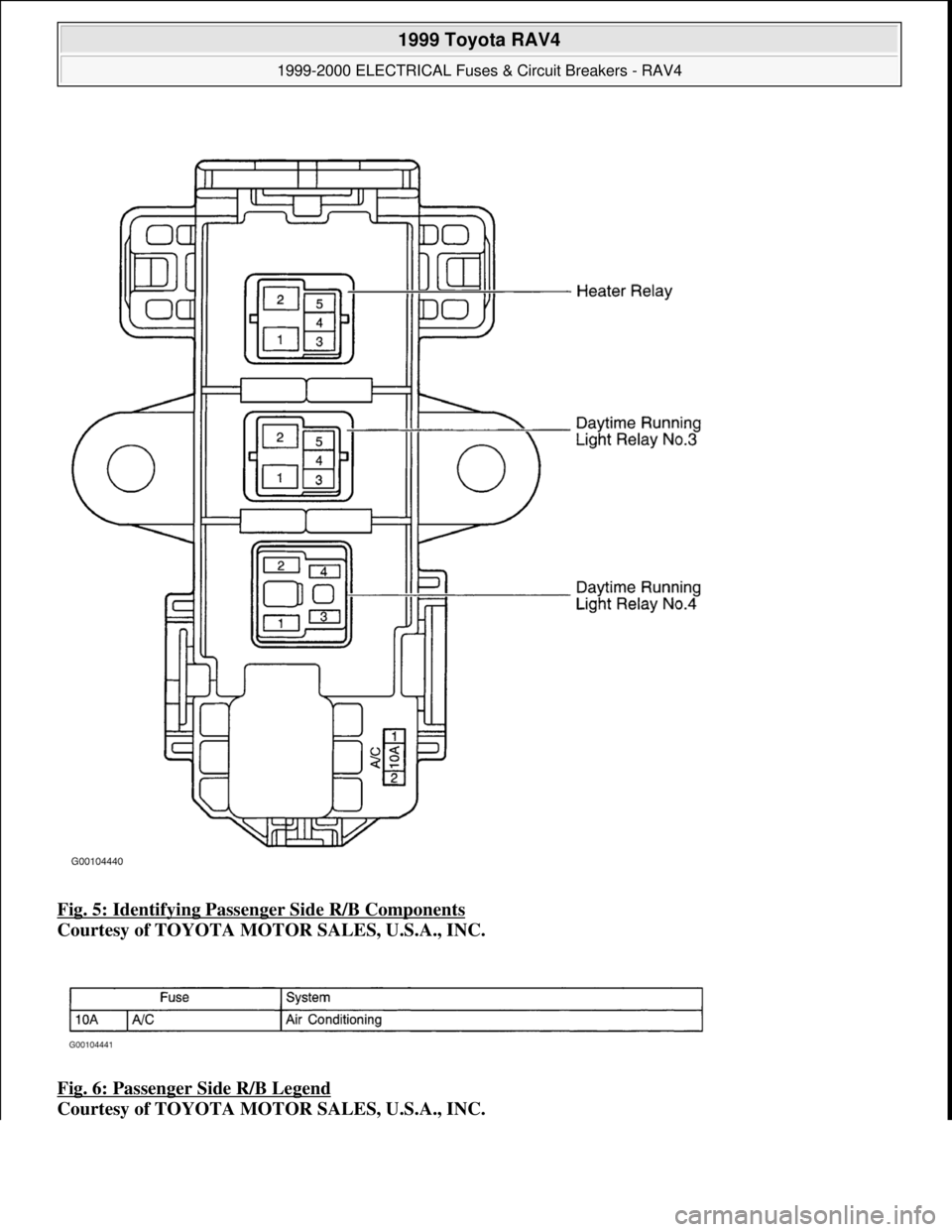

Fig. 5: Identifying Passenger Side R/B Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 6: Passenger Side R/B Legend

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1999-2000 ELECTRICAL Fuses & Circuit Breakers - RAV4
Microsoft
Sunday, November 22, 2009 10:18:30 AMPage 5 © 2005 Mitchell Repair Information Company, LLC.

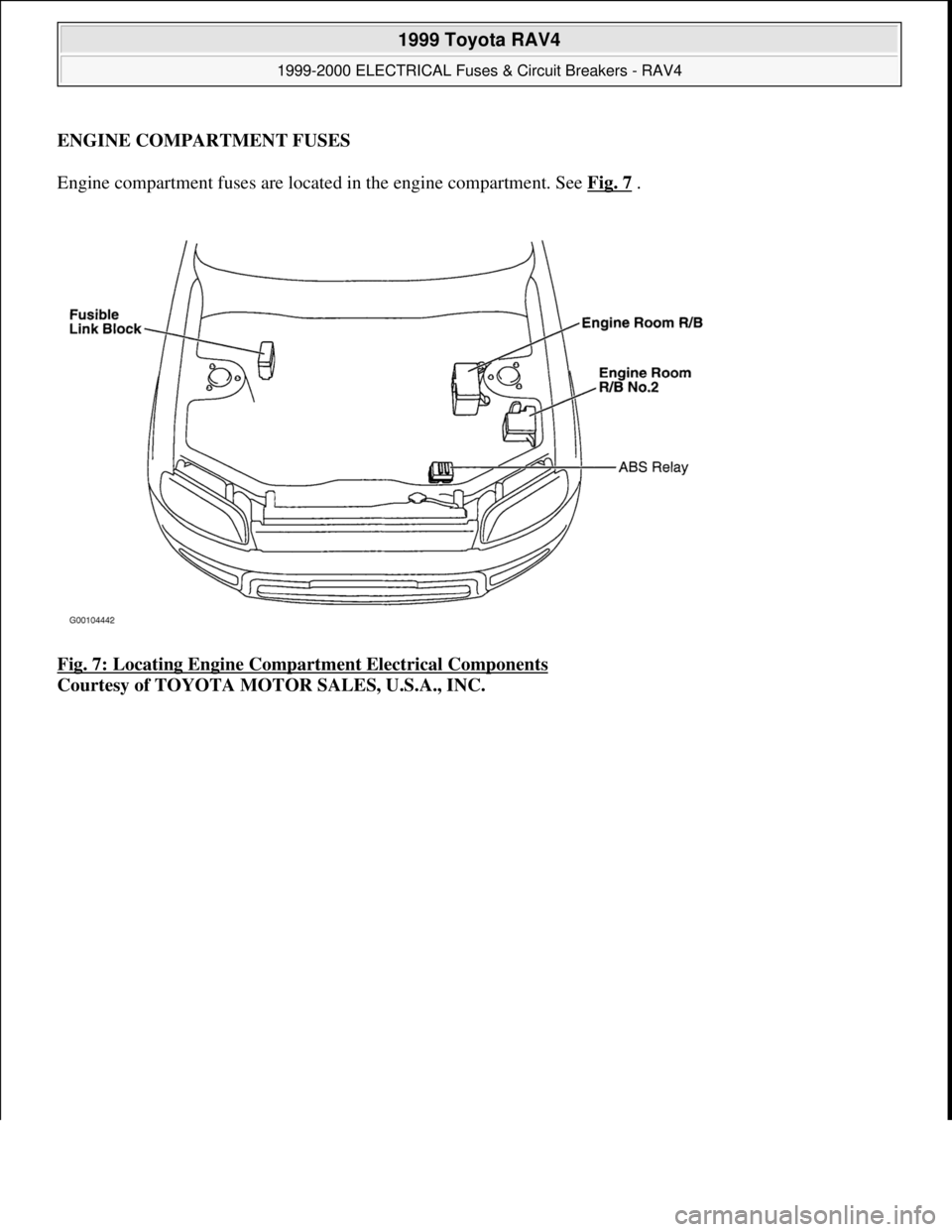

ENGINE COMPARTMENT FUSES
Engine compartment fuses are located in the engine compartment. See Fig. 7
.
Fig. 7: Locating Engine Compartment Electrical Components

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1999-2000 ELECTRICAL Fuses & Circuit Breakers - RAV4
Microsoft
Sunday, November 22, 2009 10:18:30 AMPage 6 © 2005 Mitchell Repair Information Company, LLC.

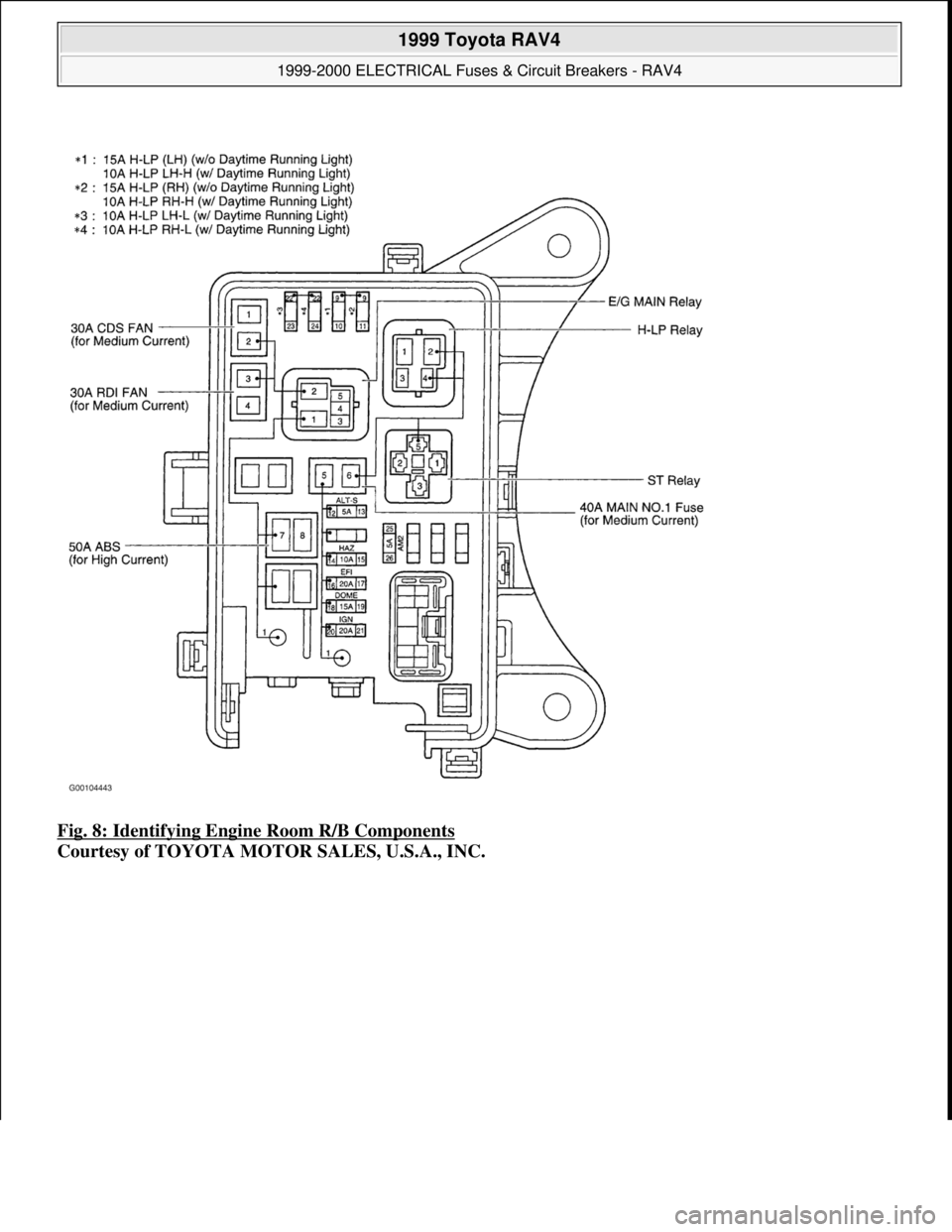

Fig. 8: Identifying Engine Room R/B Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1999-2000 ELECTRICAL Fuses & Circuit Breakers - RAV4
Microsoft
Sunday, November 22, 2009 10:18:30 AMPage 7 © 2005 Mitchell Repair Information Company, LLC.

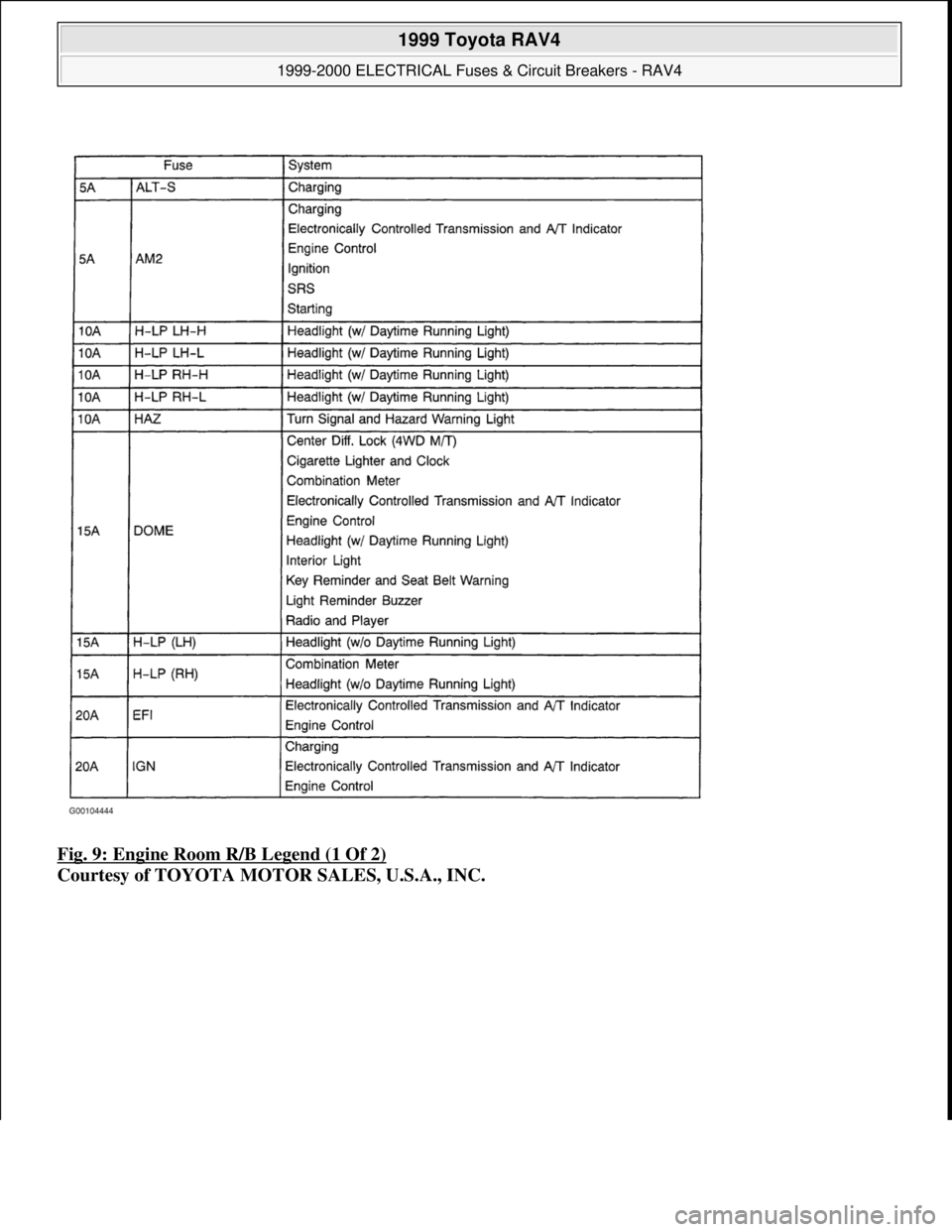

Fig. 9: Engine Room R/B Legend (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1999-2000 ELECTRICAL Fuses & Circuit Breakers - RAV4
Microsoft
Sunday, November 22, 2009 10:18:30 AMPage 8 © 2005 Mitchell Repair Information Company, LLC.

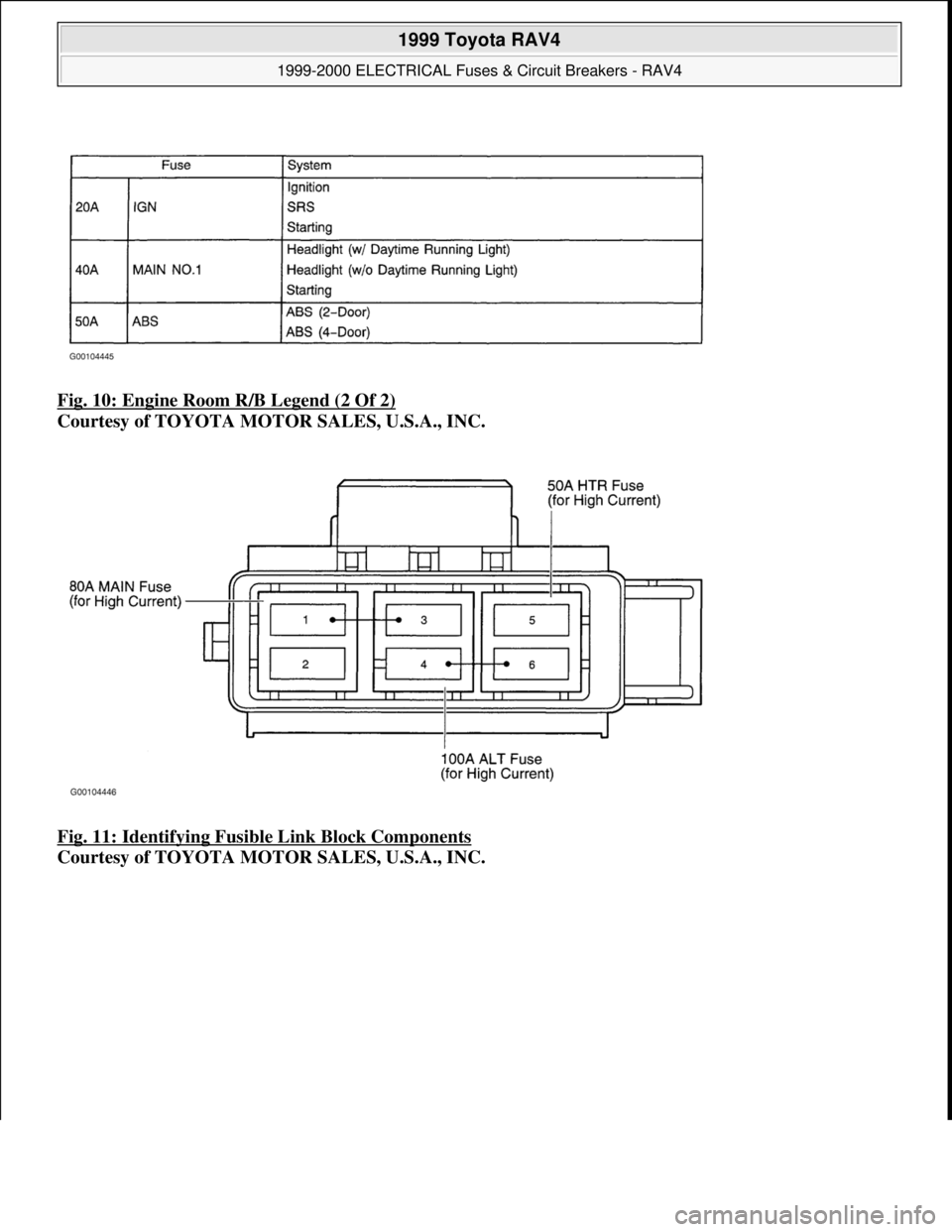

Fig. 10: Engine Room R/B Legend (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 11: Identifying Fusible Link Block Components

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1999-2000 ELECTRICAL Fuses & Circuit Breakers - RAV4
Microsoft
Sunday, November 22, 2009 10:18:30 AMPage 9 © 2005 Mitchell Repair Information Company, LLC.

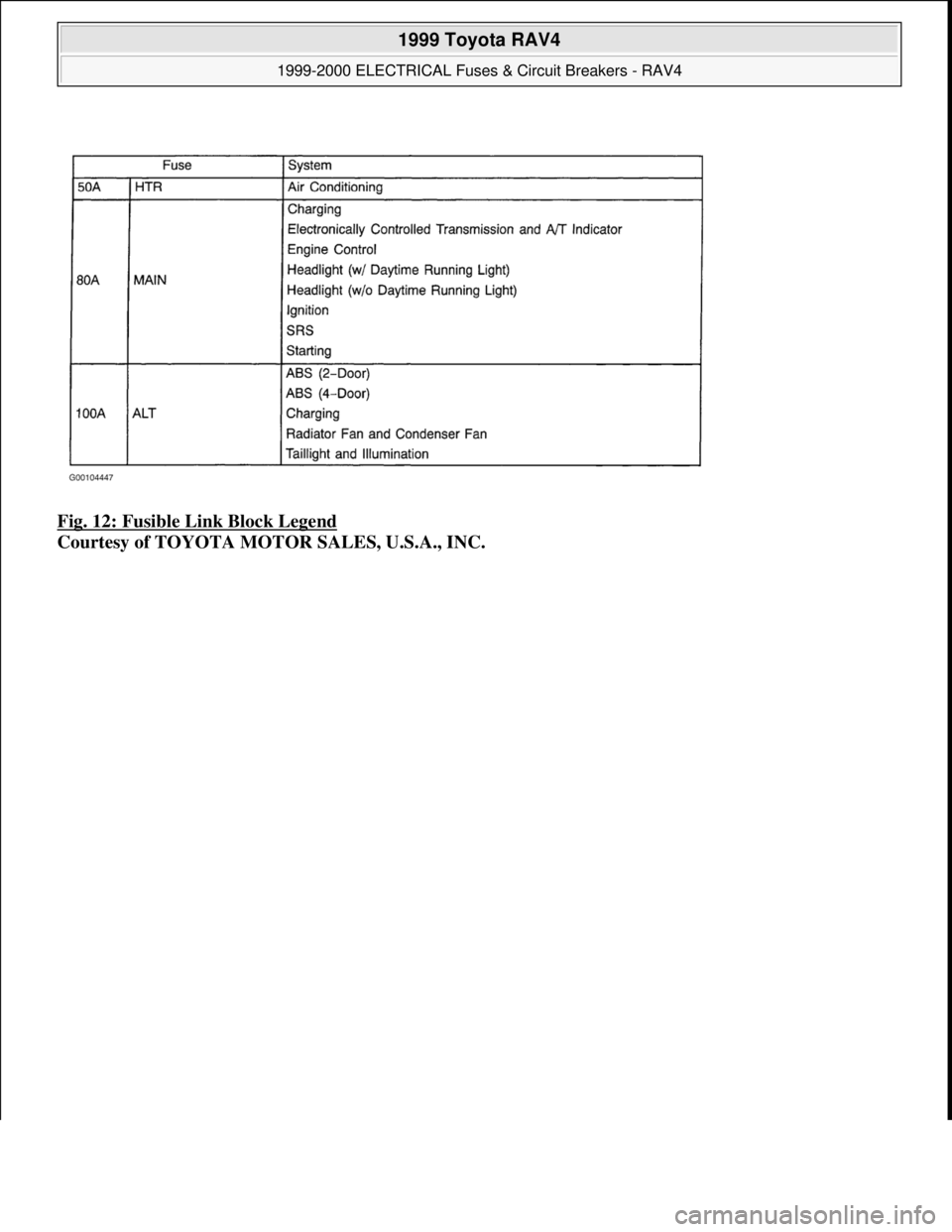

Fig. 12: Fusible Link Block Legend
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
