Operation and important riding points
6-3
1
2
3
4
567
8
9
10
11
12
13

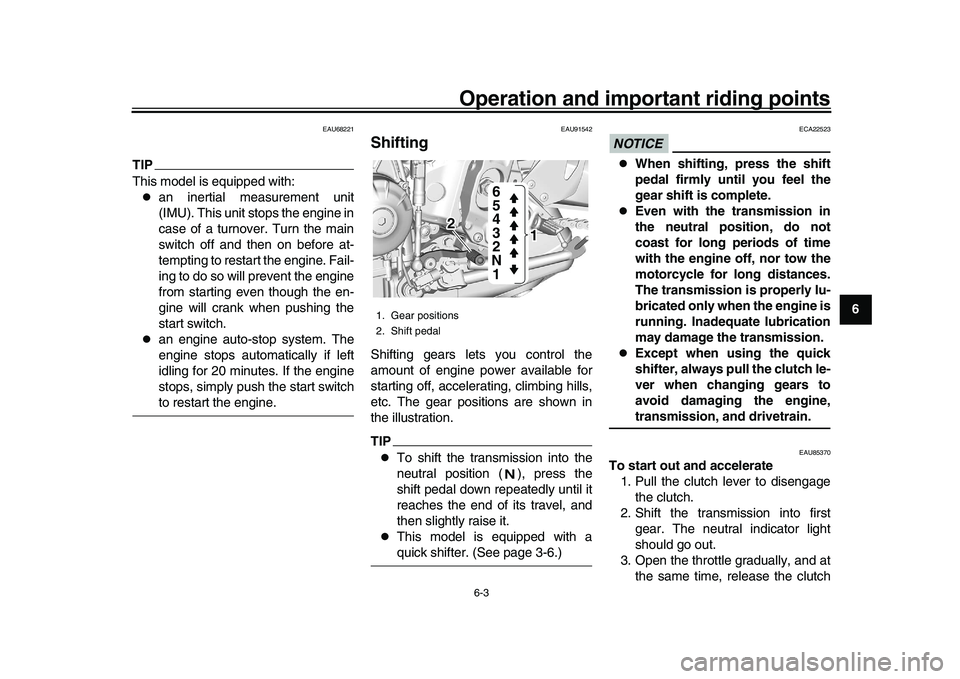

EAU68221
TIPThis model is equipped with:
an inertial measurement unit
(IMU). This unit stops the engine in
case of a turnover. Turn the main
switch off and then on before at-
tempting to restart the engine. Fail-
ing to do so will prevent the engine
from starting even though the en-
gine will crank when pushing the
start switch.

an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start switchto restart the engine.
EAU91542
ShiftingShifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc. The gear positions are shown in
the illustration.TIP
To shift the transmission into the
neutral position ( ), press the
shift pedal down repeatedly until it
reaches the end of its travel, and
then slightly raise it.

This model is equipped with aquick shifter. (See page 3-6.)
NOTICE
ECA22523

When shifting, press the shift
pedal firmly until you feel the
gear shift is complete.

Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, nor tow the
motorcycle for long distances.
The transmission is properly lu-
bricated only when the engine is
running. Inadequate lubrication
may damage the transmission.

Except when using the quick
shifter, always pull the clutch le-
ver when changing gears to
avoid damaging the engine,transmission, and drivetrain.
EAU85370
To start out and accelerate 1. Pull the clutch lever to disengage the clutch.
2. Shift the transmission into first gear. The neutral indicator light
should go out.
3. Open the throttle gradually, and at the same time, release the clutch
1. Gear positions
2. Shift pedal
2 2 2
1 1
1
N 2 3
4
5
6
BEA-28199-E0.book 3 ページ ２０２１年１２月１日　水曜日　午後７時８分

Operation and important riding points
6-4
1
2
3
4
56
7
8
9
10
11
12

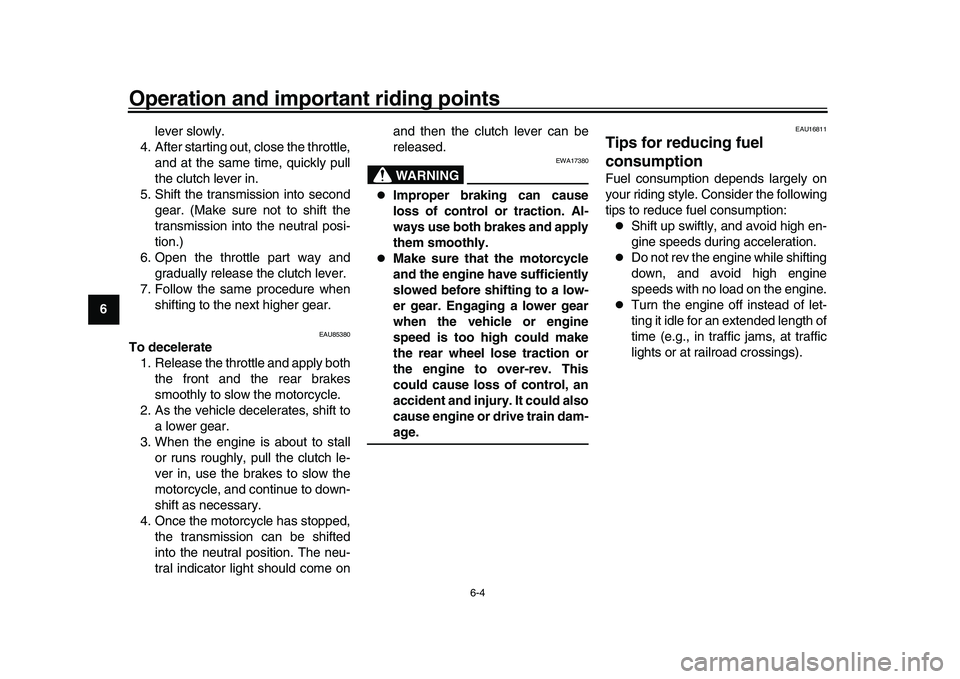

13 lever slowly.
4. After starting out, close the throttle, and at the same time, quickly pull
the clutch lever in.
5. Shift the transmission into second gear. (Make sure not to shift the
transmission into the neutral posi-
tion.)
6. Open the throttle part way and gradually release the clutch lever.
7. Follow the same procedure when shifting to the next higher gear.
EAU85380
To decelerate1. Release the throttle and apply both the front and the rear brakes
smoothly to slow the motorcycle.
2. As the vehicle decelerates, shift to a lower gear.
3. When the engine is about to stall or runs roughly, pull the clutch le-
ver in, use the brakes to slow the
motorcycle, and continue to down-
shift as necessary.
4. Once the motorcycle has stopped, the transmission can be shifted
into the neutral position. The neu-
tral indicator light should come on and then the clutch lever can be
released.
WARNING
EWA17380

Improper braking can cause
loss of control or traction. Al-
ways use both brakes and apply
them smoothly.

Make sure that the motorcycle
and the engine have sufficiently
slowed before shifting to a low-
er gear. Engaging a lower gear
when the vehicle or engine
speed is too high could make
the rear wheel lose traction or
the engine to over-rev. This
could cause loss of control, an
accident and injury. It could also
cause engine or drive train dam-age.
EAU16811
Tips for reducing fuel
consumptionFuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:
Shift up swiftly, and avoid high en-
gine speeds during acceleration.

Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.

Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
BEA-28199-E0.book 4 ページ ２０２１年１２月１日　水曜日　午後７時８分

Operation and important riding points
6-5
1
2
3
4
567
8
9
10
11
12
13
EAU17214

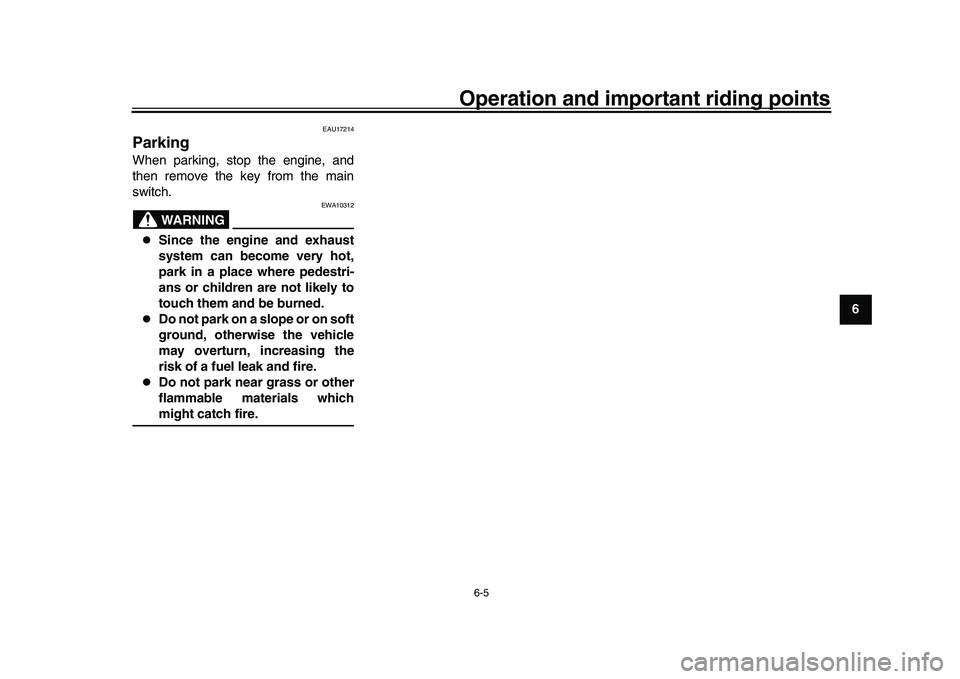

ParkingWhen parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10312

Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.

Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.

Do not park near grass or other
flammable materials whichmight catch fire.
BEA-28199-E0.book 5 ページ ２０２１年１２月１日　水曜日　午後７時８分

7-1
1
2
3
4
5
67
8
9
10
11
12
13
Periodic maintenance and adjustment

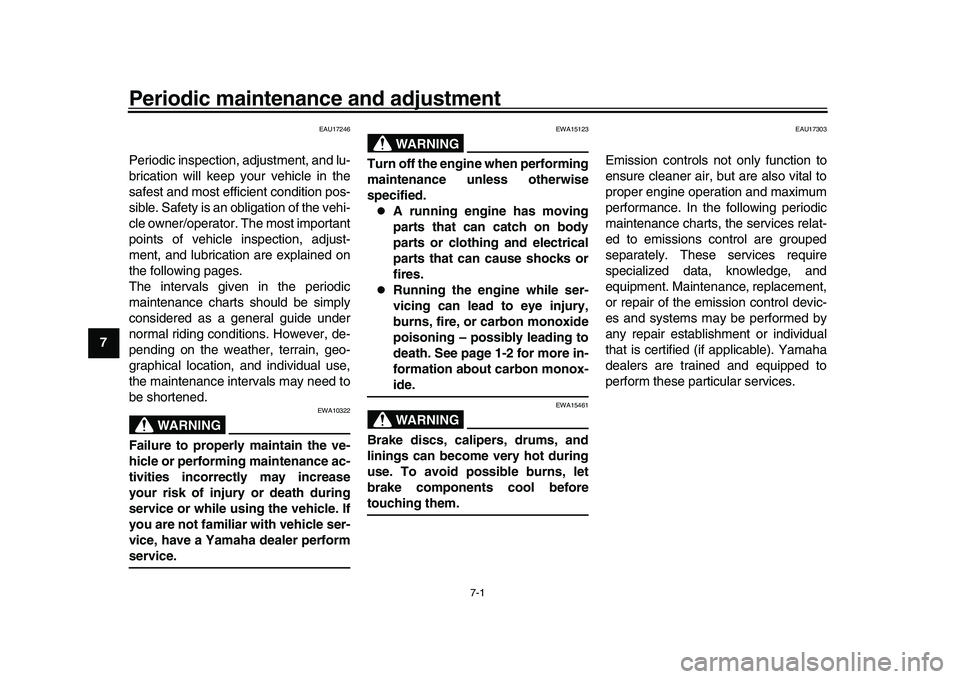

EAU17246
Periodic inspection, adjustment, and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. Safety is an obligation of the vehi-
cle owner/operator. The most important
points of vehicle inspection, adjust-
ment, and lubrication are explained on
the following pages.
The intervals given in the periodic
maintenance charts should be simply
considered as a general guide under
normal riding conditions. However, de-
pending on the weather, terrain, geo-
graphical location, and individual use,
the maintenance intervals may need to
be shortened.
WARNING
EWA10322
Failure to properly maintain the ve-
hicle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer performservice.
WARNING
EWA15123
Turn off the engine when performing
maintenance unless otherwise
specified.
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.

Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-2 for more in-
formation about carbon monox-ide.WARNING
EWA15461
Brake discs, calipers, drums, and
linings can become very hot during
use. To avoid possible burns, let
brake components cool beforetouching them.
EAU17303
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replacement,
or repair of the emission control devic-
es and systems may be performed by
any repair establishment or individual
that is certified (if applicable). Yamaha
dealers are trained and equipped to
perform these particular services.
BEA-28199-E0.book 1 ページ ２０２１年１２月１日　水曜日　午後７時８分

Periodic maintenance and adjustment
7-2
1
2
3
4
5
678
9
10
11
12
13
EAU85230

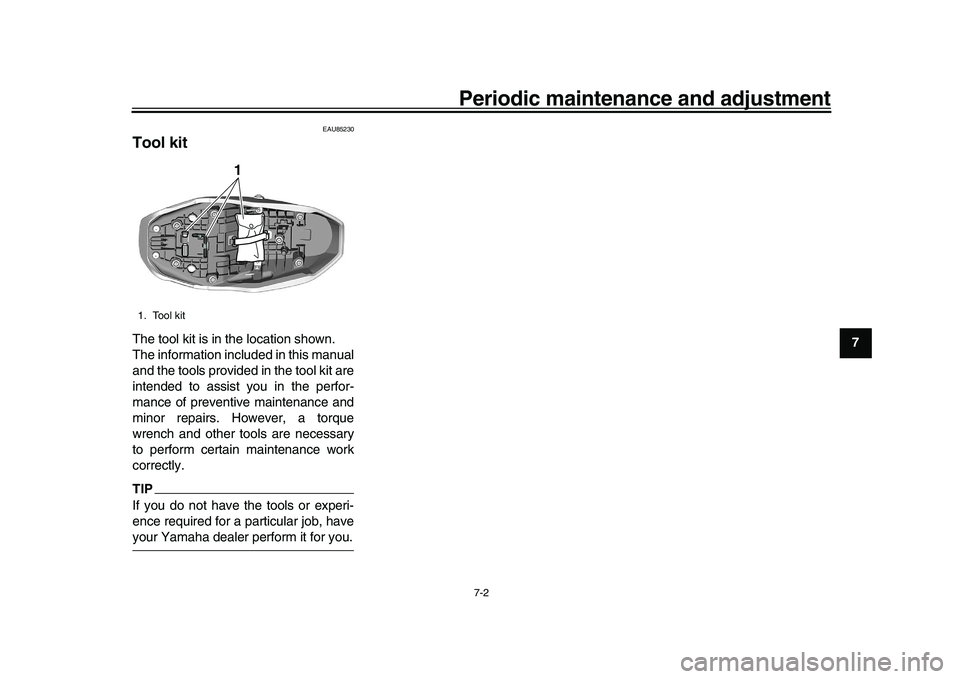

Tool kitThe tool kit is in the location shown.
The information included in this manual
and the tools provided in the tool kit are
intended to assist you in the perfor-
mance of preventive maintenance and
minor repairs. However, a torque
wrench and other tools are necessary
to perform certain maintenance work
correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, haveyour Yamaha dealer perform it for you.1. Tool kit
1
BEA-28199-E0.book 2 ページ ２０２１年１２月１日　水曜日　午後７時８分

Periodic maintenance and adjustment
7-3
1
2
3
4
5
67
8
9
10
11
12
13
EAU71033
Periodic maintenance chartsTIP
Items marked with an asterisk should be performed by your Yamaha dealer because these items require special tools,
data, and technical skills.

From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).

The annual checks must be performed every year, except if a distance-based maintenance is performed in-stead.
EAU71051
Periodic maintenance chart for the emission control systemNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Fuel line Check fuel hoses for cracks or
damage.
Replace if necessary. 
2 *Spark plugs Check condition.
Adjust gap and clean.


3 *Valve clearance Check and adjust. Every 40000 km (24000 mi)
4 *Fuel injection Check engine idle speed.

Check and adjust synchronization. 
5 *Exhaust system Check for leakage.
Tighten if necessary.
Replace gaskets if necessary. 
6 *Evaporative
emission control
system Check control system for damage.
Replace if necessary.

BEA-28199-E0.book 3 ページ ２０２１年１２月１日　水曜日　午後７時８分

Periodic maintenance and adjustment
7-4
1
2
3
4
5
678
9
10
11
12
13
EAU71353

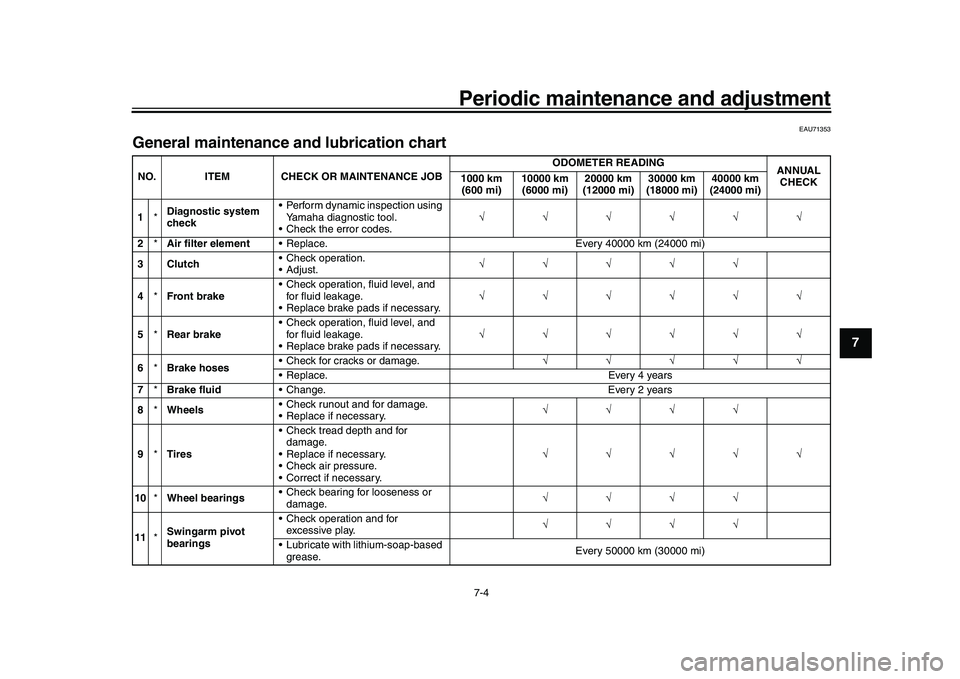

General maintenance an d lubrication chartNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Diagnostic system
check Perform dynamic inspection using
Yamaha diagnostic tool.
Check the error codes. 
2 *Air filter element Replace. Every 40000 km (24000 mi)
3Clutch Check operation.
Adjust. 
4 *Front brake Check operation, fluid level, and
for fluid leakage.
Replace brake pads if necessary. 
5 *Rear brake Check operation, fluid level, and
for fluid leakage.
Replace brake pads if necessary. 
6 *Brake hoses Check for cracks or damage.

Replace. Every 4 years
7 *Brake fluid Change. Every 2 years
8 *Wheels Check runout and for damage.
Replace if necessary. 
9 *Tires Check tread depth and for
damage.
Replace if necessary.
Check air pressure.
Correct if necessary. 
10 *Wheel bearings Check bearing for looseness or
damage. 
11 *Swingarm pivot
bearings Check operation and for
excessive play. 
Lubricate with lithium-soap-based grease. Every 50000 km (30000 mi)
BEA-28199-E0.book 4 ページ ２０２１年１２月１日　水曜日　午後７時８分

Periodic maintenance and adjustment
7-5
1
2
3
4
5
67
8
9
10
11
12
13

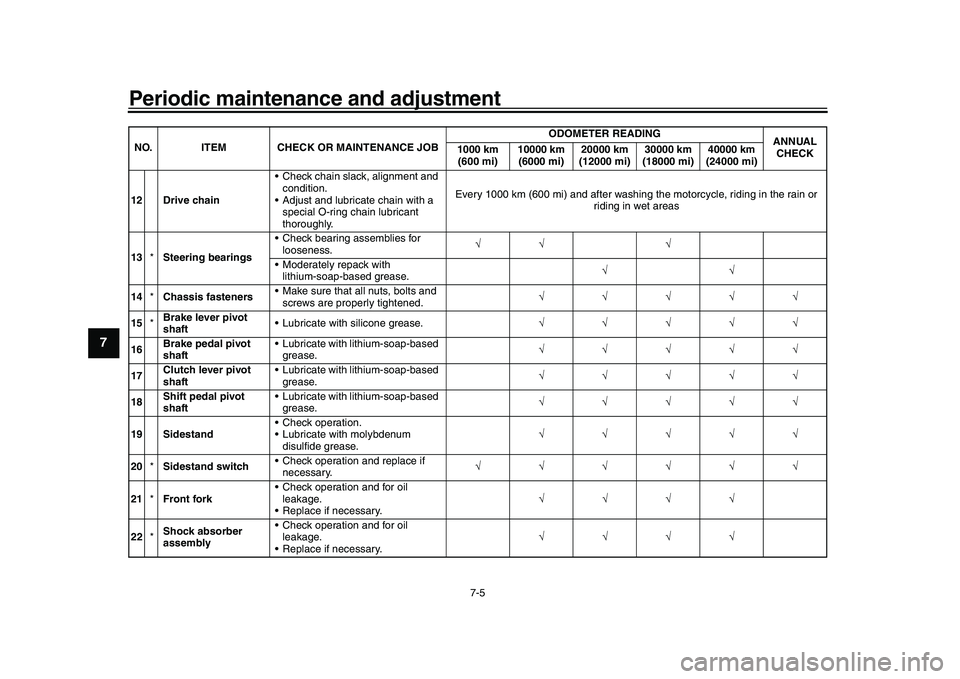

12 Drive chain Check chain slack, alignment and
condition.
Adjust and lubricate chain with a special O-ring chain lubricant
thoroughly. Every 1000 km (600 mi) and after washing the motorcycle, riding in the rain or
riding in wet areas
13 *Steering bearings Check bearing assemblies for
looseness. 

Moderately repack with lithium-soap-based grease. 
14 *Chassis fasteners Make sure that all nuts, bolts and
screws are properly tightened. 
15 *Brake lever pivot
shaft Lubricate with silicone grease.

16 Brake pedal pivot
shaft Lubricate with lithium-soap-based
grease. 
17 Clutch lever pivot
shaft Lubricate with lithium-soap-based
grease. 
18 Shift pedal pivot
shaft Lubricate with lithium-soap-based
grease. 
19 Sidestand Check operation.
Lubricate with molybdenum
disulfide grease. 
20 *Sidestand switch Check operation and replace if
necessary. 
21 *Front fork Check operation and for oil
leakage.
Replace if necessary. 
22 *Shock absorber
assembly Check operation and for oil
leakage.
Replace if necessary. 
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)BEA-28199-E0.book 5 ページ ２０２１年１２月１日　水曜日　午後７時８分

Periodic maintenance and adjustment
7-6
1
2
3
4
5
678
9
10
11
12
13
23 *Rear suspension
relay arm and
connecting arm
pivoting points Check operation.

24 *Engine oil Change (warm engine before
draining).
Check oil level and vehicle for oil leakage. 
25 *Engine oil filter
cartridge Replace.

26 *Cooling system Check coolant level and vehicle
for coolant leakage. 
Change. Every 3 years
27 *Front and rear brake
switches Check operation.

28 *Moving parts and
cables Lubricate.

29 *Throttle grip Check operation.
Lubricate throttle grip housing
tube guides. 
30 *Lights, signals and
switches Check operation.
Adjust headlight beam.

NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
BEA-28199-E0.book 6 ページ ２０２１年１２月１日　水曜日　午後７時８分

Periodic maintenance and adjustment
7-7
1
2
3
4
5
67
8
9
10
11
12
13

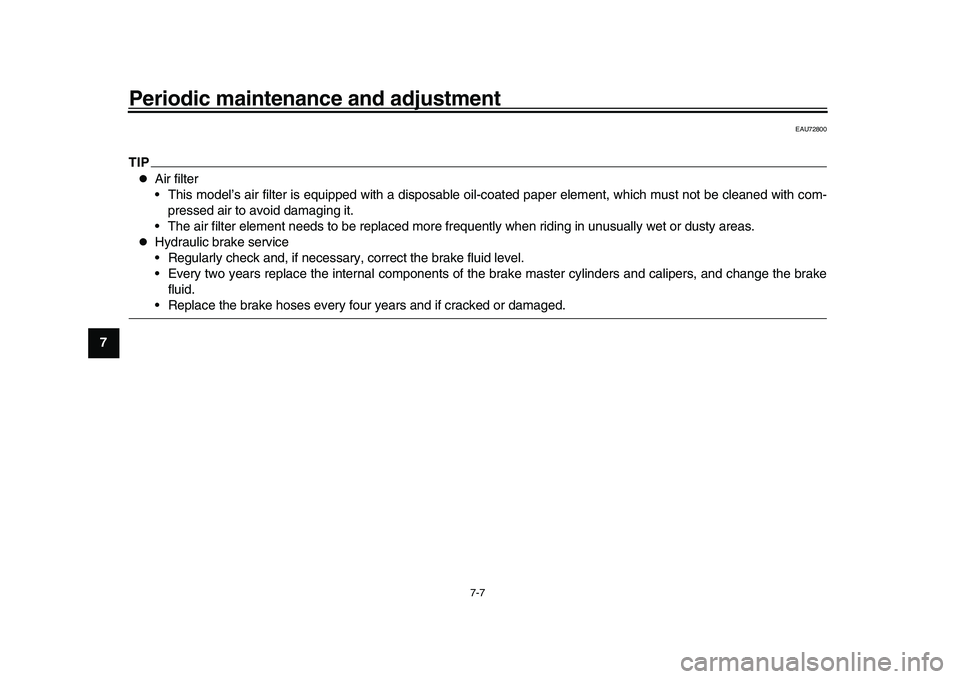

EAU72800
TIP
Air filter
This model’s air filter is equipped wi th a disposable oil-coated paper elemen t, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more fr equently when riding in unusually wet or dusty areas.

Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of t he brake master cylinders and calipers, and change the brake
fluid. Replace the brake hoses every four years and if cracked or damaged.
BEA-28199-E0.book 7 ページ ２０２１年１２月１日　水曜日　午後７時８分
