Seats
Seat Cover Replacement (cont'd)

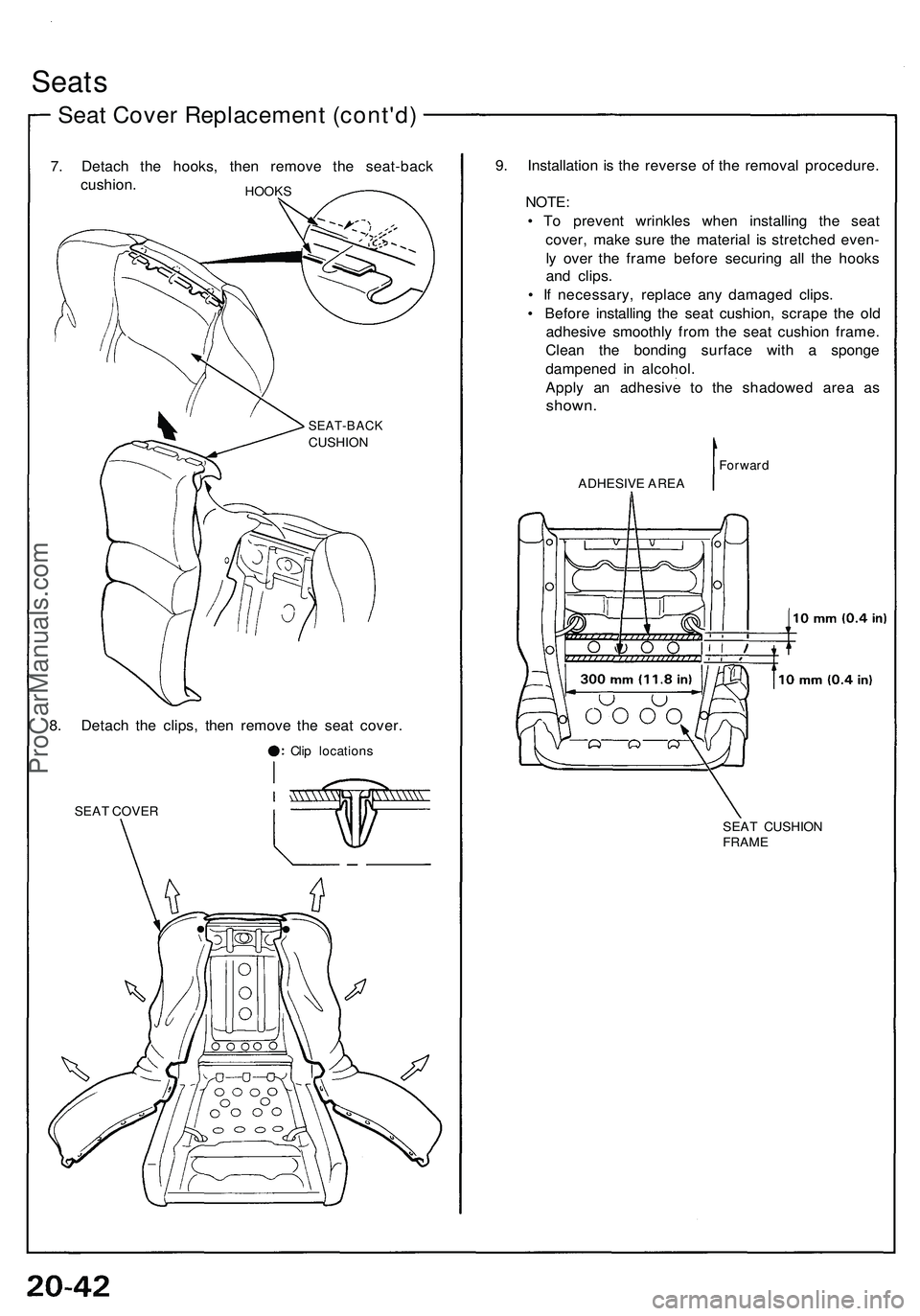

7. Detach the hooks, then remove the seat-back
cushion.
HOOKS
8. Detach the clips, then remove the seat cover.
Clip locations
SEAT COVER
9. Installation is the reverse of the removal procedure.
NOTE:
• To prevent wrinkles when installing the seat
cover, make sure the material is stretched even-
ly over the frame before securing all the hooks
and clips.
• If necessary, replace any damaged clips.
• Before installing the seat cushion, scrape the old
adhesive smoothly from the seat cushion frame.
Clean the bonding surface with a sponge
dampened in alcohol.
Apply an adhesive to the shadowed area as
shown.
Forward
SEAT CUSHION
FRAME
SEAT-BACK
CUSHION
ADHESIVE AREAProCarManuals.com
Page 1102 of 1503

Seat Belt s
Replacemen t

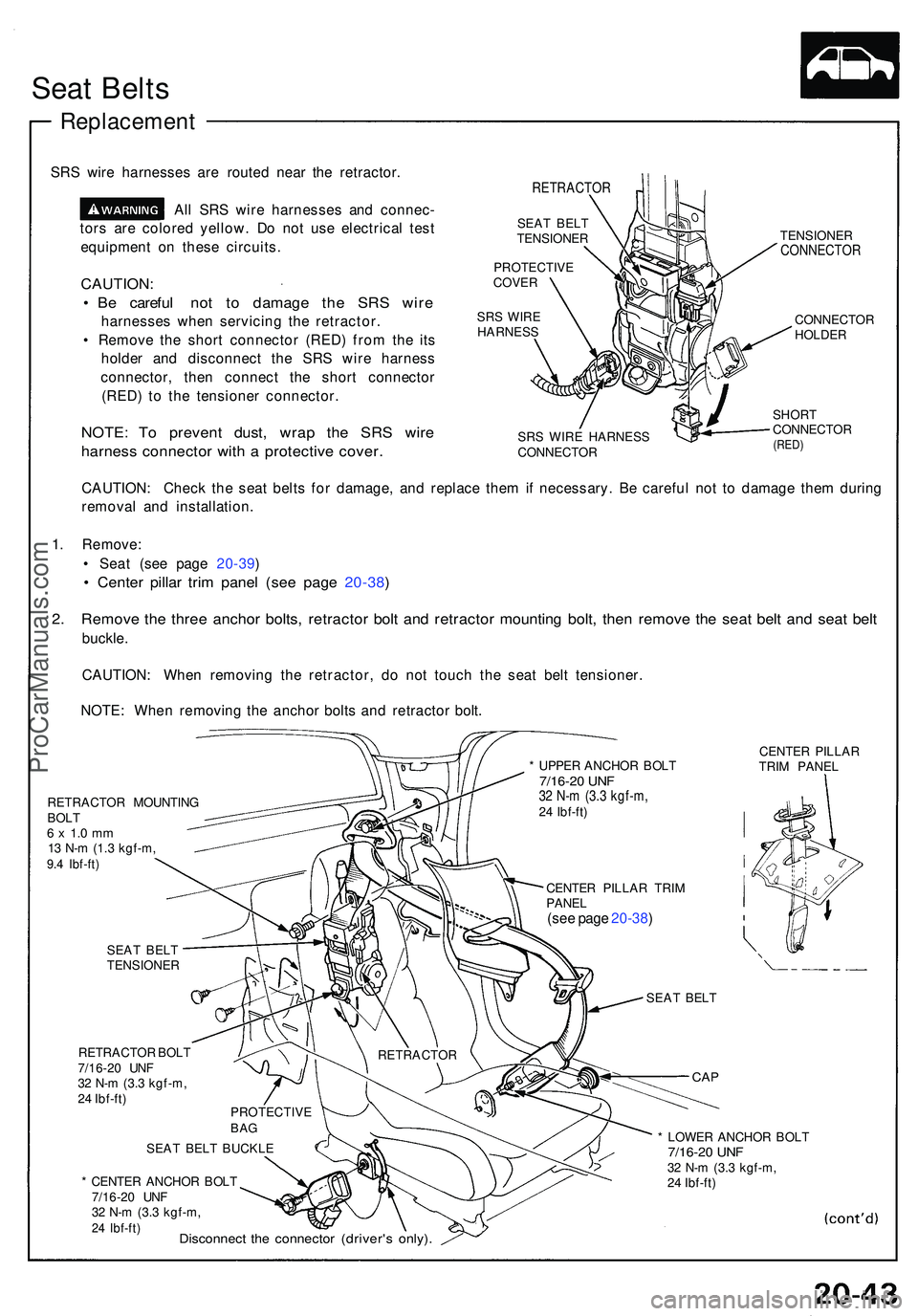

SRS wir e harnesse s ar e route d nea r th e retractor .
Al l SR S wir e harnesse s an d connec -
tor s ar e colore d yellow . D o no t us e electrica l tes t
equipmen t o n thes e circuits .
CAUTION :
• B e carefu l no t t o damag e th e SR S wir e
harnesse s whe n servicin g th e retractor .
• Remov e th e shor t connecto r (RED ) fro m th e it s
holde r an d disconnec t th e SR S wir e harnes s
connector , the n connec t th e shor t connecto r
(RED ) t o th e tensione r connector .
NOTE: T o preven t dust , wra p th e SR S wir e
harnes s connecto r wit h a protectiv e cover .
RETRACTO R
SEAT BEL T
TENSIONE R
PROTECTIV E
COVE R
SR S WIR E
HARNES S
SR S WIR E HARNES S
CONNECTO R TENSIONE
R
CONNECTO R
CONNECTOR
HOLDE R
SHOR T
CONNECTO R
(RED)
CAUTION : Chec k th e sea t belt s fo r damage , an d replac e the m if necessary . B e carefu l no t t o damag e the m durin g
remova l an d installation .
1 . Remove :
• Sea t (se e pag e 20-39 )
• Cente r pilla r tri m pane l (se e pag e 20-38 )
2. Remov e th e thre e ancho r bolts , retracto r bol t an d retracto r mountin g bolt , the n remov e th e sea t bel t an d sea t bel t
buckle .
CAUTION : Whe n removin g th e retractor , d o no t touc h th e sea t bel t tensioner .
NOTE : Whe n removin g th e ancho r bolt s an d retracto r bolt .
RETRACTO R MOUNTIN GBOLT6 x 1. 0 m m13 N- m (1. 3 kgf-m ,9.4 Ibf-ft )
SEAT BEL T
TENSIONE R *
UPPE R ANCHO R BOL T
7/16-2 0 UN F32 N- m (3. 3 kgf-m ,24 Ibf-ft )
CENTE R PILLA R TRI M
PANE L
(see pag e 20-38 )
CENTE R PILLA R
TRI M PANE L
RETRACTO R BOL T
7/16-2 0 UN F
3 2 N- m (3. 3 kgf-m ,
2 4 Ibf-ft )
SEA T BEL T BUCKL E
* CENTE R ANCHO R BOL T
7/16-2 0 UN F
3 2 N- m (3. 3 kgf-m ,
24 Ibf-ft )Disconnec t th e connecto r (driver' s only) .
SEAT BEL T
CAP
* LOWE R ANCHO R BOL T7/16-2 0 UN F32 N- m (3. 3 kgf-m ,
2 4 Ibf-ft )
RETRACTO
R
PROTECTIV E
BAG
ProCarManuals.com
Page 1103 of 1503

Seat Belt s
Replacemen t (cont'd )

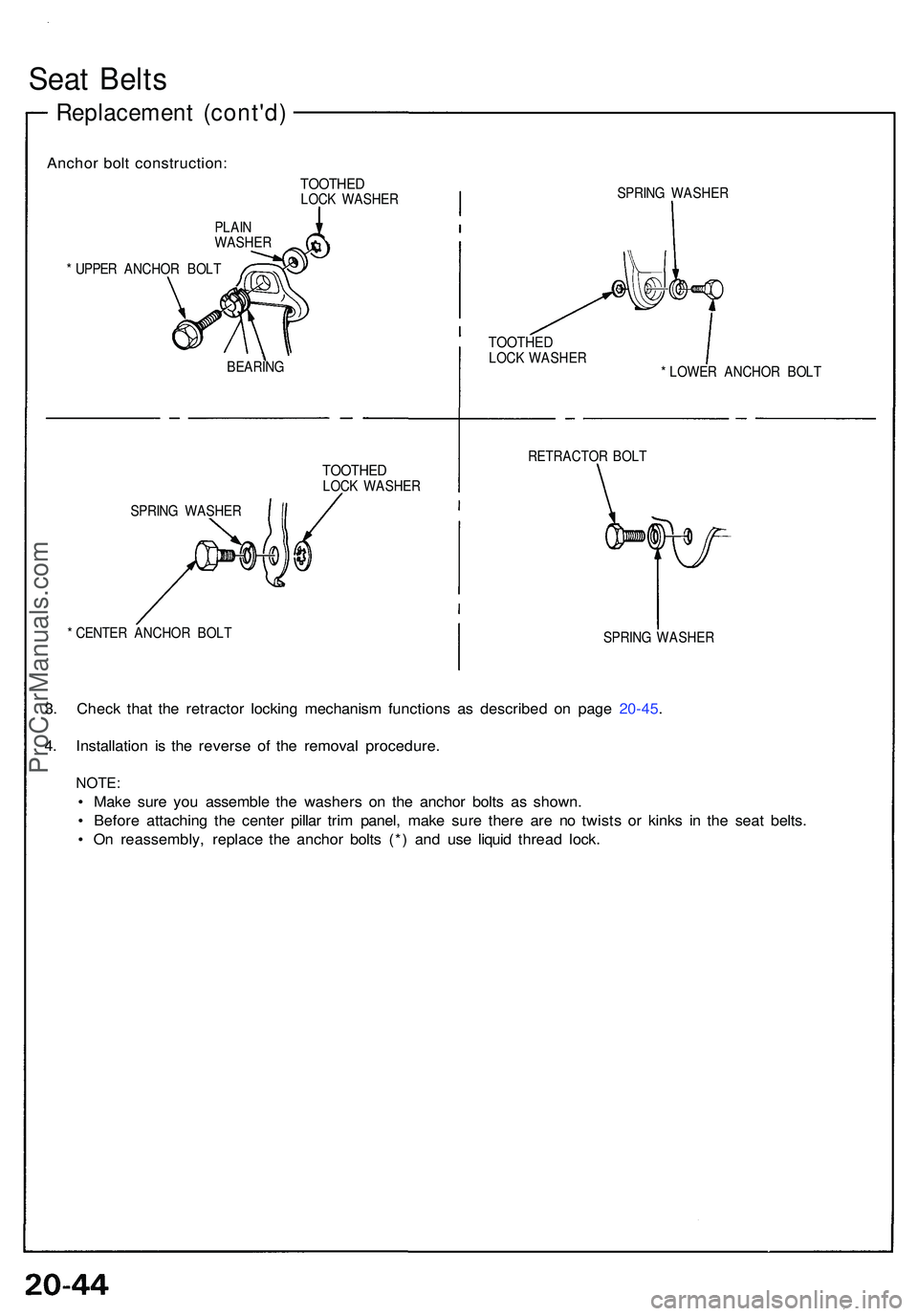

TOOTHE DLOCK WASHE R
PLAI N
WASHE R
* UPPE R ANCHO R BOL T SPRIN
G WASHE R
BEARIN G
TOOTHE DLOCK WASHE R
TOOTHEDLOCK WASHE R
* LOWE R ANCHO R BOL T
RETRACTO R BOL T
SPRIN G WASHE R
* CENTE R ANCHO R BOL T
SPRING WASHER
3. Chec k tha t th e retracto r lockin g mechanis m function s a s describe d o n pag e 20-45 .
4 . Installatio n i s th e revers e o f th e remova l procedure .
NOTE:
• Mak e sur e yo u assembl e th e washer s o n th e ancho r bolt s a s shown .
• Befor e attachin g th e cente r pilla r tri m panel , mak e sur e ther e ar e n o twist s o r kink s i n th e sea t belts .
• O n reassembly , replac e th e ancho r bolt s (* ) an d us e liqui d threa d lock .
Ancho
r bol t construction :
ProCarManuals.com
Page 1104 of 1503

Inspection

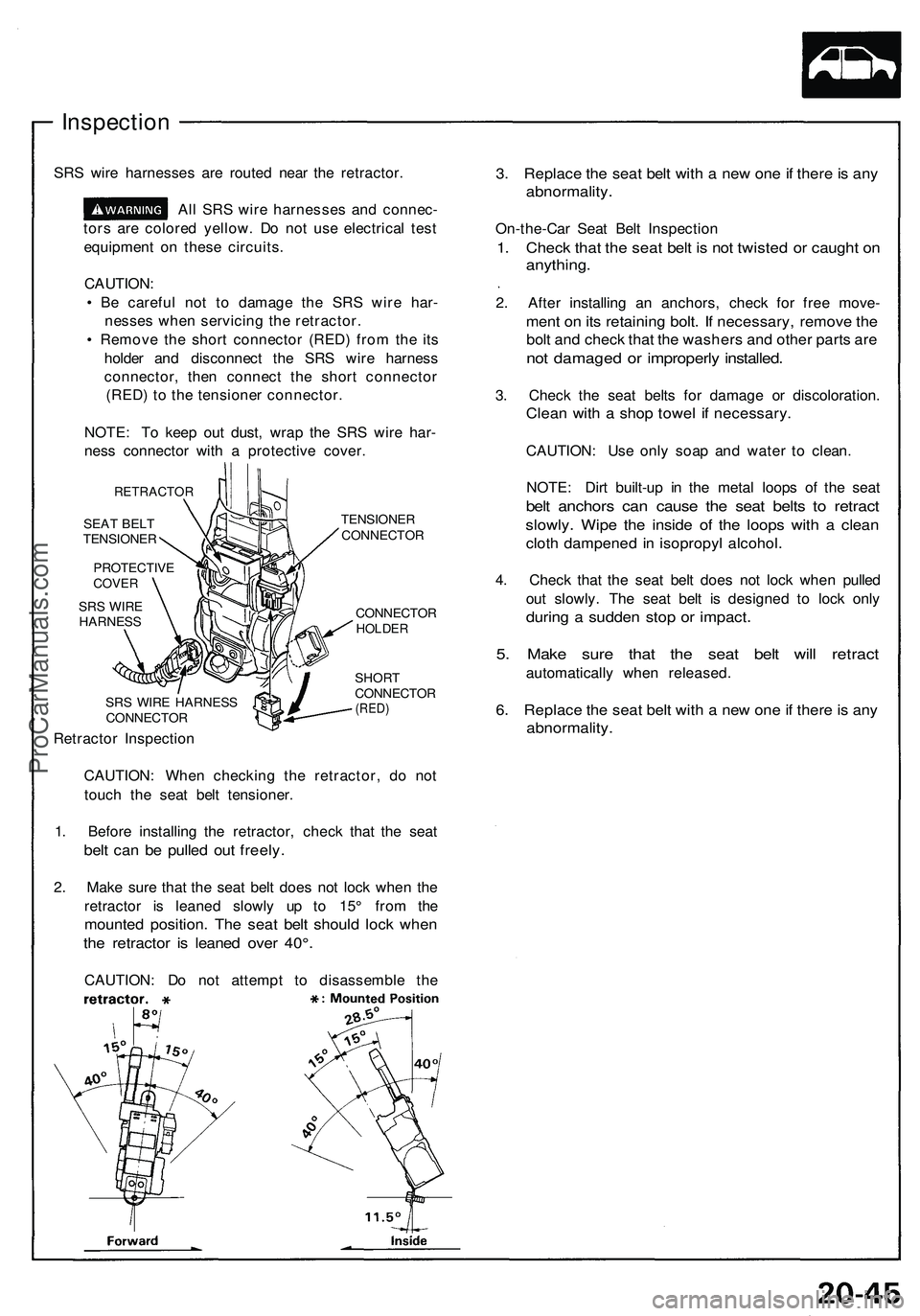

SRS wire harnesses are routed near the retractor.
All SRS wire harnesses and connec-
tors are colored yellow. Do not use electrical test
equipment on these circuits.
CAUTION:
• Be careful not to damage the SRS wire har-
nesses when servicing the retractor.
• Remove the short connector (RED) from the its
holder and disconnect the SRS wire harness
connector, then connect the short connector
(RED) to the tensioner connector.
NOTE: To keep out dust, wrap the SRS wire har-
ness connector with a protective cover.
RETRACTOR
SEAT BELT
TENSIONER
PROTECTIVE
COVER
SRS WIRE
HARNESS
SRS WIRE HARNESS
CONNECTOR
Retractor Inspection
TENSIONER
CONNECTOR
CONNECTOR
HOLDER
SHORT
CONNECTOR
(RED)
3. Replace the seat belt with a new one if there is any
abnormality.
On-the-Car Seat Belt Inspection
1. Check that the seat belt is not twisted or caught on
anything.
2. After installing an anchors, check for free move-
ment on its retaining bolt. If necessary, remove the
bolt and check that the washers and other parts are
not damaged or improperly installed.
3. Check the seat belts for damage or discoloration.
Clean with a shop towel if necessary.
CAUTION: Use only soap and water to clean.
NOTE: Dirt built-up in the metal loops of the seat
belt anchors can cause the seat belts to retract
slowly. Wipe the inside of the loops with a clean
cloth dampened in isopropyl alcohol.
4. Check that the seat belt does not lock when pulled
out slowly. The seat belt is designed to lock only
during a sudden stop or impact.
5. Make sure that the seat belt will retract
automatically when released.
6. Replace the seat belt with a new one if there is any
abnormality.
CAUTION: When checking the retractor, do not
touch the seat belt tensioner.
1. Before installing the retractor, check that the seat
belt can be pulled out freely.
2. Make sure that the seat belt does not lock when the
retractor is leaned slowly up to 15° from the
mounted position. The seat belt should lock when
the retractor is leaned over 40°.
CAUTION: Do not attempt to disassemble theProCarManuals.com
Page 1105 of 1503

Seat Belts
Child Seat Anchor Plate

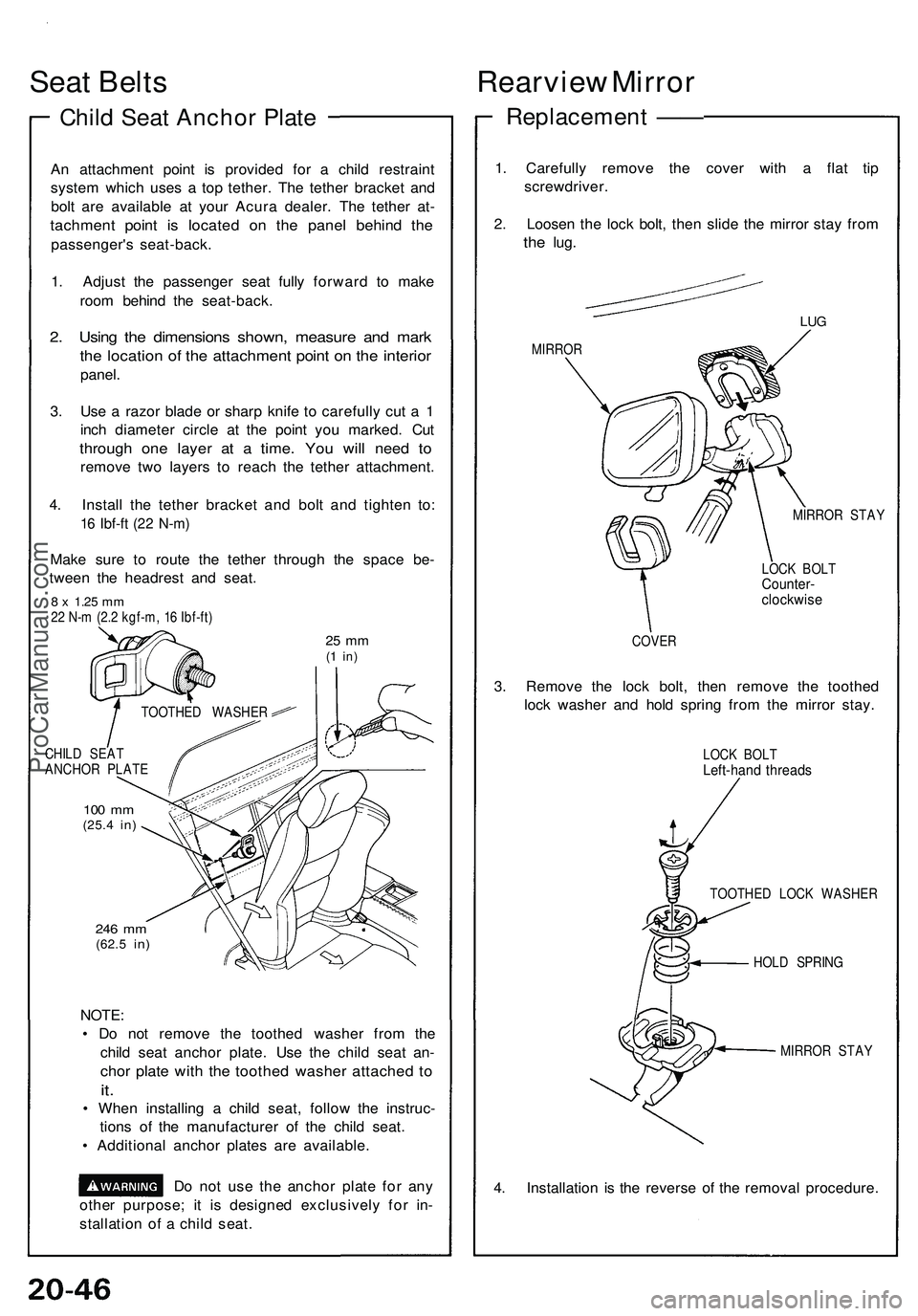

An attachment point is provided for a child restraint
system which uses a top tether. The tether bracket and
bolt are available at your Acura dealer. The tether at-
tachment point is located on the panel behind the
passenger's seat-back.
1. Adjust the passenger seat fully forward to make
room behind the seat-back.
2. Using the dimensions shown, measure and mark
the location of the attachment point on the interior
panel.
3. Use a razor blade or sharp knife to carefully cut a 1
inch diameter circle at the point you marked. Cut
through one layer at a time. You will need to
remove two layers to reach the tether attachment.
4. Install the tether bracket and bolt and tighten to:
16 Ibf-ft (22 N-m)
Make sure to route the tether through the space be-
tween the headrest and seat.
8 x
1.25
mm
22 N-m (2.2 kgf-m, 16 Ibf-ft)
25 mm
(1 in)
CHILD SEAT
ANCHOR PLATE
100 mm
(25.4
in)
246 mm
(62.5
in)
NOTE:
• Do not remove the toothed washer from the
child seat anchor plate. Use the child seat an-
chor plate with the toothed washer attached to
it.
• When installing a child seat, follow the instruc-
tions of the manufacturer of the child seat.
• Additional anchor plates are available.
Do not use the anchor plate for any
other purpose; it is designed exclusively for in-
stallation of a child seat.
Rearview Mirror
Replacement ——
1. Carefully remove the cover with a flat tip
screwdriver.
2. Loosen the lock bolt, then slide the mirror stay from
the
lug.
MIRROR
LUG
MIRROR STAY
LOCK BOLT
Counter-
clockwise
COVER
3. Remove the lock bolt, then remove the toothed
lock washer and hold spring from the mirror stay.
LOCK BOLT
Left-hand threads
TOOTHED LOCK WASHER
HOLD SPRING
MIRROR STAY
4. Installation is the reverse of the removal procedure.
TOOTHED WASHERProCarManuals.com
Page 1106 of 1503

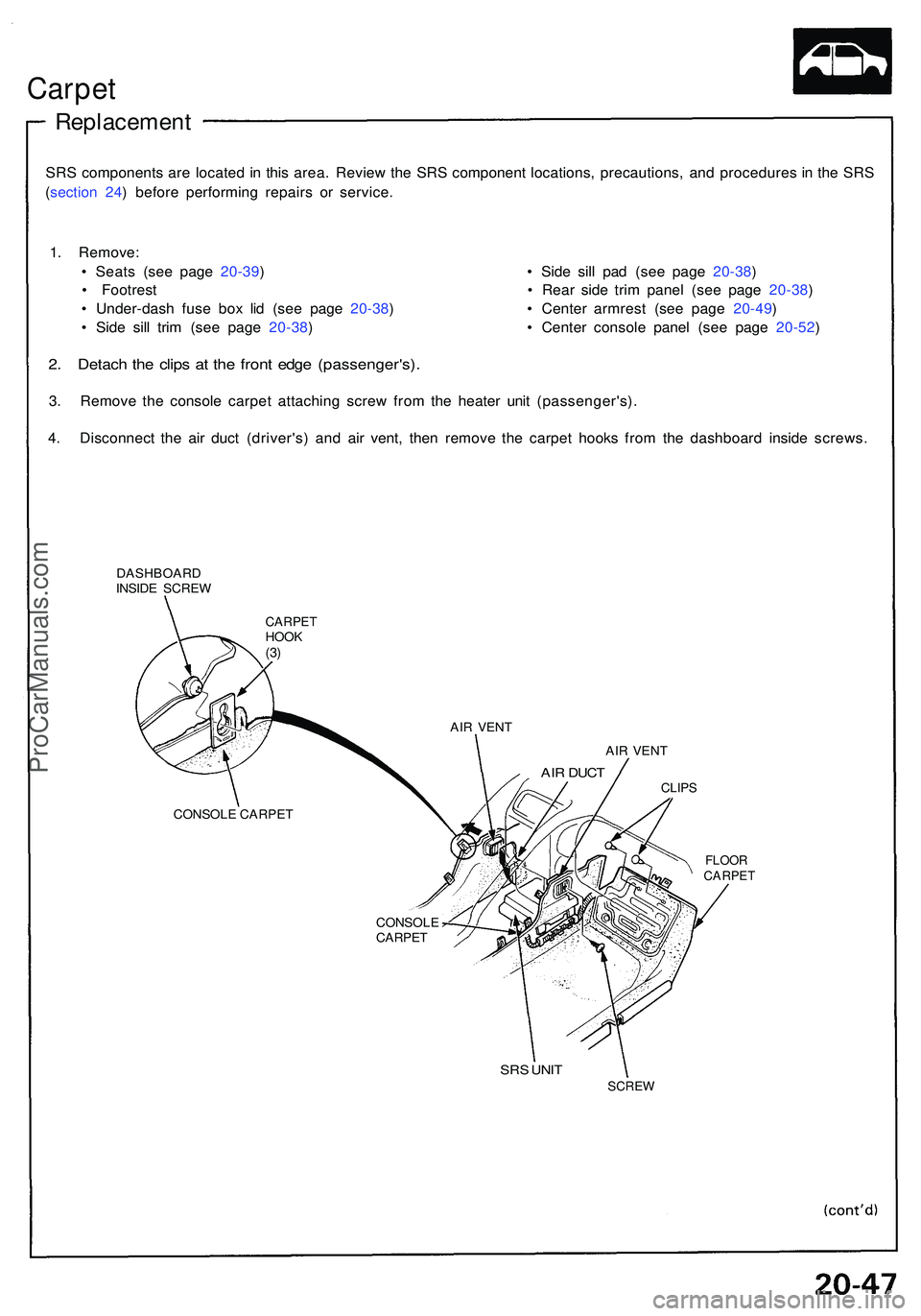

Carpet
Replacemen t
SRS component s ar e locate d in thi s area . Revie w th e SR S componen t locations , precautions , an d procedure s i n th e SR S
( sectio n 24 ) befor e performin g repair s o r service .
1 . Remove :
• Seat s (se e pag e 20-39 )
• Footres t
• Under-das h fus e bo x li d (se e pag e 20-38 )
• Sid e sil l tri m (se e pag e 20-38 ) •
Sid e sil l pa d (se e pag e 20-38 )
• Rea r sid e tri m pane l (se e pag e 20-38 )
• Cente r armres t (se e pag e 20-49 )
• Cente r consol e pane l (se e pag e 20-52 )
2. Detac h th e clip s a t th e fron t edg e (passenger's) .
3. Remov e th e consol e carpe t attachin g scre w fro m th e heate r uni t (passenger's) .
4 . Disconnec t th e ai r duc t (driver's ) an d ai r vent , the n remov e th e carpe t hook s fro m th e dashboar d insid e screws .
DASHBOAR D
INSID E SCRE W
CARPE THOOK(3)
AI R VEN T
CLIPS
CONSOL E CARPE T
FLOORCARPE T
SRS UNI TSCRE W
CONSOL ECARPET
AIR DUC T
AIR VEN T
ProCarManuals.com
Page 1107 of 1503

Carpet
Replacement (cont'd)

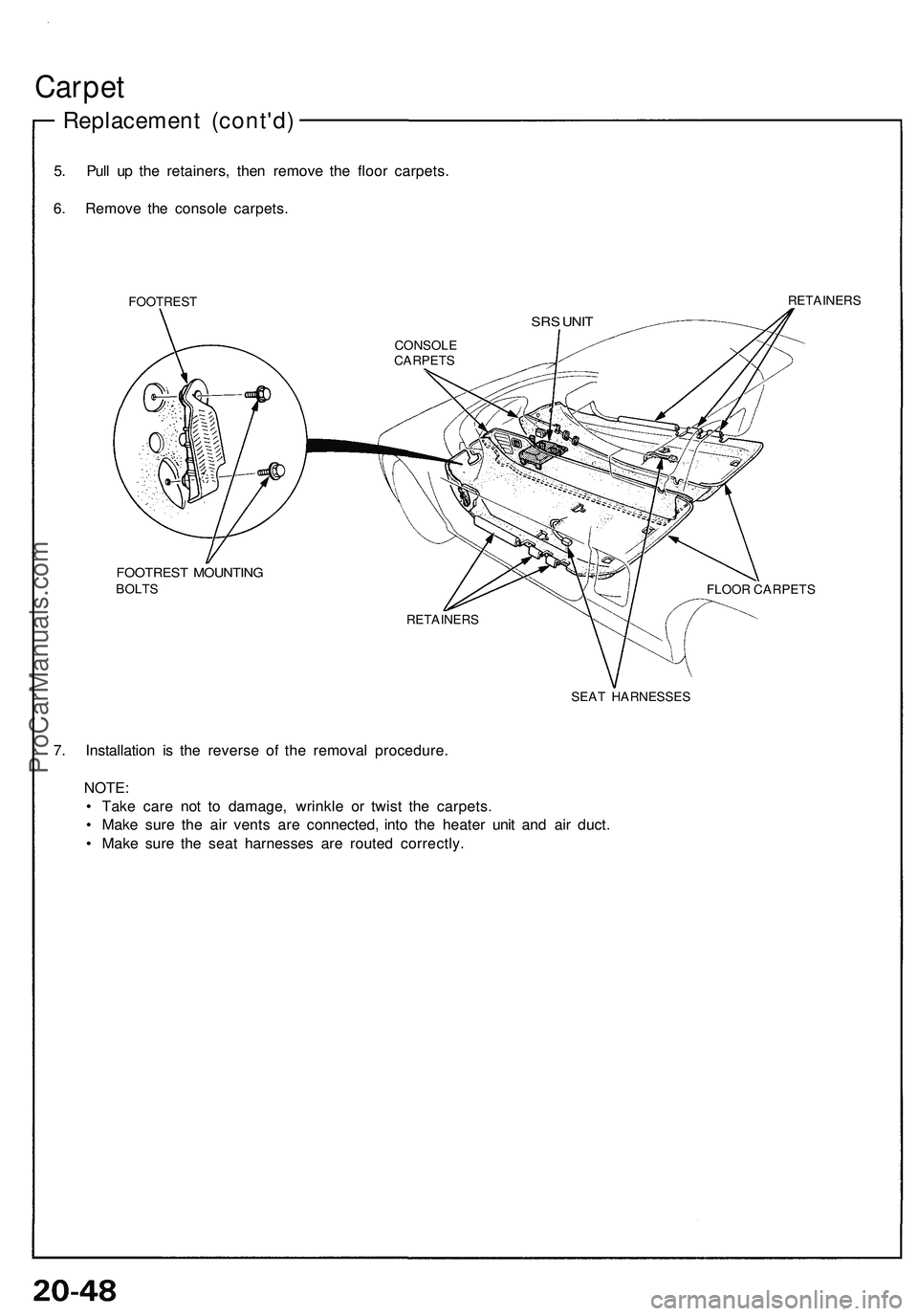

5. Pull up the retainers, then remove the floor carpets.
6. Remove the console carpets.
FOOTREST
RETAINERS
FOOTREST MOUNTING
BOLTS
SEAT HARNESSES
7. Installation is the reverse of the removal procedure.
NOTE:
• Take care not to damage, wrinkle or twist the carpets.
• Make sure the air vents are connected, into the heater unit and air duct.
• Make sure the seat harnesses are routed correctly.
CONSOLE
CARPETS
RETAINERS
FLOOR CARPETS
SRS UNITProCarManuals.com
Page 1108 of 1503

Center Armrest
Replacement

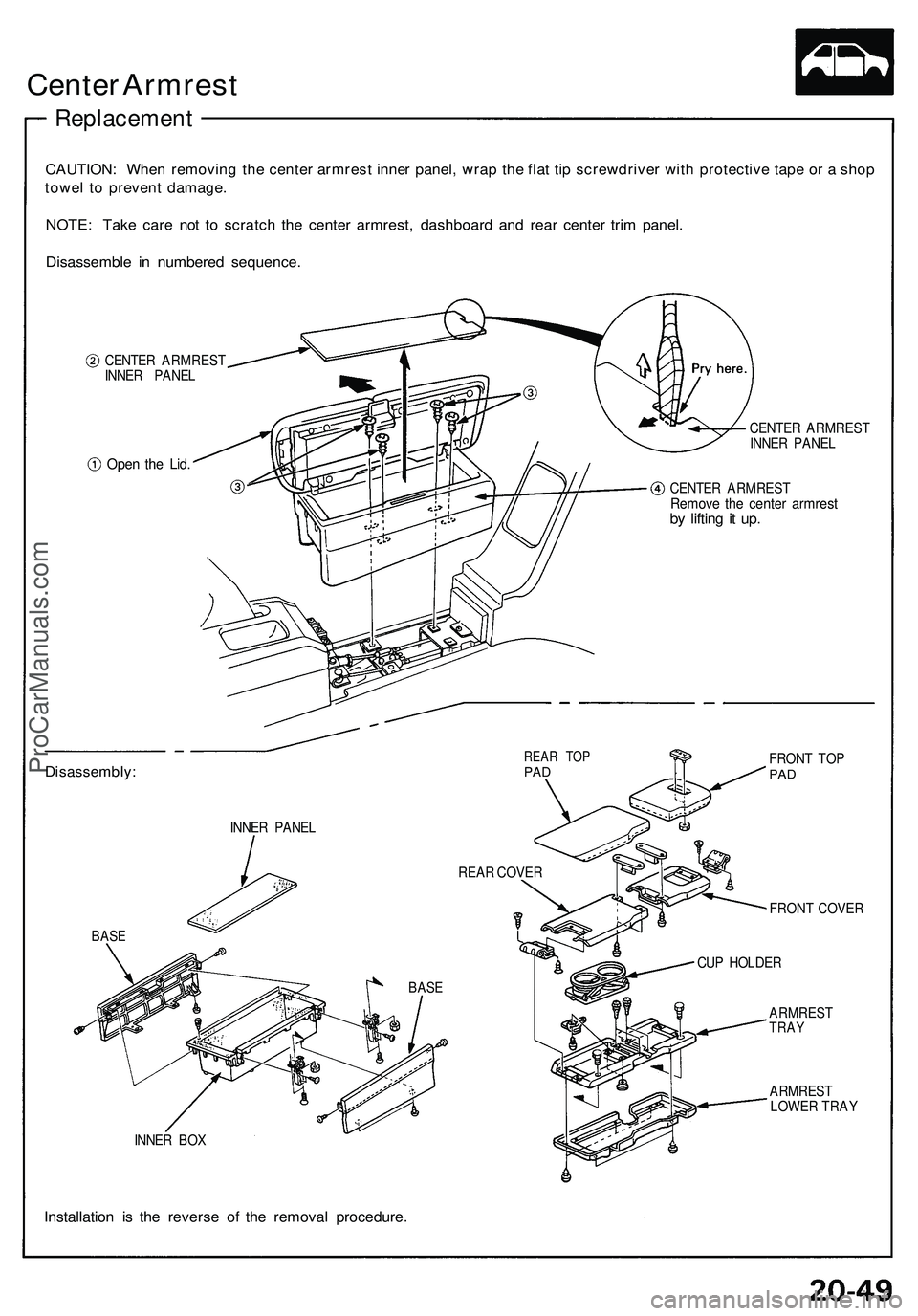

CAUTION: When removing the center armrest inner panel, wrap the flat tip screwdriver with protective tape or a shop
towel to prevent damage.
NOTE: Take care not to scratch the center armrest, dashboard and rear center trim panel.
Disassemble in numbered sequence.
CENTER ARMREST
INNER PANEL
Open the Lid.
INNER BOX
Installation is the reverse of the removal procedure.
CENTER ARMREST
INNER PANEL
CENTER ARMREST
Remove the center armrest
by lifting it up.
FRONT TOP
PAD
FRONT COVER
CUP HOLDER
ARMREST
TRAY
ARMREST
LOWER TRAY
Disassembly:
INNER PANEL
BASE
REAR COVER
BASE
REAR TOP
PADProCarManuals.com
Page 1109 of 1503

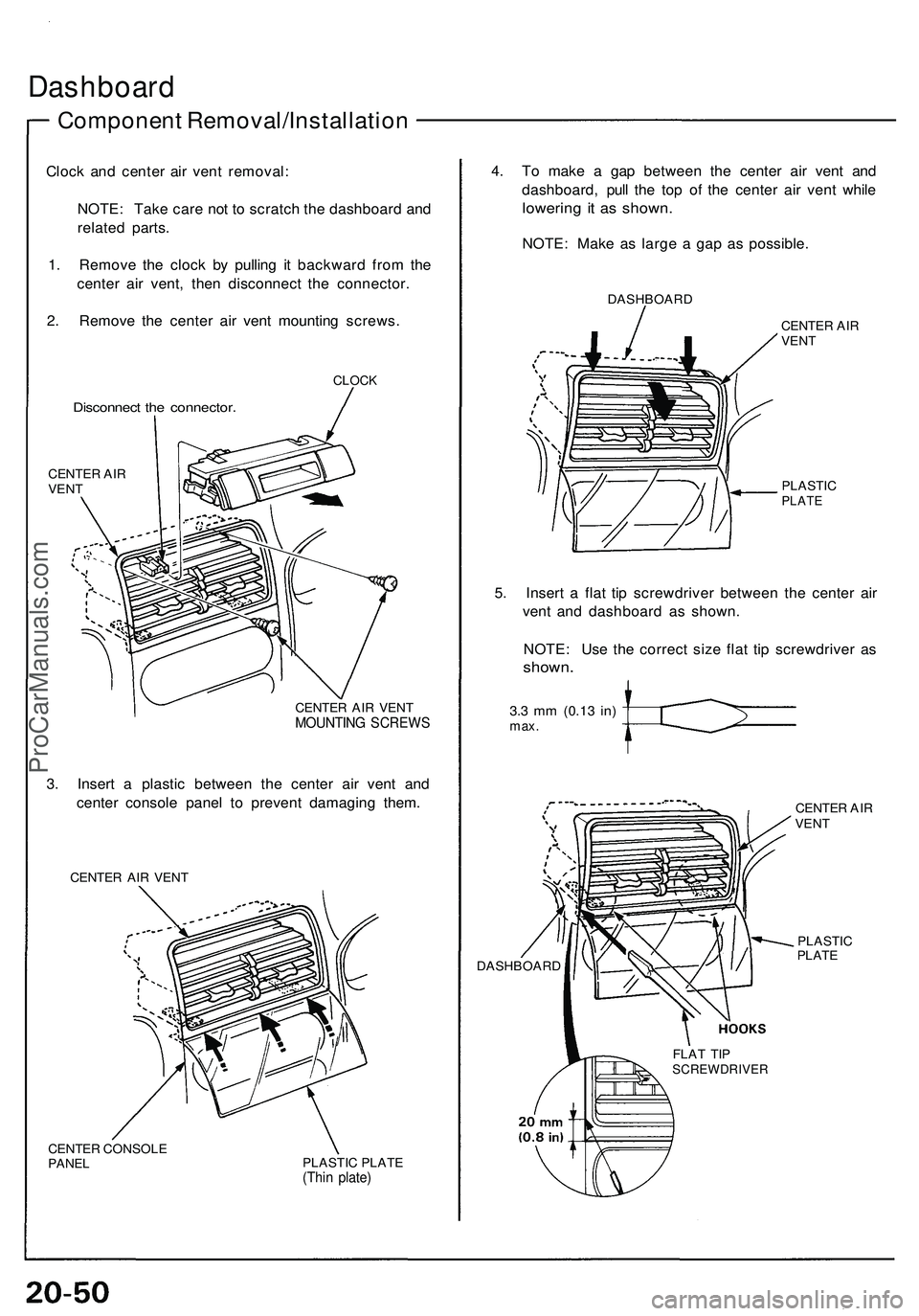

Dashboard
Component Removal/Installation
Clock and center air vent removal:
NOTE: Take care not to scratch the dashboard and
related parts.
1. Remove the clock by pulling it backward from the
center air vent, then disconnect the connector.
2. Remove the center air vent mounting screws.
4. To make a gap between the center air vent and
dashboard, pull the top of the center air vent while
lowering it as shown.
CLOCK
Disconnect the connector.
CENTER AIR
VENT
CENTER AIR VENT
MOUNTING SCREWS
3. Insert a plastic between the center air vent and
center console panel to prevent damaging them.
CENTER AIR VENT
CENTER CONSOLE
PANEL
PLASTIC PLATE
(Thin plate)
NOTE: Make as large a gap as possible.
DASHBOARD
CENTER AIR
VENT
PLASTIC
PLATE
5. Insert a flat tip screwdriver between the center air
vent and dashboard as shown.
NOTE: Use the correct size flat tip screwdriver as
shown.
3.3 mm
(0.13
in)
max.
CENTER AIR
VENT
DASHBOARD
PLASTIC
PLATE
FLAT TIP
SCREWDRIVERProCarManuals.com
Page 1110 of 1503

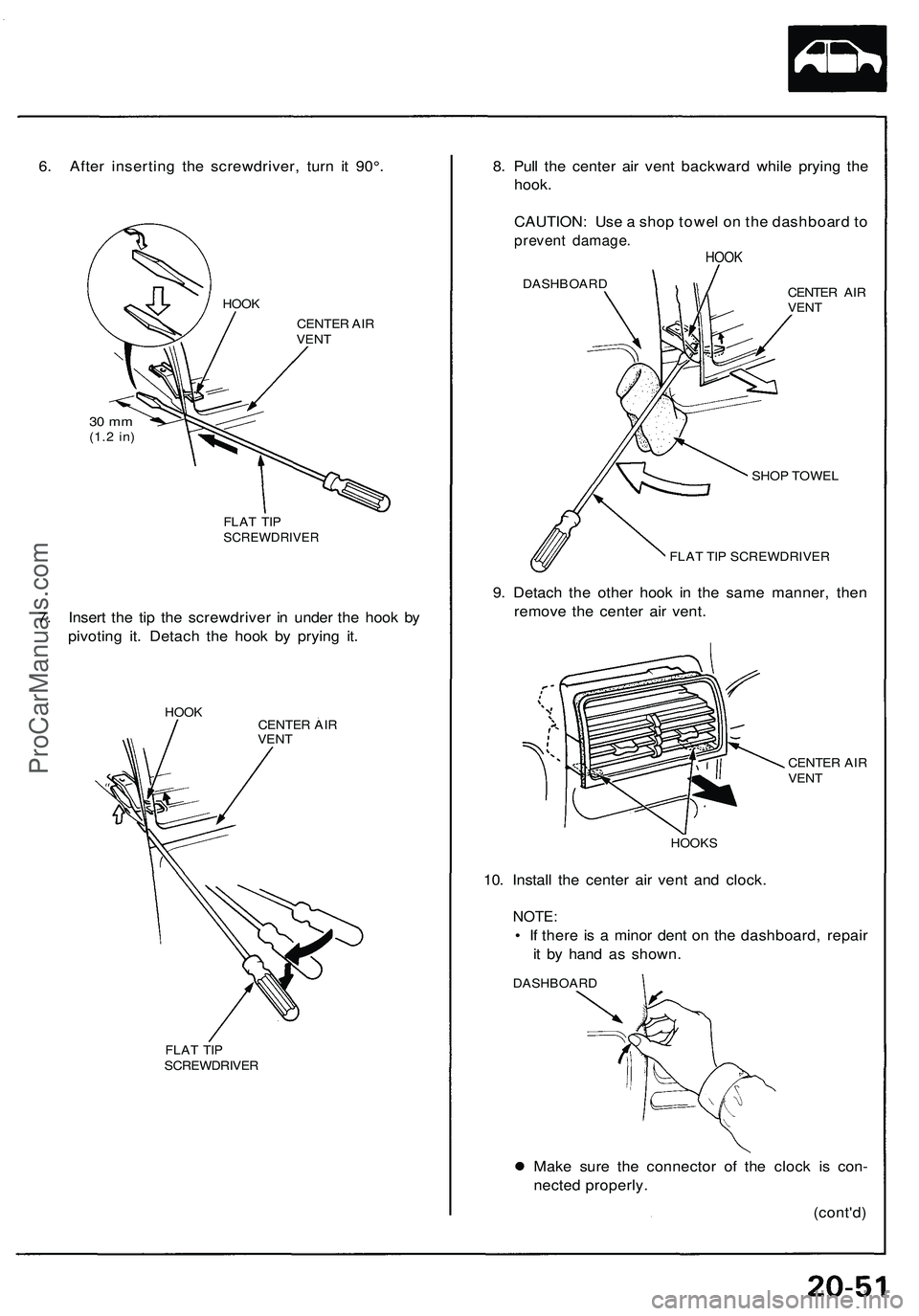

6. Afte r insertin g th e screwdriver , tur n i t 90° .
CENTE R AI R
VEN T
30 m m(1. 2 in )
FLA T TI PSCREWDRIVE R
7. Inser t th e ti p th e screwdrive r i n unde r th e hoo k b y
pivotin g it . Detac h th e hoo k b y pryin g it .
HOO KCENTE R AI R
VEN T
FLA T TI P
SCREWDRIVE R
8. Pul l th e cente r ai r ven t backwar d whil e pryin g th e
hook .
CAUTION : Us e a sho p towe l o n th e dashboar d to
preven t damage .HOOK
DASHBOAR DCENTER AI R
VEN T
SHO P TOWE L
FLA T TI P SCREWDRIVE R
9. Detac h th e othe r hoo k i n th e sam e manner , the n
remov e th e cente r ai r vent .
CENTE R AI R
VEN T
HOOK S
10. Instal l th e cente r ai r ven t an d clock .
NOTE:
• I f ther e is a mino r den t o n th e dashboard , repai r
i t b y han d a s shown .
DASHBOAR D
Make sur e th e connecto r o f th e cloc k i s con -
necte d properly .
(cont'd)
HOOK
ProCarManuals.com
