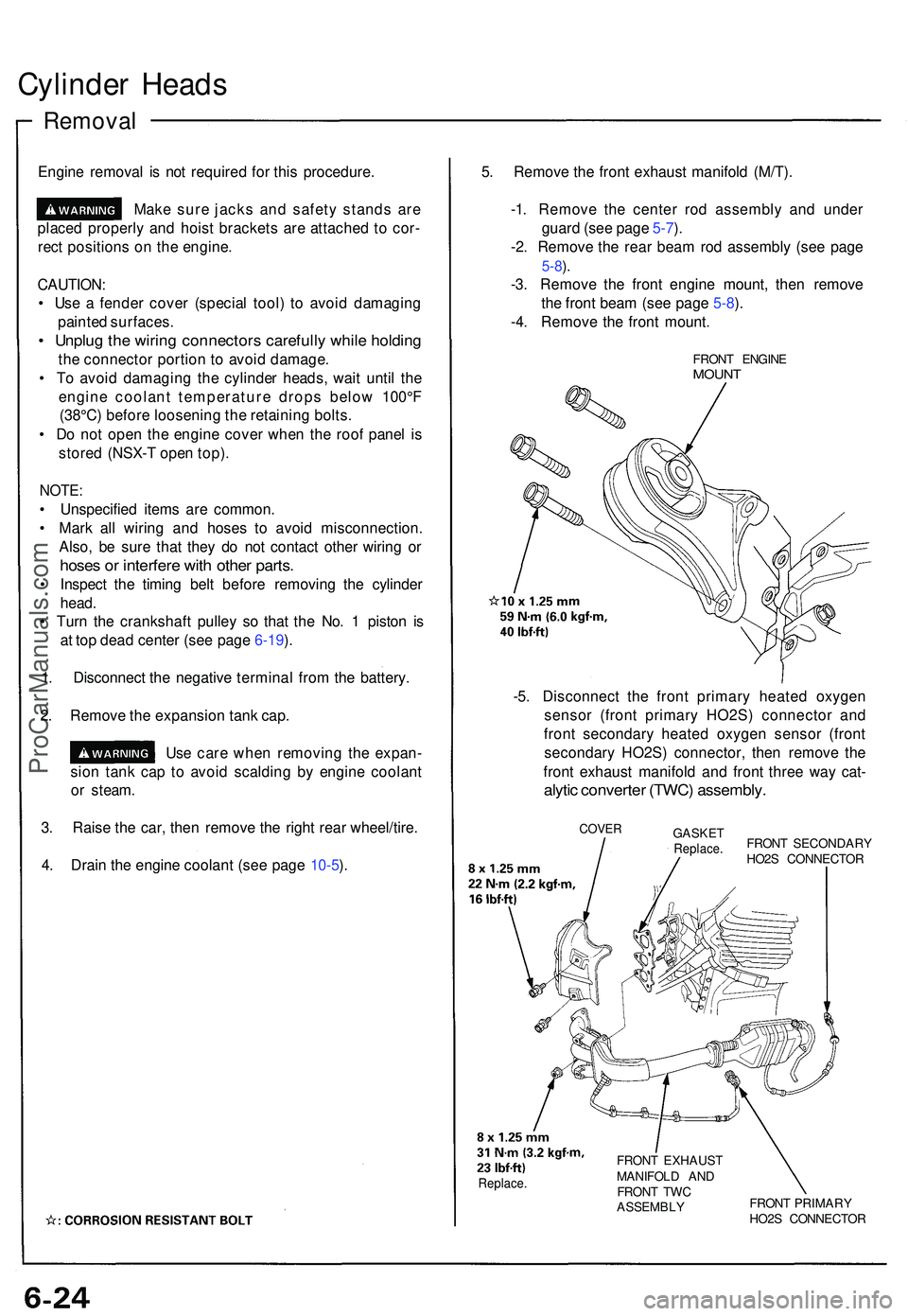

Cylinder Head s
Remova l
Engine remova l i s no t require d fo r thi s procedure .
Mak e sur e jack s an d safet y stand s ar e
place d properl y an d hois t bracket s ar e attache d t o cor -
rec t position s o n th e engine .
CAUTION :
• Us e a fende r cove r (specia l tool ) t o avoi d damagin g
painte d surfaces .
• Unplu g th e wirin g connector s carefull y whil e holdin g
the connecto r portio n to avoi d damage .
• T o avoi d damagin g th e cylinde r heads , wai t unti l th e
engin e coolan t temperatur e drop s belo w 100° F
(3 8° C) befor e loosenin g th e retainin g bolts .
• D o no t ope n th e engin e cove r whe n th e roo f pane l i s
store d (NSX- T ope n top) .
NOTE :
• Unspecifie d item s ar e common .
• Mar k al l wirin g an d hose s t o avoi d misconnection .
Also , b e sur e tha t the y d o no t contac t othe r wirin g o r
hose s o r interfer e wit h othe r parts .
• Inspec t th e timin g bel t befor e removin g th e cylinde r
head .
• Tur n th e crankshaf t pulle y s o tha t th e No . 1 pisto n i s
a t to p dea d cente r (se e pag e 6-19 ).
1 . Disconnec t th e negativ e termina l fro m th e battery .
2 . Remov e th e expansio n tan k cap .
Us e car e whe n removin g th e expan -
sio n tan k ca p t o avoi d scaldin g b y engin e coolan t
o r steam .
3 . Rais e th e car , the n remov e th e righ t rea r wheel/tire .
4 . Drai n th e engine coolan t (se e pag e 10-5 ). 5
. Remov e th e fron t exhaus t manifol d (M/T) .
-1 . Remov e th e cente r ro d assembl y an d unde r
guar d (se e pag e 5-7 ).
-2 . Remov e th e rea r bea m ro d assembl y (se e pag e
5-8).
-3 . Remov e th e fron t engin e mount , the n remov e
th e fron t bea m (se e pag e 5-8 ).
-4 . Remov e th e fron t mount .
FRONT ENGIN EMOUNT
-5. Disconnec t th e fron t primar y heate d oxyge n
senso r (fron t primar y HO2S ) connecto r an d
fron t secondar y heate d oxyge n senso r (fron t
secondar y HO2S ) connector , the n remov e th e
fron t exhaus t manifol d an d fron t thre e wa y cat -
alytic converte r (TWC ) assembly .
COVERGASKE TReplace .FRONT SECONDAR Y
HO2 S CONNECTO R
Replace.
FRONT EXHAUS T
MANIFOL D AN D
FRON T TW C
ASSEMBL Y FRON
T PRIMAR Y
HO2 S CONNECTO R
ProCarManuals.com
Page 442 of 1503

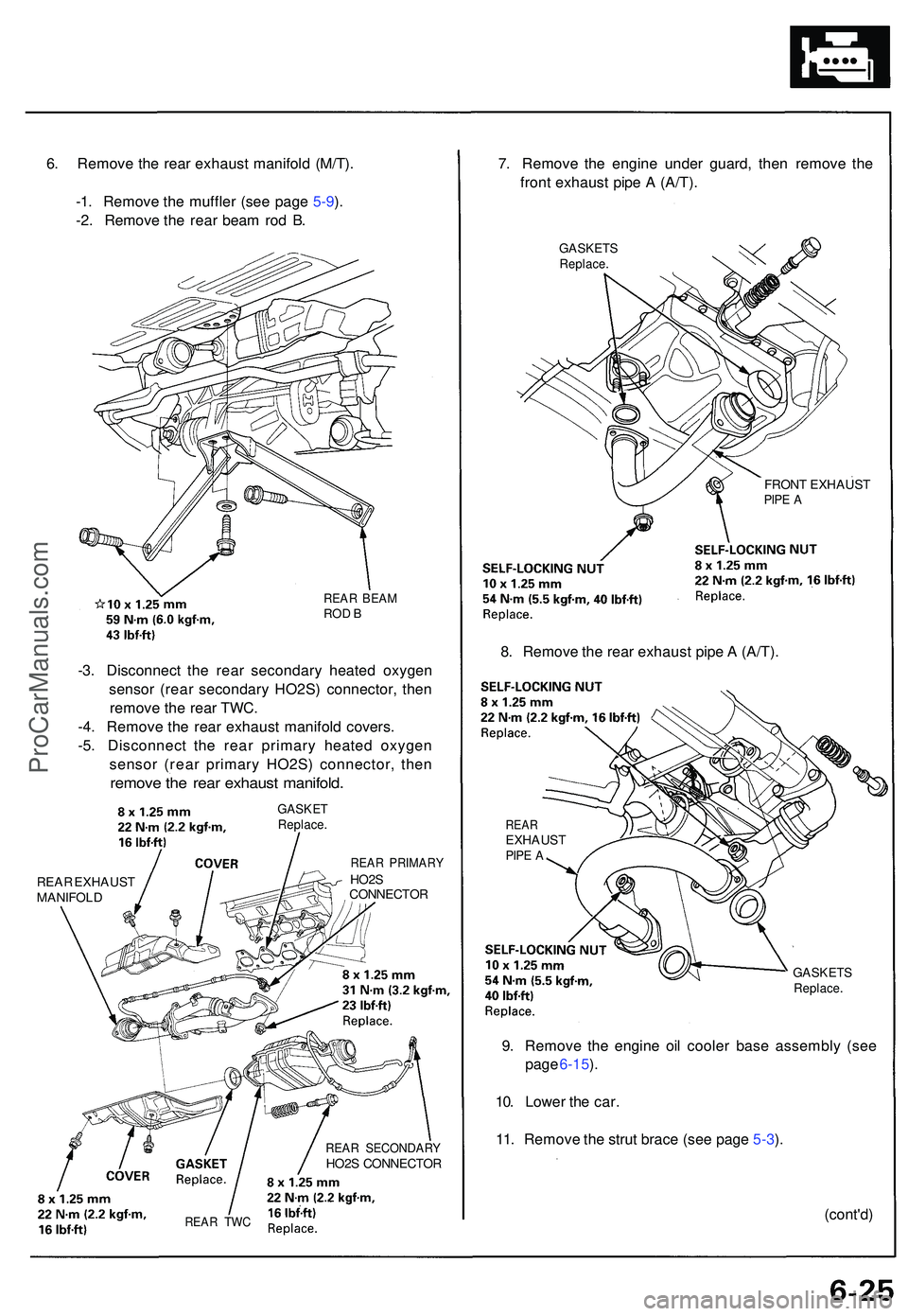

6. Remov e th e rea r exhaus t manifol d (M/T) .
-1 . Remov e th e muffle r (se e pag e 5-9 ).
-2 . Remov e th e rea r bea m ro d B .
REA R BEA MROD B
-3 . Disconnec t th e rea r secondar y heate d oxyge n
senso r (rea r secondar y HO2S ) connector , the n
remov e th e rea r TWC .
-4 . Remov e th e rea r exhaus t manifol d covers .
-5 . Disconnec t th e rea r primar y heate d oxyge n
senso r (rea r primar y HO2S ) connector , the n
remov e th e rea r exhaus t manifold .
GASKETReplace .
REAR EXHAUS T
MANIFOL D
REAR PRIMAR YHO2SCONNECTO R
REAR TW C
REAR SECONDAR YHO2S CONNECTO R
7. Remov e th e engin e unde r guard , the n remov e th e
fron t exhaus t pip e A (A/T) .
GASKET SReplace.
FRONT EXHAUS TPIPE A
REA REXHAUS TPIPE A
GASKET SReplace.
9. Remov e th e engin e oi l coole r bas e assembl y (se e
pag e 6-15 ).
10 . Lowe r th e car .
11 . Remov e th e stru t brac e (se e pag e 5-3 ).
(cont'd)
8
. Remov e th e rea r exhaus t pip e A (A/T) .
ProCarManuals.com
Page 443 of 1503

Cylinder Head s
Remova l (cont'd )

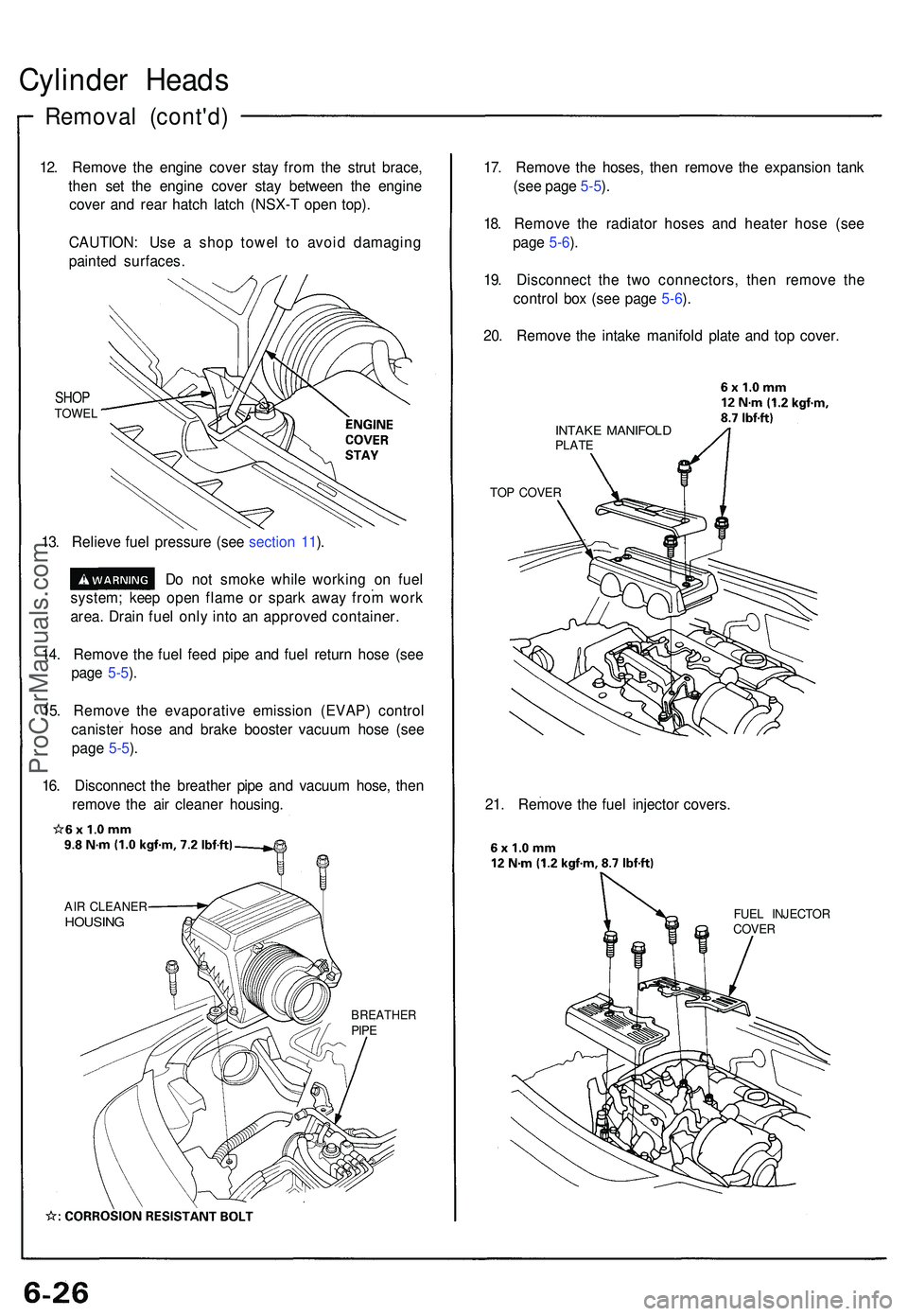

12. Remov e th e engin e cove r sta y fro m th e stru t brace ,
the n se t th e engine cover sta y betwee n th e engine
cove r an d rea r hatc h latc h (NSX- T ope n top) .
CAUTION : Us e a sho p towe l t o avoi d damagin g
painte d surfaces .
SHOPTOWE L
13. Reliev e fue l pressur e (se e sectio n 11 ).
D o no t smok e whil e workin g o n fue l
system ; kee p ope n flam e o r spar k awa y fro m wor k
area . Drai n fue l onl y int o a n approve d container .
14 . Remov e th e fue l fee d pip e an d fue l retur n hos e (se e
pag e 5-5 ).
15 . Remov e th e evaporativ e emissio n (EVAP ) contro l
caniste r hos e an d brak e booste r vacuu m hos e (se e
pag e 5-5 ).
16 . Disconnec t th e breathe r pip e an d vacuu m hose , the n
remov e th e ai r cleane r housing .
AIR CLEANE RHOUSING
BREATHE RPIPE
17. Remov e th e hoses , the n remov e th e expansio n tan k
(se e pag e 5-5 ).
18 . Remov e th e radiato r hose s an d heate r hos e (se e
pag e 5-6 ).
19 . Disconnec t th e tw o connectors , the n remov e th e
contro l bo x (se e pag e 5-6 ).
20 . Remov e th e intak e manifol d plat e an d to p cover .
INTAK E MANIFOL DPLATE
TO P COVE R
21. Remov e th e fue l injecto r covers .
FUEL INJECTO R
COVE R
ProCarManuals.com
Page 444 of 1503

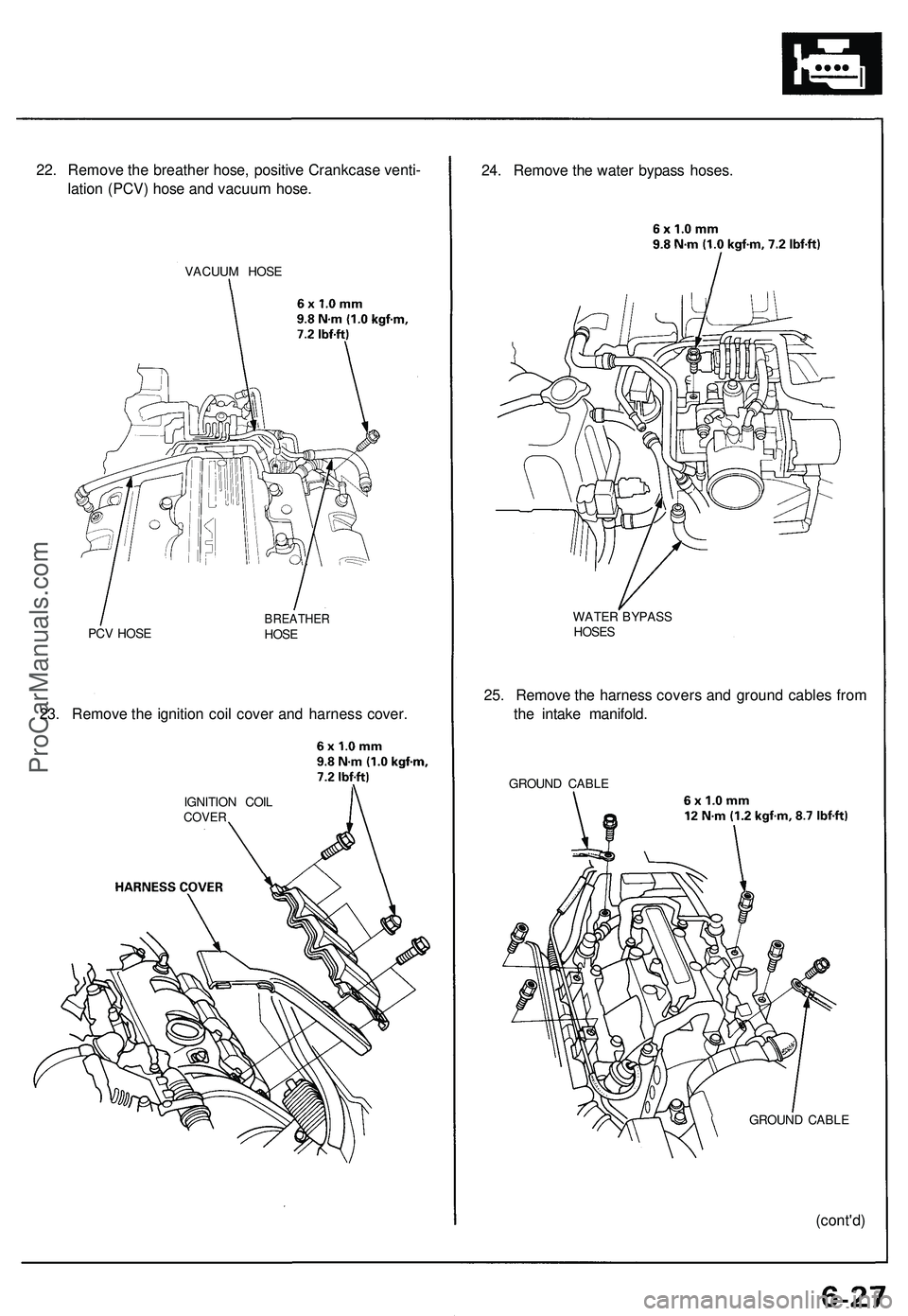

22. Remove the breather hose, positive Crankcase venti-
lation (PCV) hose and vacuum hose.
VACUUM HOSE
PCV HOSE
BREATHER
HOSE
23. Remove the ignition coil cover and harness cover.
IGNITION COIL
COVER
24. Remove the water bypass hoses.
WATER BYPASS
HOSES
25. Remove the harness covers and ground cables from
the intake manifold.
GROUND CABLE
GROUND CABLE
(cont'd)ProCarManuals.com
Page 445 of 1503

Cylinder Head s
Remova l (cont'd )

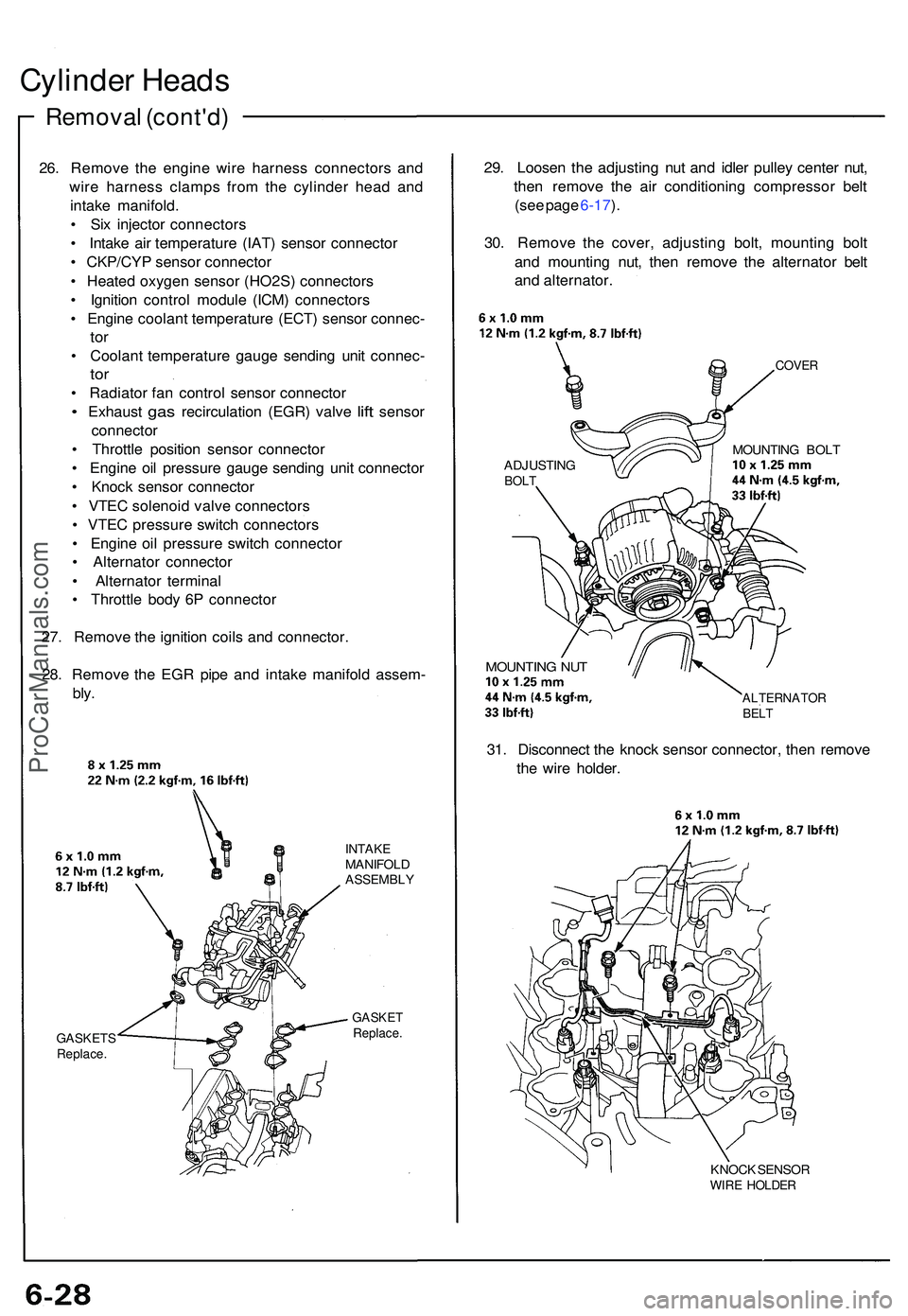

26. Remov e th e engin e wir e harnes s connector s an d
wir e harnes s clamp s fro m th e cylinde r hea d an d
intak e manifold .
• Si x injecto r connector s
• Intak e ai r temperatur e (IAT ) senso r connecto r
• CKP/CY P senso r connecto r
• Heate d oxyge n senso r (HO2S ) connector s
• Ignitio n contro l modul e (ICM ) connector s
• Engin e coolan t temperatur e (ECT ) senso r connec -
tor
• Coolan t temperatur e gaug e sendin g uni t connec -
tor
• Radiato r fa n contro l senso r connecto r
• Exhaust gas recirculatio n (EGR ) valv e lift senso r
connecto r
• Throttl e positio n senso r connecto r
• Engin e oi l pressur e gaug e sendin g uni t connecto r
• Knoc k senso r connecto r
• VTE C solenoi d valv e connector s
• VTE C pressur e switc h connector s
• Engin e oi l pressur e switc h connecto r
• Alternato r connecto r
• Alternato r termina l
• Throttl e bod y 6 P connecto r
27 . Remov e th e ignitio n coil s an d connector .
28 . Remov e th e EG R pip e an d intak e manifol d assem -
bly.
GASKET SReplace.
INTAKEMANIFOL DASSEMBL Y
GASKETReplace .
29. Loose n th e adjustin g nu t an d idle r pulle y cente r nut ,
the n remov e th e ai r conditionin g compresso r bel t
(se e pag e 6-17 ).
30 . Remov e th e cover , adjustin g bolt , mountin g bol t
an d mountin g nut , the n remov e th e alternato r bel t
an d alternator .
COVER
ADJUSTIN GBOLT
MOUNTIN G BOL T
MOUNTIN G NU T
ALTERNATO RBELT
31. Disconnec t th e knoc k senso r connector , the n remov e
th e wir e holder .
KNOCK SENSO RWIRE HOLDE R
ProCarManuals.com
Page 446 of 1503

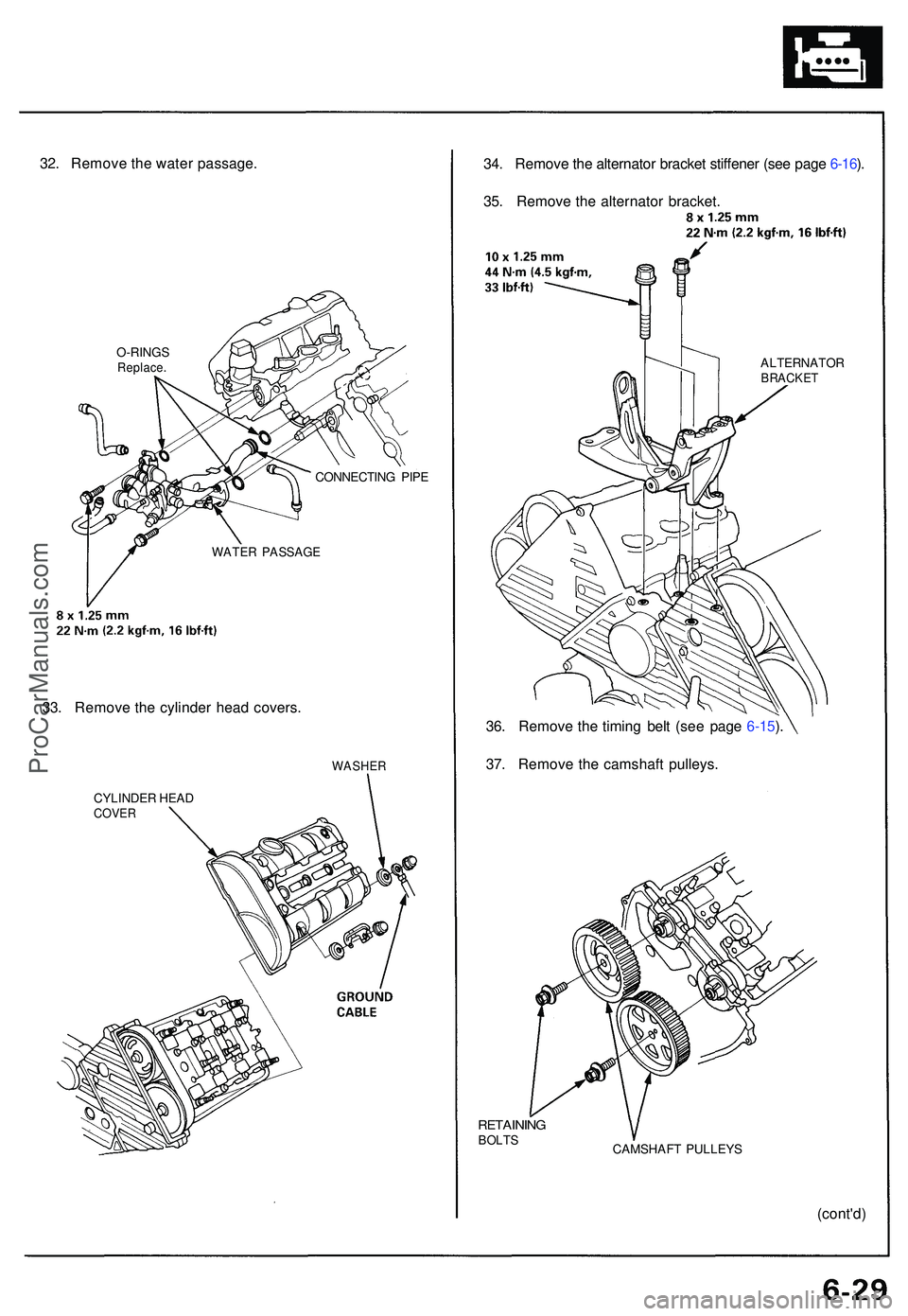

32. Remov e th e wate r passage .
O-RINGSReplace .
CONNECTIN G PIP E
WATE R PASSAG E
33. Remov e th e cylinde r hea d covers .
CYLINDE R HEA DCOVE R
WASHE R
34. Remov e th e alternato r bracke t stiffene r (se e pag e 6-16 ).
35 . Remov e th e alternato r bracket .
ALTERNATO RBRACKET
36. Remov e th e timin g bel t (se e pag e 6-15 ).
37 . Remov e th e camshaf t pulleys .
RETAININ GBOLTSCAMSHAF T PULLEY S
(cont'd)
ProCarManuals.com
Page 447 of 1503

Cylinder Head s
Remova l (cont'd )

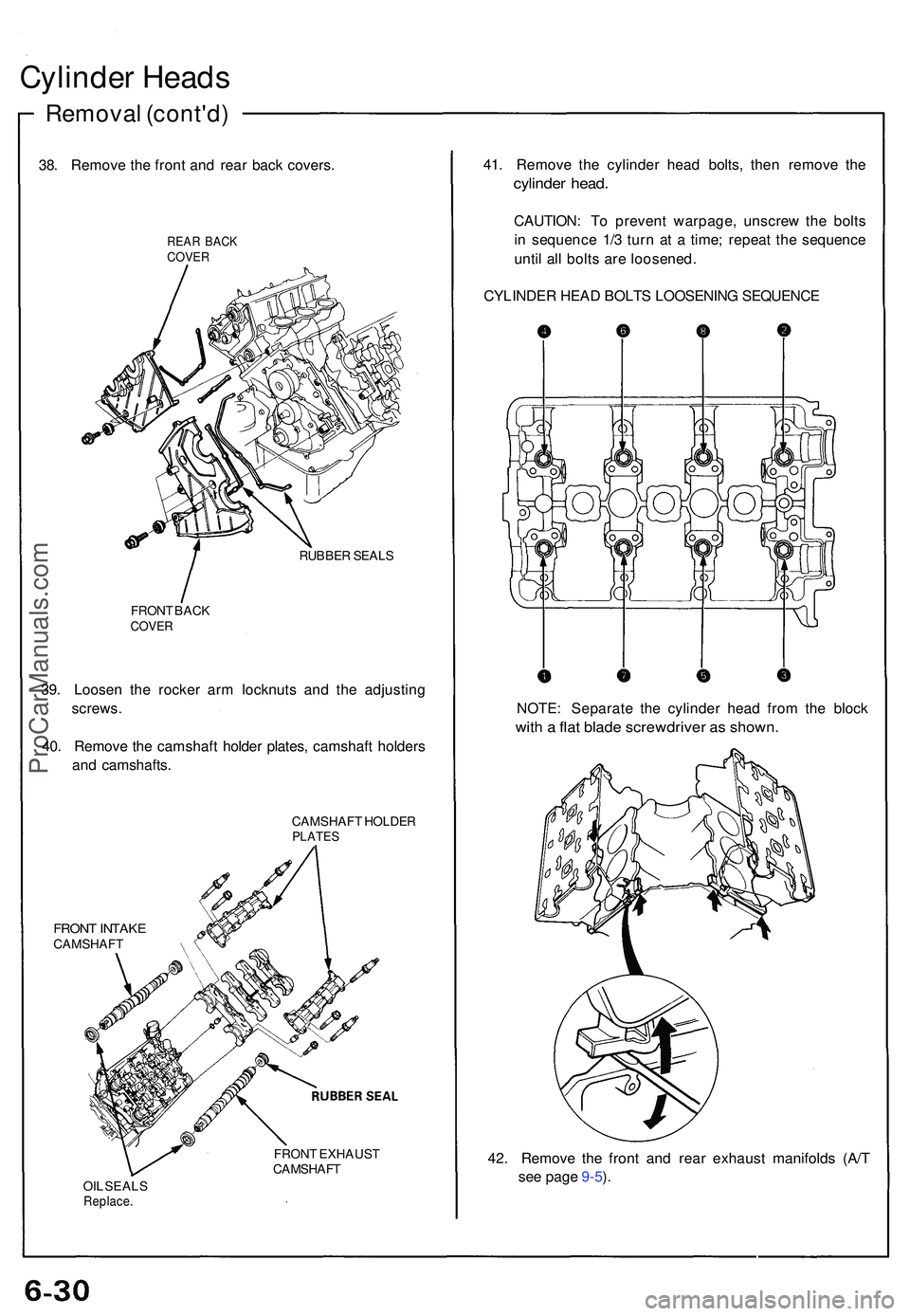

38. Remov e th e fron t an d rea r bac k covers .
REAR BAC KCOVE R
RUBBE R SEAL S
FRON T BAC K
COVE R
39. Loose n th e rocke r ar m locknut s an d th e adjustin g
screws .
40 . Remov e th e camshaf t holde r plates , camshaf t holder s
an d camshafts .
FRONT INTAK ECAMSHAF T CAMSHAF
T HOLDE R
PLATES
FRONT EXHAUS T
CAMSHAF T
OI L SEAL S
Replace .
41. Remov e th e cylinde r hea d bolts , the n remov e th e
cylinde r head .
CAUTION : T o preven t warpage , unscre w th e bolt s
i n sequenc e 1/ 3 tur n a t a time ; repea t th e sequenc e
unti l al l bolt s ar e loosened .
CYLINDE R HEA D BOLT S LOOSENIN G SEQUENC E
NOTE : Separat e th e cylinde r hea d fro m th e bloc k
with a fla t blad e screwdrive r a s shown .
42. Remov e th e fron t an d rea r exhaus t manifold s (A/ T
se e pag e 9-5 ).
ProCarManuals.com
Page 448 of 1503

Rocker Arm s an d Shaft s
Remova l

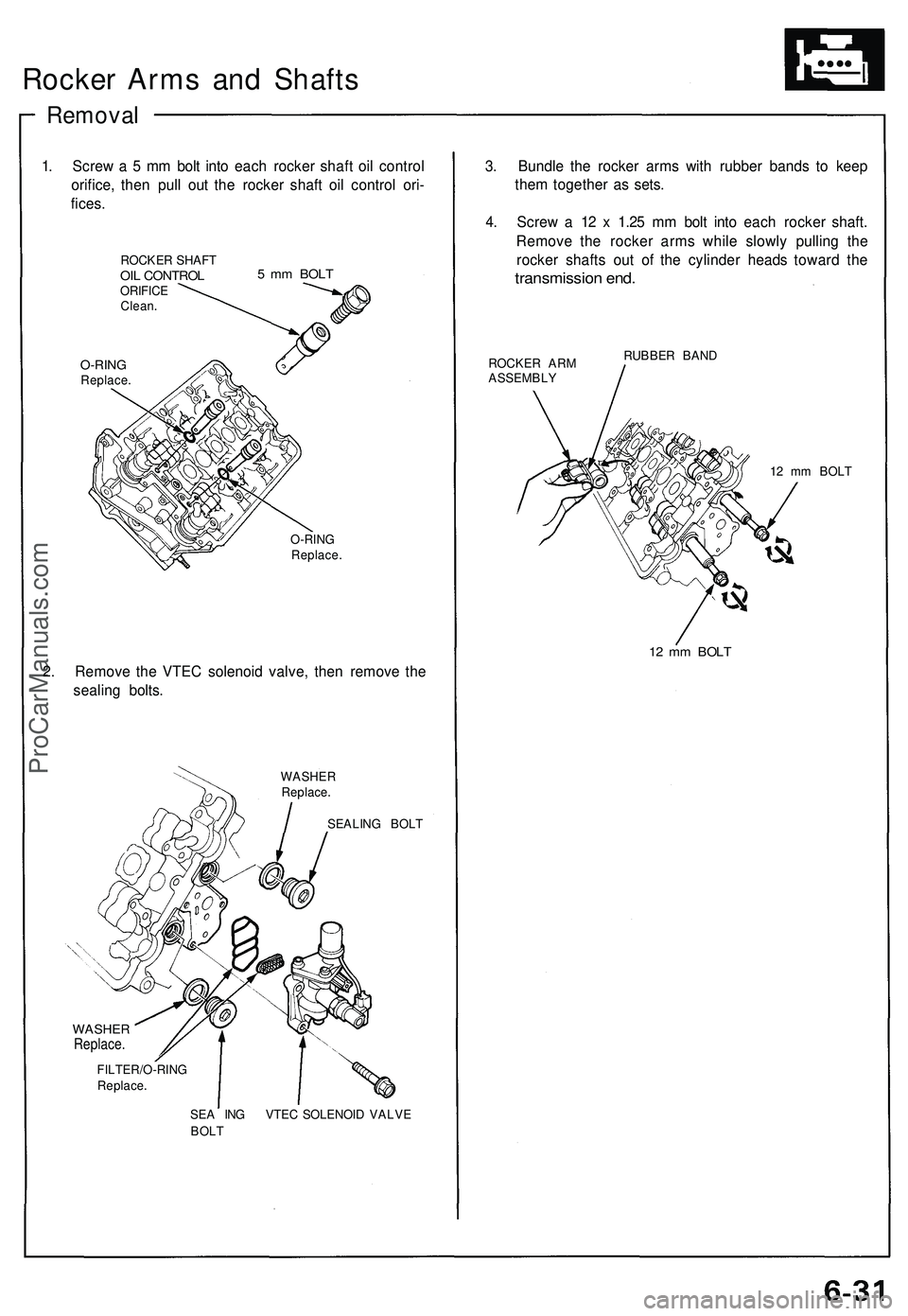

1. Scre w a 5 m m bol t int o eac h rocke r shaf t oi l contro l
orifice , the n pul l ou t th e rocke r shaf t oi l contro l ori -
fices .
ROCKE R SHAF TOIL CONTRO LORIFICEClean.
5 m m BOL T
O-RIN GReplace .
O-RING
Replace .
2. Remov e th e VTE C solenoi d valve , the n remov e th e
sealin g bolts .
WASHE R
Replace .
SEALIN G BOL T
WASHE RReplace .
FILTER/O-RIN GReplace.
SEA IN G VTE C SOLENOI D VALV E
BOL T
3. Bundl e th e rocke r arm s wit h rubber bands t o kee p
the m togethe r a s sets .
4 . Scre w a 1 2 x 1.2 5 m m bol t int o eac h rocke r shaft .
Remov e th e rocke r arm s whil e slowl y pullin g th e
rocke r shaft s ou t o f th e cylinde r head s towar d th e
transmissio n end .
ROCKE R AR M
ASSEMBL Y RUBBE
R BAN D
12 m m BOL T
12 m m BOL T
ProCarManuals.com
Page 449 of 1503

Rocker Arm s an d Shaft s

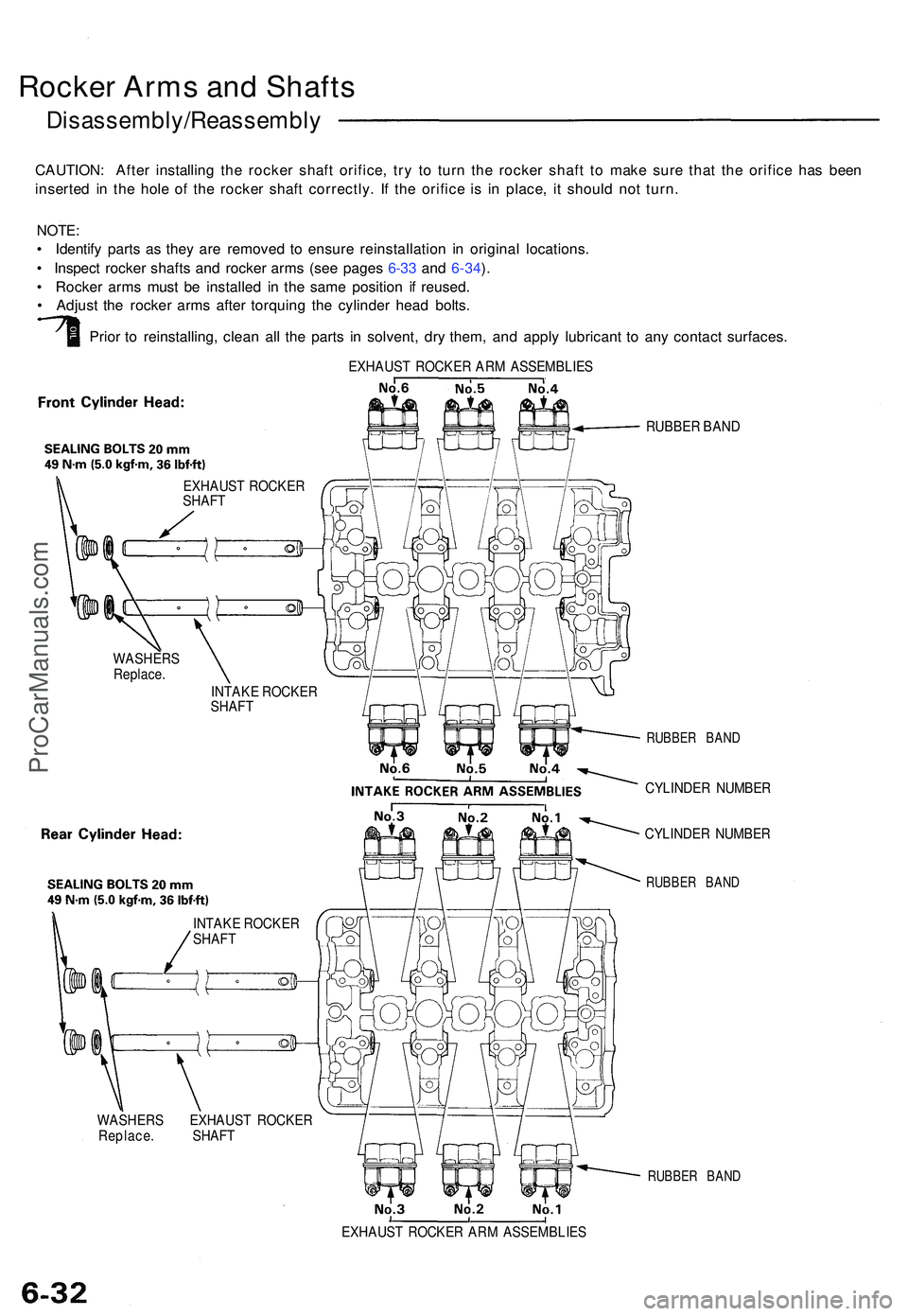

Disassembly/Reassembl y
CAUTION: Afte r installin g th e rocke r shaf t orifice , tr y t o tur n th e rocke r shaf t t o mak e sur e tha t th e orific e ha s bee n
inserte d in th e hol e o f th e rocke r shaf t correctly . I f th e orific e i s i n place , i t shoul d no t turn .
NOTE :
• Identif y part s a s the y ar e remove d t o ensur e reinstallatio n i n origina l locations .
• Inspec t rocke r shaft s an d rocke r arm s (se e page s 6-3 3 an d 6-34 ).
• Rocke r arm s mus t b e installe d i n th e sam e positio n i f reused .
• Adjus t th e rocke r arm s afte r torquin g th e cylinde r hea d bolts .
Prio r t o reinstalling , clea n al l th e part s i n solvent , dr y them , an d appl y lubrican t t o an y contac t surfaces .
EXHAUST ROCKE R AR M ASSEMBLIE S
WASHER S
Replace .
INTAKE ROCKE R
SHAF T
WASHER S EXHAUS T ROCKE R
Replace . SHAF T RUBBE
R BAN D
RUBBE R BAN D
CYLINDE R NUMBE R
CYLINDE R NUMBE R
RUBBER BAN D
RUBBE R BAN D
EXHAUS T ROCKE R AR M ASSEMBLIE S
INTAK
E ROCKE R
SHAF T
EXHAUS
T ROCKE R
SHAF T
ProCarManuals.com
Page 450 of 1503

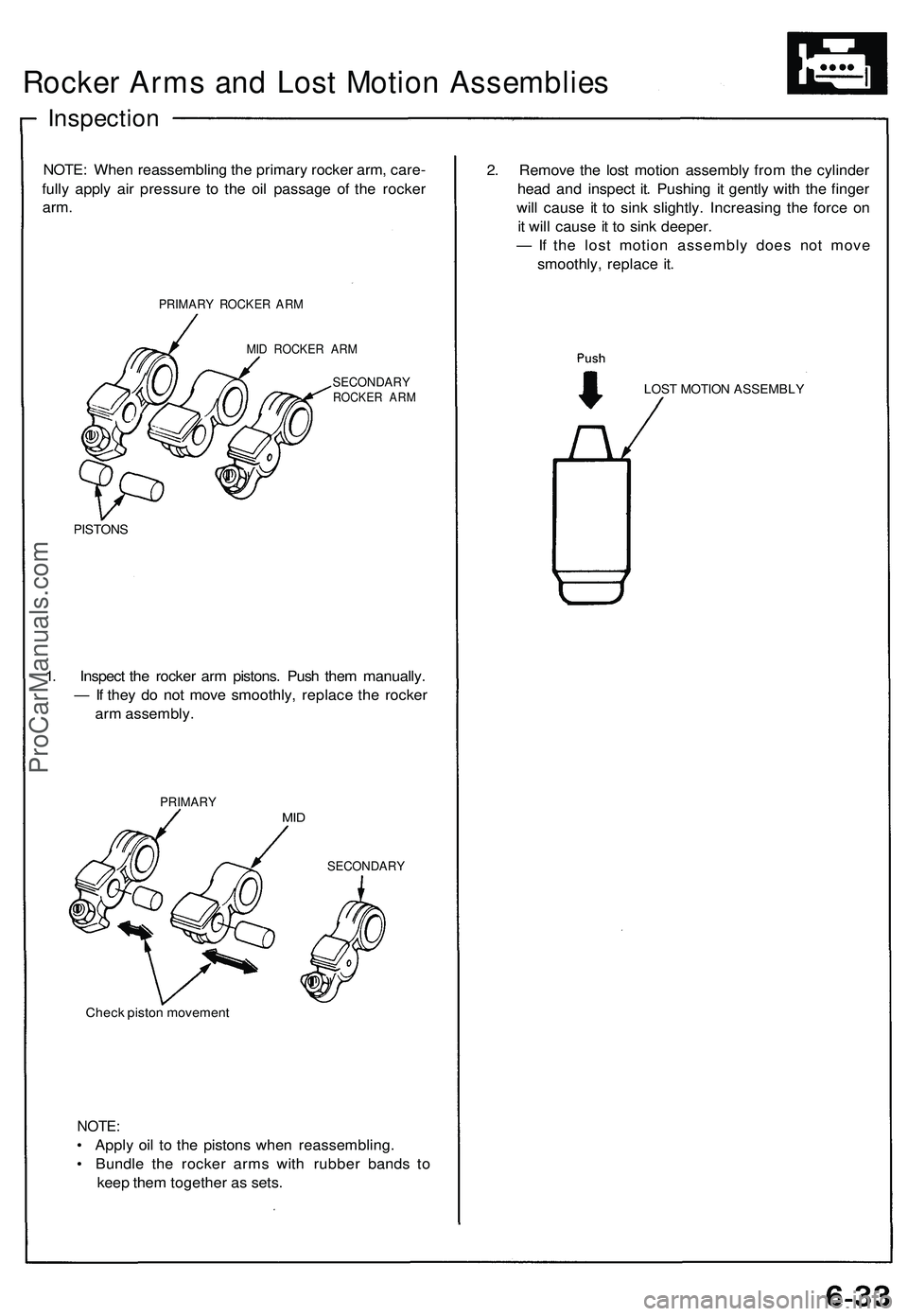

Rocker Arms and Lost Motion Assemblies
Inspection
NOTE: When reassembling the primary rocker arm, care-
fully apply air pressure to the oil passage of the rocker
arm.
PRIMARY ROCKER ARM
MID ROCKER ARM
SECONDARY
ROCKER ARM
PISTONS
1. Inspect the rocker arm pistons. Push them manually.
— If they do not move smoothly, replace the rocker
arm assembly.
PRIMARY
MID
SECONDARY
Check piston movement
NOTE:
• Apply oil to the pistons when reassembling.
• Bundle the rocker arms with rubber bands to
keep them together as sets.
2. Remove the lost motion assembly from the cylinder
head and inspect it. Pushing it gently with the finger
will cause it to sink slightly. Increasing the force on
it will cause it to sink deeper.
— If the lost motion assembly does not move
smoothly, replace it.
LOST MOTION ASSEMBLYProCarManuals.com
