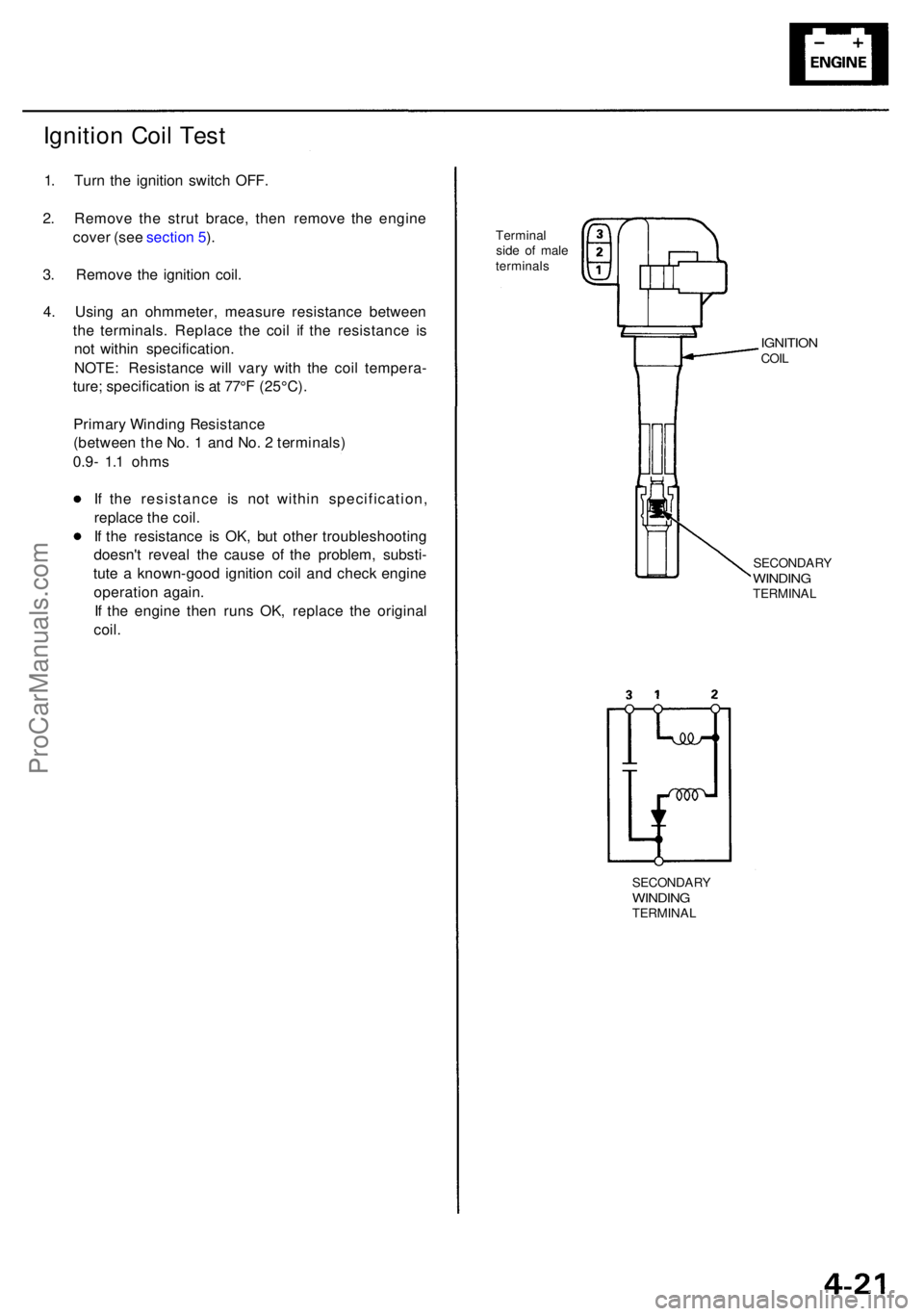

Ignition Coi l Tes t
1. Tur n th e ignitio n switc h OFF .
2 . Remov e th e stru t brace , the n remov e th e engin e
cove r (se e sectio n 5 ).
3 . Remov e th e ignitio n coil .
4 . Usin g a n ohmmeter , measur e resistanc e betwee n
th e terminals . Replac e th e coi l i f th e resistanc e i s
no t withi n specification .
NOTE : Resistanc e wil l var y wit h th e coi l tempera -
ture ; specificatio n is a t 77° F (25°C) .
Primar y Windin g Resistanc e
(betwee n th e No . 1 an d No . 2 terminals )
0.9- 1.1 ohm s
I f th e resistanc e i s no t withi n specification ,
replac e th e coil .
I f th e resistanc e i s OK , bu t othe r troubleshootin g
doesn' t revea l th e caus e o f th e problem , substi -
tut e a known-goo d ignitio n coi l an d chec k engin e
operatio n again .
I f th e engin e the n run s OK , replac e th e origina l
coil .
Termina l
sid e o f mal e
terminal s
IGNITIONCOIL
SECONDAR YWINDINGTERMINA L
SECONDAR YWINDINGTERMINA L
ProCarManuals.com

Ignition Syste m

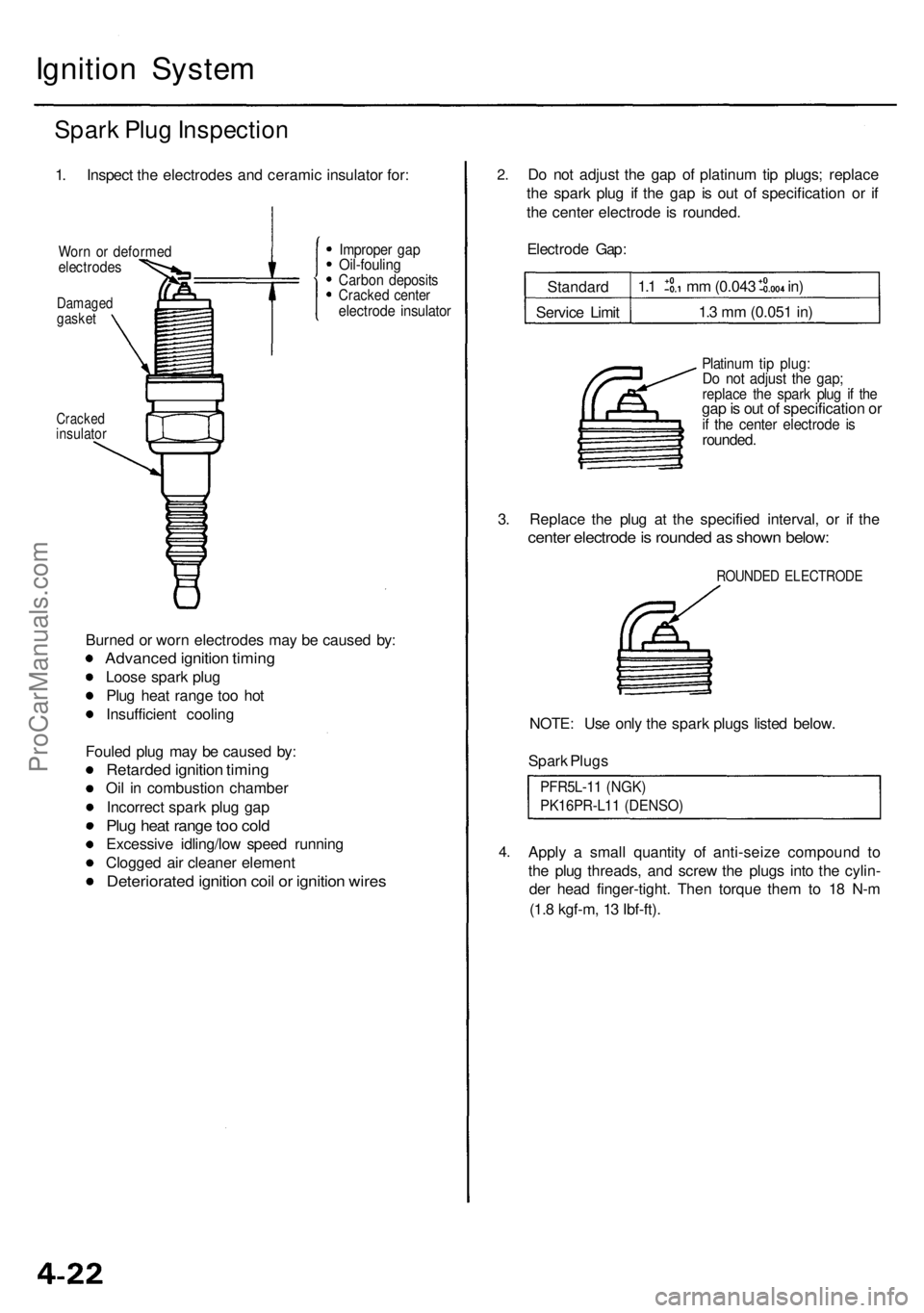

Spark Plu g Inspectio n
1. Inspec t th e electrode s an d cerami c insulato r for :
Wor n o r deforme delectrode s
Damagedgasket
Cracke dinsulato r
Improper ga pOil-foulin gCarbon deposit sCracked cente relectrod e insulato r
Burned o r wor n electrode s ma y b e cause d by :
Advance d ignitio n timin g
Loose spar k plu g
Plu g hea t rang e to o ho t
Insufficien t coolin g
Foule d plu g ma y b e cause d by :
Retarde d ignitio n timin g
Oil i n combustio n chambe r
Incorrec t spar k plu g ga p
Plug hea t rang e to o col d
Excessiv e idling/lo w spee d runnin g
Clogge d ai r cleane r elemen t
Deteriorate d ignitio n coi l o r ignitio n wire s
2.D o no t adjus t th e ga p o f platinu m ti p plugs ; replac e
th e spar k plu g i f th e ga p i s ou t o f specificatio n o r i f
th e cente r electrod e i s rounded .
Electrod e Gap :
Standar d
Servic e Limi t
1.1 m m (0.04 3 in )
1. 3 m m (0.05 1 in )
Platinu m tip plug :Do no t adjus t th e gap ;replac e th e spar k plu g i f th egap is ou t o f specificatio n o rif th e cente r electrod e i srounded .
3. Replac e th e plu g a t th e specifie d interval , o r i f th e
cente r electrod e is rounde d a s show n below :
ROUNDE D ELECTROD E
NOTE: Us e onl y th e spar k plug s liste d below .
Spar k Plug s
PFR5L-1 1 (NGK )
PK16PR-L1 1 (DENSO )
4.Appl y a smal l quantit y o f anti-seiz e compoun d t o
th e plu g threads , an d scre w th e plug s int o th e cylin -
de r hea d finger-tight . The n torqu e the m to 1 8 N- m
(1. 8 kgf-m , 1 3 Ibf-ft) .
ProCarManuals.com

Charging Syste m

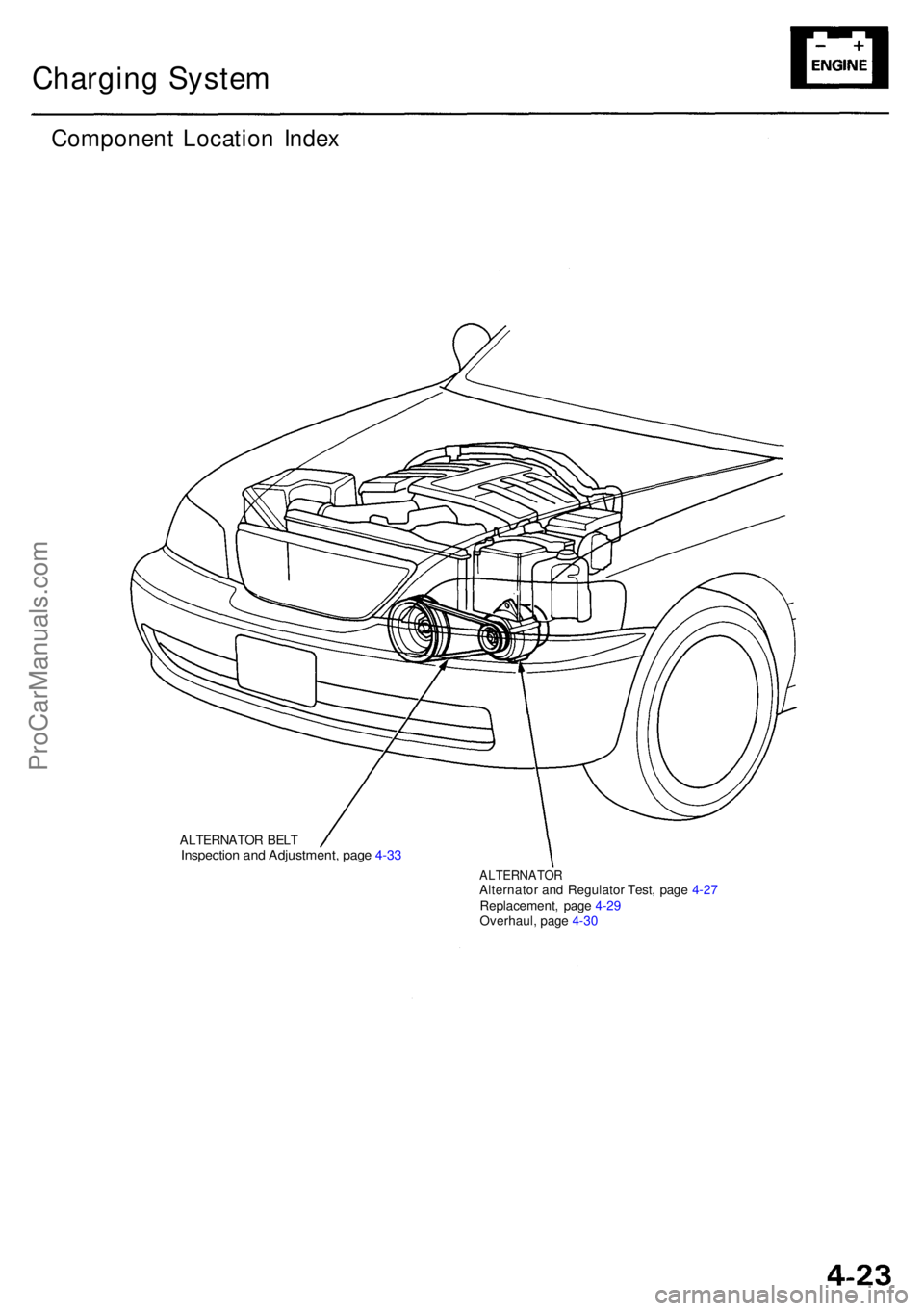

Componen t Locatio n Inde x
ALTERNATO R BEL TInspectio n an d Adjustment , pag e 4-3 3
ALTERNATO RAlternator an d Regulato r Test , pag e 4-2 7
Replacement , pag e 4-2 9
Overhaul , pag e 4-3 0
ProCarManuals.com

Troubleshooting
If th e chargin g syste m ligh t doe s no t com e o n o r doe s no t g o off , o r th e batter y i s dea d o r low , tes t th e followin g item s i n
th e orde r liste d below :
1. Batter y (se e sectio n 23 )
2. Chargin g Syste m Ligh t (se e below )
3. Alternator/Regulato r (se e pag e 4-27 )
Chargin g Syste m Ligh t Tes t
Chec k th e No . 2 0 (7. 5 A ) fus e i n
th e under-das h fuse/rela y box .
I s th e fus e OK ?
Chec k fo r a n ope n in th e L circuit :
1 . Disconnec t th e 4 P connecto r
fro m th e alternator .
2 . Groun d th e No . 3 termina l o f
th e 4 P connector .
3 . Tur n th e ignitio n switc h O N (II) .
Doe s th e chargin g syste m
ligh t com e on ?
Disconnec t th e No . 3 termina l
o f th e 4 P connecto r fro m th e
ground .
Doe s th e chargin g syste m
ligh t g o off ?
Chec k fo r a shor t t o bod y groun d
i n th e L circuit :
1 . Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e AB S contro l
uni t (C447 ) an d passenger' s
multiple x contro l uni t (C401) ,
a s applicable .
3. Tur n th e ignitio n switc h O N (II) .
Doe s th e chargin g syste m
ligh t sta y off ?
Chec k fo r shor t i n contro l unit(s) :
1 . Tur n th e ignitio n switc h OFF .
2 . Reconnec t th e AB S contro l
uni t connector .
3 . Tur n th e ignitio n switc h O N
(II) , an d chec k th e chargin g
system light .
Did th e ligh t sta y of f whe n yo u
turne d o n th e ignitio n switc h
afte r connectin g AB S contro l uni t
connector ?
Substitute a known-goo d AB S
contro l unit , an d recheck .
ALTERNATO R4P CONNECTO R
Replace th e fuse .
Chec k fo r a blow n chargin g sys -
te m ligh t bulb . I f th e bul b i s OK ,
repai r th e ope n i n th e WHT/BL U Wir
e sid e o f
femal e terminal s
(T o page 4-26)
Tur n th e ignitio n switc h OFF , an d
repai r th e shor t t o groun d in th e
WHT/BL U wire .
Substitut e a known-goo d pas -
senger' s multiple x contro l unit ,
and recheck .
ProCarManuals.com

Charging Syste m
Troubleshootin g (cont'd )
(From page 4-25)
Chec k fo r a n ope n in th e IG circuit :
Measur e th e voltag e a t th e No . 1
termina l o f th e 4 P connector .
I s ther e batter y voltage ?
Chec k th e Alternator/Regulator :
1. Tur n th e ignitio n switc h OFF .2. Connec t th e 4 P connecto r t o
th e alternator .
3. Tur n th e ignitio n switc h O N(II).
Doe s th e chargin g syste mlight com e on ?
4. Star t th e engine .
Doe s th e chargin g syste m
ligh t g o off ?
Th e chargin g syste m ligh t circui t
is OK .
Turn th e ignitio n switc h OFF , an drepai r th e ope n circui t i n th e BLK /YEL wire .
ALTERNATO R4P CONNECTO R
Wir e sid e o f
femal e terminal s
Check th e alternator/regulato r
(se e pag e 4-27 ).
Chec k th e alternator/regulato r
(se e pag e 4-27 ).
ProCarManuals.com

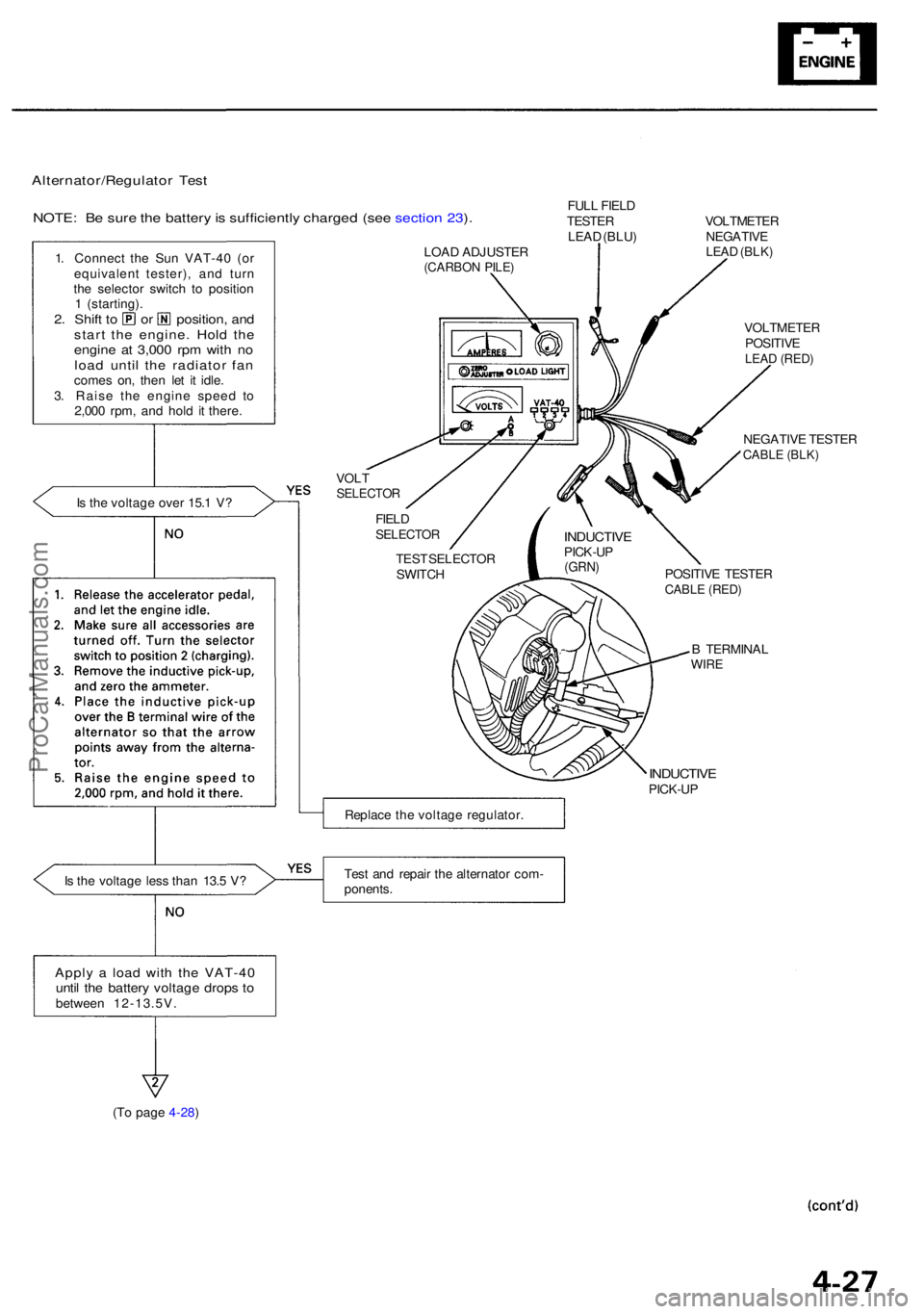

Alternator/Regulator Tes t
NOTE : B e sur e th e batter y is sufficientl y charge d (se e sectio n 23 ).
1 . Connec t th e Sun VAT-4 0 (o r
equivalen t tester) , an d tur n
th e selecto r switc h t o positio n
1 (starting) .
2. Shif t t o o r position , an dstar t th e engine . Hol d th eengin e a t 3,00 0 rp m wit h n oloa d unti l th e radiato r fa ncome s on , the n le t i t idle .
3 . Rais e th e engin e spee d t o
2,00 0 rpm , an d hol d i t there .
I s th e voltag e ove r 15. 1 V ?
I s th e voltag e les s tha n 13. 5 V ?
Appl y a loa d wit h th e VAT-4 0until th e batter y voltag e drop s t obetwee n 12-13.5V . FUL
L FIEL D
TESTE R
LEA D (BLU )
LOA D ADJUSTE R
(CARBON PILE )
VOLTMETE R
NEGATIV E
LEAD (BLK )
VOLTSELECTO R
VOLTMETE R
POSITIV E
LEAD (RED )
NEGATIV E TESTE RCABLE (BLK )
FIELDSELECTO R
TEST SELECTO R
SWITC H POSITIV
E TESTE R
CABLE (RED )
B TERMINA LWIRE
INDUCTIV EPICK-UP
Replac e th e voltag e regulator .
Tes t an d repai r th e alternato r com -
ponents .
(T o page 4-28)
INDUCTIV EPICK-UP(GRN)
ProCarManuals.com

Charging Syste m

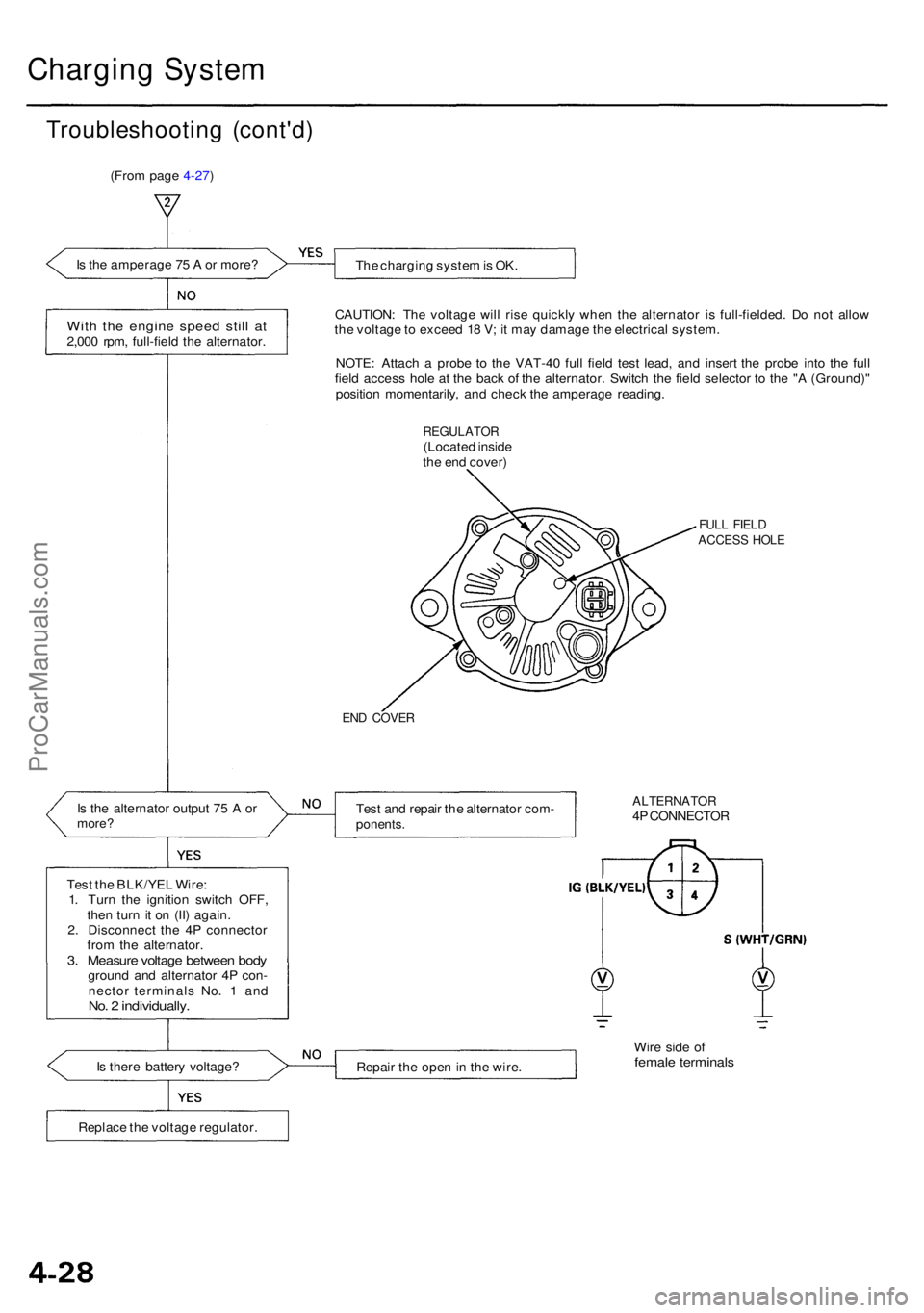

Troubleshootin g (cont'd )
(From page 4-27)
I s th e amperag e 7 5 A or more ?
The chargin g syste m is OK .
Wit h th e engin e spee d stil l a t2,00 0 rpm , full-fiel d th e alternator. CAUTION
: Th e voltag e wil l ris e quickl y whe n th e alternato r i s full-fielded . D o no t allo w
th e voltag e to excee d 1 8 V ; i t ma y damag e th e electrica l system .
NOTE : Attac h a prob e t o th e VAT-4 0 ful l fiel d tes t lead , an d inser t th e prob e int o th e ful l
fiel d acces s hol e a t th e bac k o f th e alternator . Switc h th e fiel d selecto r t o th e " A (Ground) "
positio n momentarily , an d chec k th e amperag e reading .
REGULATO R(Located insid e
th e en d cover )
FULL FIEL DACCES S HOL E
END COVE R
Is th e alternato r outpu t 7 5 A ormore ?Test an d repai r th e alternato r com -ponents .
ALTERNATO R4P CONNECTO R
Tes t th e BLK/YE L Wire :
1 . Tur n th e ignitio n switc h OFF ,
the n tur n i t o n (II ) again .
2 . Disconnec t th e 4 P connecto r
fro m th e alternator .
3. Measur e voltag e betwee n bod ygroun d an d alternato r 4 P con -
necto r terminal s No . 1 an d
No. 2 individually .
Is ther e batter y voltage ?
Repair th e ope n in th e wire . Wir
e sid e o ffemal e terminal s
Replace th e voltag e regulator .
ProCarManuals.com

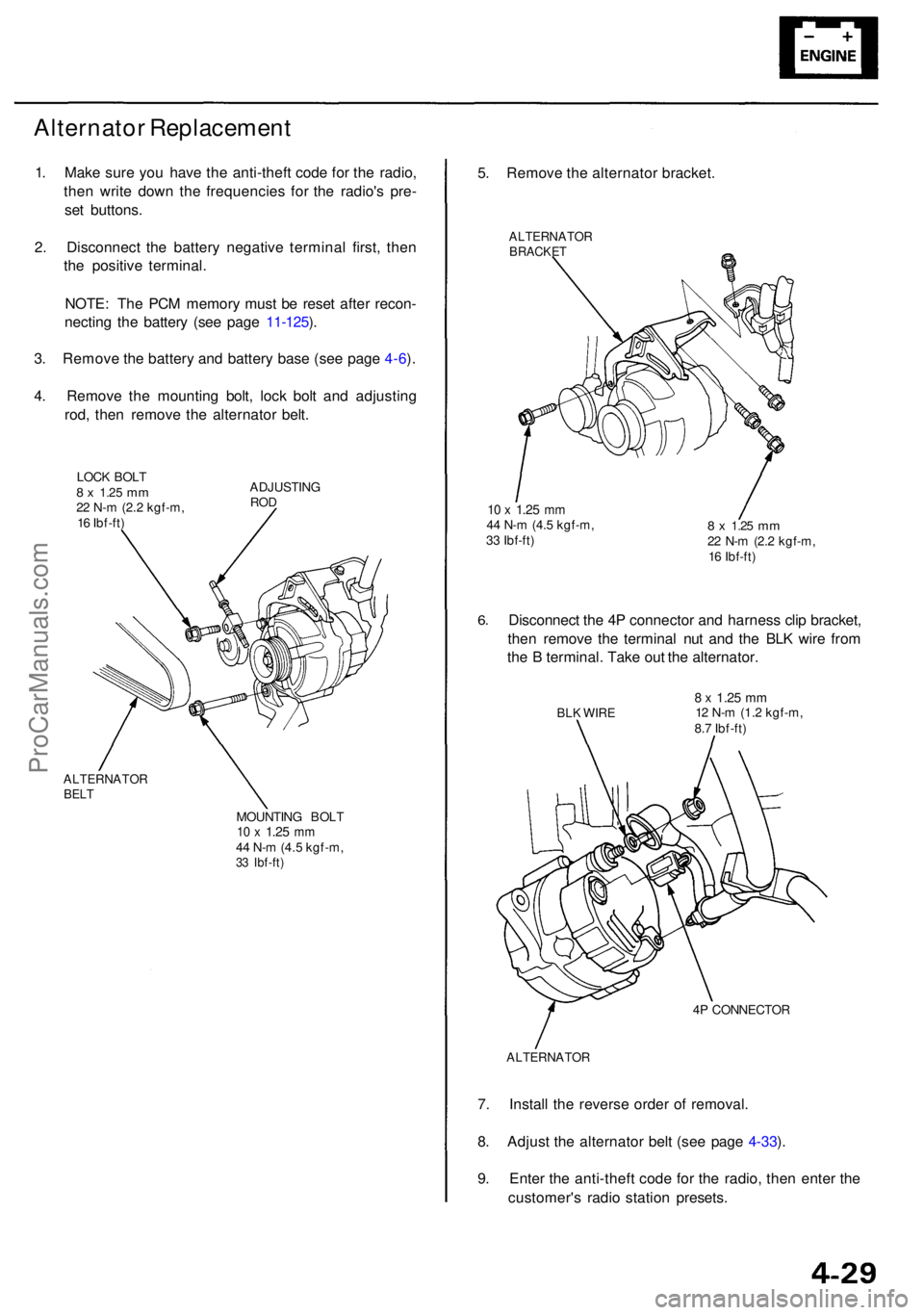

Alternator Replacemen t
1. Mak e sur e yo u hav e th e anti-thef t cod e fo r th e radio ,
the n writ e dow n th e frequencie s fo r th e radio' s pre -
se t buttons .
2 . Disconnec t th e batter y negativ e termina l first , the n
th e positiv e terminal .
NOTE : Th e PC M memor y mus t b e rese t afte r recon -
nectin g th e batter y (se e pag e 11-125 ).
3 . Remov e th e batter y an d batter y bas e (se e pag e 4-6 ).
4 . Remov e th e mountin g bolt , loc k bol t an d adjustin g
rod , the n remov e th e alternato r belt .
LOC K BOL T8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft ) ADJUSTIN
GROD
ALTERNATO RBELT
MOUNTIN G BOL T10 x 1.2 5 mm44 N- m (4. 5 kgf-m ,33 Ibf-ft )
5. Remov e th e alternato r bracket .
ALTERNATO RBRACKET
10 x 1.2 5 mm44 N- m (4. 5 kgf-m ,
3 3 Ibf-ft )8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
6.Disconnec t th e 4 P connecto r an d harnes s cli p bracket ,
the n remov e th e termina l nu t an d th e BL K wir e fro m
th e B terminal . Tak e ou t th e alternator .
BLK WIR E8 x 1.2 5 mm12 N- m (1.2 kgf-m ,
8. 7 Ibf-ft )
4 P CONNECTO R
ALTERNATO R
7. Instal l th e revers e orde r o f removal .
8 . Adjus t th e alternato r bel t (se e pag e 4-33 ).
9 . Ente r th e anti-thef t cod e fo r th e radio , the n ente r th e
customer' s radi o statio n presets .
ProCarManuals.com

Charging Syste m

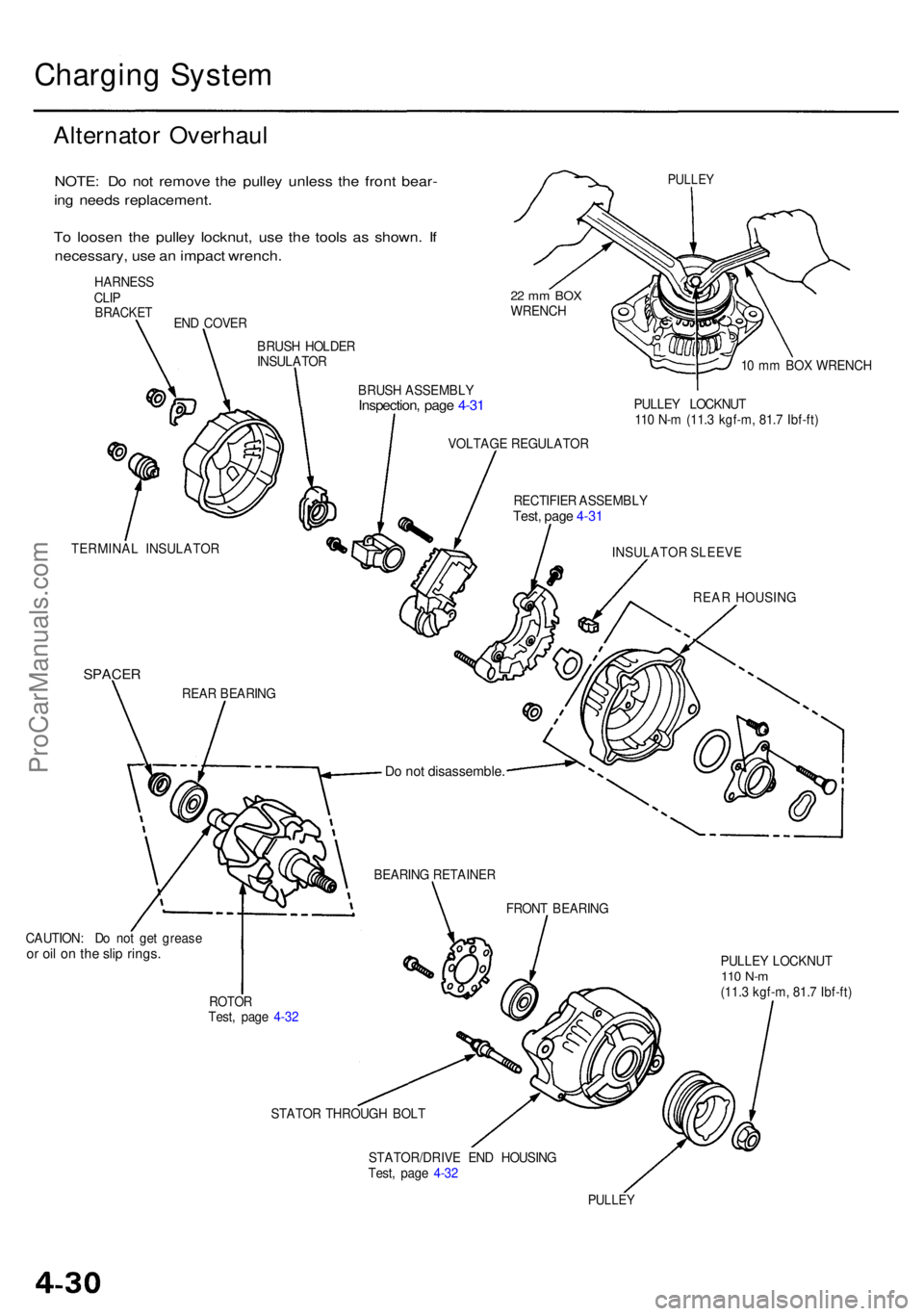

Alternato r Overhau l
NOTE: D o no t remov e th e pulle y unles s th e fron t bear -
in g need s replacement .
T o loose n th e pulle y locknut , us e th e tool s a s shown . I f
necessary , us e a n impac t wrench .
HARNES S
CLI P
BRACKE T
PULLEY
END COVE R
BRUS H HOLDE R
INSULATO R
BRUSH ASSEMBL Y
Inspection, pag e 4-3 1
22 m m BO XWRENC H
10 m m BO X WRENC H
PULLE Y LOCKNU T
11 0 N- m (11. 3 kgf-m , 81. 7 Ibf-ft )
VOLTAG E REGULATO R
RECTIFIE R ASSEMBL Y
Test, pag e 4-3 1
TERMINA L INSULATO R
INSULATOR SLEEV E
REA R HOUSIN G
SPACER
CAUTION : D o no t ge t greas eor oi l o n th e sli p rings .
ROTO RTest, pag e 4-3 2 PULLE
Y LOCKNU T
110 N- m(11. 3 kgf-m , 81. 7 Ibf-ft )
STATO R THROUG H BOL T
STATOR/DRIV E EN D HOUSIN G
Test , pag e 4-3 2
PULLE Y
FRONT BEARIN G
BEARIN
G RETAINE R
Do no t disassemble .
REAR BEARIN G
ProCarManuals.com

Rectifier Test

NOTE: The diodes are designed to allow current to pass

in one direction while blocking it in the opposite direc-

tion. Since the alternator rectifier is made up of eight

diodes (four pairs), each diode must be tested for conti-

nuity in both directions with an ohmmeter that has diode

checking capability; a total of 16 checks.

1.

Check for continuity in each direction, between the

B and P, and between the E (ground) and P termi-

nals of each diode pair. All diodes should have con-

tinuity in only one direction.

2.

If any of the eight diodes fails, replace the rectifier

assembly. (Diodes are not available separately.)
Alternator Brush Inspection

1. Remove the end cover, then take out the brush holder

by removing its two screws.

2. Measure the length of the brushes with a vernier

caliper.

Alternator Brush Length:

Standard: 10.5 mm (0.41 in)

Service Limit: 1.5 mm (0.06 in)

ALTERNATOR BRUSHES

VERNIER CALIPER

If the brushes are less than the service limit, replace
