Page 1001 of 1200

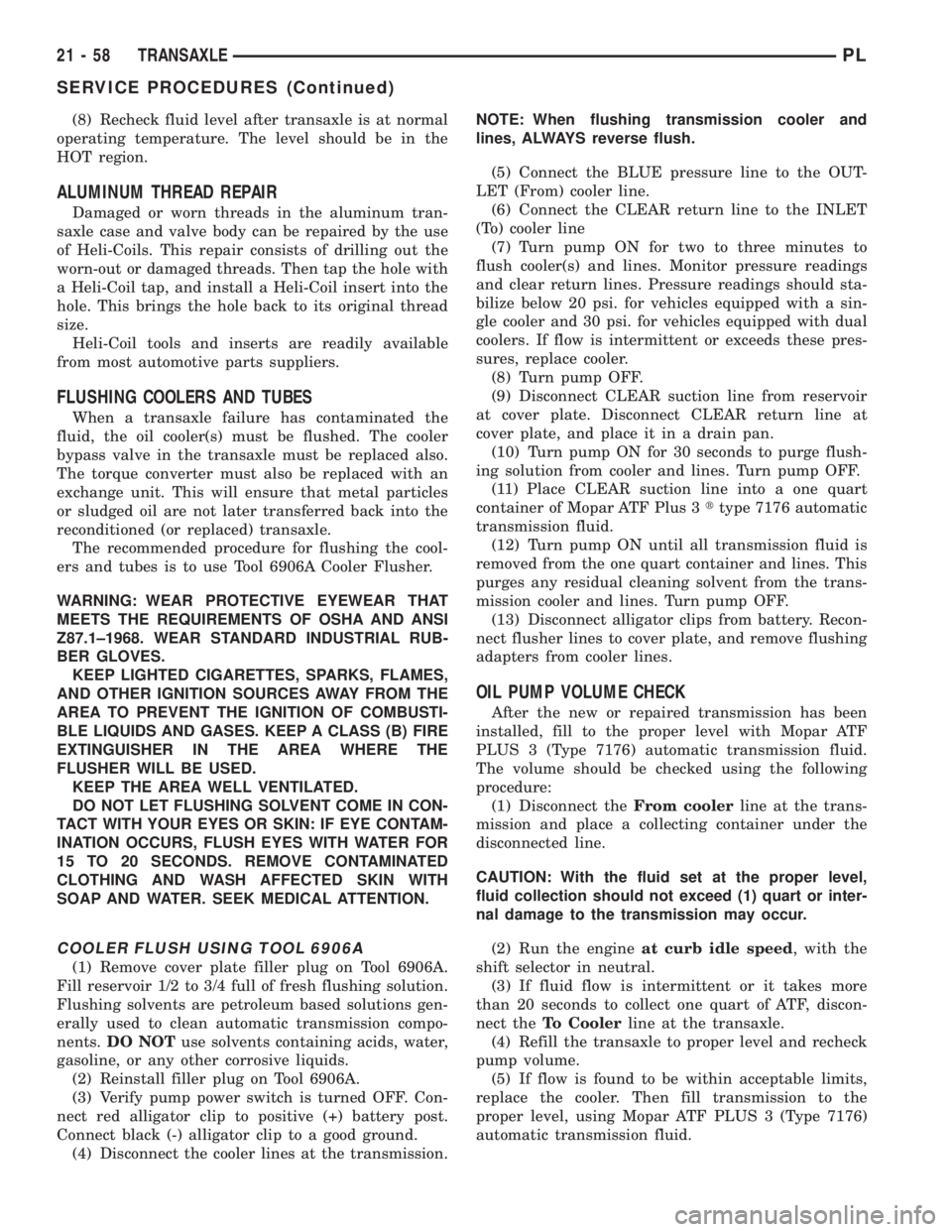

DODGE NEON 1999  Service Repair Manual (8) Recheck fluid level after transaxle is at normal
operating temperature. The level should be in the
HOT region.
ALUMINUM THREAD REPAIR
Damaged or worn threads in the aluminum tran-
saxle case and v

Page 1002 of 1200

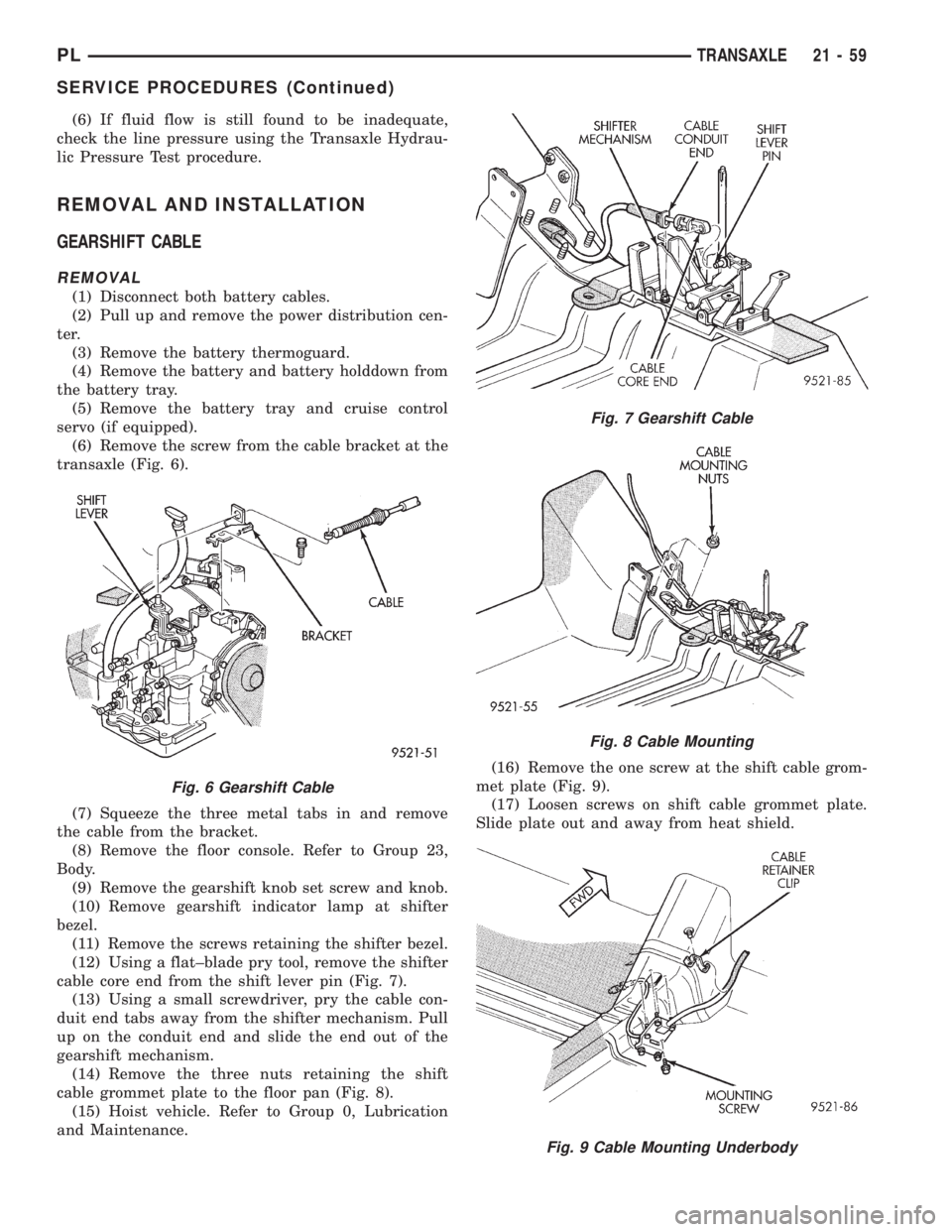

DODGE NEON 1999  Service Repair Manual (6) If fluid flow is still found to be inadequate,
check the line pressure using the Transaxle Hydrau-
lic Pressure Test procedure.
REMOVAL AND INSTALLATION
GEARSHIFT CABLE
REMOVAL
(1) Disconnect both

Page 1003 of 1200

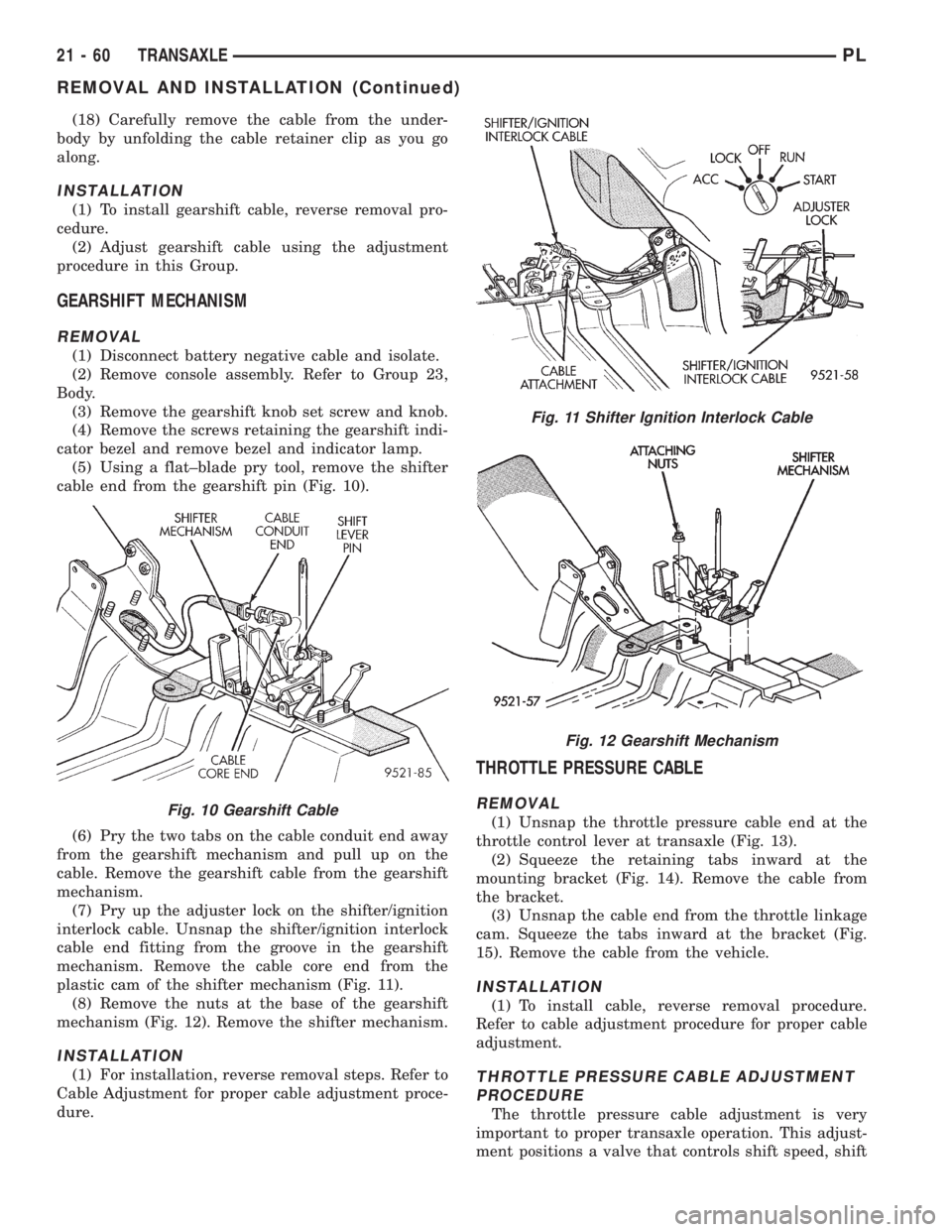

DODGE NEON 1999  Service Repair Manual (18) Carefully remove the cable from the under-
body by unfolding the cable retainer clip as you go
along.
INSTALLATION
(1) To install gearshift cable, reverse removal pro-
cedure.
(2) Adjust gearshif

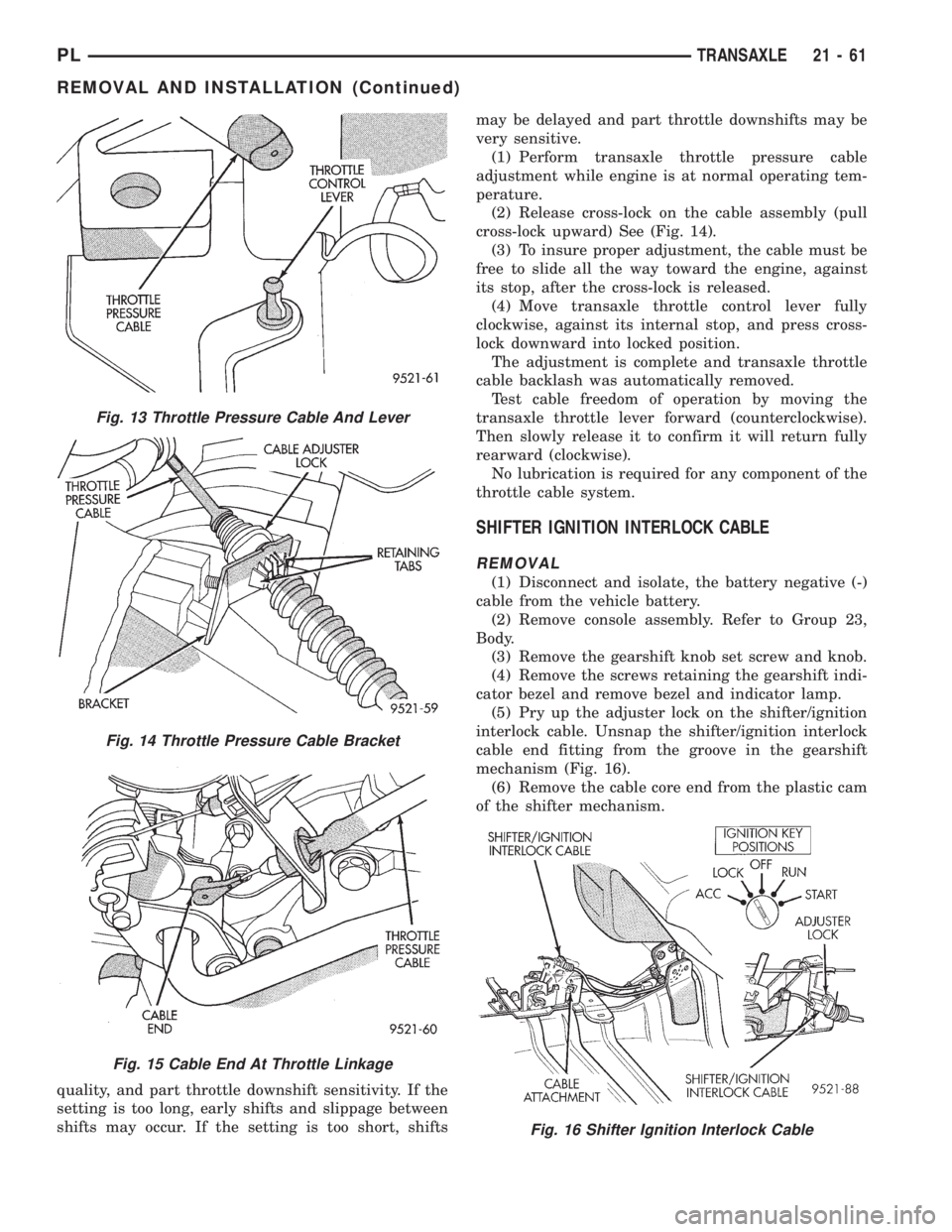

Page 1004 of 1200

DODGE NEON 1999  Service Repair Manual quality, and part throttle downshift sensitivity. If the
setting is too long, early shifts and slippage between
shifts may occur. If the setting is too short, shiftsmay be delayed and part throttle do

Page 1005 of 1200

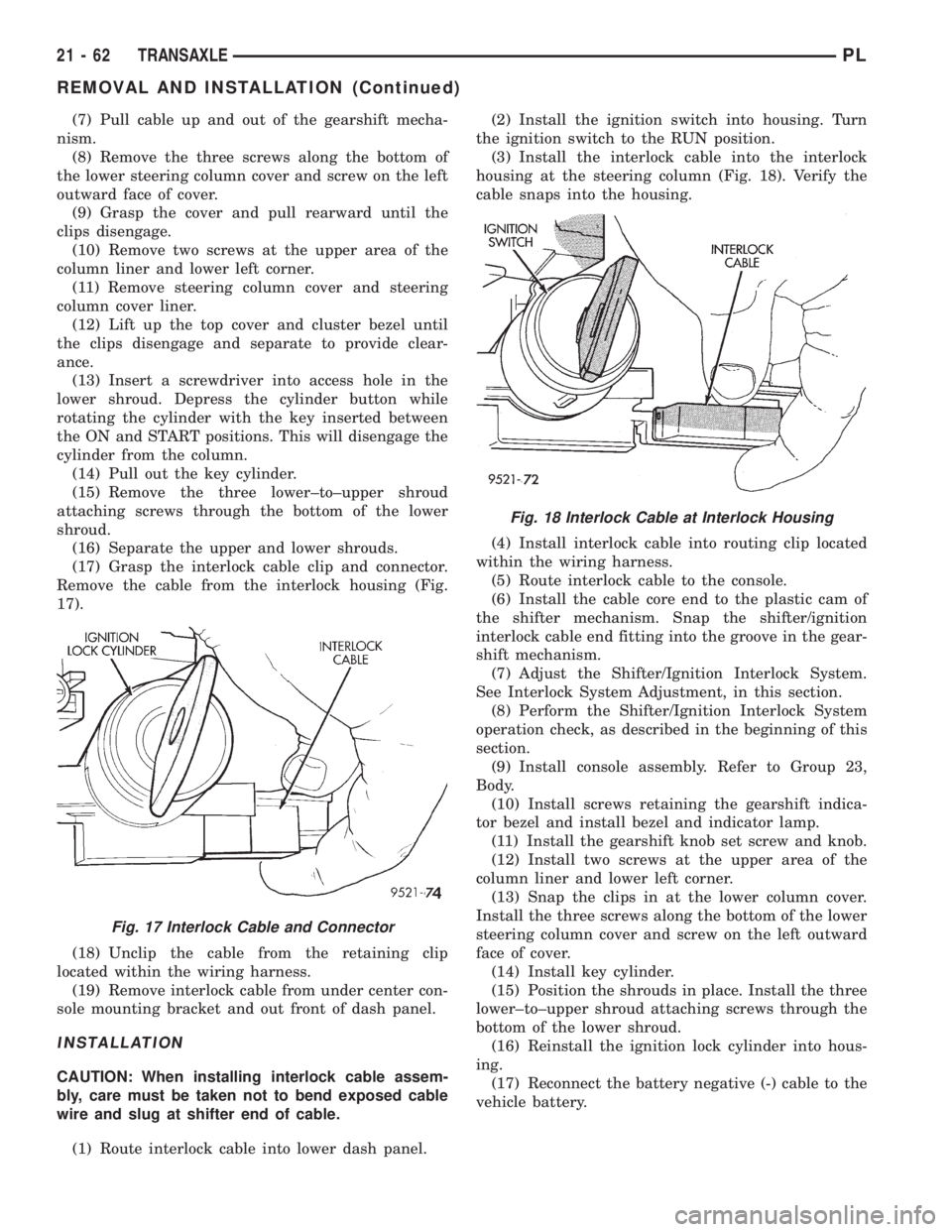

DODGE NEON 1999  Service Repair Manual (7) Pull cable up and out of the gearshift mecha-
nism.
(8) Remove the three screws along the bottom of
the lower steering column cover and screw on the left
outward face of cover.
(9) Grasp the cover

Page 1006 of 1200

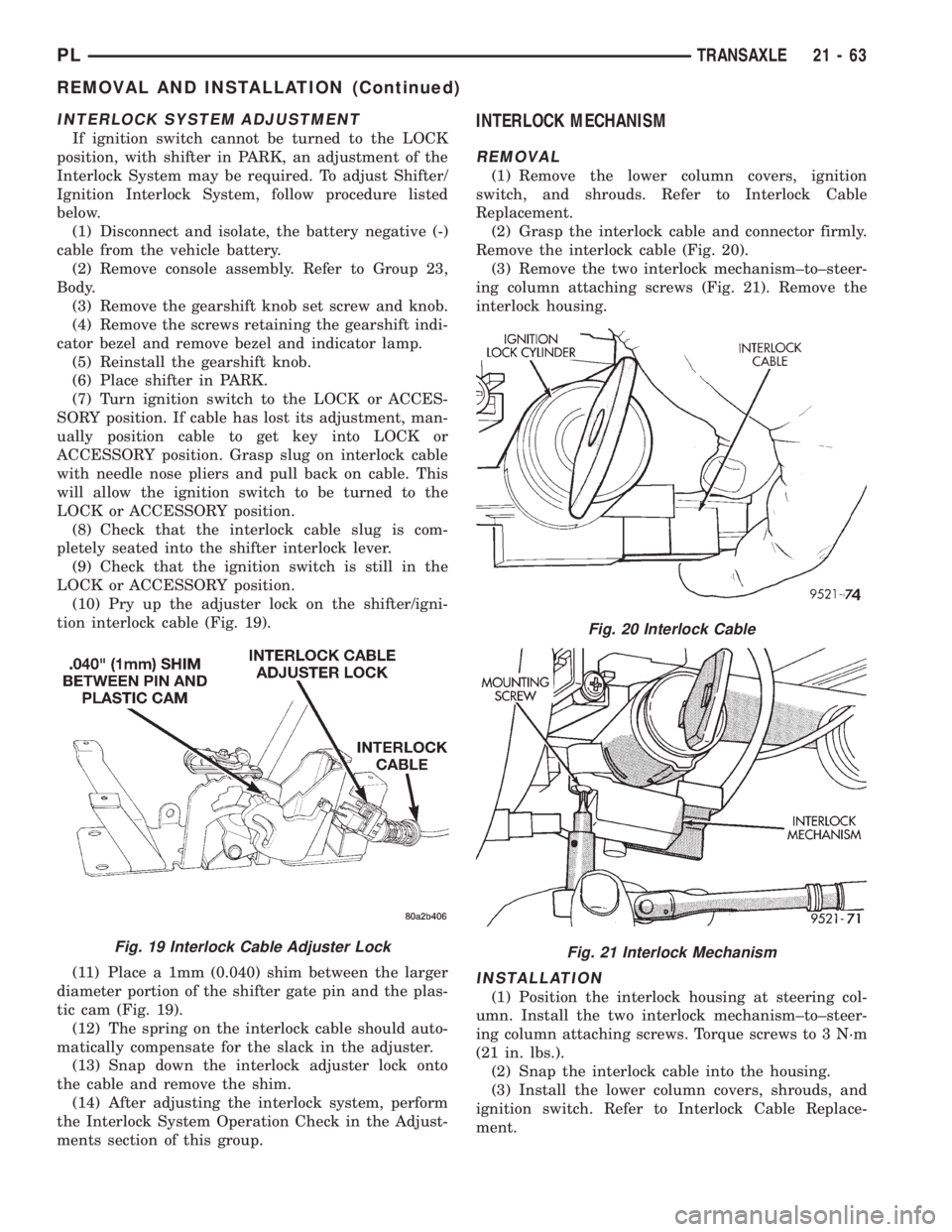

DODGE NEON 1999  Service Repair Manual INTERLOCK SYSTEM ADJUSTMENT
If ignition switch cannot be turned to the LOCK
position, with shifter in PARK, an adjustment of the
Interlock System may be required. To adjust Shifter/
Ignition Interlock

Page 1007 of 1200

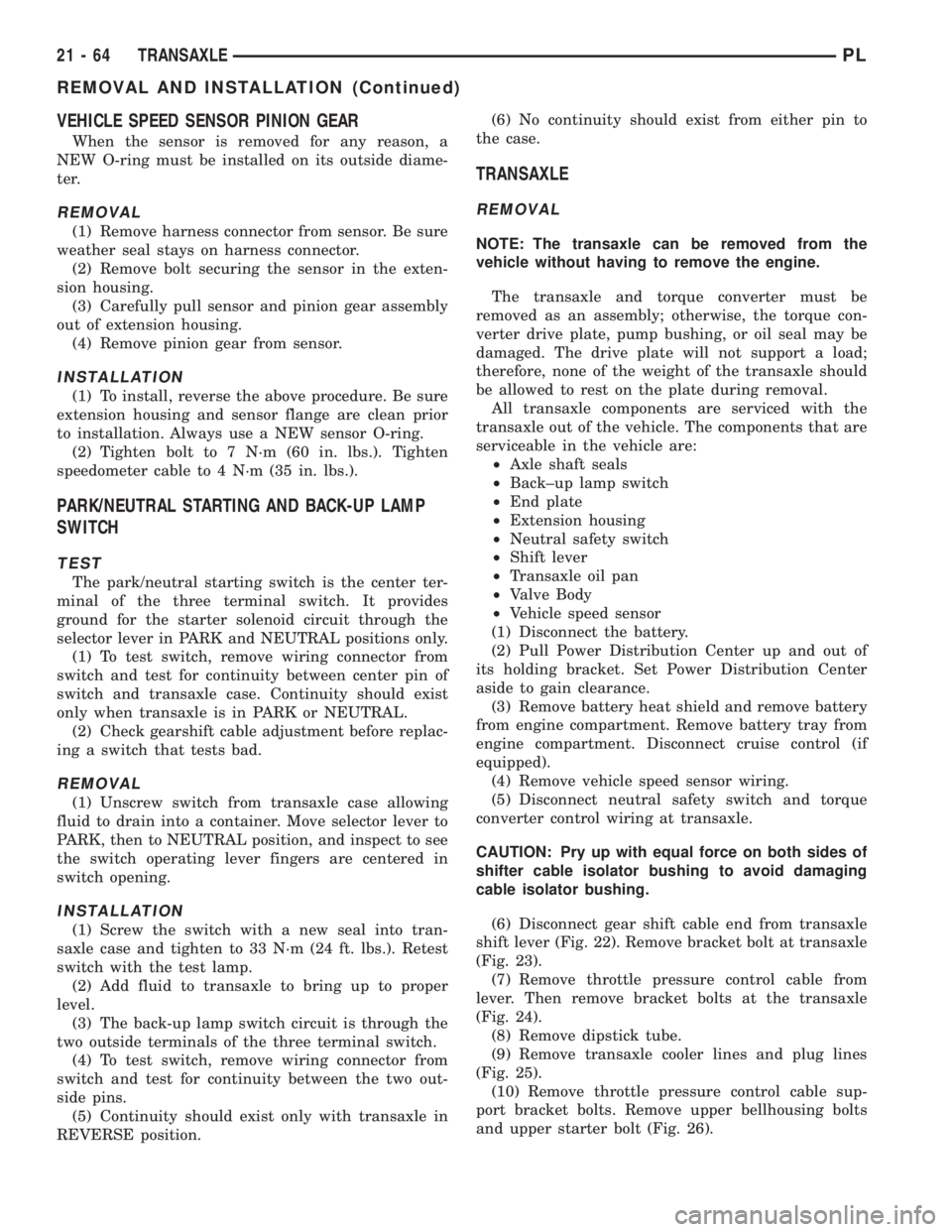

DODGE NEON 1999  Service Repair Manual VEHICLE SPEED SENSOR PINION GEAR
When the sensor is removed for any reason, a
NEW O-ring must be installed on its outside diame-
ter.
REMOVAL
(1) Remove harness connector from sensor. Be sure
weather

Page 1008 of 1200

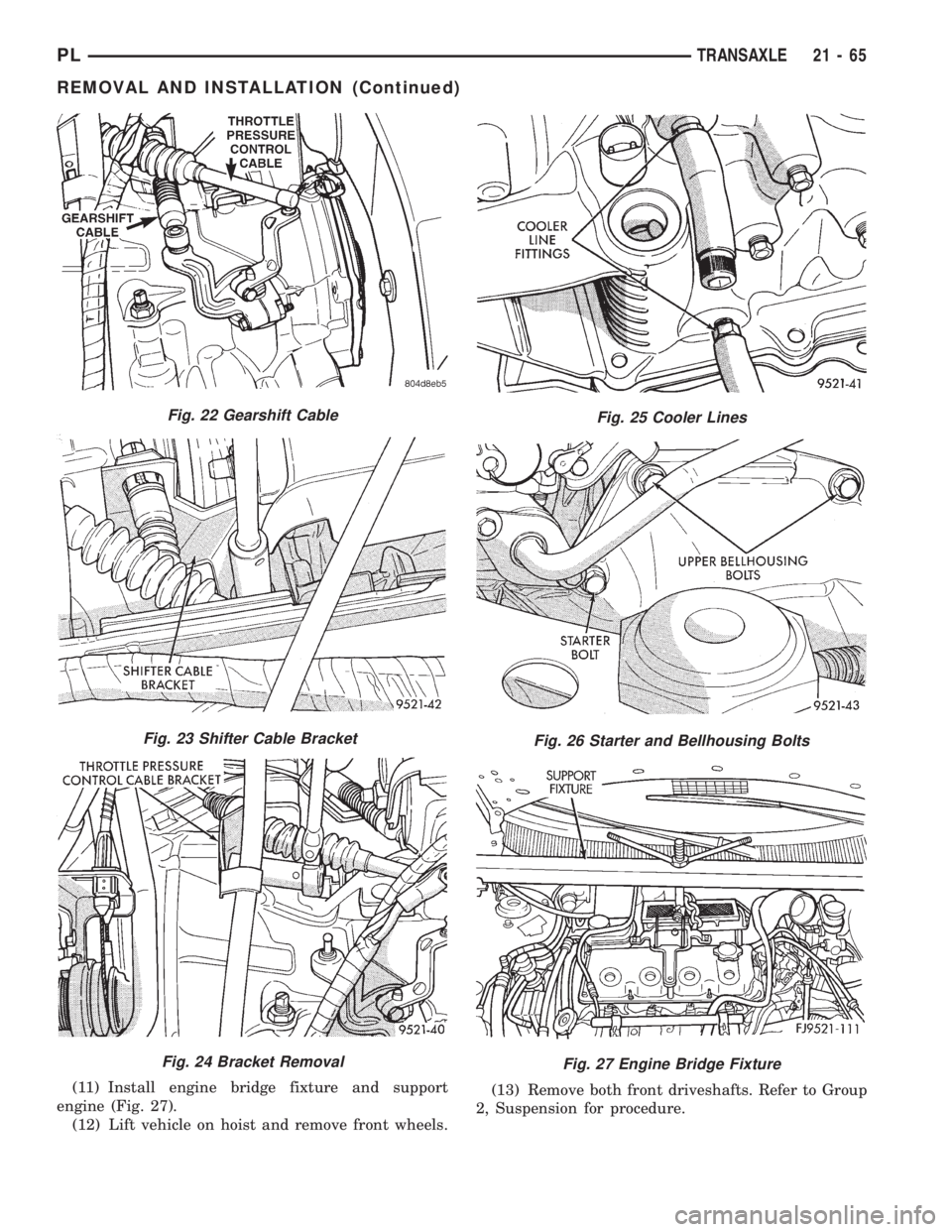

DODGE NEON 1999  Service Repair Manual (11) Install engine bridge fixture and support
engine (Fig. 27).
(12) Lift vehicle on hoist and remove front wheels.(13) Remove both front driveshafts. Refer to Group
2, Suspension for procedure.
Fig.

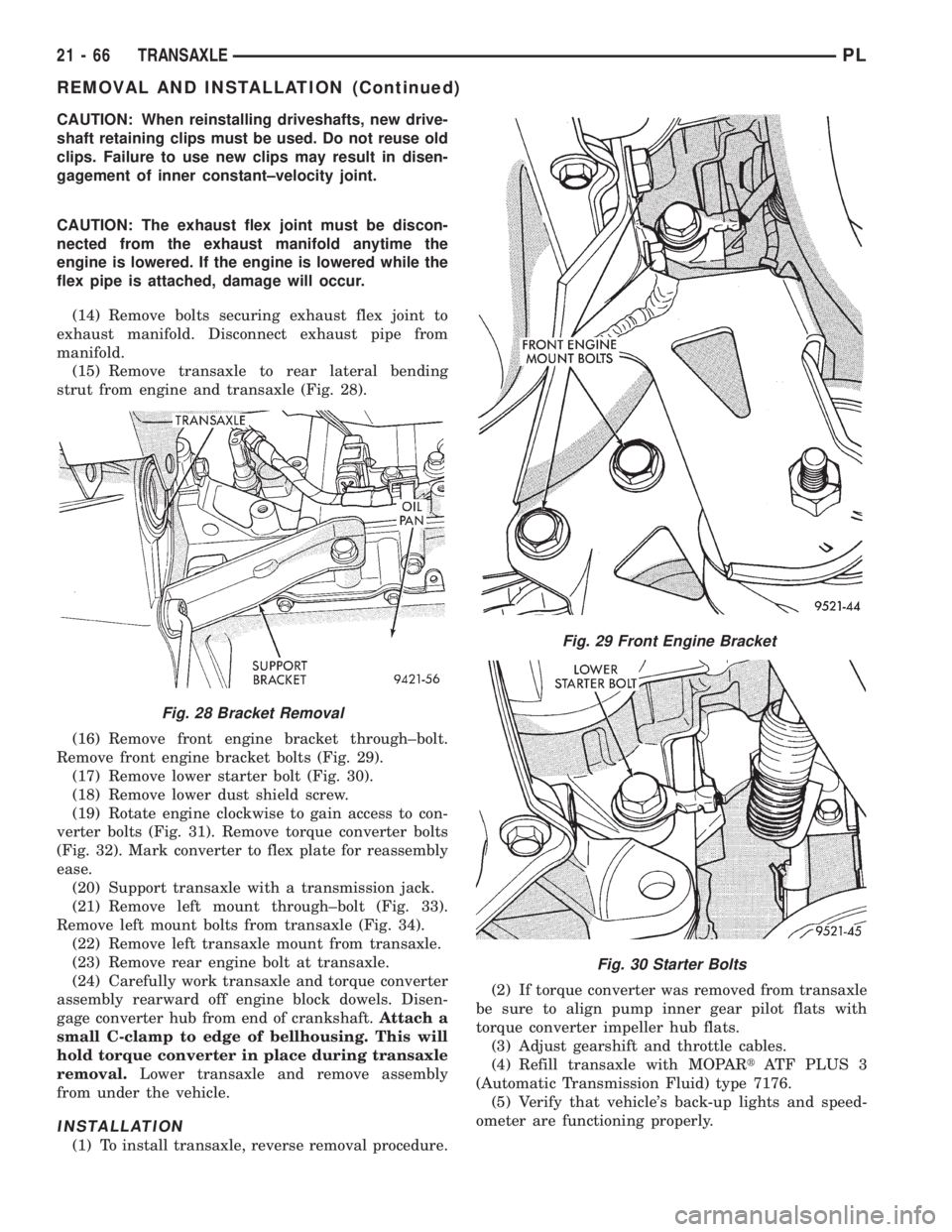

Page 1009 of 1200

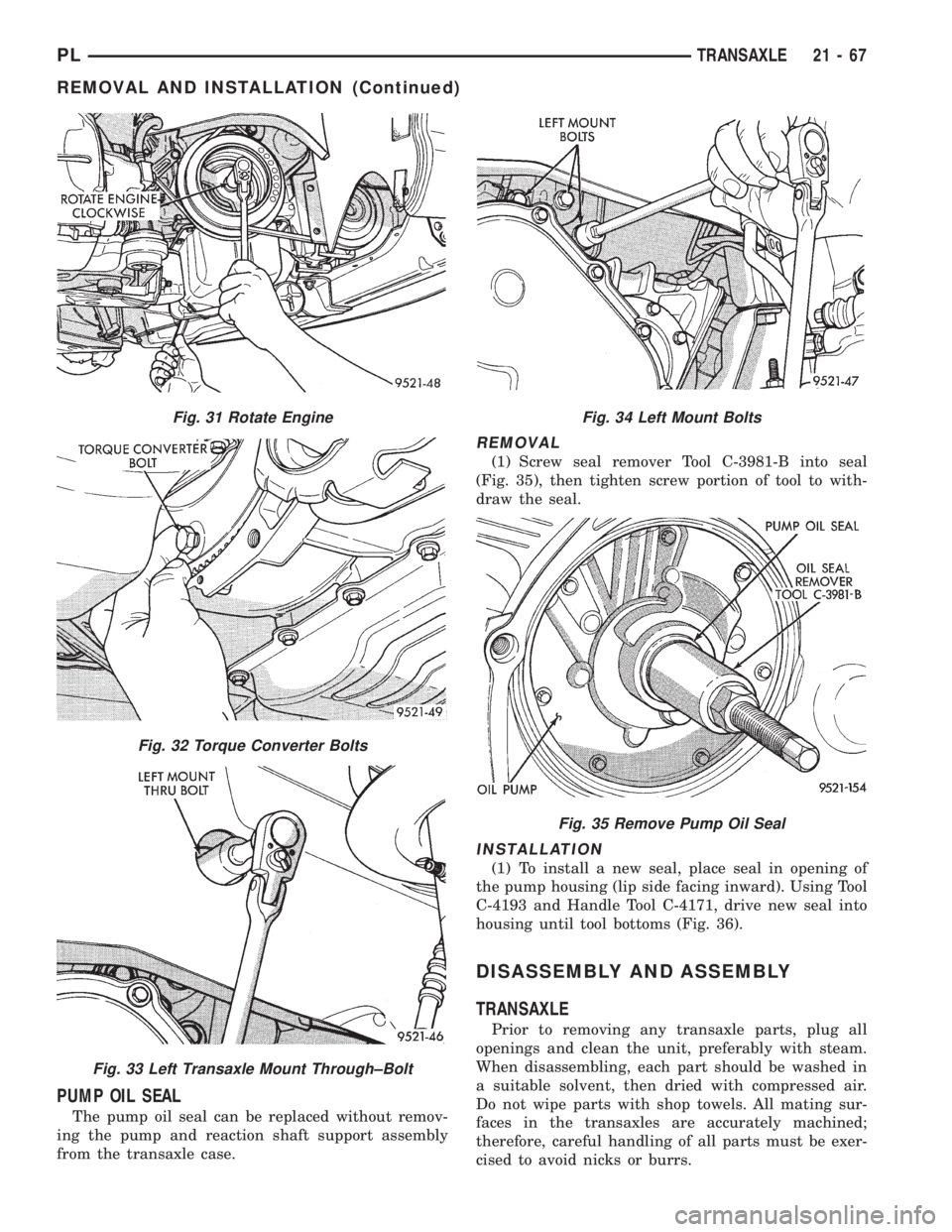

DODGE NEON 1999  Service Repair Manual CAUTION: When reinstalling driveshafts, new drive-
shaft retaining clips must be used. Do not reuse old
clips. Failure to use new clips may result in disen-
gagement of inner constant±velocity joint.

Page 1010 of 1200

DODGE NEON 1999  Service Repair Manual PUMP OIL SEAL
The pump oil seal can be replaced without remov-
ing the pump and reaction shaft support assembly
from the transaxle case.
REMOVAL
(1) Screw seal remover Tool C-3981-B into seal
(Fig. 35
