Page 1041 of 6020

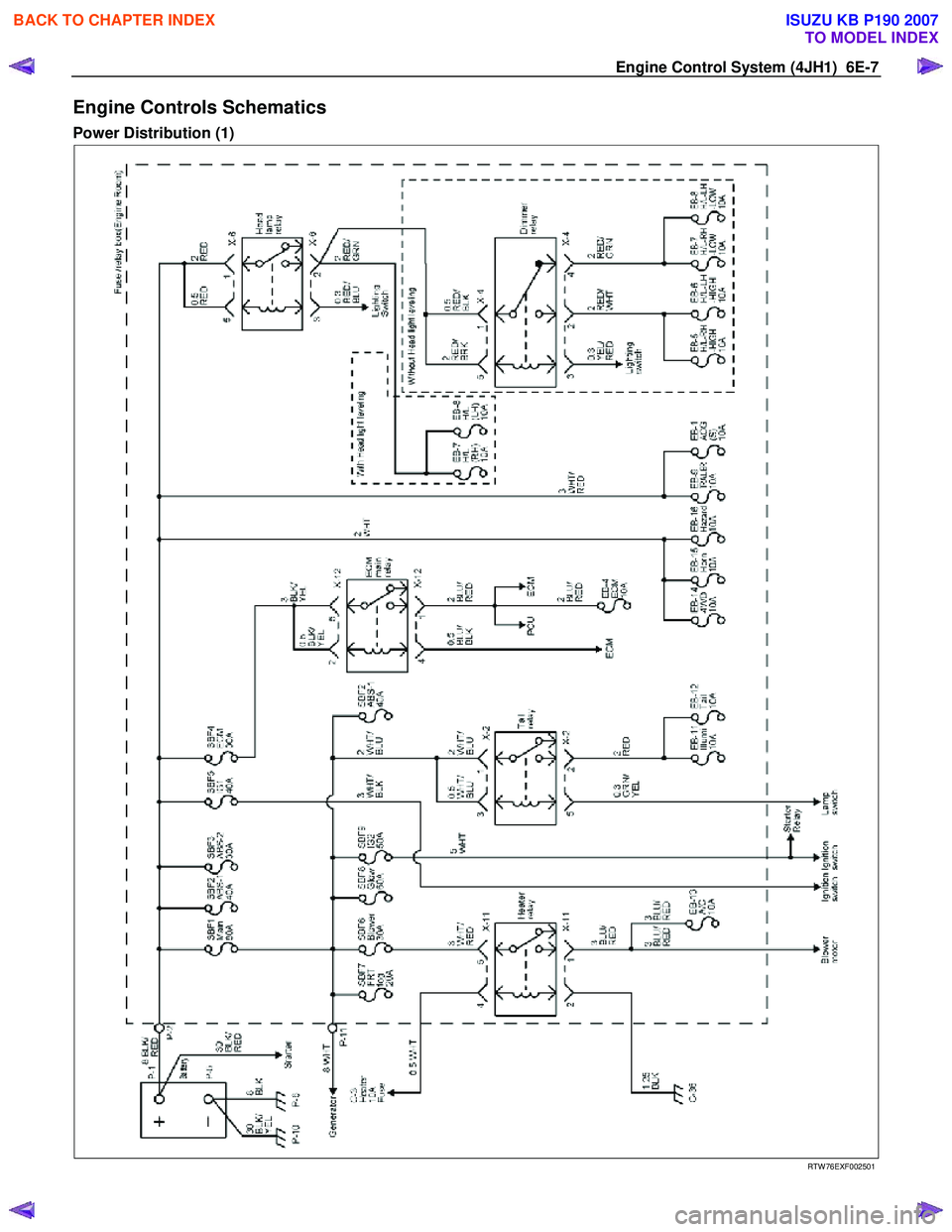

ISUZU KB P190 2007 Workshop Repair Manual Engine Control System (4JH1) 6E-7 Engine Controls Schematics Power Distribution (1) RTW 76EXF002501 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 1042 of 6020

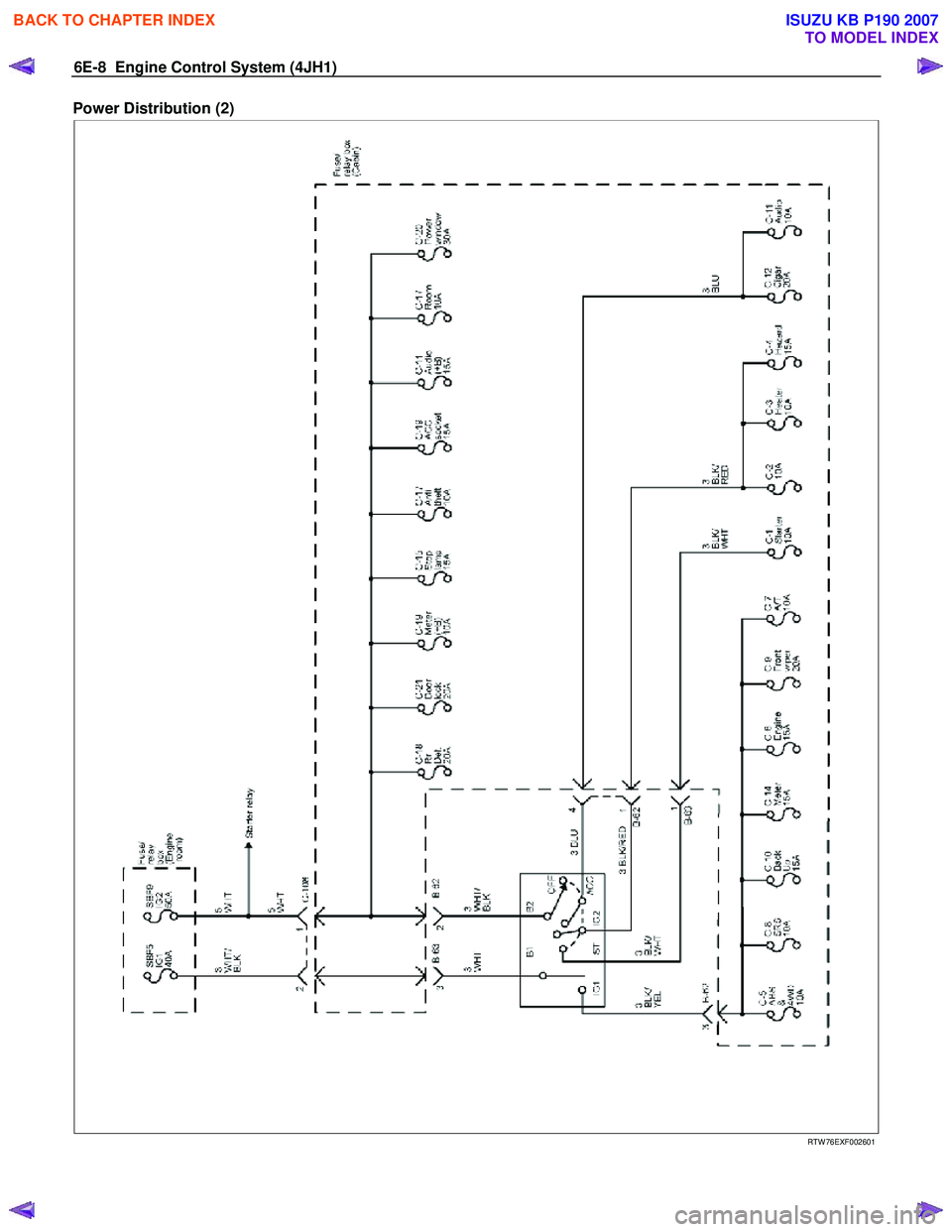

ISUZU KB P190 2007 Workshop Repair Manual 6E-8 Engine Control System (4JH1) Power Distribution (2) RTW 76EXF002601 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 1043 of 6020

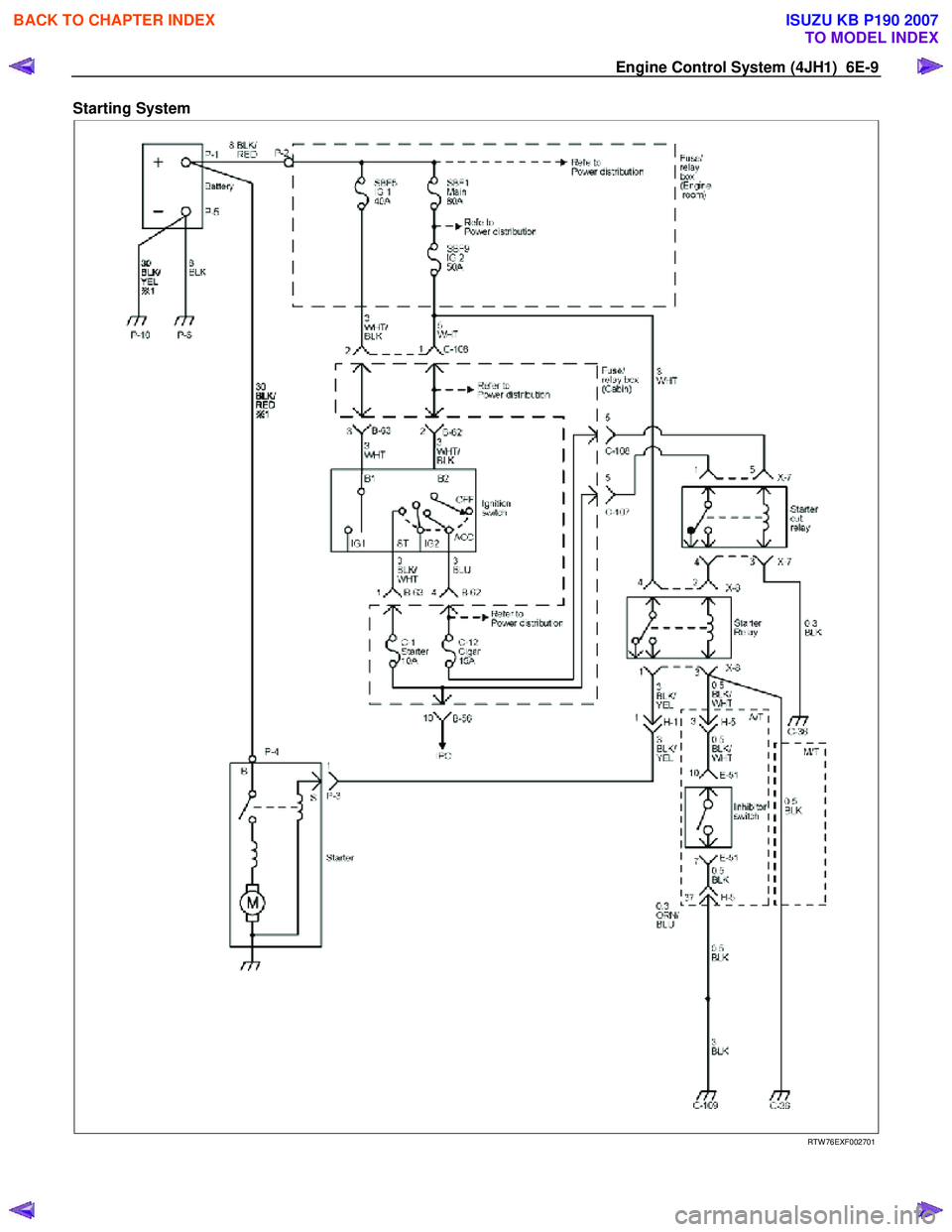

ISUZU KB P190 2007 Workshop Repair Manual Engine Control System (4JH1) 6E-9 Starting System RTW 76EXF002701 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 1044 of 6020

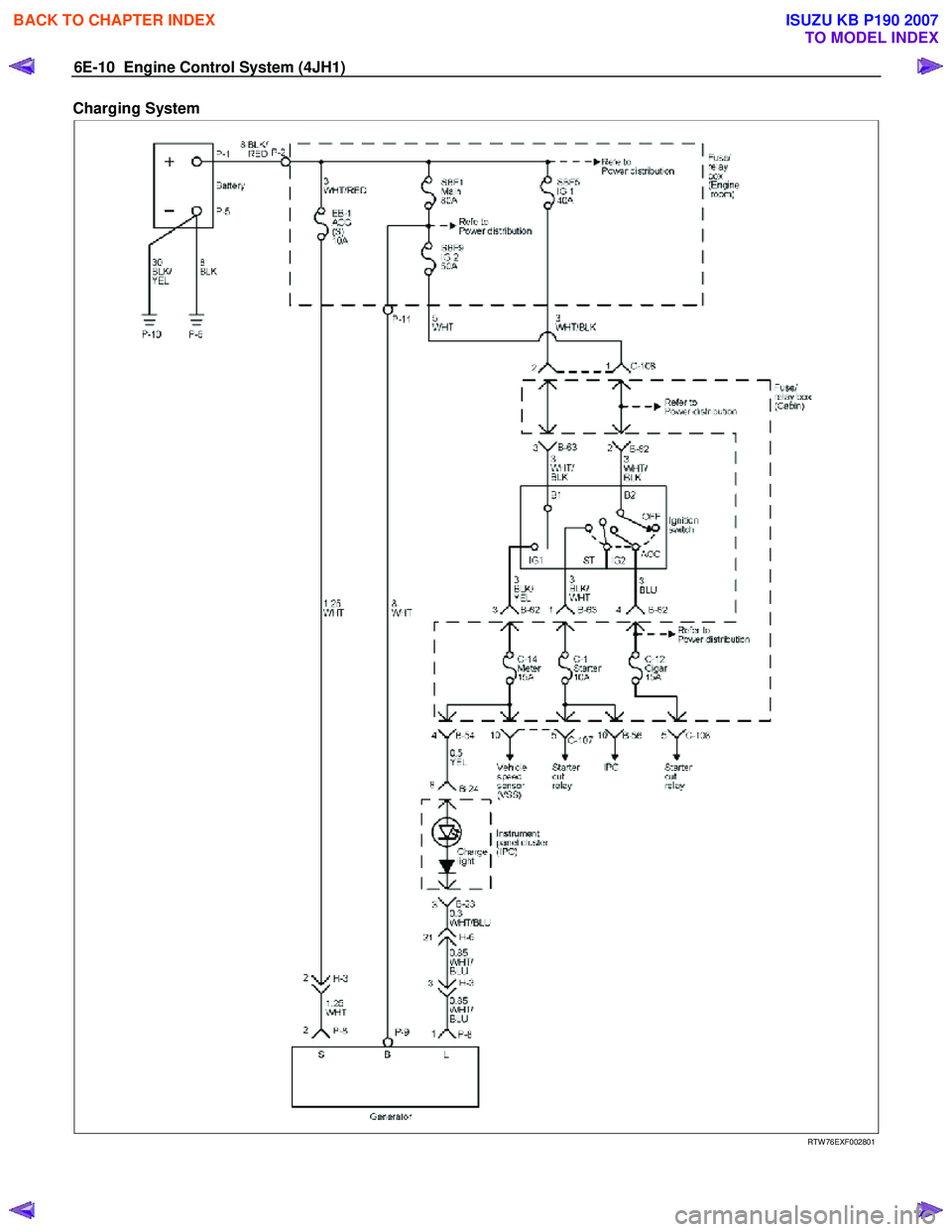

ISUZU KB P190 2007 Workshop Repair Manual 6E-10 Engine Control System (4JH1) Charging System RTW 76EXF002801 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 1045 of 6020

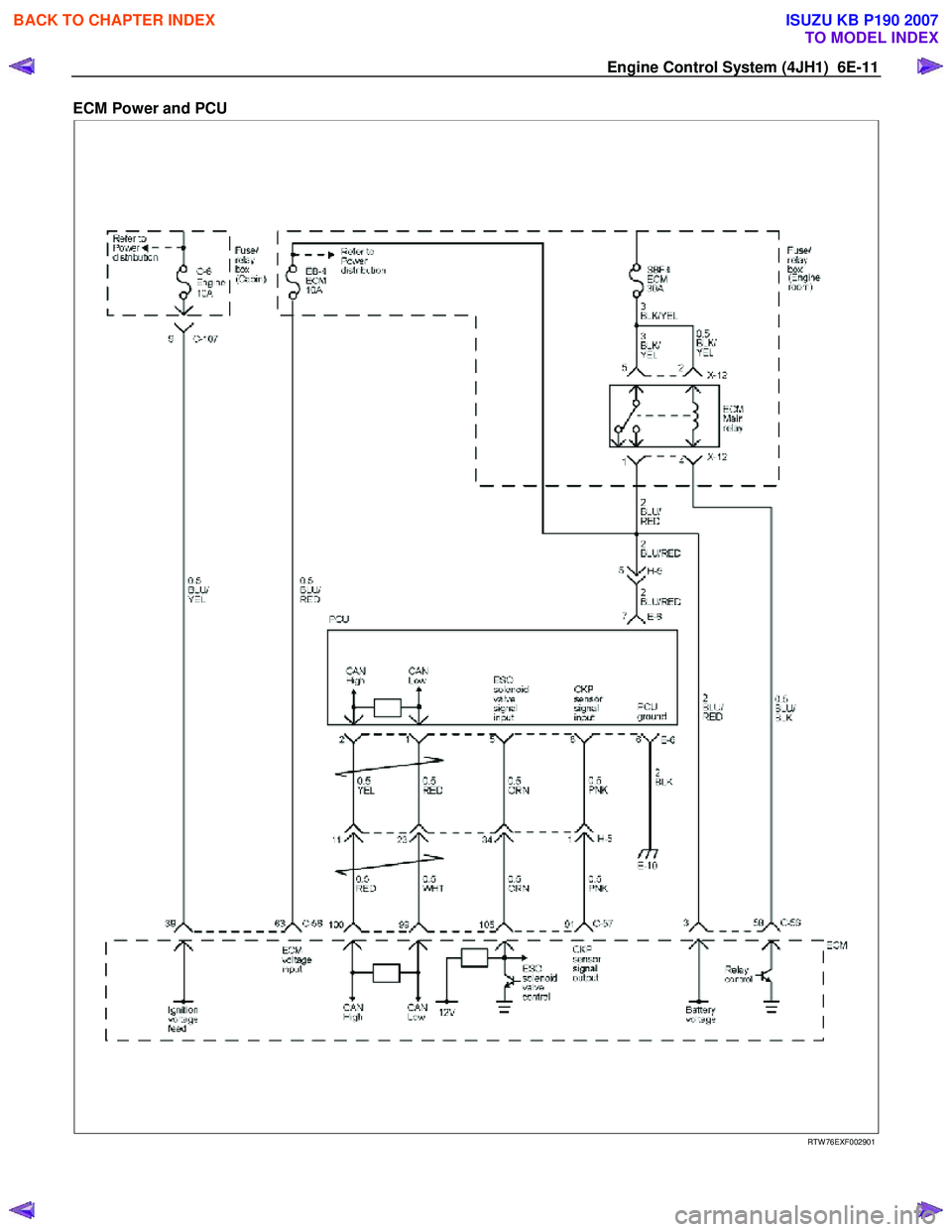

ISUZU KB P190 2007 Workshop Repair Manual Engine Control System (4JH1) 6E-11 ECM Power and PCU RTW 76EXF002901 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 1046 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-12 Engine Control System (4JH1) ECM Ground and DLC RTW 76EXF003001 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 1047 of 6020

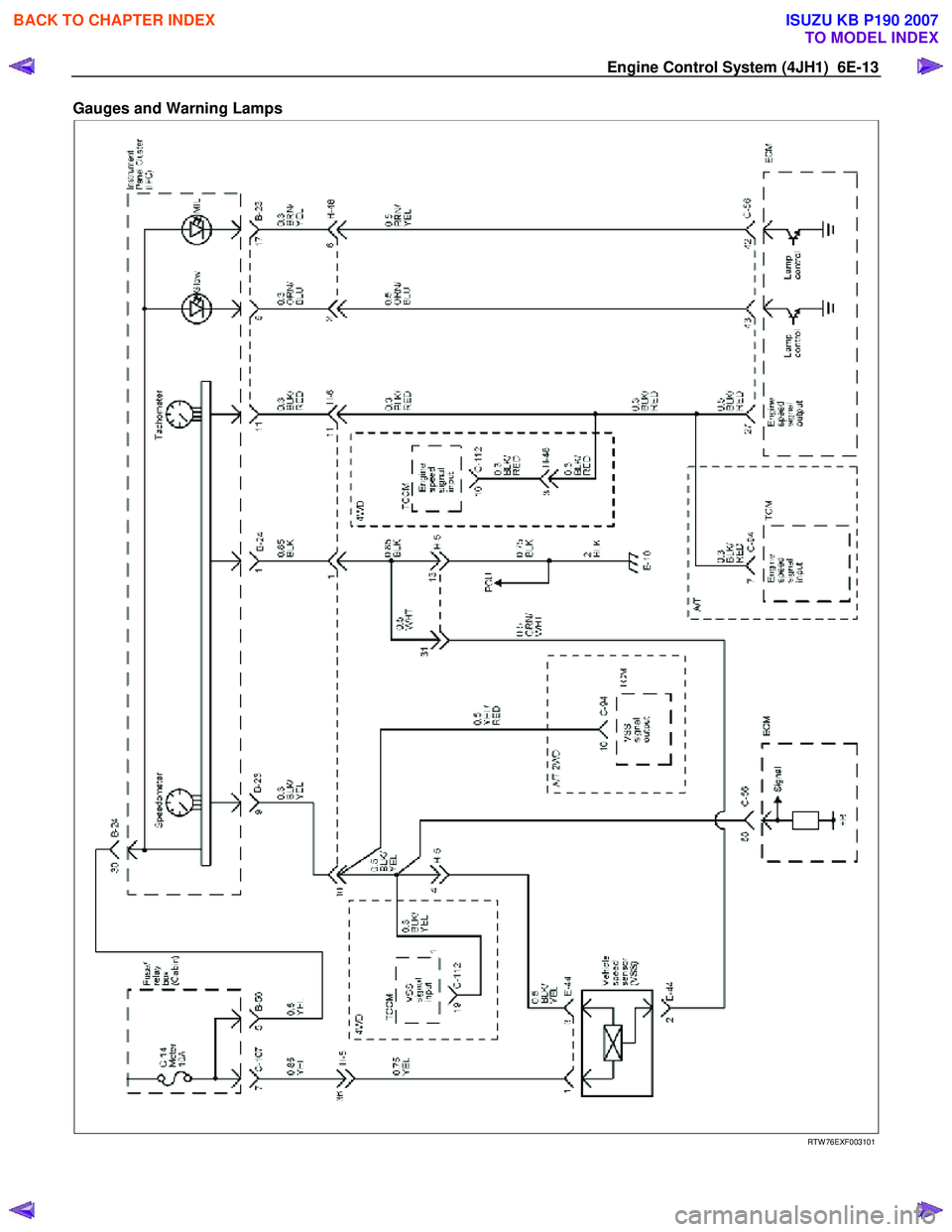

ISUZU KB P190 2007 Workshop Repair Manual Engine Control System (4JH1) 6E-13 Gauges and Warning Lamps RTW 76EXF003101 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 1048 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-14 Engine Control System (4JH1) A/C & Neutral Switch Resister, CKP Sensor, APP Sensor and Idle Switch RTW 76EXF003201 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 20

Page 1049 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Control System (4JH1) 6E-15 MAF & IAT, Vacuum Pressure and ECT Sensors RTW 76EXF003301 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 1050 of 6020

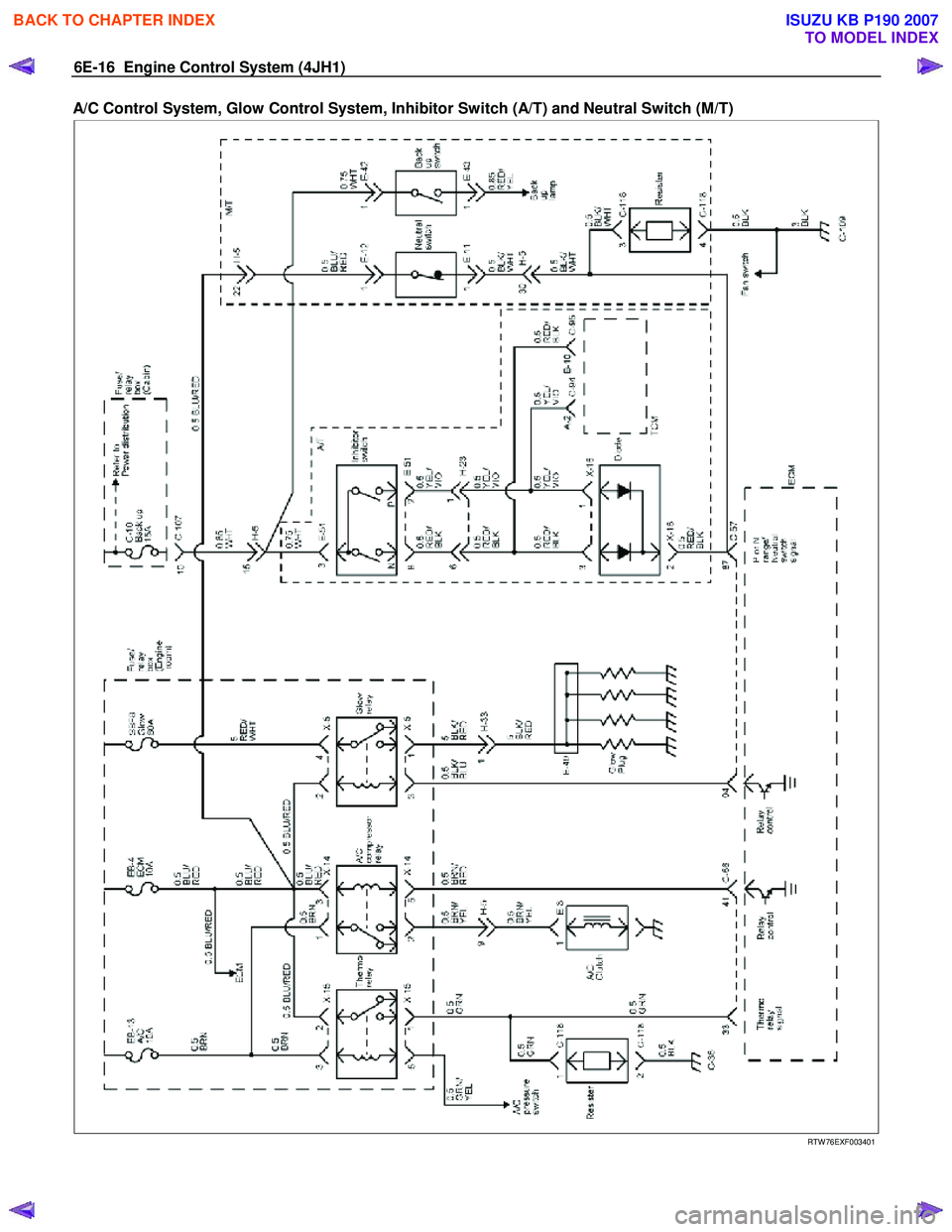

ISUZU KB P190 2007 Workshop Repair Manual 6E-16 Engine Control System (4JH1) A/C Control System, Glow Control System, Inhibitor Switch (A/T) and Neutral Switch (M/T) RTW 76EXF003401 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB
