ENGINE MECHANICAL (4JK1/4JJ1) 6A-141
Functional Check
Oil pressure check
1. Check whether the engine oil is contaminated with
dirt, light oil, or water. If contaminated with dirt,
light oil, or water (after examining the cause and
taking the appropriate measures for light oil o
r
water contamination), replace the oil.
2. Check the engine oil level. The oil level should be between the two holes of the level gauge. If the oil
level is insufficient, replenish it.
3. Remove the oil pressure switch on the nipple.
4. Install the oil pressure gauge on the nipple.






RTW 56ASH015501
Legend
1. Oil Pressure Switch

5. W arm the engine.
6. Measure the oil pressure, to check whether it is more than 400 kPa (4 kg/cm
2 / 58 psi) at 3600
rpm.
7. Stop the engine.
8. Remove the oil pressure gauge.
9. Install the oil pressure switch.
10. Start the engine and check for oil leakage.
Engine oil
•
Ensure the car is on level ground. Before starting
the engine or when 30 minutes or more have
elapsed after stopping the engine, check the
engine oil volume using the level gauge. The
volume is appropriate if the engine oil is between
the upper and lower limits of the level gauge.
Replenish the engine oil, if level is below the lowe
r
limit. Also, check for contamination of the engine
oil.




RTW 56ASH015601







RTW 56ASH015701
Legend
1. Lower Limit
2. Upper Limit



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-142 ENGINE MECHANICAL (4JK1/4JJ1)

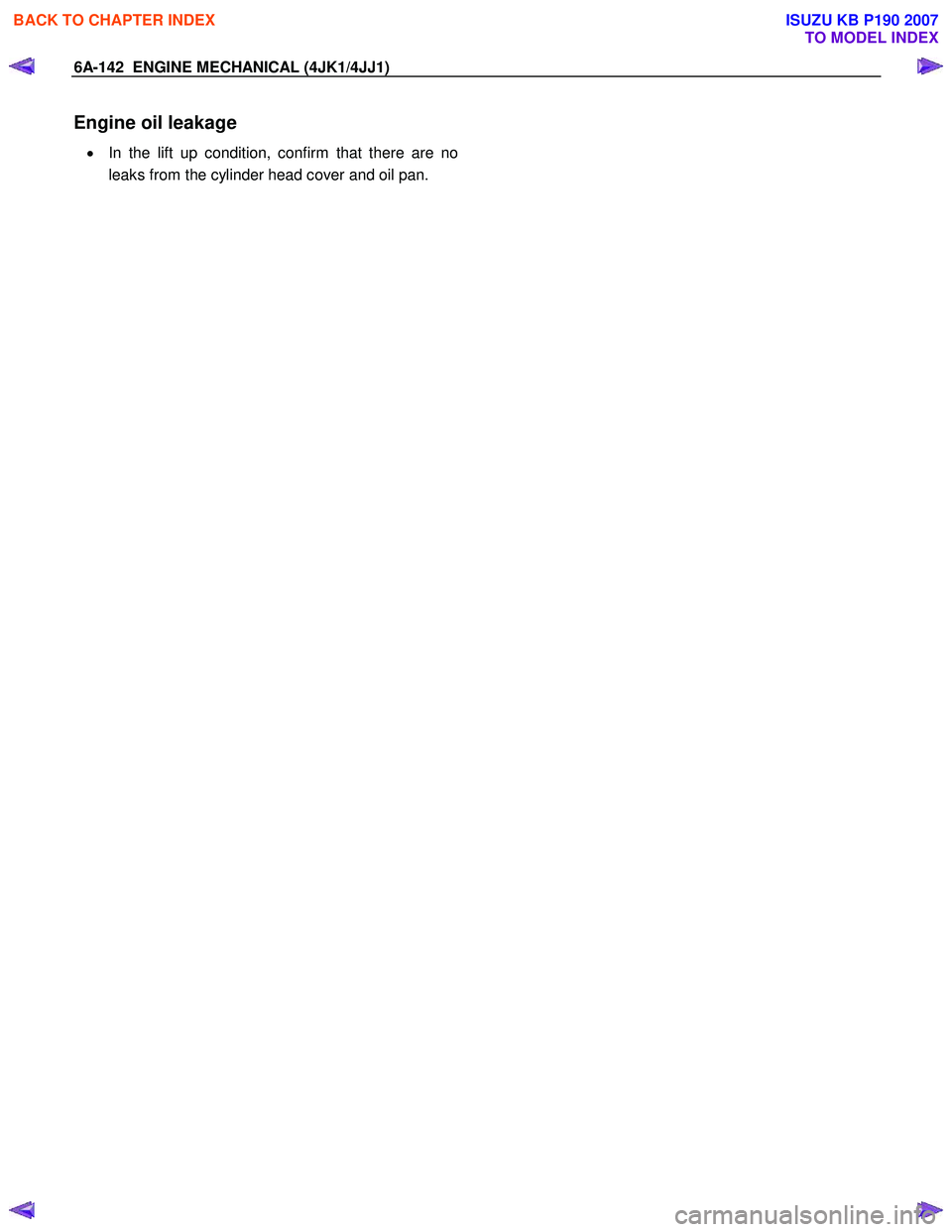

Engine oil leakage
• In the lift up condition, confirm that there are no
leaks from the cylinder head cover and oil pan.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-143

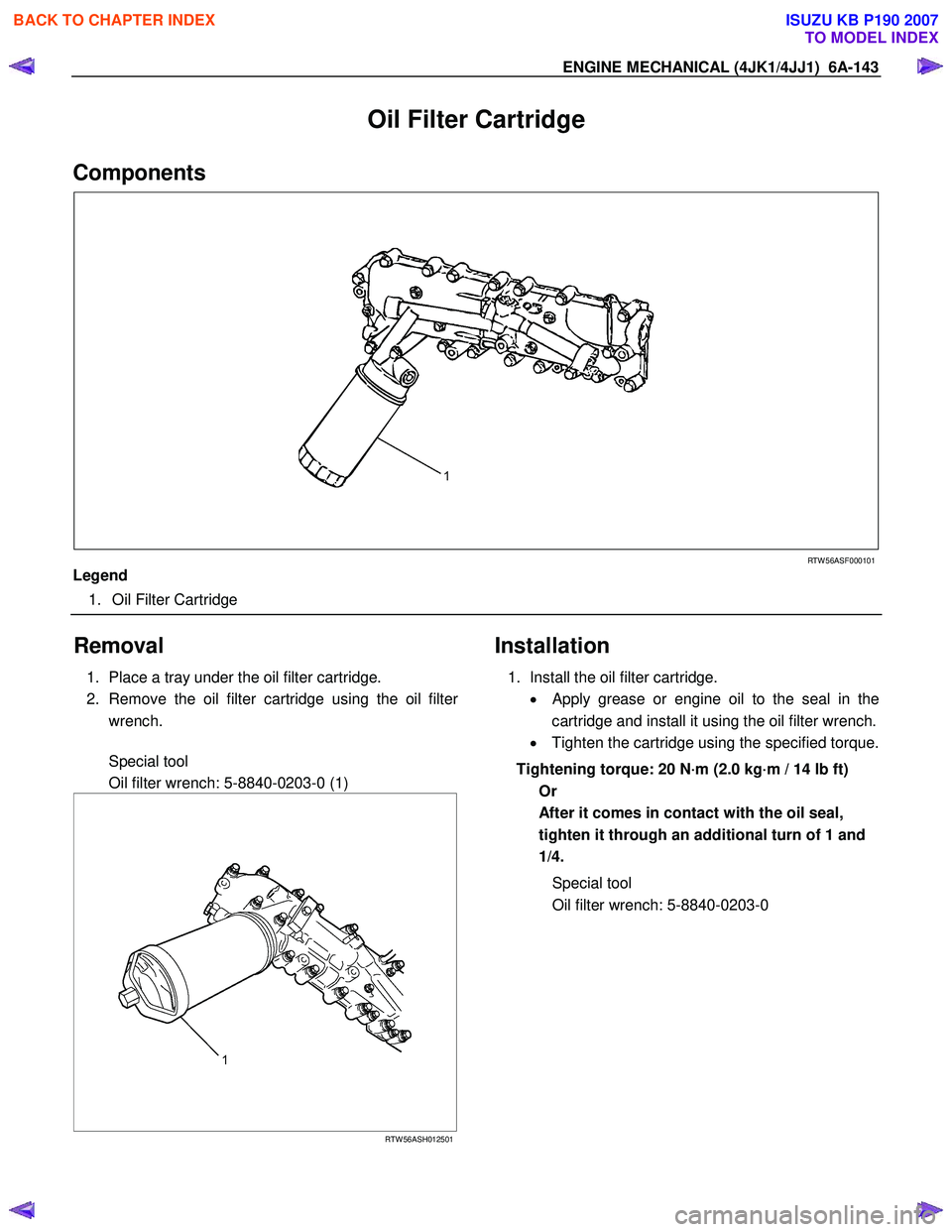

Oil Filter Cartridge
Components






RTW 56ASF000101
Legend 1. Oil Filter Cartridge

Removal
1. Place a tray under the oil filter cartridge.
2. Remove the oil filter cartridge using the oil filte
r
wrench.

Special tool
Oil filter wrench: 5-8840-0203-0 (1)







RTW 56ASH012501

Installation
1. Install the oil filter cartridge.
•
Apply grease or engine oil to the seal in the
cartridge and install it using the oil filter wrench.
• Tighten the cartridge using the specified torque.
Tightening torque: 20 N·m (2.0 kg·m / 14 lb ft) Or
After it comes in contact with the oil seal,
tighten it through an additional turn of 1 and
1/4.
Special tool
Oil filter wrench: 5-8840-0203-0

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-144 ENGINE MECHANICAL (4JK1/4JJ1)

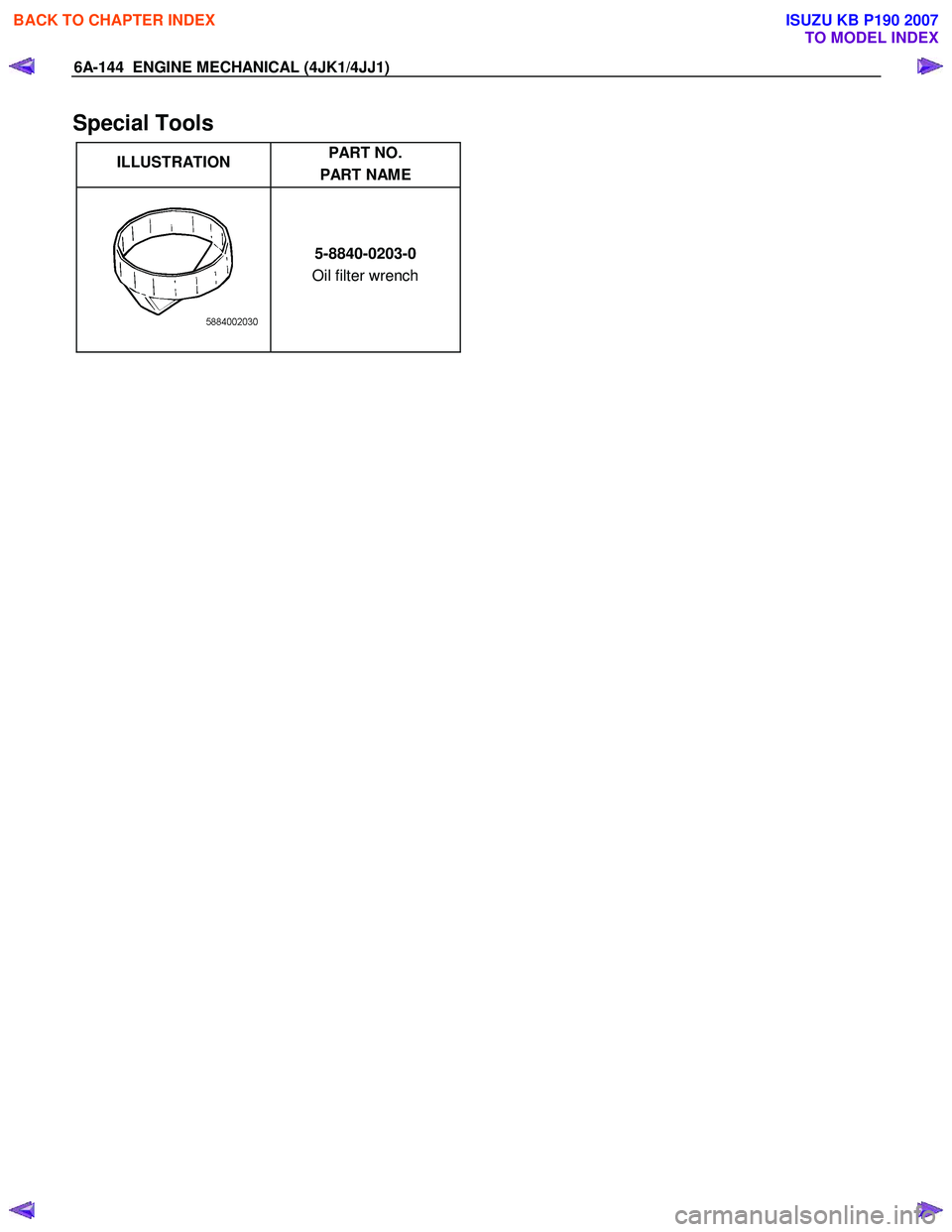

Special Tools
ILLUSTRATION PART NO.
PART NAME

5-8840-0203-0
Oil filter wrench



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-145

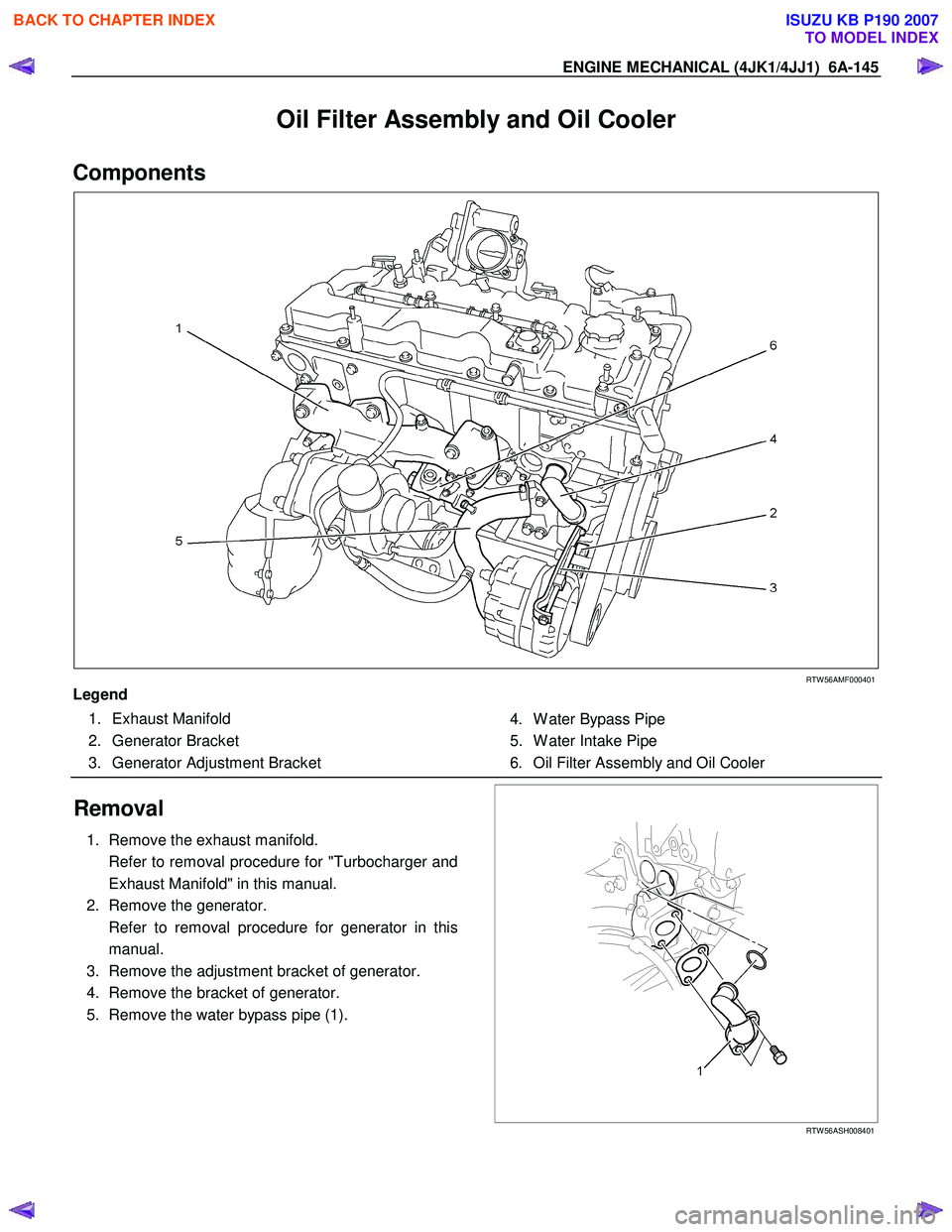

Oil Filter Assembly and Oil Cooler
Components



RTW 56AMF000401
Legend
1. Exhaust Manifold
2. Generator Bracket
3. Generator Adjustment Bracket 4. W ater Bypass Pipe
5. W ater Intake Pipe
6. Oil Filter Assembly and Oil Cooler

Removal
1. Remove the exhaust manifold.
Refer to removal procedure for "Turbocharger and Exhaust Manifold" in this manual.
2. Remove the generator.
Refer to removal procedure for generator in this manual.
3. Remove the adjustment bracket of generator.
4. Remove the bracket of generator.
5. Remove the water bypass pipe (1).




RTW 56ASH008401


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-146 ENGINE MECHANICAL (4JK1/4JJ1)

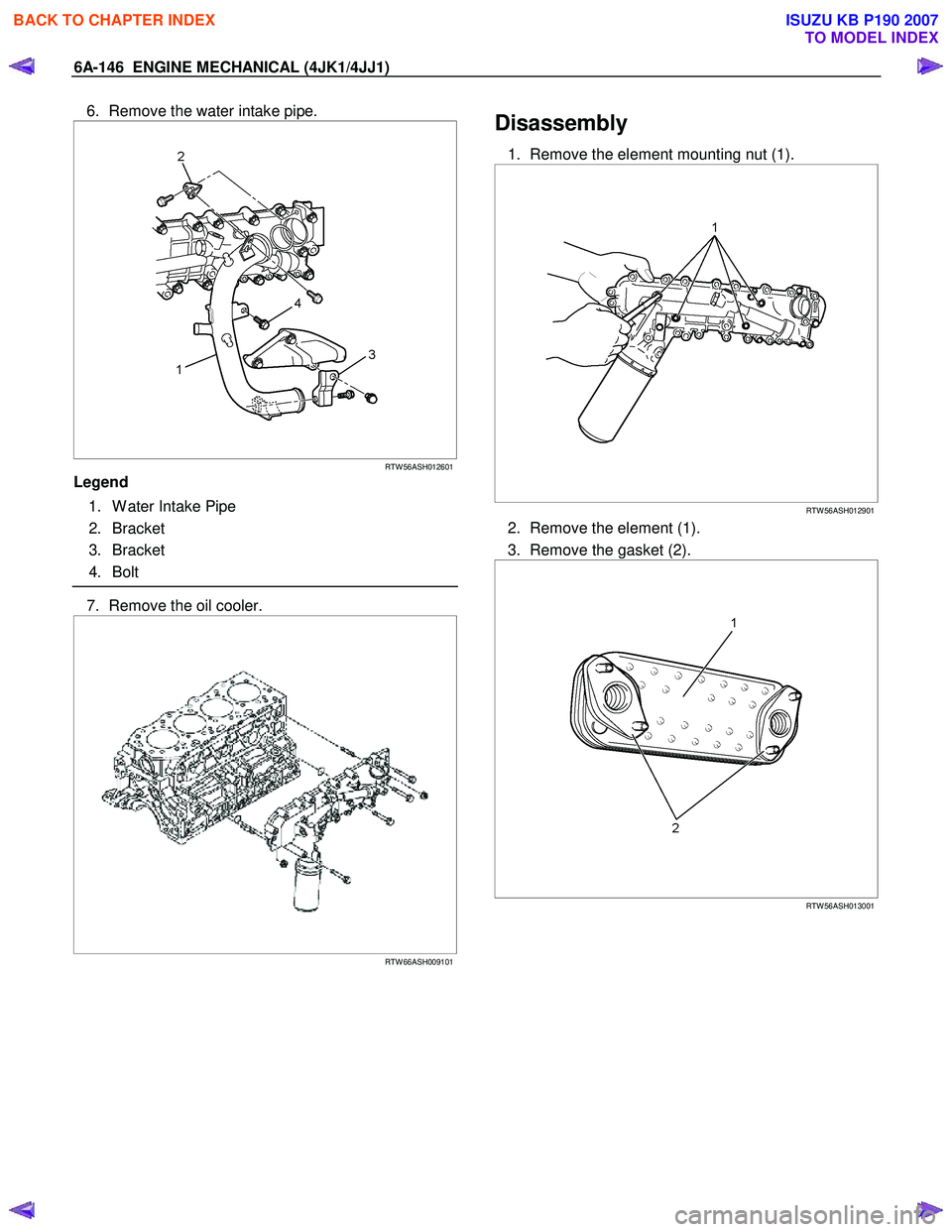

6. Remove the water intake pipe.




RTW 56ASH012601
Legend
1. W ater Intake Pipe
2. Bracket
3. Bracket
4. Bolt

7. Remove the oil cooler.





RTW 66ASH009101

Disassembly
1. Remove the element mounting nut (1).





RTW 56ASH012901
2. Remove the element (1).
3. Remove the gasket (2).





RTW 56ASH013001


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-147
Reassembly
1. Install the gasket on the element.
2. Install the element.
3. Tighten the element fixing nut using the specified torque.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)

Installation
1. Install the oil filter and cooler.
• Install the O-ring on the oil filter and cooler,
apply grease.
•
Apply the liquid gasket and mount within 5
minutes. Apply liquid gasket (ThreeBond TB-
1207C or equivalent) to the flange surface
groove (cylinder block). Bead diameter must
be between 2 and 3 mm (0.079 and 0.118 in).
Refer to the illustration for the offset position
(no more than 1 mm (0.004 in)).






RTW 56ASH013101
Legend
1. Liquid Gasket
2. O-ring

• Align the oil filter and cooler holes with the
cylinder block studs. Install the oil cooler to the
cylinder clock.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-148 ENGINE MECHANICAL (4JK1/4JJ1)

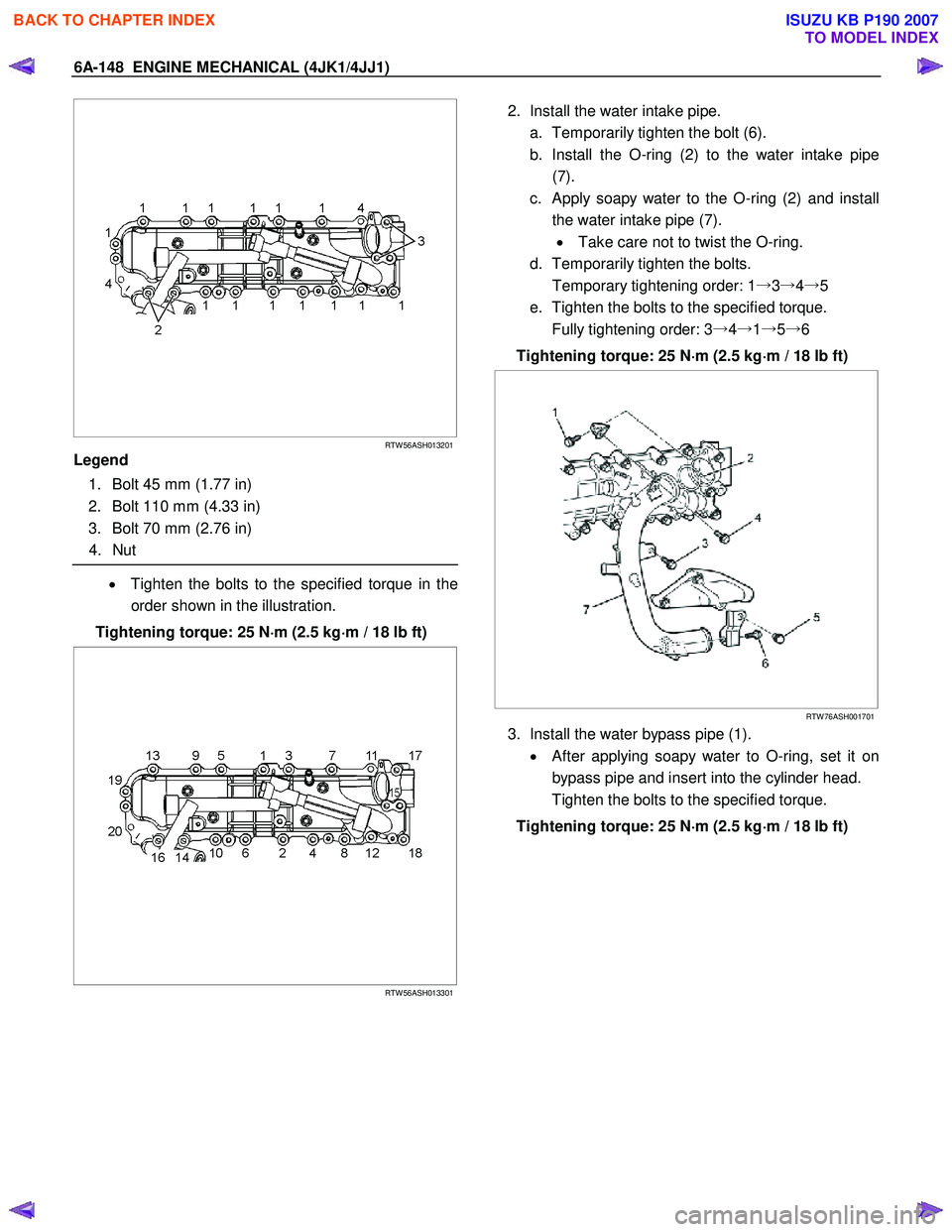

RTW 56ASH013201
Legend
1. Bolt 45 mm (1.77 in)
2. Bolt 110 mm (4.33 in)
3. Bolt 70 mm (2.76 in)
4. Nut

• Tighten the bolts to the specified torque in the
order shown in the illustration.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)








RTW 56ASH013301

2. Install the water intake pipe.
a. Temporarily tighten the bolt (6).
b. Install the O-ring (2) to the water intake pipe (7).
c. Apply soapy water to the O-ring (2) and install the water intake pipe (7). • Take care not to twist the O-ring.
d. Temporarily tighten the bolts.
Temporary tightening order: 1 →3→ 4→ 5
e. Tighten the bolts to the specified torque.
Fully tightening order: 3 →4→ 1→ 5→ 6
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)




RTW 76ASH001701
3. Install the water bypass pipe (1).
• After applying soapy water to O-ring, set it on
bypass pipe and insert into the cylinder head.
Tighten the bolts to the specified torque.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-149


RTW 56ASH008401

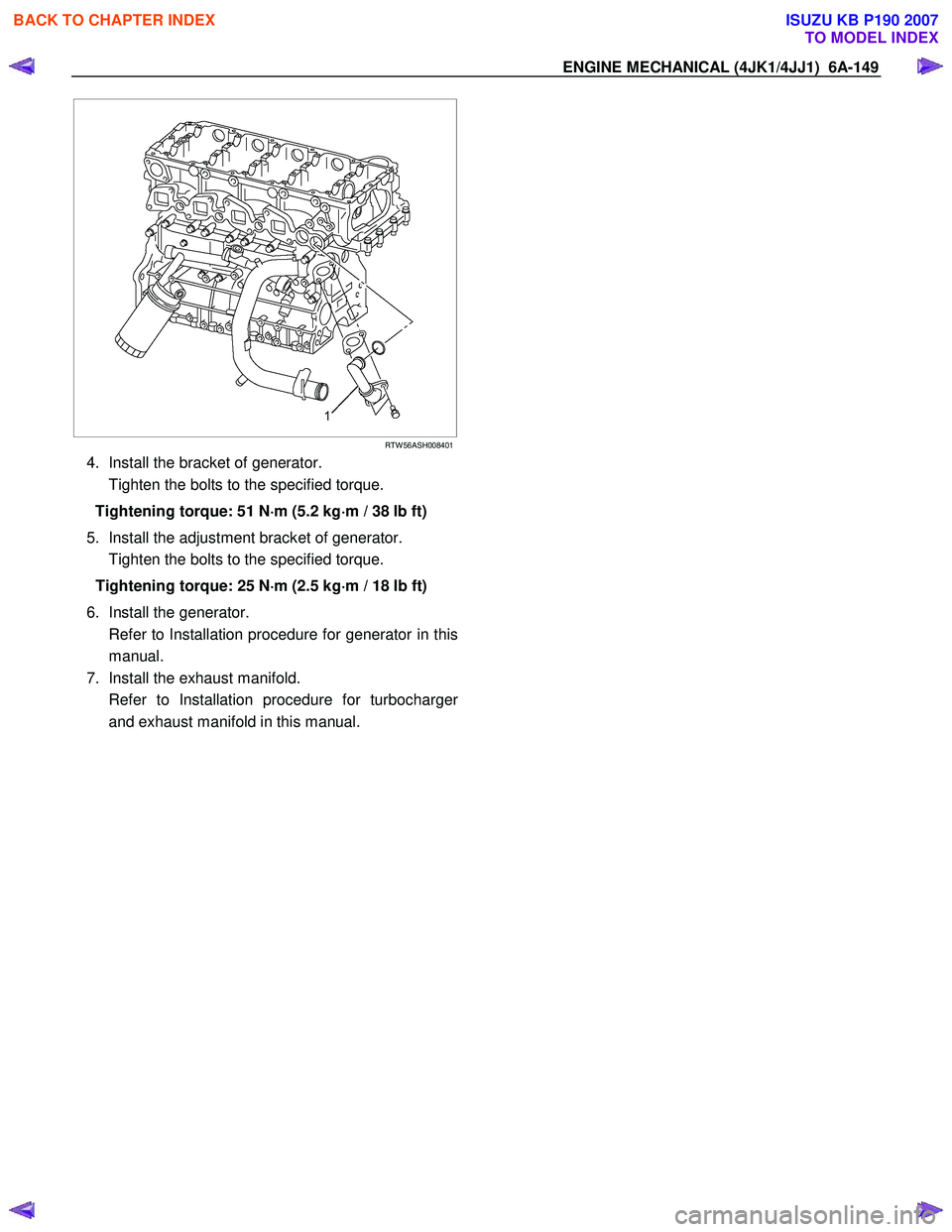

4. Install the bracket of generator.
Tighten the bolts to the specified torque.
Tightening torque: 51 N ⋅
⋅⋅
⋅
m (5.2 kg ⋅
⋅⋅
⋅
m / 38 lb ft)
5. Install the adjustment bracket of generator.
Tighten the bolts to the specified torque.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
6. Install the generator.
Refer to Installation procedure for generator in this manual.
7. Install the exhaust manifold.
Refer to Installation procedure for turbocharge
r
and exhaust manifold in this manual.




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-150 ENGINE MECHANICAL (4JK1/4JJ1)

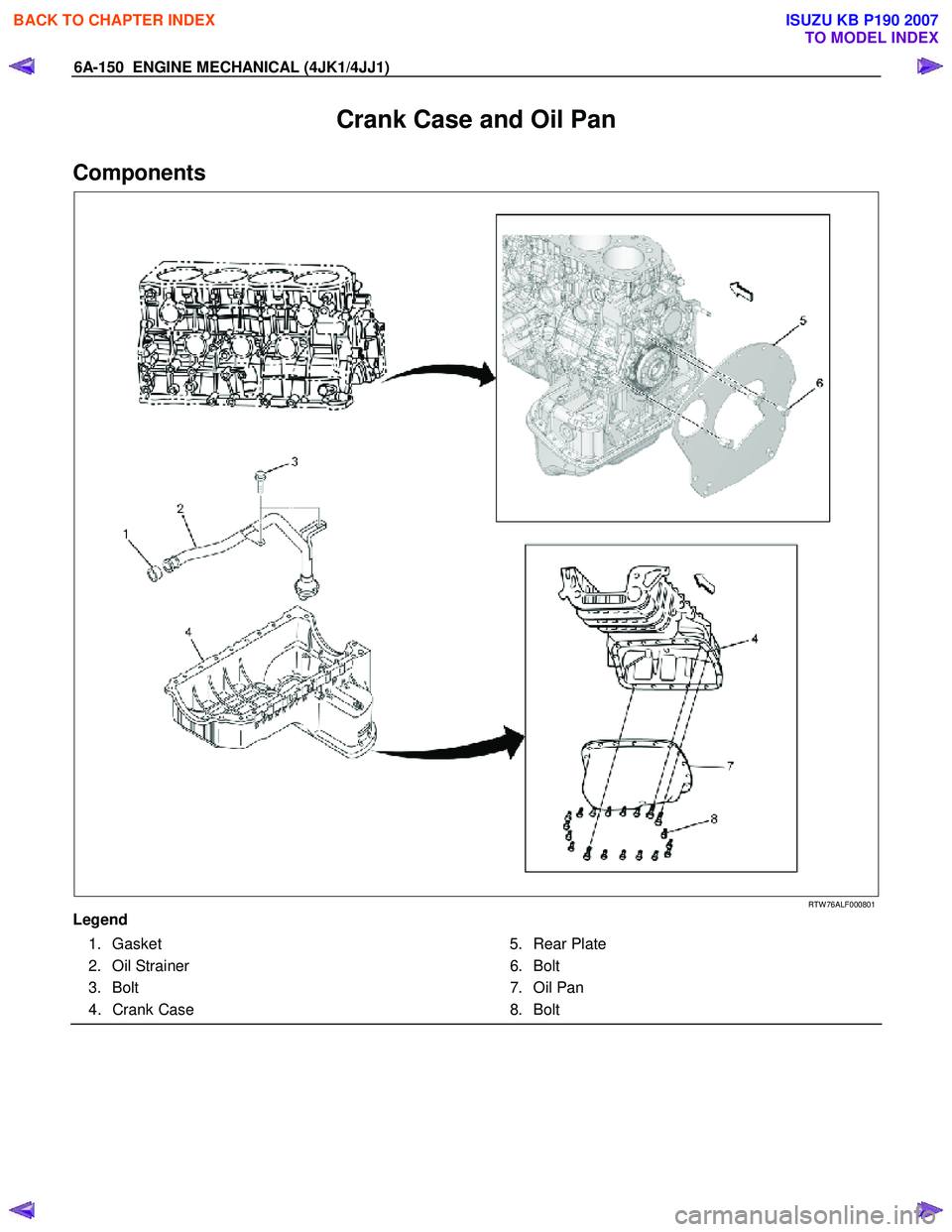

Crank Case and Oil Pan
