ISUZU KB P190 2007 Workshop Repair Manual

Engine Mechanical – V6 Page 6A1–334
Page 6A1–334

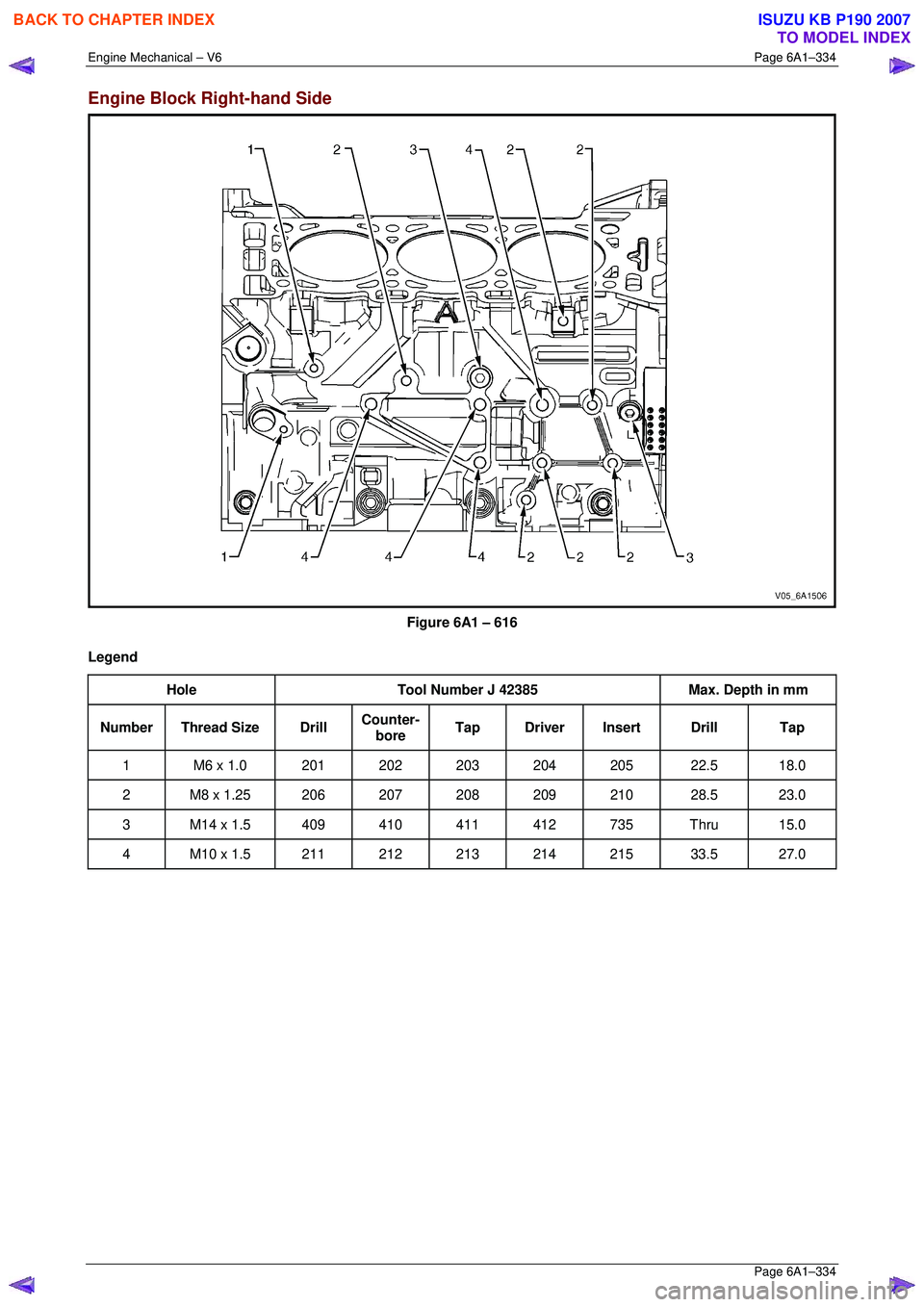

Engine Block Right-hand Side

Figure 6A1 – 616
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 22.5 18.0
2 M8 x 1.25 206 207 208 209 210 28.5 23.0
3 M14 x 1.5 409 410 411 412 735 Thru 15.0
4 M10 x 1.5 211 212 213 214 215 33.5 27.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–335
Page 6A1–335

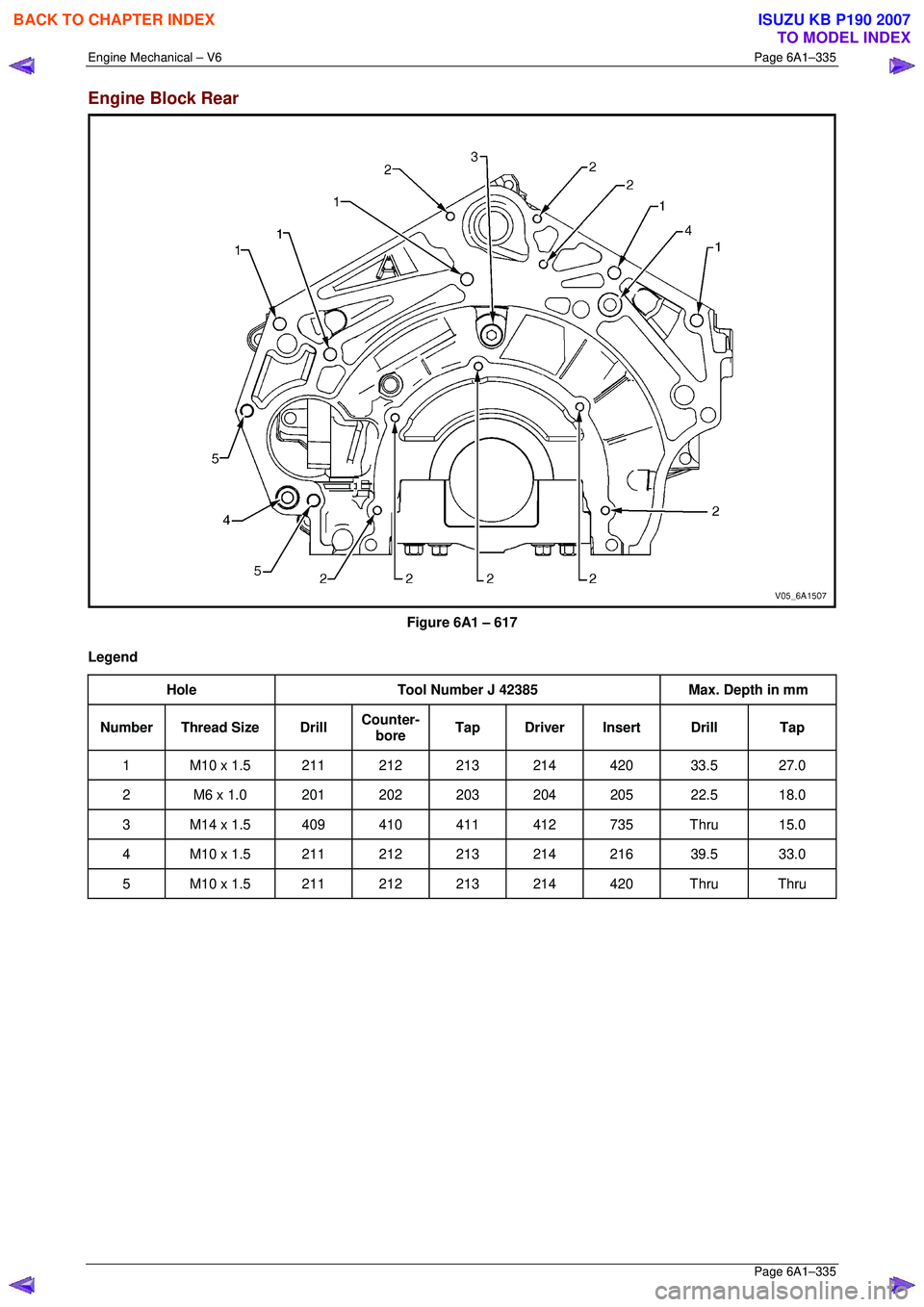

Engine Block Rear

Figure 6A1 – 617
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 420 33.5 27.0
2 M6 x 1.0 201 202 203 204 205 22.5 18.0
3 M14 x 1.5 409 410 411 412 735 Thru 15.0
4 M10 x 1.5 211 212 213 214 216 39.5 33.0
5 M10 x 1.5 211 212 213 214 420 Thru Thru


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–336
Page 6A1–336

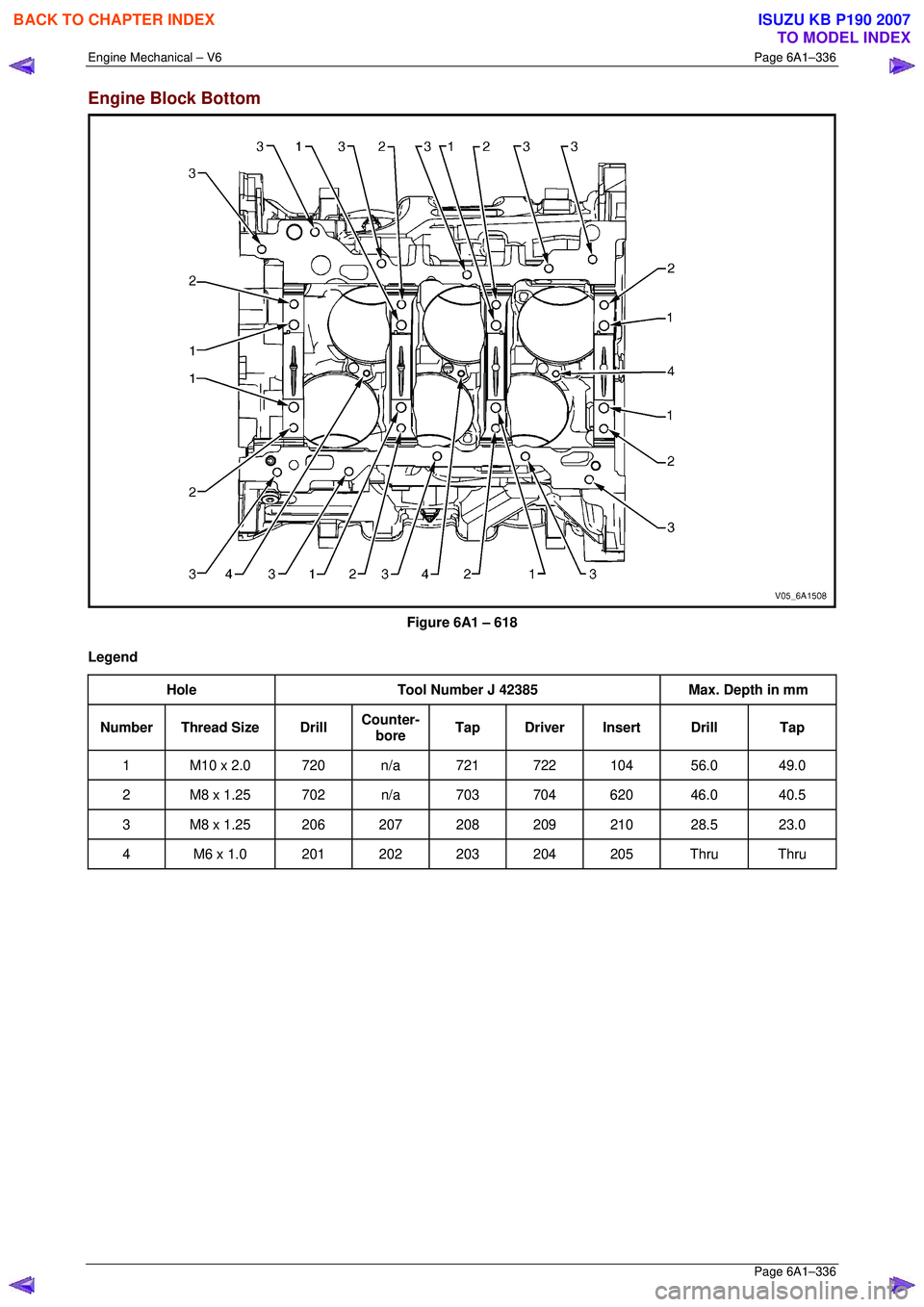

Engine Block Bottom

Figure 6A1 – 618
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 2.0 720 n/
a 721 722 104 56.0 49.0
2 M8 x 1.25 702 n/a 703 704 620 46.0 40.5
3 M8 x 1.25 206 207 208 209 210 28.5 23.0
4 M6 x 1.0 201 202 203 204 205 Thru Thru


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–337
Page 6A1–337

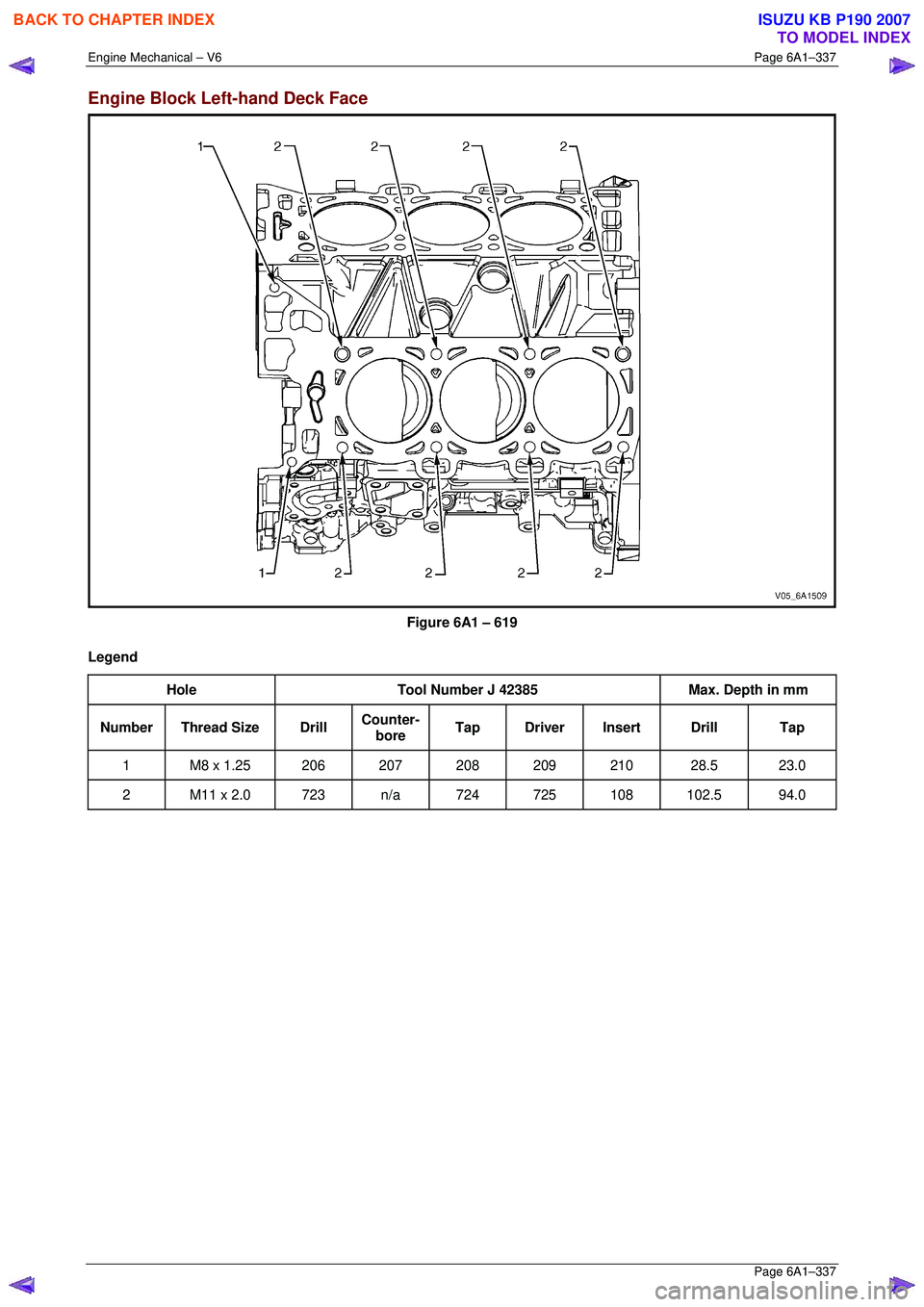

Engine Block Left-hand Deck Face

Figure 6A1 – 619
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0
2 M11 x 2.0 723 n/
a 724 725 108 102.5 94.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–338
Page 6A1–338

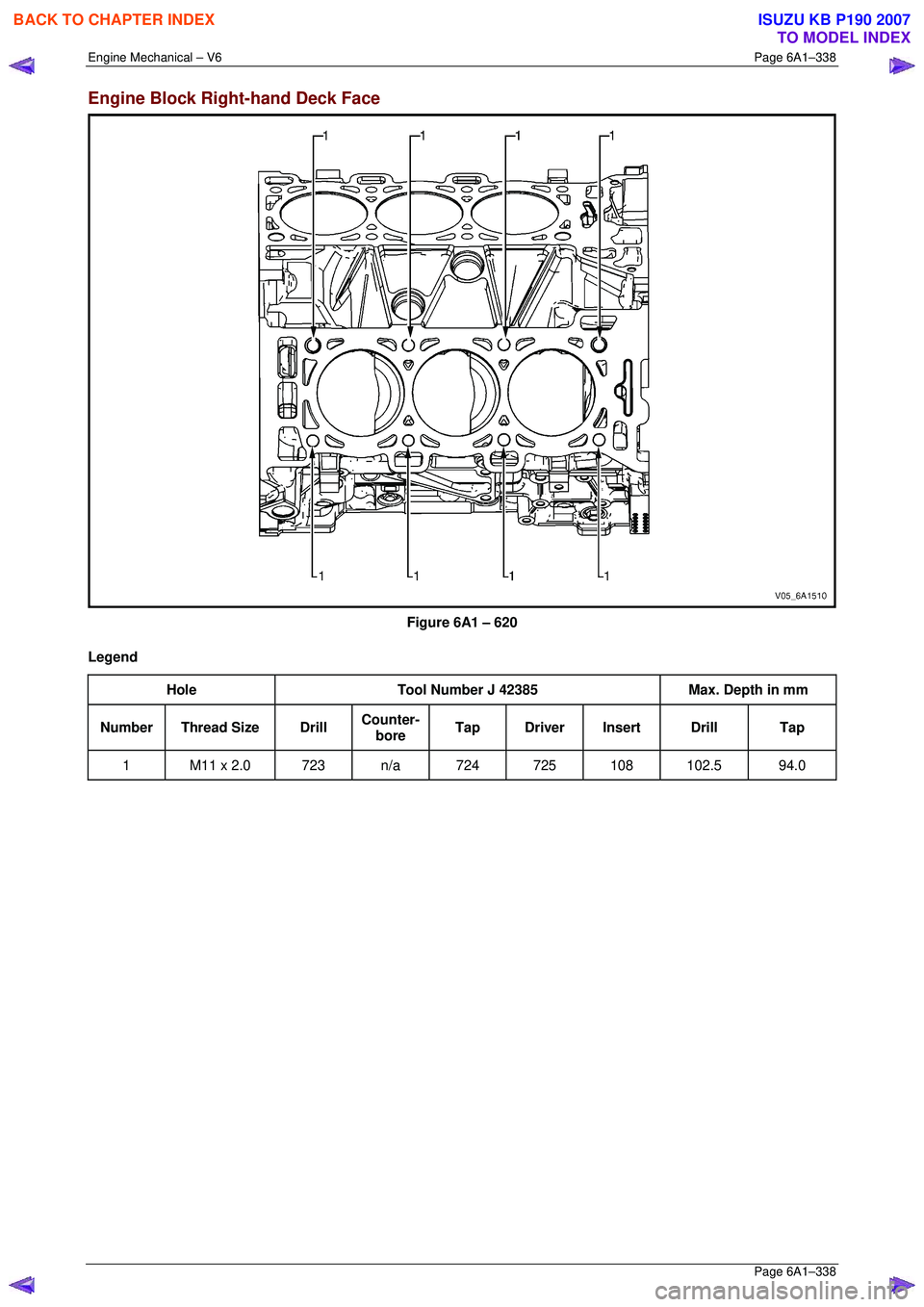

Engine Block Right-hand Deck Face

Figure 6A1 – 620
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M11 x 2.0 723 n/
a 724 725 108 102.5 94.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–339
Page 6A1–339

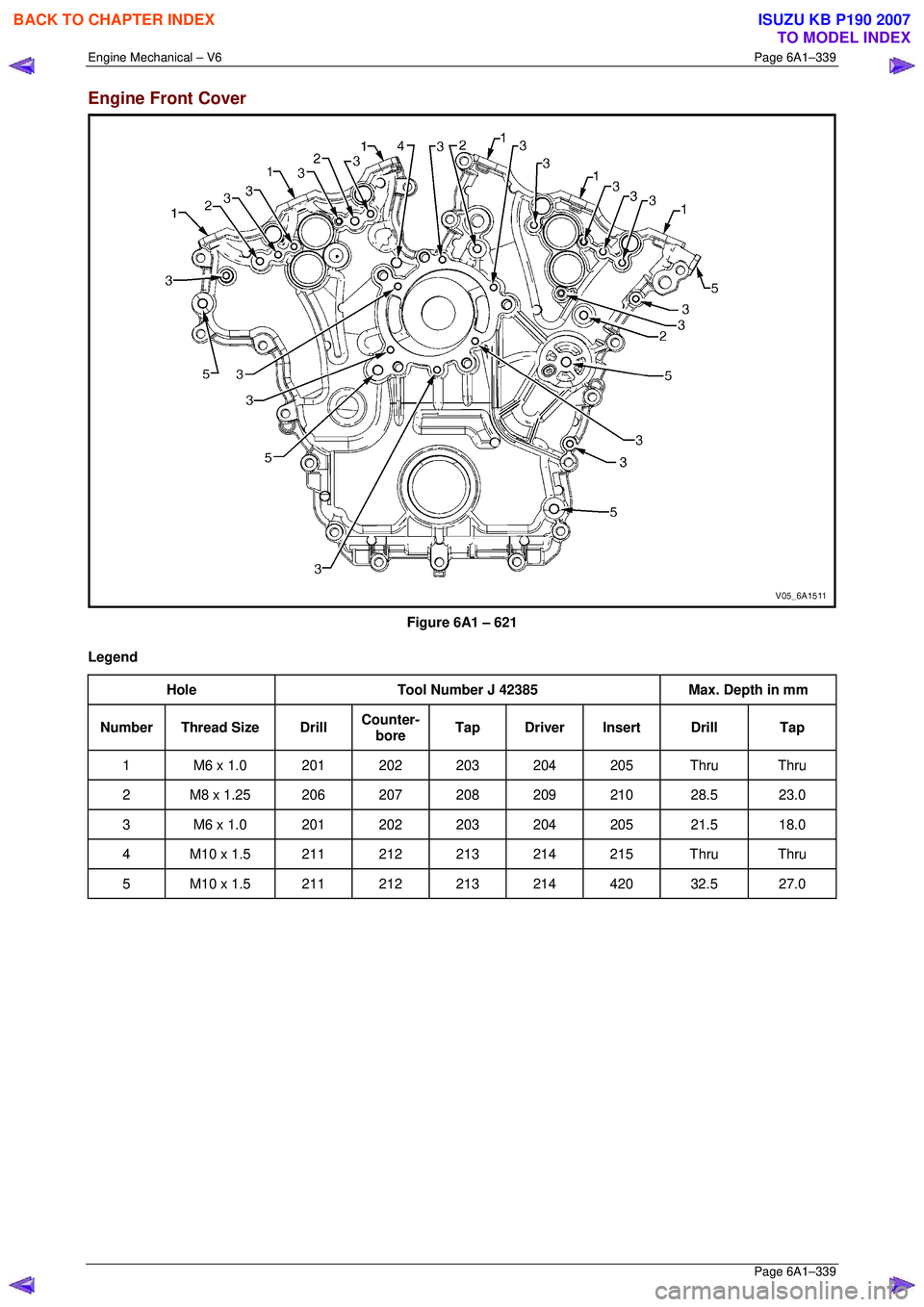

Engine Front Cover

Figure 6A1 – 621
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru
2 M8 x 1.25 206 207 208 209 210 28.5 23.0
3 M6 x 1.0 201 202 203 204 205 21.5 18.0
4 M10 x 1.5 211 212 213 214 215 Thru Thru
5 M10 x 1.5 211 212 213 214 420 32.5 27.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–340
Page 6A1–340

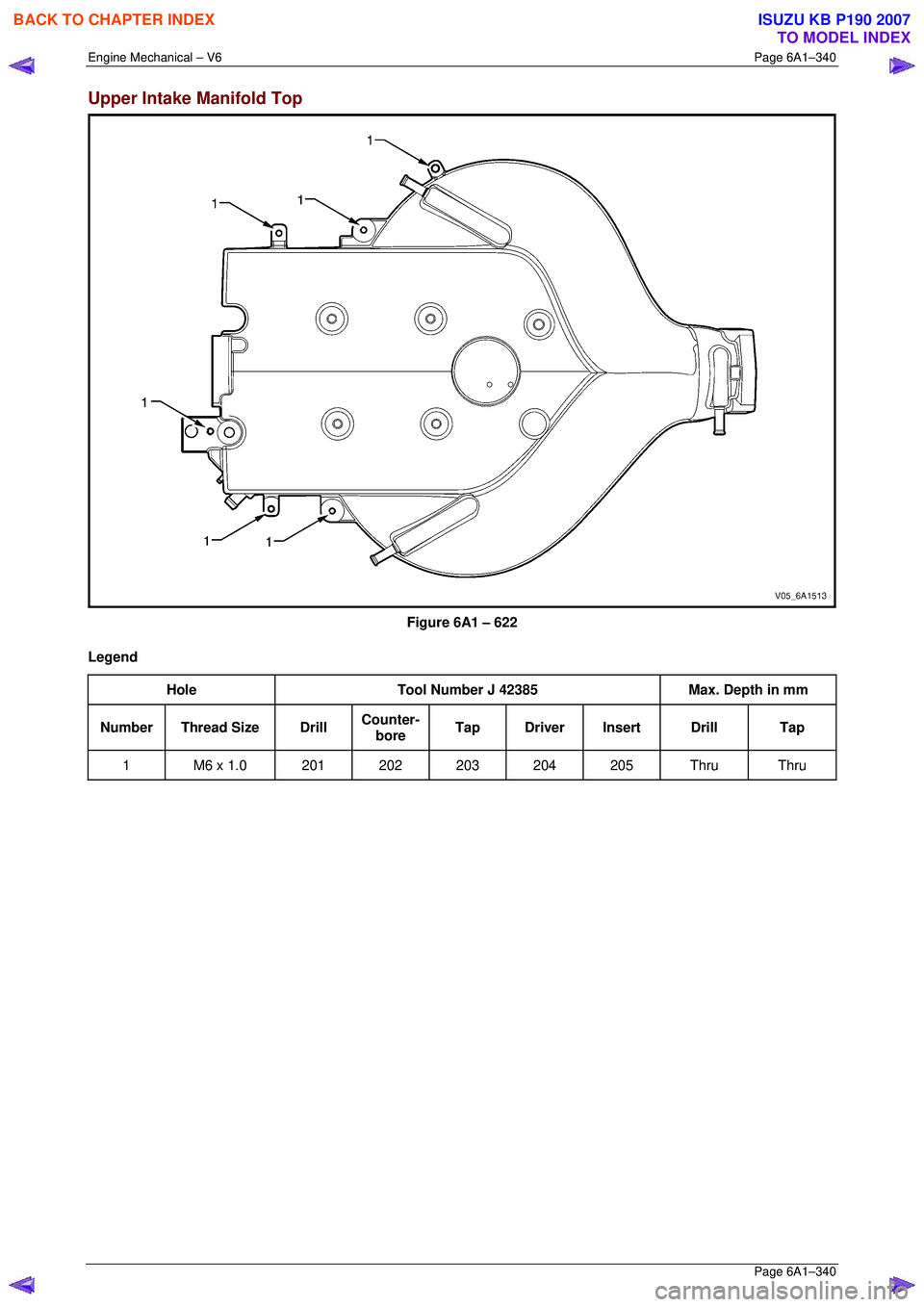

Upper Intake Manifold Top

Figure 6A1 – 622
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–341
Page 6A1–341
Upper Intake Manifold Front

Figure 6A1 – 623
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–342
Page 6A1–342

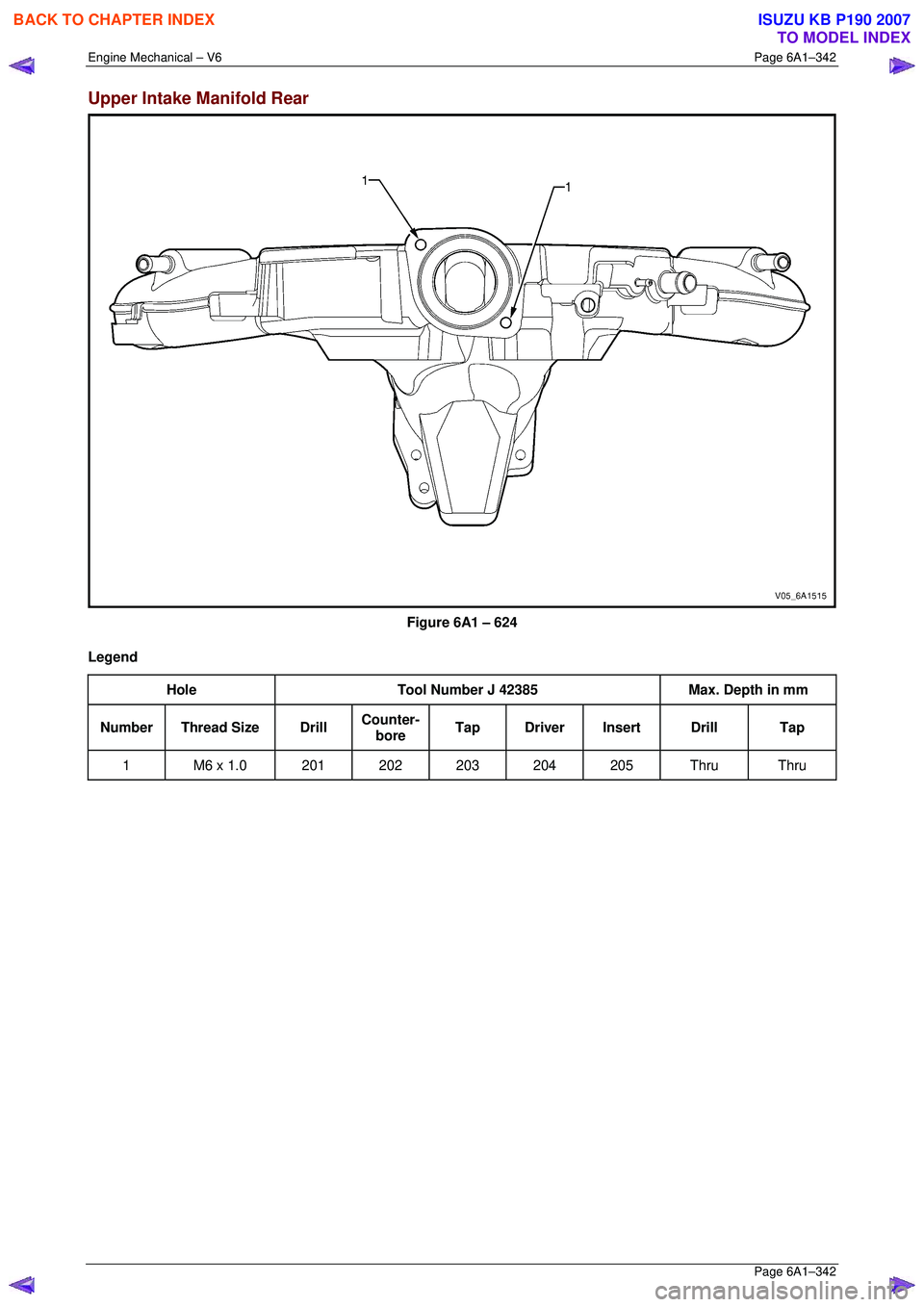

Upper Intake Manifold Rear

Figure 6A1 – 624
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–343
Page 6A1–343

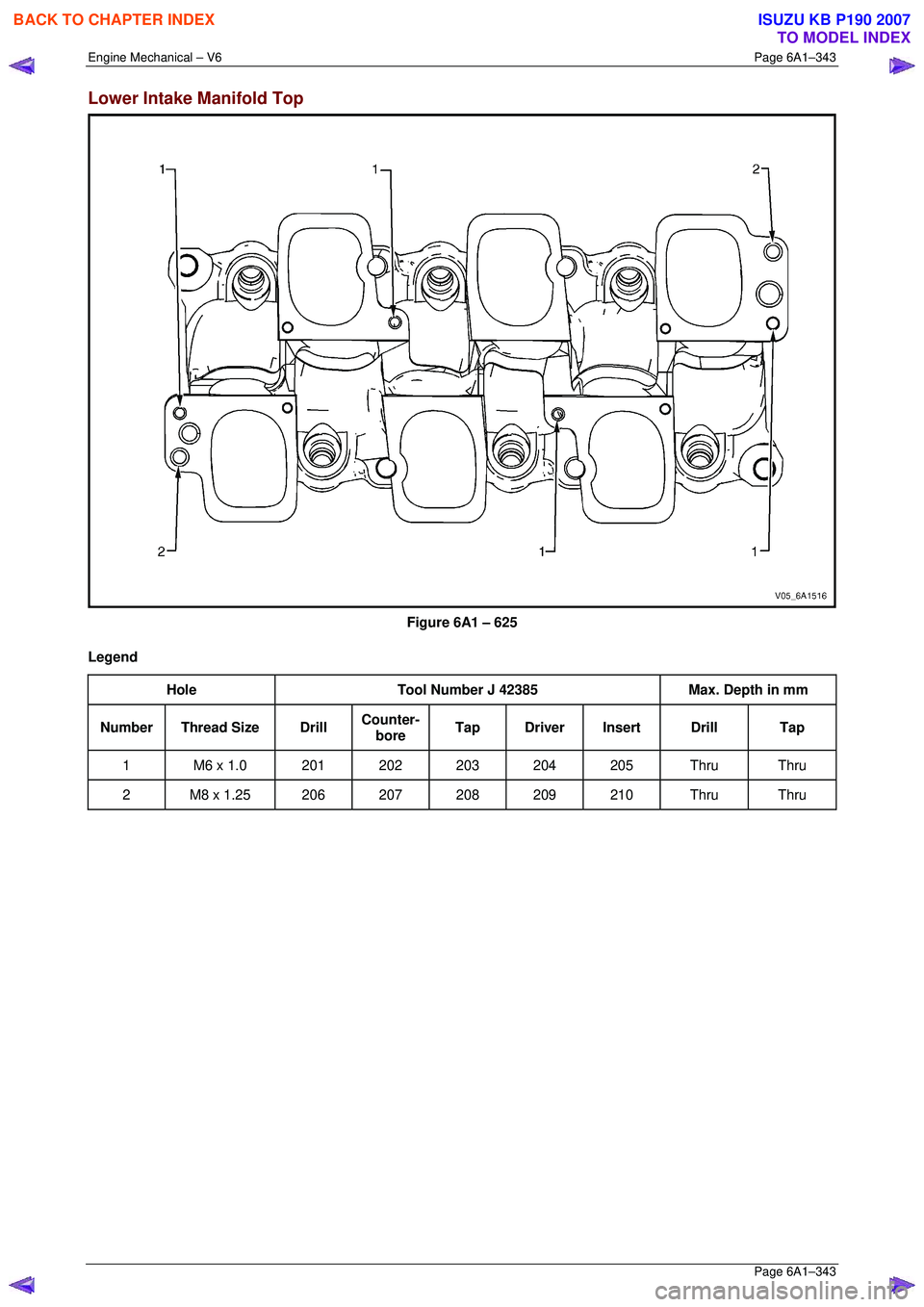

Lower Intake Manifold Top

Figure 6A1 – 625
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru
2 M8 x 1.25 206 207 208 209 210 Thru Thru
