ISUZU KB P190 2007 Workshop Repair Manual

Engine Mechanical – V6 Page 6A1–324
Page 6A1–324

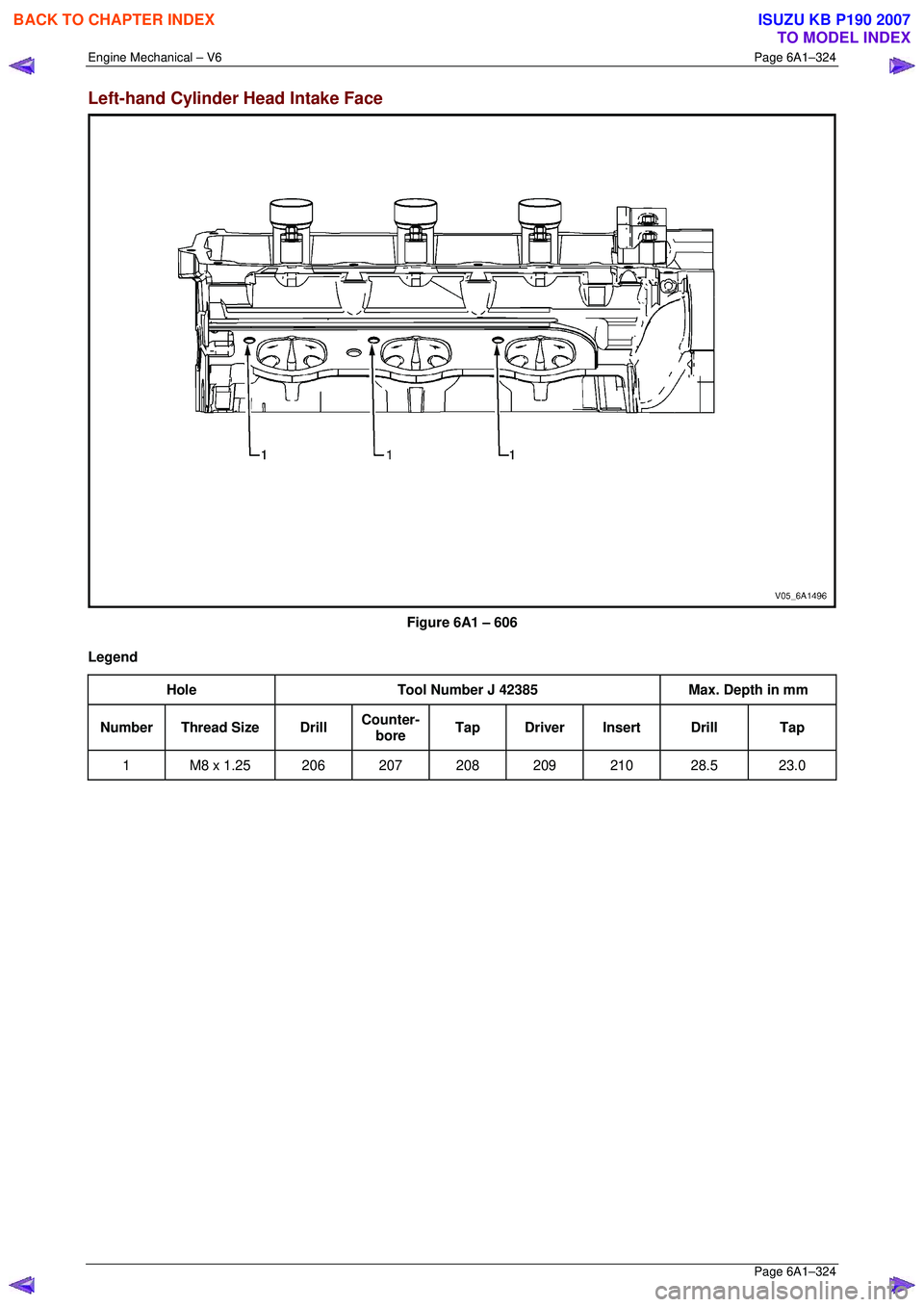

Left-hand Cylinder Head Intake Face

Figure 6A1 – 606
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–325
Page 6A1–325

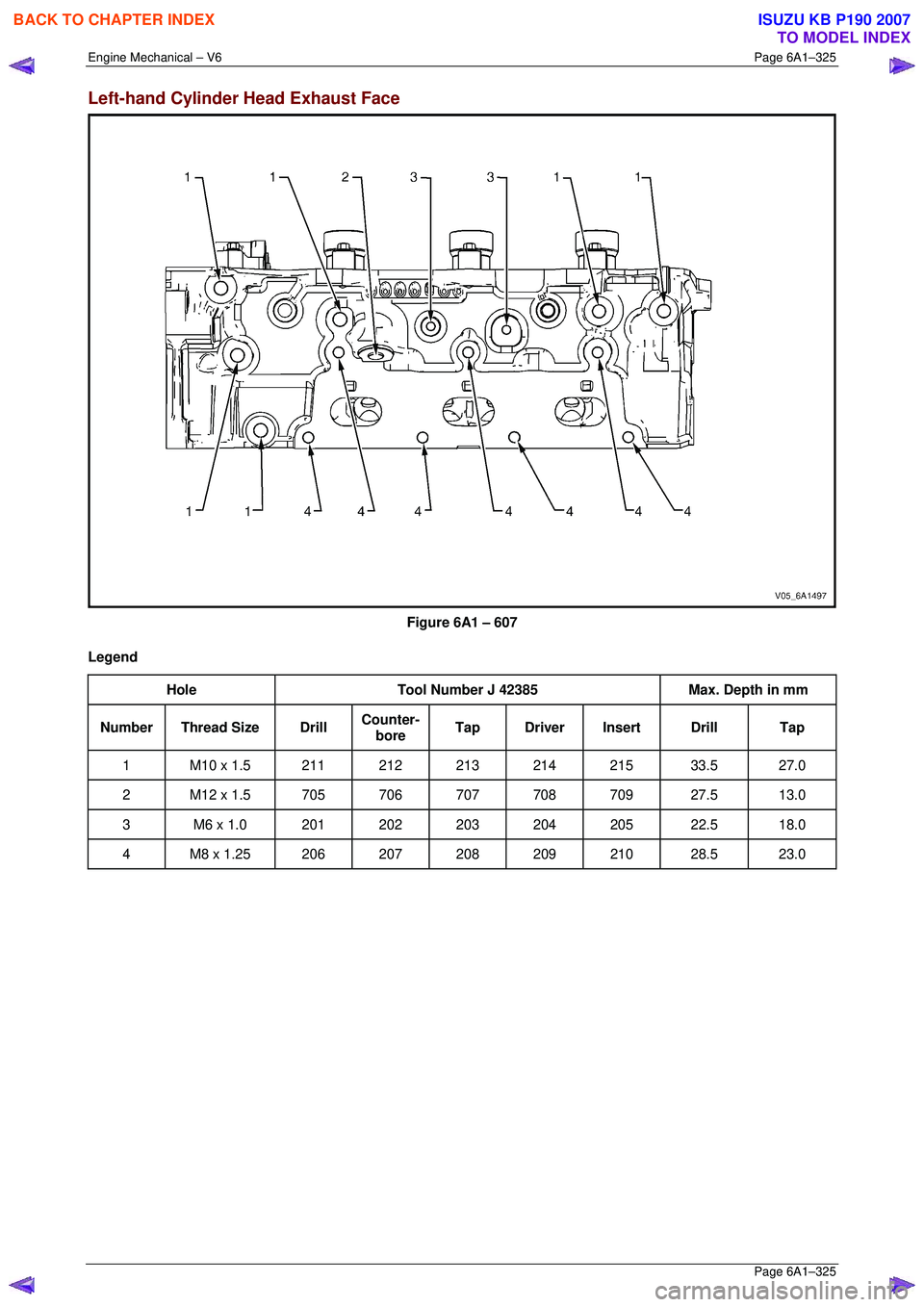

Left-hand Cylinder Head Exhaust Face

Figure 6A1 – 607
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 215 33.5 27.0
2 M12 x 1.5 705 706 707 708 709 27.5 13.0
3 M6 x 1.0 201 202 203 204 205 22.5 18.0
4 M8 x 1.25 206 207 208 209 210 28.5 23.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–326
Page 6A1–326
Left-hand Cylinder Head Rear Face

Figure 6A1 – 608
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 215 33.5 27


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–327
Page 6A1–327

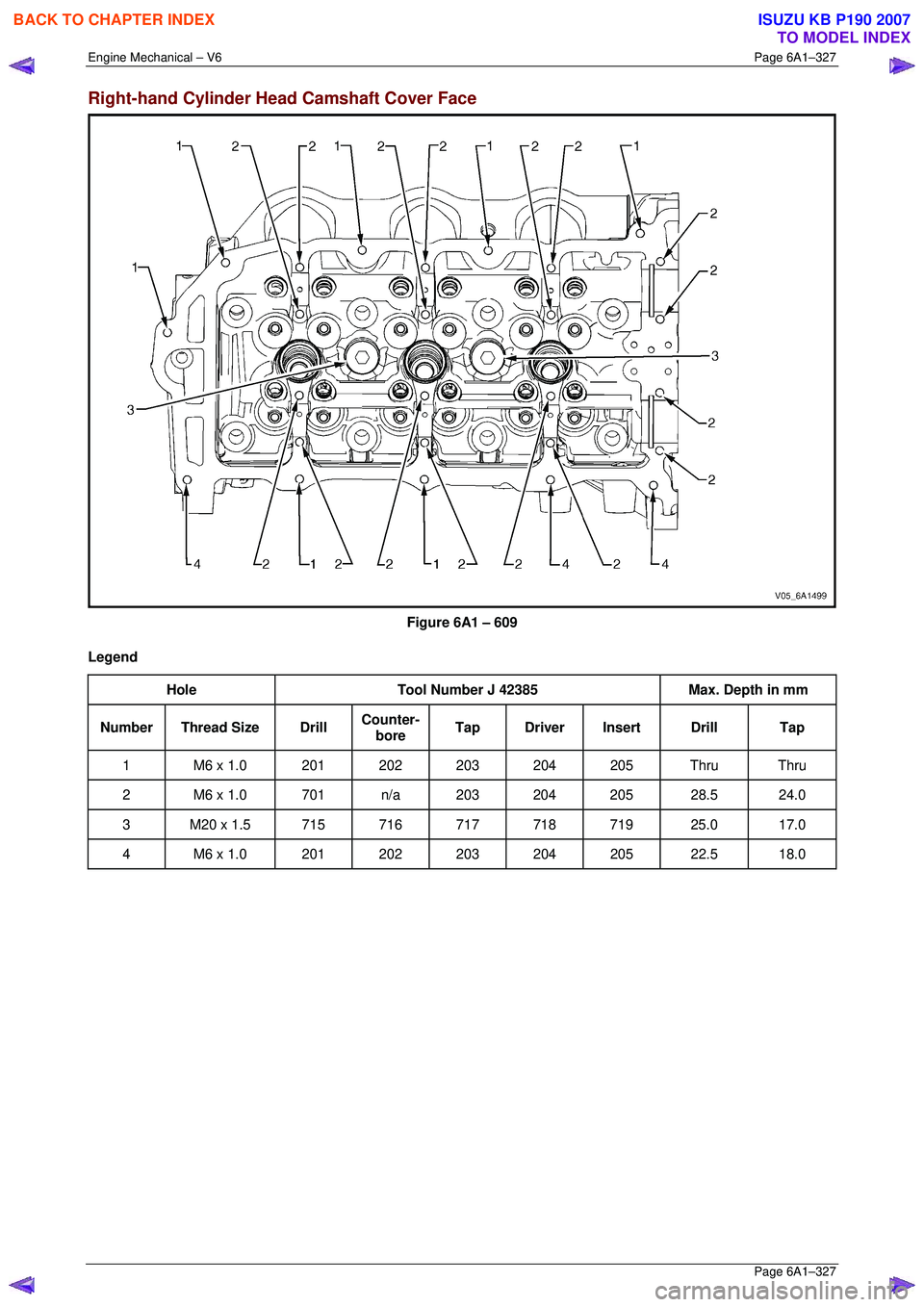

Right-hand Cylinder Head Camshaft Cover Face

Figure 6A1 – 609
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru
2 M6 x 1.0 701 n/a 203 204 205 28.5 24.0
3 M20 x 1.5 715 716 717 718 719 25.0 17.0
4 M6 x 1.0 201 202 203 204 205 22.5 18.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–328
Page 6A1–328

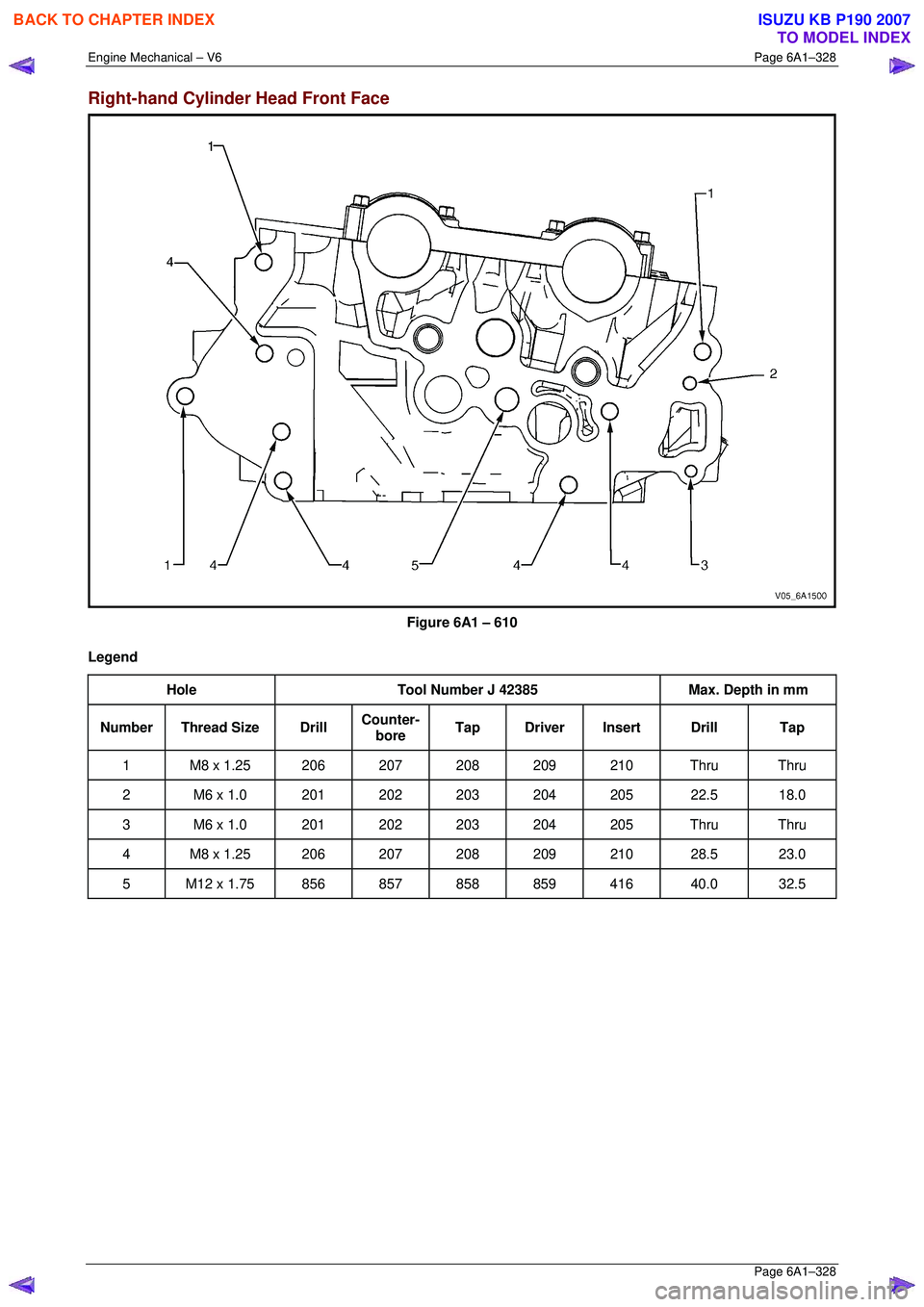

Right-hand Cylinder Head Front Face

Figure 6A1 – 610
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 Thru Thru
2 M6 x 1.0 201 202 203 204 205 22.5 18.0
3 M6 x 1.0 201 202 203 204 205 Thru Thru
4 M8 x 1.25 206 207 208 209 210 28.5 23.0
5 M12 x 1.75 856 857 858 859 416 40.0 32.5

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–329
Page 6A1–329

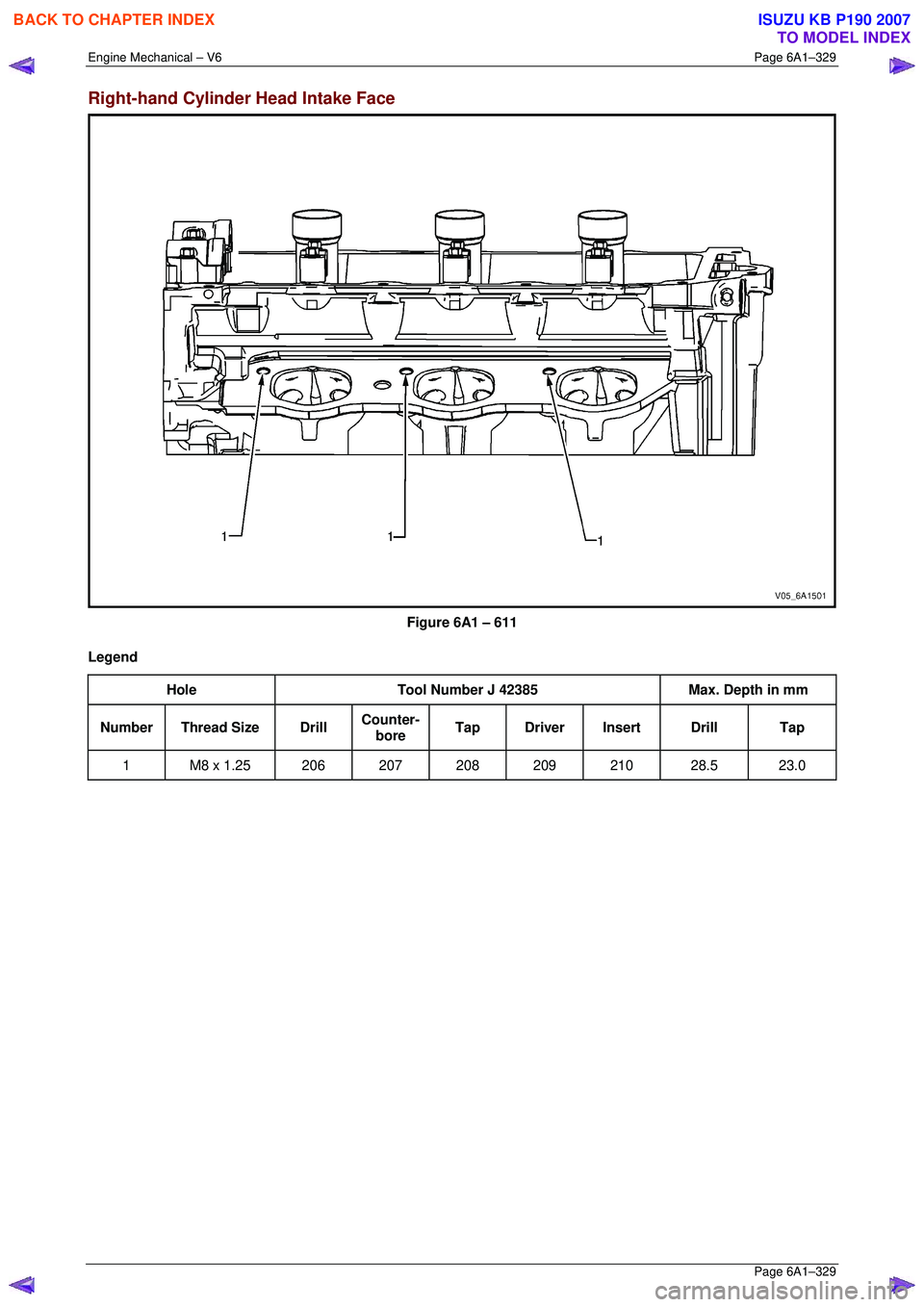

Right-hand Cylinder Head Intake Face

Figure 6A1 – 611
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–330
Page 6A1–330

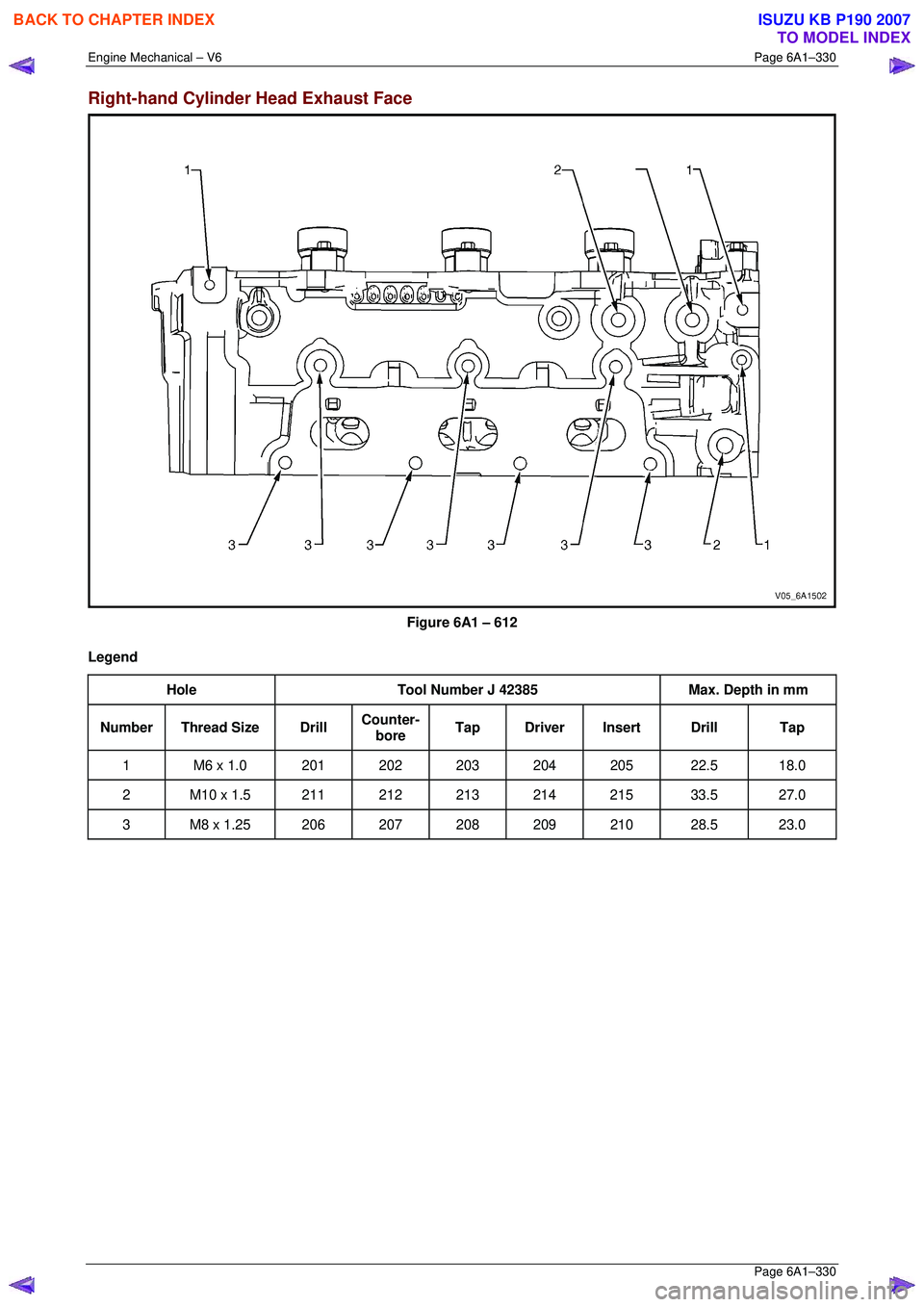

Right-hand Cylinder Head Exhaust Face

Figure 6A1 – 612
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 22.5 18.0
2 M10 x 1.5 211 212 213 214 215 33.5 27.0
3 M8 x 1.25 206 207 208 209 210 28.5 23.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–331
Page 6A1–331

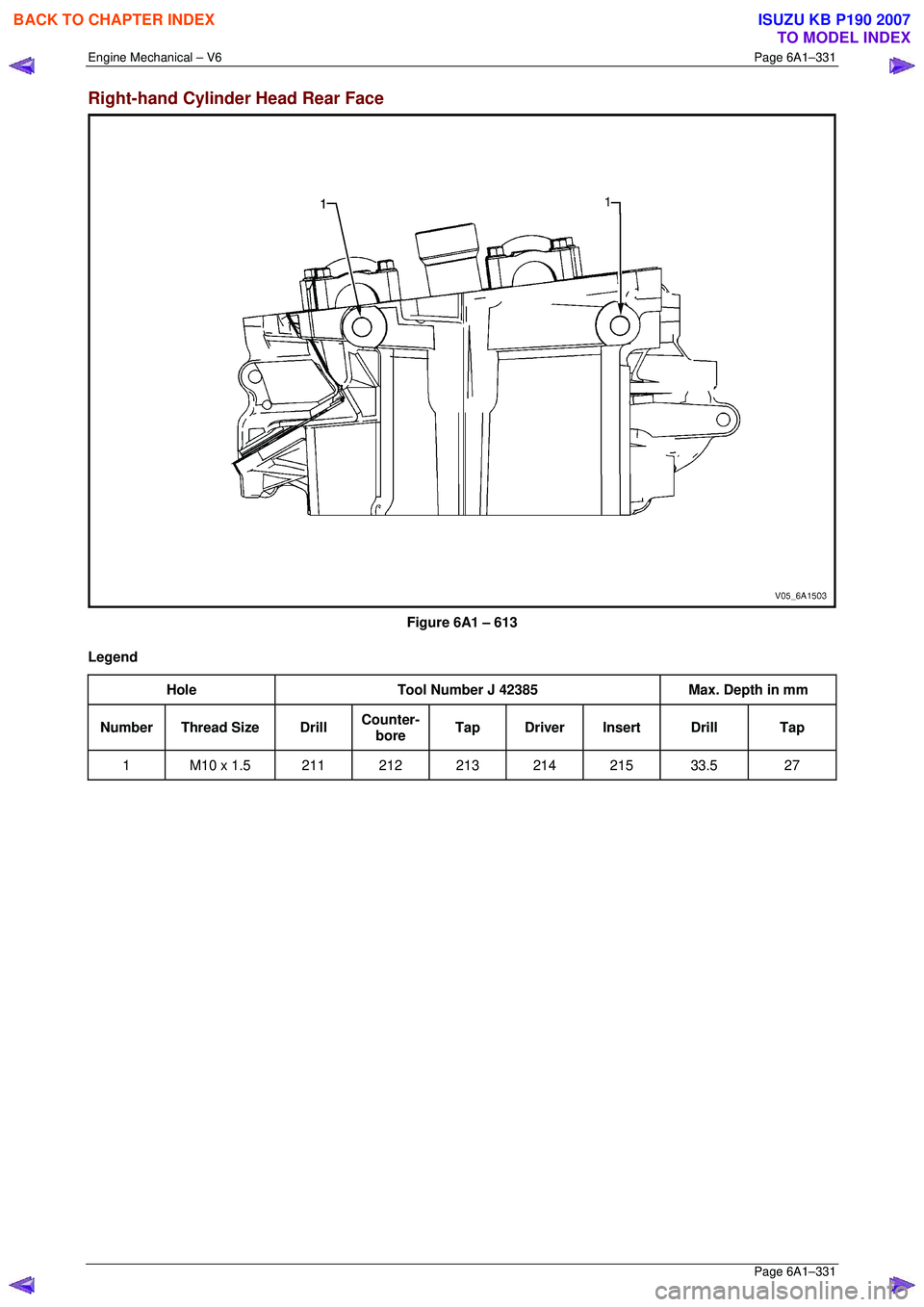

Right-hand Cylinder Head Rear Face

Figure 6A1 – 613
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 215 33.5 27


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–332
Page 6A1–332

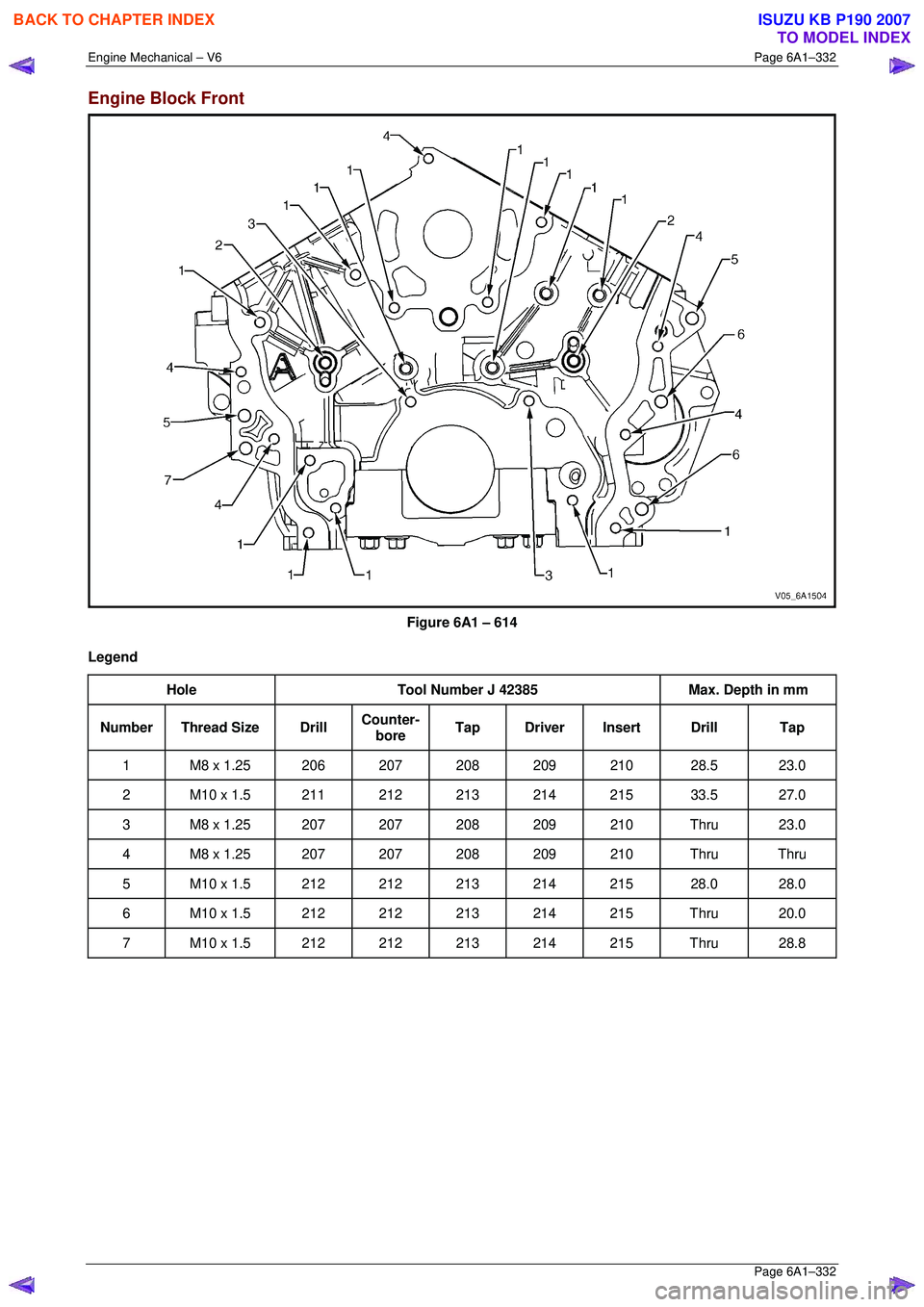

Engine Block Front

Figure 6A1 – 614
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0
2 M10 x 1.5 211 212 213 214 215 33.5 27.0
3 M8 x 1.25 207 207 208 209 210 Thru 23.0
4 M8 x 1.25 207 207 208 209 210 Thru Thru
5 M10 x 1.5 212 212 213 214 215 28.0 28.0
6 M10 x 1.5 212 212 213 214 215 Thru 20.0
7 M10 x 1.5 212 212 213 214 215 Thru 28.8

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–333
Page 6A1–333

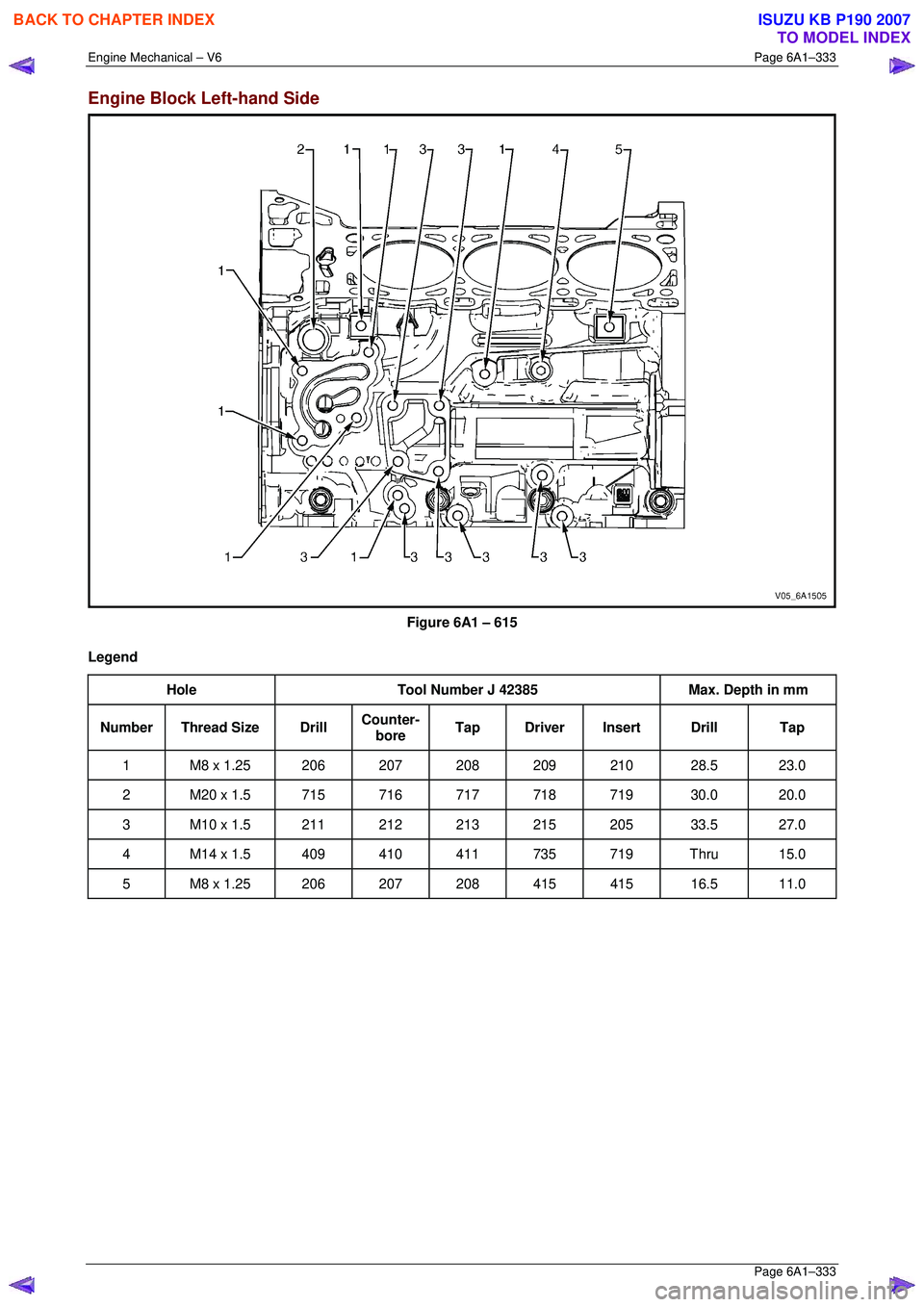

Engine Block Left-hand Side

Figure 6A1 – 615
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0
2 M20 x 1.5 715 716 717 718 719 30.0 20.0
3 M10 x 1.5 211 212 213 215 205 33.5 27.0
4 M14 x 1.5 409 410 411 735 719 Thru 15.0
5 M8 x 1.25 206 207 208 415 415 16.5 11.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
