WHEELS AND TIRES 3E-7

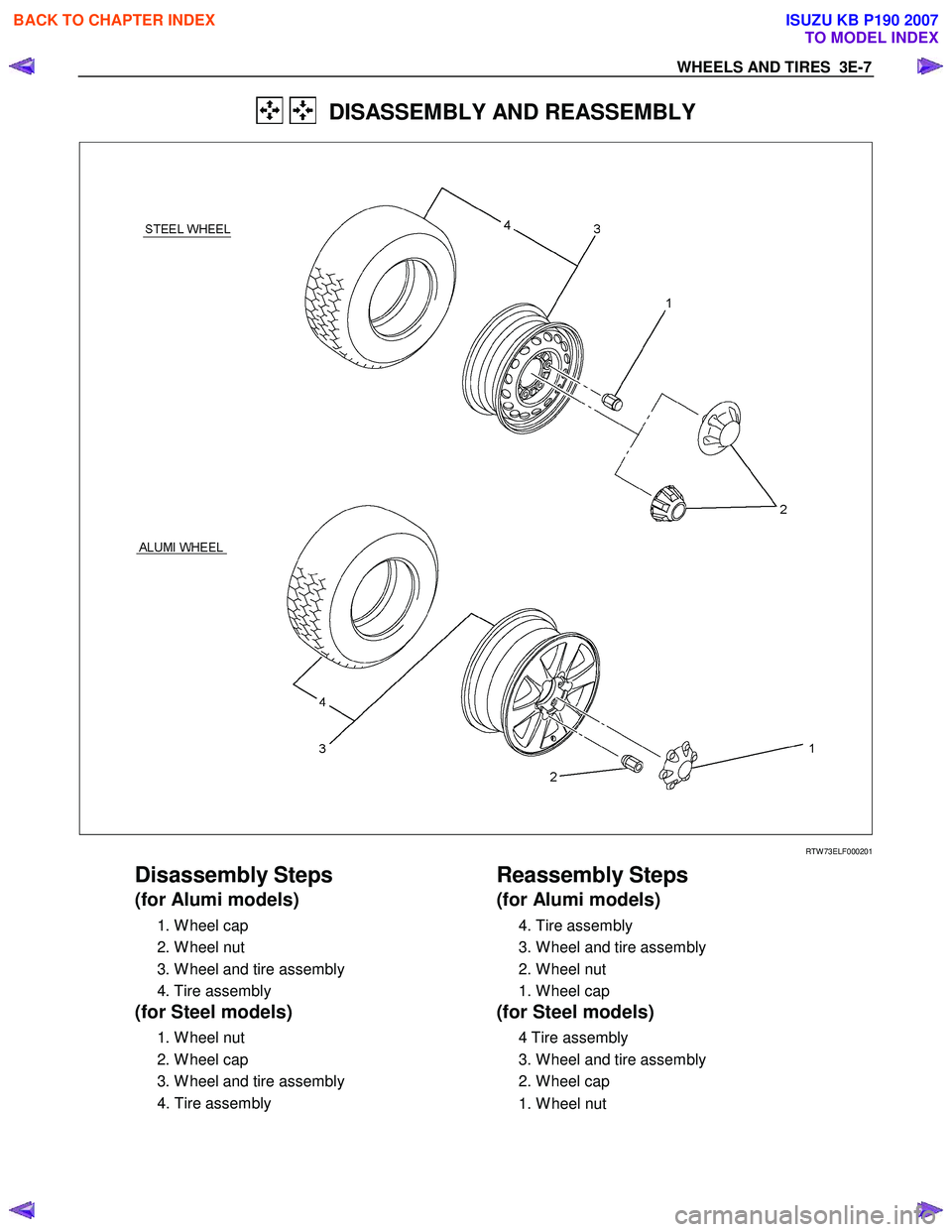

DISASSEMBLY AND REASSEMBLY





RTW 73ELF000201
Disassembly Steps
(for Alumi models)
1. W heel cap
2. W heel nut
3. W heel and tire assembly
4. Tire assembly
(for Steel models)
1. W heel nut
2. W heel cap
3. W heel and tire assembly 4. Tire assembly
Reassembly Steps
(for Alumi models)
4. Tire assembly
3. W heel and tire assembly
2. W heel nut
1. W heel cap
(for Steel models)
4 Tire assembly
3. W heel and tire assembly
2. W heel cap
1. W heel nut

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

3E-8 WHEELS AND TIRES
INSPECTION AND REPAIR
Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found
through inspection.




Visual Check
Inspect all disassembled parts for wear, damage or other
abnormal conditions.
















Measure Wheel Runout
mm (in)
Wheel Type Radial Lateral
14 inch Steel
15 inch Steel Less than 1.0
(0.04) Less than 1.0
(0.04)
15 inch Alumi
16 inch Alumi Less than 0.4
(0.016) Less than 0.55
(0.022)

If the measured value exceeds the specified limit, the wheel
must be replaced.



Balancing Wheel and Tire
On-vehicle Balancing
On-Vehicle balancing methods very with equipment and tool
manufacturers. Be sure to follow each manufacturer’s
instructions during the balancing operation.
Off- vehicle Balancing
Most electronic off-vehicle balancers are more accurate than
the on-vehicle spin balancers. They are easy to use and give a
dynamic balance. Although they do not correct drum or disc
imbalance (as the on-vehicle spin balancing does), they are
very accurate.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

WHEELS AND TIRES 3E-9
Important Operations
1. Tire Assembly
To assemble, align the match mark (approx. 10mm diameter
paint mark) on the wheel with the match mark (approx. 8mm
diameter red paint mark) on the tire. If the match mark on the
wheel has disappeared, align with air valve instead.

2. Wheel and Tire Assembly





3. Wheel Nut
Tighten wheel nuts in numerical order.
W heel Nut Torque N⋅m (kgf ⋅m/lb ⋅ft)
117.7 ± 9.8 (12 ± 1.0 / 86.8 ± 7.2)



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

3E-10 WHEELS AND TIRES
TROUBLESHOOTING
Typical examples of abnormal tire tread wear and major causes :

CAUTION:
Similar wear patterns can be caused by worn suspension parts, misalignment of wheels and tires, and
other suspension related problems.


Spotty wear - wear localized
on shoulder section. In
extreme cases, the tire
becomes polygonal in shape.
Tire or wheel out of
round or distorted. Hub or knuckle out
of round or distorted. Play in hub bearings
or ball joints. Rotating parts out of
balance.
Tread wear one-sided.
Rotating parts out of
balance. Tire or wheel out of
round. Hub or knuckle out
of round or distorted.
Localized tread wear.
Once spotty wear develops in
tread due to hard braking or
abrupt starting, localized wear
tends to be accelerated.




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

WHEELS AND TIRES 3E-11
Shoulder wear (generally
wear develops on outer
shoulder).
Camber or toe-in
incorrect. Shoulder wear
caused by repeated
hard-cornering.
W ear on shoulders at points
opposed to each other.
Tire or wheel out of
round or distorted. Play in bearings or
ball joint.
Premature wear on
shoulders.
Flexing of tire excessive due
to under-inflation.
One-sided feather edging.
W ear caused by
repeated hard-
cornering. Camber or toe-in
incorrect.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

AXLE 4-1
SECTI
ON 4
AXLE
TA BLE OF CONTENTS
Section 4A Propeller Shaft .................................................................................... ........... .417
Section 4B Rear Axle .................................................................................... ................... .4 45
Section 4C1 Front Wheel Drive ......................................................................................... 505
Section 4C2 Shift on the Fly System ........................................................................ ..... 578
PA
GE
TO MODEL INDEX
BACK TO MAIN INDEX

ISUZU KB P190 2007

PROPELLER SHAFT 4A-1
Torque Specifications .................................................................................................. 4A- 8
Rear Propeller Shaft .......................................................................................................... 4 A- 9
General Description...................................................................................................... 4A- 9
Removal and Installation.............................................................................................. 4A- 12
Universal Joint Disassembly ....................................................................................... 4A- 13
Inspection and Repair ................................................................................................. 4A- 15
Universal Joint Reassembly ....................................................................................... 4A- 17
Rear Propeller Shaft Assembly ........................................................................................ 4A- 18 Disassembly and Reassembly .................................................................................... 4A- 19
Front Propeller Shaft ........................................................................................................ 4 A- 20
Removal and Installation.............................................................................................. 4A- 20
Disassembly ................................................................................................................. 4A - 22
Universal Joint Disassembly and Reassembly ......................................................... 4A- 24
Reassembly .................................................................................................................. 4A - 28


SECTIO
N 4A
PROPELLER SHAFT
TABLE OF CONTENTS
PA GE
Rear Propeller Shaft ..................................................................................................... 4A- 3
Torque Specifications .................................................................................................. 4A- 6
Front Propeller Shaft ................................................................................................... 4A- 7
M
ain D ata a n d S pecif ic atio ns ........................................................................................... 4 A - 3
Service Precautions
........................................................................................ .................4 A - 2

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

4A-2 PROPELLER SHAFT
Service Precaution
WARNING: THIS VEHICLE HAS A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS).
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON
OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING
SERVICE ON OR NEAR THE SRS COMPONENTS
OR THE SRS WIRING, REFER TO THE SRS
SERVICE INFORMATION. FAILURE TO FOLLOW
WARNING COULD RESULT IN POSSIBLE AIR
BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.
CAUTION : Always use the correct fastener in the
proper location. When you replace a fastener,
use ONLY the exact part number for that
application. ISUZU/GM will call out those
fasteners that require a replacement afte
r
removal. ISUZU/GM will also call out the
fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do
not use supplemental coatings (Paints, greases,
or other corrosion inhibitors) on threaded
fasteners or fastener joint interfaces. Generally,
such coatings adversely affect the fastene
r
torque and the joint clamping force, and may
damage the fastener. When you install fasteners,
use the correct tightening sequence and
specifications. Following these instructions can
help you avoid damage to parts and systems.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

PROPELLER SHAFT 4A-3

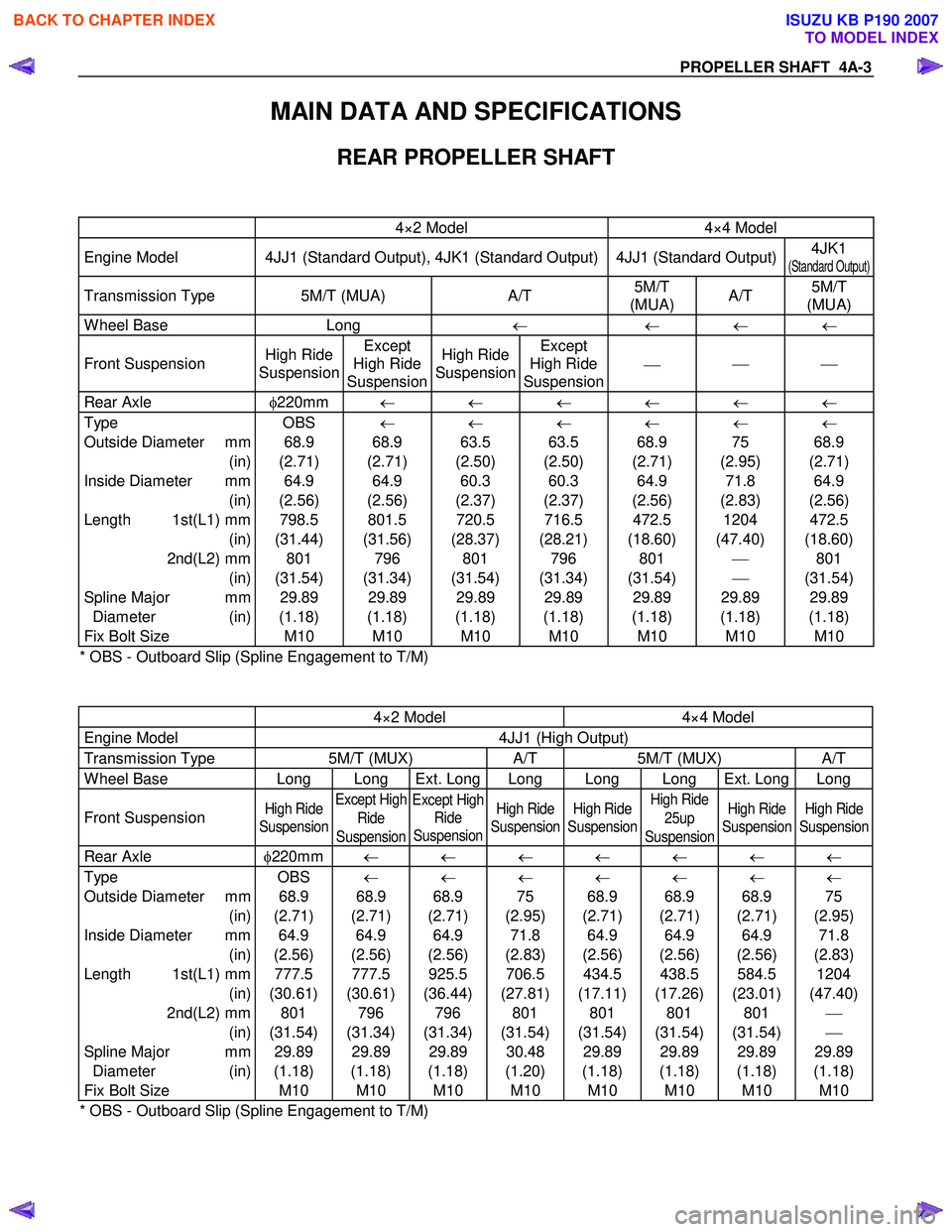

MAIN DATA AND SPECIFICATIONS
