ISUZU KB P190 2007 Workshop Repair Manual

PROPELLER SHAFT 4A-25
401RS028
Disassembly
1. Apply alignment marks (1) on the yokes of the universal
joint, then remove snap ring.

401RS006
2. Tap out the needle roller bearing by gently striking the
shoulder of the yoke, using a mallet or a copper hammer.
3. Make sure of proper position for reinstallation by applying setting marks, then remove spider.

Inspection and Repair
Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition is found
through inspection.
NOTE:
W hen any part of the journal assembly (spider, needle rolle
r
bearing) requires replacement, be sure to replace the entire
assembly.
Check the following parts for wear, damage, noise or any othe
r
abnormal conditions:
1. Spider
2. Needle roller bearing
3. Yoke
4. Flange
5. Constant velocity joint

401RS007
Outside Diameter of Spider Pin
Standard: 17.00 mm (0.6693 in)
Limit: 16.99 mm (0.6689 in)


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

4A-26 PROPELLER SHAFT
401RS027
Propeller Shaft Run-out
Support the ends of the propeller shaft on V-blocks (2) and
check for run-out by holding the probe of a dial indicator (1) in
contact with the center part of the shaft. If the amount of run-
out is beyond the standard value for assembly, correct with a
bench press or replace the shaft with a new propeller shaft
assembly.
Standard: 0.3 mm (0.012 in)
Limit: 0.5 mm (0.02 in)

401RS009
Play in Splines in Normal Direction of Rotation
Check the amount of play between the sleeve yoke (1) and the
propeller shaft spline (2) in the direction of rotation, using a
pointed feeler gauge.
Standard: 0.073-0.156 mm (0.003-0.006 in)
Limit: 0.3 mm (0.012 in)

401RS010
Play in Universal Joint
Limit: Less than 0.1 mm (0.004 in)


401RS011
Reassembly
1. Install spider to flange yoke. Be sure to install the spider by
aligning the setting marks made during disassembly.
2. Apply a molybdenum-disulfide grease or multi-purpose type grease NLGI No. 2 to inside of the bearing cap.
Grease Amount: Approx. 1.2 g (0.042 oz)


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

PROPELLER SHAFT 4A-27
401RS012
3. Using either a mallet (or copper hammer) or a press, install
the needle roller bearing into the yoke so that the snap ring
can be installed in its groove.
CAUTION:
The needle roller bearing cannot be installed smoothly if it
is set at an incorrect angle with the flange and excessive
hammering will damage the needle roller bearing.

401RS028
4. Align setting marks (1) and join the yokes.
5. Install snap ring.
NOTE:
Discard used snap rings and install new ones.
W hen the bearing cap is in position, select and attach a snap
ring of suitable thickness so that the end play of the spider pin
is held within 0.1 mm (0.004 in).
Snap ring thickness and Identification color
1.50 mm (0.059 in); Light Blue
1.53 mm (0.060 in); White
1.56 mm (0.061 in); Pink
1.59 mm (0.063 in); Yellow
1.62 mm (0.064 in); Green
1.65 mm (0.065 in); Brown
1.68 mm (0.066 in); Not colored
NOTE:
Be sure to use snap rings of the same thickness
on both sides.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

4A-28 PROPELLER SHAFT
Reassembly
401RW 057
Legend
1. Sleeve Yoke
2. Seal
3. Tube Assembly



1. Discard used seal and install new one.
2.
Align the alignment marks and install tube assembly to
sleeve yoke.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

REAR AXLE 4B-1
SECTION 4B
REAR AXLE

TABLE OF CONTENTS
PAGE
Main Data and Specifications ........................................................................................... 4B- 3
Torque Specifications .............................................................................................................. 4B- 4
Recommended Liquid Gasket .......................................................................................... 4B- 6
Recommended Thread Locking Agents .......................................................................... 4B- 6
Rear Axle Assembly .......................................................................................................... 4B- 7
General Description...................................................................................................... 4B- 7
Servicing ...................................................................................................................... ...... 4B- 8
Rear Axle ...................................................................................................................... ...... 4B- 9
Disassembly .................................................................................................................. 4B - 10
Inspection and Repair .................................................................................................. 4B- 14
Reassembly ................................................................................................................... 4B - 15
Differential Assembly ..................................................................................................................... 4B- 20
Disassembly .................................................................................................................. 4B - 21
Reassembly ................................................................................................................... 4B - 24
Differential Cage Assembly .......................................................................................................... 4B- 34
Disassembly .................................................................................................................. 4B - 35
Inspection and Repair .............................................................................................................. 4B- 35
Reassembly ................................................................................................................................. 4B- 37
Limited Slip Differential (LSD) .......................................................................................... 4B- 38
Disassembly ............................................................................................................................... .4B- 39
Inspection and Repair .................................................................................................. 4B- 40
Reassembly ................................................................................................................... 4B - 42
Troubleshooting............................................................................................................ 4B- 45
Special Service Tool ................................................................................................................. 4B- 56

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

4B-2 REAR AXLE
Service Precaution
WARNING:
THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE REFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE
TO FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS
SYSTEM REPAIRS.
CAUTION:
Always use the correct fastener in the prope
r
location. When you replace a fastener, use ONLY
the exact part number for that application.
ISUZU/GM will call out those fasteners that require
a replacement after removal. ISUZU/GM will also
call out the fasteners that require thread lockers o
r
thread sealant. UNLESS OTHERWISE SPECIFIED,
do not use supplemental coatings (Paints,
greases, or other corrosion inhibitors) on threaded
fasteners or fastener joint interfaces. Generally,
such coatings adversely affect the fastener torque
and the joint clamping force, and may damage the
fastener. When you install fasteners, use the
correct tightening sequence and specification.
Following these instructions can help you avoid
damage to parts and systems.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

REAR AXLE 4B-3
MAIN DATA AND SPECIFICATIONS
REAR AXLE
Ring gear size mm (in)φ194 (7.94) φ220 (8.66)
Rear axle type Banjo, semi-floating
Rear axle capacity N (kg/lb)18140 (1850/4079)
Rear axle case
Axle tube section

Outside diameter mm (in)80 (3.15)
Thickness mm (in)4.5 (0.118)
Final drive type Single speed
Final gear type Hypoid
Drive pinion bearing preload N⋅m (kgf ⋅cm/lb ⋅in)
Starting torque (At drive pinion flange nut) 0.6-1.1 (6.5-11.5/5.6-10.0) 0.7-1.3 (7.0-13.0/6.1-11.3)
Preload adjusting method Collapsible
Final gear backlash mm (in) 0.13-0.18 (0.005-0.007) 0.15-0.20 (0.006-0.008)
Differential carrier assembly
W eight (Dry) kg/lb22.0/48.5 29.0/63.9
Lubrication
Specified gear oil (APL grade) GL5 GL5 (STD), GL5LSD (LSD)
Oil capacity liter (US/UK gal) 1.6 (0.42/0.35) 2.4 (0.63/0.53)


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

4B-4 REAR AXLE
Torque Specifications
Rear Axle
N⋅m (kgf ⋅m/lb ⋅ft)




RTW 74BLF000101

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

REAR AXLE 4B-5

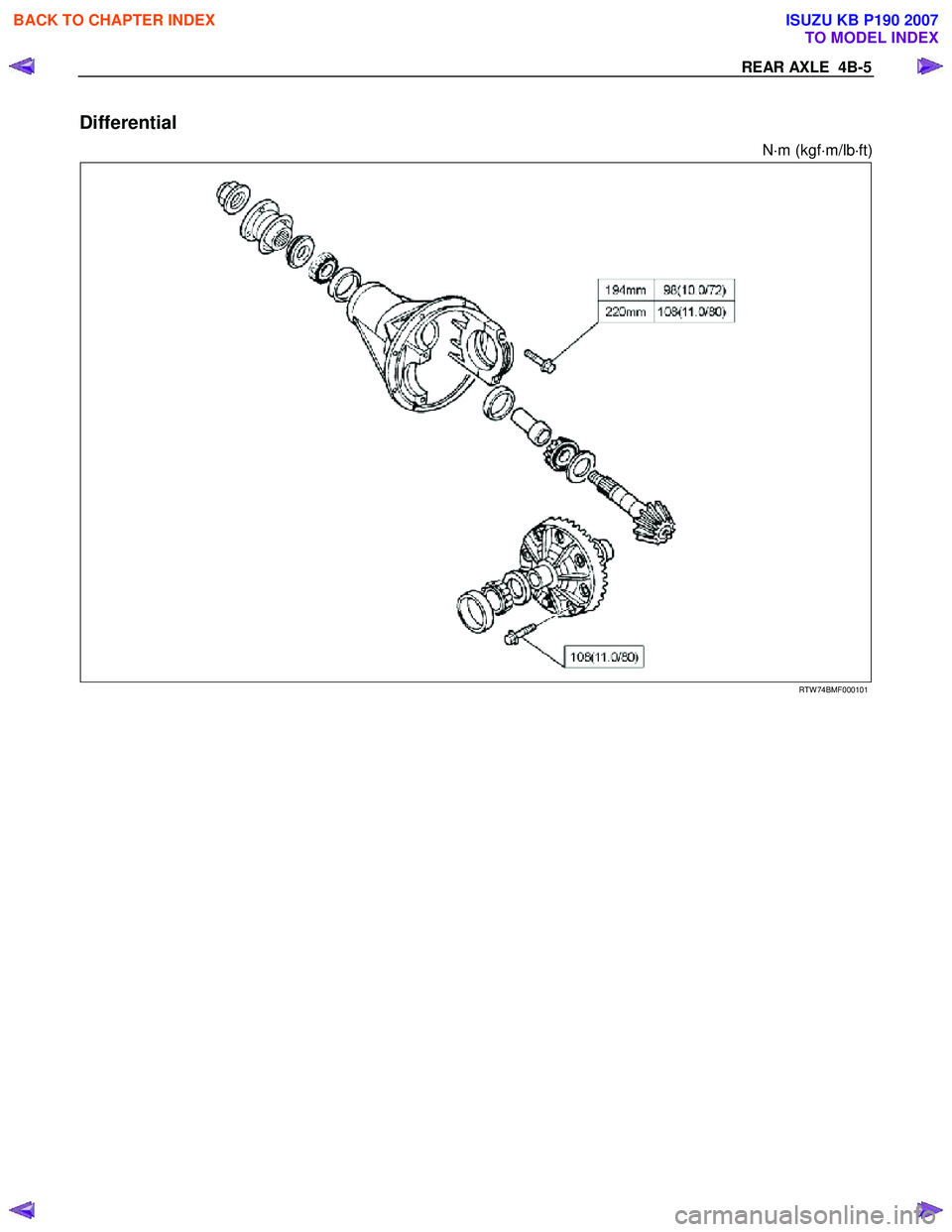

Differential
N⋅m (kgf ⋅m/lb ⋅ft)

RTW 74BMF000101


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

4B-6 REAR AXLE
RECOMMENDED LIQUID GASKET

Type Brand Name Manufacture Remarks

RTV* Silicon Base ThreeBond 1207B
ThreeBond 1207C

ThreeBond 1215
Three Bond
Three Bond

Three Bond
For Engine Repairs


For Axle Case
Repairs, T/M
W ater Base ThreeBond 1141E Three Bond For Engine Repairs

Solvent ThreeBond 1104
BelcoBond 4
BelcoBond 401
BelcoBond 402 Three bond
Isuzu
Isuzu
Isuzu
For Engine Repairs
Anaerobic LOCTITE 515
LOCTITE 518 Loctite
Loctite All
* RTV : Room Temperature Vulcanizer
Note :
1. It is very important that the liquid gaskets listed above or their exact equivalent be used on the
vehicle.
2. Be careful to use the specified amount of liquid gasket.
Follow the manufacture's instructions at all times.

3. Be absolutely sure to remove all lubricants and
moisture from the connecting surfaces before
applying the liquid gasket.
The connecting surfaces must be perfectly dry.
4. LOCTITE 515 and LOCTITE 518 harden upon contact with a metal surface.
Do not apply LOCTITE 515 or LOCTITE 518 between two metal surfaces having a clearance
of greater than 0.25 mm (0.01 in). Poo
r
adhesion will result.



RECOMMENDED THREAD LOCKING AGENTS

LOCTITE Type LOCTITE Color Application Steps

LOCTITE 242
Blue 1. Completely remove all lubricant and moisture from the bolts and
the female threaded surfaces of the parts to be joined.
The surfaces must be perfectly dry.

LOCTITE 262
Red 2. Apply LOCTITE to the bolts.


LOCTITE 270
Green

LOCTITE 271
Red
3. Tighten the bolts to the specified torque.
4. W ait at least one hour before continuing the installation procedure.
