ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-293 CIRCUIT DIAGRAM 4JJ1-TC (AW30-40LE) Sheet 2/2 RTW 78AXF011701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5232 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-294 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JJ1-TC (JR405E) Sheet 1/2 RTW 78AXF011401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5233 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-295 CIRCUIT DIAGRAM 4JJ1-TC (JR405E) Sheet 2/2 RTW 78AXF011501 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5234 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-296 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JH1-TC (LHD) (JR405E) Sheet 1/2 RTW 78AXF004801 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5235 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-297 CIRCUIT DIAGRAM 4JH1-TC (LHD) (JR405E) Sheet 2/2 RTW 78AXF004901 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5236 of 6020

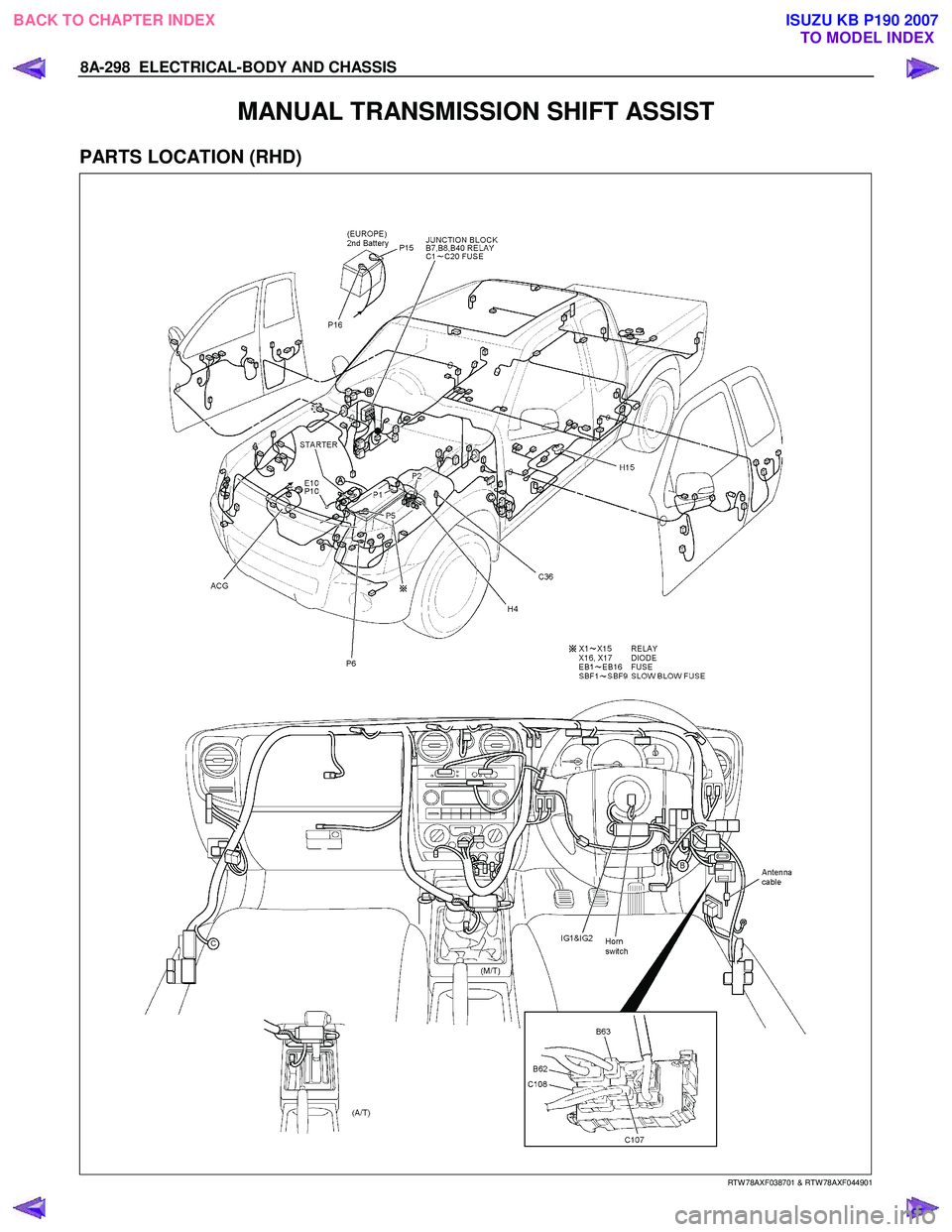

ISUZU KB P190 2007 Workshop Repair Manual 8A-298 ELECTRICAL-BODY AND CHASSIS MANUAL TRANSMISSION SHIFT ASSIST PARTS LOCATION (RHD) RTW 78AXF038701 & RTW 78AXF044901 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 20

Page 5237 of 6020

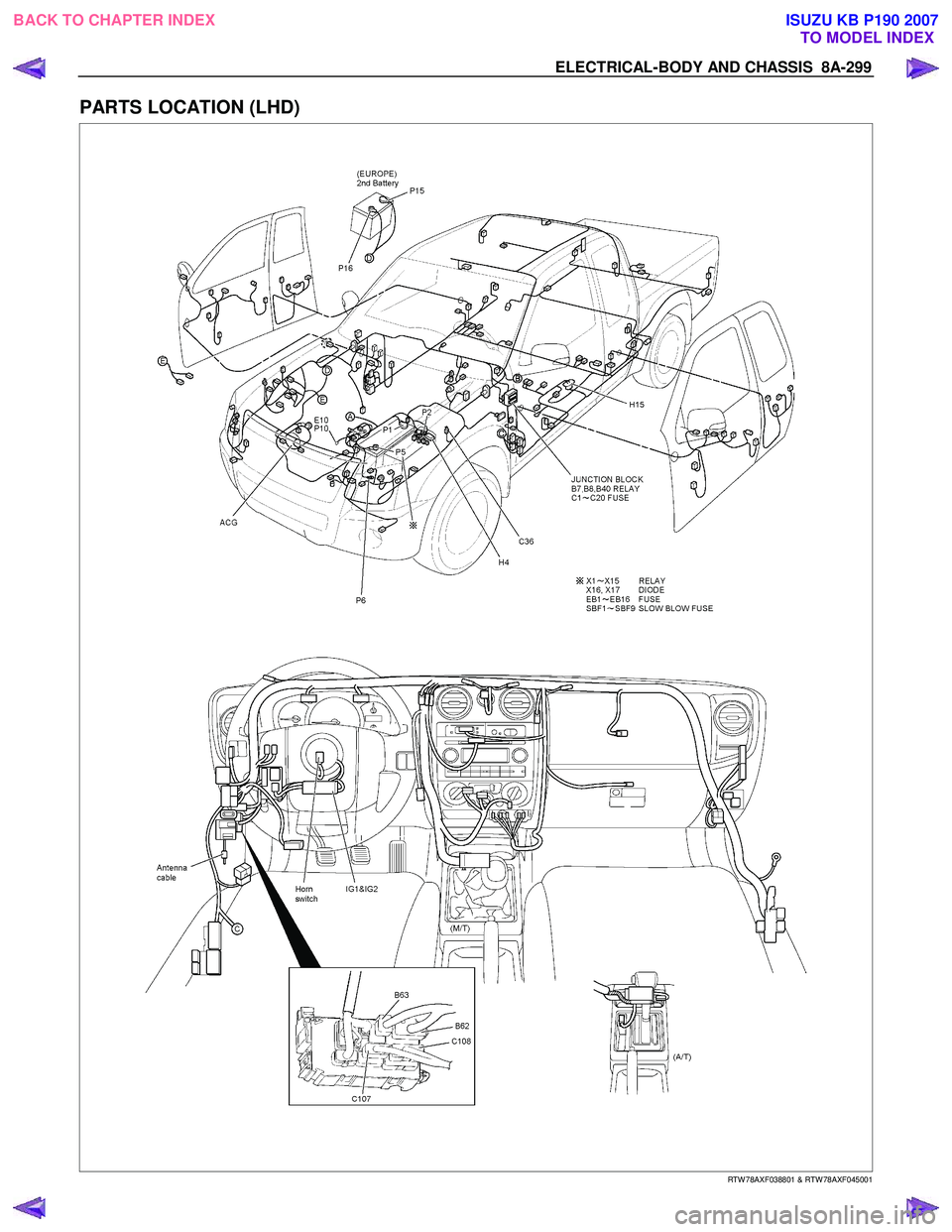

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-299 PARTS LOCATION (LHD) RTW 78AXF038801 & RTW 78AXF045001 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5238 of 6020

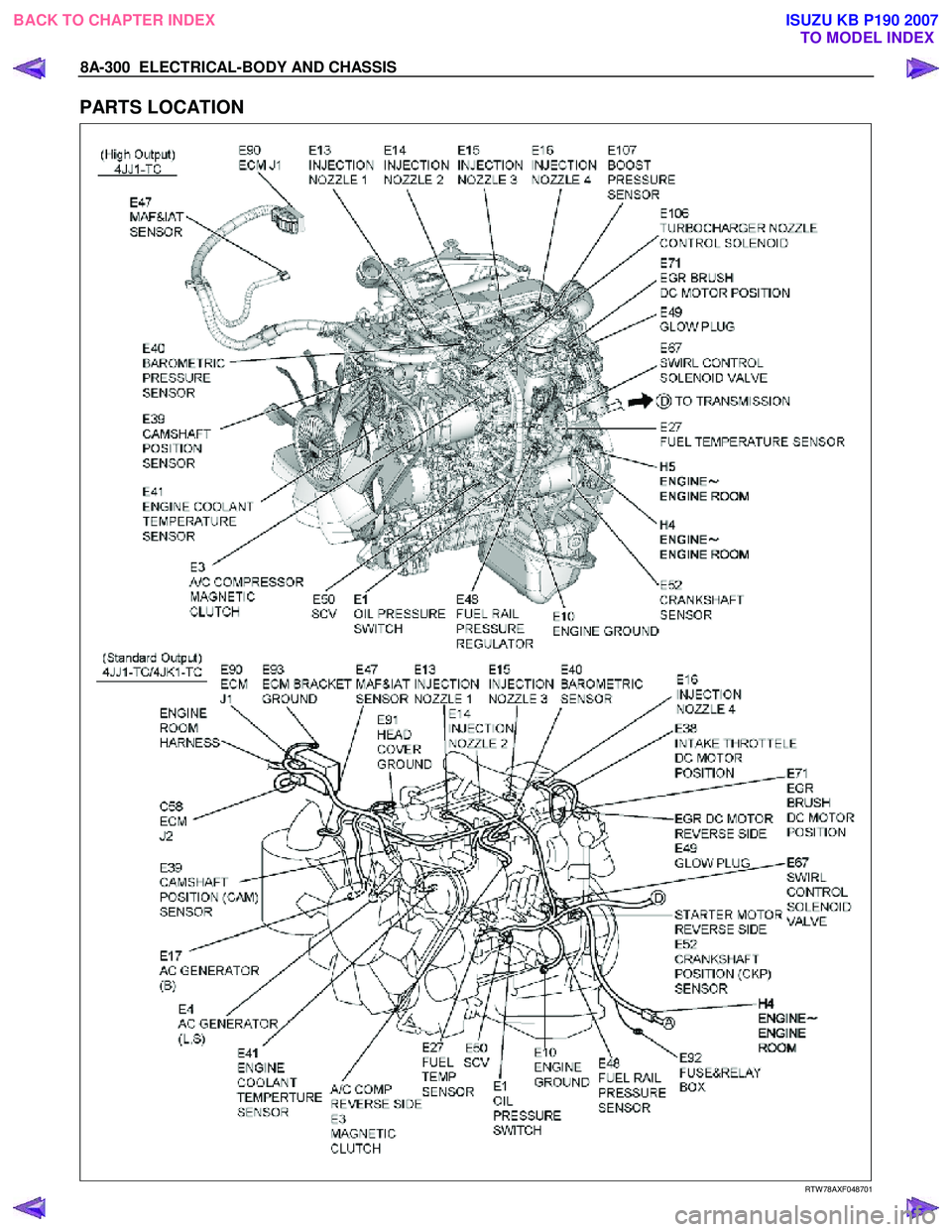

ISUZU KB P190 2007 Workshop Repair Manual 8A-300 ELECTRICAL-BODY AND CHASSIS PARTS LOCATION RTW 78AXF048701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5239 of 6020

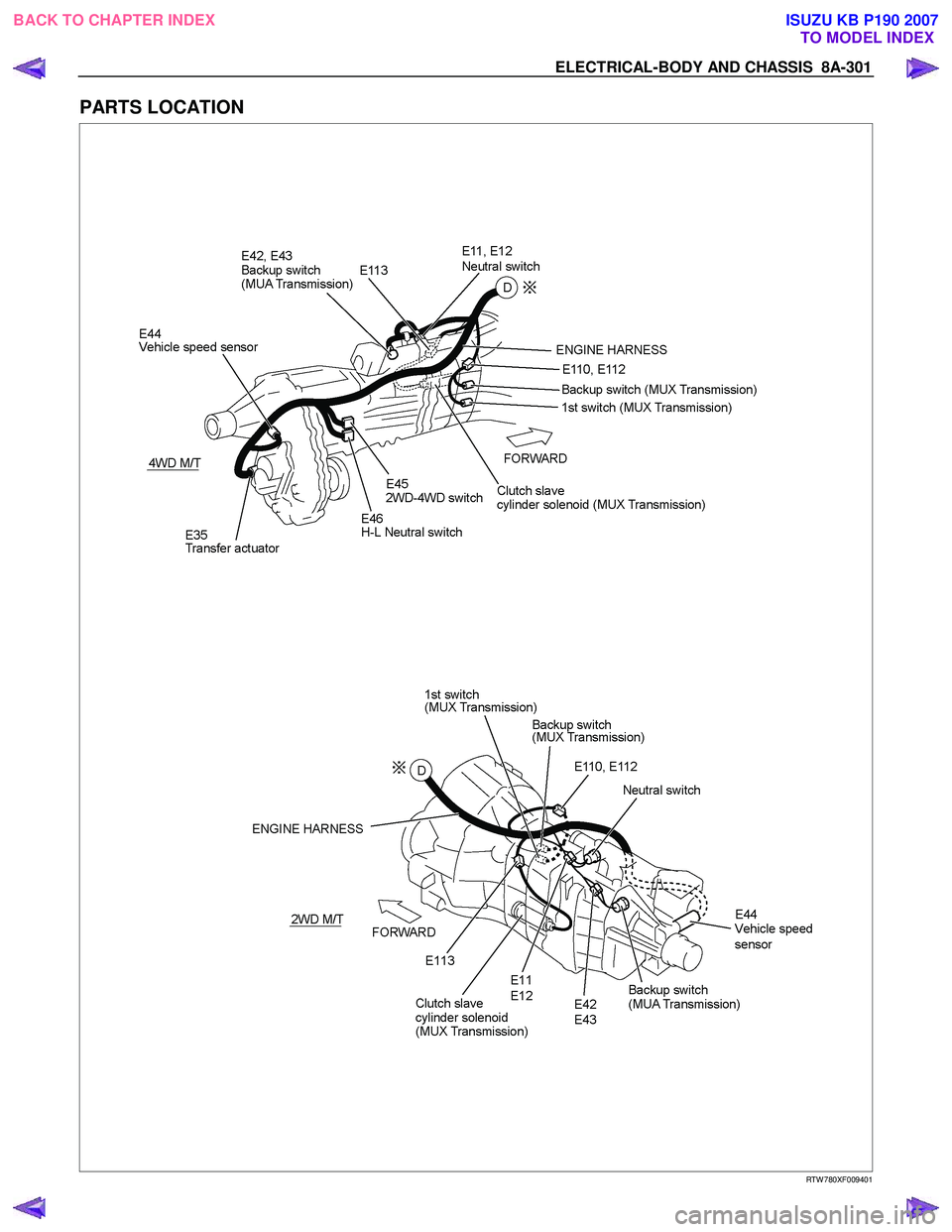

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-301 PARTS LOCATION RTW 780XF009401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5240 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-302 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC EXCEPT SOUTH AFRICA RTW 78AXF022801 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
