Page 5221 of 6020

ISUZU KB P190 2007  Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS  8A-283
   Windshield Washer Spray
Be sure that the engine hood is completely closed before
checking the windshield washer spray adjustment.
W indshield W asher Spray

Page 5222 of 6020

ISUZU KB P190 2007  Workshop Repair Manual 8A-284  ELECTRICAL-BODY AND CHASSIS


  4.  Disconnect the connector
 1.
5.  Disconnect the water hose
2.

  6.  Pull out the washer tank motor  3.




Installation
Follow the removal p

Page 5223 of 6020

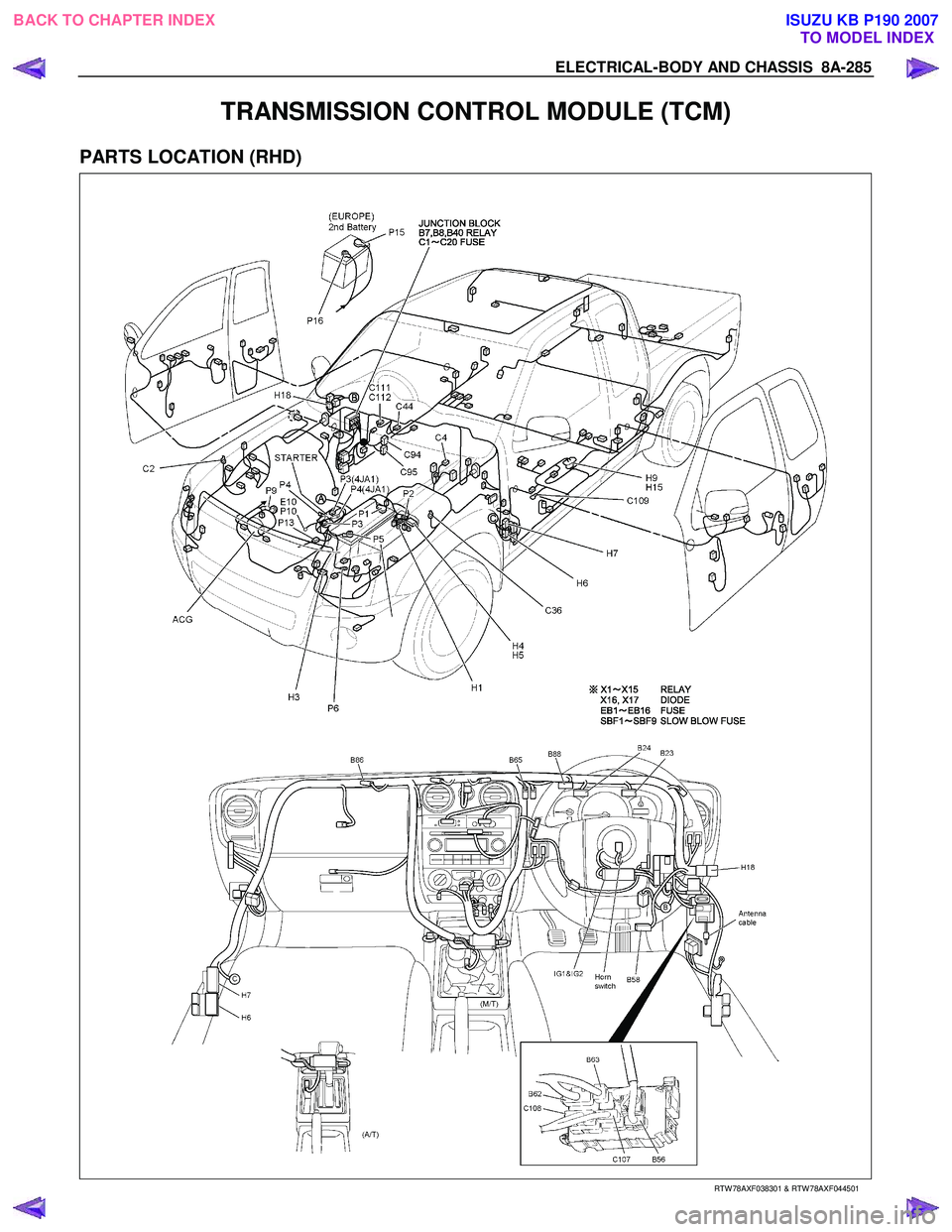

ISUZU KB P190 2007  Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS  8A-285
TRANSMISSION CONTROL MODULE (TCM)
PARTS LOCATION (RHD)





RTW 78AXF038301 & RTW 78AXF044501

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

Page 5224 of 6020

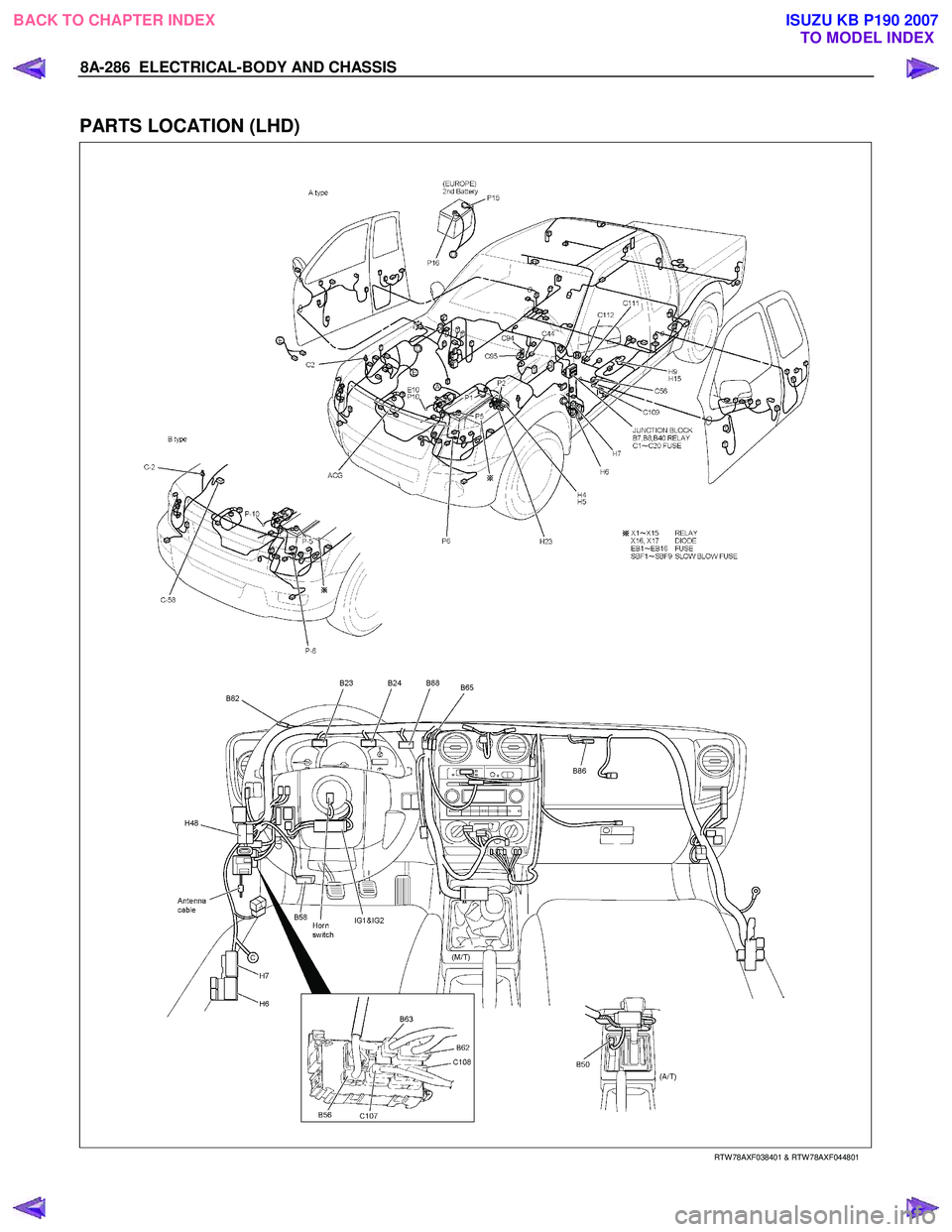

ISUZU KB P190 2007  Workshop Repair Manual 8A-286  ELECTRICAL-BODY AND CHASSIS

PARTS LOCATION (LHD)






RTW 78AXF038401 & RTW 78AXF044801

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

Page 5225 of 6020

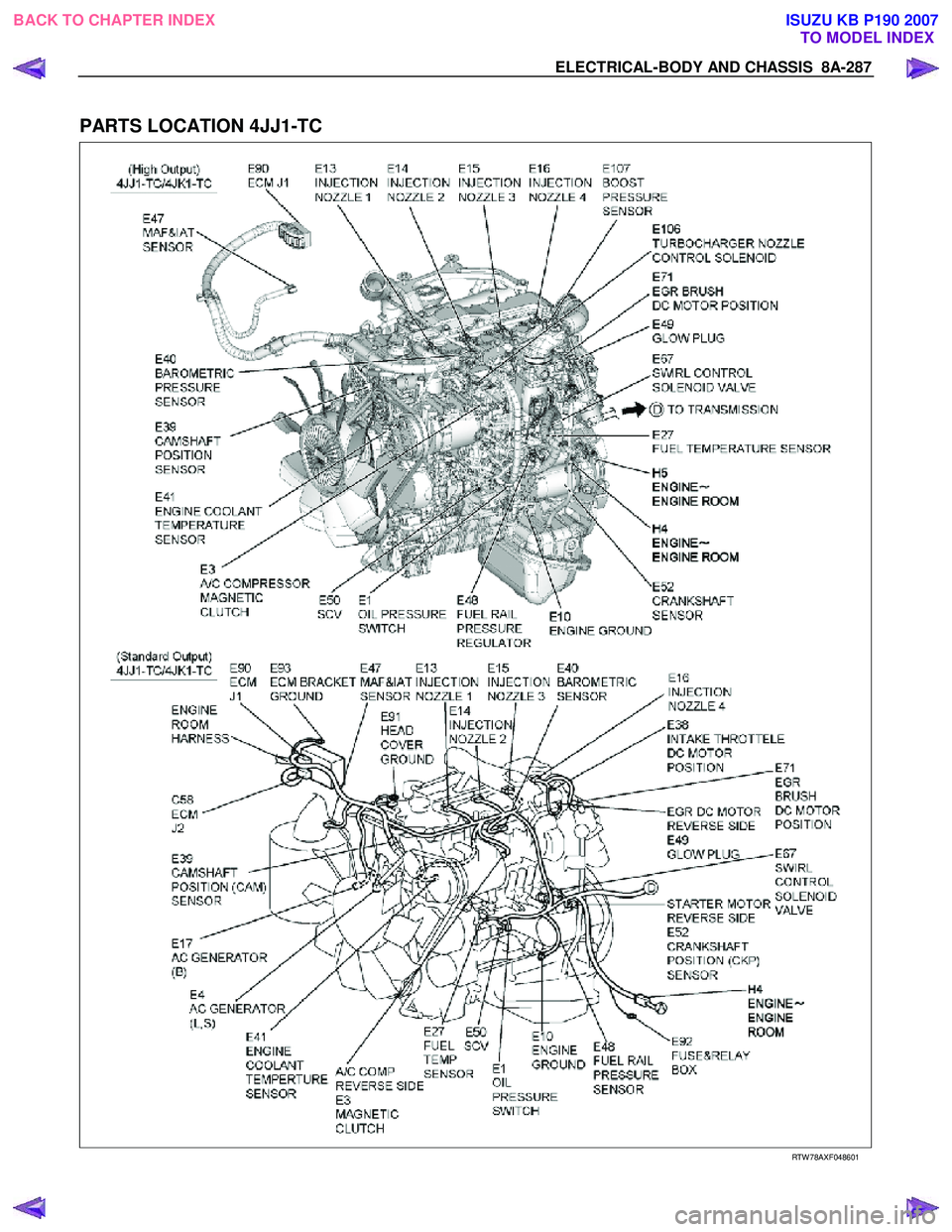

ISUZU KB P190 2007  Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS  8A-287

PARTS LOCATION 4JJ1-TC


RTW 78AXF048601

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

Page 5226 of 6020

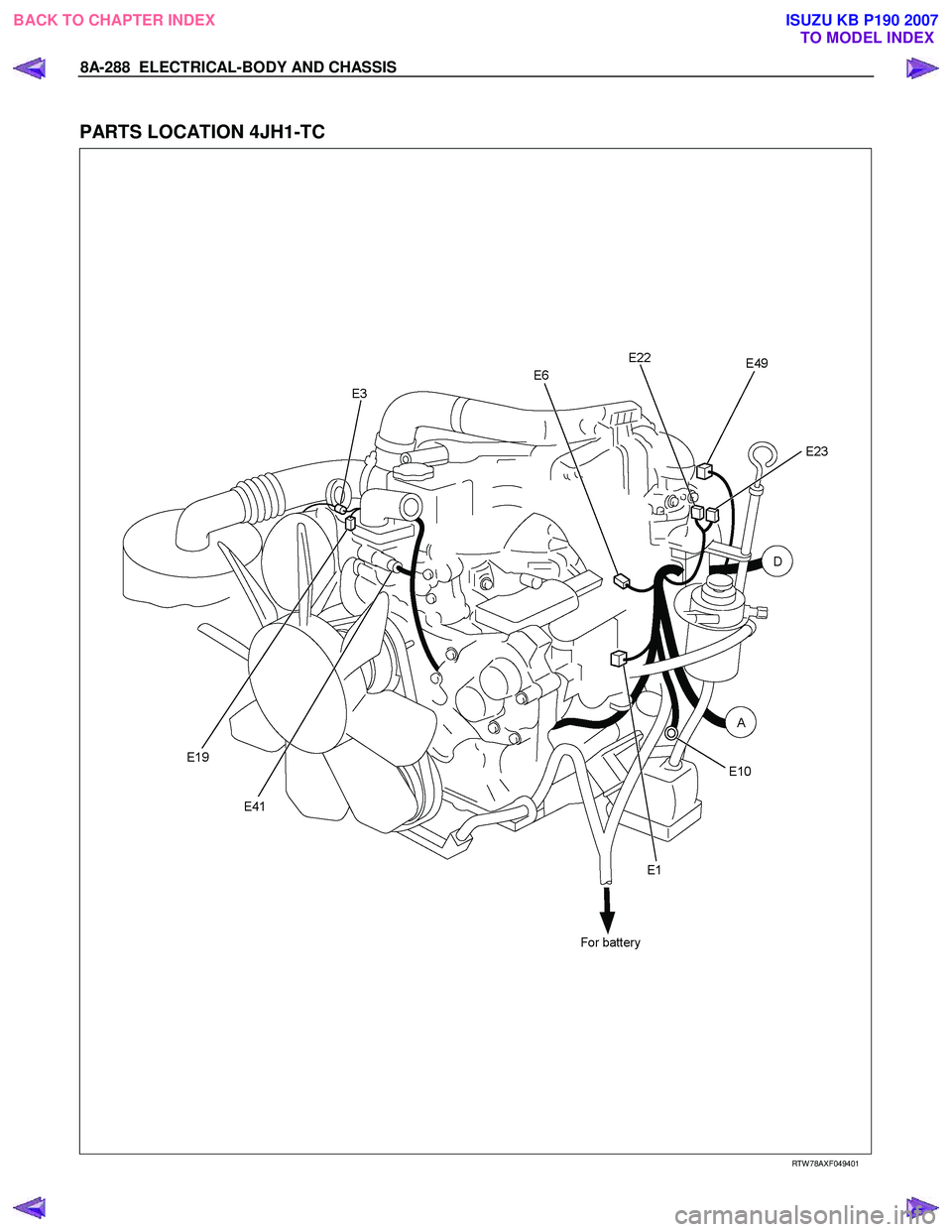

ISUZU KB P190 2007  Workshop Repair Manual 8A-288  ELECTRICAL-BODY AND CHASSIS

PARTS LOCATION 4JH1-TC






















RTW 78AXF049401

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

Page 5227 of 6020

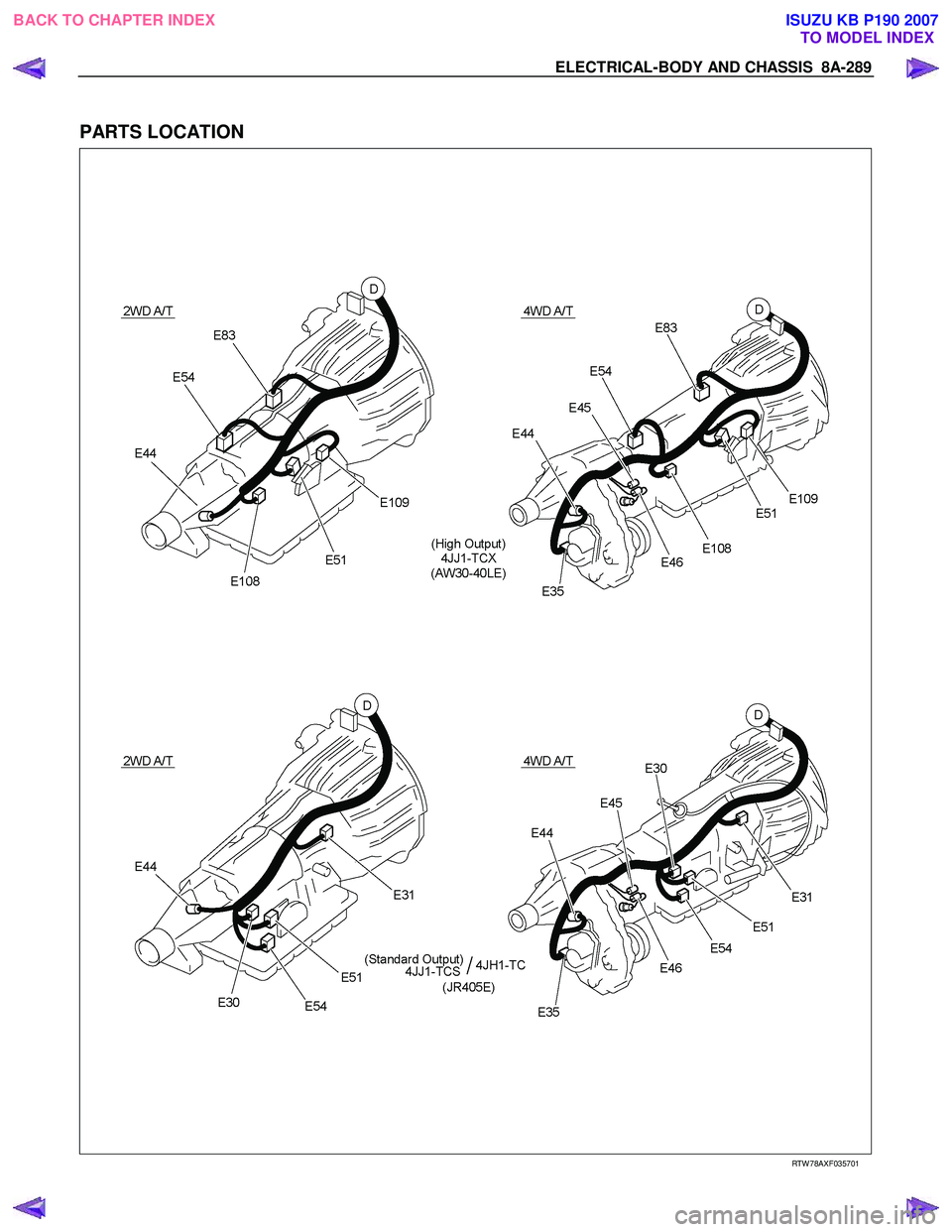

ISUZU KB P190 2007  Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS  8A-289

PARTS LOCATION















RTW 78AXF035701

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5228 of 6020

ISUZU KB P190 2007  Workshop Repair Manual 8A-290  ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6 Sheet 1/2






RTW 78AXF012501

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5229 of 6020

ISUZU KB P190 2007  Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS  8A-291

CIRCUIT DIAGRAM HFV6 Sheet 2/2




RTW 78AXF012601

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5230 of 6020

ISUZU KB P190 2007  Workshop Repair Manual 8A-292  ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC (AW30-40LE) Sheet 1/2


RTW 78AXF011601

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
