ELECTRICAL-BODY AND CHASSIS 8A-263
INSPECTION AND REPAIR



R9 R10

R1 R6





DOOR SWITCH
Door Switch Connections
Connector
SW No.
R9
R10

R1 R6
position Terminal No.
1 Body Ground
PUSHED
RELEASED

W arning function Operational conditions
Key left in starter switch The buzzer sounds when both the key remind switch and the front door
switch-driver side are turned on.
To stop the sound of the buzzer, turn OFF the starter switch and remove the
key from the starter switch.
Lighting switch left on The buzzer sounds when the starter switch is turned from the “ON” to “OFF”
position while the lighting switch is ON position.
To stop the sound of the buzzer, turn OFF the lighting switch.


B62 B63


KEY REMIND SWITCH (STARTER
SWITCH)
Switch Connections
Connector
No. B63
Starter Terminal

switch key position No.
2 4
Removed

OFF

ACC Inserted
ON
START
LOCK




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-264 ELECTRICAL-BODY AND CHASSIS
WINDSHIELD WIPER AND WASHER

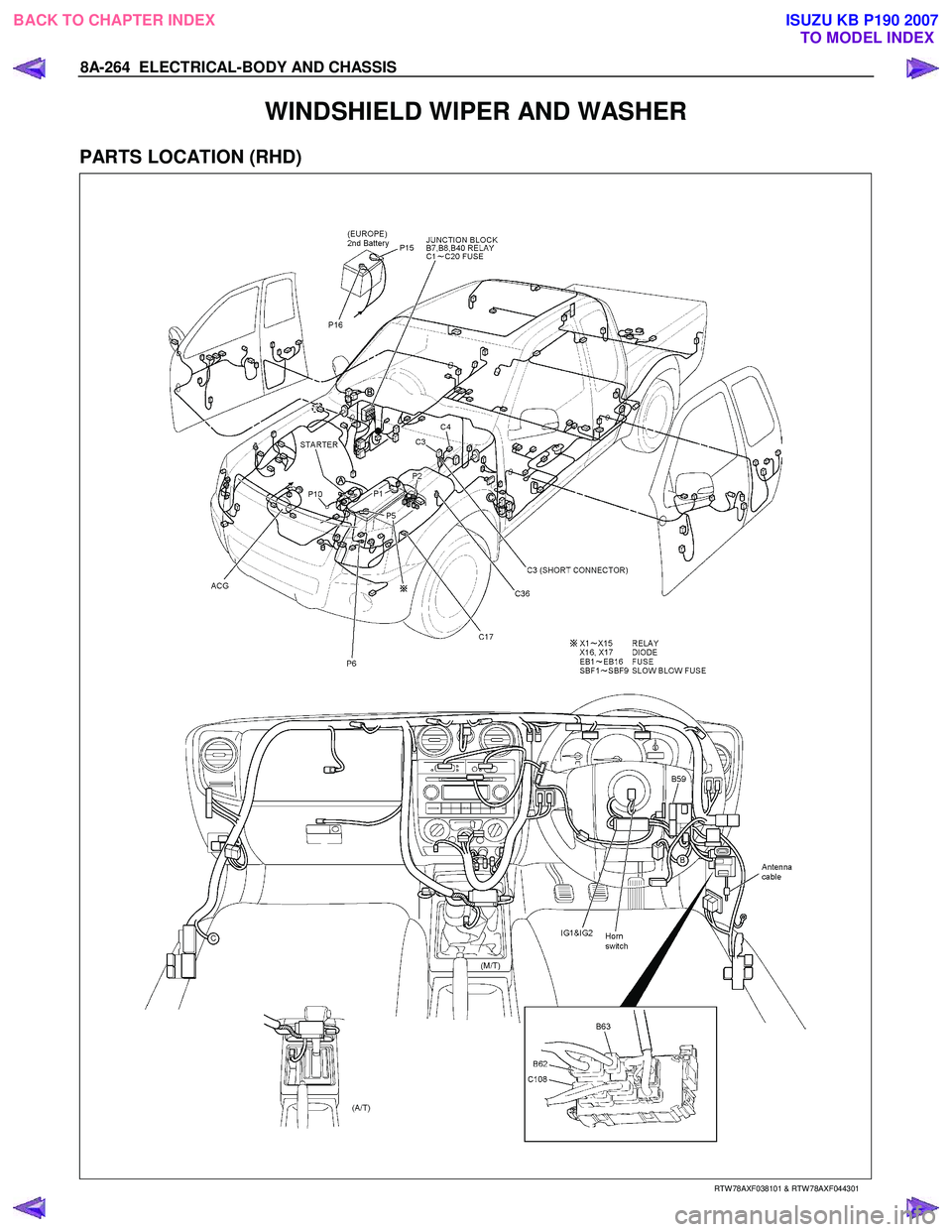

PARTS LOCATION (RHD)








RTW 78AXF038101 & RTW 78AXF044301

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-265

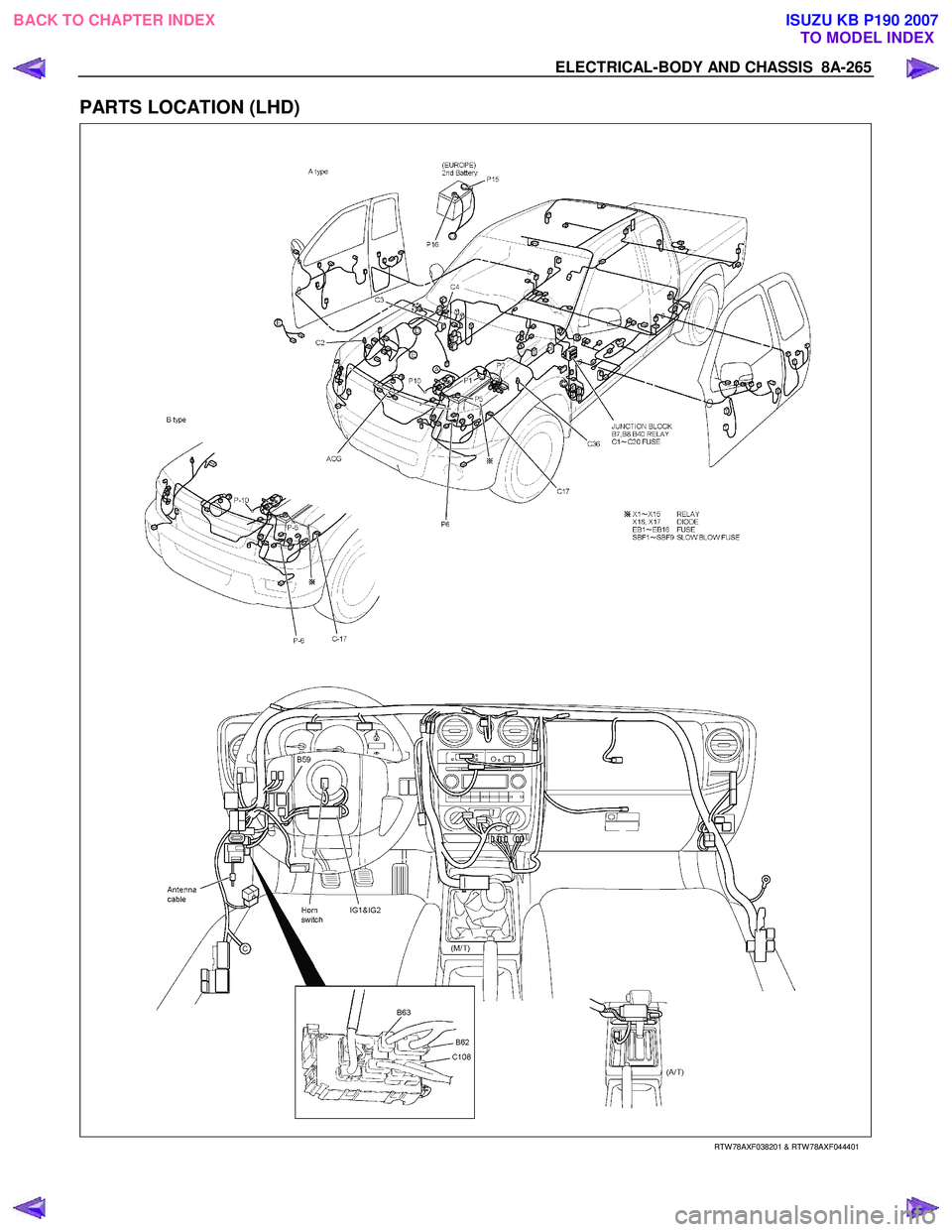

PARTS LOCATION (LHD)
