ELECTRICAL-BODY AND CHASSIS 8A-513

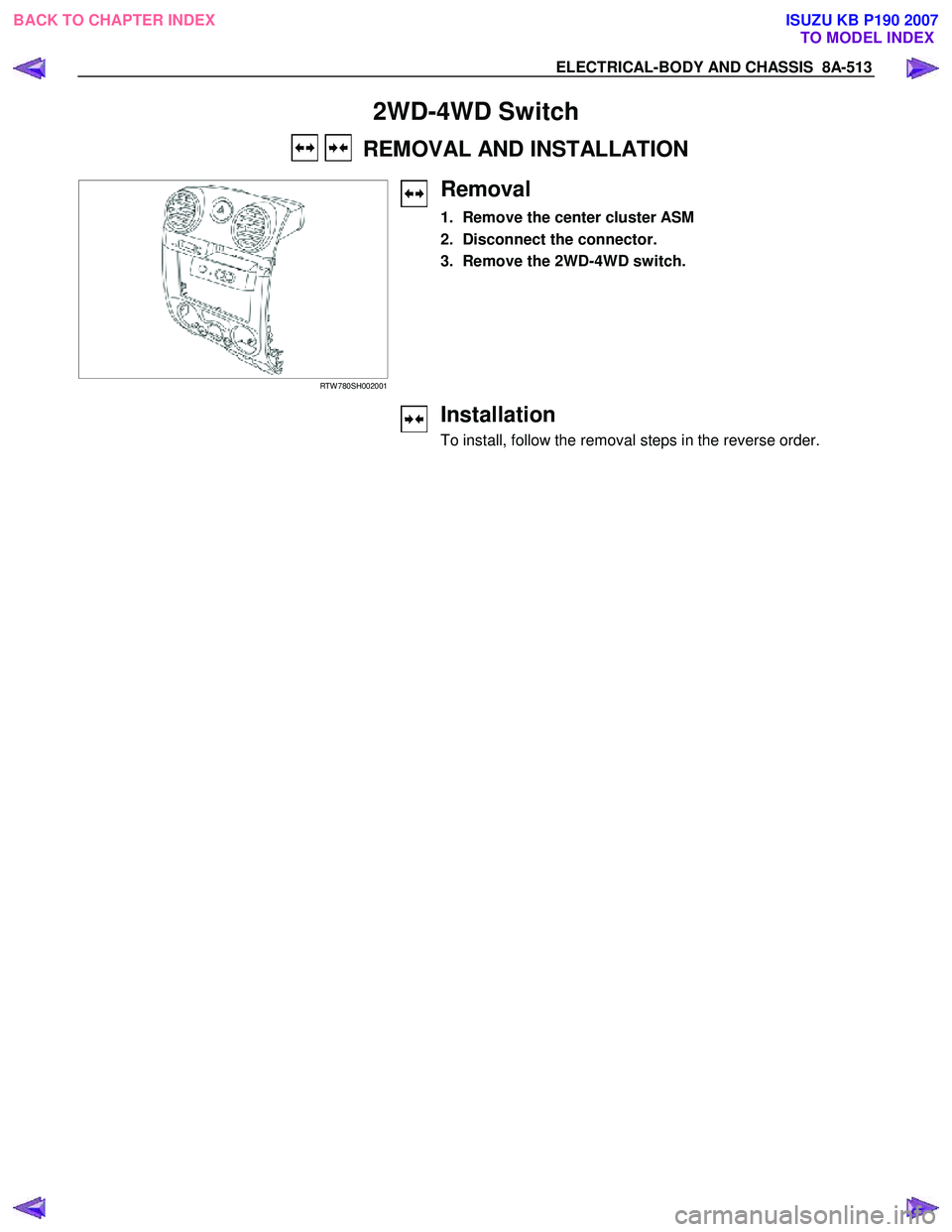

2WD-4WD Switch
REMOVAL AND INSTALLATION

RTW 780SH002001

Removal
1. Remove the center cluster ASM
2. Disconnect the connector.
3. Remove the 2WD-4WD switch.

Installation
To install, follow the removal steps in the reverse order.



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-514 ELECTRICAL-BODY AND CHASSIS

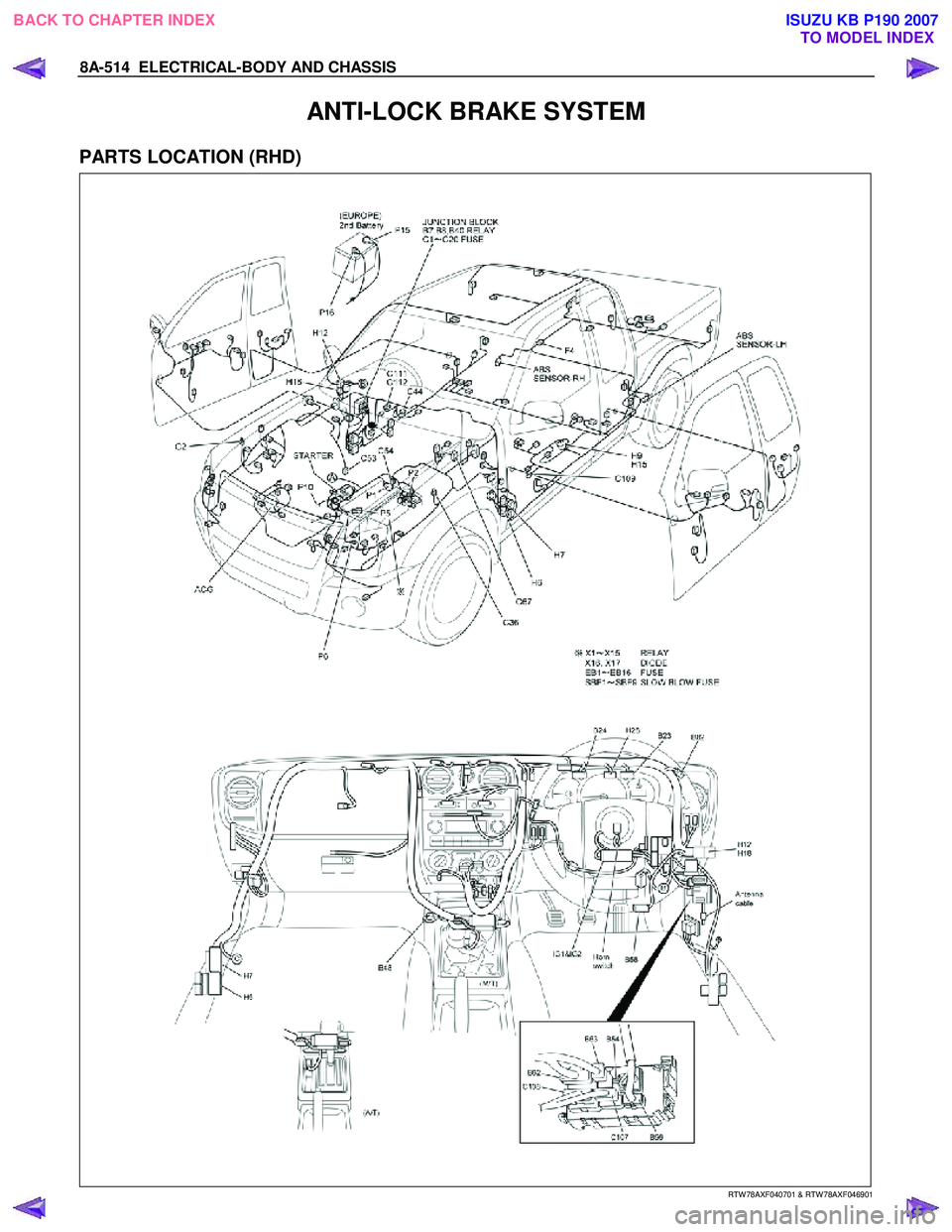

ANTI-LOCK BRAKE SYSTEM
PARTS LOCATION (RHD)







RTW 78AXF040701 & RTW 78AXF046901

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-515

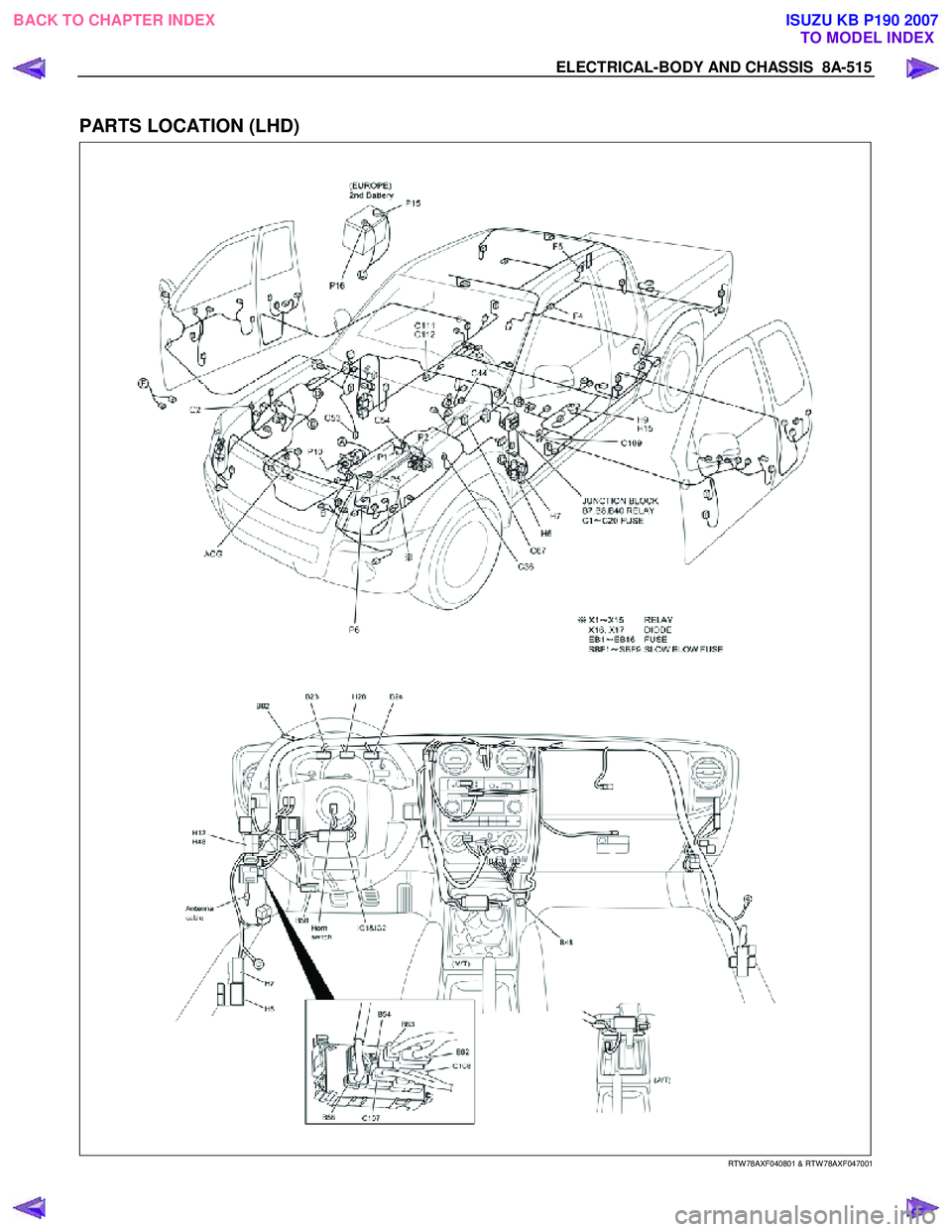

PARTS LOCATION (LHD)







RTW 78AXF040801 & RTW 78AXF047001


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-516 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6

RTW 78AXF012801

BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-517

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC / 4JH1-TC

RTW 78AXF018701

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-518 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T(L)


RTW 78AXF007201

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-519

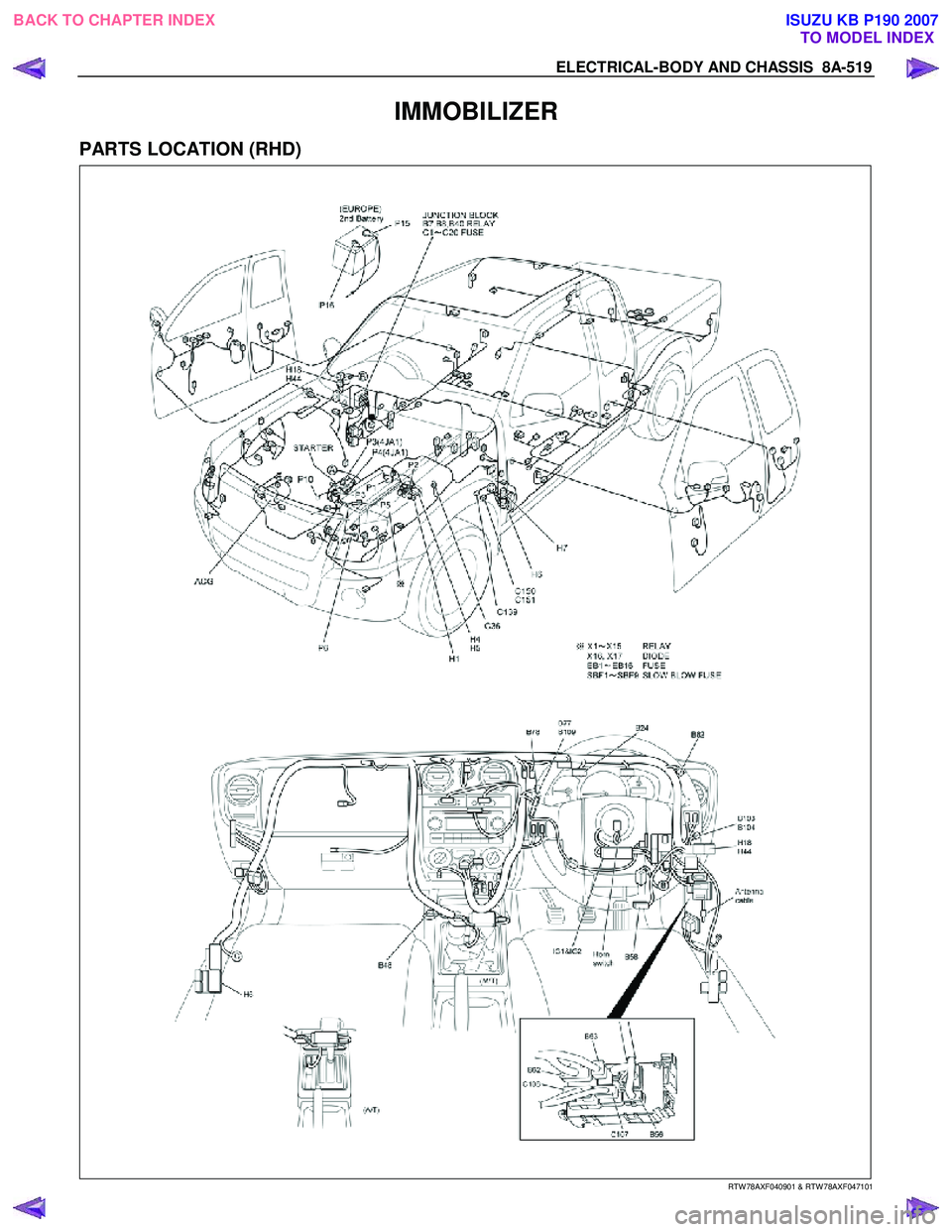

IMMOBILIZER
PARTS LOCATION (RHD)







RTW 78AXF040901 & RTW 78AXF047101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-520 ELECTRICAL-BODY AND CHASSIS

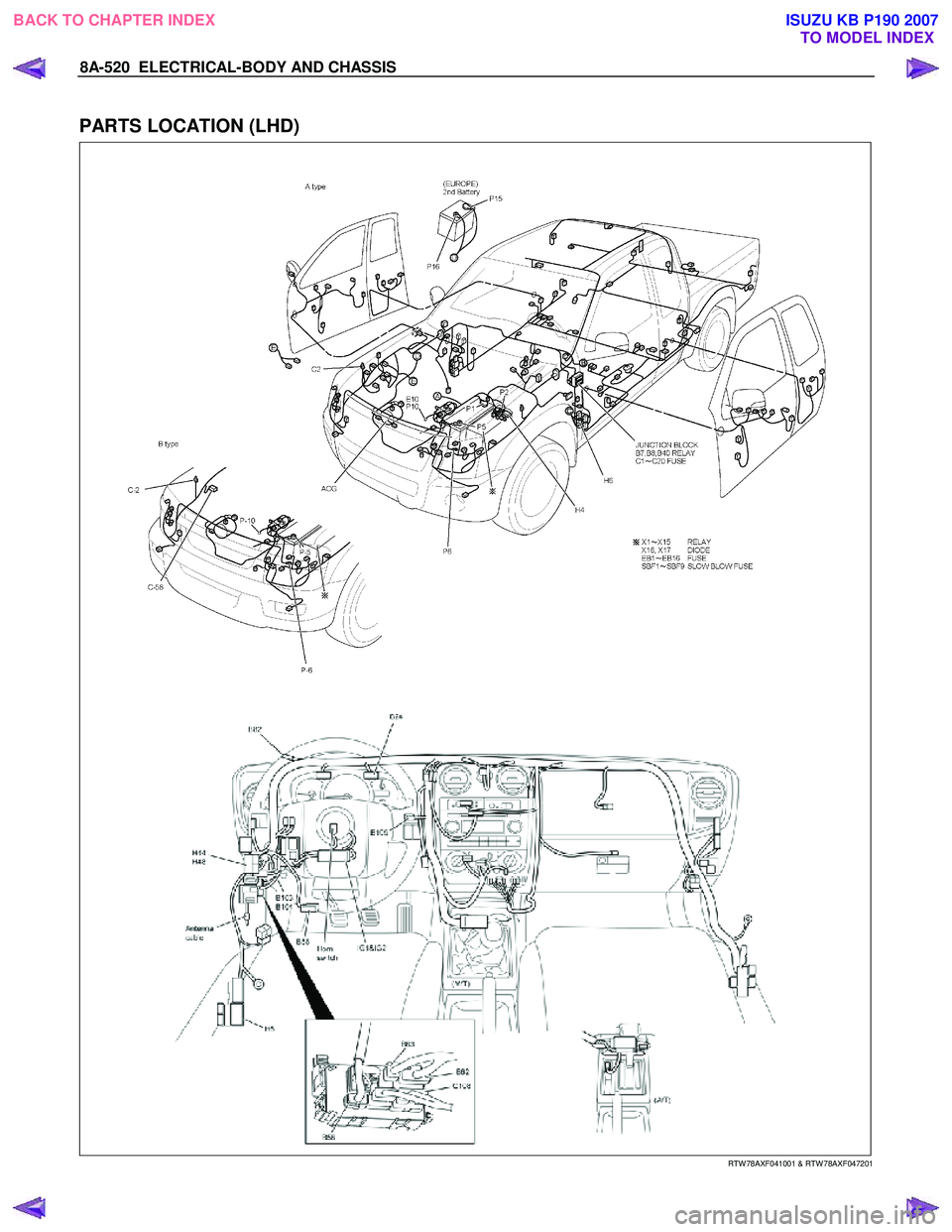

PARTS LOCATION (LHD)






RTW 78AXF041001 & RTW 78AXF047201

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-521

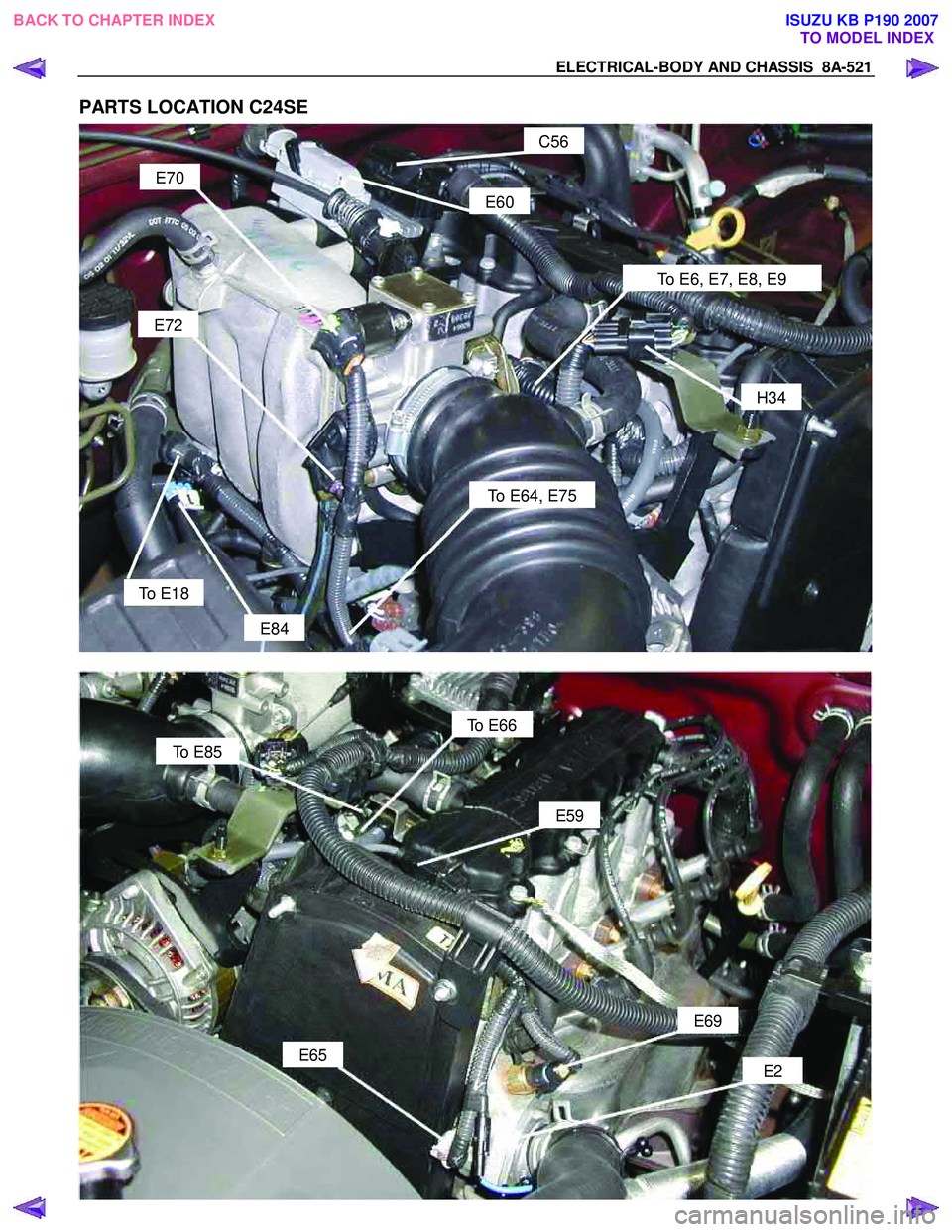

PARTS LOCATION C24SE
C56
To E6, E7, E8, E9
E60
H34
E70
To E64, E75
E72
To E18
E84



To E66
E59
To E85
E69
E65
E2


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-522 ELECTRICAL-BODY AND CHASSIS

PARTS LOCATION 4JJ1-TC / 4JK1-TC

RTW 78AXF048601
