IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-23
4. Input the security code, then press the soft key of
"Okay" or "Not Okay".
060R200284
5. Enter VIN.
6. Enter Mechanical key number.
7. Turn ON ignition.
8. Select an engine system.
9. See the programming result.
Tech-2 displays the result of programming as the
following.
Follow those instructions
• Selected Programming is not possible due to
wrong System Status!
• Immobilizer Not Programmed!
• Immobilizer Already Programmed!
• ECM Not Programmed!
• ECM Already Programmed!
10. Transponder key must be reprogrammed,
because all transponder information is erased.
W hen ICU is programmed. See Transponde
r
programming.
Programming ECM
1. Follow Programming Immobilizer Function steps 1
through 14.
2. Input a program option, by moving the cursor on
the selection, then pres "Enter" key.
060R200283
3. Enter the security code.
4. Input the security code, then press the soft key o
f
"Okay" or "Not Okay".
060R200284
5. Turn on the Ignition.
6. Select an Engine system.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5922 of 6020
11A-24 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)
7. See the display of programming result.
Tech-2 displays the result of programming as the
following.
Follow those instructions
• Selected Programming is not possible due to
wrong System Status!
• Immobilizer Not Programmed!
• Immobilizer Already Programmed!
• ECM Not Programmed!
• ECM Already Programmed!
8. Transponder key must be reprogrammed,
because all transponder information is erased.
W hen ICU is programmed. See Transponde
r
programming.
Programming ICU and ECM
1. Follow Programming Immobilizer Function steps 1
through 14.
2. Input a program option, by moving the cursor on
the selection, then press "Enter" key.
060R200283
3. Enter the security code.
4. Input the security code, then press the soft key o
f
"Okay" or "Not Okay".
060R200284
5. Input the security code.
6. Enter VIN.
7. Enter Key No.
8. Select an engine system.
See programming result display and follo
w
instructions of the display.
9. Transponder key must be reprogrammed,
because all transponder information on ICU is
erased when ICU is programmed. See
Transponder programming.
10. Follow Programming ECM steps 2 through 8.
Transponder program
1. Select "Body" and "Immobilizer".
2. Select "Programming" and "Program Transponder-
Keys".
(Follow Programming Immobilizer Function steps 1
through 14.)
3. See immobilizer status on Tech-2 screen, and
enter security code. If the status does not allow the
programming, only immobilizer status is displayed.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5923 of 6020
IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-25
4. Insert Non-programmed Transponder-key and
press soft key of "Confirm".
060R200288
5. "Turn On ignition key", is displayed if the ignition is
off.
6. The transponder status is displayed if the status
does not allow the programming.
7. W hen programming starts "Programming
Transponder - key!" is displayed.
8. Turn off Ignition key.
9. Turn On Ignition key.
10. If the programming was not successful, the
transponder status is only displayed.
11. To program more illustration press soft key.
RUW 38SH000601
12. See programming result.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 5924 of 6020
11A-26 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)
Data List
No.
No.No.
No.
Strings
StringsStrings
Strings
Note
NoteNote
Note
1 Ignition Status
On 12V /Off 0V
2 Transponder-Key Transp. Key #
The number of the key currently
programmed
3 Transponder Status Correct/Incorrect TP-Key
4 Transponder-Key 1 Status Programmed / Not Programmed
5 Transponder-Key 2 Status Programmed / Not Programmed
6 Transponder-Key 3 Status Programmed / Not Programmed
7 Transponder-Key 4 Status Programmed / Not Programmed
8 Transponder-Key 5 Status Programmed / Not Programmed
9
Immobilizer signal Transmitted / Not Transmitted
10 Engine Request Received / Not Received
11 Vehicle Speed Output Veh.
Speed signal
12 Immobilizer Relay
Active 0V / Inactive 12V
13 Security Wait Time
Active / Inactive
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5925 of 6020
IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-27
Diagnostic procedure
• Once the cause of DTC is repaired or gone,
engine can be operated normally, and present
DTC becomes history code.
• History code is canceled by no repeat failure on 25
consequence ignition key on afterward.
• History code cannot be canceled by batter
y
connector disconnected.
Clearing Diagnostic Trouble Codes
IMPORTANT: Do not clear DTCs unless directed to do
so by the service information provided for each
diagnostic procedure. W hen DTCs are cleared, the
Failure Record data which may help diagnose an
intermittent fault will also be erased from memory.
Verifying Vehicle Repair
Verification of vehicle repair will be more
comprehensive for vehicles with immobilizer system
diagnostic. Following a repair, the technician should
perform the following steps:
1. Review and record the Fail Records for the DTC
which has been diagnosed.
2. Clear DTC(s).
3. Operate the vehicle within conditions noted in the
Fail Records.
4. Monitor the DTC status information for the DTC
which has been diagnosed until the diagnostic test
associated with that DTC runs.
Following these steps are very important in verifying
repairs on immobilizer systems. Failure to follow these
steps could result in unnecessary repairs.
Diagnostic Aids
Check the condition for system parts.
• Installation condition, poor connection, damage,
system parts malfunction. Harness, Fuse, Relay,
Immobilizer coil (antenna), Key, Meter, Immobilize
r
control unit (ICU), Engine control module (ECM).
NOTE: Breakage of immobilizer fuse does not operate
immobilizer system. Check engine lamp flashes at this
time.
Check the Electro-Magnetic Interference (EMI)
• Location of vehicle check
Move the vehicle to a new location and perform
the check again.
• Non-OEM Parts.
Switch is "OFF" or remove the Non-OEM parts and
perform the check again.
• Other
Remove the accessory and another key from key.
Check the other items.
• Battery voltage is low.
• Immobilizer programming functions.
Must be programmed immobilizer system.
• Registration for security code, immobilizer control
unit parts number.
• Key switch operation.
Immobilizer system may detect a history DTC b
y
the timing of ON-OFF of a key switch.
• Active the immobilizer system.
• Keyless entry system is malfunction.
• Anti theft system is malfunction.
Check the operation
Check the operation "Lock / unlock" by using transmitte
r
(key) on the vehicle.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5926 of 6020
11A-28 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)
Diagnostic Trouble Code (DTC) list with ECM
•
••
•
Immobilizer Control Unit (ICU)
DTC
Description Note
B0001 REPLACE ELECTRONIC CONTROL UNIT
(ECU) (IMMOBILIZER FAULT) This error code appears if a RAM /ROM Error was
detected or the EEPROM is defect.
B0002 IMMOBILIZER NOT PROGRAMMED Immobilizer control unit is not programmed.
B0003 TRANSPONDER KEY PROBLEM ･Reading of Transponder information failed with ignition
on transponder has a fault.
･Hardware fault in reading circuit.
B0004 IMMOBILIZER COIL CIRCUIT (ANTENNA
COIL FAULT) Immobilizer coil has a fault.
B0005 COMMUNICATION LINE W VOLTAGE LOW Short circuit to ground or open circuit.
B0006 COMMUNICATION LINE W VOLTAGE HIGH Short circuit to 12V.
B0007 NO ENGINE REQUEST RECEIVED
No ECM Challenge.
B0008 W RONG TRANSPONDER KEY Incorrect security code response received.
B0009 NO TRANSPONDER KEY PROGRAMMED Transponder security code table empty
B0010 UNKNOW N TRANSPONDER KEY Transponder security code not valid.
•
••
•
Engine Control Module (ECM: Gasoline Engine {C24SE})
DTC Description
Note
P1626 No Response From Immobilizer Refer to Engine Control system section
P1631 Received Response W as Not Correct Refer to Engine Control system section
P1648 Received Incorrect Security Code Refer to Engine Control system section
P1649 Security Code & Security Key Not
Programmed Refer to Engine Control system section
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5927 of 6020
IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-29

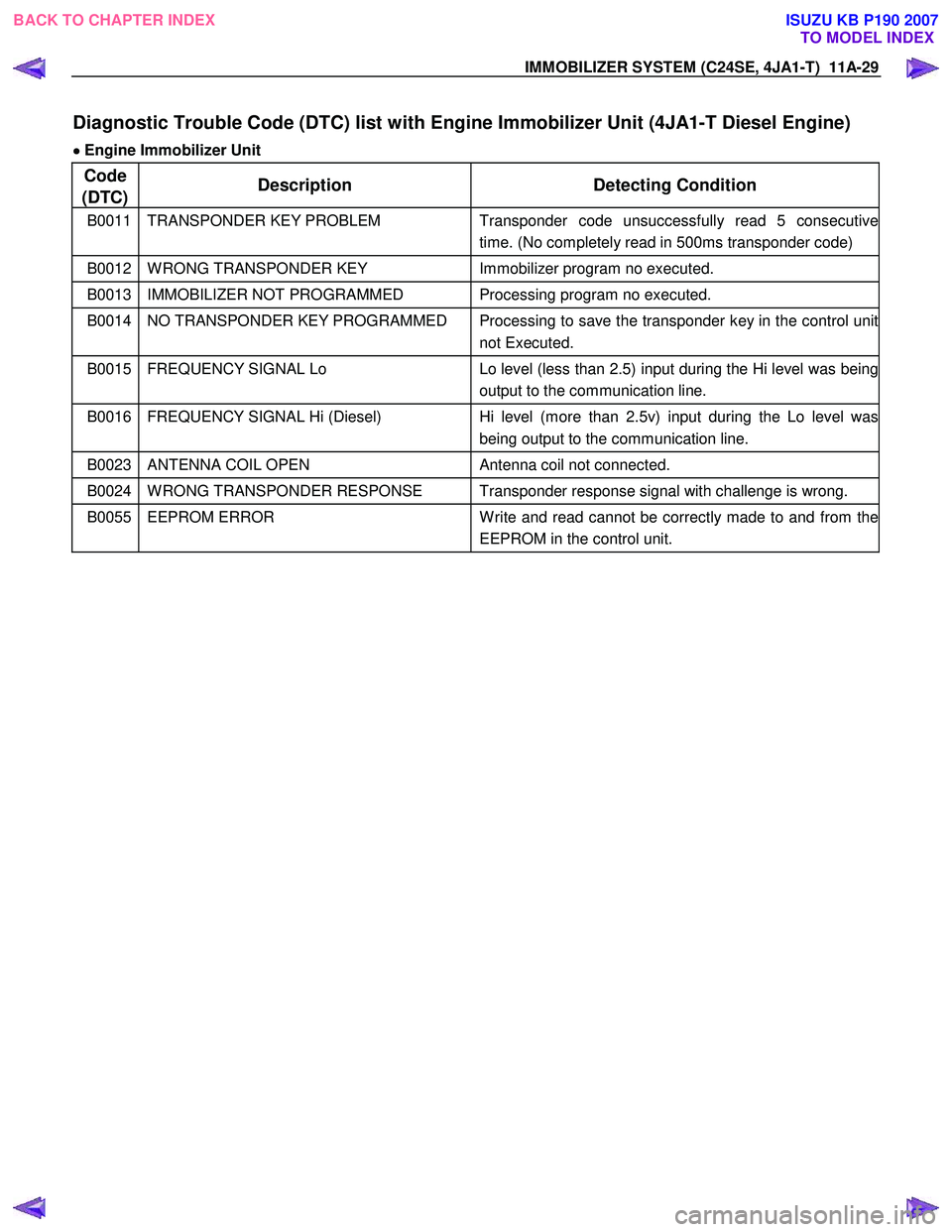

Diagnostic Trouble Code (DTC) list with Engine Immobilizer Unit (4JA1-T Diesel Engine)
•
••
•
Engine Immobilizer Unit
Code
(DTC) Description Detecting
Condition
B0011 TRANSPONDER KEY PROBLEM Transponder code unsuccessfully read 5 consecutive
time. (No completely read in 500ms transponder code)
B0012 W RONG TRANSPONDER KEY Immobilizer program no executed.
B0013 IMMOBILIZER NOT PROGRAMMED Processing program no executed.
B0014 NO TRANSPONDER KEY PROGRAMMED Processing to save the transponder key in the control unit
not Executed.
B0015 FREQUENCY SIGNAL Lo Lo level (less than 2.5) input during the Hi level was being
output to the communication line.
B0016 FREQUENCY SIGNAL Hi (Diesel) Hi level (more than 2.5v) input during the Lo level was
being output to the communication line.
B0023 ANTENNA COIL OPEN Antenna coil not connected.
B0024 W RONG TRANSPONDER RESPONSE Transponder response signal with challenge is wrong.
B0055 EEPROM ERROR W rite and read cannot be correctly made to and from the
EEPROM in the control unit.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5928 of 6020
11A-30 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)
IMMOBILIZER SYSTEM CHECK
Step Action Value(s) Yes No
1 1. Key position is "ON," engine "OFF."
2. Observe the check engine lamp.
Note: W hen a key switch is turned ON, check engine
lamp will turn on and a check engine lamp will be
turned off after a few seconds.
Is the check engine lamp "ON"?
Go to Step 2 Go to "No
Immobilizer
warning lamp"
2 1. Key position is "ON," engine "OFF." 2. Observe the check engine lamp.
Note: W hen a key switch is turned ON, check engine
lamp will turn on and a check engine lamp will be
turned off after a few seconds.
Is the check engine lamp "OFF"?
(Check engine lamp does not flash)
Go to Step 3 Go to
"Immobilizer
warning lamp on steady"
3 1. Key position is "OFF."
2. Install a scan tool.
3. Key position is "ON."
4. Attempt to display immobilizer data with the scan tool.
Does the scan tool display immobilizer data?
Go to Step 9 Go to Step 4
4 1. Key position is "OFF," disconnect the immobilizer
control unit (ICU).
2. Check the DLC (Data Link Connector) circuit for an open, short to ground, or short to voltage.
Also, check the DLC ignition feed circuit for an open or short to ground and the DLC ground
circuit for an open.
W as a problem found?
Go to Step 5 Go to Step 6
5 Repair or replace the DLC (Data Link Connector)
circuit.
W as the action complete?
Go to Step 3
6 1. Check the ICU circuit for an open, short to ground,
or short to voltage. Also, check the ICU ignition
feed circuit for an open or short to ground and the
ICU ground circuit for an open.
2. If a problem is found, repair as necessary.
W as a problem found?
Go to Step 7 Go to Step 8
7 Repair or replace the ICU ignition feed and ground
circuits.
W as the action complete?
Go to Step 3
8 Replace the immobilizer control unit (ICU).
IMPORTANT: The replacement ICU must be
programmed the immobilizer data by the scan tool.
W as the action complete?
Go to Step 3
9 Select "Display DTCs" with the scan tool.
Are any DTCs stored?
Go to Step 10 Go to Step 13
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 5929 of 6020
IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-31
Step Action Value(s) Yes No
10 Review and record for scan tool Failure Records data
and DTCs.
W as the action complete?
Go to Step 11
11 Following the DTC is stored.
Are there DTC B0001 or B0055 stored?
Go to applicable
DTC table after
Go to Step 12 Go to
Step 12
12 Clear the DTCs by "Clear the Information "with scan
tool.
Did the DTCs Cleared?
Go to Step 12
13 Select "Display DTCs" with the scan tool.
Are any DTCs stored?
Go to applicable
DTC table Go to
Step 14
14 1. Key position is "ON," engine "OFF."
2. Observe the check engine lamp.
Note: If a key switch is turned ON, check engine lamp
will turn on and a check engine lamp will be turned off
after a few seconds.
Is the check engine lamp "flash"?
Go to Step 15 Go to Step 20
15 Check the engine control system.
If a problem is found, repair as necessary.
(Refer to section 6E: system check and DTCs)
IMPORTANT: The replacement ECM must be
programmed the immobilizer data by scan tool.
(Except 4JA1-L Engine)
W as the action complete?
Go to Step 16
16 Check the key.
Is a key peculiar to a vehicle?
Go to Step 18 Go to Step 17
17 Change into a peculiar key.
IMPORTANT: If replace the key, after replace lock
cylinders, perform the following below the items.
• Replace the keys and key cylinders.
• Program the immobilizer system.
(Refer to "Important information on Programming")
W as the action complete?
Go to Step 18
18 Check the immobilizer programming functions.
• Immobilizer control unit (ICU).
• Engine control module (ECM).
• Transponder (Key).
If a problem is found, repair as necessary.
(Refer to "Important information on Programming")
W as the action complete?
Go to Step 19
19 Operate the DTCs by "Clear the Information" with
scan tool.
W as the action complete?
Go to Step 20
20 Attempt to start the engine.
Did the engine start?
System OK Refer to
Diagnostic Aids
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5930 of 6020
11A-32 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)
NO IMMOBILIZER WARNING LAMP
Step Action Value(s) Yes No
1 Check the meter fuse for the instrument cluster
ignition feed circuit.
Is the fuse normal?
Go to Step 3 Go to Step 2
2 Replace the fuse.
Is the action complete?
Verify repair
Go to Step 3
3 1. Key position is "OFF".
2. Disconnect the meter.
3. Disconnect the engine control module (ECM).
4. Check the circuit between meter and ECM for an open, short to round, or short to voltage.
Also, check the meter circuit for an open or short to
ground and the DLC ground circuit for an open.
W as a problem found?
Go to Step 4 Go to Step 5
4 Repair or replace the meter circuit.
W as the action complete?
Go to Step 5
5 1. Key position is "ON," engine "OFF."
2. Observe the check engine lamp.
Is the check engine lamp "ON"?
Go to Step 6 Go to Step 7
6 Repair or replace the meter.
W as the action complete?
Go to Step 7
7 1. Key position is "OFF".
2. Check the check engine lamp bulb.
Is the check engine lamp bulb normal?
Go to Step 9 Go to Step 8
8 Replace the check engine lamp bulb.
Is the action complete?
Verify repair
Go to Step 9
9 1. Key position is "OFF".
2. Connect the meter.
3. Connect the engine control module (ECM).
4. Key position is "ON".
5. Observe the check engine lamp.
Note: If a key switch is turned ON, check engine lamp
will turn on and a check engine lamp will be turned off
after a few seconds.
Is the check engine lamp "ON"?
Verify repair Go to Step 10
10 Replace the engine control module (ECM).
IMPORTANT: The replacement ICU must be
programmed the immobilizer data by scan tool.
W as the action complete?
Verify repair
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
