ISUZU KB P190 2007 Workshop Repair Manual

5C-2 BRAKES

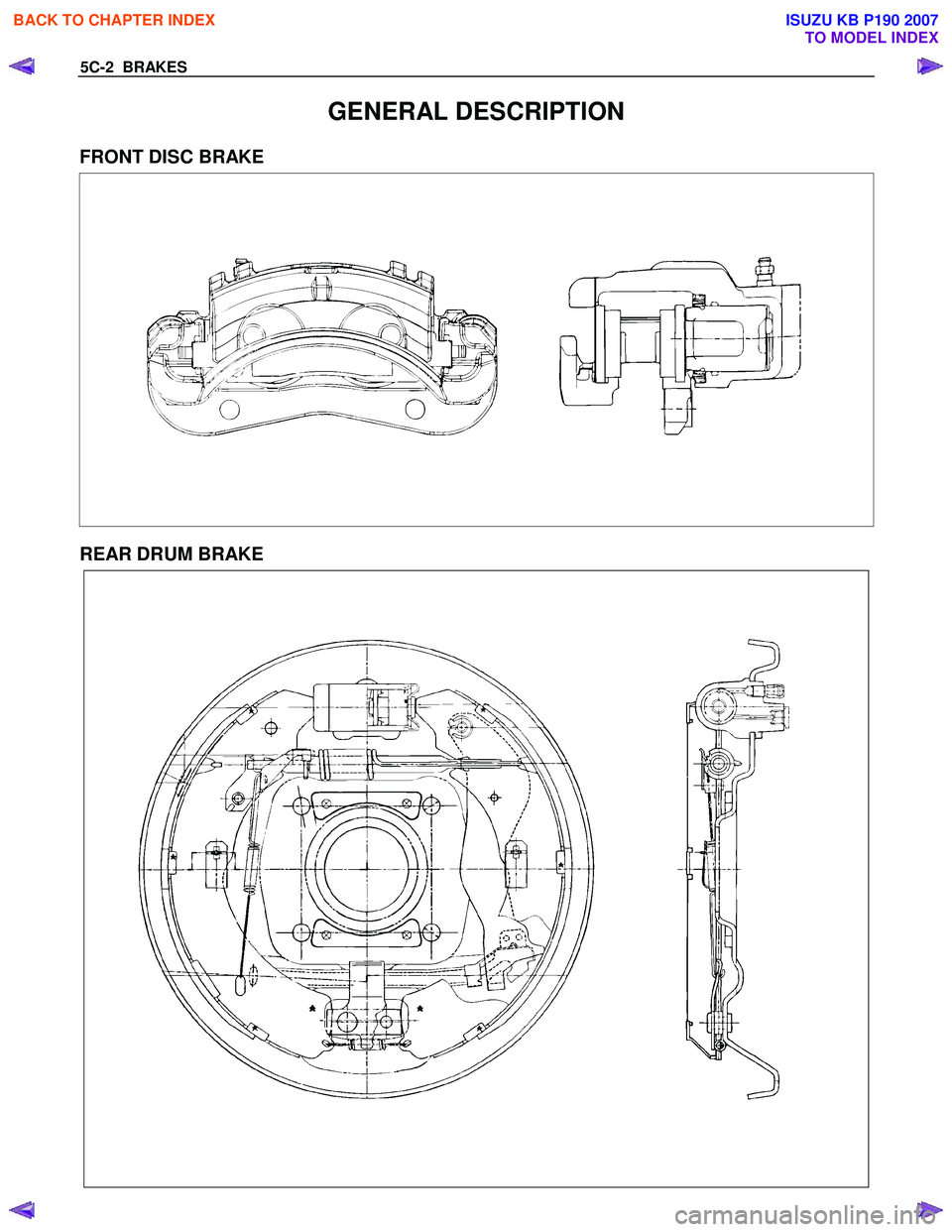

GENERAL DESCRIPTION
FRONT DISC BRAKE


REAR DRUM BRAKE



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

BRAKES 5C-3

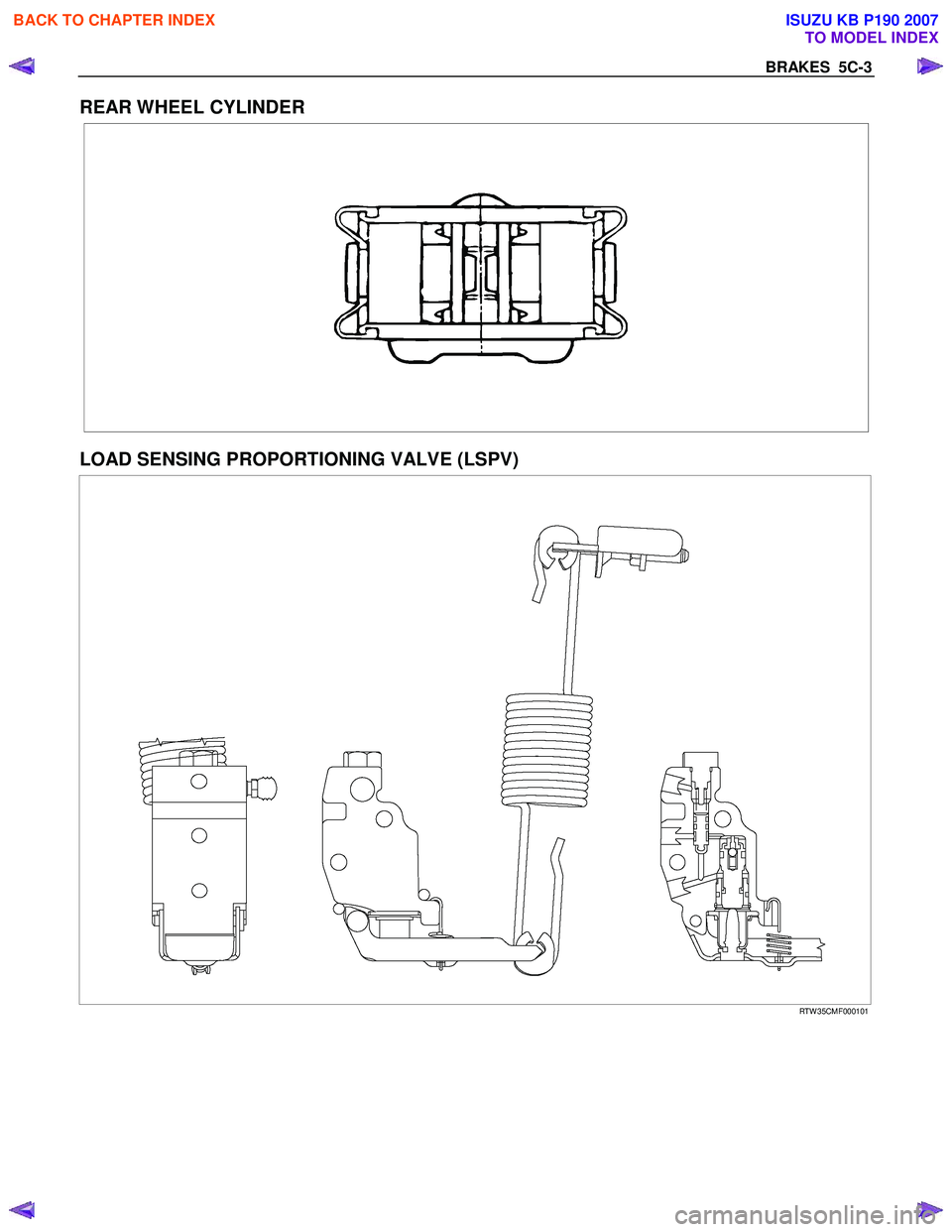

REAR WHEEL CYLINDER



LOAD SENSING PROPORTIONING VALVE (LSPV)
RTW 35CMF000101

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

5C-4 BRAKES

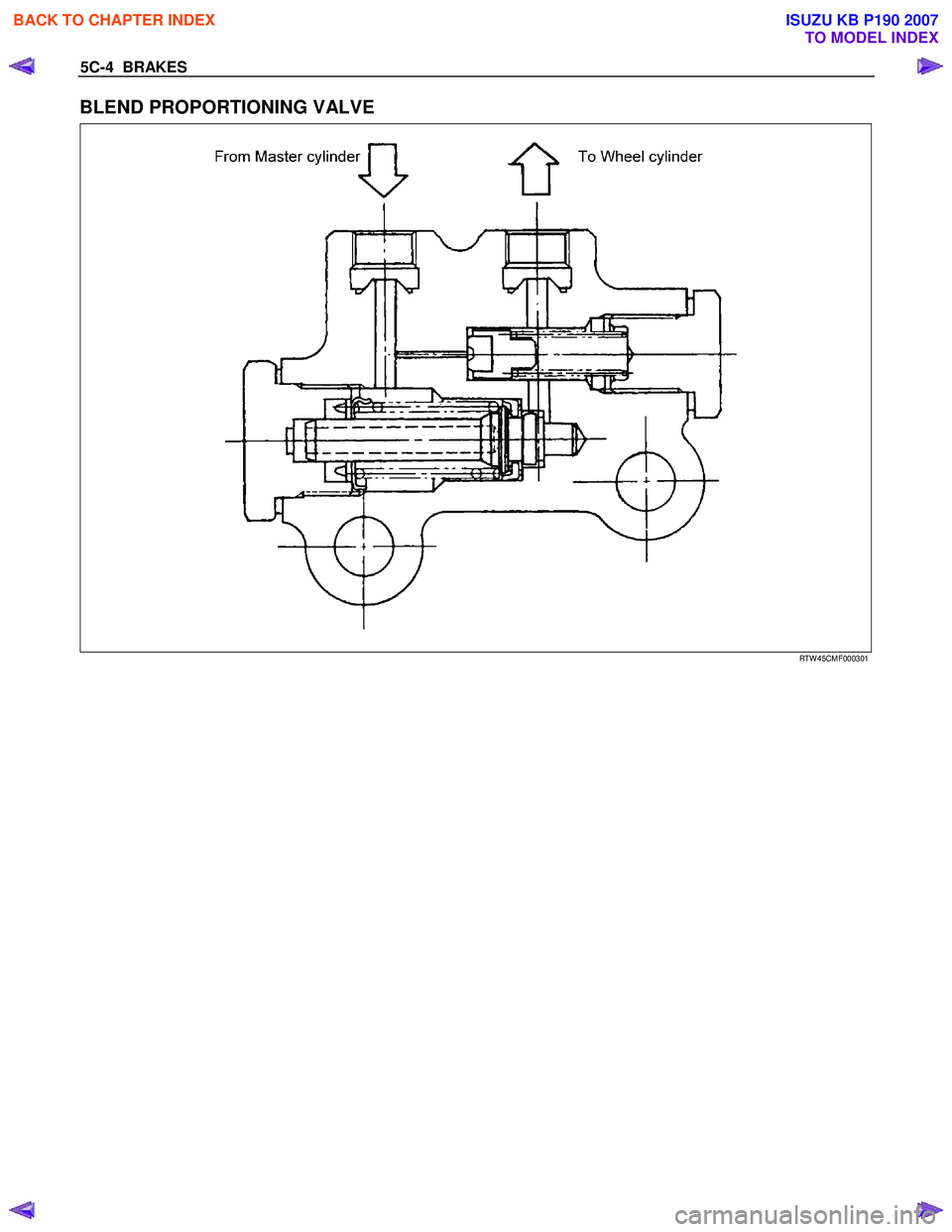

BLEND PROPORTIONING VALVE


RTW 45CMF000301

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

BRAKES 5C-5

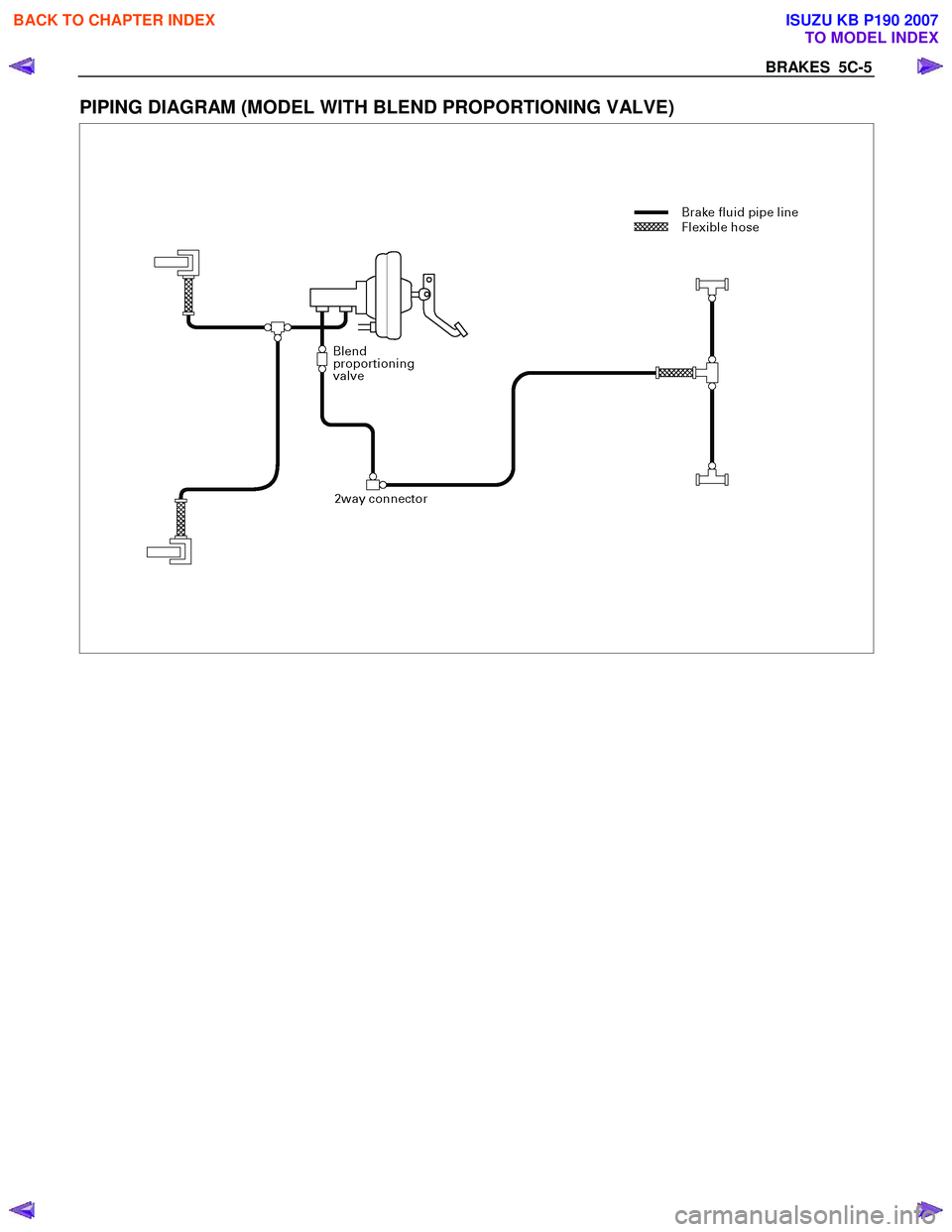

PIPING DIAGRAM (MODEL WITH BLEND PROPORTIONING VALVE)



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

5C-6 BRAKES

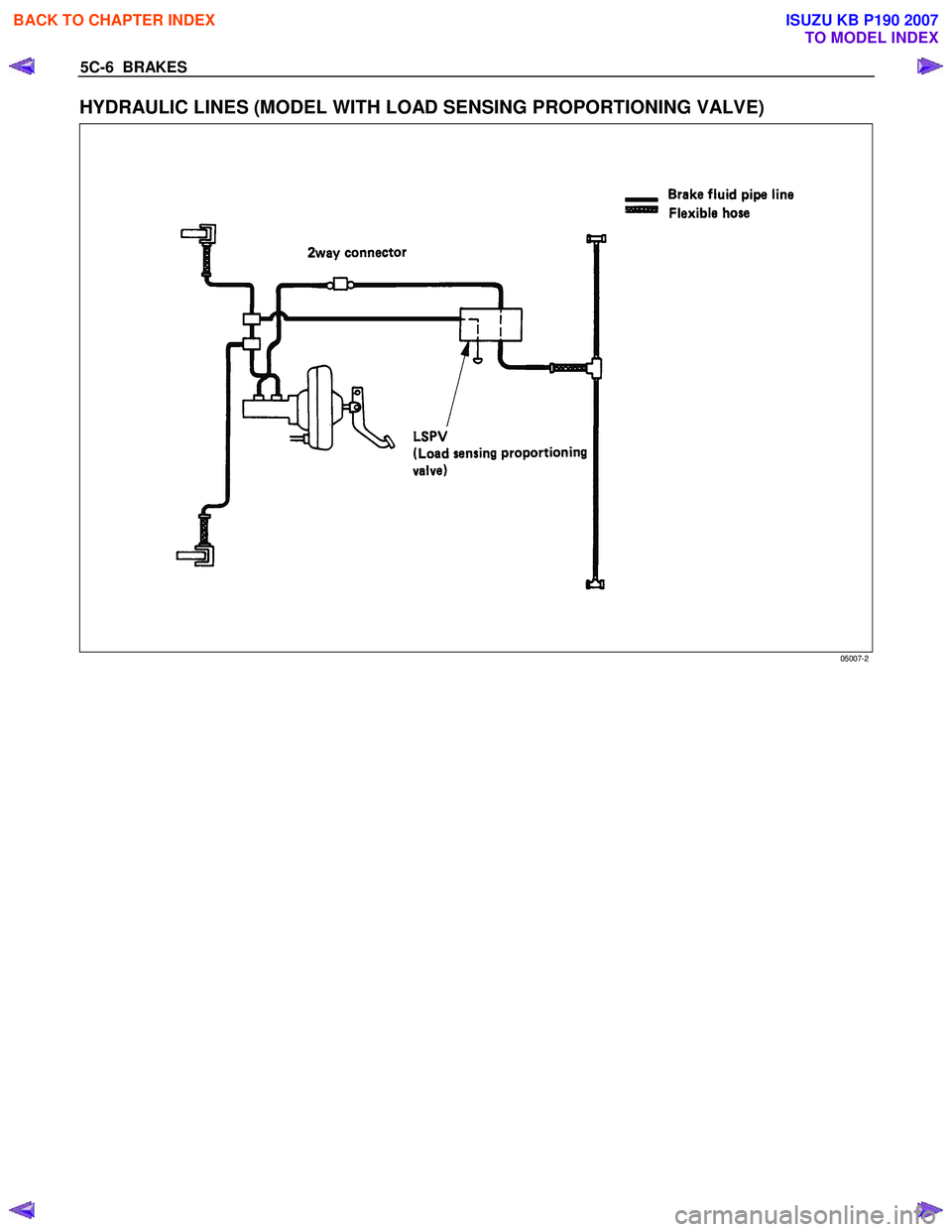

HYDRAULIC LINES (MODEL WITH LOAD SENSING PROPORTIONING VALVE)




05007-2


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

BRAKES 5C-7
HYDRAULIC LINES (MODEL WITH ABS)


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

5C-8 BRAKES
VACUUM SERVO WITH MASTER CYLINDER (RHD)

RTW 75CMF000101

VACUUM SERVO WITH MASTER CYLINDER (LHD)

RTW 75CMF001801

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

BRAKES 5C-9
MAIN DATA AND SPECIFICATIONS
FRONT DISC BRAKE mm (in) 4 × 2 HIGH RIDE
4
× 2
4 × 4
Caliper type Pin slide
Disc outside diameter 256 (10.079) 280 (11.024)
Disc thickness 26 (1.024) 27 (1.063)
Piston diameter 42.8 (1.685) × 2 45.5 (1.791) × 2
Adjustment method Self-adjusting
REAR DRUM BRAKE mm (in) 4 × 2 HIGH RIDE
4
× 2
4 × 4
Type Leading and Trailing
Drum inside diameter 254 (10.000) 295 (11.614)
Brake lining dimension 244 × 50 × 5 283 × 45 × 5
(Length × W idth × Thickness) (9.61 × 1.97 × 0.20) (11.14 × 1.77 × 0.20)
Adjustment method Self-adjusting
W HEEL CYLINDER mm (in)
Inside diameter: rear 25.4 (1.000) 23.8 (0.937)
MASTER CYLINDER mm (in)
Type Split
Bore diameter 25.4 (1.000)
Piston stroke (Primary + Secondary) 21.8 + 12 (0.86 + 0.47)
VACUUM SERVO mm (in)
Diaphragm diameter 205 (8.071) + 230 (9.055)
Power cylinder stroke 35 (1.378)
PEDAL RATIO 3.7
BALANCE
Type Load sensing proportioning valve (without ABS) /
Blend proportioning valve (without ABS)/EBD (with ABS)



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

5C-10 BRAKES

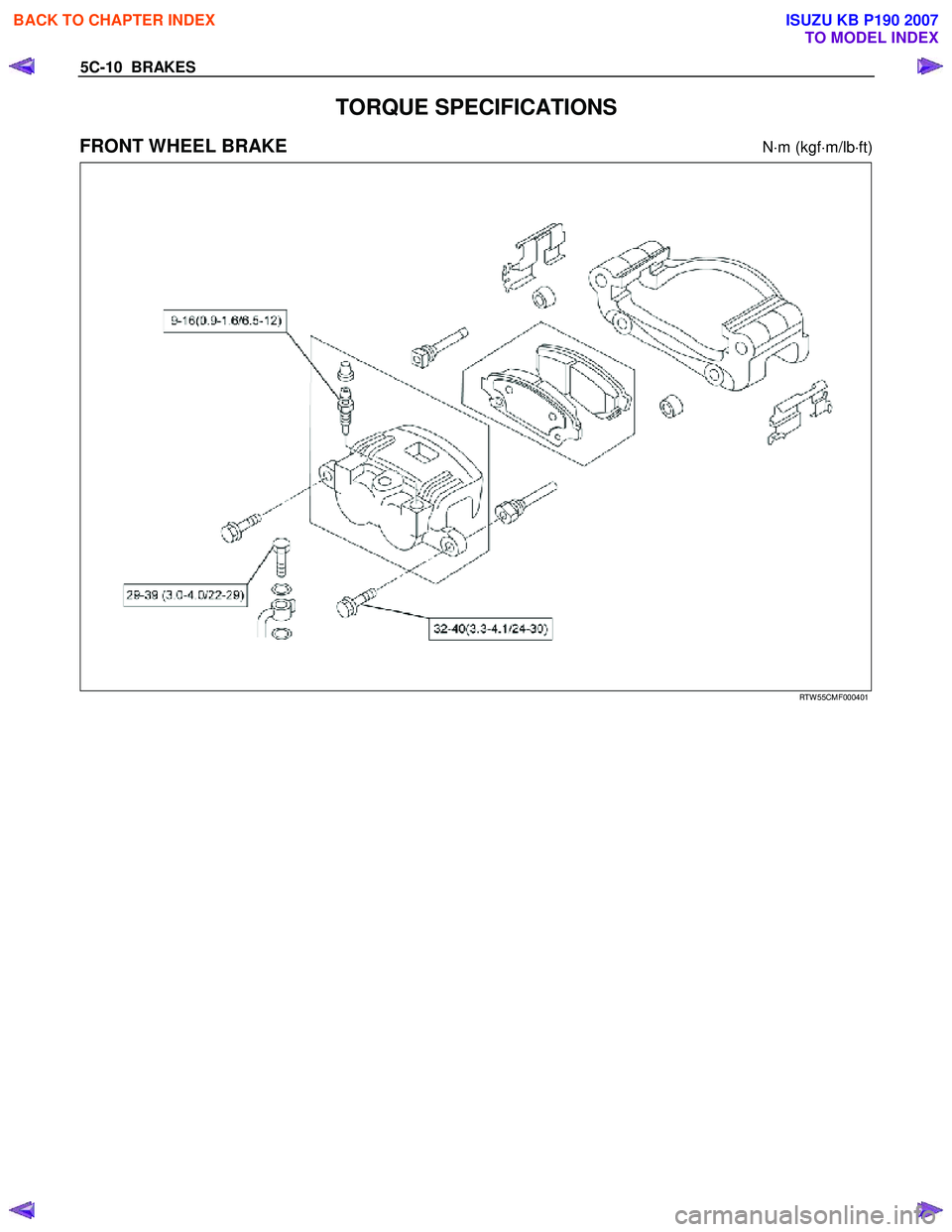

TORQUE SPECIFICATIONS
FRONT WHEEL BRAKE N⋅m (kgf ⋅m/lb ⋅ft)

RTW 55CMF000401


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

BRAKES 5C-11
REAR WHEEL DRUM BRAKE N⋅m (kgf ⋅m/lb ⋅in)

RTW 55CMF000301
