ISUZU TROOPER 1995 Workshop Manual

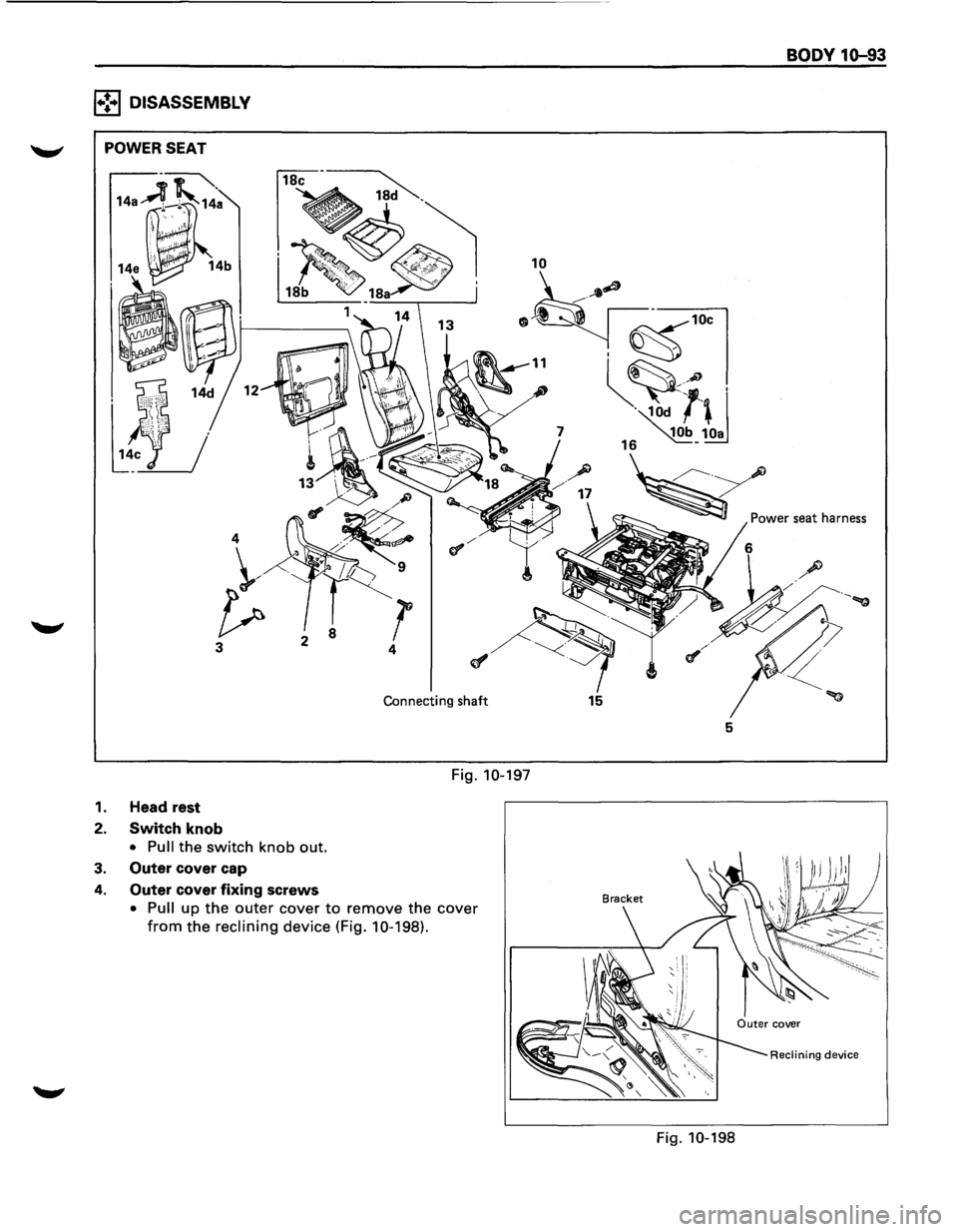

B3 DISASSEMBLY~-------
1.
2.
3.
4.
3
Connecting shaft
Fig. 10-197
Head rest
Switch knob
"t h knob out. • Pull the SWI c
over cap
Outet' c . lng screws ove the cover
Outer
cov~~=:uter cov~r ~~;;:m10·198). • Pull up lining dev1ce from the rec
---
BODY 10-93
5
Fig. 10-198

1Q-94 BODY
5. Front cover
6. Front lower cover
7. Rear cover
8. Outer cover
• Disconnect the switch connectors and
remove the harness
fixing clips.
9. Switch assembly
•
Remove the switch fixing screws from the
outer cover.
10. Armrest assembly
• Open the armrest fastener and remove the
fixing bolt (Fig. 10-199).
10a.Knob
• Remove the knob fixing screws.
Fig.
10-199
10b. Bezel
• Pull
the bezel out from armrest assembly.
10c. Trim cover
10d. Pad & frame assembly
11. Inner cover
• Remove the cover fixing screw.
• Pull up the inner cover to remove the cover
from the reclining device (Fig. 10-198).
12. Back
board assembly (Fig. 10-200)
•
Remove the board fixing screws.
• Pull the back board downward and remove
the board from the seat back frame.
Back side of back board
Seat back frame
Fig. 10-200
13.
Reclining device (Fig. 10-201)
•
Remove the device lower side fixing bolt to
separate the seat back and seat cushion.
• Disconnect the seat heater connector.
• Remove the trim cover hog rings from the
back side of the seat back assembly.
• Turn up the seat back trim cover to remove
the device upper side fixing bolt.
• Disconnect the connecting shaft and device
connectors.
Fig. 10-201

14. Seat back assembly
14a. Guide holder (Fig. 10-202)
•
Remove the trim cover fixing hog rings from
the back side of the seat back assembly.
•
Hold the tip end of the guide holder and pull
the holder out from the seat back assembly.
Fig.
10-202
14b. Trim cover
Guide holder
• Remove the trim cover hog rings from the
back side of the seat back.
• With close attention paid to the hog rings
and
wire which connect the trim cover and
pad
& frame assembly, remove the trim
cover while turning it up.
14c.
Seat heater
14d. Pad assembly
14e. Frame assembly
15. Outer lower cover
16.
Inner lower cover
17.
Adjuster assembly
•
Disconnect the connectors and remove the
fixing bolts.
• Remove the power seat harness from the
adjuster assembly.
18.
Seat cushion assembly
18a. Trim cover
• Remove the trim cover hog rings from the
back side of the seat cushion assembly.
• With close attention paid to the hog rings
and
wire which connect the trim cover and
"-"" pad & frame assembly, remove the trim
cover while turning it up.
18b.
Seat heater 18c.
Frame
assembly
18d. Pad assembly
1•:.1 REASSEMBLY
BODY 1Q-95
To reassembly, follow the disassembly steps in the
reverse order, noting
the following point;
1. Tighten the fixing bolts to the specified torque.
• Refer to "TORQUE SPECIFICATIONS" in this
section.

10-96 BODY
REAR SEAT ASSEMBLY
1. Mounting
bracket
cover
(L.W·B)
1++1 REMOVAL
r
l
SPLIT TYPE
3. Rear seat assembly
BENCH TYPE
Fig. 10-203
I••IINSTALLATION
Preparation: Unlock the rear seat lock to remove it To install, follow the removal steps in the reverse
order, noting the following point. (L·W·B).
1. Mounting bracket cover (l·W·BI
2. Fixing bolts
1®.1 Rear seat bolt socket: J-39377 (Fig. 10-204)
Fig. 10-204
3. Rear seat assembly
1. Tighten the rear seat fixing bolts to the
specified torque.
~~~ Torque N-m (lb-ft) I 19 (14)
..

1•!3 DISASSEMBLY
TYPE> {fig. 10-205)
1.
2.
3.
4.
5.
Back board
• Remove the clips and back board.
Device cover
Release knob
Fig. 10-205
•
!urn the knob counterclockwise to remove
lt.
Release rod
• Disconnect the rod from the linkage bush.
Reclining device (Fig. 10-206)
BODY 1G-97
Fig. 10-206

10-98 BODY
6. Connecting shaft
7. Seat back assembly
7a. Band hook cover
7b.
Pillow assembly
•
Turn up the seat back trim cover and slit the
pad
from the back around the place where
the lock spring of the guide bush is. Then
insert a
finger through the slit and pull out
the pillow while pressing down on the lock
spring. (Fig. 10-207)
Guide bush
Lock spring
Fig. 10-207
7c.
Armrest assembly
• Turn up the seat back trim cover and remove
the fixing nuts.
7d.
Armrest set bracket
7e. Armrest board
• Remove the fixing clips.
7f. Trim cover
• Remove the trim cover fixing hog rings from
the back side of seat back.
• With close attention paid to the hog rings
and
wire which connect the trim cover and
the pad and
frame assembly, remove the
trim cover while turning it up.
7g. Pad
& frame assembly
8. Seat cushion assembly
Sa. Seat lock cover
Sb. Rear seat belt buckle and lock assembly
Sc. Mounting bracket
Sd. Return spring
Se. Spring collar
Sf. Trim cover
• Remove the hog rings and pull the trim
cover out from frame assembly groove.
• With close attention paid to the hog rings
and
wire which connect the trim cover and
the pad and frame assembly, remove the
trim cover while turning it up.
Sg. Frame assembly
Sh. Pad assembly
Si. Stopper rubber
1++1 REASSEMBLY
To reassembly, follow the disassembly steps in the
reverse order, noting the following point.
1. Tighten the reclining device fixing bolts to the
specified torque.
~~~ Torque N-m (lb.ft) 22 (16)
2. Loosen the stopper rubber lock nut and adjust
the stopper so there is no clearance between
the bottom of the stopper and the carpet, while
ensuring the rear seat is firmly locked.
Then tighten the lock nut securely. (Fig. 10-208)
0
0
Lock nut
F Iocr carpet
Fig. 10-208

,__,.
(Fig. 10-209)
3
1
Linkage bush
7d
--L·W·B I
Linkage bush
7c
BODY 1D-99
S·W·B
==c=
6g
L ___ _
Fig. 10-209
1. Device cover 5. Connecting shaft
2. Release knob 6. Seat back assembly
• Turn the knob to the counterclockwise to 6a. Band hook cover remove it.
6b. Pillow assembly (Fig. 10-207)
3. Release rod • Refer to "SPLIT TYPE DISASSEMBLY" in this
• Disconnect the rod from the linkage bush. section .
4. Reclining device (Fig. 10-2061 6c. Arm rest assembly

1Q-100 BODY
&d. Arm ret set assembly
&e. Arm rest board
&f. Trim cover
• Open the fastener, and with close attention
paid
to the hog rings and wire which
connect the trim cover and the pad & frame
assembly, remove the trim cover while
turning it up (Fig. 10-210).
Fastener
Fig. 10-210
&g. Pad & frame assembly
7. Seat cushion assembly
7a. Seat lock cover
7b. Rear seat
belt buckle and lock assembly
7c.
Mounting bracket
7d.
Trim cover
• Remove the hog rings and pull the trim
cover out from frame assembly groove.
• With close attention paid to the hog rings
and
wire which connect the trim cover and
the pad
assembly, remove the trim cover
while turning it up.
7e. Frame
assembly
7f. Pad assembly
7g. Stopperrubber
l•!•l REASSEMBLY
To reassemble, follow the disassembly steps in the
reverse order,
noting the following point.
1. Tighten the reclining device fixing bolts to the
specified torque.
~~~ Torque N-m (lb-ft) 22 (16)
2. Loosen the stopper rubber lock nut and adjust
the
stopper so there is no clearance between
the
bottom of the stopper and the carpet, while
ensuring the rear seat is firmly locked.
Then tighten the lock nut securely. (Fig. 10-211)
Floor carpet
~Stopper rubber __ _
"""' Fig. 10-211

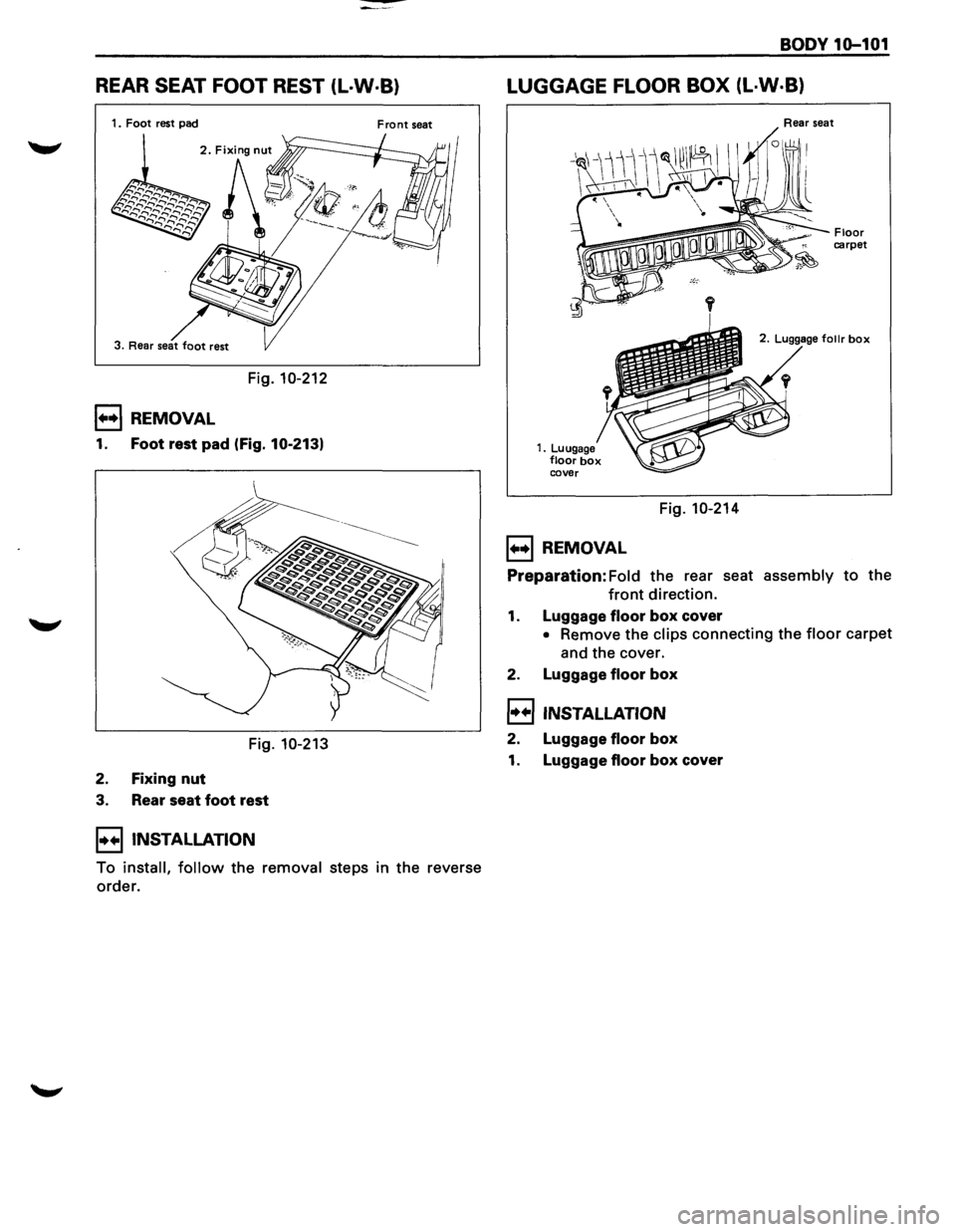

REAR SEAT FOOT REST (L·W·B)
1. Foot rest pad Front seat
Fig. 10-212
1+•1 REMOVAL
1. Foot rest pad (Fig. 10-213)
Fig. 10-213
2. Fixing
nut
3. Rear seat foot rest
I••! INSTALLATION
To install, follow the removal steps in the reverse
order.
BODY 10-101
LUGGAGE FLOOR BOX (L·W·B)
1. Luugage
floor box cover
B REMOVAL
Fig. 10-214
Rear seat
Floor
carpet
follr box
Preparation: Fold the rear seat assembly to the
front direction.
1. Luggage floor box cover
• Remove the clips connecting the floor carpet
and the cover.
2. Luggage
floor box
I••! INSTALLATION
2. Luggage floor box
1. Luggage floor box cover

10-102 BODY
ROPE HOOK SET
Hook
Cover
Luggage floor ------carpet
Fig. 10-215
1••1 REMOVAL
1. Rope hook set
• Open the hook cover and hook fixing bolt.
I••! INSTALLATION
1. Rope hook set
• Tighten the hook fixing bolt to the specified
torque.
1~1 Torque N·m Ob·in) I 13(113)
