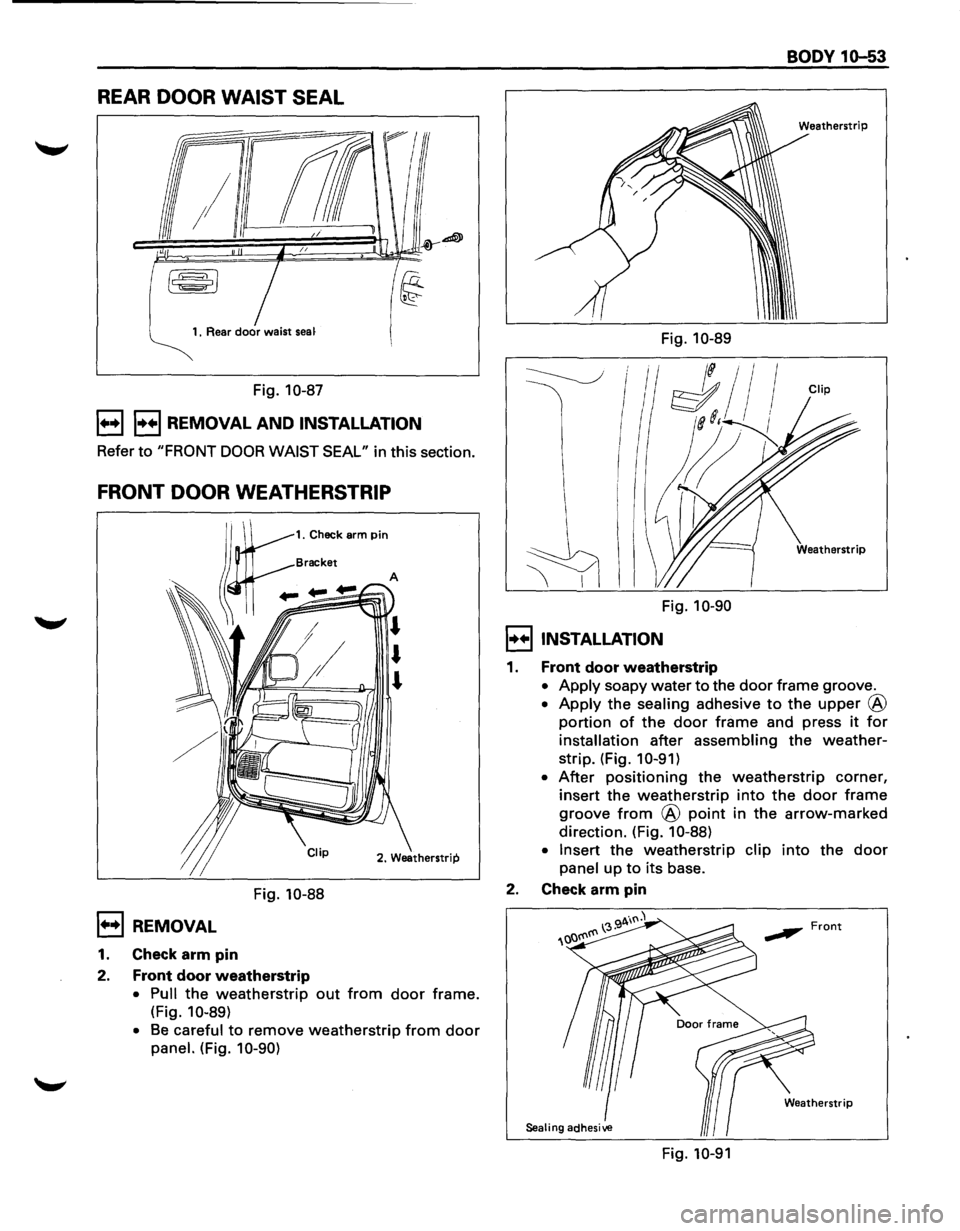

REAR DOOR WAIST SEAL
1. Rear door waist seaf
Fig. 10-87
1++11++1 REMOVAL AND INSTALLATION
Refer to "FRONT DOOR WAIST SEAL" in this section.
FRONT DOOR WEATHERSTRIP
1. Check arm Pin
Fig. 10-88
1++1 REMOVAL
1. Check arm pin
2. Front door weatherstrip
• Pull the weatherstrip out from door frame.
{Fig.
10-89)
•
Be careful to remove weatherstrip from door
panel. {Fig. 10-90)
Fig. 10-89
Fig. 10-90
I++IINSTALLATION
1. Front door weatherstrip
BODY 1Q-53
Clip
Weatherstrip
• Apply soapy water to the door frame groove.
• Apply the sealing adhesive to the upper ®
portion of the door frame and press it for
installation after assembling the weather­
strip. {Fig. 10-91)
•
After positioning the weatherstrip corner,
insert
the weatherstrip into the door frame
groove from @ point in the arrow-marked
direction. {Fig. 10-88)
• Insert
the weatherstrip clip into the door
panel up to its base.
2. Check arm pin
___, Front
Weatherstrip
Sealing adhesive
Fig. 10-91

10-54 BODY

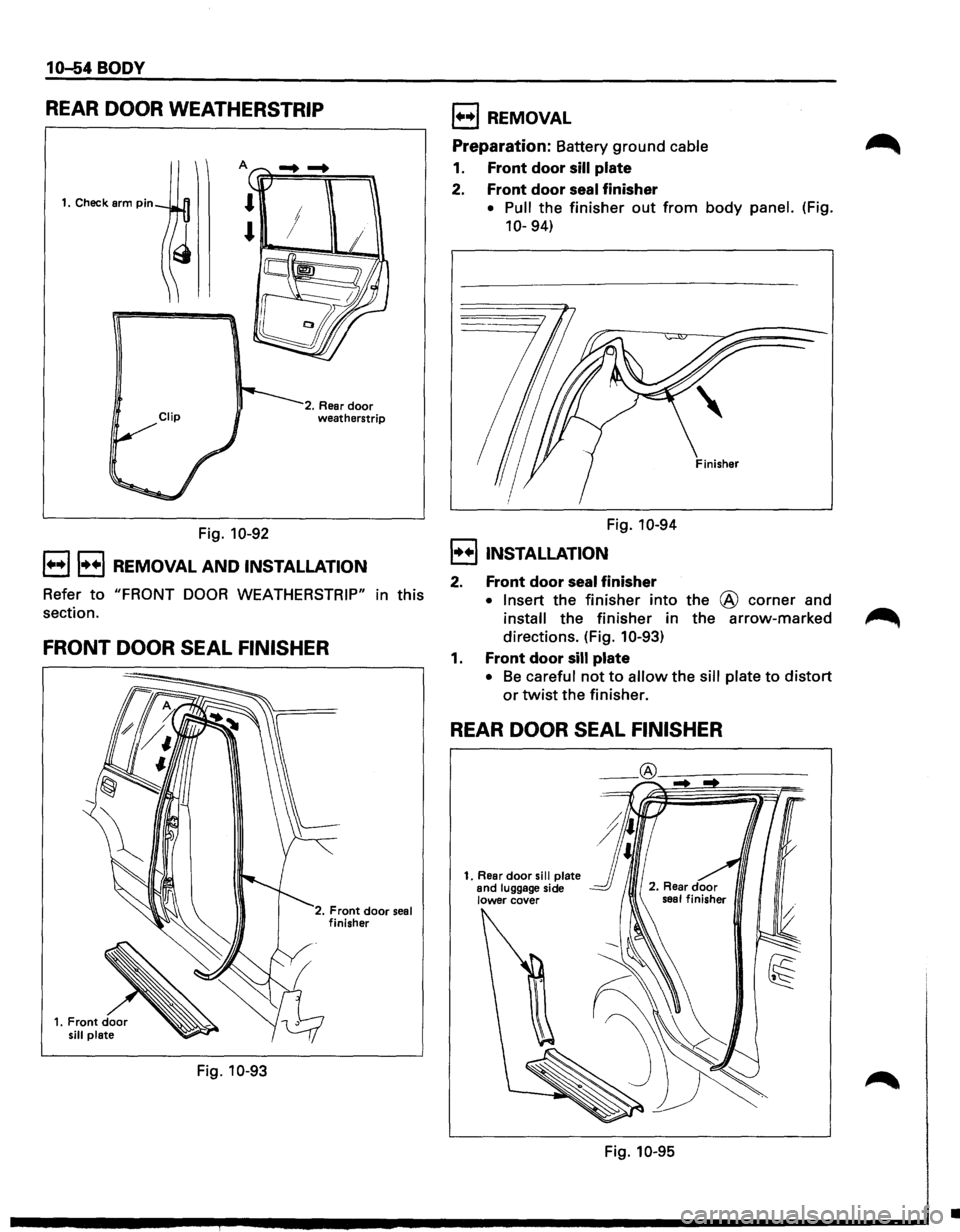

REAR DOOR WEATHERSTRIP
A
Fig. 10-92
2. Rear door weatherstrip
1++11++1 REMOVAL AND INSTALLATION
Refer to "FRONT DOOR WEATHERSTRIP" in this
section.
FRONT DOOR SEAL FINISHER
Fig. 10-93
2. Front door seal finisher
1++1 REMOVAL
Preparation: Battery ground cable
1. Front door sill plate
2. Front door seal finisher
• Pull the finisher out from body panel. (Fig.
10-94)
Fig.
10-94
!••I INSTALLATION
2. Front door seal finisher
• Insert the finisher into the @ corner and
install the finisher in the arrow-marked
directions. (Fig.
10-93)
1. Front door sill plate
• Be careful not to allow the sill plate to distort
or twist the finisher.
REAR DOOR SEAL FINISHER
1. Rear door sill plate
and luggage side
lower cover
Fig. 10-95
•

1••1 REMOVAL
Preparation: Battery ground cable
1. Rear door sill plate and luggage side lower
cover
2. Rear
door seal finisher
• Pull the finisher out from body panel. (Fig.
10-94)
I++IINSTALLATION
2. Rear door seal finisher
• Insert the finisher into the @ corner and
install the finisher in the arrow-marked
directions. (Fig.
10-95)
1. Rear door sill plate and luggage side lower
cover
• Be careful not to allow the sill plate and the
cover
to distort or twist the finisher.
DOOR MIRROR
3. Door mirror
1+•1 REMOVAL
Fig. 10-96
Preparation: Disconnect the battery ground cable
1. Door mirror cover (Fig. 10-97)
• On a model equipped with a tweeter,
remove
the connectors. (Fig. 10-97)
2. Door mirror connector
3. Door mirror
Fig. 10-97
BODY 10-55
I++IINSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following point.
1. When installing the door mirror, install the bolt
to the mirror temporarily, hook the bolt to the
door side hole and tighten it from the inside.
(Fig.
10-98)
Door mirror fixing bolt
Fig. 10-98
2. When installing door mirror, hold the lip of
glass run between mirror base and center
sash. (Fig.
10-99)
Glass
Center sash
Inner,
Front
Fig. 10-99
Glass run lip
Door mirror packing
3. Tighten the door mirror fixing bolts to the
specified torque.
~~~ Torque N·m Ob·hl) 8 (69)

10-56 BODY
BODY SIDE
INTERIOR TRIM PANELS
LUGGAGE
SIDE AND QUARTER UPPER TRIM COVER
Long Wheel Base
6
1
Removal steps 1. Rear end floor trim cover 2. Luggage side cap 3. Luggage side lower cover 4. Luggage side trim cover 5. Luggage room light
1+•1 REMOVAL
6. Rear roof trim cover
7. Speaker grille 8. Rear speaker 9. Rear seat belt anchor bolt cover and anchor bolt
Fig. 10-100
Preparation: Disconnect the battery ground cable
1. Rear end floor trim cover
2. Luggage side cap
3. Luggage side lower cover
4. Luggage side trim cover
• Remove rear side fixing screws and pry trim
cover retainers free from the body panel and
upper trim cover. (Fig. 10-101)
5. Luggage room light
• Remove luggage room light lens and fixing
screws.
• Disconnect luggage room light connector.
6. Rear roof trim cover (Fig. 10-102)
• Pry trim cover retainers free from the body
panel.
Roof side trim cover
, _ _.,,..~
~
9
10. Quarter upper trim cover
Installation steps
To install, follow the removal
steps in
the reverse order.
~~F:r Luggage side trim cover
Fig. 10-101
•

Fig. 10-102
7. Speaker grille (Fig. 10-103)
8. Rear speaker
• Remove speaker fixing screws and discon­
nect
the connector.
9. Rear seat belt anchor bolt cover and anchor
bolt
(Fig. 10-104)
10.
Quarter upper trim cover. (Fig. 10-105)
• Remove the rear side clips of the trim cover
and
pry trim cover retainers free from the
body panel.
Fig. 10-103
Anchor bolt
Fig. 10-104
I
~
Fig. 10-105
I+•IINSTALLATION
BODY 10-57
To install, follow the removal steps in the reverse
order, noting the
following point.
1. Tighten the seat belt anchor bolt to the
specified torque.
~~~ Torque N·m (lb·ftl 39 (29)

10-58 BODY
Short Wheel Base
Removal steps 1. Rear end floor trim cover 2. Luggage side cap 3. Luggage side lower cover 4. Luggage room light 5. Rear roof trim cover 6. Speaker grille
7. Rear speaker 8. Rear assist grip 9. Rear seat belt anchor bolt cover
and anchor bolt 10. Front seat belt anchor bolt cover
and anchor bolt 11. Quarter upper trim cover 12. Seat belt anchor plate
Installation steps To install, follow the removal steps
in the reverse order.
Fig. 10-106
•

1+•1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Rear end floor trim cover
2. Luggage side cap
3. Luggage side lower cover
• Remove rear side fixing screws and pry trim
cover retainers free from the body panel and
upper trim cover. (Fig. 10-107)
I
w\\1
Fig. 10-107
4. Luggage room light
• Remove luggage room light lens and fixing
~ screws.
Disconnect
luggage room light connector.
5. Rear roof trim cover (Fig. 10-108)
•
Pry trim cover retainers free from the body
panel.
Fig. 10-108
6. Speaker grille (Fig. 10-109)
Fig. 10-109
7. Rear speaker
BODY 10-59
I
I I
~
• Remove the rear speaker fixing screws and
disconnect
the connector.
8. Rear assist grip
• Open the both side covers of the assist grip
and fixing screws. (Fig. 10-110)
Assist grip
Cover
Fig. 10-110
9. Rear seat belt anchor bolt cover and anchor
bolt (Fig. 10-110)

10-60 BODY
Seat belt
Anchor bolt
Seat belt Anchor plate
Fig. 10-111
10. Front seat belt anchor bolt cover and anchor
bolt (Fig. 10-1121
Fig. 10-112
11. Quarter upper trim cover
• Remove the rear side clips of the trim cover
and
pyr trim cover retainers free from the
body panel. (Fig. 10-113)
12. Seat belt anchor plate
Fig. 10-113
I••! INSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following point.
1. Tighten the seat belt anchor bolt to the
specified torque.
~~~ Torque N·m (lb·ftl 39 (29)
•

BODY 10-61
CENTER PILLAR AND ROOF SIDE TRIM COVER (L·W·B ONLY)
Rear quarter upper trim cover
5
1
Fig. 10-114
1+•1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Door sill plate (Front and rear)
2. Center
pillar lower trim cover (Fig. 10-115)
•
Turn up the finisher and pry the trim cover
retainers free
from the body panel, then
slide the trim cover to the downward.
3. Front seat belt anchor bolt cover and anchor
bolt (Fig. 10-104)
4. Center pillar upper trim cover (Fig. 10-116)
•
Turn up the finisher and pry the trim cover
retainers free
from the body panel.
5. Center pillar assist grip
6. Seat belt anchor plate
7. Assist grip (Fig. 10-117)
• Open
the both side assist grip cover and
remove 2
fixing screws.
Front pillar
trim cover
7
(RH only)
Removal steps 1. Door sill plate (Front and rear) 2. Center pillar lower trim cover
3. Front seat anchor bolt cover
and anchor bolt 4. Center pillar upper trim cover 5. Center pillar assist grip
6. Seat belt anchor plate 7. Assist grip 8. Roof side trim cover
Installation steps To install, follow the removal
steps in the reverse order.
Fig. 10-115

1~2BODY
Fig. 10-116
Assist grip
Cover
Fig. 10-117
8. Roof side trim cover (Fig. 10-118)
•
Turn up the finisher and pry the trim cover
retainers free
from the body panel.
~ -~ Roofsidetrim cover
~=1TF "U G 0
Fig. 10-118
l++liNSTALLATION
To install, follow the removal steps in the reverse ~
order, noting the following point.
1. Tighten the seat belt anchor bolts to the
sp~cified torque.
~~~ Torque N·m (lb·ft) I 39 (29)
ROOF SIDE TRIM COVER (S·W·B ONLY)
2. Roof side trim cover
Fig. 10-119
B REMOVAL
1. Assist grip (RH)
• Open the both side covers and remove the
fixing screws. (Fig. 10-117)
2. Roof side tirm cover
• Turn up the finisher and pry the trim cover
retainers free
from body panel. (Fig. 10-120)
Fig. 10-120
l++liNSTALLATION
To install, follow the removal steps in the reverse ~
order.
