JAGUAR XFR 2010 1.G Workshop Manual

Installation

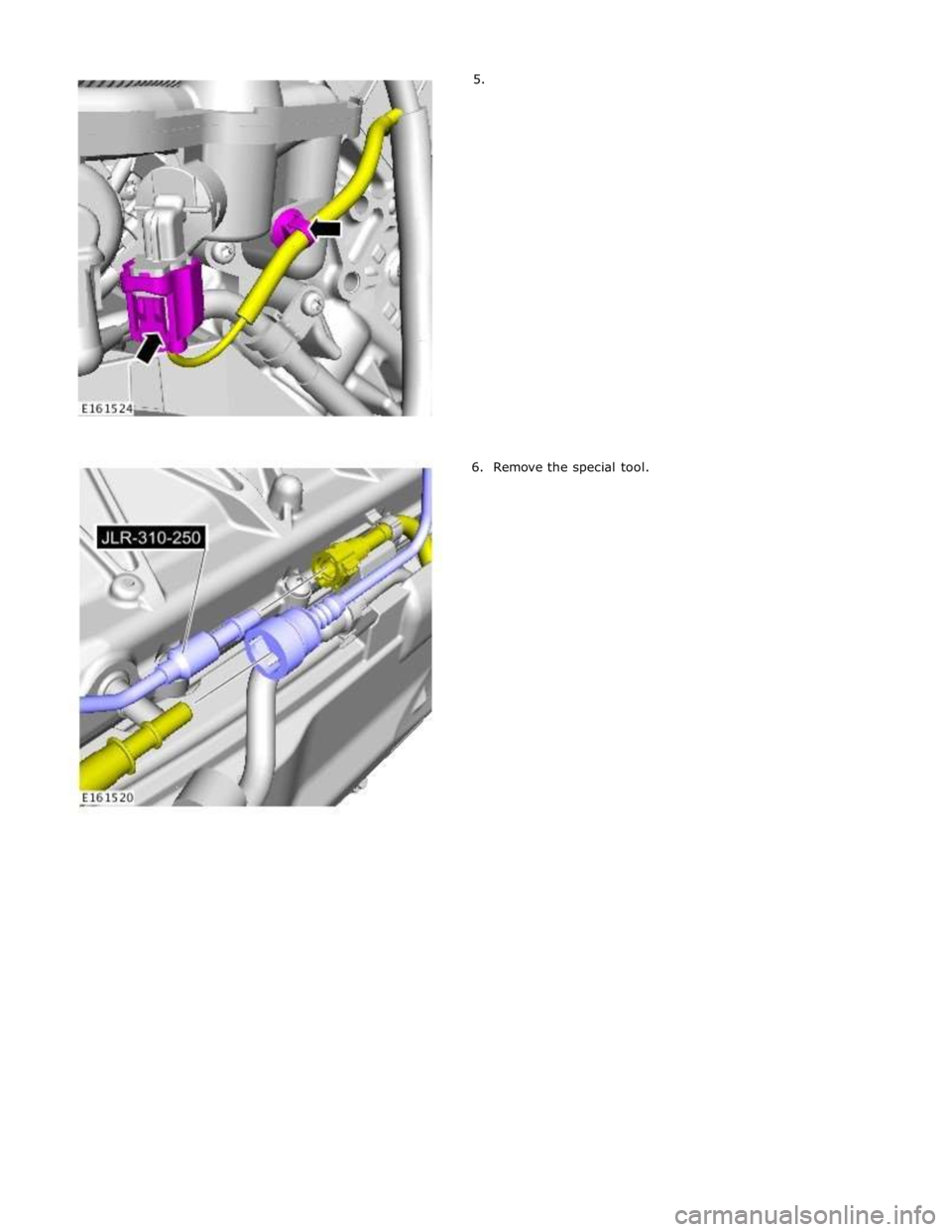

1. Connect the new fuel pipe to end of the special tool as
indicated.



















2. CAUTIONS:


Install a new fuel pipe.


Care must be taken not to damage the component. www.JagDocs.com

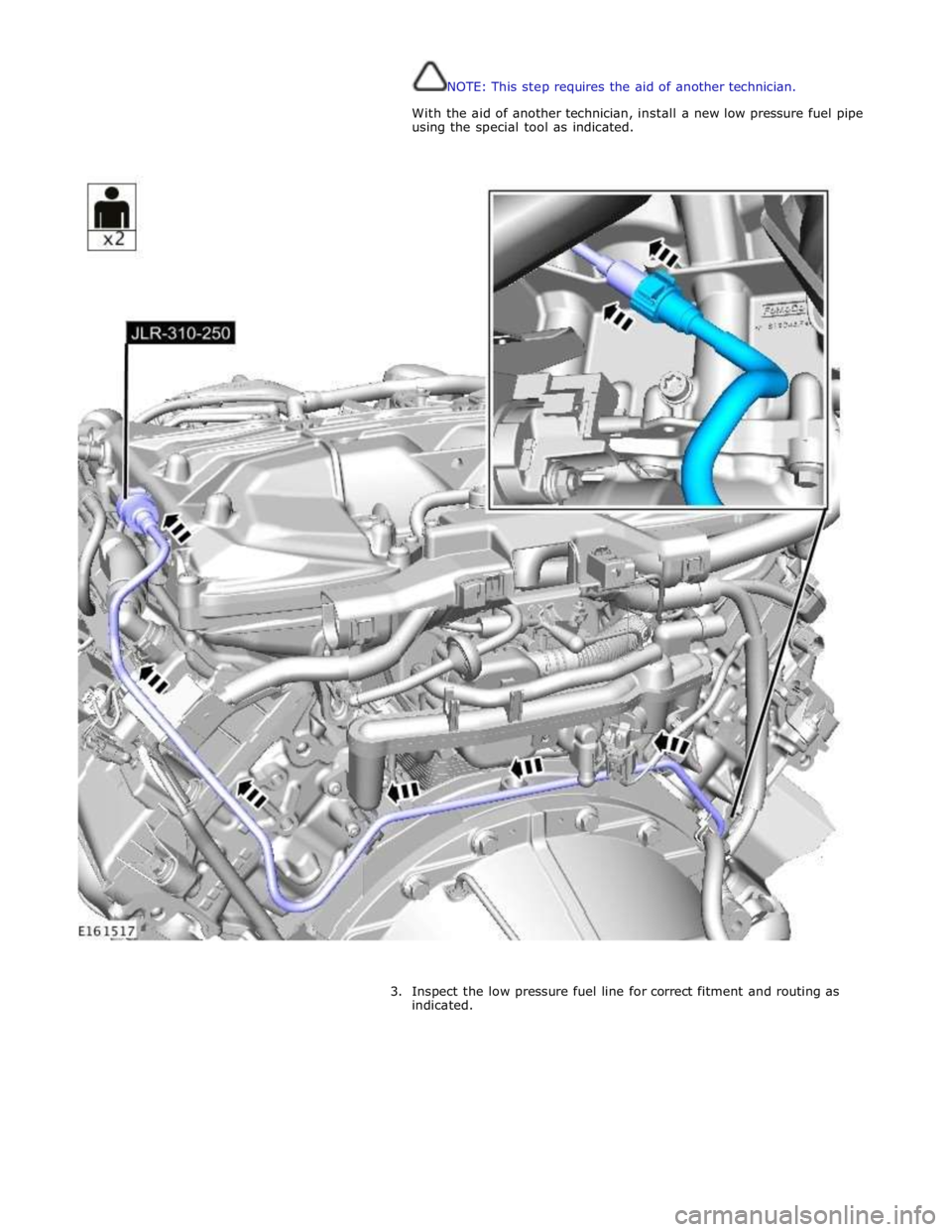

NOTE: This step requires the aid of another technician.

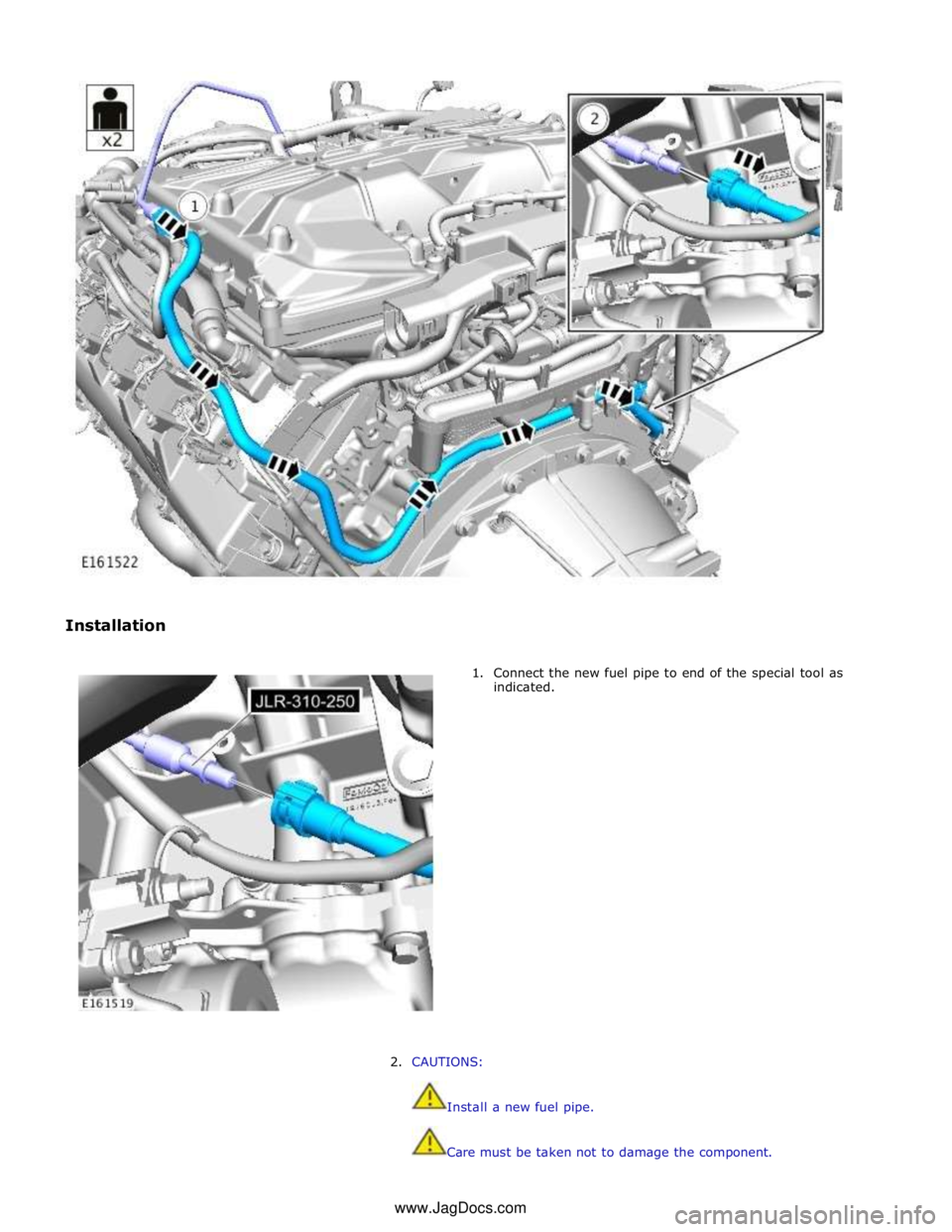

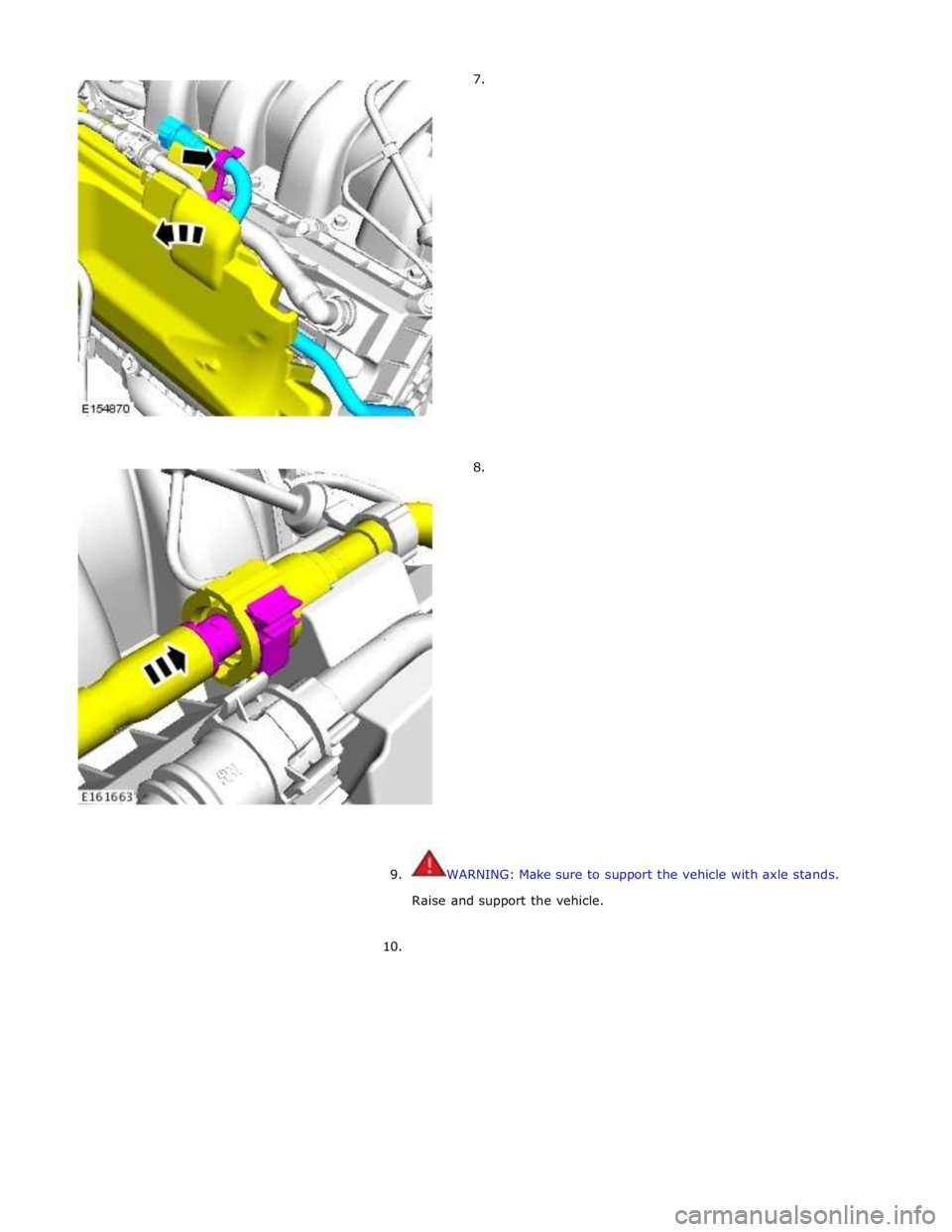

With the aid of another technician, install a new low pressure fuel pipe
using the special tool as indicated.

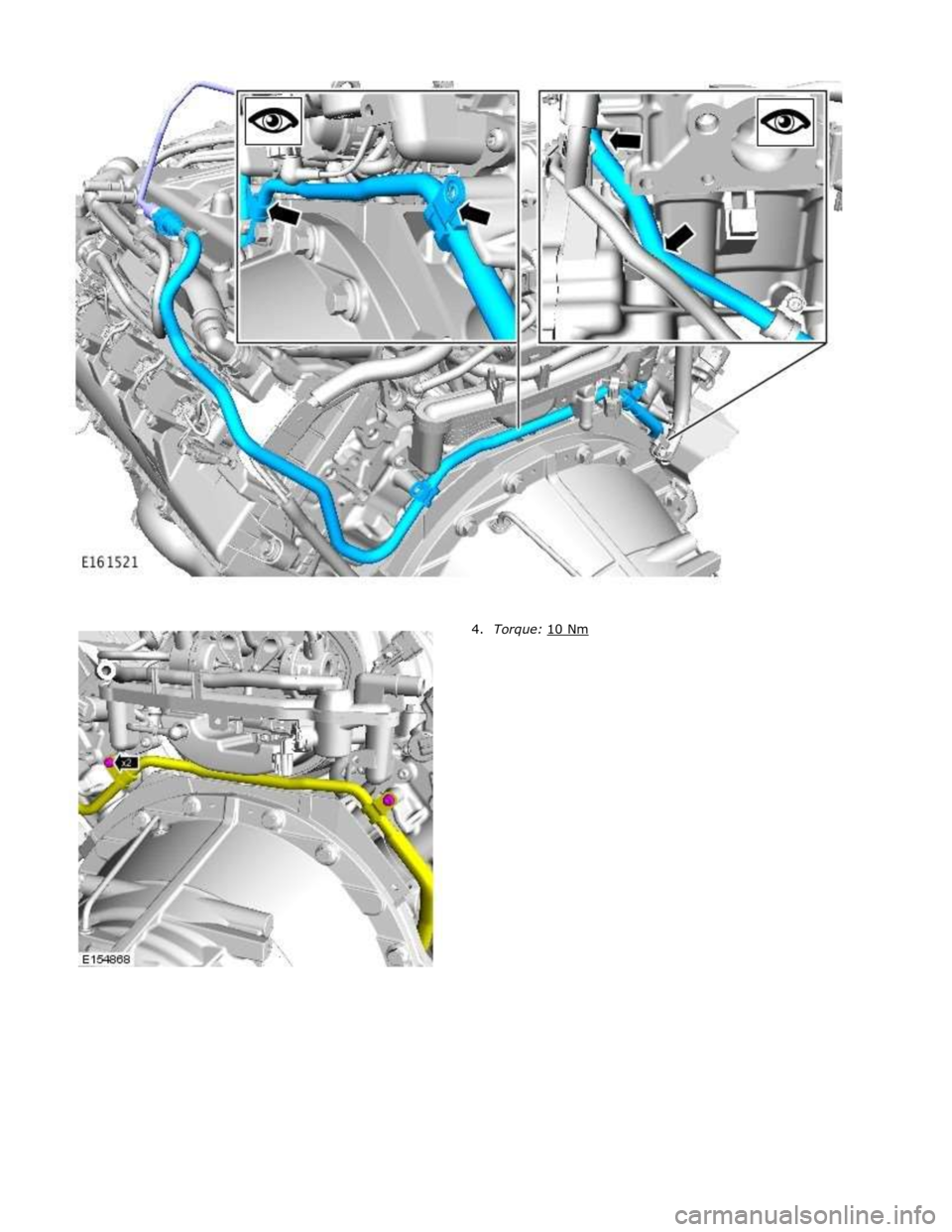

3. Inspect the low pressure fuel line for correct fitment and routing as
indicated.

www.JagDocs.com

14. Refer to: Starter Motor (303-06C Starting System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

15.

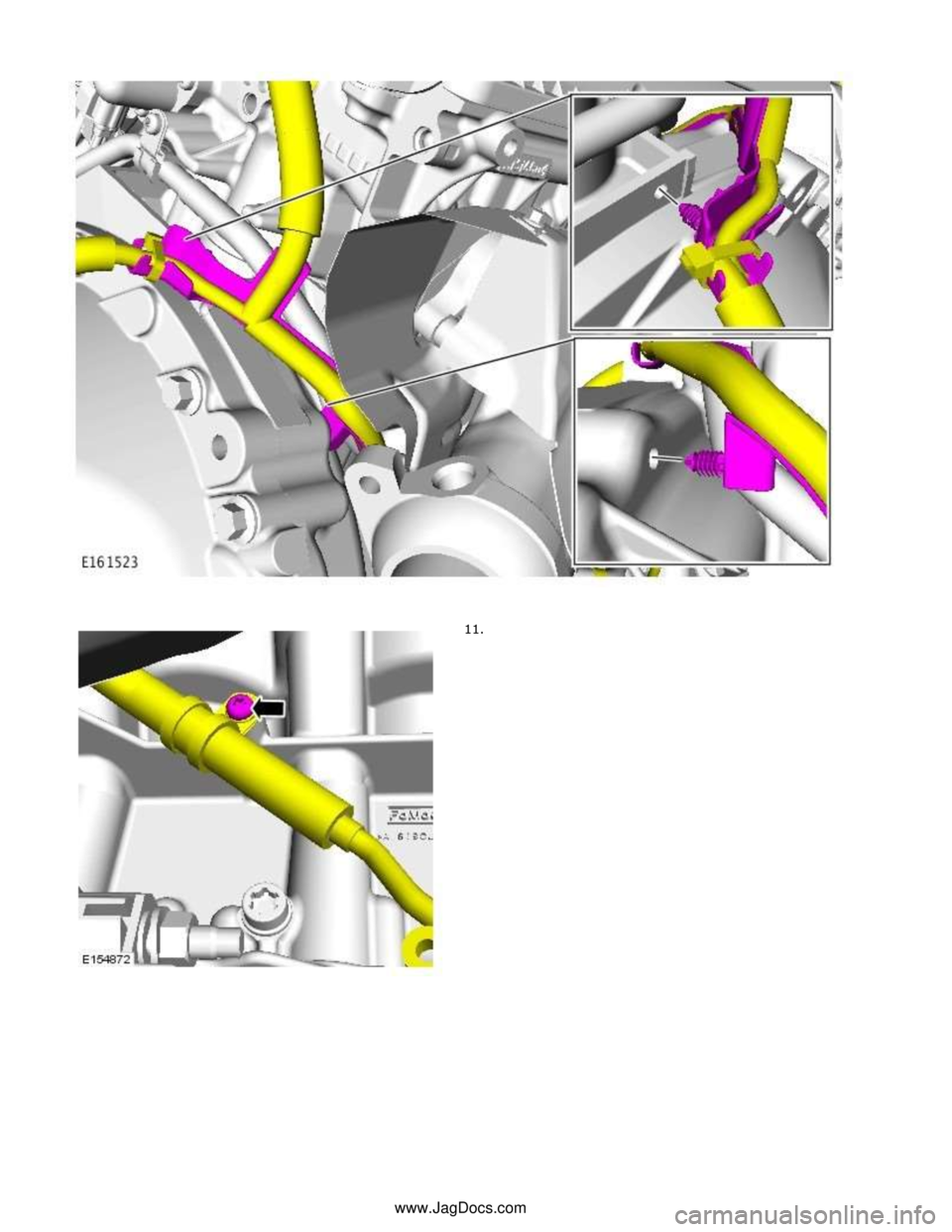

16. NOTE: Tighten the bolts in the indicated sequence.

Torque: 48 Nm

17.
18. Torque: 12 Nm

























NOTE: If equipped.


















19. Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).

20. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
