LAND ROVER FRELANDER 2 2006 Repair Manual

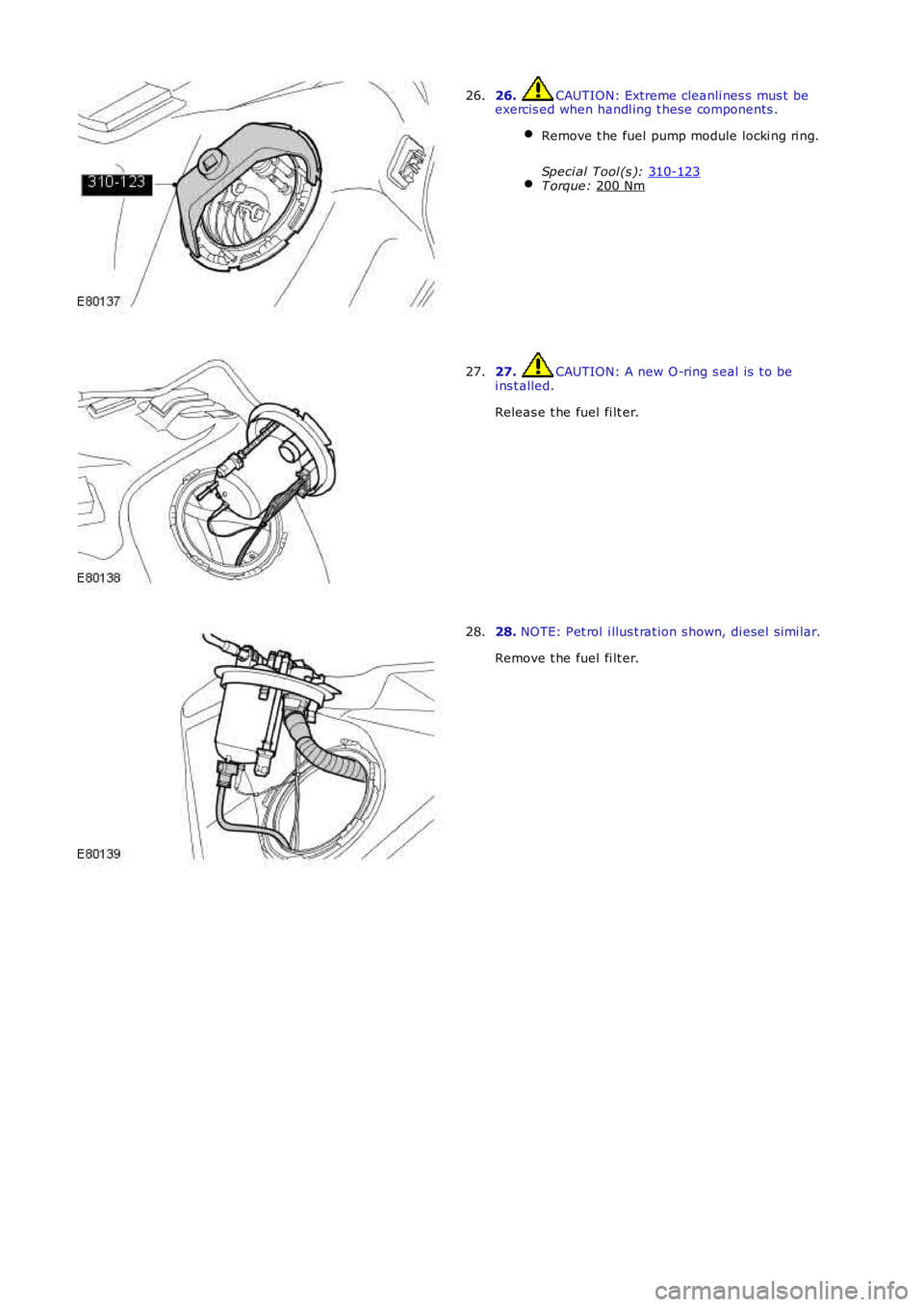

26. CAUTION: Extreme cleanli nes s mus t be
exercis ed when handl ing t hese components .
Remove t he fuel pump module locki ng ri ng.
Speci al Tool (s ): 310-123 T orque:
200 Nm 26.
27. CAUTION: A new O-ring s eal is t o be
i ns t alled.
Releas e t he fuel fi lt er.
27. 28.
NOTE: Pet rol i llus t rat ion s hown, di esel s imi lar.
Remove t he fuel fi lt er.
28.

29.

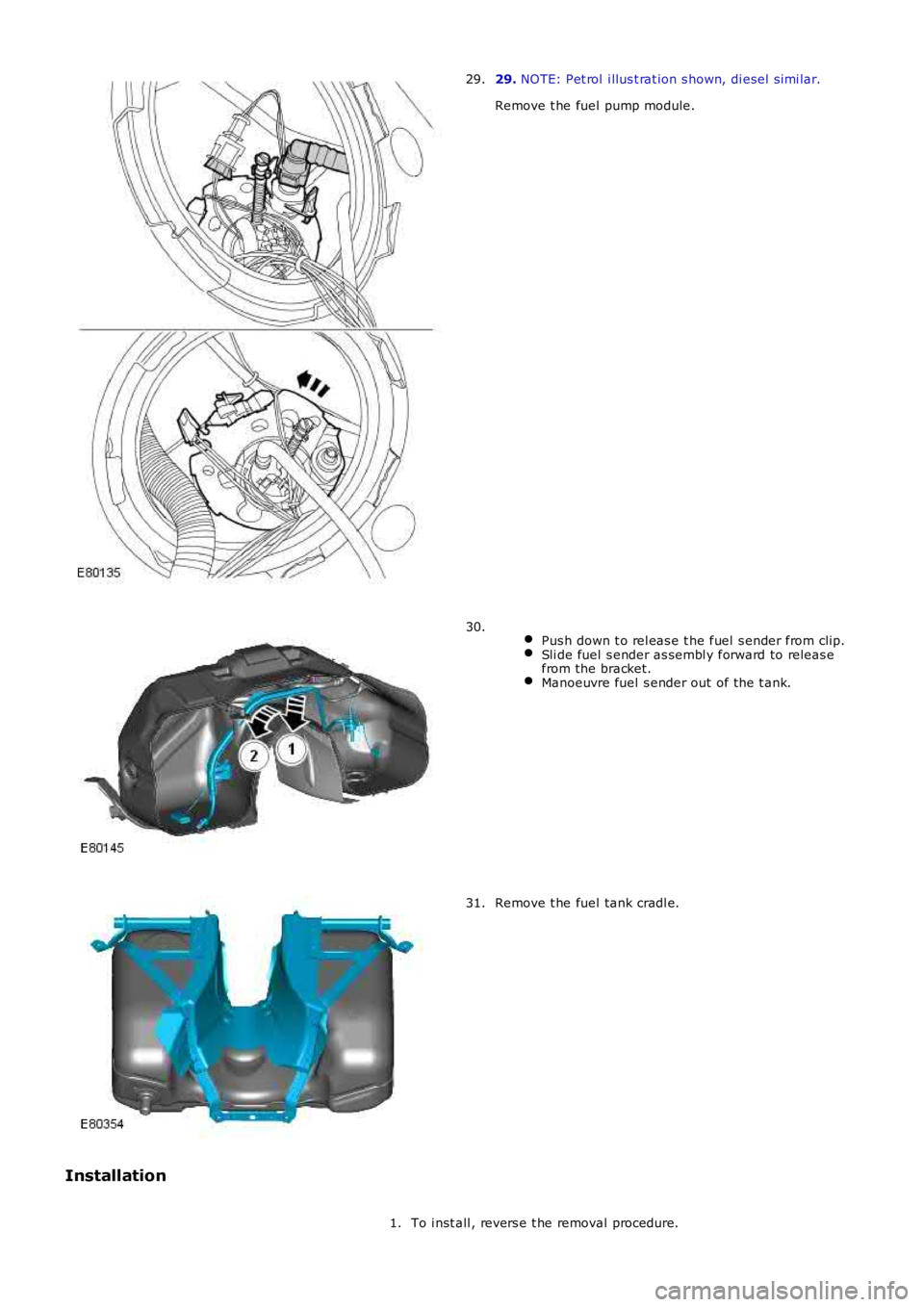

NOTE: Pet rol i llus t rat ion s hown, di esel s imi lar.
Remove t he fuel pump module.
29.
Pus h down t o rel eas e t he fuel s ender from clip. Sli de fuel s ender as sembl y forward to releas e
from the bracket. Manoeuvre fuel s ender out of the t ank.30.
Remove t he fuel tank cradl e.
31.
Installation To i nst all , revers e t he removal procedure.
1.

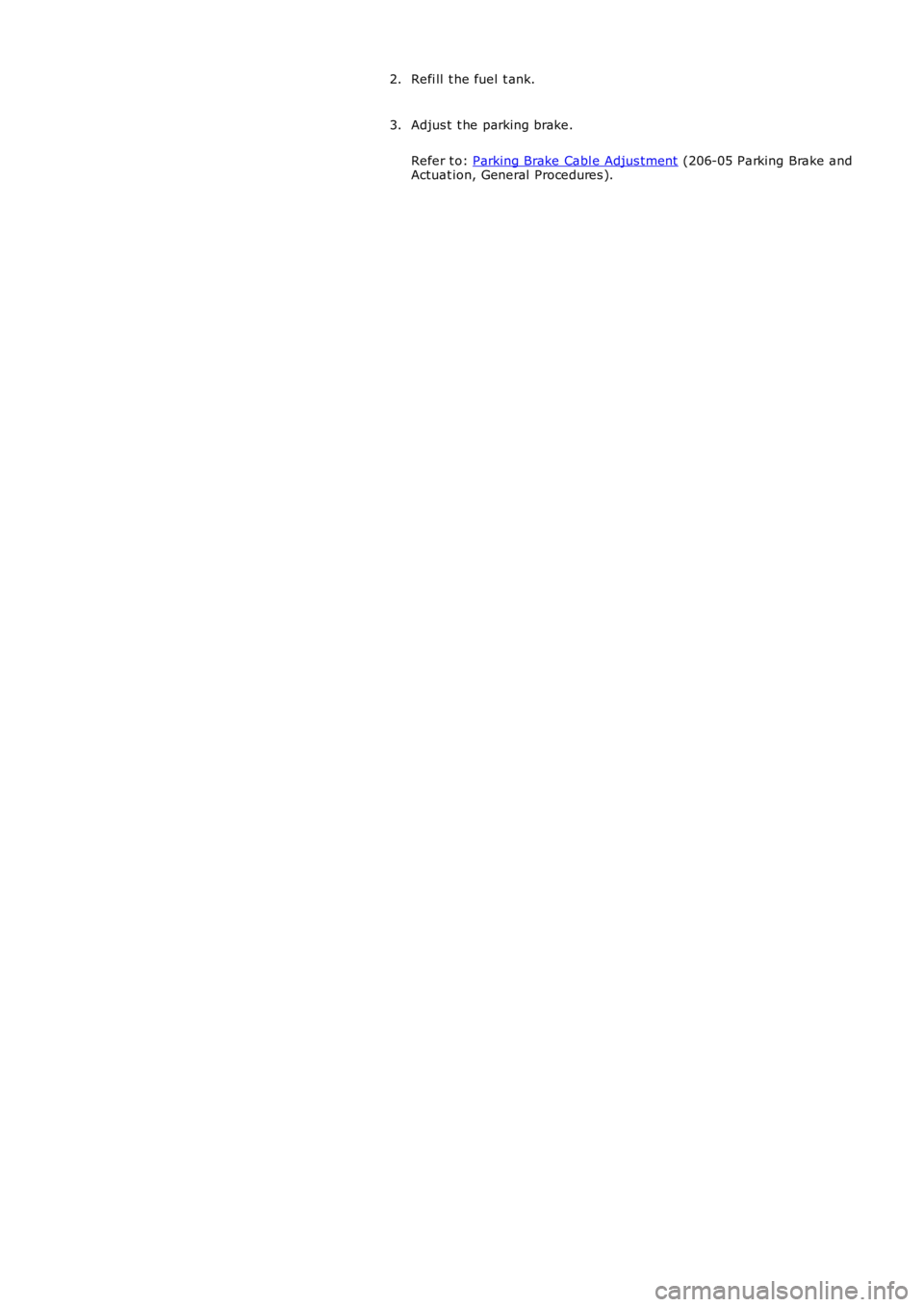

Refi ll t he fuel t ank.
2.
Adjus t t he parking brake.
Refer t o: Parking Brake Cabl e Adjus tment (206-05 Parking Brake and
Actuat ion, General Procedures ).
3.

Publi s hed: 11-May-2011

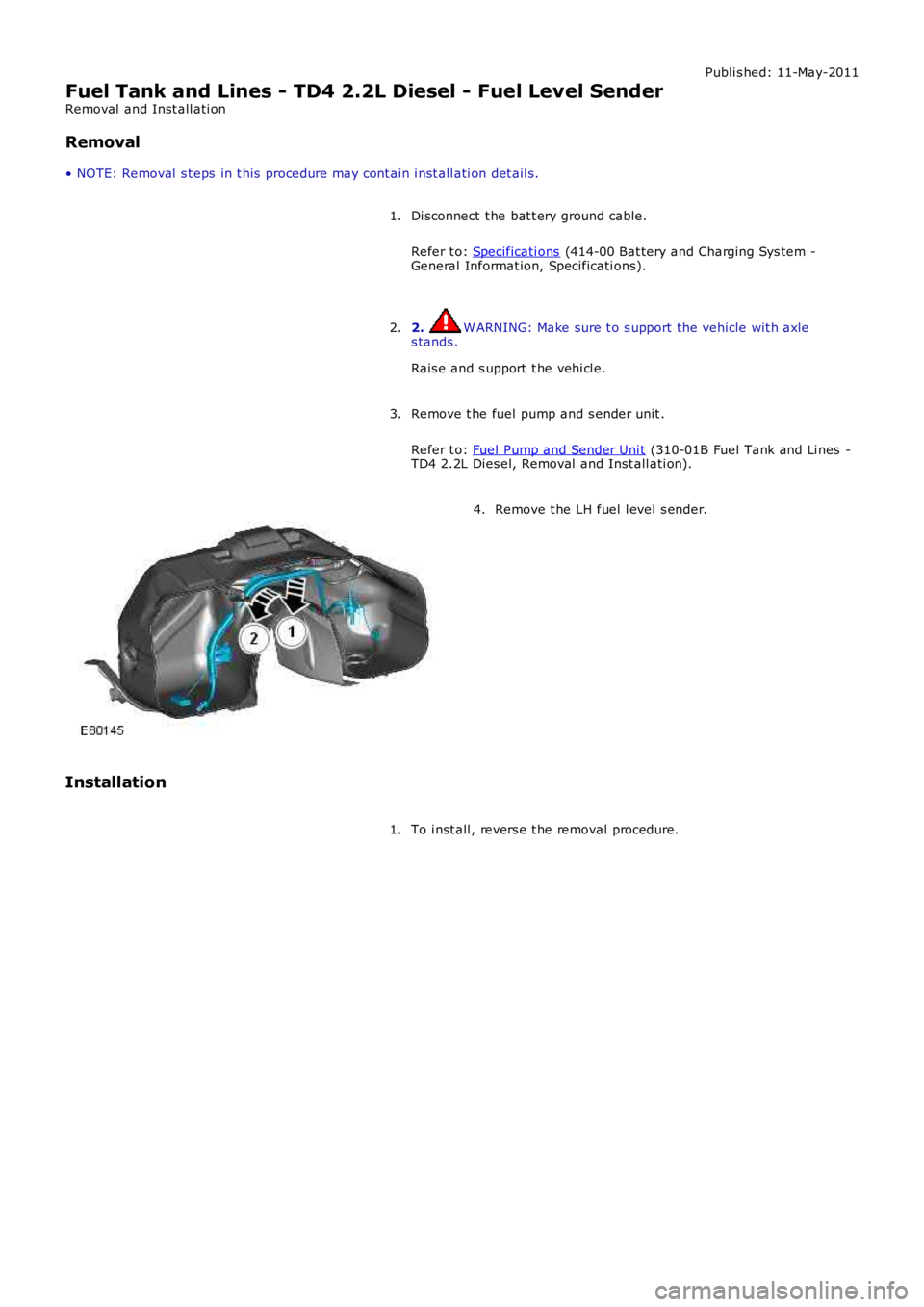

Fuel Tank and Lines - TD4 2.2L Diesel - Fuel Level Sender
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
2. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
2.
Remove t he fuel pump and s ender unit .
Refer t o: Fuel Pump and Sender Uni t (310-01B Fuel Tank and Li nes -TD4 2.2L Dies el, Removal and Inst all ati on).
3.
Remove t he LH fuel l evel s ender.4.
Installation
To i nst all , revers e t he removal procedure.1.

Publi s hed: 11-May-2011

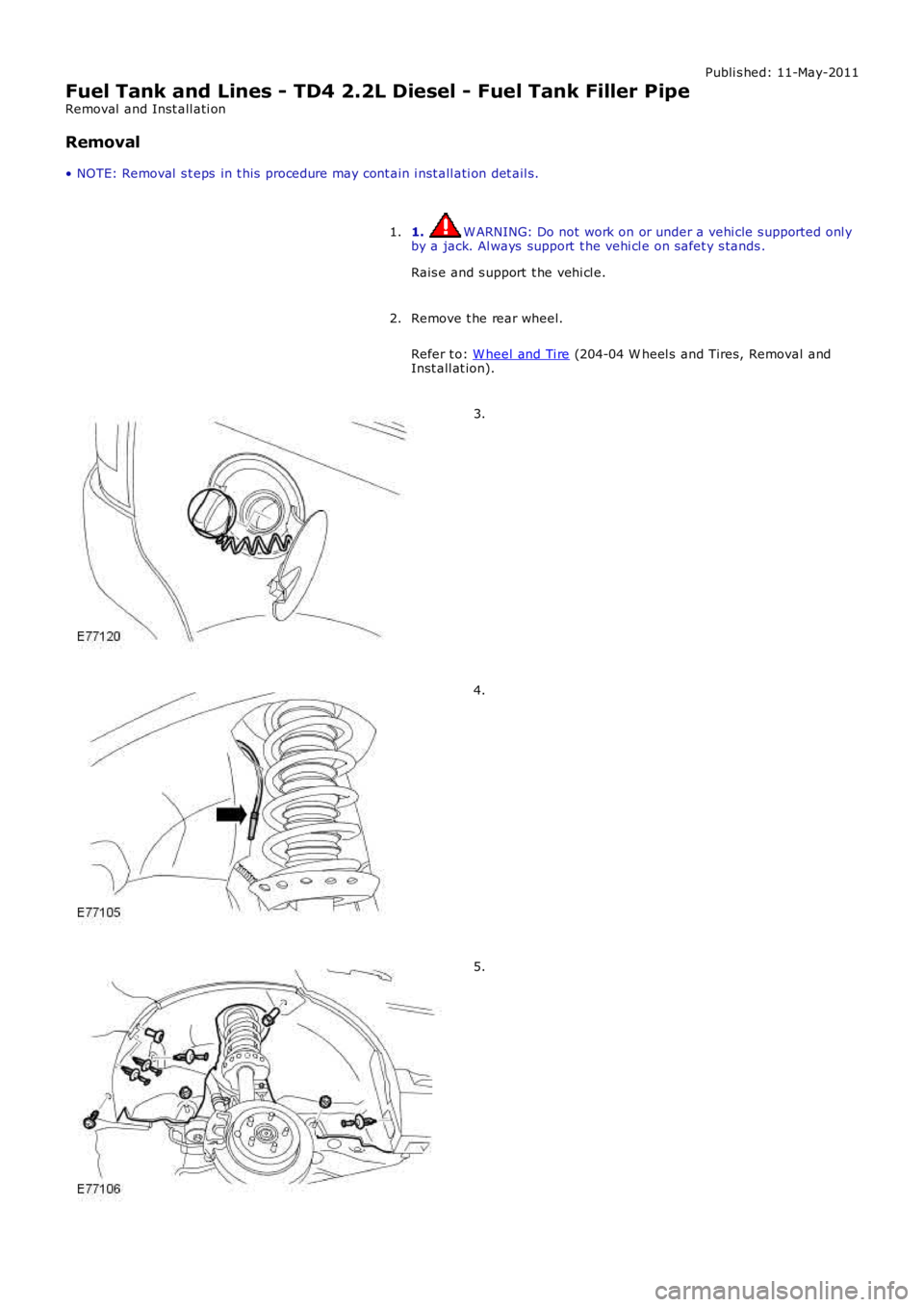

Fuel Tank and Lines - TD4 2.2L Diesel - Fuel Tank Filler Pipe
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
1. W ARNING: Do not work on or under a vehi cle s upported onl y
by a jack. Al ways support t he vehi cl e on s afet y s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he rear wheel.
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
2. 3.
4.
5.

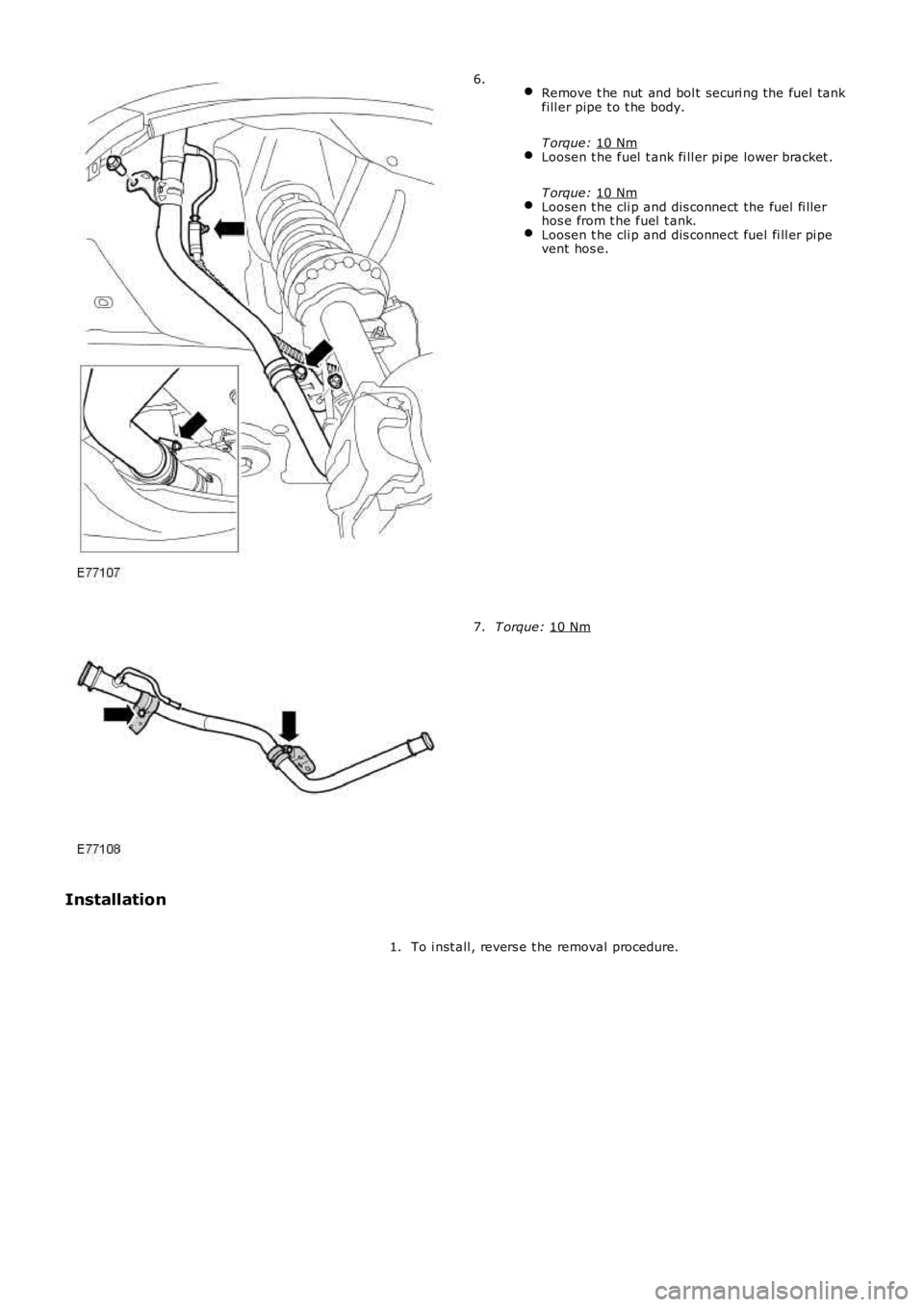

Remove t he nut and bol t securi ng the fuel tank
fill er pipe t o t he body.
T orque: 10 Nm Loosen t he fuel t ank fi ll er pi pe lower bracket .
T orque: 10 Nm Loosen t he cli p and dis connect the fuel fi ller
hos e from t he fuel t ank. Loosen t he cli p and dis connect fuel fi ll er pi pe
vent hos e. 6.
T orque:
10 Nm 7.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

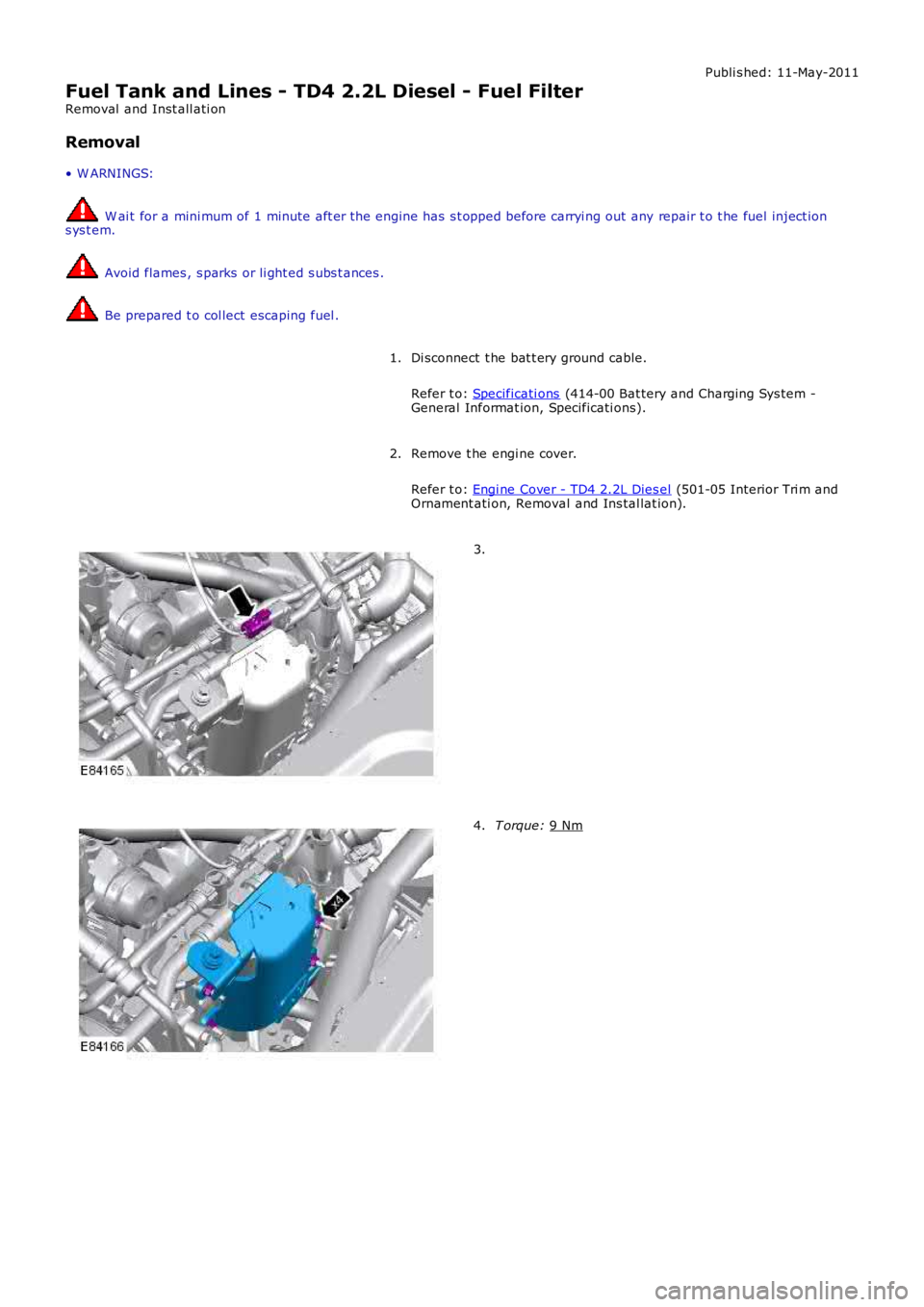

Fuel Tank and Lines - TD4 2.2L Diesel - Fuel Filter
Removal and Inst all ati on
Removal
• W ARNINGS: W ai t for a mini mum of 1 minute aft er the engine has s t opped before carryi ng out any
repair t o t he fuel inject ion
s ys t em. Avoid flames , s parks or li ght ed s ubs t ances .
Be prepared t o col lect escaping fuel .
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
1.
Remove t he engi ne cover.
Refer t o: Engi ne Cover - TD4 2.2L Dies el (501-05 Interior Tri m and
Ornament ati on, Removal and Ins tal lat ion).
2. 3.
T orque:
9 Nm 4.

5.

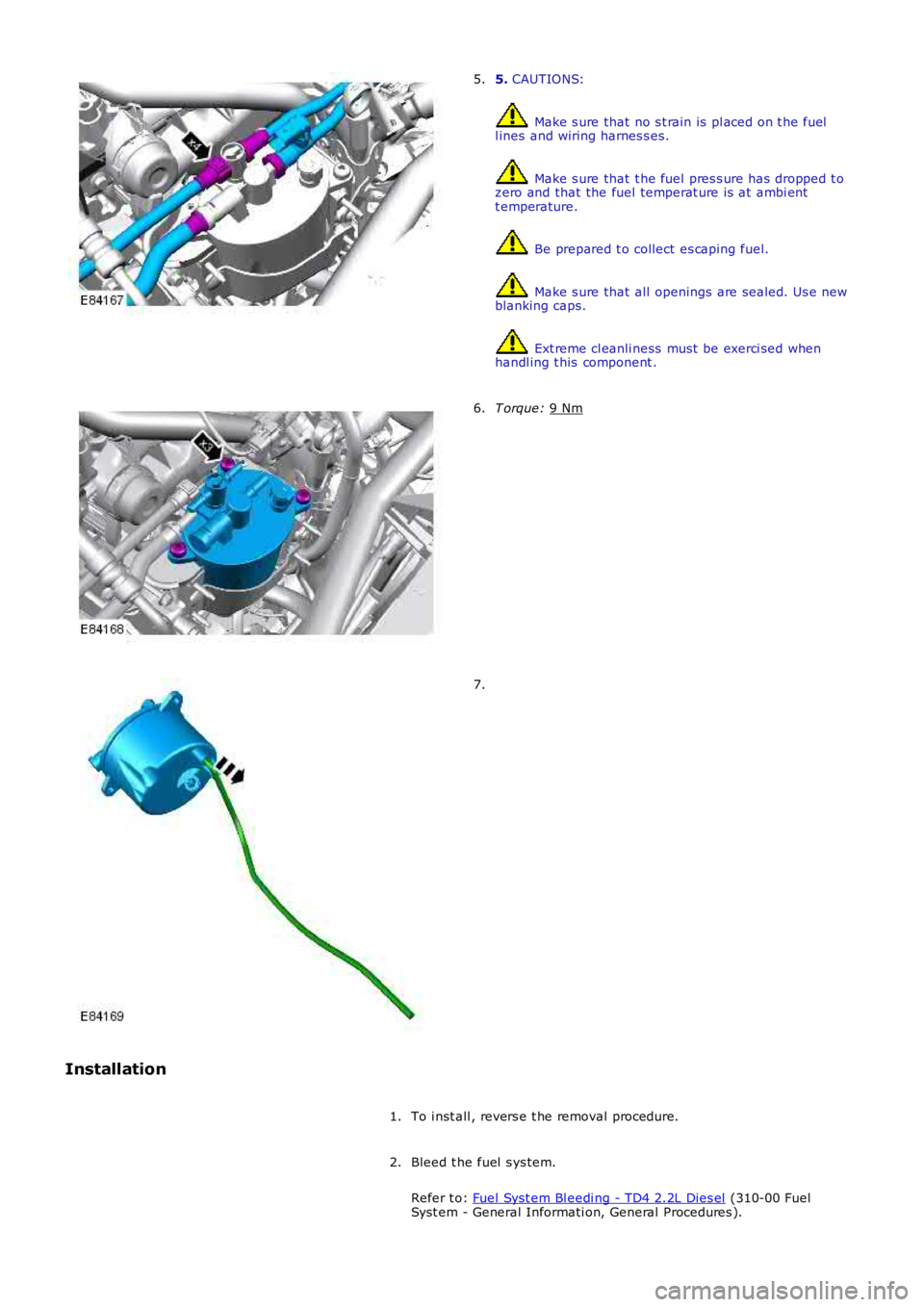

CAUTIONS: Make s ure that no s t rain is pl aced on t he fuel
l ines and wiring harnes s es. Make s ure that t he fuel pres s ure has dropped t o
zero and that the fuel temperat ure is at ambi ent
t emperature. Be prepared t o collect es caping fuel.
Make s ure that all openings are sealed. Us e new
blanking caps. Ext reme cl eanli ness must be exerci sed when
handl ing t his component .
5. T orque:
9 Nm 6.
7.
Installation To i nst all , revers e t he removal procedure.
1.
Bleed t he fuel s ys tem.
Refer t o: Fuel Syst em Bl eedi ng - TD4 2.2L Dies el (310-00 Fuel
Syst em - General Informati on, General Procedures ).
2.

Publi s hed: 11-May-2011

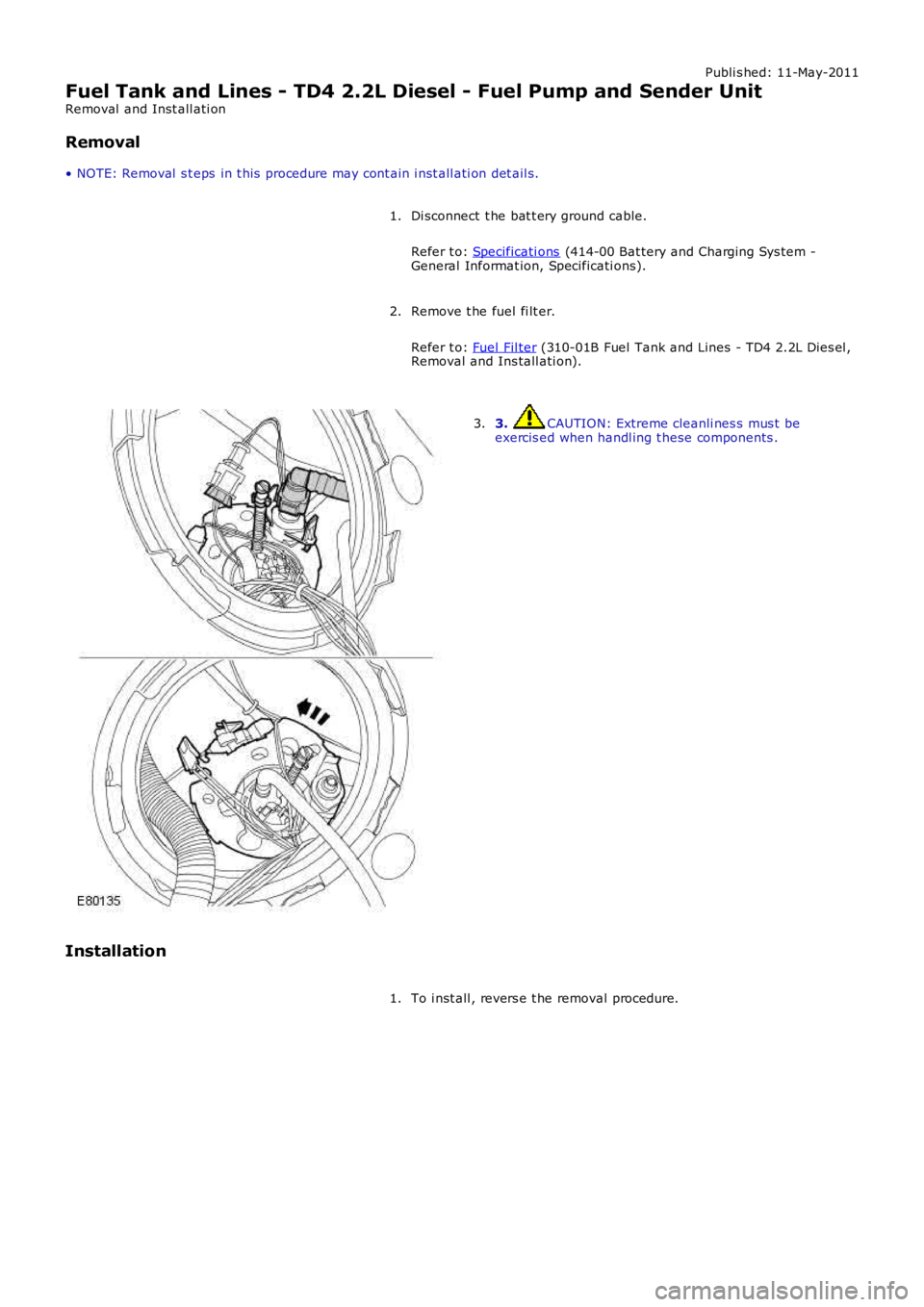

Fuel Tank and Lines - TD4 2.2L Diesel - Fuel Pump and Sender Unit
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Remove t he fuel fi lt er.
Refer t o: Fuel Fil ter (310-01B Fuel Tank and Lines - TD4 2.2L Dies el ,Removal and Ins tall ati on).
2.
3. CAUTION: Extreme cleanli nes s mus t beexercis ed when handl ing t hese components .3.
Installation
To i nst all , revers e t he removal procedure.1.

Publi s hed: 11-May-2011

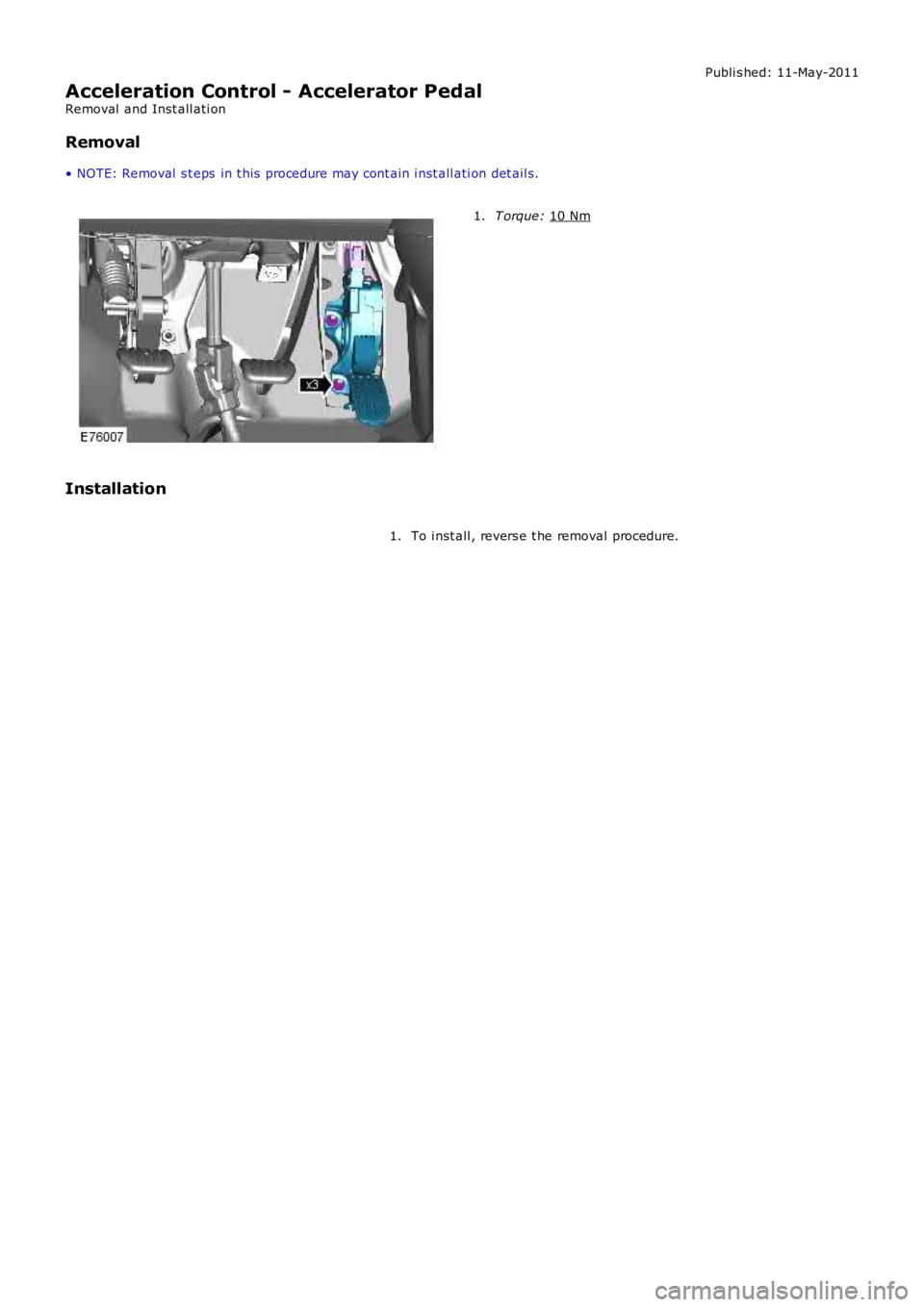

Acceleration Control - Accelerator Pedal
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s. T orque:
10 Nm 1.
Installation To i nst all , revers e t he removal procedure.
1.
