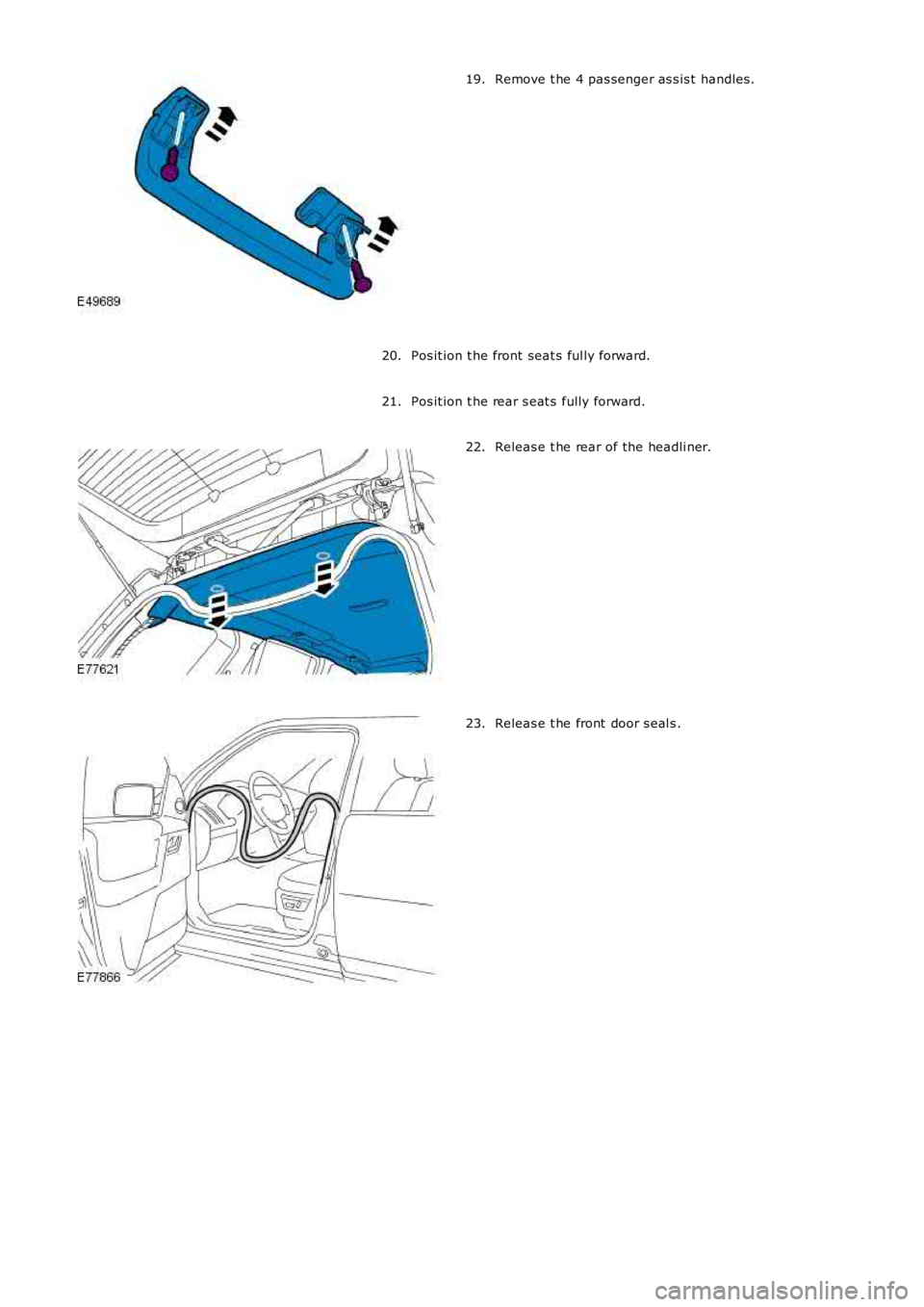

Remove t he 4 pas senger as s is t handles .
19.
Pos it ion t he front seat s ful ly forward.
20.
Pos it ion t he rear s eat s fully forward.
21. Releas e t he rear of the headli ner.
22. Releas e t he front door s eal s .
23.

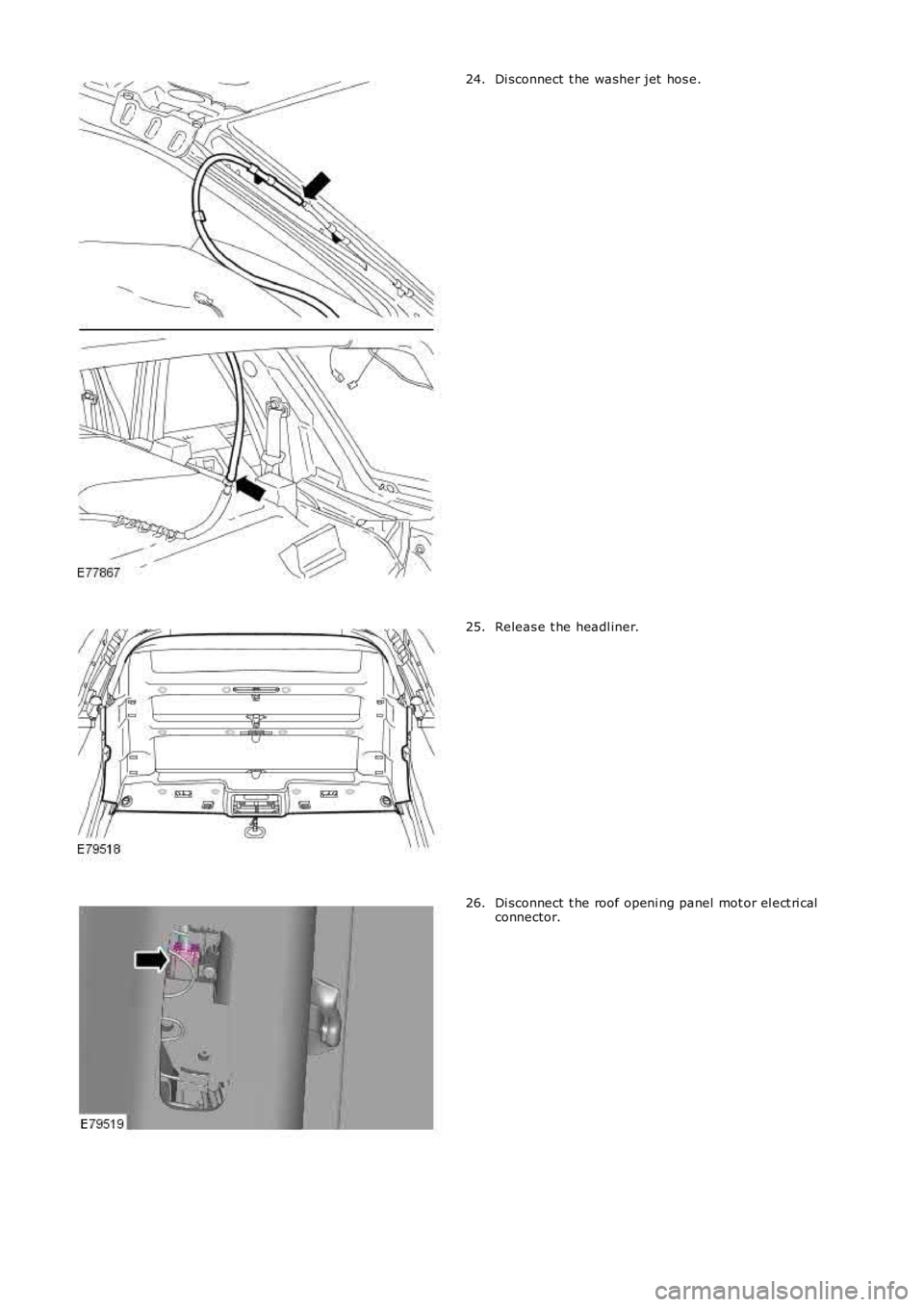

Di sconnect t he washer jet hos e.
24. Releas e t he headl iner.
25. Di sconnect t he roof openi ng panel mot or el ect ri cal
connector.
26.

27.
NOTE: Thi s s tep requires the ai d of anot her
t echnician.

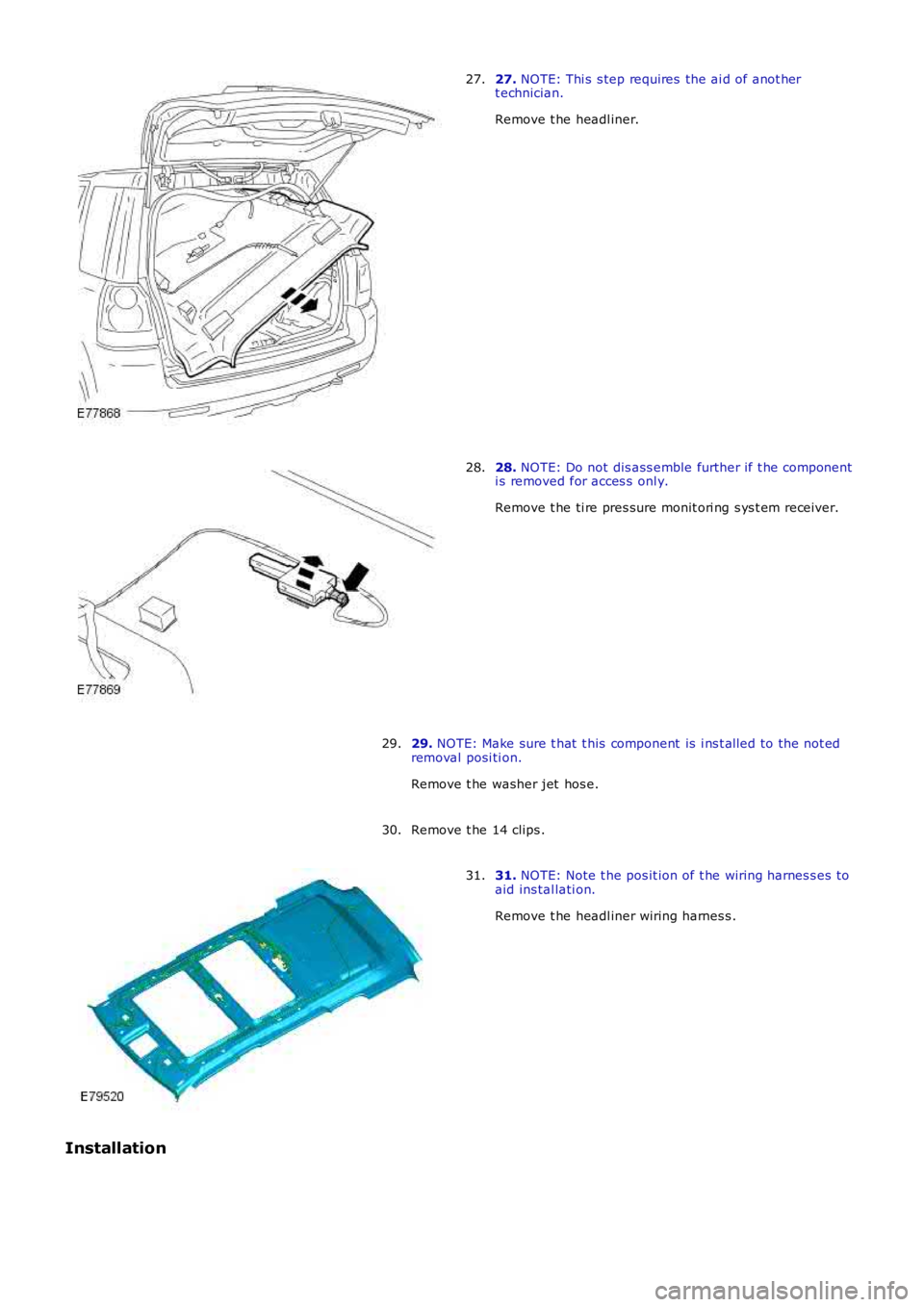

Remove t he headl iner.
27. 28.
NOTE: Do not dis ass emble further if t he component
i s removed for acces s onl y.
Remove t he ti re pres sure monit ori ng s ys t em receiver.
28.
29. NOTE: Make sure t hat t his component is i ns t alled to the not ed
removal posi ti on.
Remove t he washer jet hos e.
29.
Remove t he 14 clips .
30. 31.
NOTE: Note t he pos it ion of t he wiring harnes s es to
aid ins tal lati on.
Remove t he headl iner wiring harnes s .
31.
Installation

1. CAUTION: Make s ure that the wiring harnes s es
are correctl y located.
Ali gn t he yel low tape on t he wi ri ng harness to
t he corner of t he headl iner. 1.
Inst all t he cl ips .
2.
Inst all t he washer jet hos e.
3.
Inst all t he ti re pres sure monit ori ng s ys t em receiver.
4.
5. NOTE: Thi s s tep requires the ai d of anot her techni ci an.
Inst all t he headl iner.
5.
Connect t he roof openi ng panel mot or elect rical connect or.
6.
Connect t he was her jet hos e.
7.
At tach t he front door s eal s .
8.
At tach t he rear of the headli ner.
9.
Reposi ti on the rear s eat s .
10.
Reposi ti on the front s eats .
11.
Inst all t he pas s enger as s is t handl es .
12.
Inst all t he rear int eri or l amp.
13.
Inst all t he cent er interior lamp.
14.
Inst all t he front interior lamps .
15.
Inst all t he overhead cons ol e.
Refer t o: Overhead Cons ole (501-12 Ins trument Panel and Cons ole,
Removal and Ins tall ati on).
16.
Inst all t he s un vi s ors .
17.
Inst all t he int erior rear vi ew mi rror.
Refer t o: Int erior Rear View Mirror (501-09 Rear Vi ew Mi rrors ,
Removal and Ins tall ati on).
18.

Connect t he headl iner wiring harnes s and s ecure t he cl ips .
19.
Inst all t he s peaker gril le.
20.
Inst all t he cowl s ide trim panel .
Refer t o: Cowl Si de Tri m Panel (501-05 Interior Tri m and
Ornament ati on, Removal and Ins tal lat ion).
21.
Inst all t he glove compartment .
Refer t o: Glove Compart ment (501-12 Ins trument Panel and
Consol e, Removal and Ins t al lat ion).
22.
Inst all t he rear quart er t ri m panel.
23.
Inst all t he loadspace s ecuring ring and t ight en the Torx s crew.
T orque: 25 Nm 24.
Inst all t he D-pi llar t ri m panels .
Refer t o: D-Pi llar Trim Panel (501-05 Int eri or Trim and
Ornament ati on, Removal and Ins tal lat ion).
25.
Inst all t he C-pi llar t ri m panels .
Refer t o: C-Pil lar Tri m Panel (501-05 Int erior Trim and
Ornament ati on, Removal and Ins tal lat ion).
26.
Inst all t he B-pi llar t ri m panels .
Refer t o: B-Pil lar Upper Trim Panel (501-05 Interior Tri m and
Ornament ati on, Removal and Ins tal lat ion).
27.
Inst all t he A-pi llar t ri m panels .
Refer t o: A-Pil lar Tri m Panel (501-05 Int erior Trim and
Ornament ati on, Removal and Ins tal lat ion).
28.

Publi s hed: 11-May-2011
Interior Trim and Ornamentation - Engine CoverI6 3.2L Petrol
Removal and Inst all ati on
Removal
1.
2. NOTE: Do not di s as s emble furt her if t he componentis removed for acces s only.
Remove the 4 clips .
2.
Installation
To i nst all , revers e t he removal procedure.1.

Publi s hed: 11-May-2011

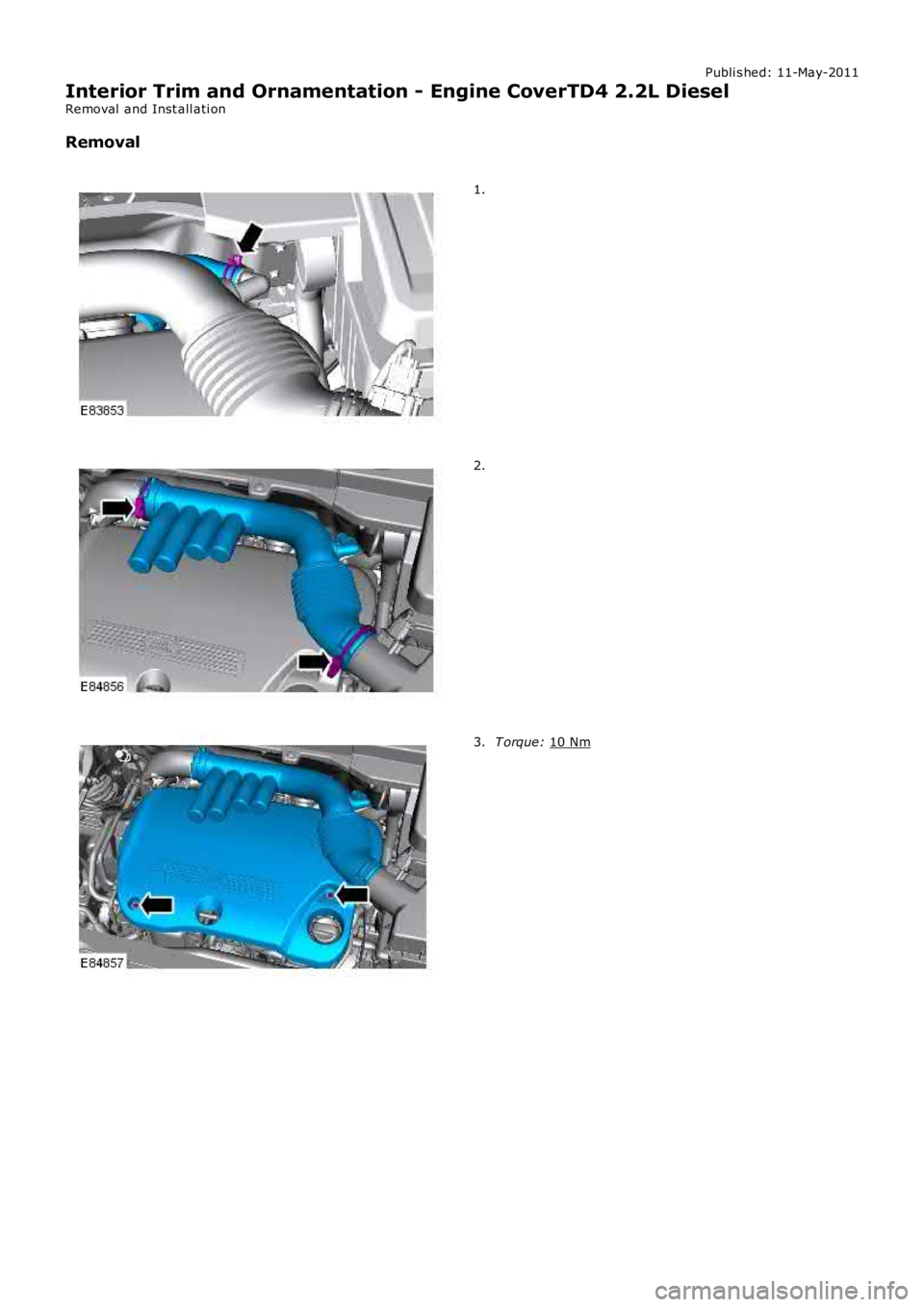

Interior Trim and Ornamentation - Engine CoverTD4 2.2L Diesel
Removal and Inst all ati on
Removal 1.
2.
T orque:

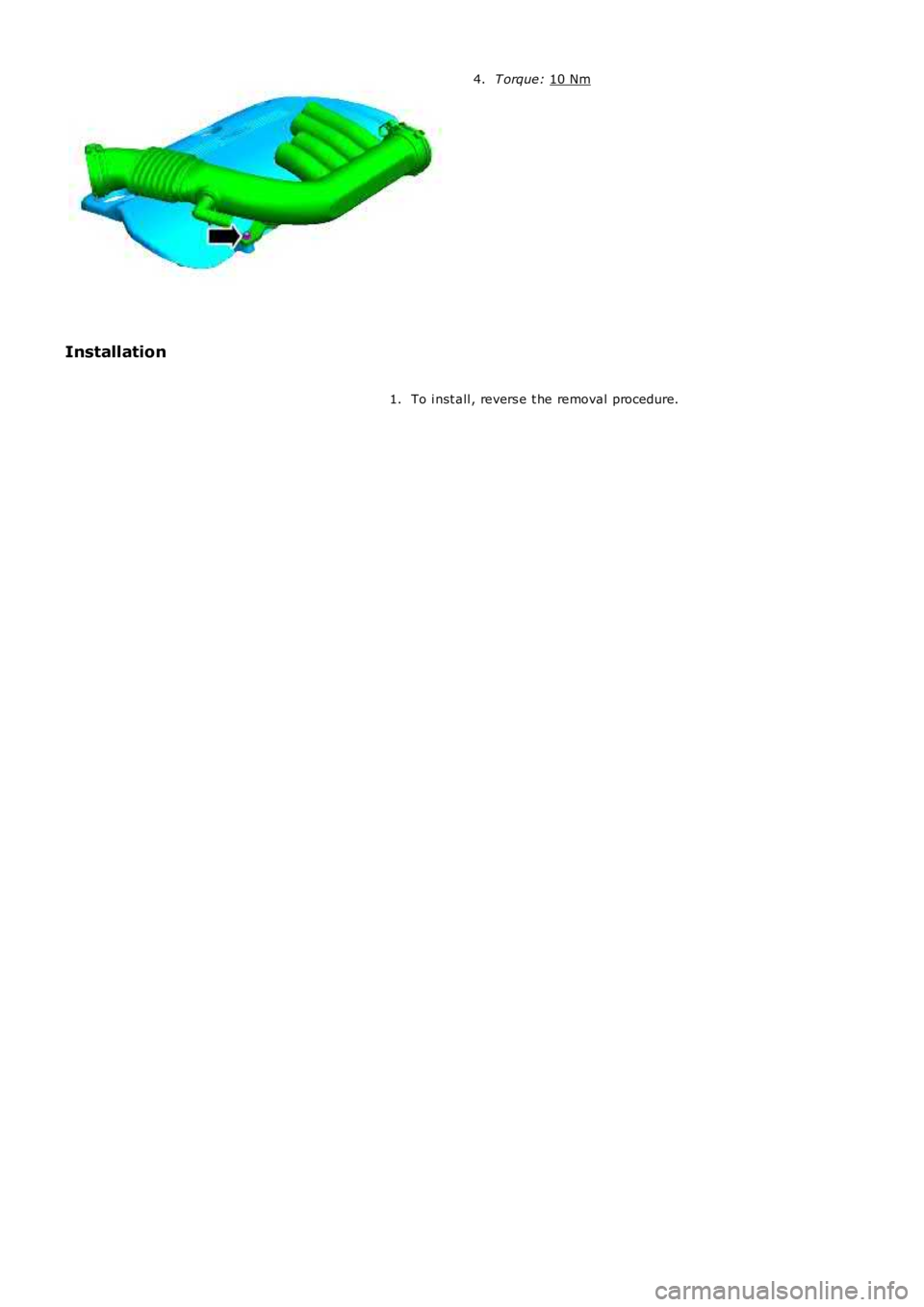

10 Nm 3.

T orque:
10 Nm 4.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

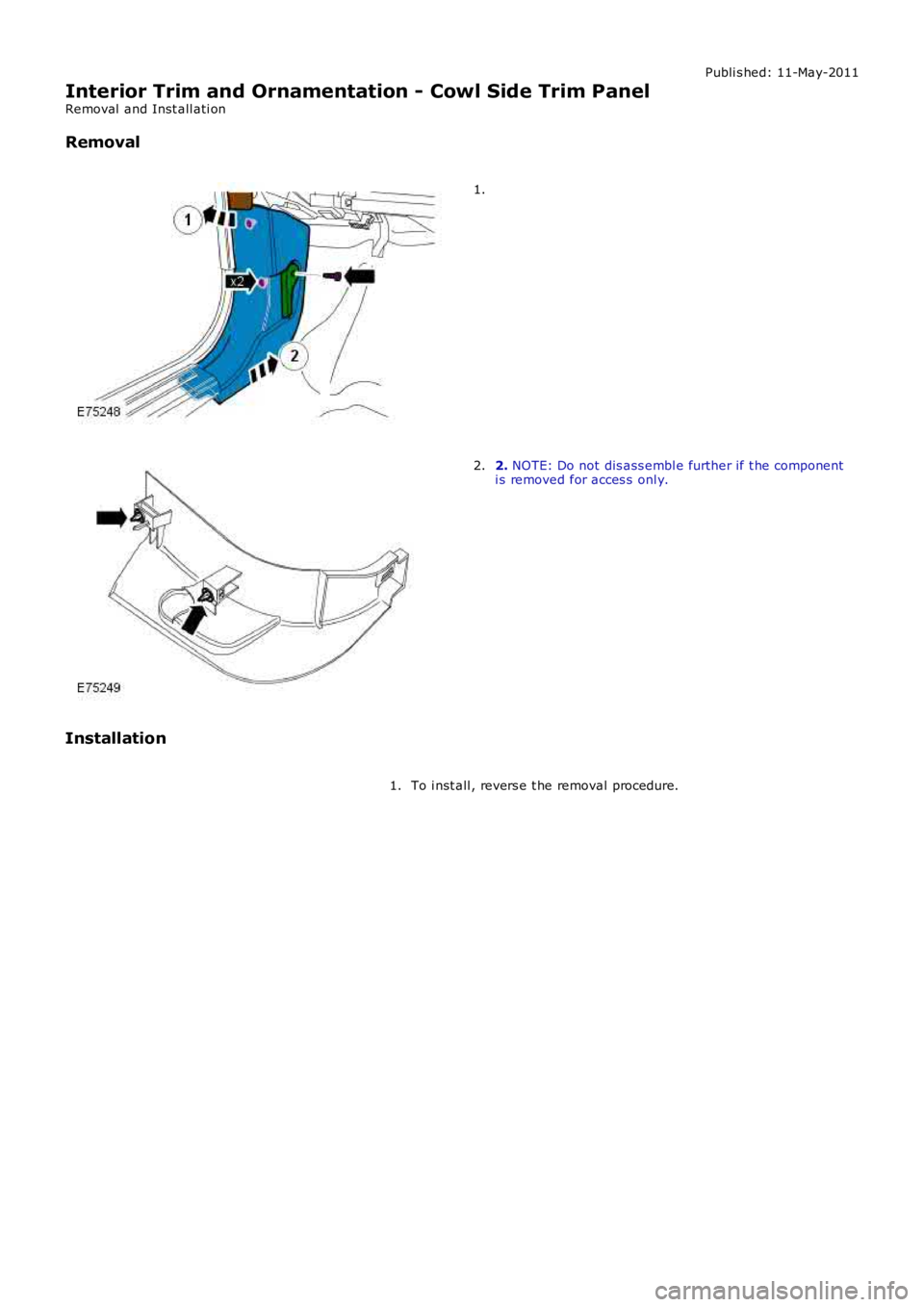

Interior Trim and Ornamentation - Cowl Side Trim Panel
Removal and Inst all ati on
Removal 1.
2.
NOTE: Do not dis ass embl e further if t he component
i s removed for acces s onl y.
2.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

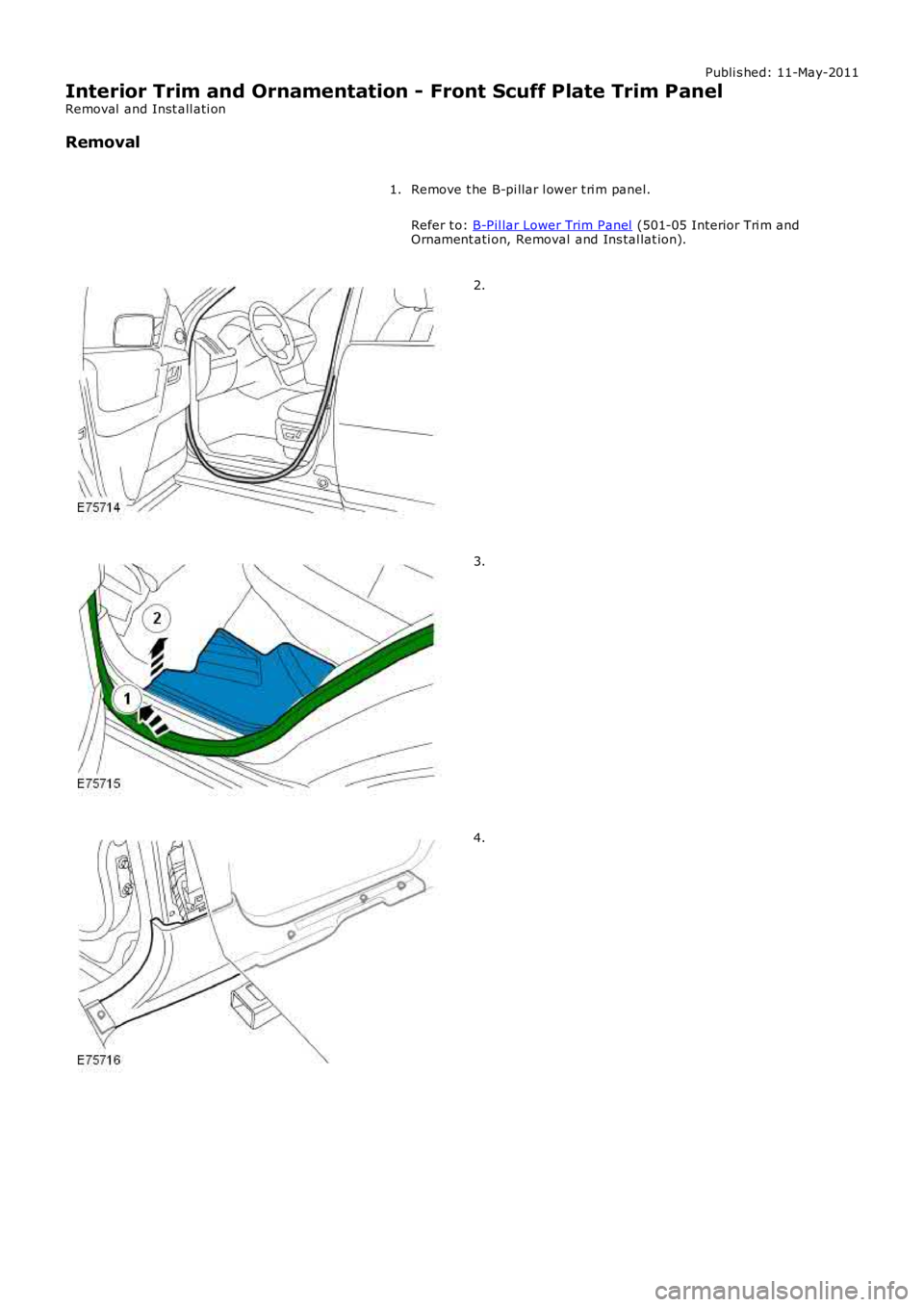

Interior Trim and Ornamentation - Front Scuff Plate Trim Panel
Removal and Inst all ati on
Removal
Remove t he B-pi llar l ower t ri m panel.
Refer t o: B-Pil lar Lower Trim Panel (501-05 Interior Tri m andOrnament ati on, Removal and Ins tal lat ion).
1.
2.
3.
4.
