LEXUS LS430 2003 Factory Repair Manual

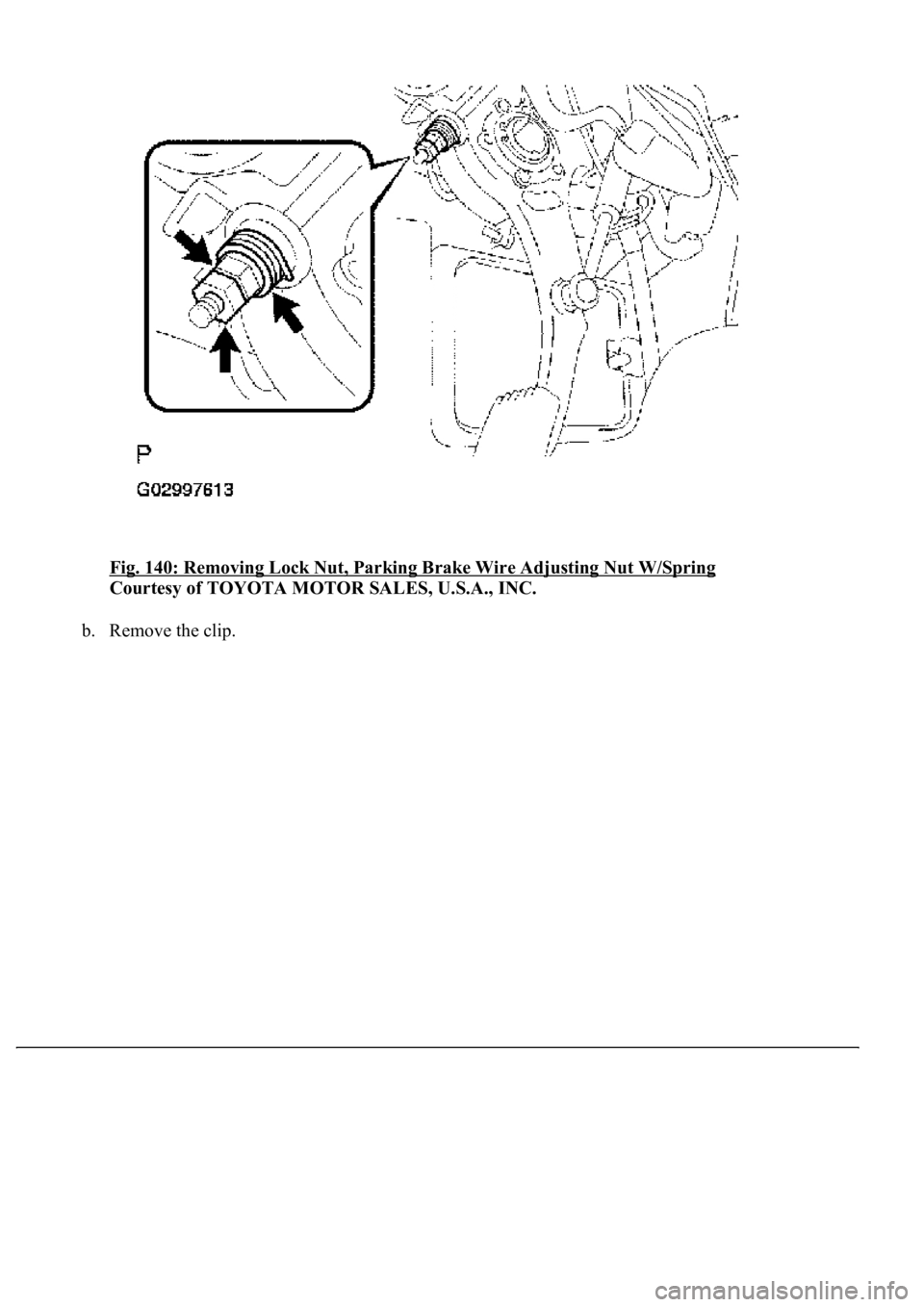

Fig. 140: Removing Lock Nut, Parking Brake Wire Adjusting Nut W/Spring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Remove the clip.

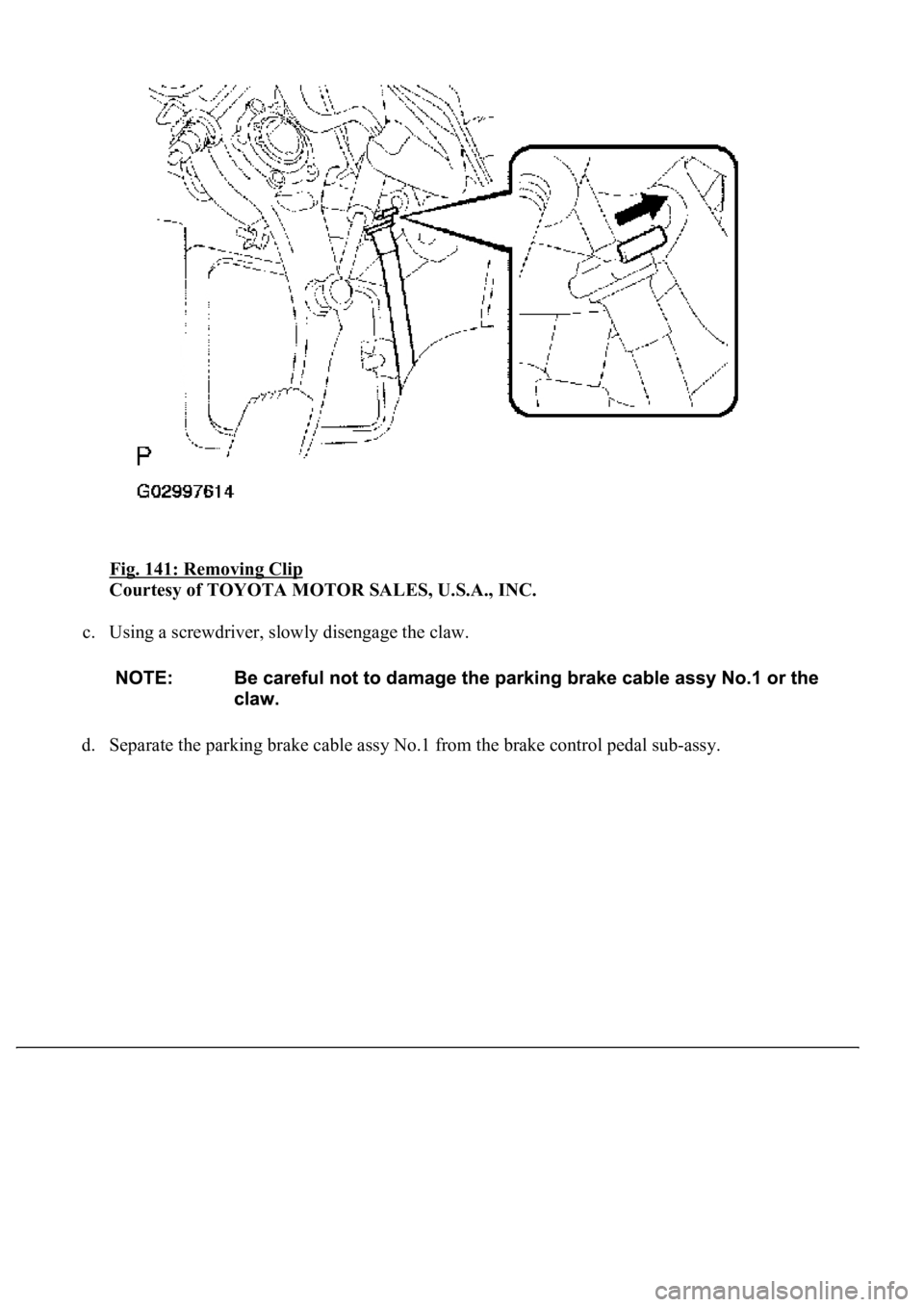

Fig. 141: Removing Clip
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Using a screwdriver, slowly disengage the claw.
d. Separate the parkin
g brake cable assy No.1 from the brake control pedal sub-assy.

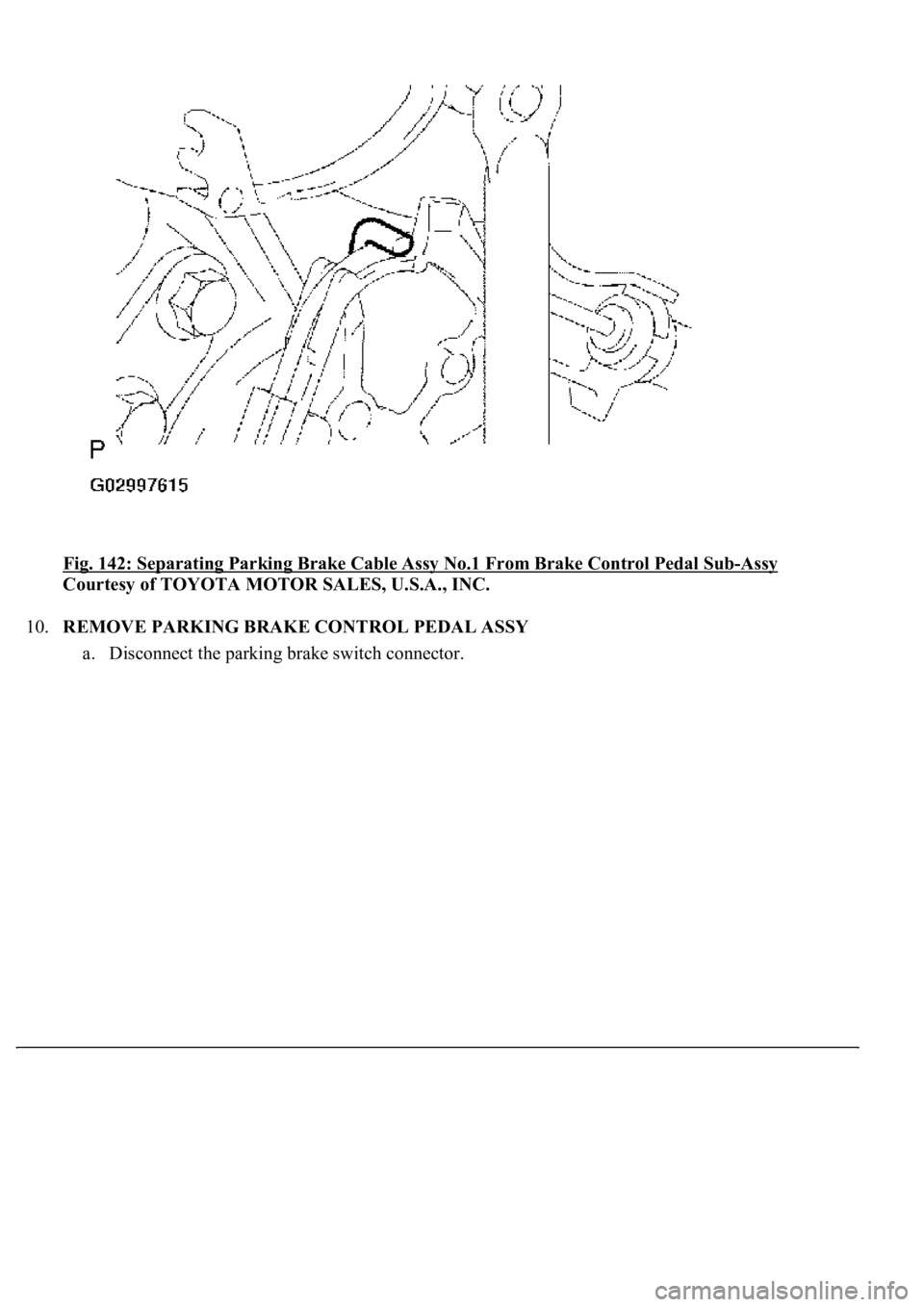

Fig. 142: Separating Parking Brake Cable Assy No.1 From Brake Control Pedal Sub-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
10.REMOVE PARKING BRAKE CONTROL PEDAL ASSY
a. Disconnect the parkin
g brake switch connector.

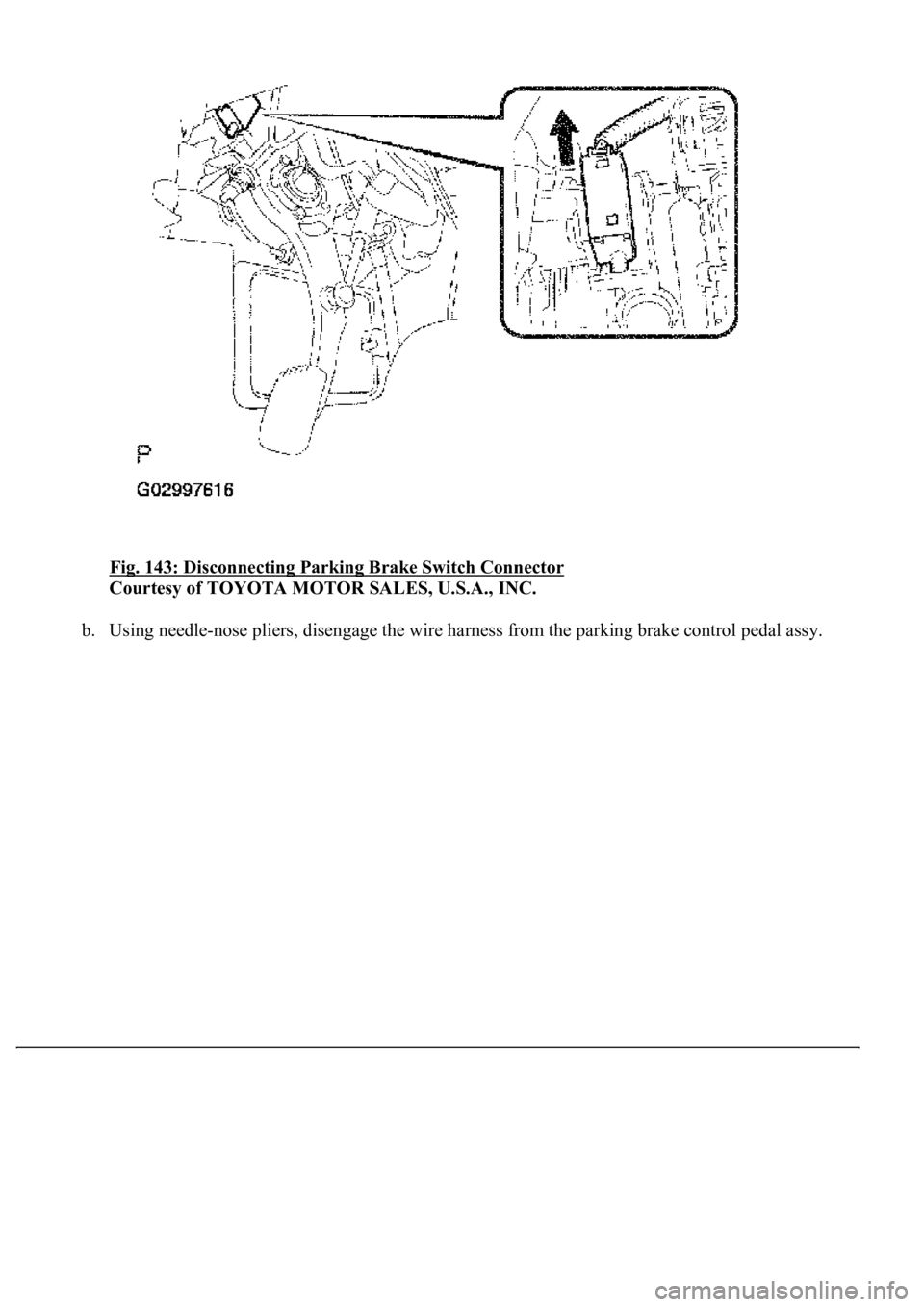

Fig. 143: Disconnecting Parking Brake Switch Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b.Using needle-nose pliers, disengage the wire harness from the parking brake control pedal assy.

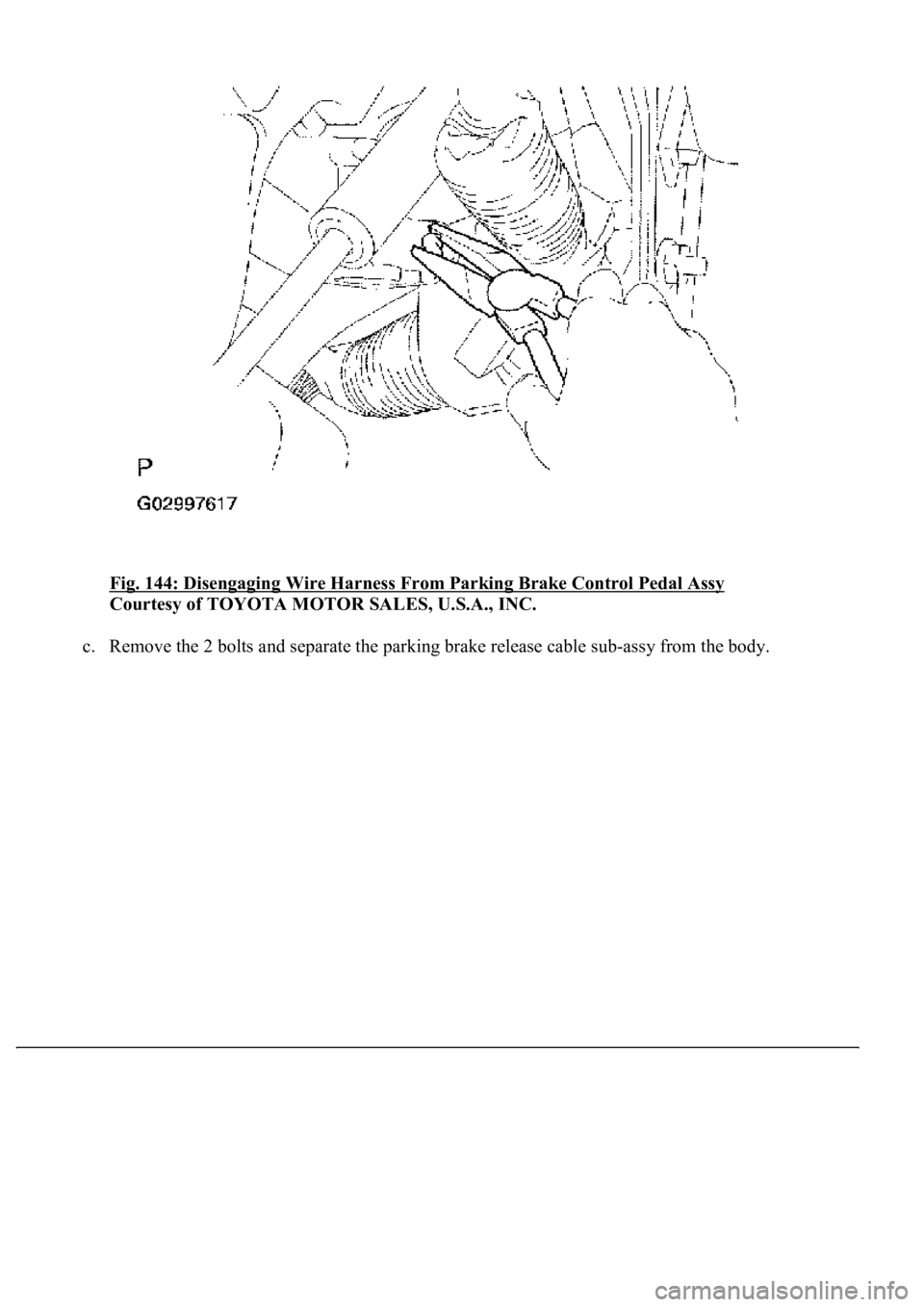

Fig. 144: Disengaging Wire Harness From Parking Brake Control Pedal Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the 2 bolts and separate the parkin
g brake release cable sub-assy from the body.

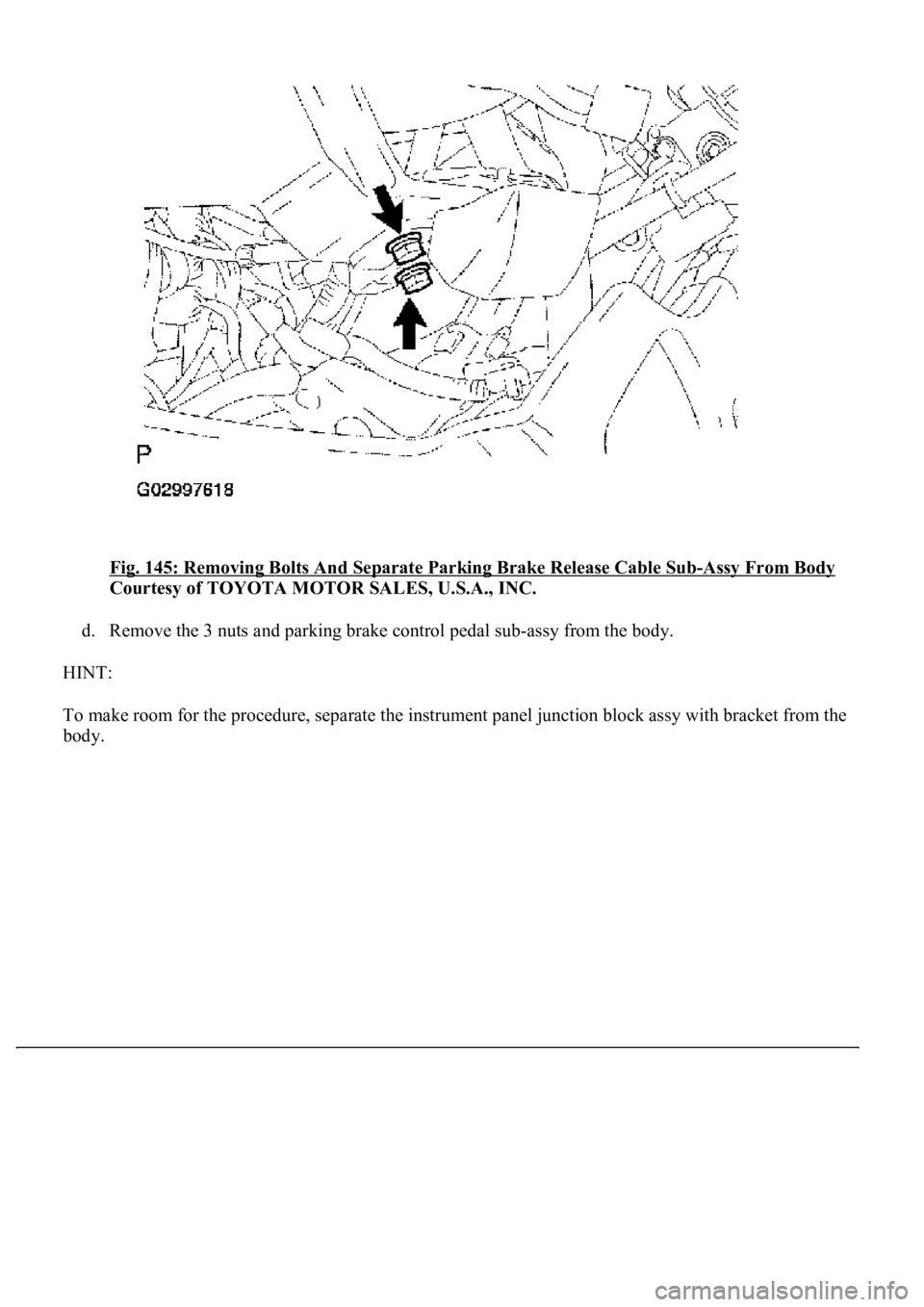

Fig. 145: Removing Bolts And Separate Parking Brake Release Cable Sub-Assy From Body
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Remove the 3 nuts and parking brake control pedal sub-assy from the body.
HINT:
To make room for the procedure, separate the instrument panel junction block assy with bracket from the
body.

<0029004c004a00110003001400170019001d000300350048005000520059004c0051004a0003003100580057005600030024005100470003003300440055004e004c0051004a0003002500550044004e00480003002600520051005700550052004f000300
33004800470044004f0003003600580045[-Assy From Body

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
11.REMOVE PARKING BRAKE SWITCH ASSY
a. Remove the screw and parking brake switch assy.
12.DISCONNECT PARKING BRAKE RELEASE CABLE SUB-ASSY
a. Disconnect the parking brake cable from the parking brake control pedal sub-assy.
13.REMOVE PARKING PEDAL PAD
a. Tear off the parking brake pedal pad from the parking brake control pedal sub-assy by hand.

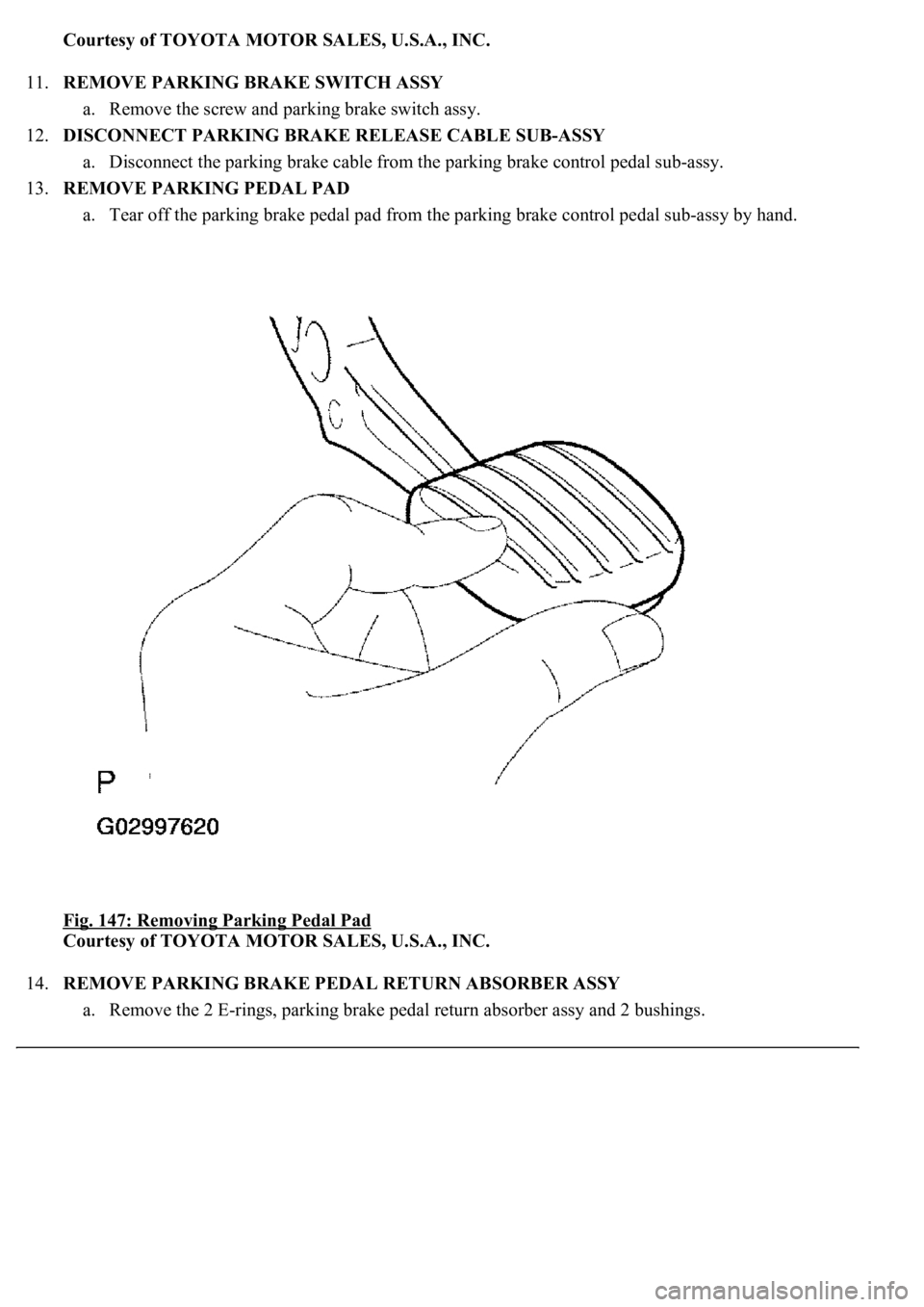

Fig. 147: Removing Parking Pedal Pad

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
14.REMOVE PARKING BRAKE PEDAL RETURN ABSORBER ASSY
a. Remove the 2 E-rin
gs, parking brake pedal return absorber assy and 2 bushings.

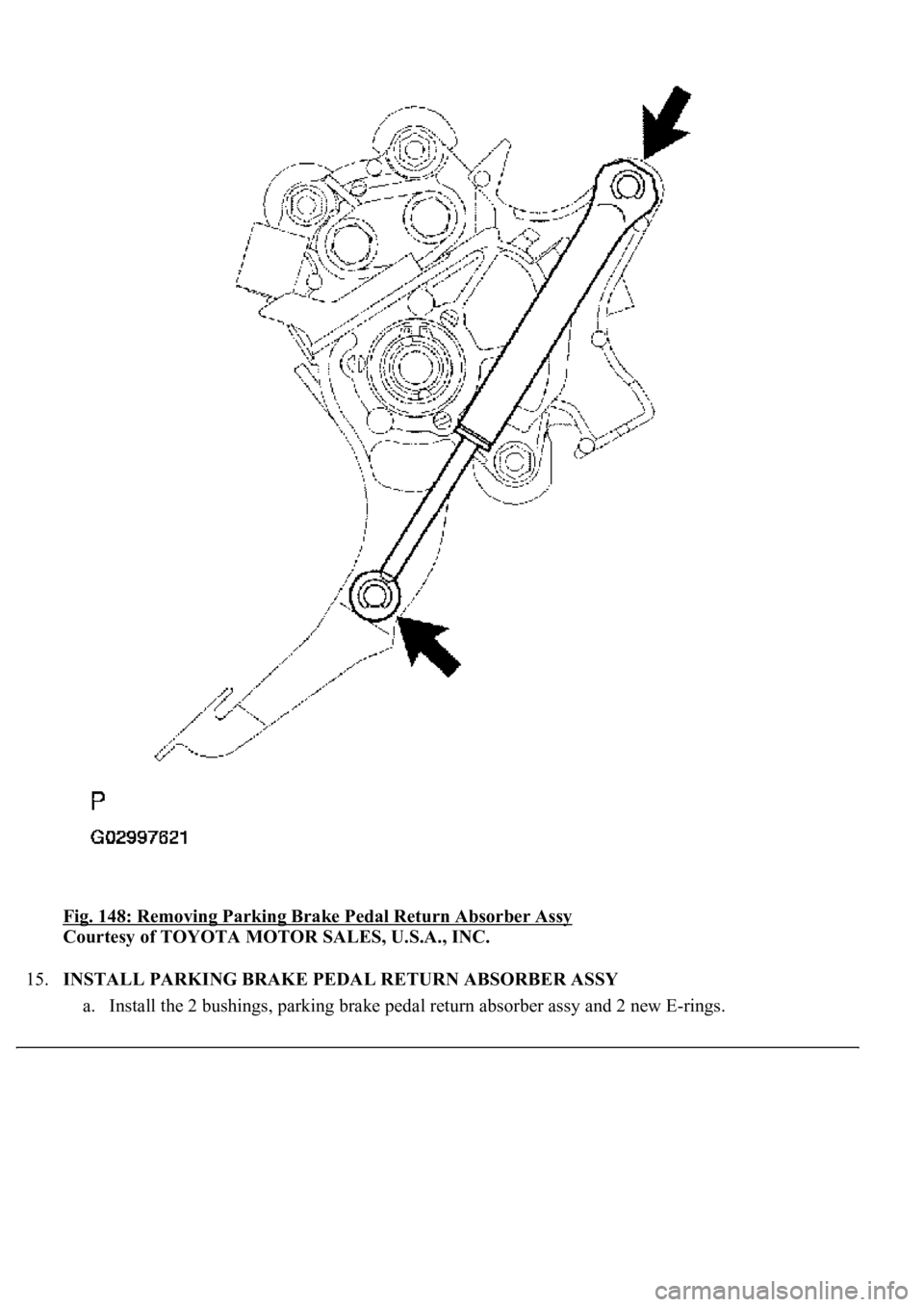

Fig. 148: Removing Parking Brake Pedal Return Absorber Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

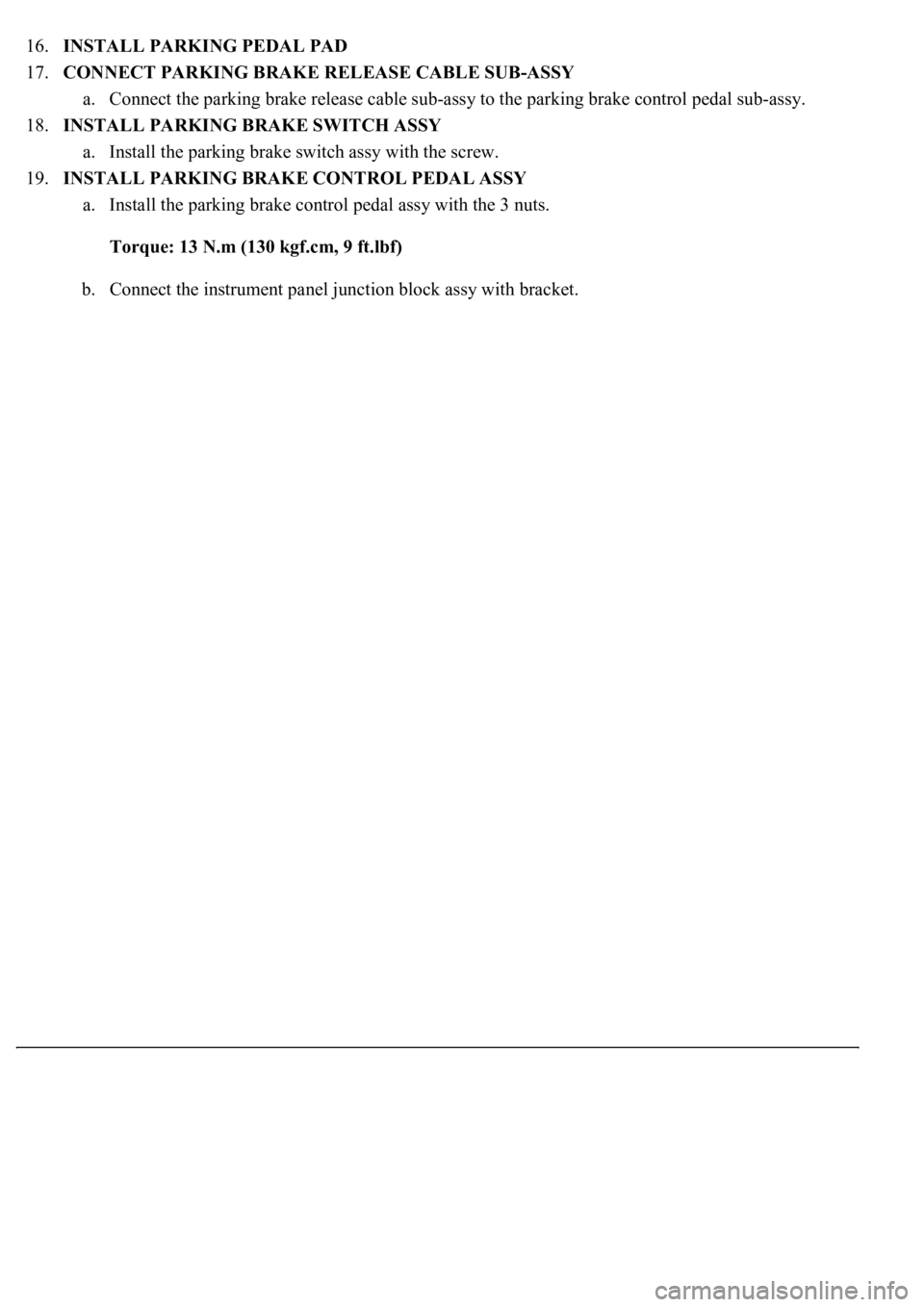

15.INSTALL PARKING BRAKE PEDAL RETURN ABSORBER ASSY
a. Install the 2 bushings, parking brake pedal return absorber assy and 2 new E-rings.

16.INSTALL PARKING PEDAL PAD
17.CONNECT PARKING BRAKE RELEASE CABLE SUB-ASSY
a. Connect the parking brake release cable sub-assy to the parking brake control pedal sub-assy.
18.INSTALL PARKING BRAKE SWITCH ASSY
a. Install the parking brake switch assy with the screw.
19.INSTALL PARKING BRAKE CONTROL PEDAL ASSY
a. Install the parking brake control pedal assy with the 3 nuts.
Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
b. Connect the instrument panel junction block assy with bracket.
