LEXUS LS430 2003 Factory Repair Manual

Fig. 111: Removing Air Duct No. 2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
18.REMOVE AIR DUCT NO. 4
a. Release the claw and remove air duct No. 4.

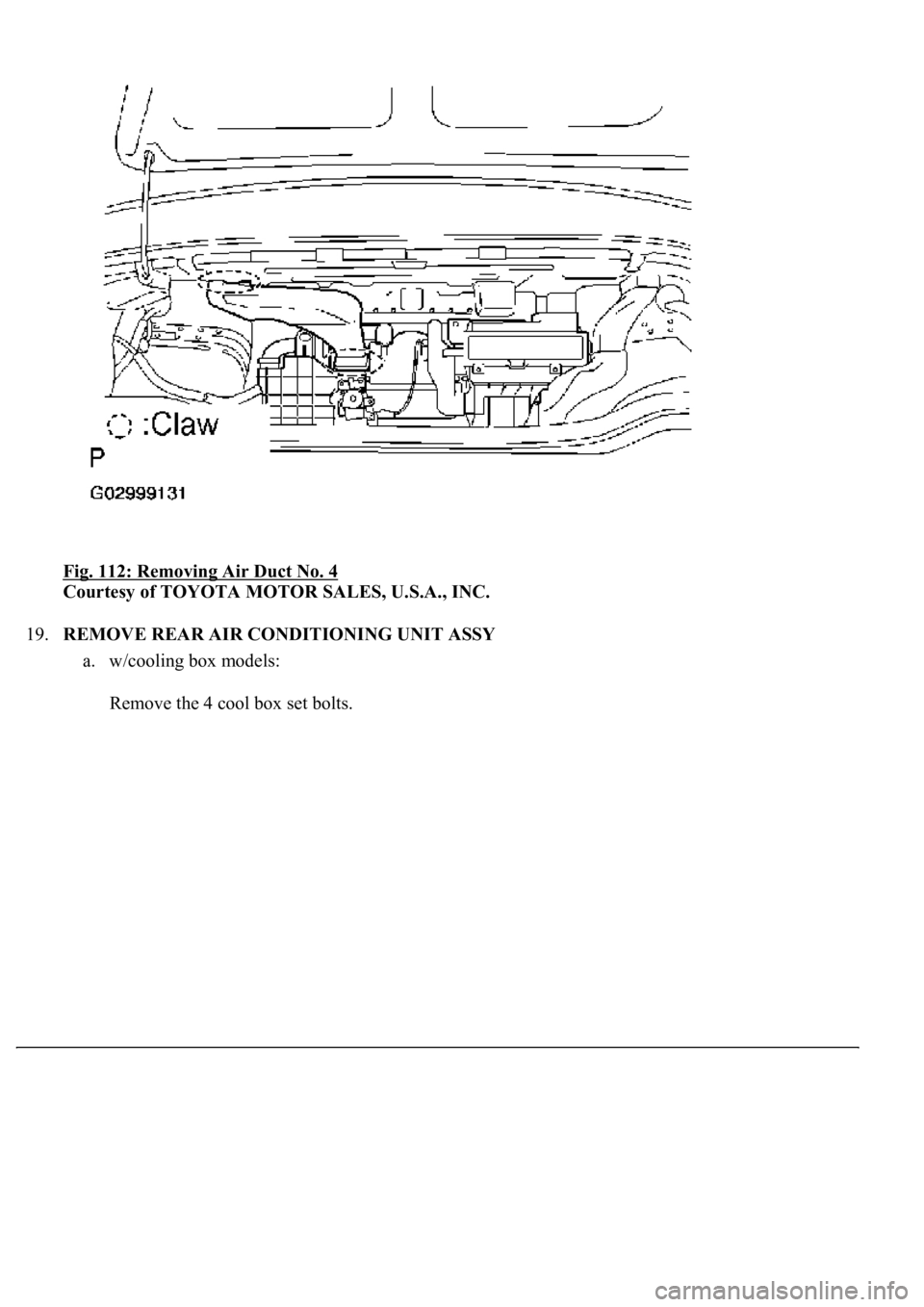

Fig. 112: Removing Air Duct No. 4
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
19.REMOVE REAR AIR CONDITIONING UNIT ASSY
a. w/cooling box models:
Remove the 4 cool box set bolts.

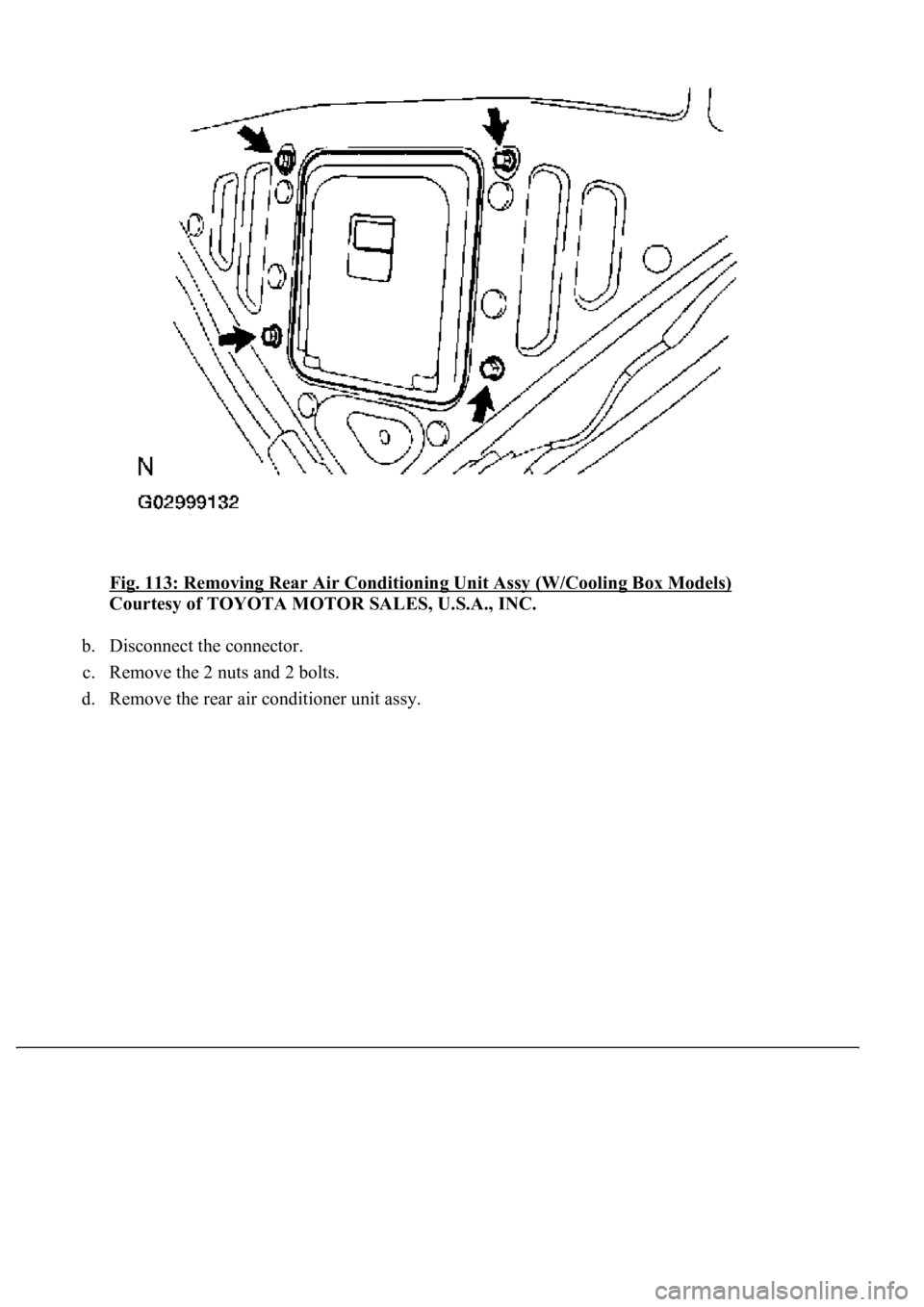

Fig. 113: Removing Rear Air Conditioning Unit Assy (W/Cooling Box Models)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Disconnect the connector.
c. Remove the 2 nuts and 2 bolts.
d. Remove the rear air conditioner unit ass
y.

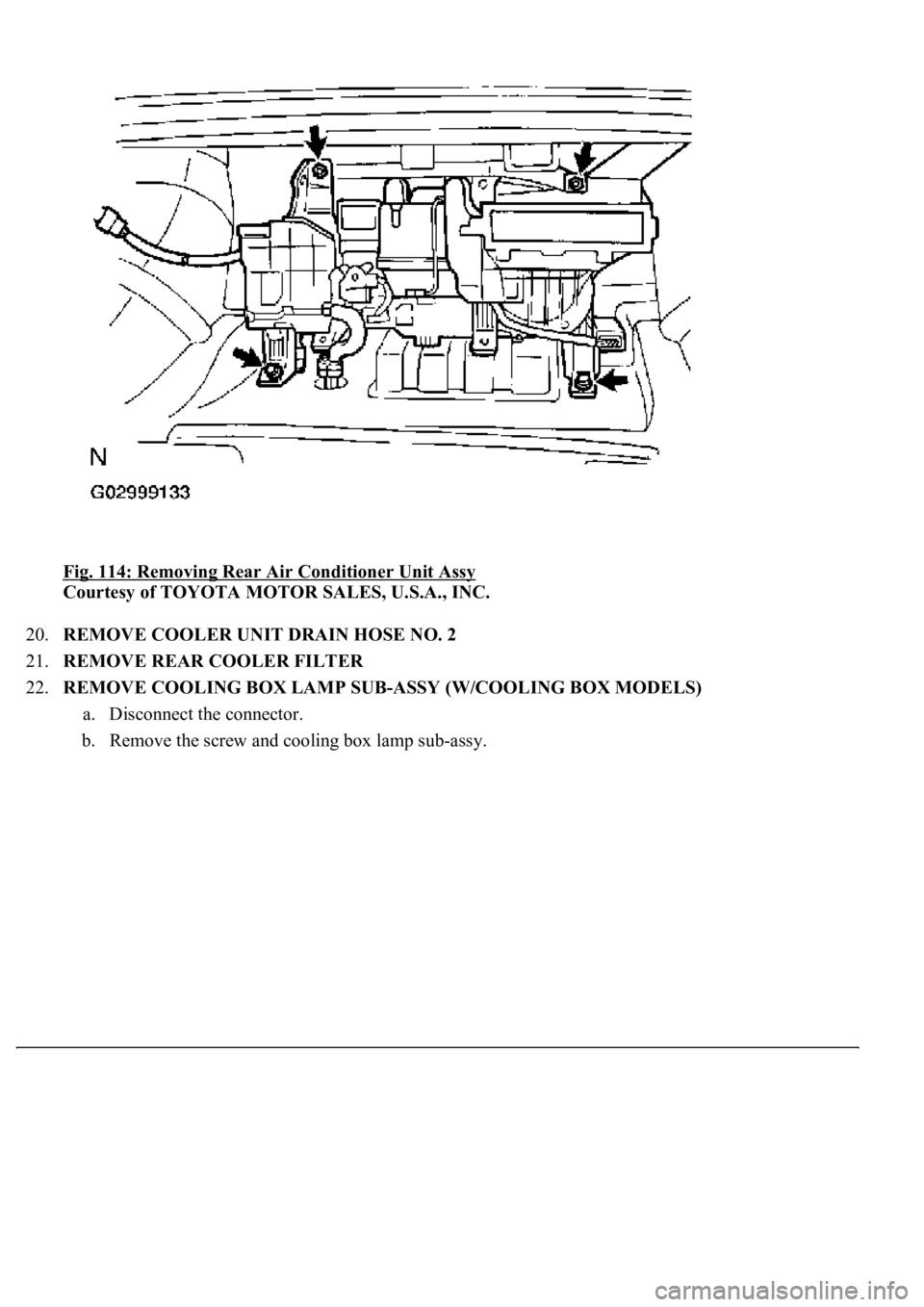

Fig. 114: Removing Rear Air Conditioner Unit Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
20.REMOVE COOLER UNIT DRAIN HOSE NO. 2
21.REMOVE REAR COOLER FILTER
22.REMOVE COOLING BOX LAMP SUB-ASSY (W/COOLING BOX MODELS)
a. Disconnect the connector.
b. Remove the screw and cooling box lamp sub-assy.

Fig. 115: Removing Cooling Box Lamp Sub-Assy (W/Cooling Box Models)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
23.REMOVE COOLER AIR DUCT NO. 1
a. Remove the 2 screws and cooler air duct No. 1.

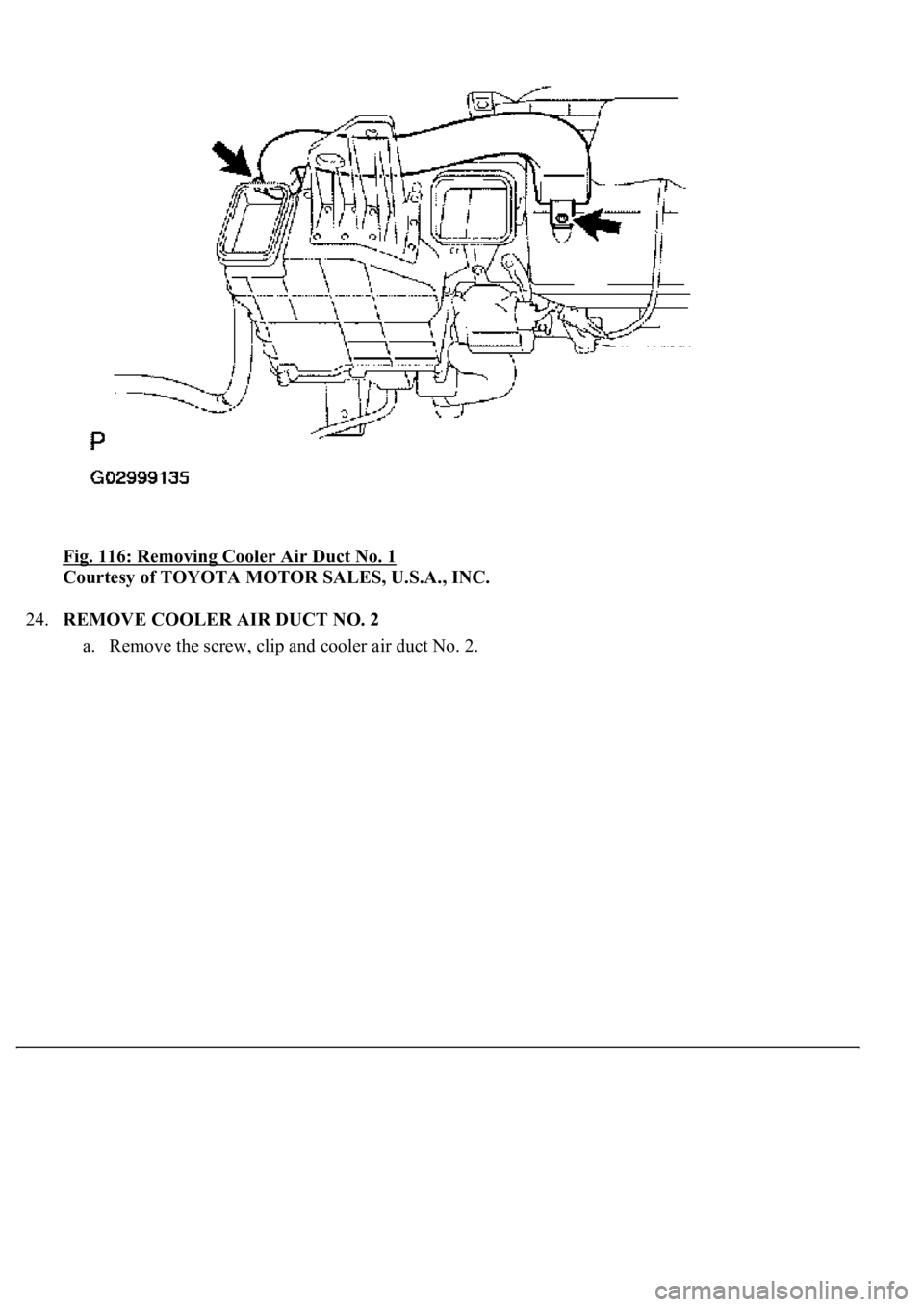

Fig. 116: Removing Cooler Air Duct No. 1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
24.REMOVE COOLER AIR DUCT NO. 2
a. Remove the screw, clip and cooler air duct No. 2.

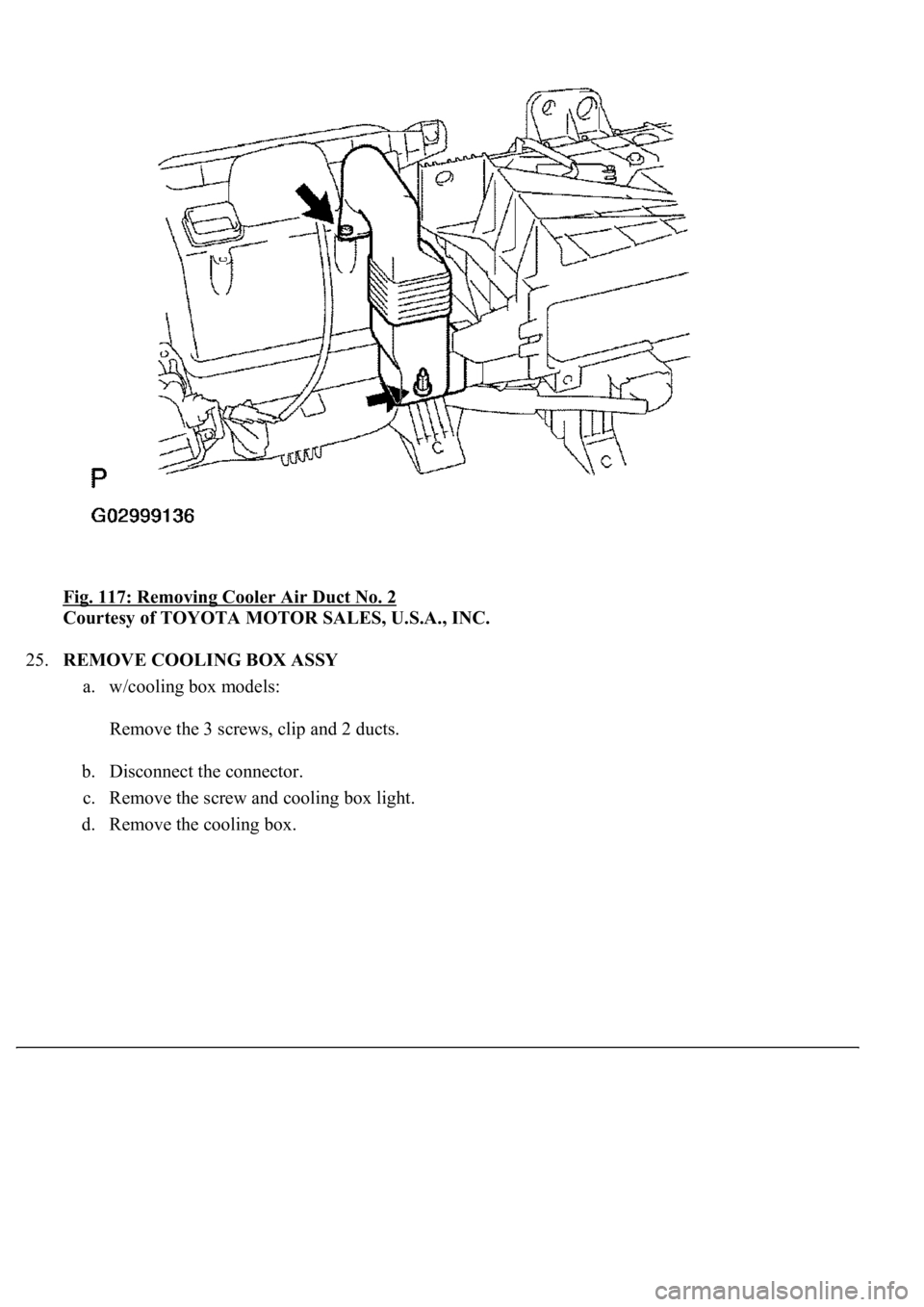

Fig. 117: Removing Cooler Air Duct No. 2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
25.REMOVE COOLING BOX ASSY
a. w/cooling box models:
Remove the 3 screws, clip and 2 ducts.
b. Disconnect the connector.
c. Remove the screw and cooling box light.
d. Remove the coolin
g box.

Fig. 118: Removing Cooling Box Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.REMOVE COOLER AIR DUCT NO. 3
a. Remove the 3 screws and cooler air duct No. 3.

Fig. 119: Removing Cooler Air Duct No. 3
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.REMOVE SMOKE SENSOR
a. Disconnect the connector.
b. Remove the screw and smoke sensor.

Fig. 120: Removing Smoke Sensor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
28.REMOVE BLOWER MOTOR SUB-ASSY
a. Remove the 4 screws and rear cooling unit case.
