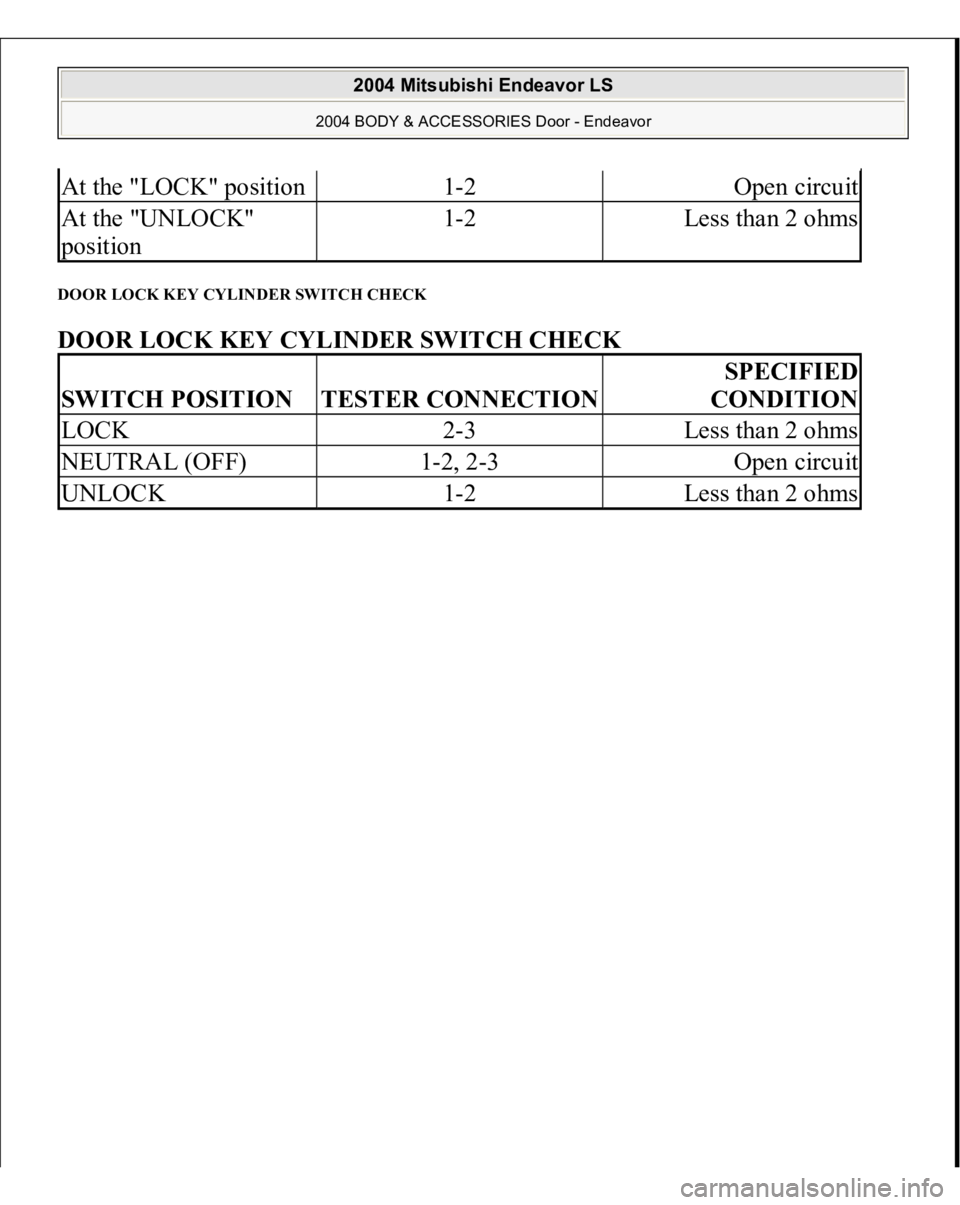

DOOR LOCK KEY CYLINDER SWITCH CHECK DOOR LOCK KEY CYLINDER SWITCH CHECK At the "LOCK" position
1-2
Open circuit
At the "UNLOCK"
position
1-2
Less than 2 ohms
SWITCH POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
LOCK
2-3
Less than 2 ohms
NEUTRAL (OFF)
1-2, 2-3
Open circuit
UNLOCK
1-2
Less than 2 ohms

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

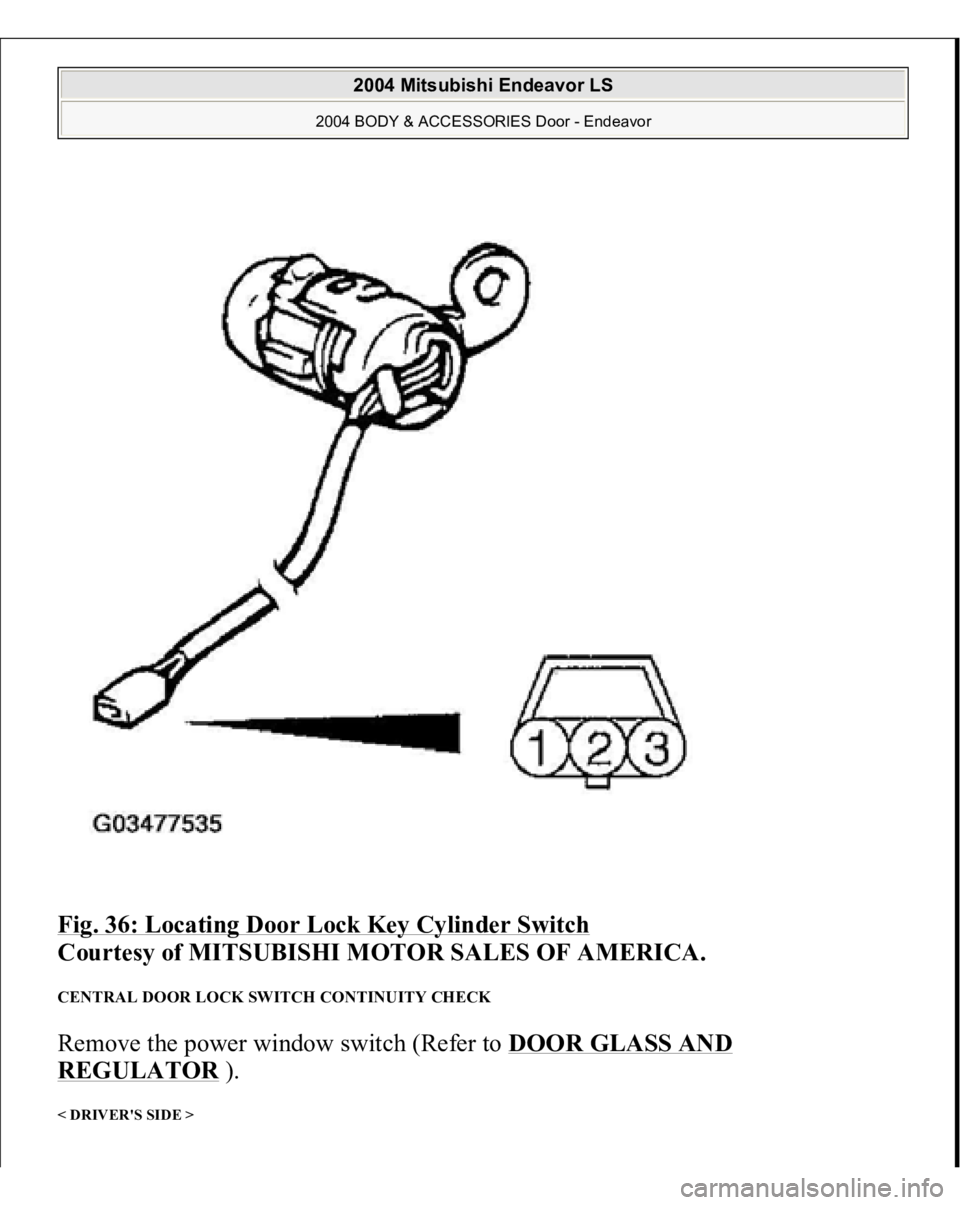

Fig. 36: Locating Door Lock Key Cylinder Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CENTRAL DOOR LOCK SWITCH CONTINUITY CHECK Remove the power window switch (Refer to DOOR GLASS AND REGULATOR
).
< DRIVER'S SIDE >
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

CENTRAL DOOR LOCK SWITCH CONTINUITY CHEC
K

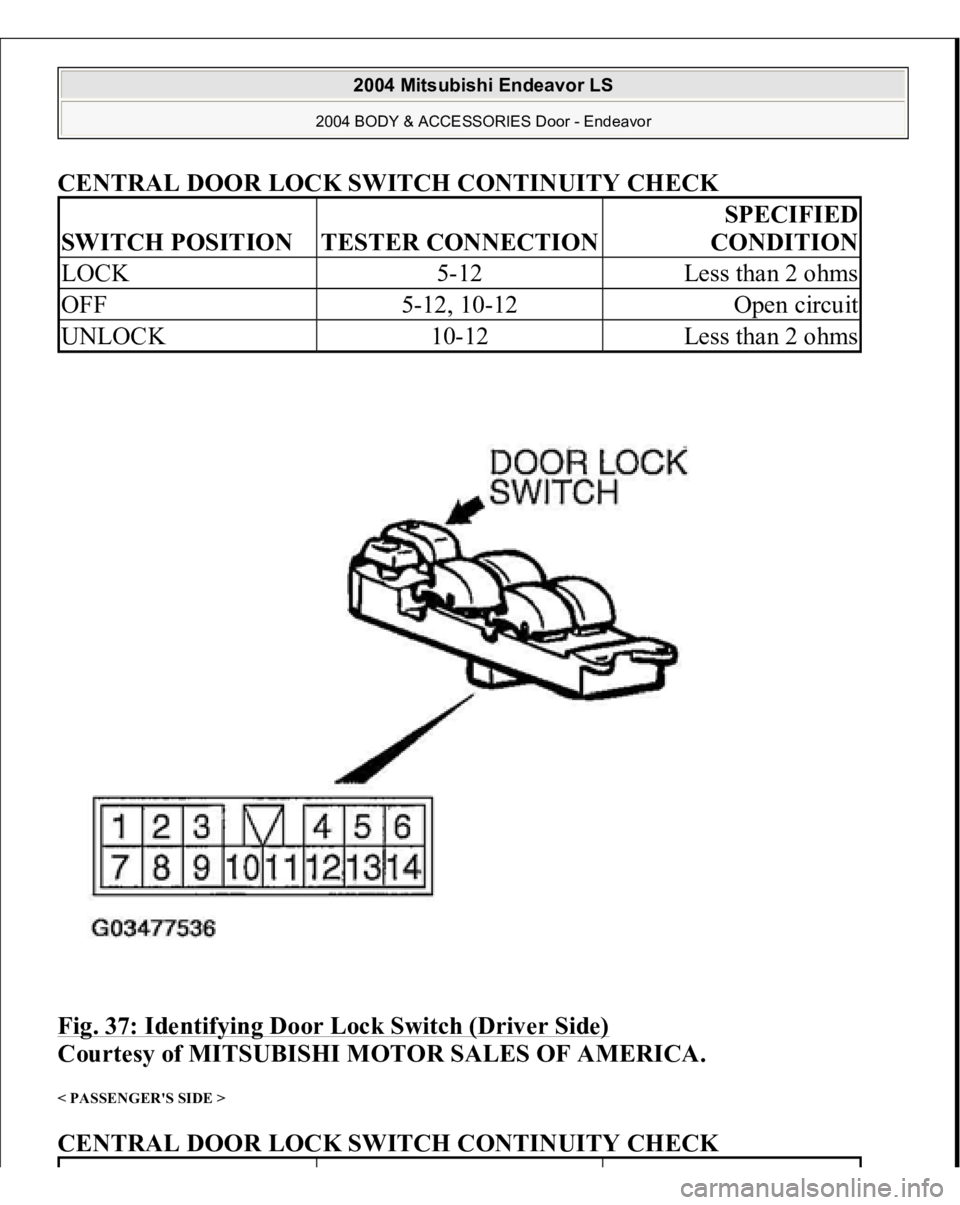

Fig. 37: Identifying Door Lock Switch (Driver Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< PASSENGER'S SIDE > CENTRAL DOOR LOCK SWITCH CONTINUITY CHECK SWITCH POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
LOCK
5-12
Less than 2 ohms
OFF
5-12, 10-12
Open circuit
UNLOCK
10-12
Less than 2 ohms

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

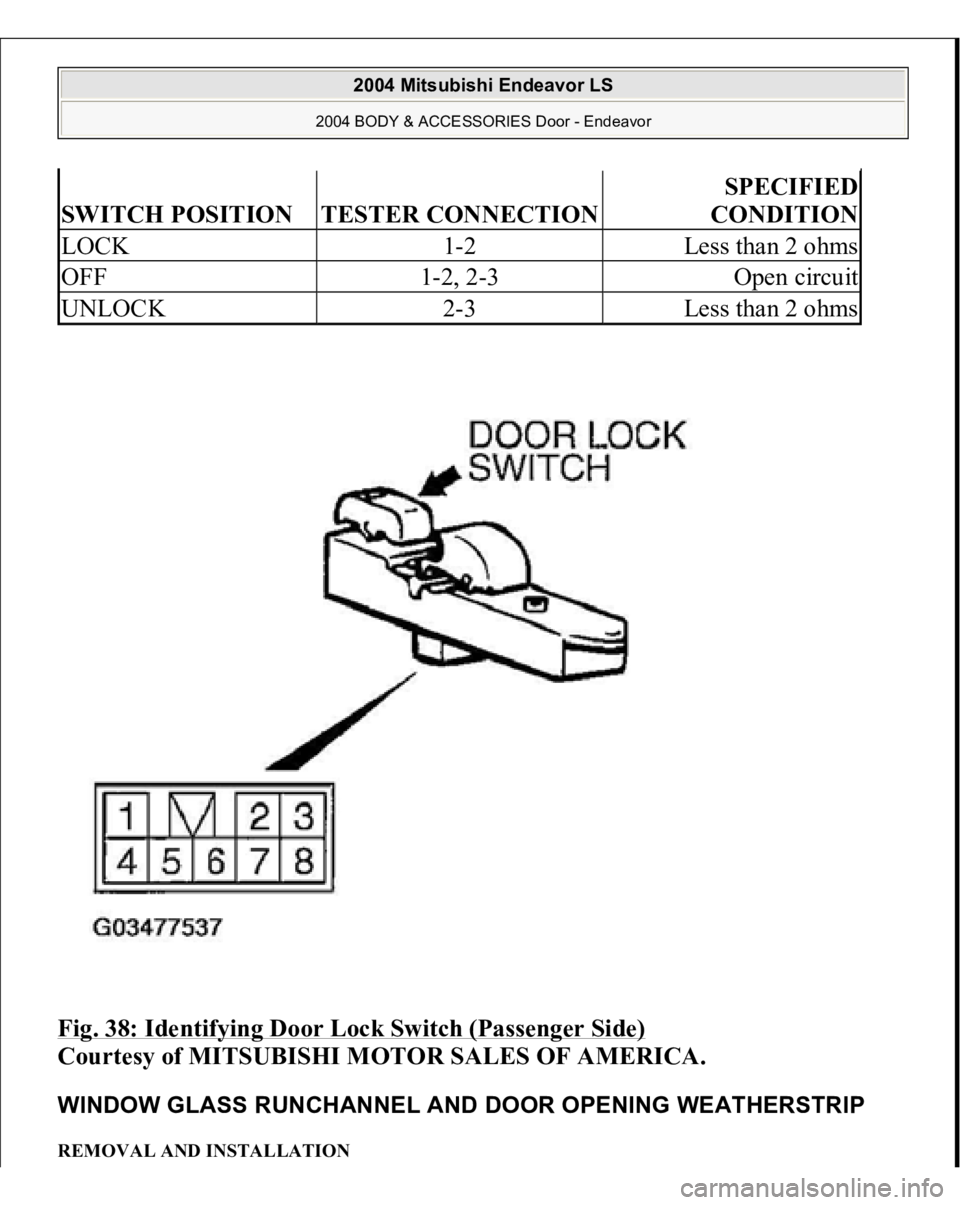

Fig. 38: Identifying Door Lock Switch (Passenger Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP REMOVAL AND INSTALLATION SWITCH POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
LOCK
1-2
Less than 2 ohms
OFF
1-2, 2-3
Open circuit
UNLOCK
2-3
Less than 2 ohms

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

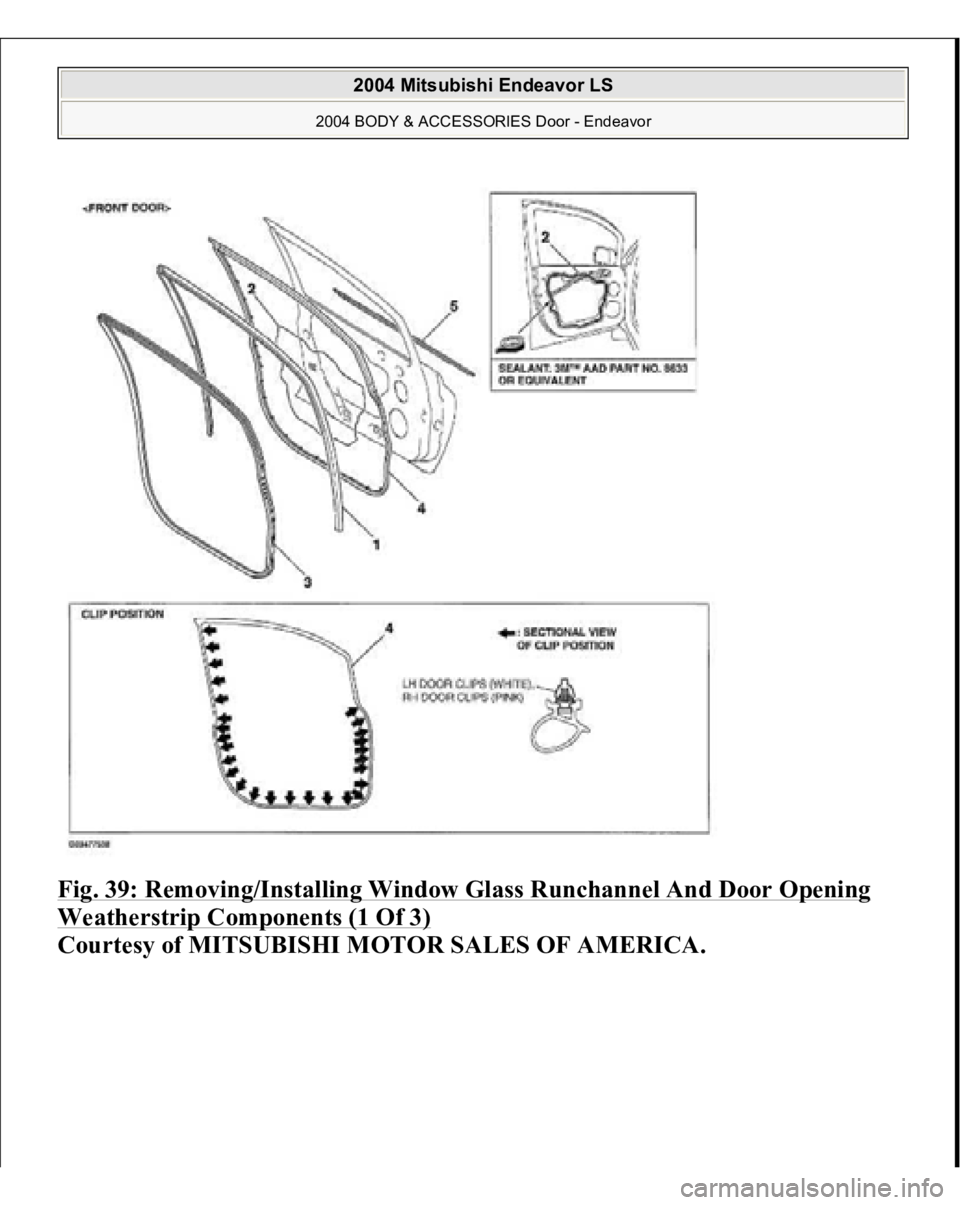

Fig. 39: Removing/Installing Window Glass Runchannel And Door Opening Weatherstrip Components (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

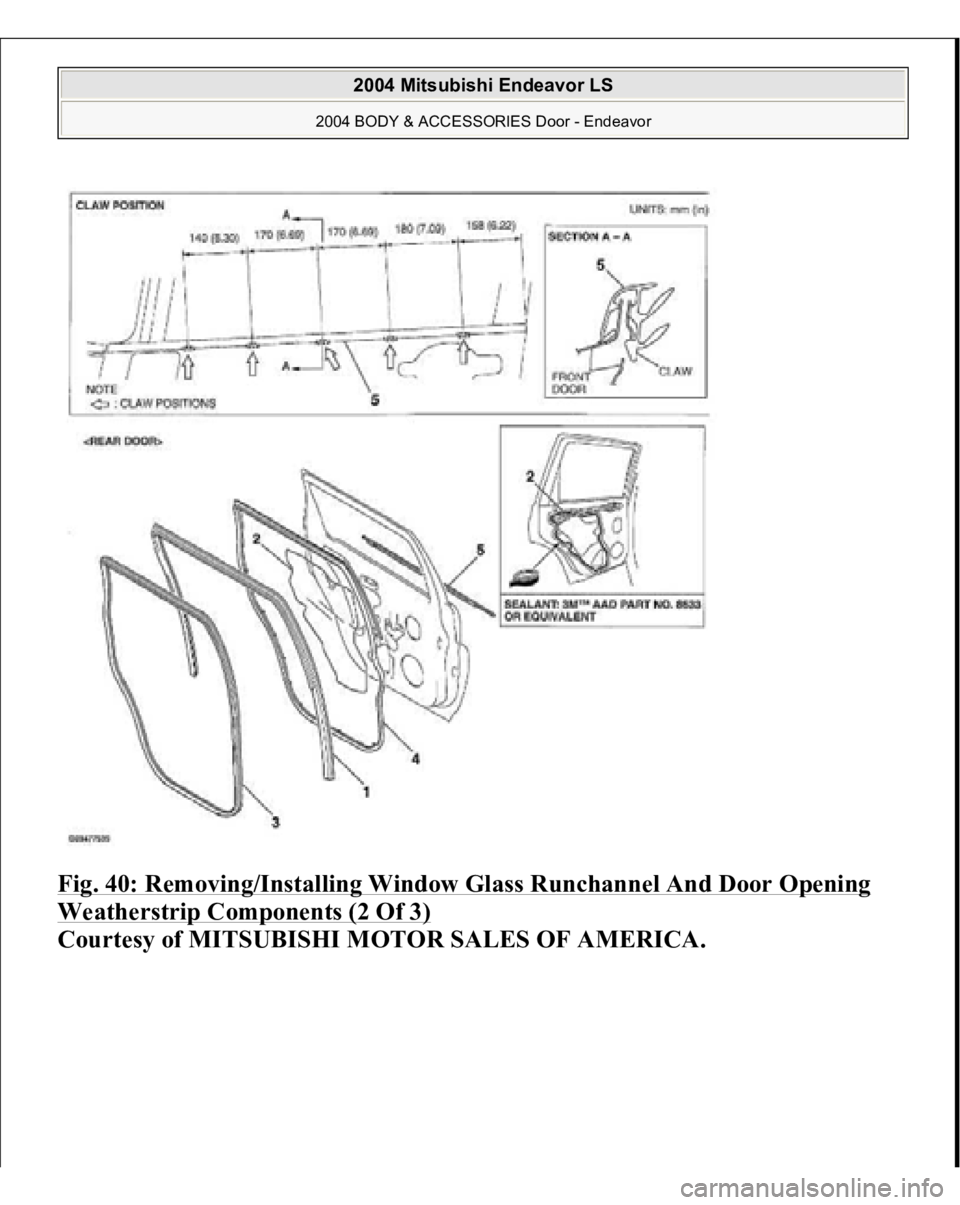

Fig. 40: Removing/Installing Window Glass Runchannel And Door Opening Weatherstrip Components (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

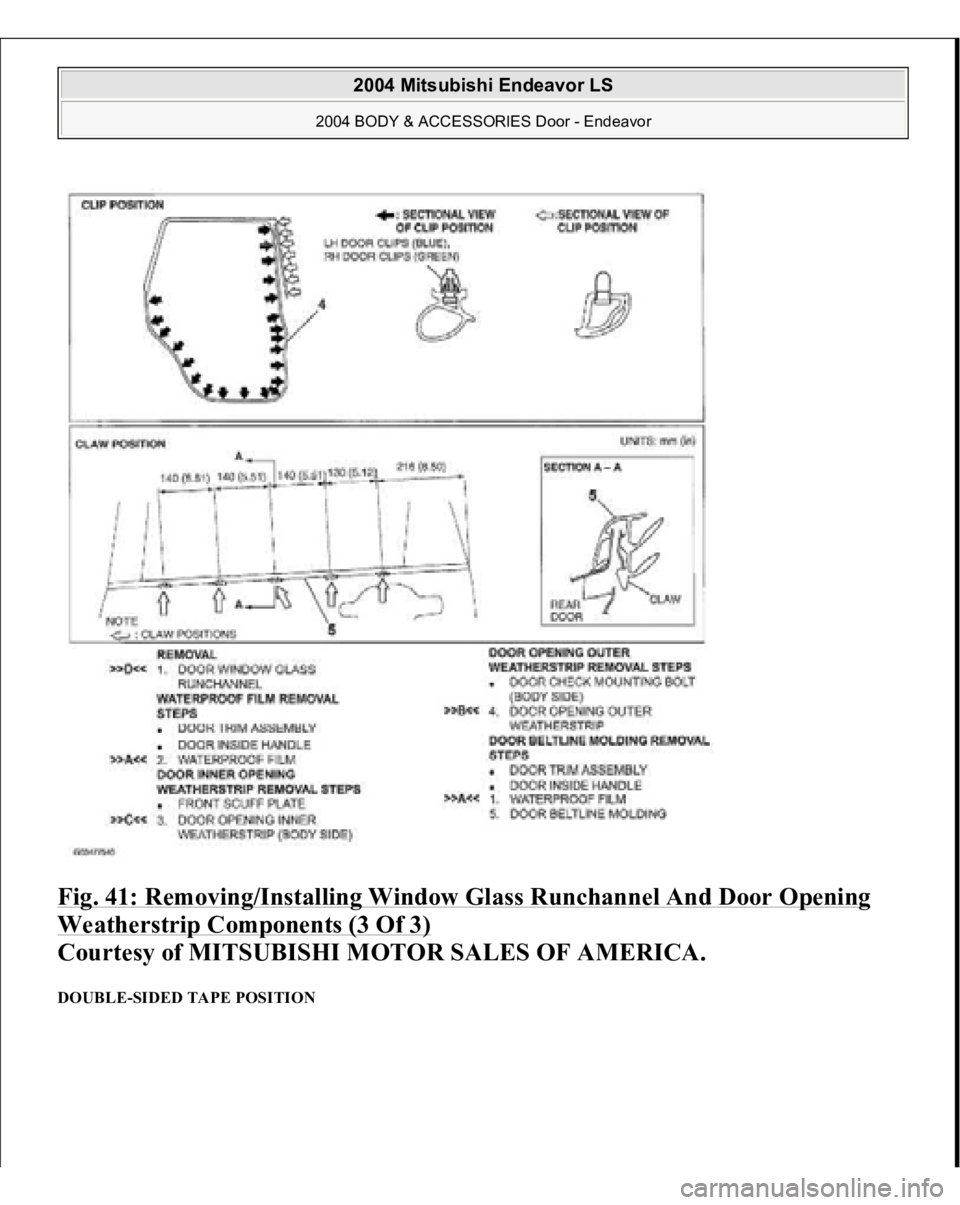

Fig. 41: Removing/Installing Window Glass Runchannel And Door Opening Weatherstrip Components (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DOUBLE-SIDED TAPE POSITION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

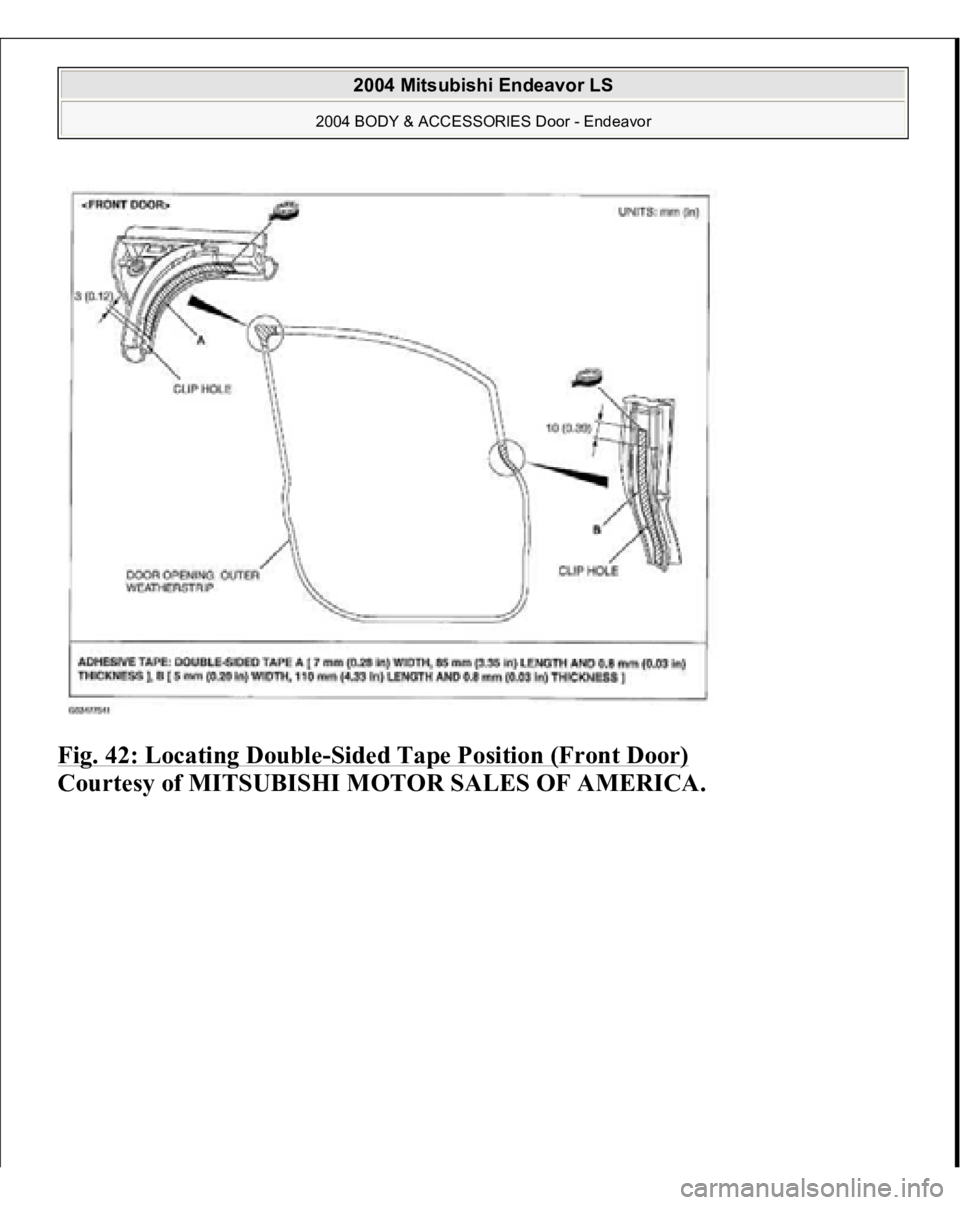

Fig. 42: Locating Double
-Sided Tape Position (Front Door)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

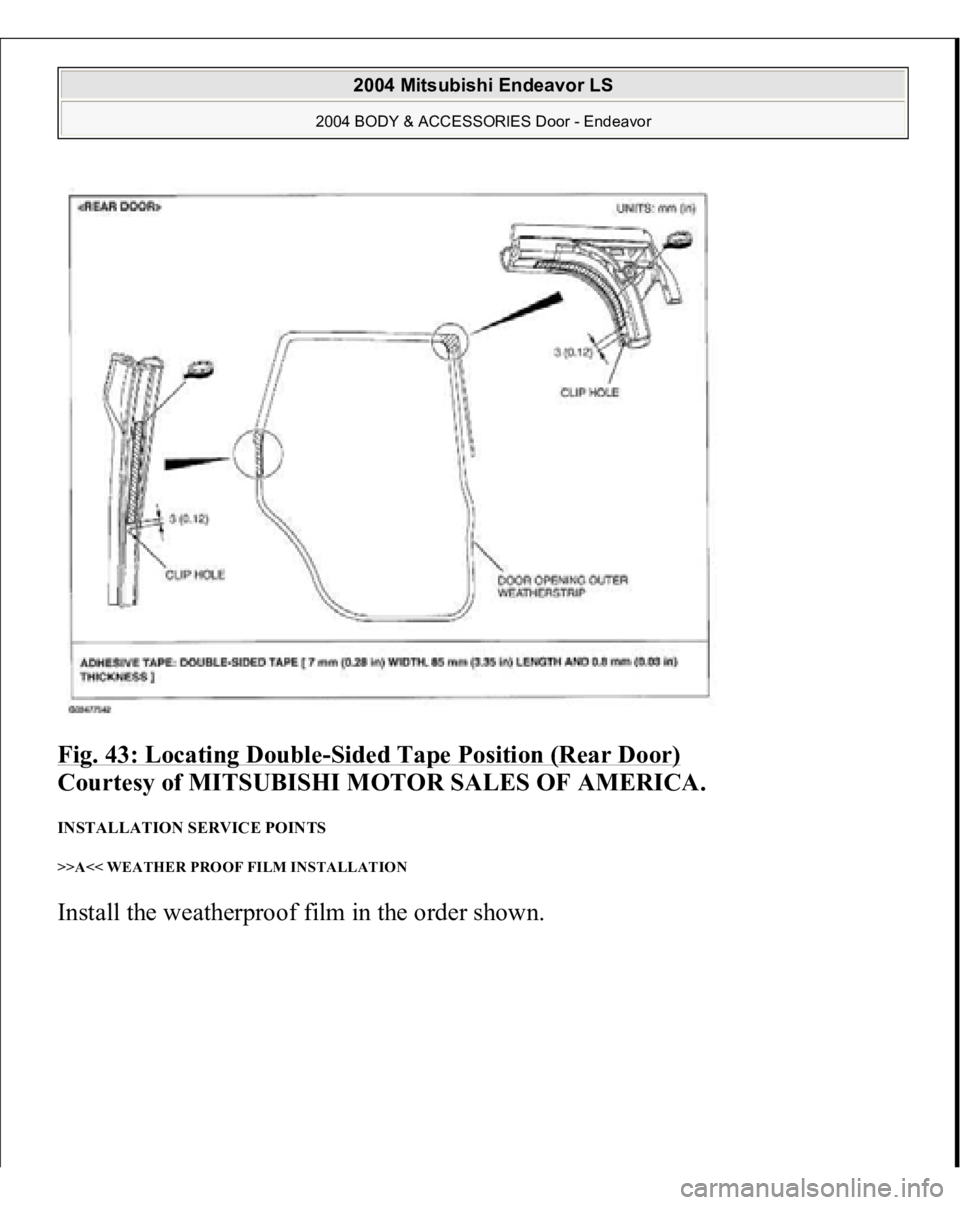

Fig. 43: Locating Double
-Sided Tape Position (Rear Door)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

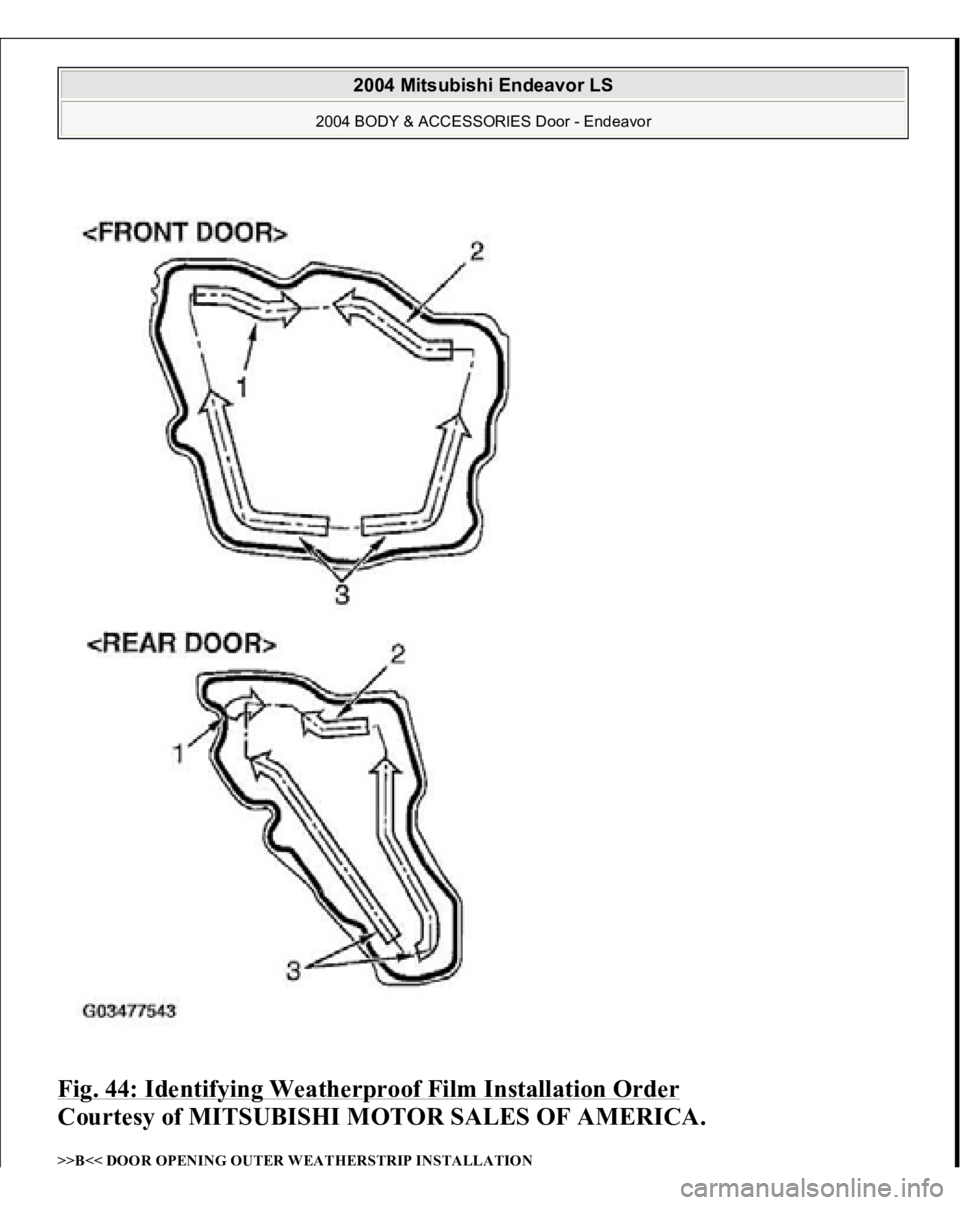

INSTALLATION SERVICE POINTS >>A<< WEATHER PROOF FILM INSTALLATION Install the weather
proof film in the order shown.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

Fig. 44: Identifying Weatherproof Film Installation Order

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>B<< DOOR OPENING OUTER WEATHERSTRIP INSTALLATION
