MITSUBISHI ENDEAVOR 2004 Service Repair Manual

Fig. 23: Removing/Installing Door Glass And Regulator (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

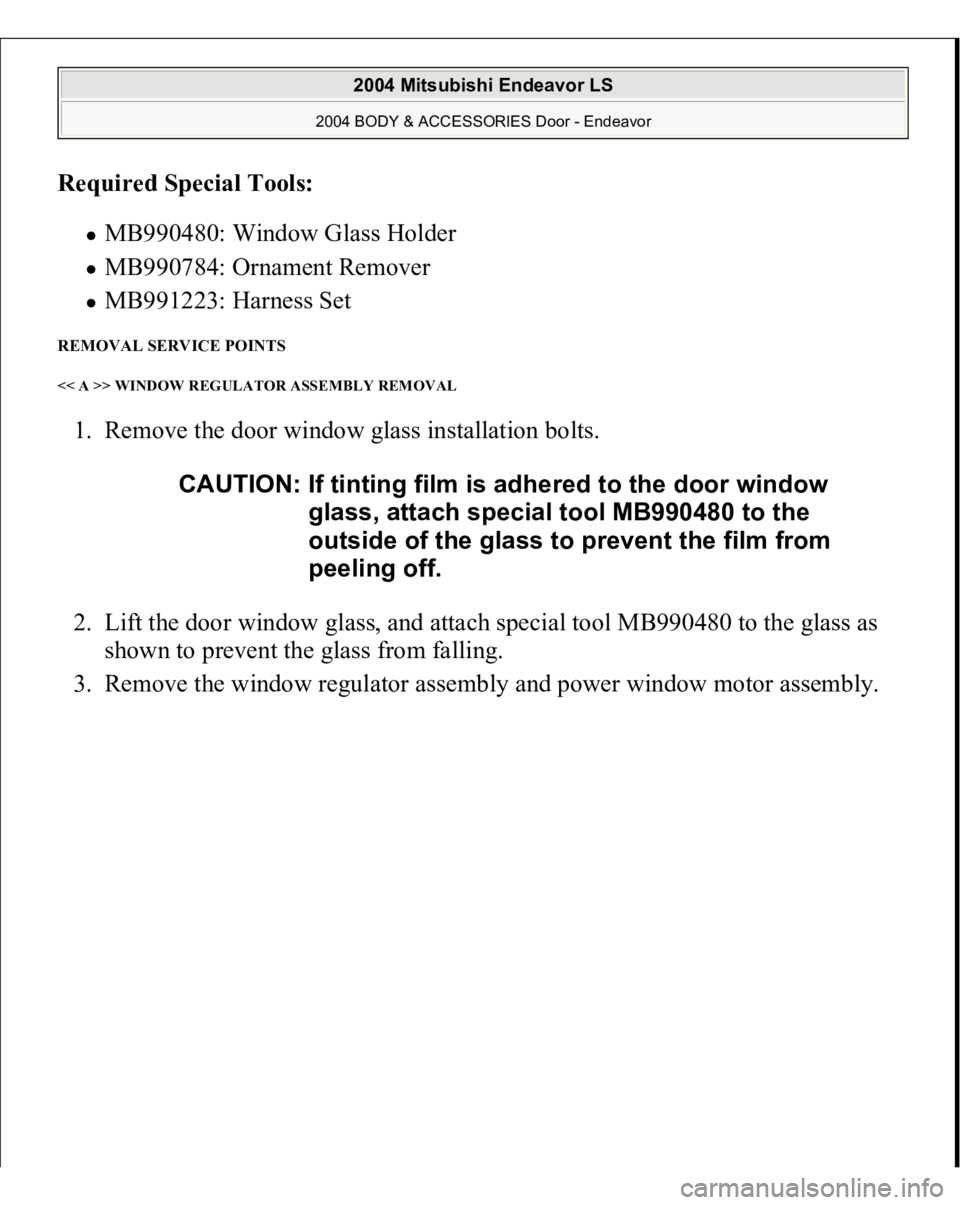

Required Special Tools:
MB990480: Window Glass Holder MB990784: Ornament Remover MB991223: Harness Set
REMOVAL SERVICE POINTS << A >> WINDOW REGULATOR ASSEMBLY REMOVAL 1. Remove the door window glass installation bolts.
2. Lift the door window glass, and attach special tool MB990480 to the glass as
shown to prevent the glass from falling.
3. Remove the window re
gulator assembl
y and
power win
dow motor assembl
y.
CAUTION: If tinting film is adhered to the door window
glass, attach special tool MB990480 to the
outside of the glass to prevent the film from
peeling off.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

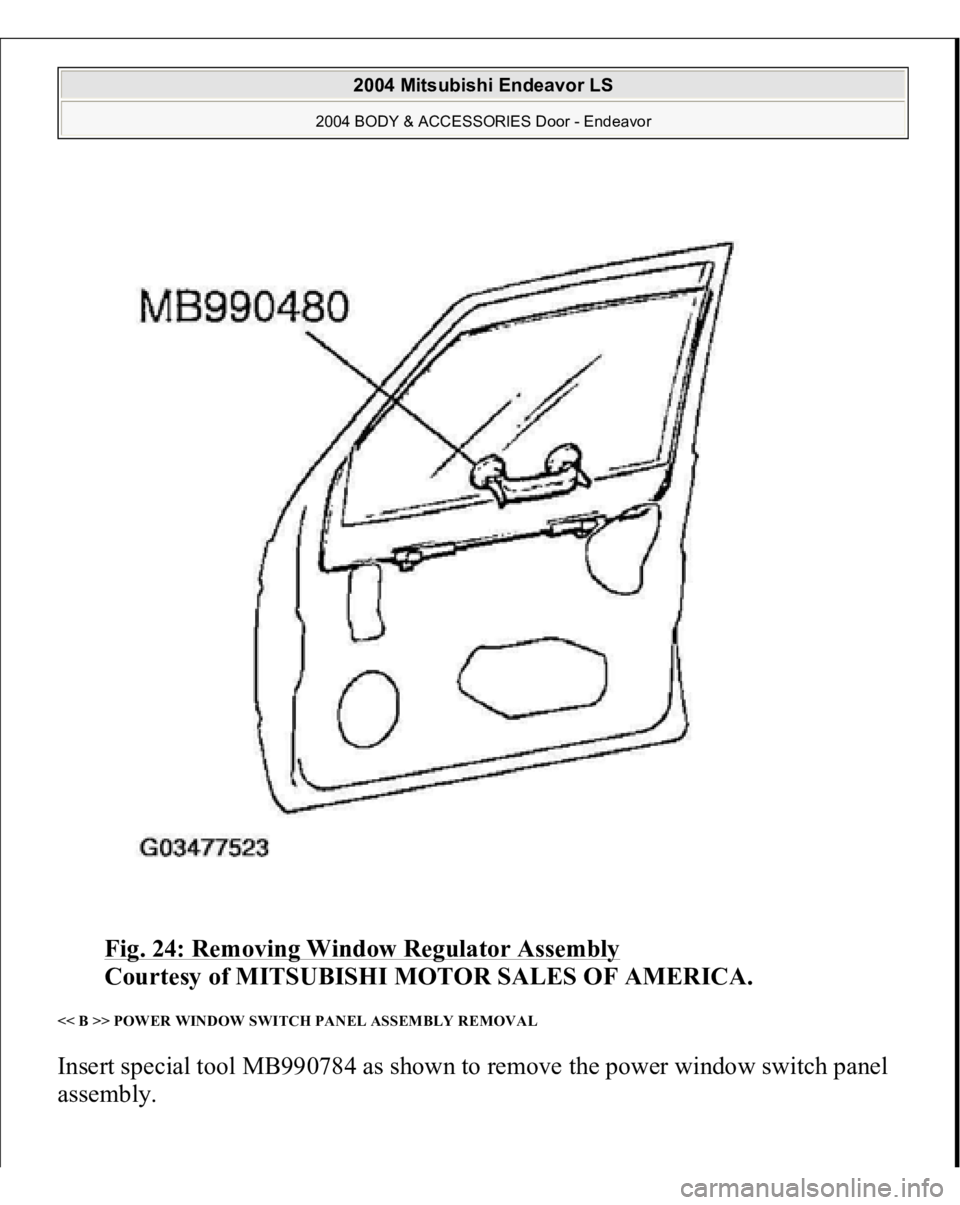

Fig. 24: Removing Window Regulator Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<< B >> POWER WINDOW SWITCH PANEL ASSEMBLY REMOVAL Insert special tool MB990784 as shown to remove the power window switch panel
assembl
y.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

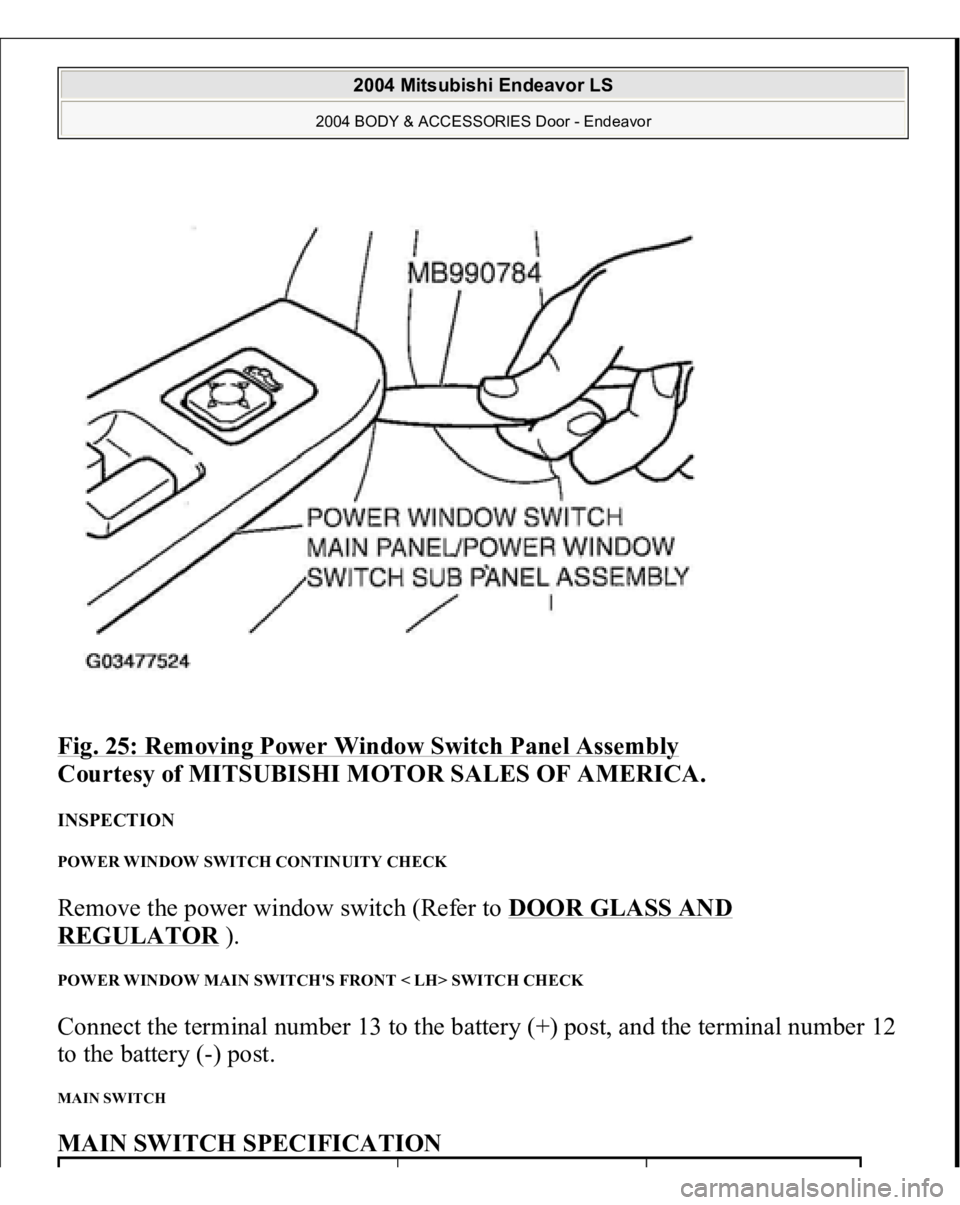

Fig. 25: Removing Power Window Switch Panel Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION POWER WINDOW SWITCH CONTINUITY CHECK Remove the power window switch (Refer to DOOR GLASS AND REGULATOR
).
POWER WINDOW MAIN SWITCH'S FRONT < LH> SWITCH CHECK Connect the terminal number 13 to the battery (+) post, and the terminal number 12
to the battery (-) post. MAIN SWITCH MAIN SWITCH SPECIFICATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

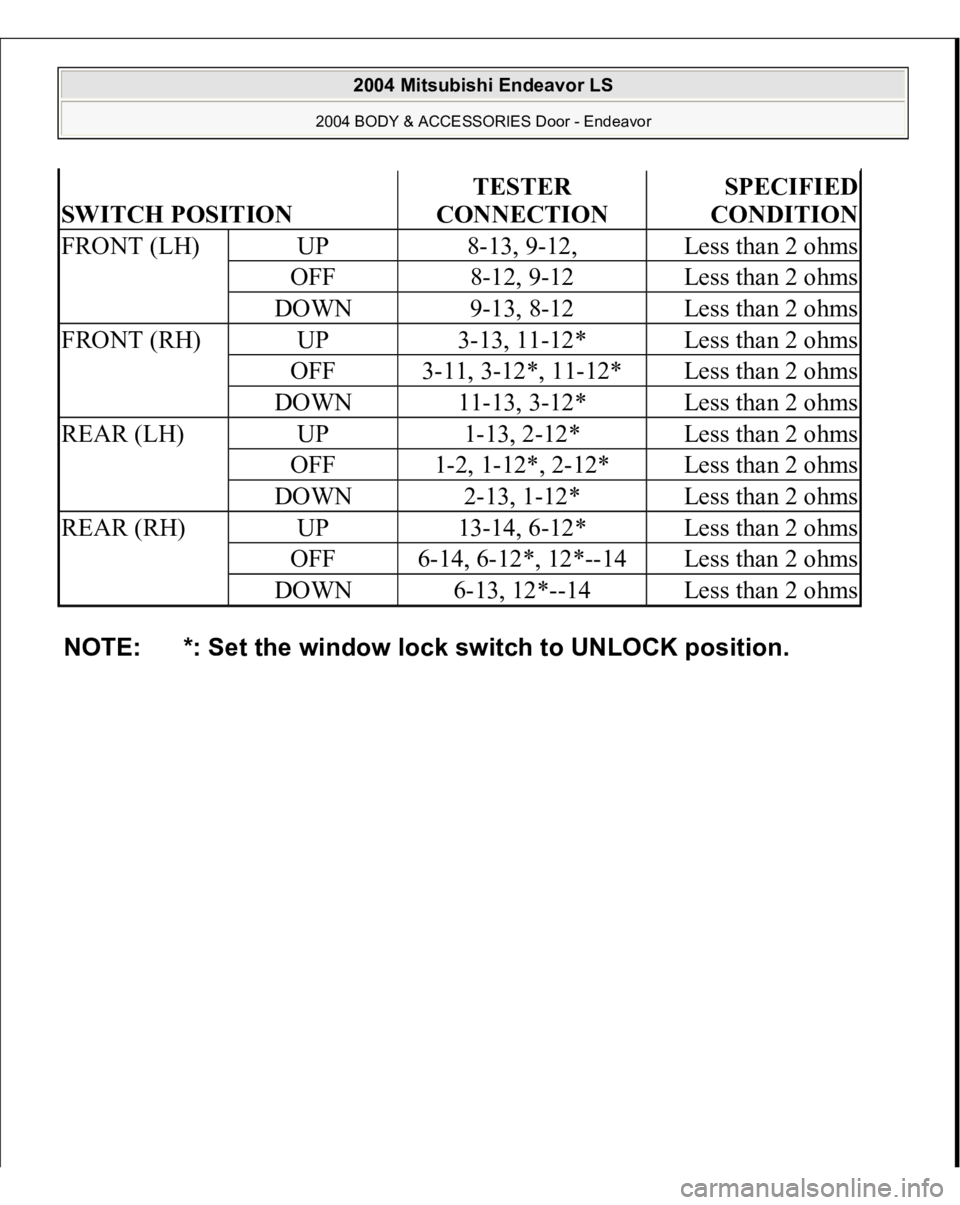

SWITCH POSITION
TESTER
CONNECTION
SPECIFIED
CONDITION
FRONT (LH)
UP
8-13, 9-12,
Less than 2 ohms
OFF
8-12, 9-12
Less than 2 ohms
DOWN
9-13, 8-12
Less than 2 ohms
FRONT (RH)
UP
3-13, 11-12*
Less than 2 ohms
OFF
3-11, 3-12*, 11-12*
Less than 2 ohms
DOWN
11-13, 3-12*
Less than 2 ohms
REAR (LH)
UP
1-13, 2-12*
Less than 2 ohms
OFF
1-2, 1-12*, 2-12*
Less than 2 ohms
DOWN
2-13, 1-12*
Less than 2 ohms
REAR (RH)
UP
13-14, 6-12*
Less than 2 ohms
OFF
6-14, 6-12*, 12*--14
Less than 2 ohms
DOWN
6-13, 12*--14
Less than 2 ohms
NOTE: *: Set the window lock switch to UNLOCK position.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

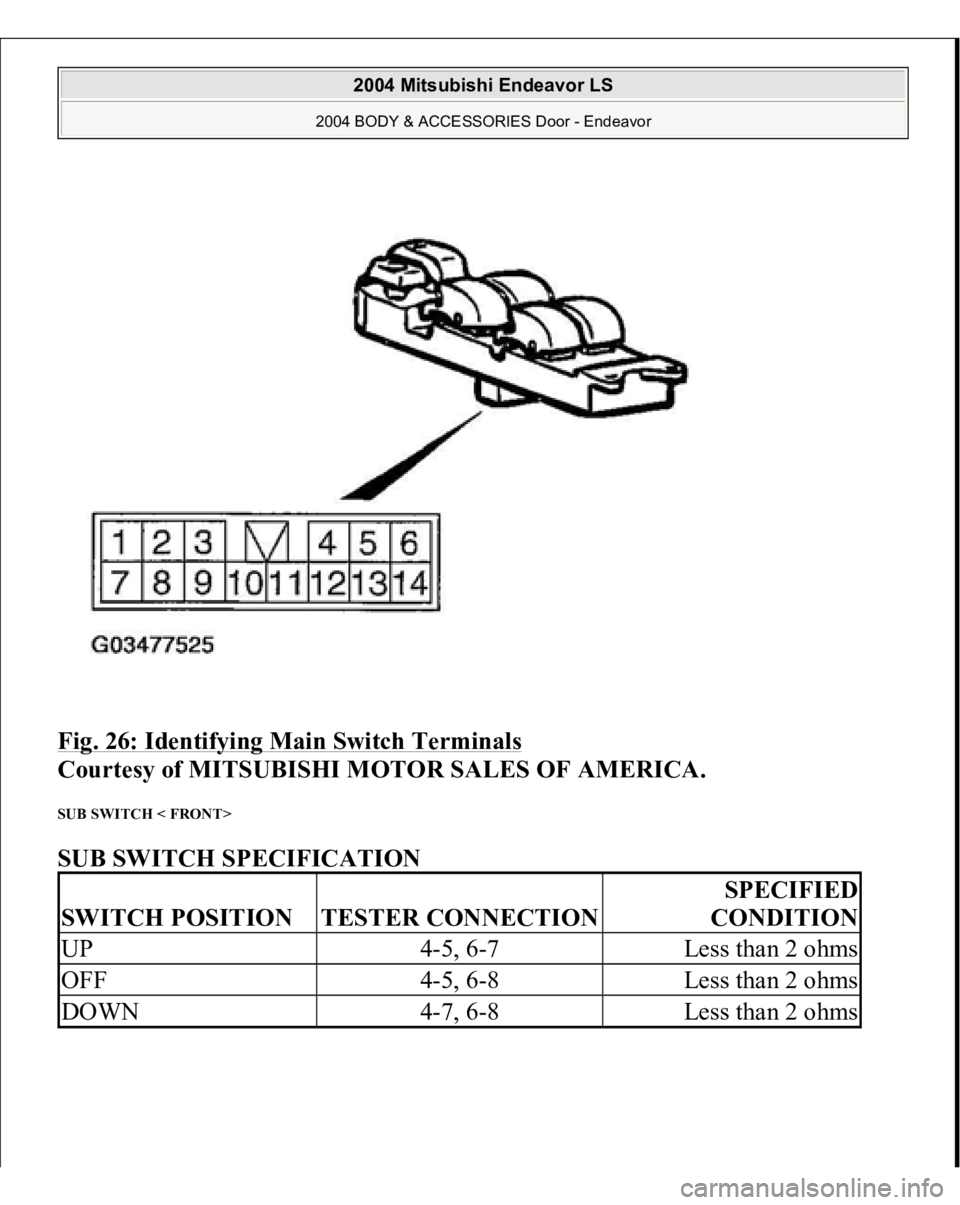

Fig. 26: Identifying Main Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SUB SWITCH < FRONT> SUB SWITCH SPECIFICATION SWITCH POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
UP
4-5, 6-7
Less than 2 ohms
OFF
4-5, 6-8
Less than 2 ohms
DOWN
4-7, 6-8
Less than 2 ohms

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

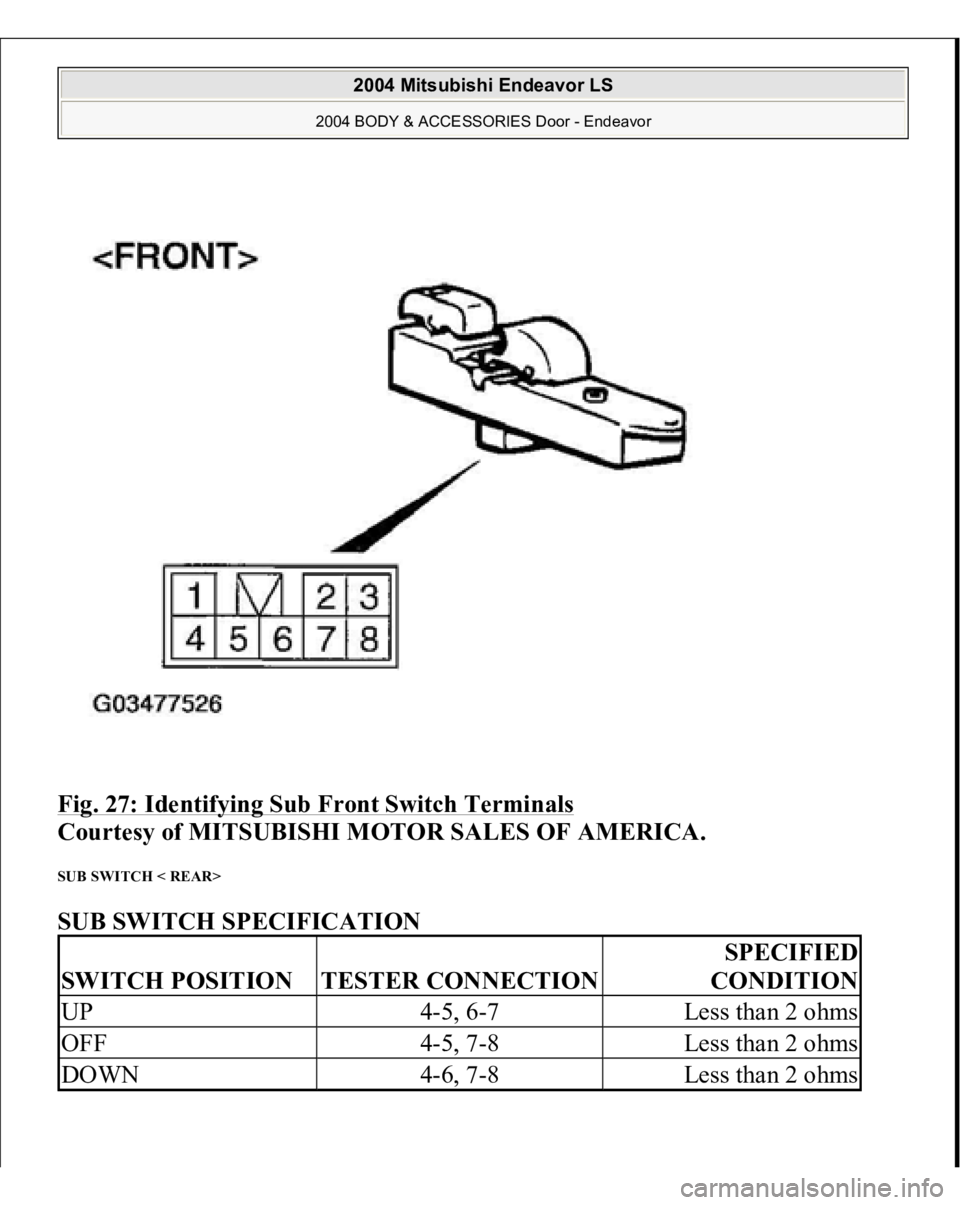

Fig. 27: Identifying Sub Front Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SUB SWITCH < REAR> SUB SWITCH SPECIFICATION SWITCH POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
UP
4-5, 6-7
Less than 2 ohms
OFF
4-5, 7-8
Less than 2 ohms
DOWN
4-6, 7-8
Less than 2 ohms

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

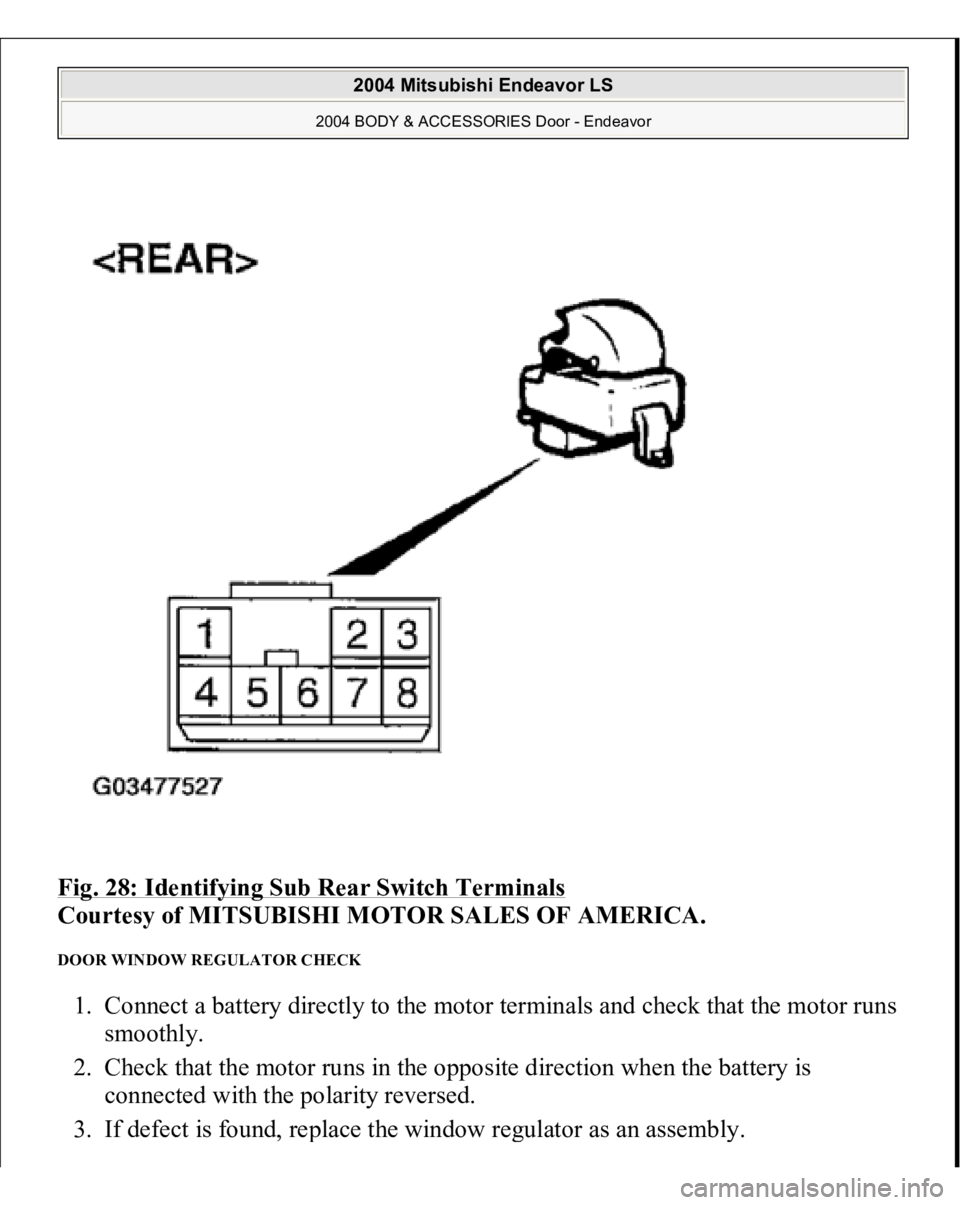

Fig. 28: Identifying Sub Rear Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DOOR WINDOW REGULATOR CHECK 1. Connect a battery directly to the motor terminals and check that the motor runs
smoothly.
2. Check that the motor runs in the opposite direction when the battery is
connected with the polarity reversed.
3. If defect is found, re
place the window re
gulator as an assembl
y.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

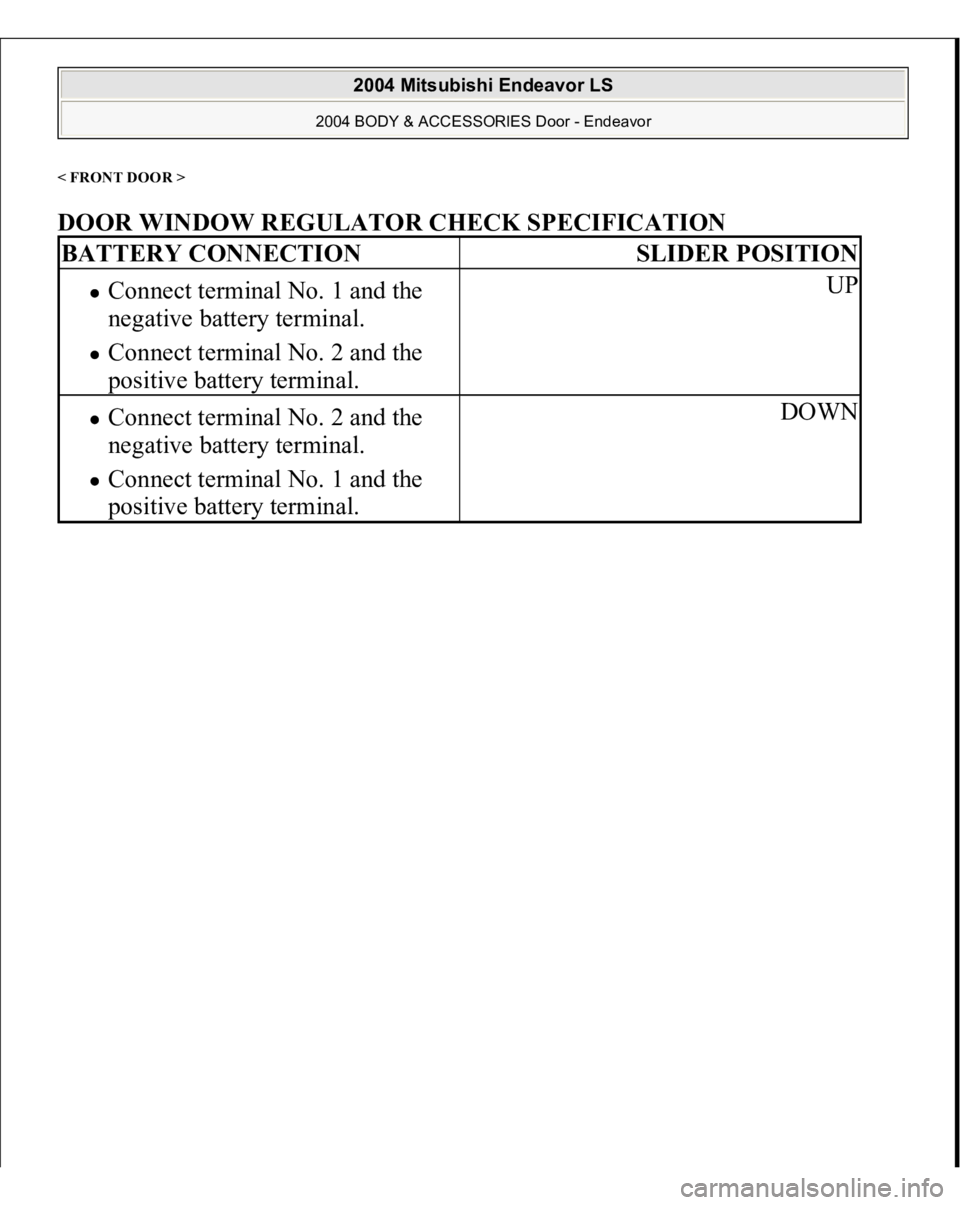

< FRONT DOOR > DOOR WINDOW REGULATOR CHECK SPECIFICATION BATTERY CONNECTION
SLIDER POSITION
Connect terminal No. 1 and the
negative battery terminal. Connect terminal No. 2 and the
positive battery terminal.
UP
Connect terminal No. 2 and the
negative battery terminal. Connect terminal No. 1 and the
positive battery terminal.
DOWN

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

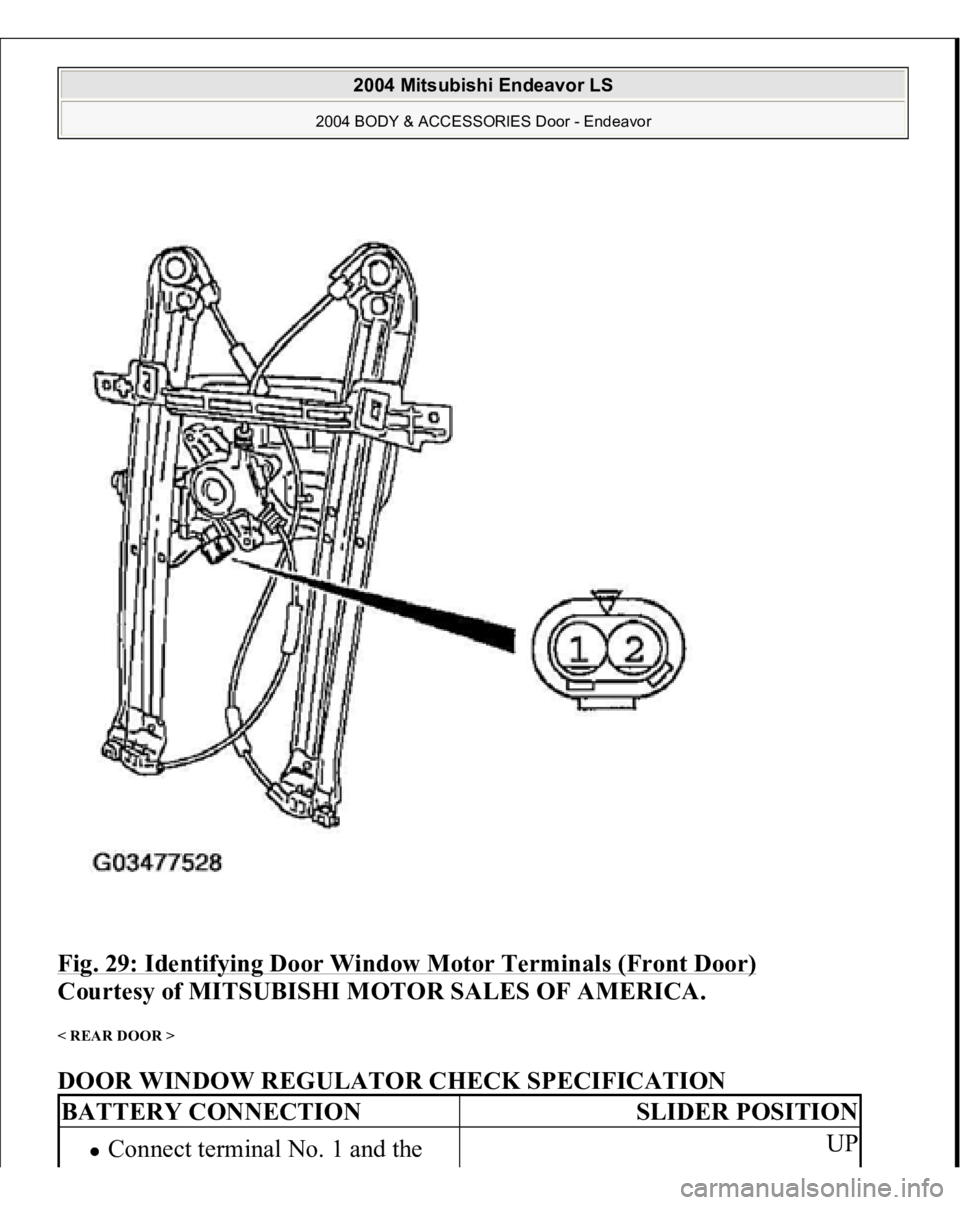

Fig. 29: Identifying Door Window Motor Terminals (Front Door)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< REAR DOOR > DOOR WINDOW REGULATOR CHECK SPECIFICATION BATTERY CONNECTION
SLIDER POSITION
Connect terminal No. 1 and the
UP
