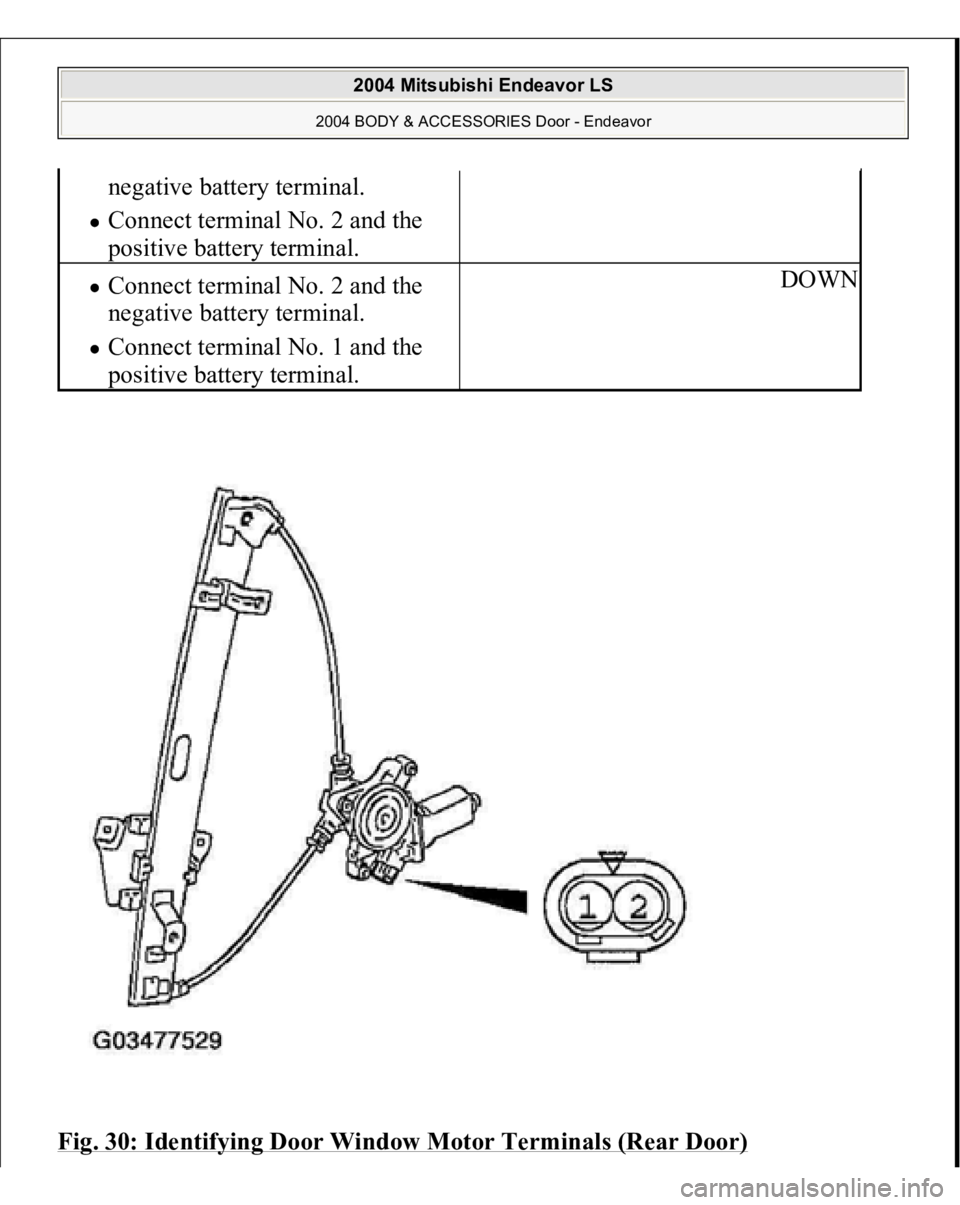

Fig. 30: Identifying Door Window Motor Terminals (Rear Door)
negative battery terminal. Connect terminal No. 2 and the
positive battery terminal. Connect terminal No. 2 and the
negative battery terminal. Connect terminal No. 1 and the
positive battery terminal.
DOWN

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
DOOR HANDLE AND LATCH REMOVAL AND INSTALLATION Fig. 31: Removing/Installing Door Handle And Latch (1 Of 2)
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
Fig. 32: Removing/Installing Door Handle And Latch (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB991223: Harness Set
INSTALLATION SERVICE POINTS >>A<< DOOR CHECK INSTALLATION Install the door check so that the identification mark faces upwards.
DOOR CHECK INSTALLATION SPECIFICATION ITEM
IDENTIFICATION MARK
Front Door
Left door
PUFL
Right door
PUFR
Rear Door
Left door
PURL
Right door
PURR

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

Fig. 33: Installin
g Door Check

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
>>B<< LOWER SASH INSTALLATION Securely insert the lower sash into the window rear sash. INSPECTION FRONT DOOR LATCH CHECK The illustration shows when the door lock actuator is viewed from inside the door. DOOR LOCK ACTUATOR INCORPORATED IN DOOR LATCH CHECK < LEFT SIDE> FRONT DOOR LATCH CHECK SPECIFICATION LEVER POSITION
BATTERY
CONNECTION
LEVER OPERATION
At the "UNLOCK"
position
Connect terminal No.
4 and the negative
battery terminal. Connect terminal No.
6 and the positive
battery terminal.
The lever moves from
the "UNLOCK" position
to the "LOCK" position.
At the "LOCK" position
Connect terminal No.
6 and the negative
battery terminal. Connect terminal No.
4 and the positive
battery terminal.
The lever moves from
the "LOCK" position to
the "UNLOCK"
position.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

Fig. 34: Identifying Lock And Lever Of Front Door Latch Check (Front Door)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DOOR LOCK ACTUATOR SWITCH INCORPORATED IN DOOR LATCH CHECK < LEFT SIDE> DOOR LOCK ACTUATOR SWITCH SPECIFICATION DOOR LOCK ACTUATOR INCORPORATED IN DOOR LATCH CHECK < RIGHT SIDE> DOOR LOCK ACTUATOR LATCH CHECK DOOR LOCK ACTUATOR SWITCH INCORPORATED IN DOOR LATCH CHECK < RIGHT SIDE> DOOR LOCK ACTUATOR SWITCH CHECK LEVER POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
At the "LOCK" position
1-2
Open circuit
At the "UNLOCK"
position
1-2
Less than 2 ohms
LEVER POSITION
BATTERY
CONNECTION
LEVER OPERATION
At the "LOCK" position
Connect terminal No.
4 and the negative
battery terminal. Connect terminal No.
6 and the positive
battery terminal.
The lever moves from
the "LOCK" position to
the "UNLOCK"
position.
At the "UNLOCK"
position
Connect terminal No.
6 and the negative
battery terminal. Connect terminal No.
4 and the positive
battery terminal.
The lever moves from
the "UNLOCK" position
to the "LOCK" position.
LEVER POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
At the "LOCK" position
2-3
Open circuit

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

REAR DOOR LOCK ACTUATOR CHECK The illustration shows when the door lock actuator is viewed from outside the door. DOOR LOCK ACTUATOR INCORPORATED IN DOOR LATCH CHECK < LEFT SIDE> DOOR LOCK ACTUATOR LATCH CHECK At the "UNLOCK"
position
2-3
Less than 2 ohms
LEVER POSITION
BATTERY
CONNECTION
LEVER OPERATION
At the "LOCK" position
Connect terminal No.
4 and the negative
battery terminal. Connect terminal No.
6 and the positive
battery terminal.
The lever moves from
the "LOCK" position to
the "UNLOCK"
position.
At the "UNLOCK"
position
Connect terminal No.
6 and the negative
battery terminal. Connect terminal No.
4 and the positive
battery terminal.
The lever moves from
the "UNLOCK" position
to the "LOCK" position.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

Fig. 35: Identifying Lock And Lever Of Front Door Latch Check (Rear Door)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DOOR LOCK ACTUATOR SWITCH INCORPORATED IN DOOR LATCH CHECK < VEHICLES WITH THEFT ALARM
SYSTEM (LEFT SIDE)> DOOR LOCK ACTUATOR SWITCH LATCH CHECK DOOR LOCK ACTUATOR INCORPORATED IN DOOR LATCH CHECK < RIGHT SIDE> DOOR LOCK ACTUATOR LATCH CHECK DOOR LOCK ACTUATOR SWITCH INCORPORATED IN DOOR LATCH CHECK < VEHICLES WITH THEFT ALARM
SYSTEM (RIGHT SIDE)> DOOR LOCK ACTUATOR SWITCH LATCH CHECK LEVER POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
At the "LOCK" position
2-3
Open circuit
At the "UNLOCK"
position
2-3
Less than 2 ohms
LEVER POSITION
BATTERY
CONNECTION
LEVER OPERATION
At the "UNLOCK"
position
Connect terminal No.
4 and the negative
battery terminal. Connect terminal No.
5 and the positive
battery terminal.
The lever moves from
the "UNLOCK" position
to the "LOCK" position.
At the "LOCK" position
Connect terminal No.
6 and the negative
battery terminal. Connect terminal No.
4 and the positive
battery terminal.
The lever moves from
the "LOCK" position to
the "UNLOCK"
position.
LEVER POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
