MITSUBISHI LANCER 2005 Workshop Manual

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-25
FLOOR AND ROOF M1801000900877
AC301164
D-07
D-08 D-05
D-04 D-03 D-02
D-01
D-35
D-34
D-33
D-31
D-30
D-29
D-28D-19 Y
Y
YConnector
symbol
D
D-20
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
D-09
D-22D-21D-23D-26D-27Y
Y
Instrument panel
wiring harness
Floor wiring
harness (RH)
Y
Antenna
feeder
cable
D-10
D-12
D-14
D-15
D-16
D-17 D-18
Fuel wiring
harness
7
17Y
D-11
D-13
Floor wiring
harness (LH)

AB
YY D-04 D-36 D-06 D-37
Roof wiring
harness
Antenna
feeder cable
D-01 (2) Side impact sensor (Front: RH)
D-02 (3) Door switch (Front: RH)
D-03 (8) Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04 (2) Front room lamp
D-05 (2-B) Wheel speed sensor (Rear: RH)
D-06 (2-GR) Rear room lamp
D-07 (3) Door switch (Rear: RH)
D-08 (2-Y) Side impact sensor (Rear: RH)
D-09 (3) Rear personal lamp (RH)
D-10 (3) Luggage room lamp
D-11 (2-B) Diode (for luggage room lamp circuit)
D-12 (3) Rear personal lamp (LH)
D-13 (3-B) Fuel tank gauge unit
D-14 (2-Y) Side impact sensor (Rear: LH)
D-15 (3) Door switch (Rear: LH)
D-16 (5-GR) Fuel tank pump
D-17 (2-B) Wheel speed sensor (Rear: LH)
D-18 (8) Floor wiring harness (LH) and fuel wiring
harness combinationD-19 (8) Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20 (3) Door switch (Front: LH)
D-21 (2) Side impact sensor (Front: LH)
D-22 (2-B) Seat belt pre-tensioner (LH)
D-23 (2-R) Side air bag module (squib) (LH)
D-26 (4) Instrument panel wiring harness and
console wiring harness combination
D-27 (6) Shift switch assembly
D-28 (1) Cigarette lighter
D-29 (1-B) Cigarette lighter
D-30 (2-B) Cigarette lighter illumination lamp
D-31 (2-B) Ashtray illumination lamp
D-33 (2-R) Side air bag module (squib) (RH)
D-34 (1-B) Parking brake switch
D-35 (2-B) Seat belt pre-tensioner (RH)
D-36 (2-B) Curtain air bag module (squib) (RH)
D-37 (2-B) Curtain air bag module (squib) (LH)

DOOR
CONFIGURATION DIAGRAMS80-26
DOOR
DOOR M1801001400585
AC304415
Connector
symbol
E
Driver's sideE-01
E-02
E-03
E-04
E-05 E-06
E-07
E-08 E-09
Front
RearPassenger's side
E-10
E-11
E-12
E-14
E-15 E-16
E-17
E-18 E-19
Front
Rear
AB
E-13
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
E-01 (3) Remote controlled mirror (LH) without door mirror heater>
E-02 (7) Remote controlled mirror (LH) with door mirror heater>
E-03 (2) Front door speaker (LH)
E-04 (6-GR) Front power window motor (LH)
E-05 (14) Power window main switch
E-06 (6-B) Front door lock actuator (LH)
E-07 (6-GR) Rear power window motor (LH)
E-08 (8) Rear power window sub switch (LH)
E-09 (6-B) Rear door lock actuator (LH)
E-10 (3) Remote controlled mirror (RH) without door mirror heater>E-11 (7) Remote controlled mirror (RH) with door mirror heater>
E-12 (3-B) Door lock key cylinder switch
E-13 (6-B) Front door lock actuator (RH)
E-14 (8) Front power window sub switch (RH)
E-15 (6-GR) Front power window motor (RH)
E-16 (2) Front door speaker (RH)
E-17 (6-B) Rear door lock actuator (RH)
E-18 (8) Rear power window sub switch (RH)
E-19 (6-GR) Rear power window motor (RH)

DOOR
CONFIGURATION DIAGRAMS80-27
DOOR M1801001400596
AC304416
Connector
symbol
E
Driver's sideE-10
E-11
E-13
E-05
E-15 E-16
E-17
E-18 E-19
Front
RearPassenger's side
E-01
E-02
E-03
E-04
E-20 E-06
E-07
E-08 E-09
Front
Rear
AB
E-12
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
E-01 (3) Remote controlled mirror (LH) without door mirror heater>
E-02 (7) Remote controlled mirror (LH) with door mirror heater>
E-03 (2) Front door speaker (LH)
E-04 (6-GR) Front power window motor (LH)
E-05 (14) Power window main switch
E-06 (6-B) Front door lock actuator (LH)
E-07 (6-GR) Rear power window motor (LH)
E-08 (8) Rear power window sub switch (LH)
E-09 (6-B) Rear door lock actuator (LH)
E-10 (3) Remote controlled mirror (RH) without door mirror heater>E-11 (7) Remote controlled mirror (RH) with door mirror heater>
E-12 (3-B) Door lock key cylinder switch
E-13 (6-B) Front door lock actuator (RH)
E-15 (6-GR) Front power window motor (RH)
E-16 (2) Front door speaker (RH)
E-17 (6-B) Rear door lock actuator (RH)
E-18 (8) Rear power window sub switch (RH)
E-19 (6-GR) Rear power window motor (RH)
E-20 (8) Front power window sub switch (LH)

TRUNK (LUGGAGE COMPARTMENT)

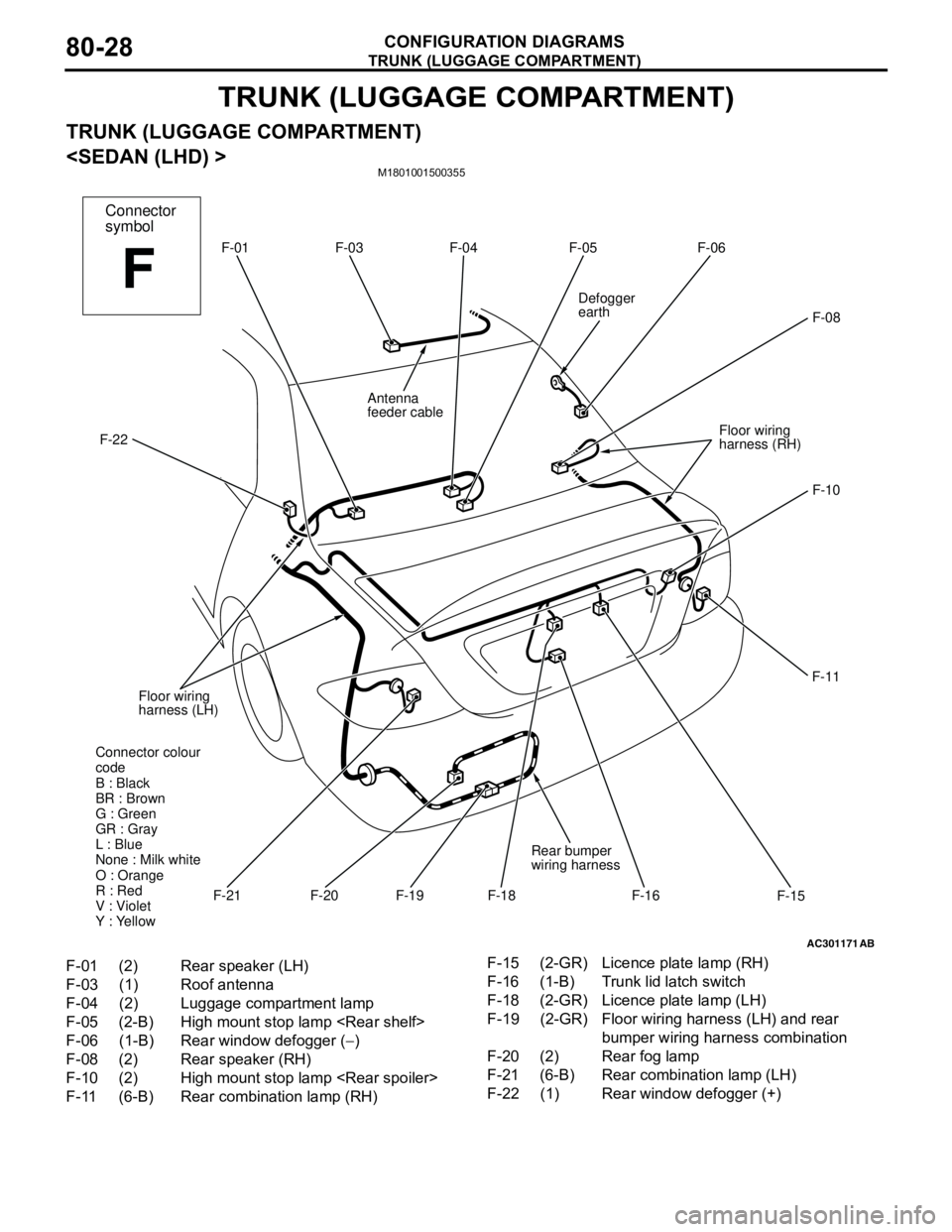

CONFIGURATION DIAGRAMS80-28
TRUNK (LUGGAGE COMPARTMENT)
TRUNK (LUGGAGE COMPARTMENT)

M1801001500355
AC301171AB
F-01 F-04 F-05 F-06
F-08
F-10
F-11
F-18
F-16 F-19 Floor wiring
harness (LH) F-22Defogger
earth
Floor wiring
harness (RH)F-03
F-15F-21
Rear bumper
wiring harness
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-20
Connector
symbol
F
F-01 (2) Rear speaker (LH)
F-03 (1) Roof antenna
F-04 (2) Luggage compartment lamp
F-05 (2-B) High mount stop lamp
F-06 (1-B) Rear window defogger (−)
F-08 (2) Rear speaker (RH)
F-10 (2) High mount stop lamp
F-11 (6-B) Rear combination lamp (RH)F-15 (2-GR) Licence plate lamp (RH)
F-16 (1-B) Trunk lid latch switch
F-18 (2-GR) Licence plate lamp (LH)
F-19 (2-GR) Floor wiring harness (LH) and rear
bumper wiring harness combination
F-20 (2) Rear fog lamp
F-21 (6-B) Rear combination lamp (LH)
F-22 (1) Rear window defogger (+)

TRUNK (LUGGAGE COMPARTMENT)

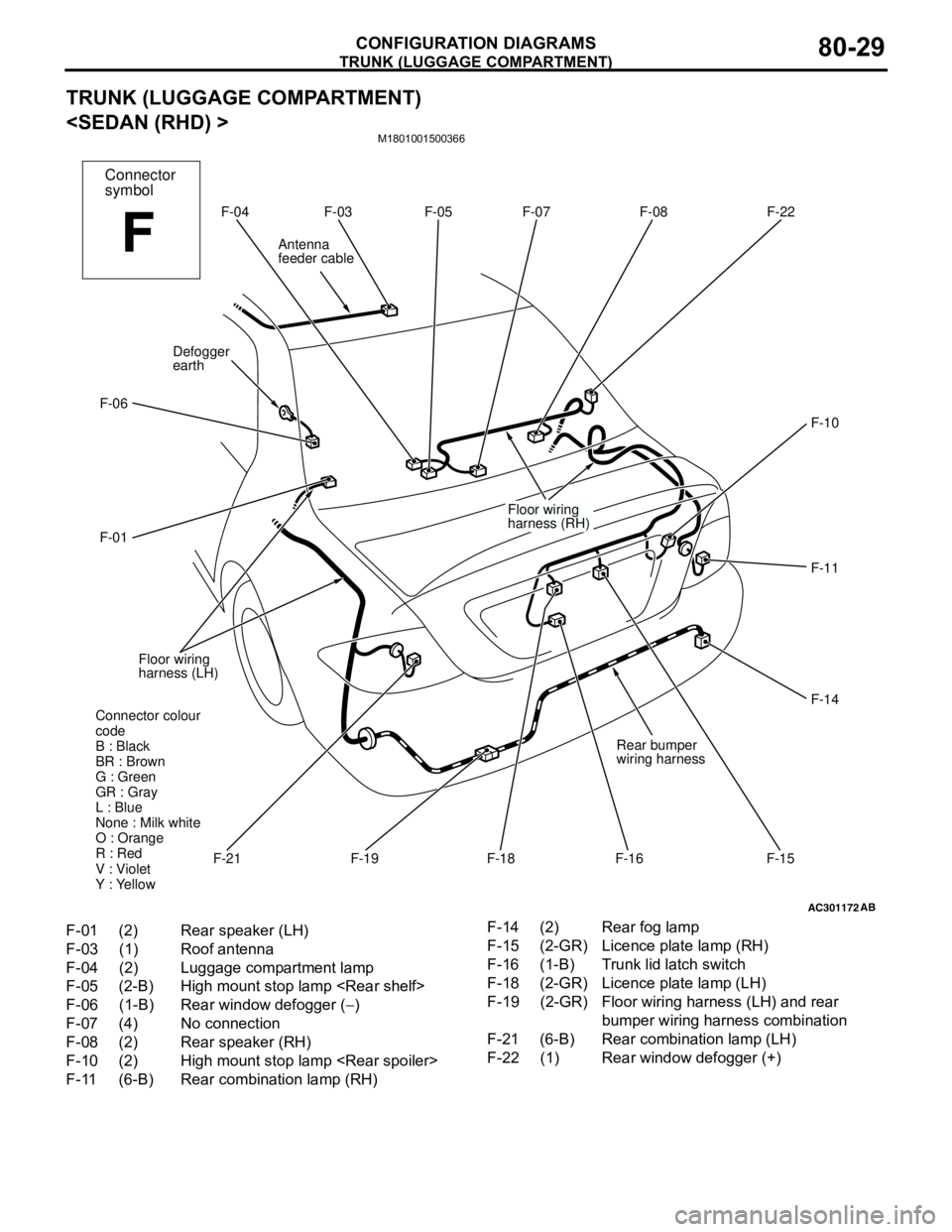

CONFIGURATION DIAGRAMS80-29
TRUNK (LUGGAGE COMPARTMENT)

M1801001500366
AC301172AB
F-04 F-05 F-07 F-08 F-22
F-10
F-11
F-14
F-18
F-16 F-19 Floor wiring
harness (LH) F-01 F-06Defogger
earth
Floor wiring
harness (RH)
F-03
F-15F-21
Rear bumper
wiring harness
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
F
F-01 (2) Rear speaker (LH)
F-03 (1) Roof antenna
F-04 (2) Luggage compartment lamp
F-05 (2-B) High mount stop lamp
F-06 (1-B) Rear window defogger (−)
F-07 (4) No connection
F-08 (2) Rear speaker (RH)
F-10 (2) High mount stop lamp
F-11 (6-B) Rear combination lamp (RH)F-14 (2) Rear fog lamp
F-15 (2-GR) Licence plate lamp (RH)
F-16 (1-B) Trunk lid latch switch
F-18 (2-GR) Licence plate lamp (LH)
F-19 (2-GR) Floor wiring harness (LH) and rear
bumper wiring harness combination
F-21 (6-B) Rear combination lamp (LH)
F-22 (1) Rear window defogger (+)

TA I L G AT E

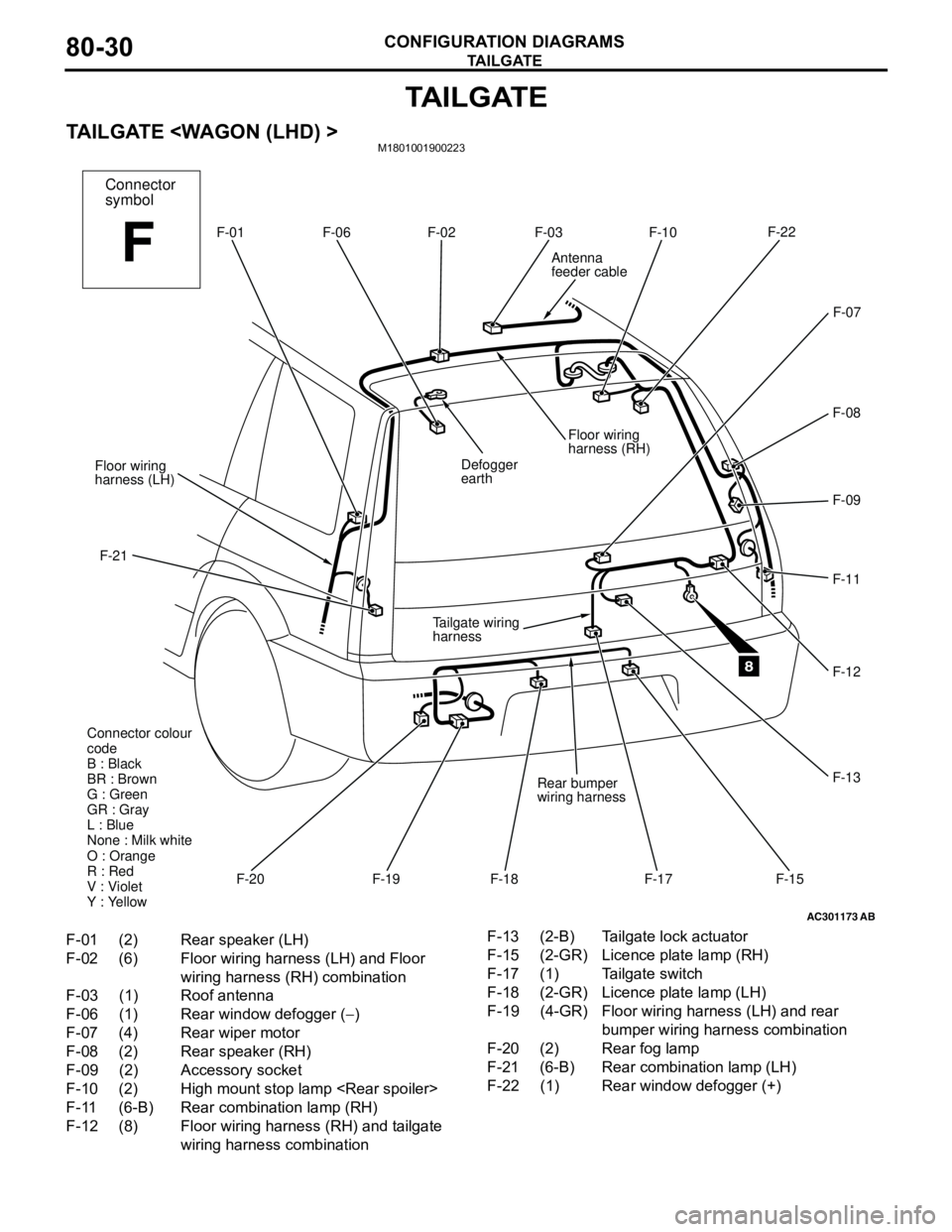

CONFIGURATION DIAGRAMS80-30
TA I L G AT E
TAILGATE M1801001900223
AC301173AB
F-01 F-02F-03
F-10F-22
F-09
F-11
F-17 F-19 Floor wiring
harness (LH)
F-21Defogger
earthFloor wiring
harness (RH)F-06
F-15
Rear bumper
wiring harness
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-20
F-07
F-08
F-12
F-18
F-13
8
Tailgate wiring
harness
Connector
symbol
F
F-01 (2) Rear speaker (LH)
F-02 (6) Floor wiring harness (LH) and Floor
wiring harness (RH) combination
F-03 (1) Roof antenna
F-06 (1) Rear window defogger (−)
F-07 (4) Rear wiper motor
F-08 (2) Rear speaker (RH)
F-09 (2) Accessory socket
F-10 (2) High mount stop lamp
F-11 (6-B) Rear combination lamp (RH)
F-12 (8) Floor wiring harness (RH) and tailgate
wiring harness combinationF-13 (2-B) Tailgate lock actuator
F-15 (2-GR) Licence plate lamp (RH)
F-17 (1) Tailgate switch
F-18 (2-GR) Licence plate lamp (LH)
F-19 (4-GR) Floor wiring harness (LH) and rear
bumper wiring harness combination
F-20 (2) Rear fog lamp
F-21 (6-B) Rear combination lamp (LH)
F-22 (1) Rear window defogger (+)

TA I L G AT E

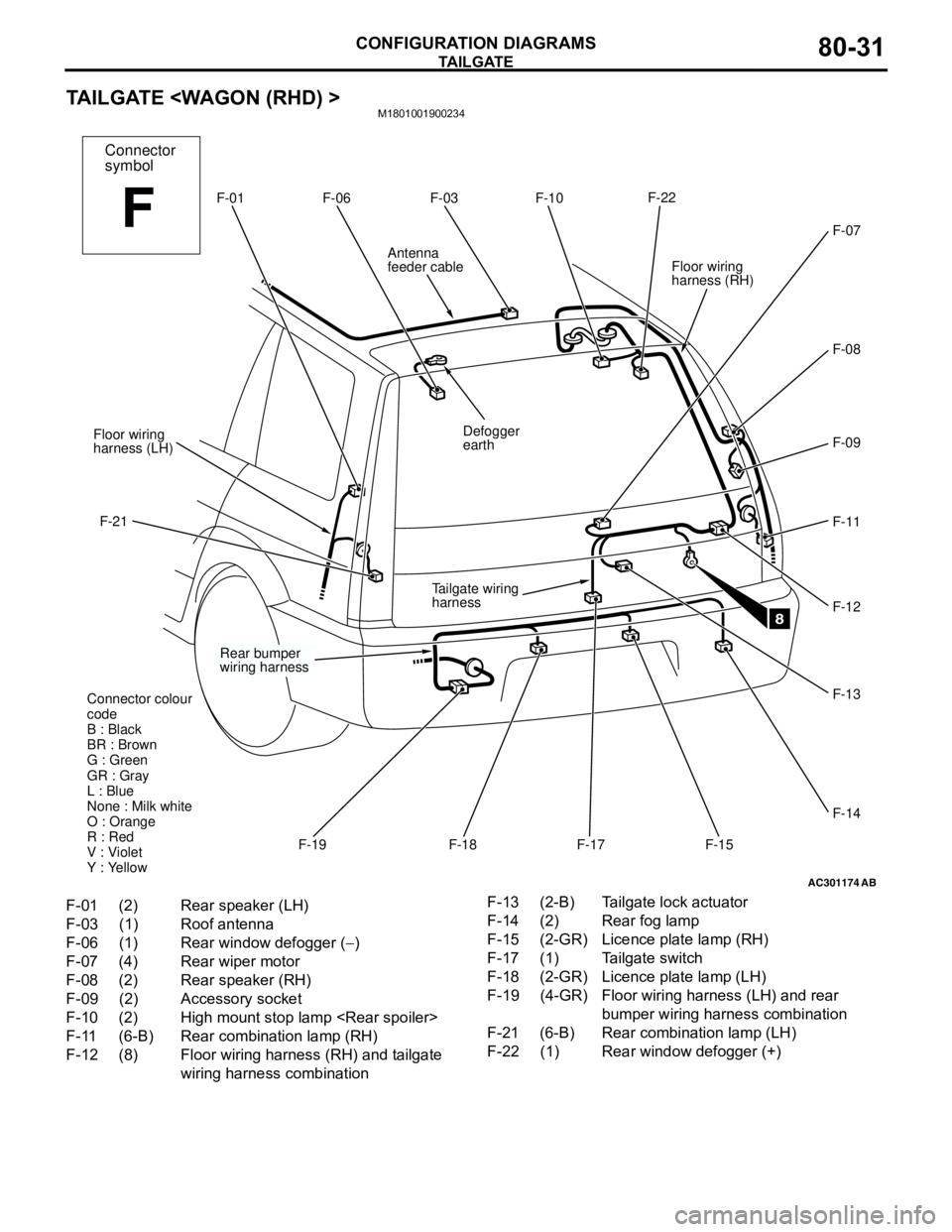

CONFIGURATION DIAGRAMS80-31
TAILGATE M1801001900234
AC301174AB
F-01
F-03F-10F-22
F-09
F-11
F-17
F-19 Floor wiring
harness (LH)
F-21Defogger
earthFloor wiring
harness (RH)F-06
F-15
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-07
F-08
F-12
F-18
F-13
8
Tailgate wiring
harness
F-14
Rear bumper
wiring harness
Connector
symbol
F
F-01 (2) Rear speaker (LH)
F-03 (1) Roof antenna
F-06 (1) Rear window defogger (−)
F-07 (4) Rear wiper motor
F-08 (2) Rear speaker (RH)
F-09 (2) Accessory socket
F-10 (2) High mount stop lamp
F-11 (6-B) Rear combination lamp (RH)
F-12 (8) Floor wiring harness (RH) and tailgate
wiring harness combinationF-13 (2-B) Tailgate lock actuator
F-14 (2) Rear fog lamp
F-15 (2-GR) Licence plate lamp (RH)
F-17 (1) Tailgate switch
F-18 (2-GR) Licence plate lamp (LH)
F-19 (4-GR) Floor wiring harness (LH) and rear
bumper wiring harness combination
F-21 (6-B) Rear combination lamp (LH)
F-22 (1) Rear window defogger (+)

NOTES

90-1
GROUP 90
CIRCUIT DIAGRAMS
CONTENTS
J/B . . . . . . . . . . . . . . . . . . . . . . . . . . .90-4
J/C . . . . . . . . . . . . . . . . . . . . .90-6
J/C . . . . . . . . . . . . . . . . . . . . .90-8
CENTRALIZED JUNCTION . . . . . . . .90-10
POWER DISTRIBUTION SYSTEM
. . . . . . . . . . . . . . . . . . . . . . . .90-15
POWER DISTRIBUTION SYSTEM
. . . . . . . . . . . . . . . . . . . . . . . .90-17
STARTING SYSTEM . . . . . . .90-19
STARTING SYSTEM . . . . . . . .90-20
IGNITION SYSTEM
<4G1-M/T (LHD)>. . . . . . . . . . . . . . . .90-21
IGNITION SYSTEM
<4G1-M/T (RHD)> . . . . . . . . . . . . . . .90-22
IGNITION SYSTEM
<4G1-A/T (LHD)> . . . . . . . . . . . . . . . .90-23
IGNITION SYSTEM
<4G1-A/T (RHD)>. . . . . . . . . . . . . . . .90-24
IGNITION SYSTEM <4G6 (LHD)> . . .90-25
IGNITION SYSTEM <4G6 (RHD)> . . .90-26
CHARGING SYSTEM . . . . . . .90-27CHARGING SYSTEM . . . . . . .90-28
ENGINE CONTROL SYSTEM
<4G1-M/T (LHD)> . . . . . . . . . . . . . . . .90-29
ENGINE CONTROL SYSTEM
<4G1-M/T (RHD)> . . . . . . . . . . . . . . . .90-31
ENGINE CONTROL SYSTEM
<4G1-A/T (LHD)> . . . . . . . . . . . . . . . .90-33
ENGINE CONTROL SYSTEM
<4G1-A/T (RHD)> . . . . . . . . . . . . . . . .90-35
ENGINE CONTROL SYSTEM
<4G6 (LHD)> . . . . . . . . . . . . . . . . . . . .90-37
ENGINE CONTROL SYSTEM
<4G6 (RHD)> . . . . . . . . . . . . . . . . . . .90-39
COOLING SYSTEM . . . . . . . .90-41
COOLING SYSTEM . . . . . . . .90-42
INVECS-II 4A/T . . . . . . . . . . . .90-43
INVECS-II 4A/T . . . . . . . . . . .90-45
HEADLAMP . . . . . . . . . . . . . .90-47
HEADLAMP . . . . . . . . . . . . . .90-49
Continued on next page

90-2
TAIL LAMP, POSITION LAMP, LICENCE
PLATE LAMP AND LIGHTING MONITOR
BUZZER . . . . . . . . . . . . . . . . .90-51
TAIL LAMP, POSITION LAMP, LICENCE
PLATE LAMP AND LIGHTING MONITOR
BUZZER . . . . . . . . . . . . . . . .90-54
FRONT FOG LAMP . . . . . . . .90-57
FRONT FOG LAMP . . . . . . .90-59
ROOM LAMP AND LUGGAGE
COMPARTMENT LAMP
. . . . . . . . . . . . . . . .90-61
ROOM LAMP AND LUGGAGE
COMPARTMENT LAMP
. . . . . . . . . . . . . . . .90-63
ROOM LAMP,PERSONAL LAMP
AND LUGGAGE ROOM LAMP
. . . . . . . . . . . . . . . .90-65
ROOM LAMP,PERSONAL LAMP AND
LUGGAGE ROOM LAMP
. . . . . . . . . . . . . . .90-67
REAR FOG LAMP . . . . . . . . .90-69
REAR FOG LAMP . . . . . . . . .90-71
HEADLAMP LEVELLING SYSTEM
. . . . . . . . . . . . . . . . . . . . . . . .90-73
HEADLAMP LEVELLING SYSTEM
. . . . . . . . . . . . . . . . . . . . . . . .90-74
TURN SIGNAL LAMP AND HAZARD
WARNING LAMP . . . . . . . . .90-76
TURN SIGNAL LAMP AND HAZARD
WARNING LAMP . . . . . . . . .90-78
BACK-UP LAMP . . . . . . . . . .90-80BACK-UP LAMP . . . . . . . . . .90-81
STOP LAMP . . . . . .90-82
STOP LAMP . . . . . .90-83
STOP LAMP . . . . .90-84
STOP LAMP . . . . .90-85
HORN . . . . . . . . . . . . . . . . . . . . . . . . .90-86
METER AND GAUGE . . . . . .90-87
METER AND GAUGE . . . . . .90-89
FUEL WARNING LAMP, OIL PRESSURE
WARNING LAMP AND BRAKE WARNING
LAMP . . . . . . . . . . . . . . . . . . .90-91
FUEL WARNING LAMP, OIL PRESSURE
WARNING LAMP AND BRAKE WARNING
LAMP . . . . . . . . . . . . . . . . . . .90-92
POWER WINDOWS . . . . . . . .90-93
POWER WINDOWS . . . . . . . .90-95
CENTRAL DOOR LOCKING SYSTEM
ENTRY> . . . . . . . . . . . . . . . . . . . . . . .90-97
CENTRAL DOOR LOCKING SYSTEM
ENTRY> . . . . . . . . . . . . . . . . . . . . . . .90-99
CENTRAL DOOR LOCKING SYSTEM
ENTRY> . . . . . . . . . . . . . . . . . . . . . . .90-101
CENTRAL DOOR LOCKING SYSTEM
ENTRY> . . . . . . . . . . . . . . . . . . . . . . .90-103
Continued on next page
