MITSUBISHI LANCER 2005 Workshop Manual

RELAY
COMPONENT LOCATIONS70-5
RELAY
M1701000400369
Name Symbol Name Symbol
A/C compressor relay A Heated seat relay B
A/T control relay A Horn relay A
Accessory socket relay B Ignition coil relay A
Blower relay B Power window relay B
Engine control relay A Radiator fan relay A
Front fog lamp relay A Rear fog lamp relay B
Fuel pump relay (1) B Rear window defogger relay B
Fuel pump relay (2) B
AC301758AB
A
B
AC303951AB
A/C compressor relayEngine control relay
Horn relay
Front fog lamp relay
Radiator fan relay A/T control relay
Ignition coil relayA
AC301760
Fuel pump relay (1)
Power window relay
Rear window defogger relay
Blower relay Heated seat relay
Fuel pump relay(2)
Accessory socket relay
Rear fog lamp relayAB
B

SENSOR
COMPONENT LOCATIONS70-6
SENSOR
M1701000600567
NOTE: *: also equipped at the right side.Name Symbol Name Symbol
Air cleaner air flow sensor <4G6> F Output shaft speed sensor I
Air thermo sensor J Side impact sensor (Front) K
Camshaft position sensor D Side impact sensor (Rear) L
Engine control detonation sensor B Throttle body throttle sensor C
Engine control oxygen sensor (Front) G Vehicle speed sensor E
Engine control oxygen sensor (Rear) N Water temperature sensor unit H
Engine crank angle sensor A Wheel speed sensor (Front) M
Inlet manifold absolute pressure sensor
(incorporating intake air temperature
sensor) <4G1>C Wheel speed sensor (Rear) O
Input shaft speed sensor I
AC302006AB
BDCFEA
GHI
J
KL
MNO
*
***

SENSOR
COMPONENT LOCATIONS70-7
AC208762
A
AD
Timing belt front
upper coverTiming belt front
lower coverEngine crank
angle sensor
<4G1>
Engine crank angle
sensor connector
AC302008
A<4G6>
ABHeat protector
Crankshaft
sprocket
Engine crank angle
sensor connectorEngine crank
angle sensor
AC301752
B
AB
Ignition coil 2
<4G1>
Engine control detonation
sensor connector
Engine control
detonation sensor
AC302009
B
AB
Hydraulic unit
<4G6>
Alternator
Engine control detonation
sensor connectorEngine control
detonation sensor
AC208541
C
AE
<4G1>
Throttle body
Throttle body
throttle sensor
Inlet manifold absolute pressure sensor
(incorporating intake air temperature sensor)
AC302479
AB
C
Throttle body
<4G6>
Throttle body
throttle sensor

SENSOR
COMPONENT LOCATIONS70-8
AC206644
AD
Camshaft position
sensor
D<4G1>
Rocker cover
AC302480AB
D
Camshaft position
sensor
Rocker cover
<4G6>
AC208654
AD
E
Vehicle speed
sensor
Idle speed
control servo

AC302481AB
FAir cleaner
assembly<4G6>Air cleaner
air flow sensor
AB
AC301754
G<4G1>
AC
Heat protector
Engine control
oxygen sensor (Front)
Engine control
oxygen sensor
(Front) connector
AC302482
G
AB
Heat protector
<4G6>
Engine control
oxygen sensor
(Front) connector
Engine control
oxygen sensor (Front)
AC206780AD
H
Rocker cover
<4G1>
Water temperature
sensor unit
AC302483AC302483
<4G6>H
AB
Rocker cover
Water temperature
sensor unit

SENSOR
COMPONENT LOCATIONS70-9
AC206775
AD
I
Input shaft
speed sensor
Output shaft
speed sensor
Air cleaner
bracket
AC301755
J
AB
Air thermo
sensorBlower assembly
AC300517
AD
K
Side impact
sensor (Front) Centre
pillar
AC300534
AC
L
Side impact
sensor (Rear)
Rear
seat belt
AC209080
M
AG
Wheel speed sensor
(Front) connector
Coil spring
Wheel speed
sensor (Front)
AC301753AB
SRS-ECU
N
Engine control
oxygen sensor
(Rear) connector
Engine control
oxygen sensor
(Rear)
AC209459
O
Wheel speed sensor
(Rear) connector
Parking brake cable
Coil spring
AE
Wheel speed
sensor (Rear)

FUSIBLE LINK AND FUSE
COMPONENT LOCATIONS70-10
FUSIBLE LINK AND FUSE
M1701000100476
Name Symbol Name Symbol
Fuses No.1 to 20
(Passenger compartment)C Fusible links No.1 to 5
(Engine compartment)B
Fuses No.6 to 25
(Engine compartment)B Fusible link No.26
(Battery positive terminal)A
AC301758AD
AB
C
AC208658AE
A
Fusible link No.26
Battery
AC301729AD
B
Fusible link No.1
Relay box
Fusible links
No.4,5
Fusible links
No.2,3
AC301730
B
AB
Fuses
No.6 to 25
Relay box
AC301761
C
AB
Fuses No.1 to 20
Junction
block

EARTH CABLE
COMPONENT LOCATIONS70-11
EARTH CABLE
M1701001000308
SOLENOID VALVE
M1701000800516
AC303148
AC206557
AC302485
AB
Timing belt front
upper cover
Throttle body
<4G1>
<4G6>
Name Symbol Name Symbol
A/T control solenoid valve assembly D Emission solenoid valve (Purge control
system) <4G6>B
Emission solenoid valve (EGR system) B Hydraulic unit (incorporating solenoid
valve)A
Emission solenoid valve (Purge control
system) <4G1>C

SOLENOID VALVE

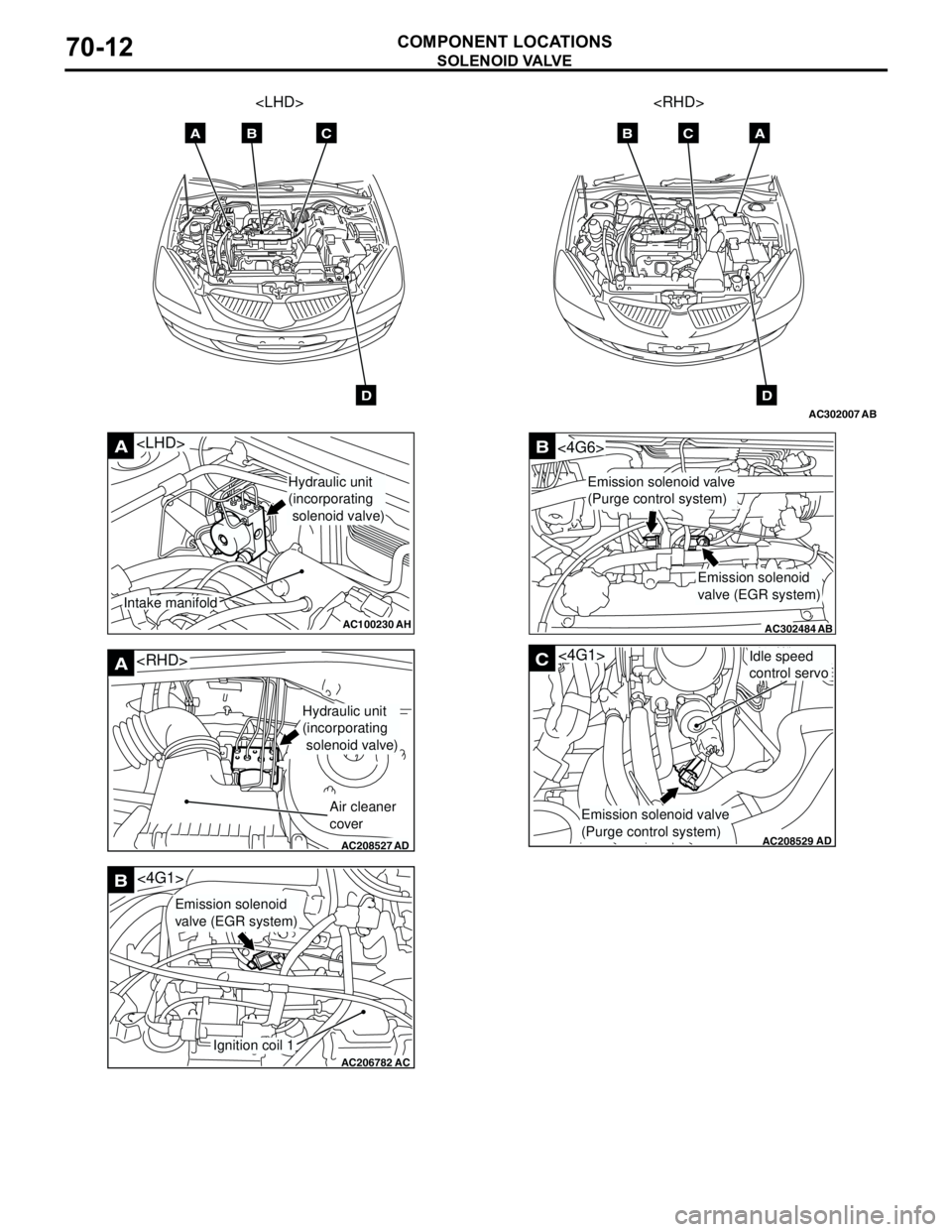

COMPONENT LOCATIONS70-12
AC302007

AB
AB

ABC
D
C
D
AC100230
A
AH

Hydraulic unit
(incorporating
solenoid valve)
Intake manifold
AC208527
A
AD

Hydraulic unit
(incorporating
solenoid valve)
Air cleaner
cover
AC206782
<4G1>B
AC
Ignition coil 1
Emission solenoid
valve (EGR system)
AC302484
B
AB
<4G6>
Emission solenoid
valve (EGR system)
Emission solenoid valve
(Purge control system)
AC208529AD
C<4G1>Idle speed
control servo
Emission solenoid valve
(Purge control system)

DIODE

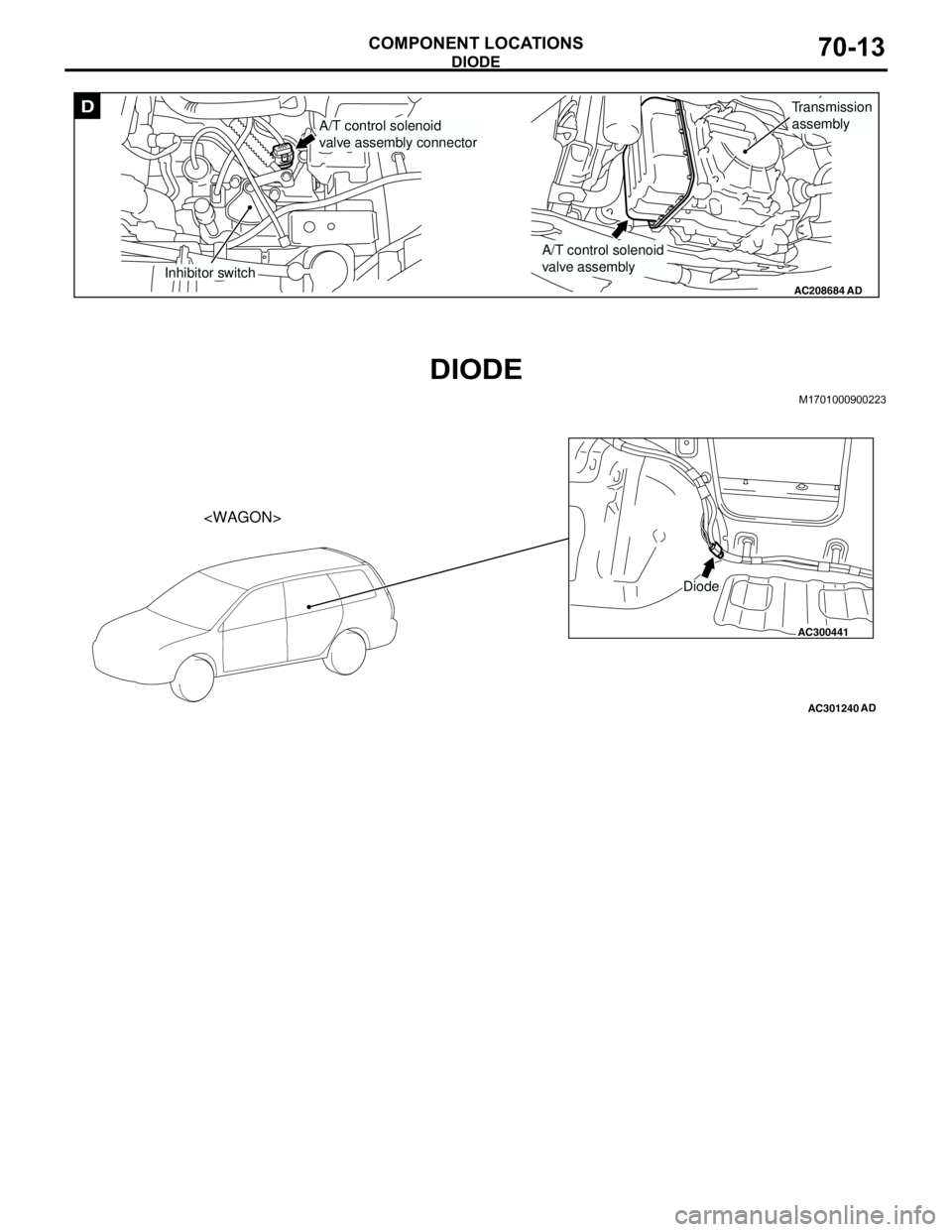

COMPONENT LOCATIONS70-13
DIODE
M1701000900223
AC208684
D
AD
A/T control solenoid
valve assembly connector
Inhibitor switch
A/T control solenoid
valve assembly
Transmission
assembly
AC300441
AC301240
Diode

AD

EARTH
COMPONENT LOCATIONS70-14
EARTH
M1701000300362
NOTE: Same earth numbers are used in the circuit diagram.
AC301751
AC301175
AC301176

3
2
1
4567
91011121314151617

2
1
4567
91011121314151617
3
AB
