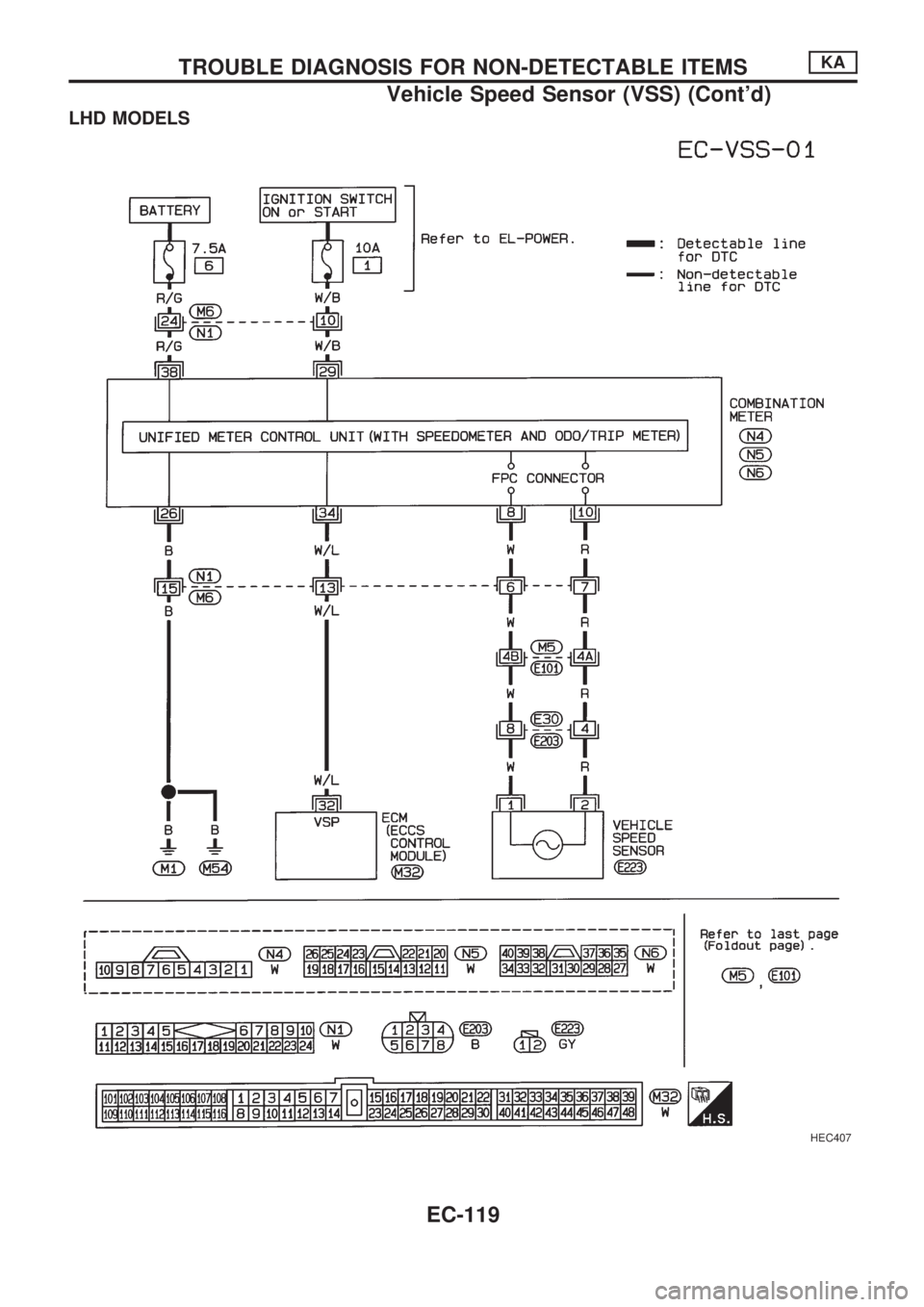

Page 271 of 1659

NISSAN PICK-UP 1998  Repair Manual LHD MODELS
HEC407
TROUBLE DIAGNOSIS FOR NON-DETECTABLE ITEMSKA
Vehicle Speed Sensor (VSS) (Contd)
EC-119

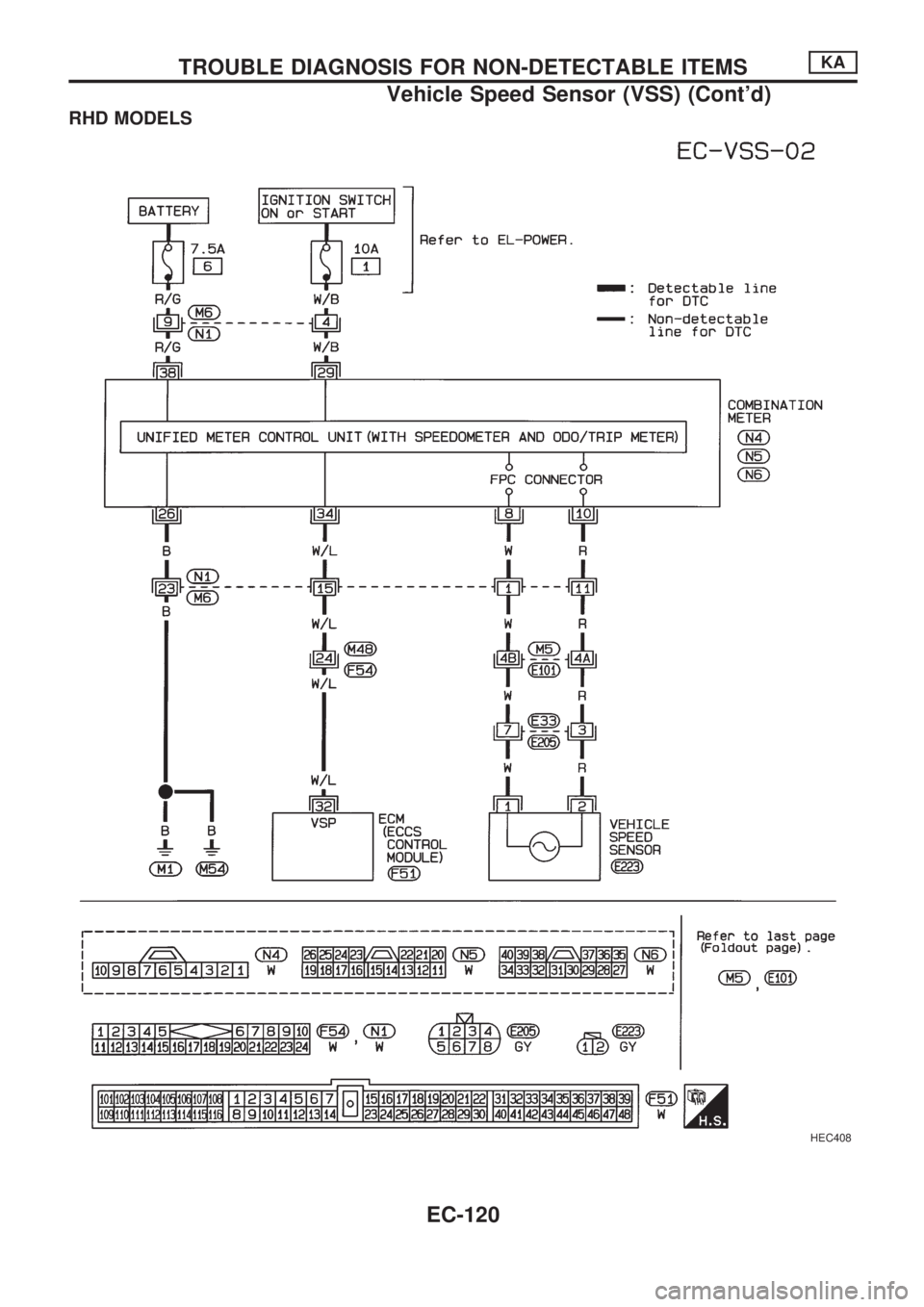

Page 272 of 1659

NISSAN PICK-UP 1998  Repair Manual RHD MODELS
HEC408
TROUBLE DIAGNOSIS FOR NON-DETECTABLE ITEMSKA
Vehicle Speed Sensor (VSS) (Contd)
EC-120

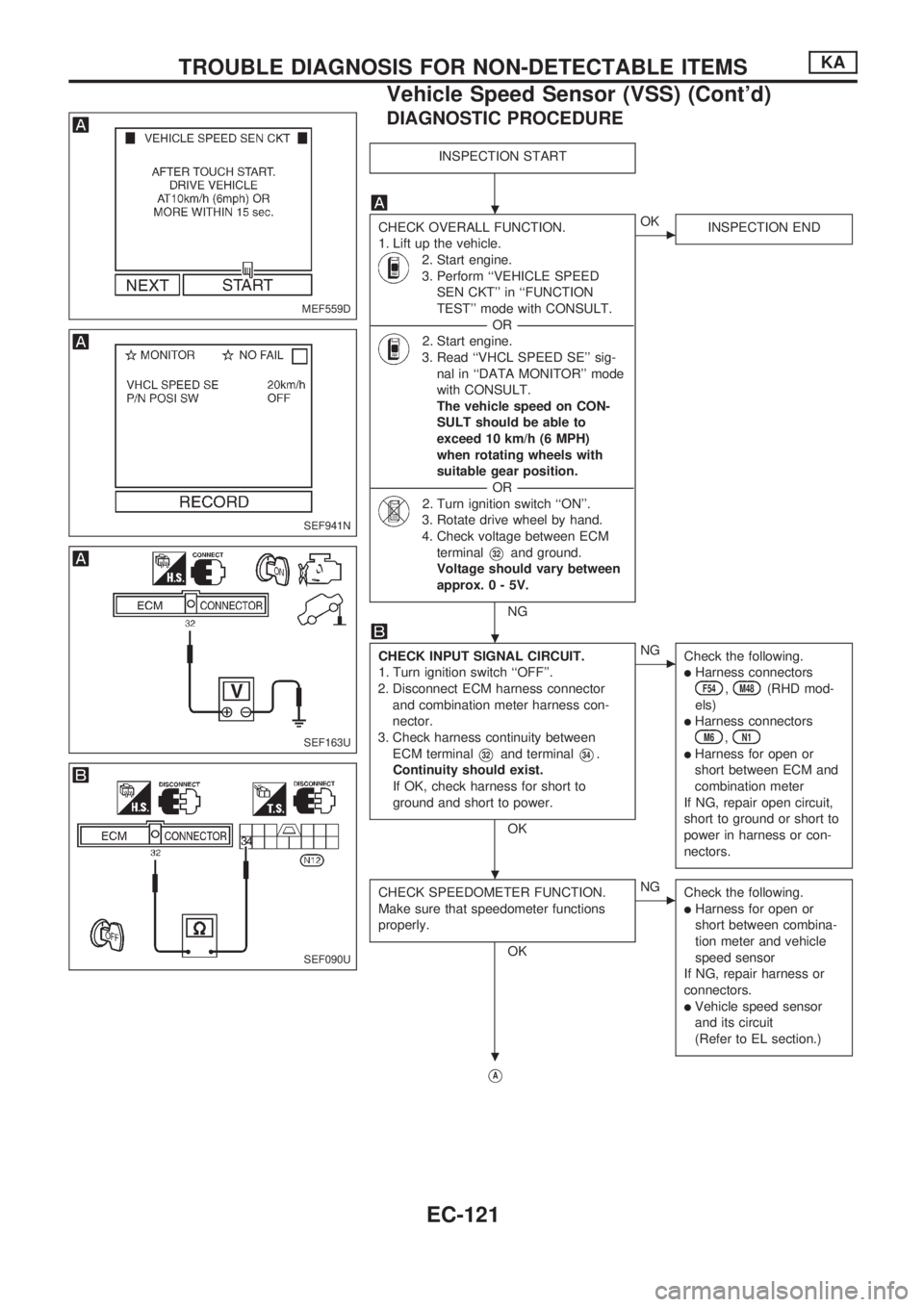

Page 273 of 1659

NISSAN PICK-UP 1998  Repair Manual DIAGNOSTIC PROCEDURE
INSPECTION START
CHECK OVERALL FUNCTION.
1. Lift up the vehicle.
2. Start engine.
3. Perform ``VEHICLE SPEED
SEN CKT in ``FUNCTION
TEST mode with CONSULT.
--------------------

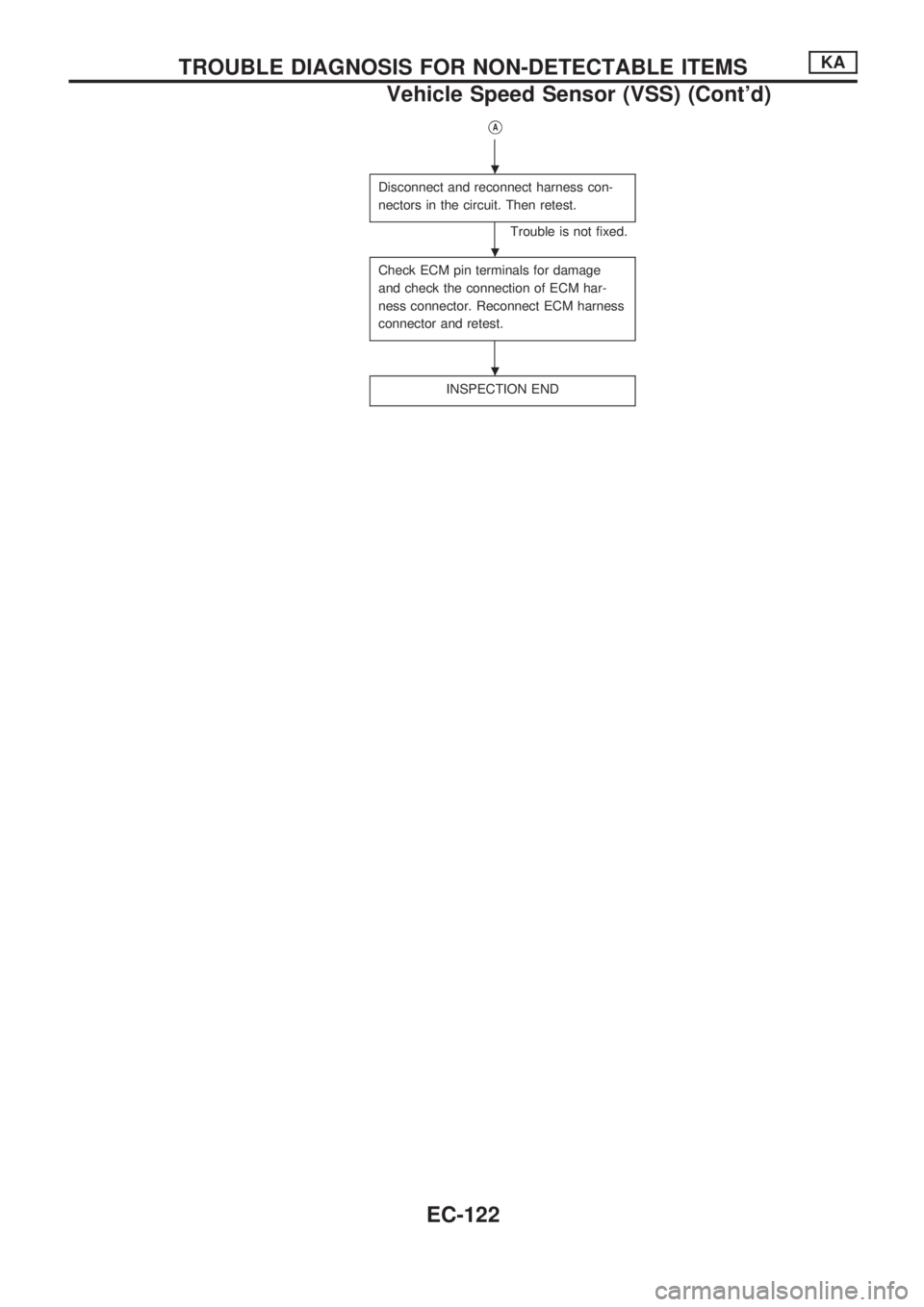

Page 274 of 1659

NISSAN PICK-UP 1998  Repair Manual VA
Disconnect and reconnect harness con-
nectors in the circuit. Then retest.
Trouble is not fixed.
Check ECM pin terminals for damage
and check the connection of ECM har-
ness connector. Reconnect EC

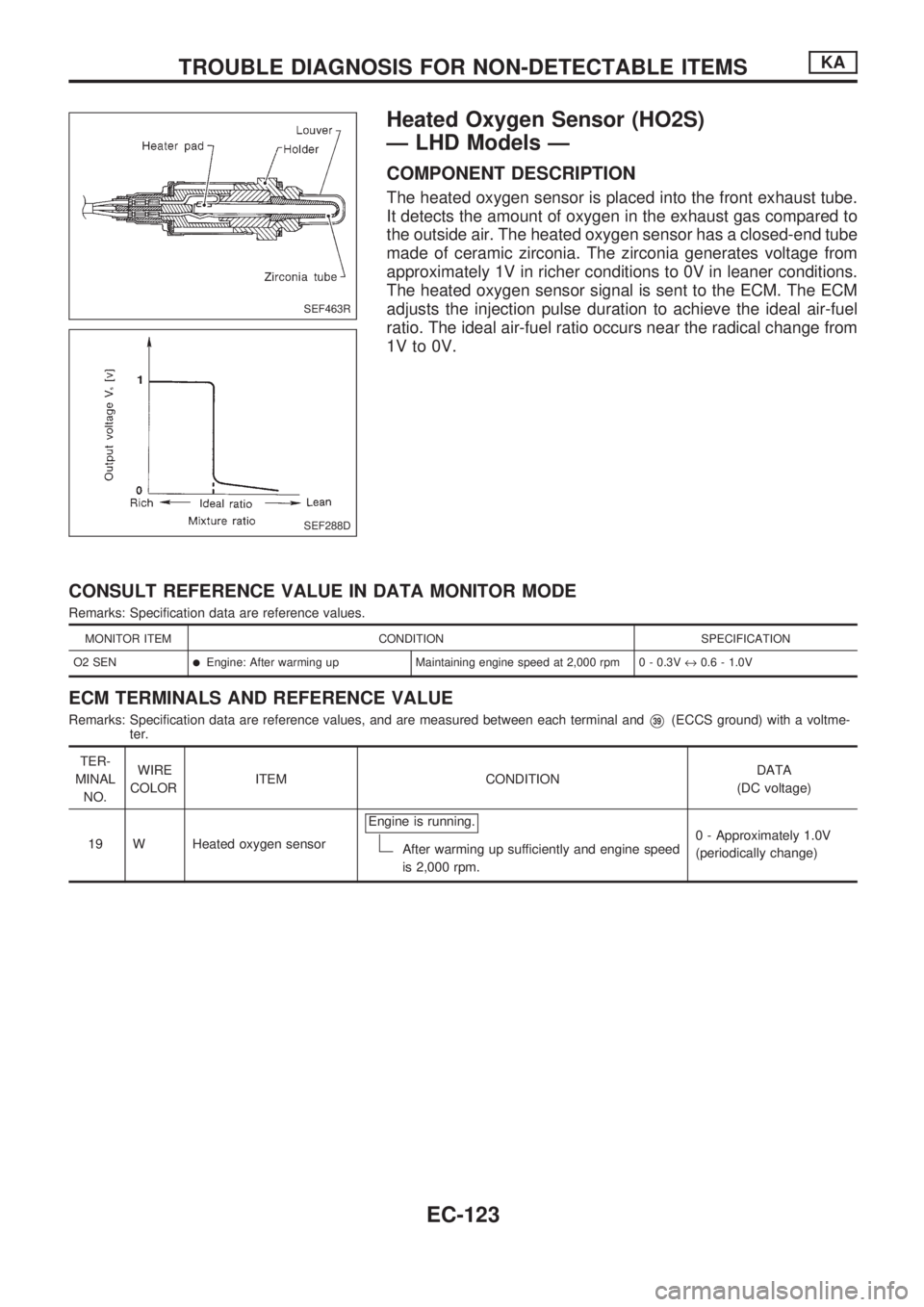

Page 275 of 1659

NISSAN PICK-UP 1998  Repair Manual Heated Oxygen Sensor (HO2S)
Ð LHD Models Ð
COMPONENT DESCRIPTION
The heated oxygen sensor is placed into the front exhaust tube.
It detects the amount of oxygen in the exhaust gas compared to
the ou

Page 276 of 1659

NISSAN PICK-UP 1998  Repair Manual HEC561
TROUBLE DIAGNOSIS FOR NON-DETECTABLE ITEMSKA
Heated Oxygen Sensor (HO2S)
Ð LHD Models Ð (Contd)
EC-124

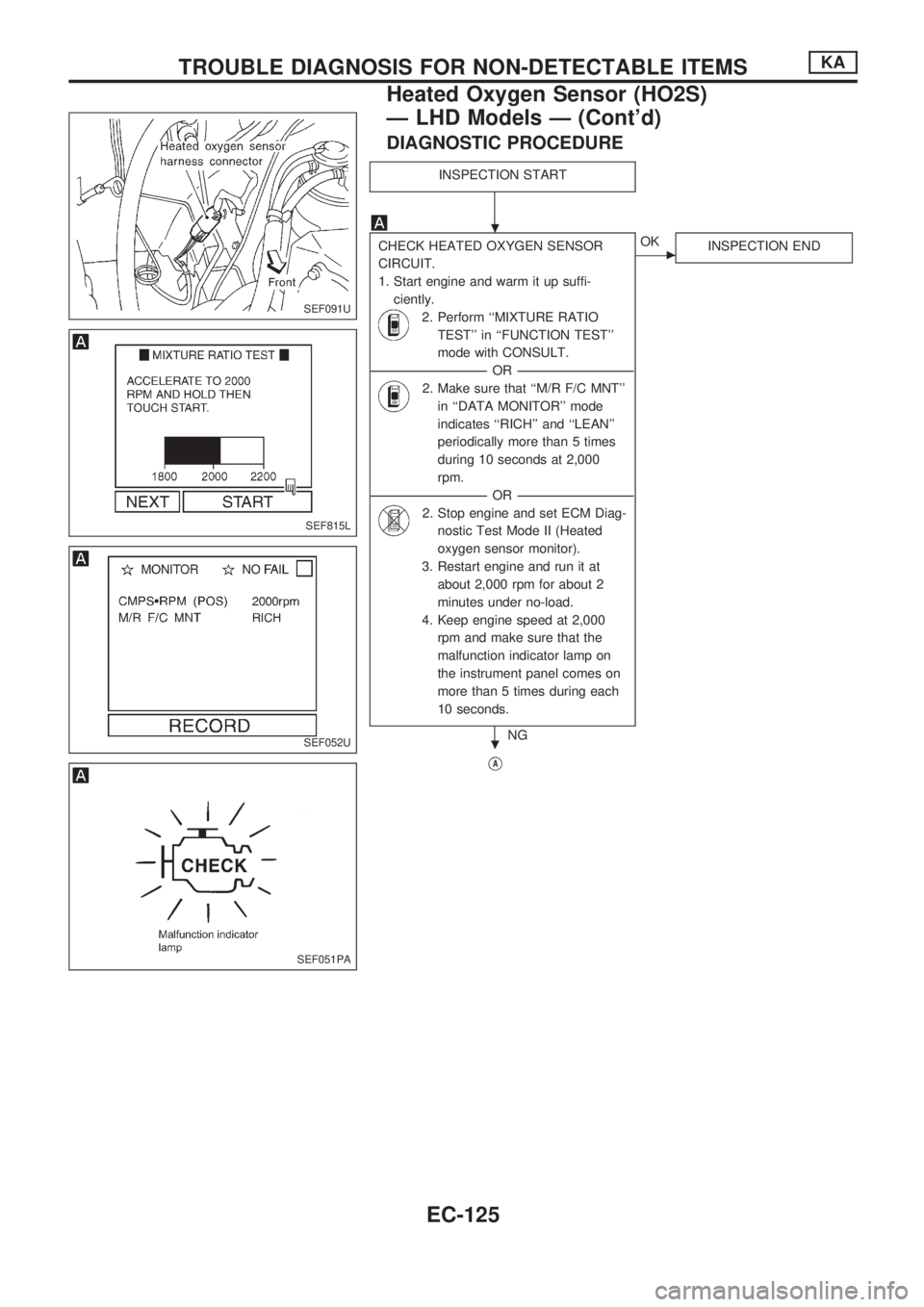

Page 277 of 1659

NISSAN PICK-UP 1998  Repair Manual DIAGNOSTIC PROCEDURE
INSPECTION START
CHECK HEATED OXYGEN SENSOR
CIRCUIT.
1. Start engine and warm it up suffi-
ciently.
2. Perform ``MIXTURE RATIO
TEST in ``FUNCTION TEST
mode with CONSULT.
-----

Page 278 of 1659

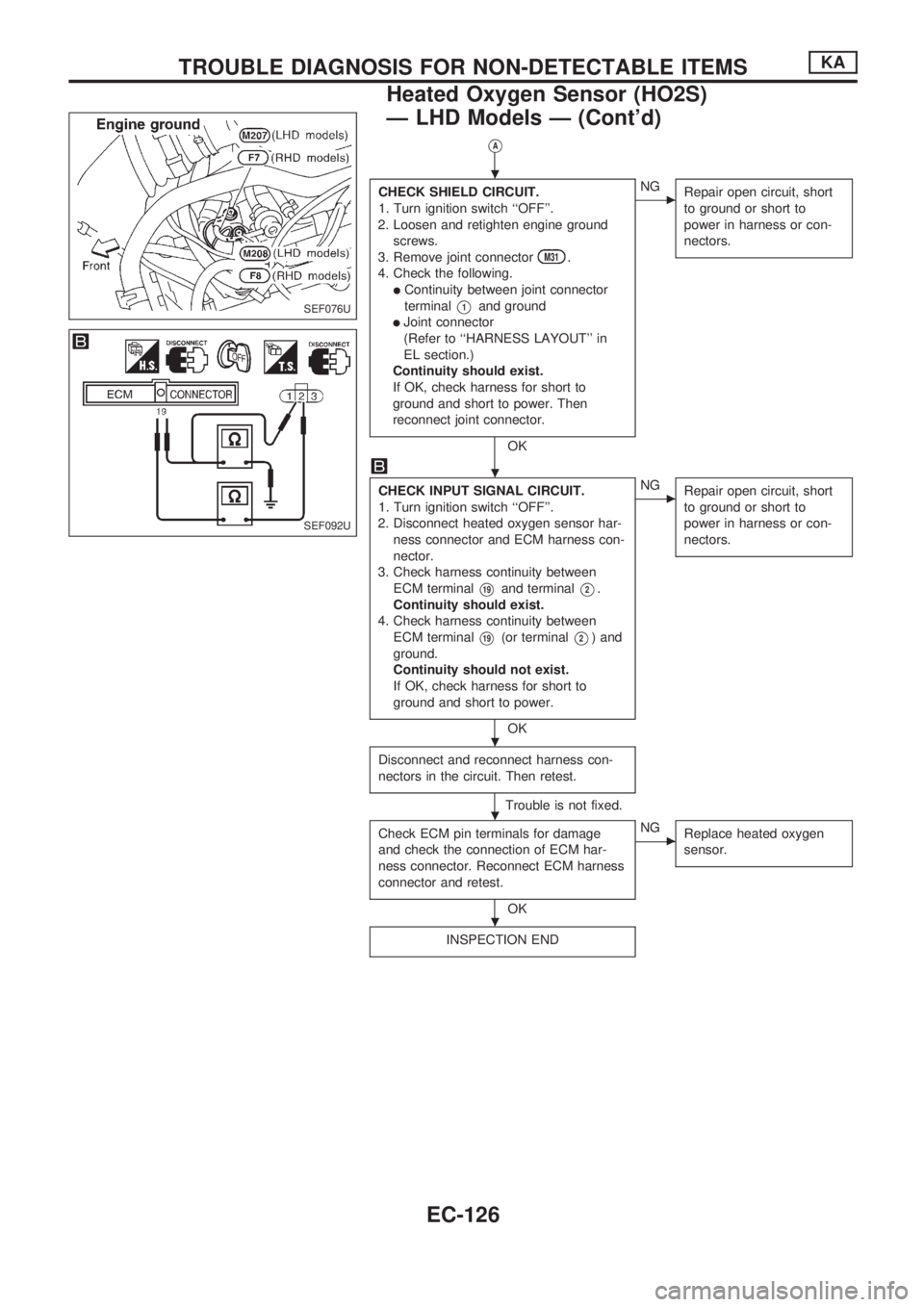

NISSAN PICK-UP 1998  Repair Manual VA
CHECK SHIELD CIRCUIT.
1. Turn ignition switch ``OFF.
2. Loosen and retighten engine ground
screws.
3. Remove joint connector
M31.
4. Check the following.
lContinuity between joint connector
termi

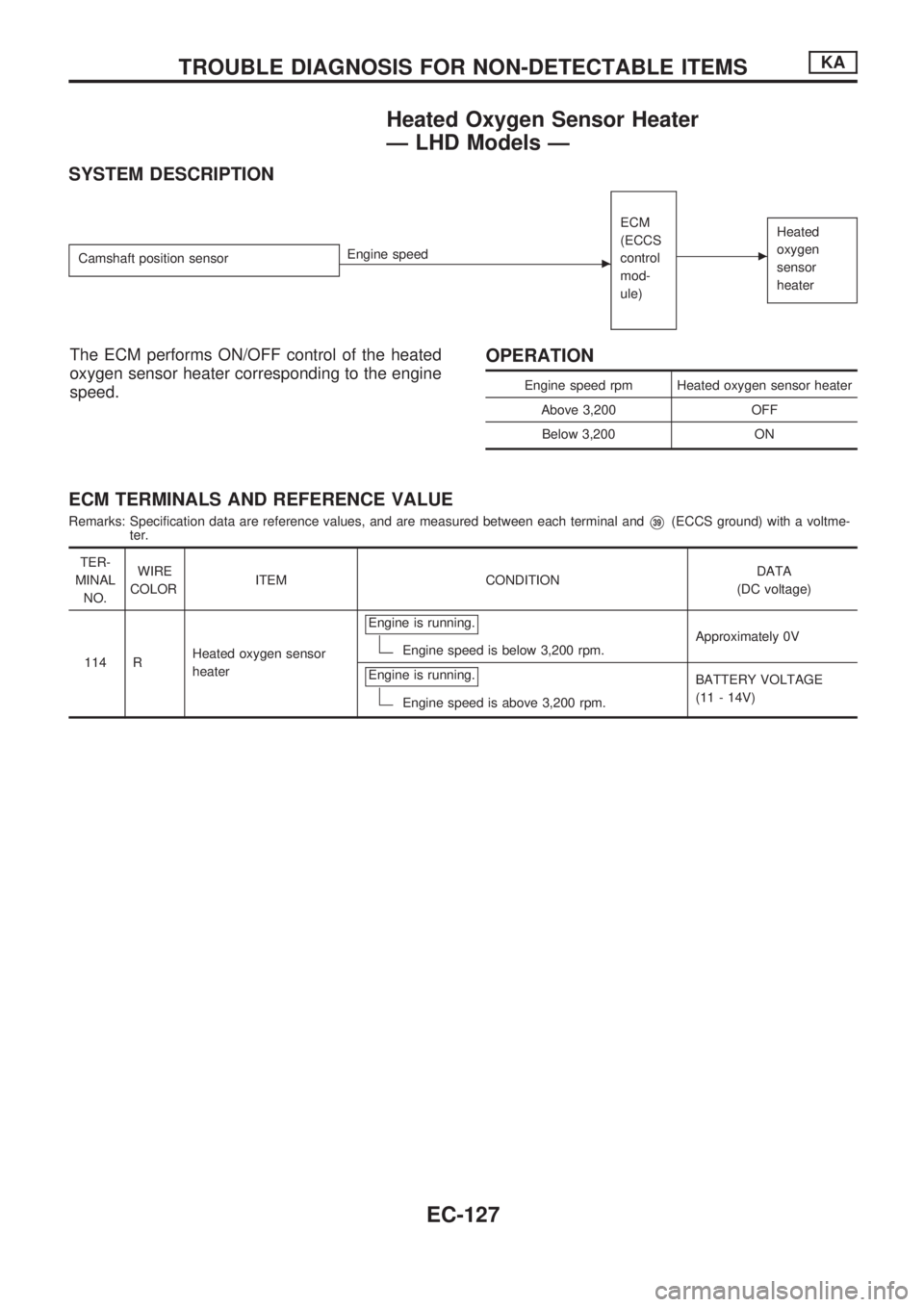

Page 279 of 1659

NISSAN PICK-UP 1998  Repair Manual Heated Oxygen Sensor Heater
Ð LHD Models Ð
SYSTEM DESCRIPTION
Camshaft position sensorcEngine speedECM
(ECCS
control
mod-
ule)c
Heated
oxygen
sensor
heater
The ECM performs ON/OFF control of the hea

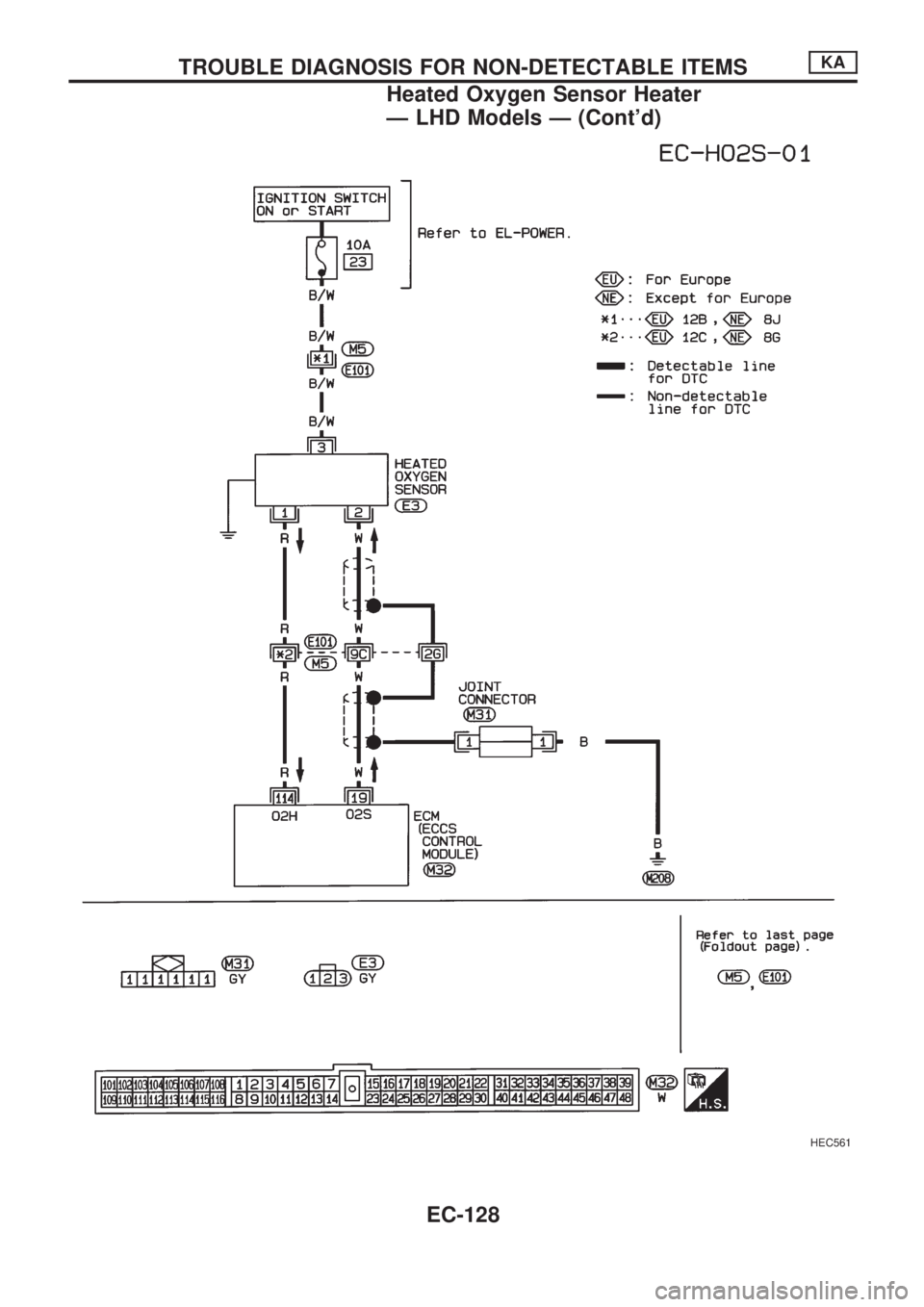

Page 280 of 1659

NISSAN PICK-UP 1998  Repair Manual HEC561
TROUBLE DIAGNOSIS FOR NON-DETECTABLE ITEMSKA
Heated Oxygen Sensor Heater
Ð LHD Models Ð (Contd)
EC-128
