AUDIO SYSTEM

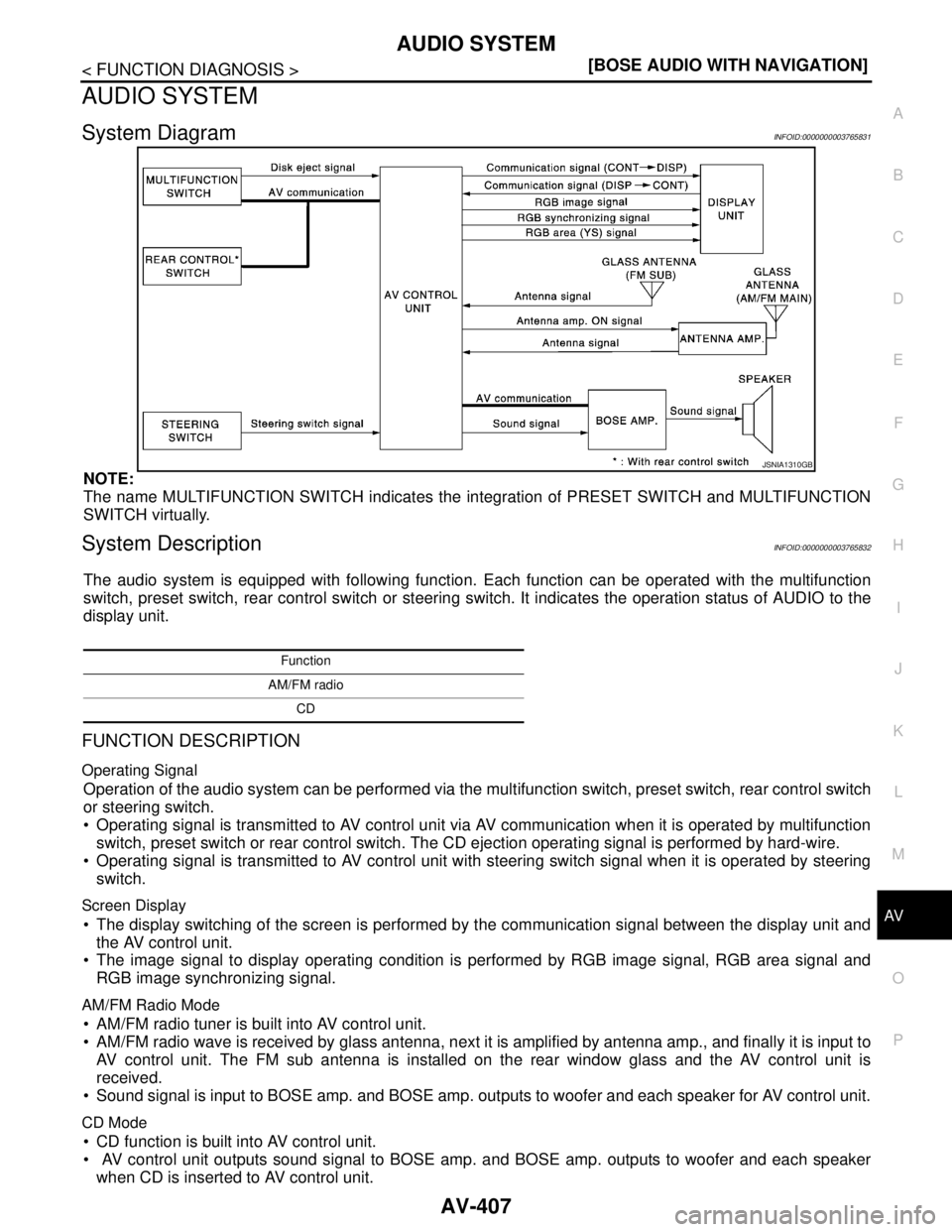

System DiagramINFOID:0000000003765831
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
System DescriptionINFOID:0000000003765832
The audio system is equipped with following function. Each function can be operated with the multifunction
switch, preset switch, rear control switch or steering switch. It indicates the operation status of AUDIO to the
display unit.
FUNCTION DESCRIPTION
Operating Signal
Operation of the audio system can be performed via the multifunction switch, preset switch, rear control switch
or steering switch.
 Operating signal is transmitted to AV control unit via AV communication when it is operated by multifunction
switch, preset switch or rear control switch. The CD ejection operating signal is performed by hard-wire.
 Operating signal is transmitted to AV control unit with steering switch signal when it is operated by steering
switch.
Screen Display
 The display switching of the screen is performed by the communication signal between the display unit and
the AV control unit.
 The image signal to display operating condition is performed by RGB image signal, RGB area signal and
RGB image synchronizing signal.
AM/FM Radio Mode
 AM/FM radio tuner is built into AV control unit.
 AM/FM radio wave is received by glass antenna, next it is amplified by antenna amp., and finally it is input to
AV control unit. The FM sub antenna is installed on the rear window glass and the AV control unit is
received.
 Sound signal is input to BOSE amp. and BOSE amp. outputs to woofer and each speaker for AV control unit.
CD Mode
 CD function is built into AV control unit.
 AV control unit outputs sound signal to BOSE amp. and BOSE amp. outputs to woofer and each speaker
when CD is inserted to AV control unit.
JSNIA1310GB
Function
AM/FM radio
CD

AV-408
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
AUDIO SYSTEM

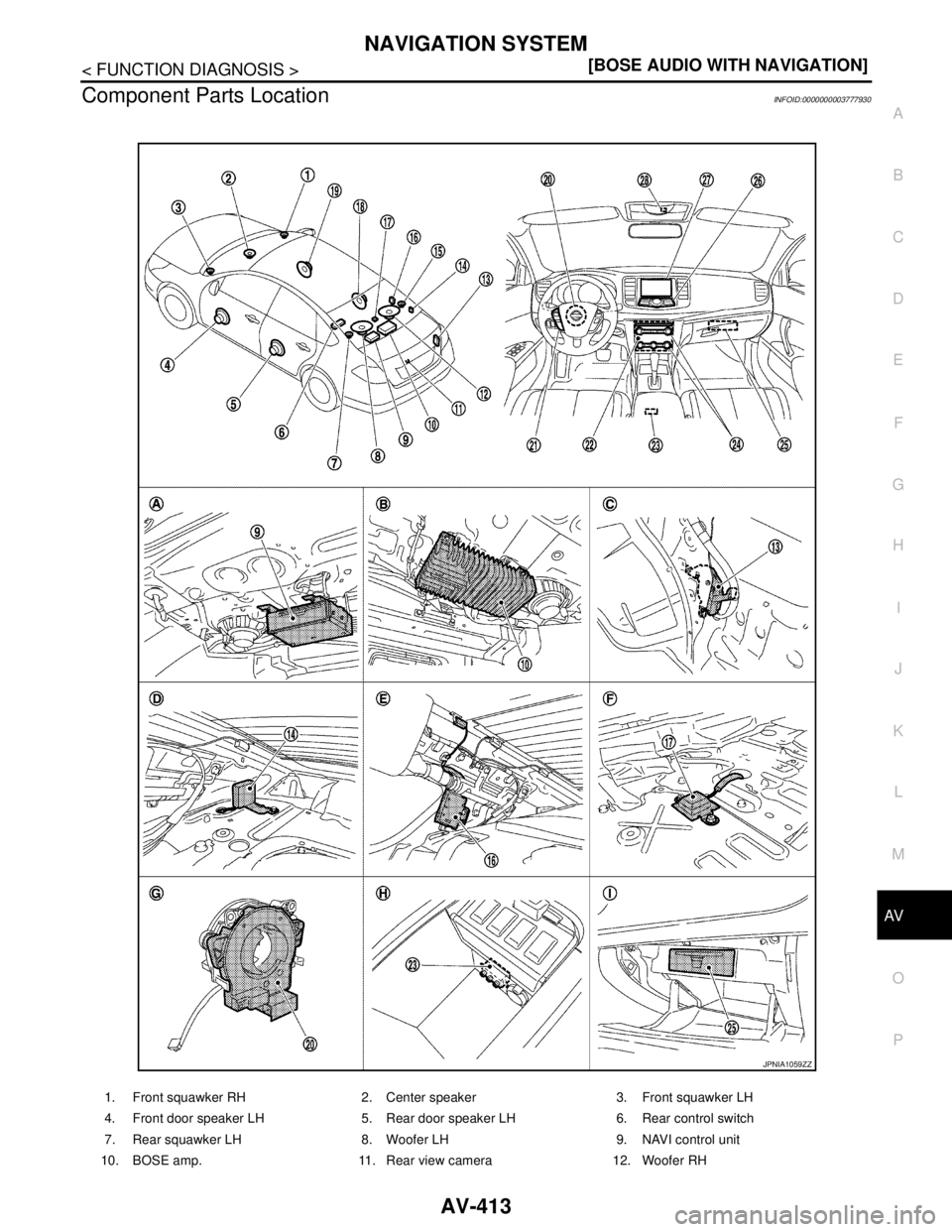

Component Parts Location
INFOID:0000000003777846
1. Front squawker RH 2. Center speaker 3. Front squawker LH
4. Front door speaker LH 5. Rear door speaker LH 6. Rear control switch
7. Rear squawker LH 8. Woofer LH 9. NAVI control unit
10. BOSE amp. 11. Rear view camera 12. Woofer RH
JPNIA1059ZZ

AV
AUDIO SYSTEM
AV-409
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
Component DescriptionINFOID:0000000003765834
13. Camera control unit 14. TEL antenna 15. Rear squawker RH
16. Antenna amp. 17. GPS antenna 18. Rear door speaker RH
19. Front door speaker RH 20. Steering angle sensor 21. Steering switch
22. AV control unit 23. Auxiliary input jacks 24. Preset switch
25. DVD player 26. Multifunction switch 27. Display unit
28. Microphone
A. Trunk room upper LH B. Trunk room upper RH C. Trunk room side RH
D. Within rear pillar finisher RH E. Within rear pillar finisher RH F. Within rear parcel shelf finisher
G. Spiral cable part H. In center console I. In grove box
Part name Description
AV CONTROL UNIT The AM/FM receiving function and the CD playing function are equipped.
 Sound signal is transmitted to BOSE amp.
DISPLAY UNIT Display image is controlled by the serial communication from AV control unit.
 RGB image signal (audio operation condition) is input from AV control unit.
BOSE AMP.Inputs sound signal from AV control unit, and outputs sound signal to woofer and
each speaker.
WOOFER Outputs sound signal from BOSE amp.
 Outputs low frequency sound.
FRONT SPEAKER Outputs sound signal from BOSE amp.
 Outputs sound (mid and low range).
REAR SPEAKER Outputs sound signal from BOSE amp.
 Outputs sound (mid and low range).
FRONT SQUAWKER Outputs sound signal from BOSE amp.
 Outputs sound (high and mid range).
REAR SQUAWKER Outputs sound signal from BOSE amp.
 Outputs sound (high and mid range).
CENTER SPEAKER Outputs sound signal from BOSE amp.
 Outputs sound (high and mid range).
MULTIFUNCTION SWITCH Each audio operation can be operated.
 The multifunction switch is connected to the preset switch by wiring harness,
and it transmits the operation signal to the preset switch.
PRESET SWITCH Each audio operation can be operated.
 The preset switch is connected via AV communication, and it transmits the op-
eration signals of the preset switch and multifunction switch.
 The disk ejection operating signal is performed by hard-wire.
STEERING SWITCH Each audio operation can be operated.
 Steering switch signal (operation signal) is output to AV control unit.
REAR CONTROL SWITCH Each audio operation can be operated.
 The rear control switch is connected via AV communication, and it transmits
the operation signals of the rear control switch.
ANTENNA AMP. Radio signal received by glass antenna is amplified and transmitted to AV con-
trol unit.
 Power (antenna amp. ON signal) is supplied from AV control unit.

AV-410
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
NAVIGATION SYSTEM
NAVIGATION SYSTEM

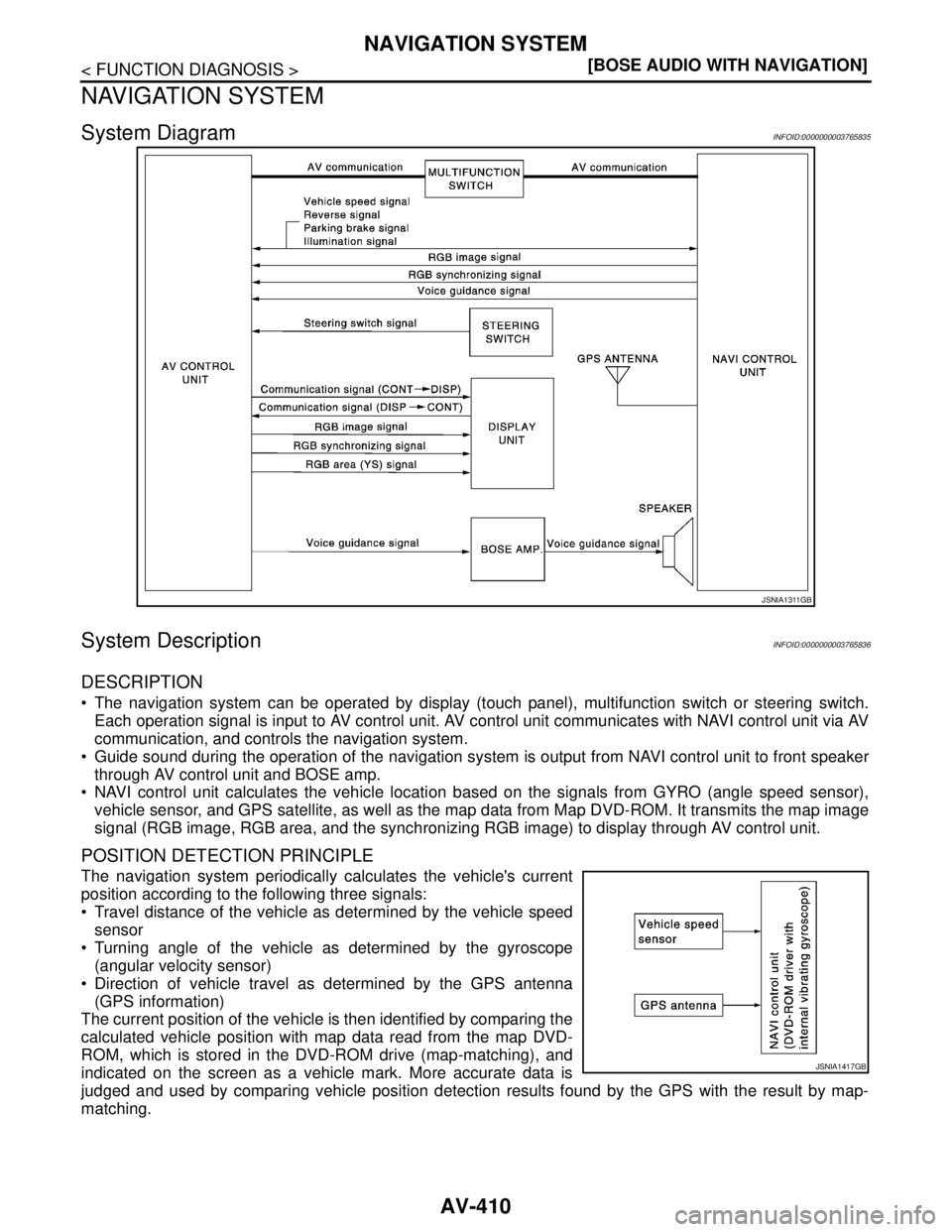

System DiagramINFOID:0000000003765835
System DescriptionINFOID:0000000003765836
DESCRIPTION
 The navigation system can be operated by display (touch panel), multifunction switch or steering switch.
Each operation signal is input to AV control unit. AV control unit communicates with NAVI control unit via AV
communication, and controls the navigation system.
 Guide sound during the operation of the navigation system is output from NAVI control unit to front speaker
through AV control unit and BOSE amp.
 NAVI control unit calculates the vehicle location based on the signals from GYRO (angle speed sensor),
vehicle sensor, and GPS satellite, as well as the map data from Map DVD-ROM. It transmits the map image
signal (RGB image, RGB area, and the synchronizing RGB image) to display through AV control unit.
POSITION DETECTION PRINCIPLE
The navigation system periodically calculates the vehicle's current
position according to the following three signals:
 Travel distance of the vehicle as determined by the vehicle speed
sensor
 Turning angle of the vehicle as determined by the gyroscope
(angular velocity sensor)
 Direction of vehicle travel as determined by the GPS antenna
(GPS information)
The current position of the vehicle is then identified by comparing the
calculated vehicle position with map data read from the map DVD-
ROM, which is stored in the DVD-ROM drive (map-matching), and
indicated on the screen as a vehicle mark. More accurate data is
judged and used by comparing vehicle position detection results found by the GPS with the result by map-
matching.
JSNIA1311GB
JSNIA1417GB

AV
NAVIGATION SYSTEM
AV-411
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

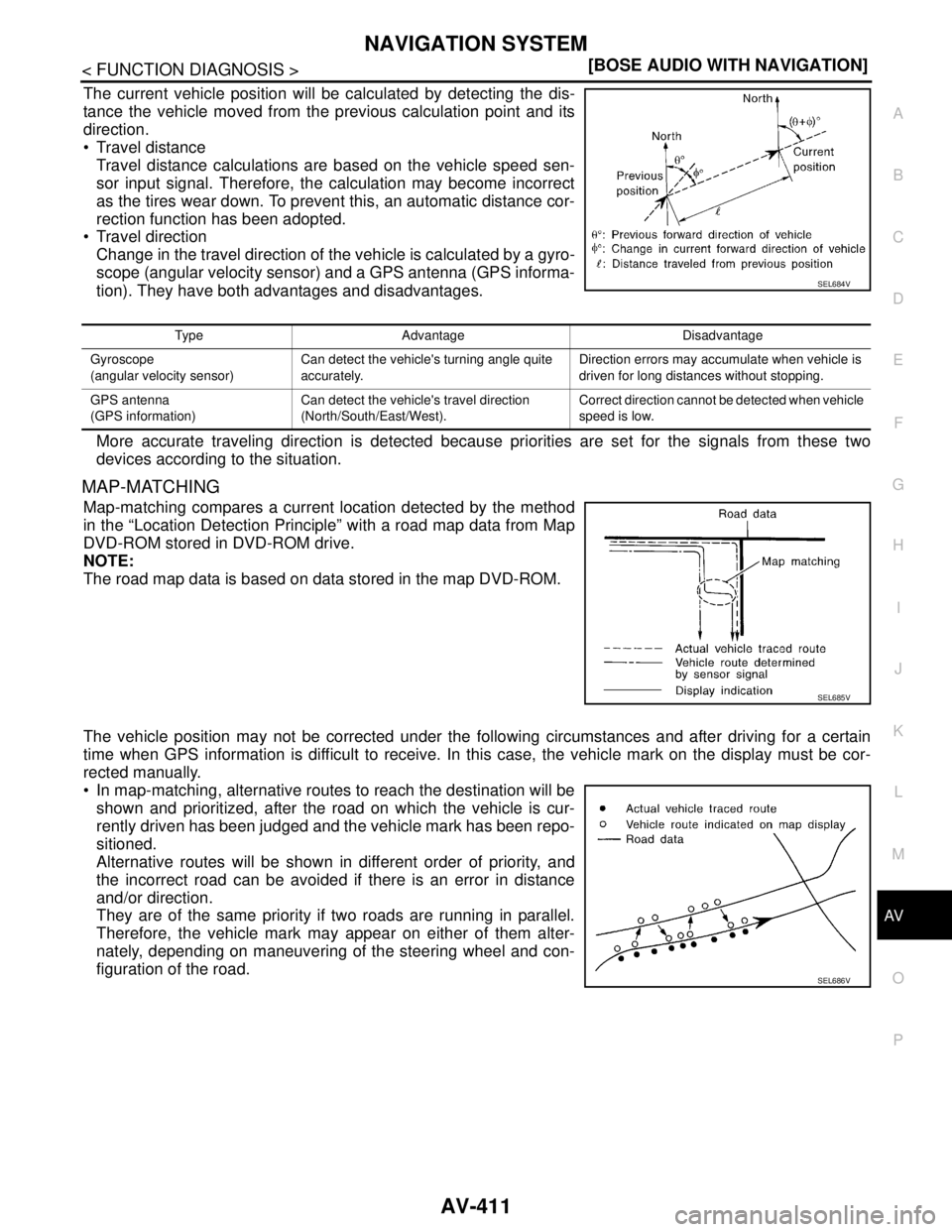

The current vehicle position will be calculated by detecting the dis-
tance the vehicle moved from the previous calculation point and its
direction.
 Travel distance
Travel distance calculations are based on the vehicle speed sen-
sor input signal. Therefore, the calculation may become incorrect
as the tires wear down. To prevent this, an automatic distance cor-
rection function has been adopted.
 Travel direction
Change in the travel direction of the vehicle is calculated by a gyro-
scope (angular velocity sensor) and a GPS antenna (GPS informa-
tion). They have both advantages and disadvantages.
More accurate traveling direction is detected because priorities are set for the signals from these two
devices according to the situation.
MAP-MATCHING
Map-matching compares a current location detected by the method
in the “Location Detection Principle” with a road map data from Map
DVD-ROM stored in DVD-ROM drive.
NOTE:
The road map data is based on data stored in the map DVD-ROM.
The vehicle position may not be corrected under the following circumstances and after driving for a certain
time when GPS information is difficult to receive. In this case, the vehicle mark on the display must be cor-
rected manually.
 In map-matching, alternative routes to reach the destination will be
shown and prioritized, after the road on which the vehicle is cur-
rently driven has been judged and the vehicle mark has been repo-
sitioned.
Alternative routes will be shown in different order of priority, and
the incorrect road can be avoided if there is an error in distance
and/or direction.
They are of the same priority if two roads are running in parallel.
Therefore, the vehicle mark may appear on either of them alter-
nately, depending on maneuvering of the steering wheel and con-
figuration of the road.
SEL684V
Type Advantage Disadvantage
Gyroscope
(angular velocity sensor)Can detect the vehicle's turning angle quite
accurately.Direction errors may accumulate when vehicle is
driven for long distances without stopping.
GPS antenna
(GPS information)Can detect the vehicle's travel direction
(North/South/East/West).Correct direction cannot be detected when vehicle
speed is low.
SEL685V
SEL686V

AV-412
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
NAVIGATION SYSTEM
 Map-matching does not function correctly when a road on which
the vehicle is driving is new and not recorded in the map DVD-
ROM, or when road pattern stored in the map data and the actual
road pattern are different due to repair.
The map-matching function may find another road and position the
vehicle mark on it when driving on a road not present in the map.
Then, the vehicle mark may change to it when the correct road is
detected.

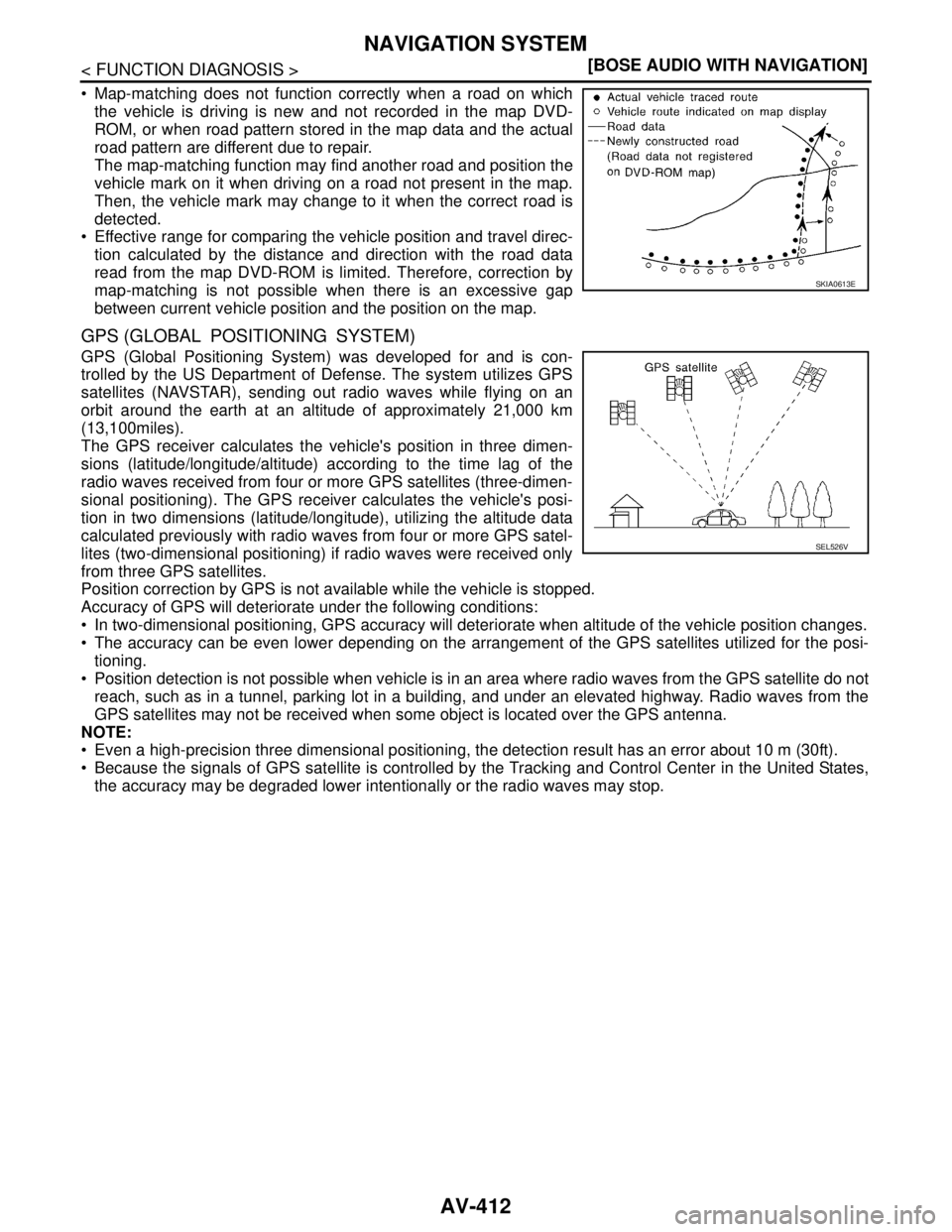

 Effective range for comparing the vehicle position and travel direc-
tion calculated by the distance and direction with the road data
read from the map DVD-ROM is limited. Therefore, correction by
map-matching is not possible when there is an excessive gap
between current vehicle position and the position on the map.
GPS (GLOBAL POSITIONING SYSTEM)
GPS (Global Positioning System) was developed for and is con-
trolled by the US Department of Defense. The system utilizes GPS
satellites (NAVSTAR), sending out radio waves while flying on an
orbit around the earth at an altitude of approximately 21,000 km
(13,100miles).
The GPS receiver calculates the vehicle's position in three dimen-
sions (latitude/longitude/altitude) according to the time lag of the
radio waves received from four or more GPS satellites (three-dimen-
sional positioning). The GPS receiver calculates the vehicle's posi-
tion in two dimensions (latitude/longitude), utilizing the altitude data
calculated previously with radio waves from four or more GPS satel-
lites (two-dimensional positioning) if radio waves were received only
from three GPS satellites.
Position correction by GPS is not available while the vehicle is stopped.
Accuracy of GPS will deteriorate under the following conditions:
 In two-dimensional positioning, GPS accuracy will deteriorate when altitude of the vehicle position changes.
 The accuracy can be even lower depending on the arrangement of the GPS satellites utilized for the posi-
tioning.
 Position detection is not possible when vehicle is in an area where radio waves from the GPS satellite do not
reach, such as in a tunnel, parking lot in a building, and under an elevated highway. Radio waves from the
GPS satellites may not be received when some object is located over the GPS antenna.
NOTE:
 Even a high-precision three dimensional positioning, the detection result has an error about 10 m (30ft).
 Because the signals of GPS satellite is controlled by the Tracking and Control Center in the United States,
the accuracy may be degraded lower intentionally or the radio waves may stop.
SKIA0613E
SEL526V

AV
NAVIGATION SYSTEM
AV-413
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

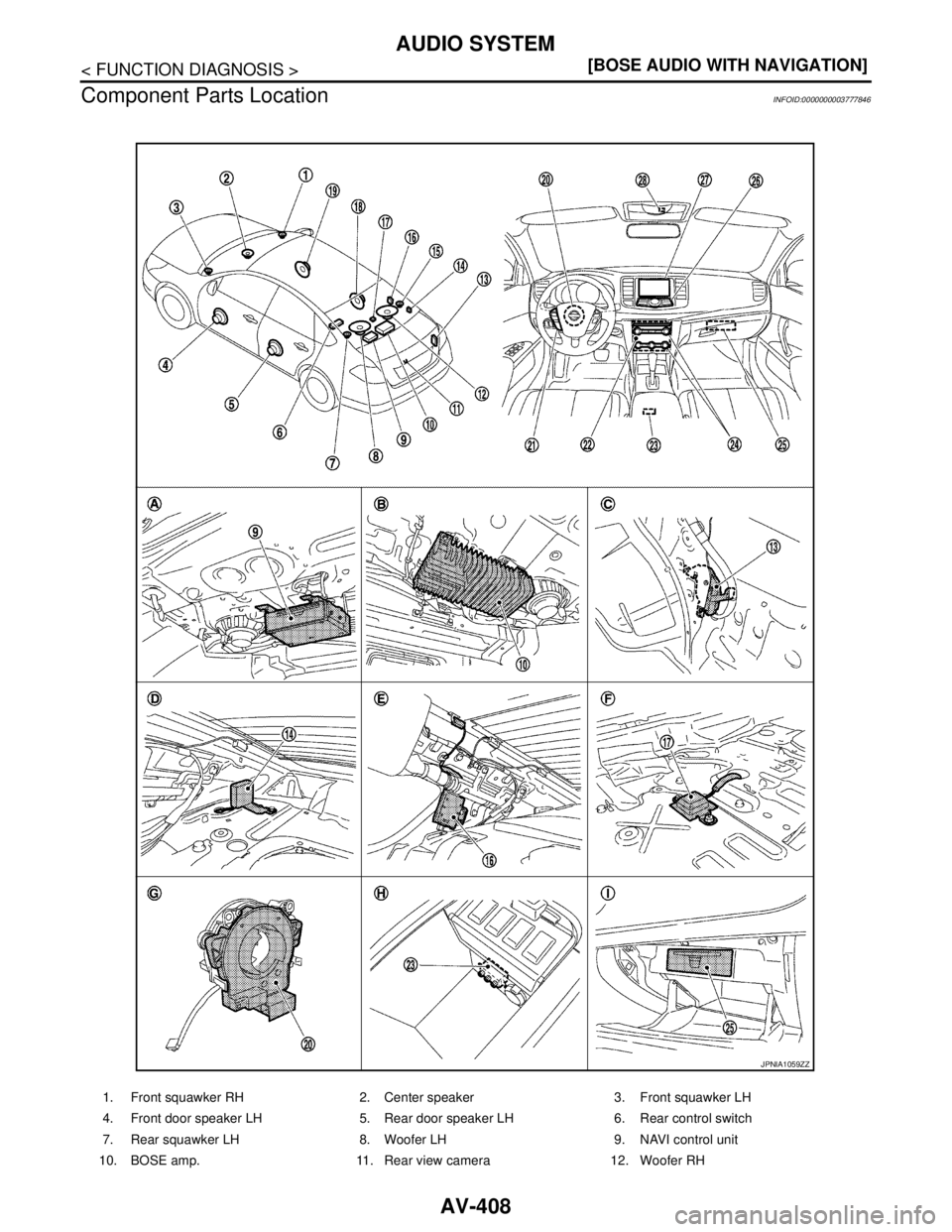

Component Parts LocationINFOID:0000000003777930
1. Front squawker RH 2. Center speaker 3. Front squawker LH
4. Front door speaker LH 5. Rear door speaker LH 6. Rear control switch
7. Rear squawker LH 8. Woofer LH 9. NAVI control unit
10. BOSE amp. 11. Rear view camera 12. Woofer RH
JPNIA1059ZZ

AV-414
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
NAVIGATION SYSTEM
Component Description
INFOID:0000000003765838
13. Camera control unit 14. TEL antenna 15. Rear squawker RH
16. Antenna amp. 17. GPS antenna 18. Rear door speaker RH
19. Front door speaker RH 20. Steering angle sensor 21. Steering switch
22. AV control unit 23. Auxiliary input jacks 24. Preset switch
25. DVD player 26. Multifunction switch 27. Display unit
28. Microphone
A. Trunk room upper LH B. Trunk room upper RH C. Trunk room side RH
D. Within rear pillar finisher RH E. Within rear pillar finisher RH F. Within rear parcel shelf finisher
G. Spiral cable part H. In center console I. In grove box
Part name Description
AV CONTROL UNIT It is the master unit that controls each operation of the Navigation system.
 The RGB signal (map information) is output to the display unit.
 The voice guidance signal is output to the BOSE amp.
NAVI CONTROL UNIT Map data can be read from the Map DVD-ROM by installing Map DVD-ROM.
 NAVI control unit sends map data to AV control unit.
 The voice guidance signal is output to the AV control unit.
Map DVD-ROM A collection of map data.
DISPLAY UNIT Map image signal is input from NAVI control unit via AV control unit.
 Each operation of navigation can be performed by the touch panel function.
BOSE AMP.Voice guidance signal is input from AV control unit, and it is output to front LH/RH
speakers.
FRONT SPEAKER
Voice guidance signal from BOSE amp. is output.
FRONT SQUAWKER
MULTIFUNCTION SWITCH Each operation of navigation can be performed.
 The multifunction switch is connected to the preset switch by wiring harness,
and it transmits the operation signal to the preset switch.
STEERING SWITCH Each operation of navigation, etc. can be performed.
 Switch operating signal is output to AV control unit.
GPS ANTENNA GPS signal is received and is output to NAVI control unit.

AV
REAR VIEW MONITOR SYSTEM
AV-415
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
REAR VIEW MONITOR SYSTEM

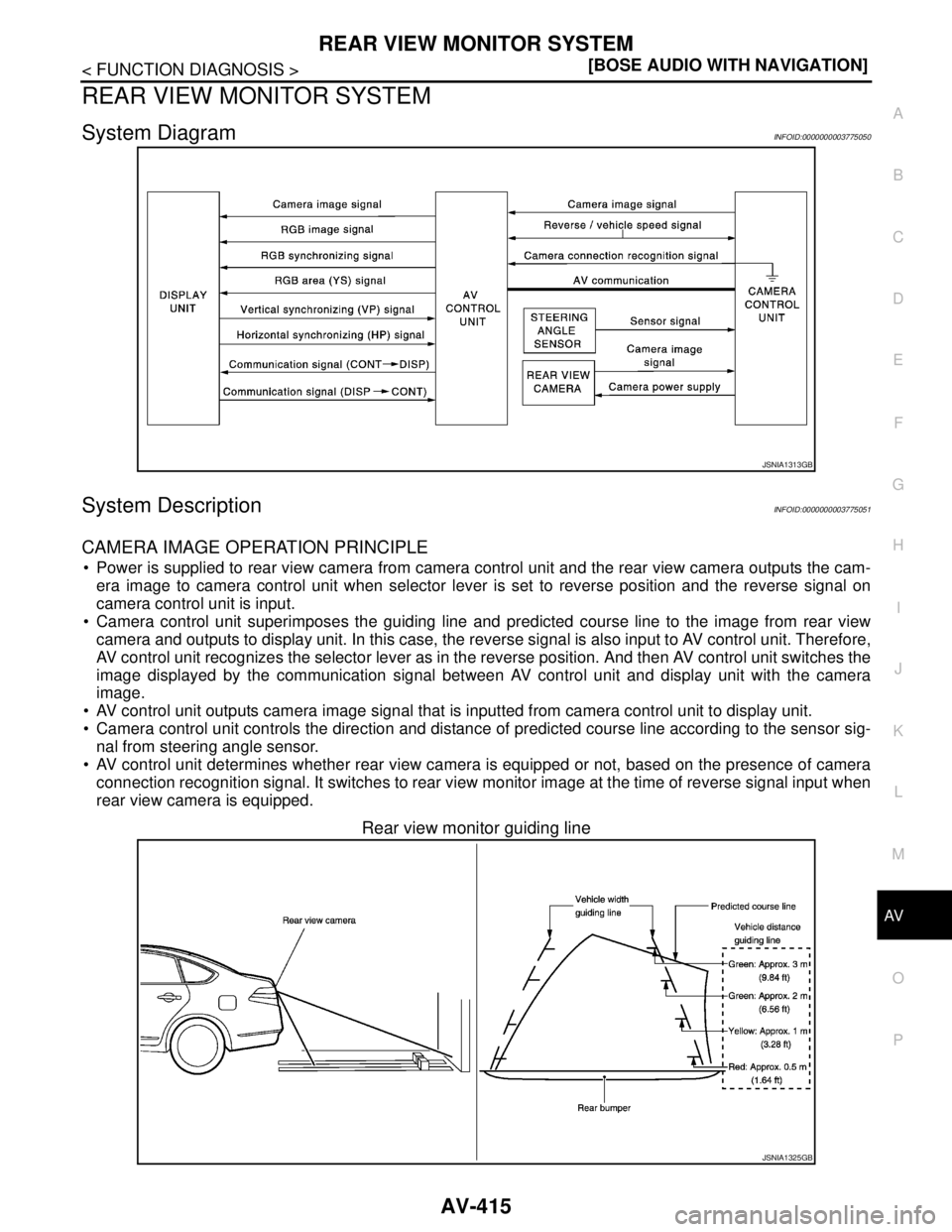

System DiagramINFOID:0000000003775050
System DescriptionINFOID:0000000003775051
CAMERA IMAGE OPERATION PRINCIPLE
 Power is supplied to rear view camera from camera control unit and the rear view camera outputs the cam-
era image to camera control unit when selector lever is set to reverse position and the reverse signal on
camera control unit is input.
 Camera control unit superimposes the guiding line and predicted course line to the image from rear view
camera and outputs to display unit. In this case, the reverse signal is also input to AV control unit. Therefore,
AV control unit recognizes the selector lever as in the reverse position. And then AV control unit switches the
image displayed by the communication signal between AV control unit and display unit with the camera
image.
 AV control unit outputs camera image signal that is inputted from camera control unit to display unit.
 Camera control unit controls the direction and distance of predicted course line according to the sensor sig-
nal from steering angle sensor.
 AV control unit determines whether rear view camera is equipped or not, based on the presence of camera
connection recognition signal. It switches to rear view monitor image at the time of reverse signal input when
rear view camera is equipped.
Rear view monitor guiding line
JSNIA1313GB
JSNIA1325GB

AV-416
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
REAR VIEW MONITOR SYSTEM
PREDICTED COURSE LINE OPERATION PRINCIPLE

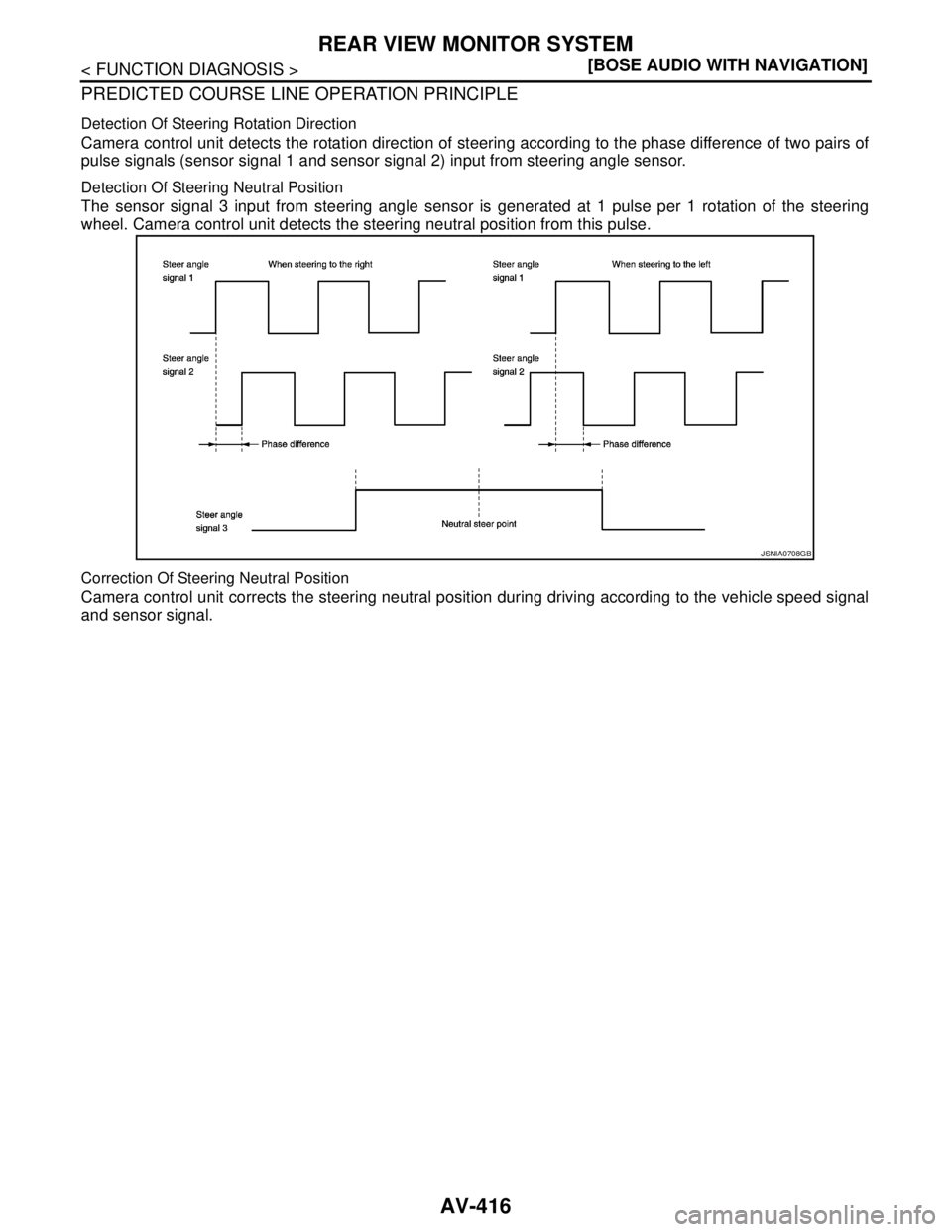

Detection Of Steering Rotation Direction
Camera control unit detects the rotation direction of steering according to the phase difference of two pairs of
pulse signals (sensor signal 1 and sensor signal 2) input from steering angle sensor.
Detection Of Steering Neutral Position
The sensor signal 3 input from steering angle sensor is generated at 1 pulse per 1 rotation of the steering
wheel. Camera control unit detects the steering neutral position from this pulse.
Correction Of Steering Neutral Position
Camera control unit corrects the steering neutral position during driving according to the vehicle speed signal
and sensor signal.
JSNIA0708GB
