Component Parts LocationINFOID:0000000003777941

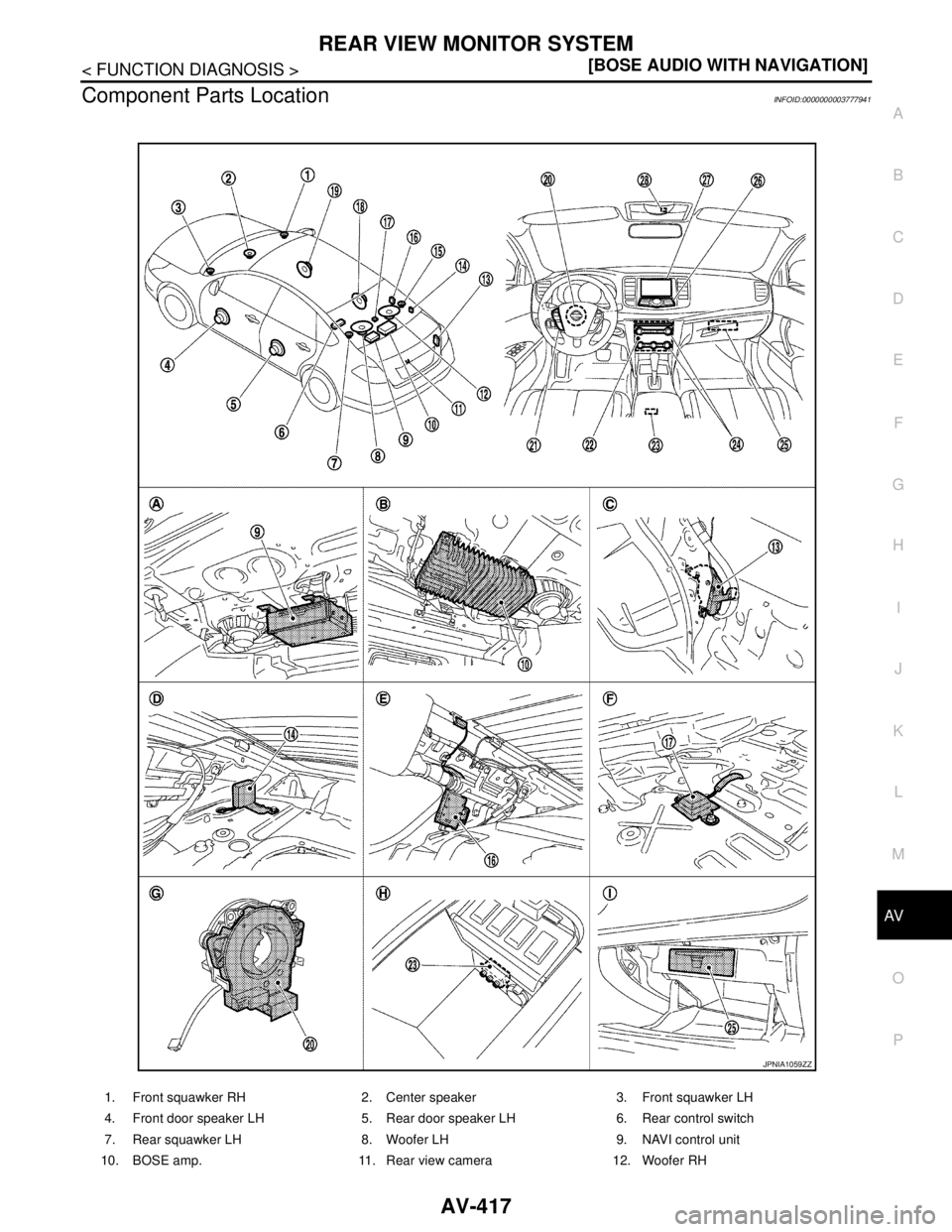

1. Front squawker RH 2. Center speaker 3. Front squawker LH
4. Front door speaker LH 5. Rear door speaker LH 6. Rear control switch
7. Rear squawker LH 8. Woofer LH 9. NAVI control unit
10. BOSE amp. 11. Rear view camera 12. Woofer RH
JPNIA1059ZZ

AV-418
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
REAR VIEW MONITOR SYSTEM
Component Description
INFOID:0000000003775053
13. Camera control unit 14. TEL antenna 15. Rear squawker RH
16. Antenna amp. 17. GPS antenna 18. Rear door speaker RH
19. Front door speaker RH 20. Steering angle sensor 21. Steering switch
22. AV control unit 23. Auxiliary input jacks 24. Preset switch
25. DVD player 26. Multifunction switch 27. Display unit
28. Microphone
A. Trunk room upper LH B. Trunk room upper RH C. Trunk room side RH
D. Within rear pillar finisher RH E. Within rear pillar finisher RH F. Within rear parcel shelf finisher
G. Spiral cable part H. In center console I. In grove box
Part name Description
AV CONTROL UNIT Image on display is transmitted to rear view monitor image by serial communi-
cation between AV control unit and display unit.
 AV control unit recognizes the presence of camera system with camera con-
nection recognition signal.
DISPLAY UNIT Camera image signal is input from AV control unit.
 Rear view monitor image is changed by serial communication from AV control
unit.
CAMERA CONTROL UNIT Camera image signal is input from rear view camera. Camera image signal is
output to AV control unit.
 Power supply is transmitted to rear view camera.
 Superimposes the guiding line and predicted course line to the camera image
that outputs to AV control unit.
 Inputs the sensor signal from steering angle sensor, and then controls the pre-
dicted course line.
 Camera control unit is connected via AV communication.
REAR VIEW CAMERA The image of vehicle rear view is transmitted to camera control unit.
 It receives power supply from camera control unit and operates.
STEERING ANGLE SENSORSteering signal necessary for predicted course line control is transmitted to cam-
era control unit.

AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
AV-419
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
Diagnosis DescriptionINFOID:0000000003765847
MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION
The on/off operation (continuity) of each switch in the multifunction switch and preset switch can be checked.
Self-Diagnosis Mode
 Press the “back” switch and the “up” switch of the 8-direction
switches within 10 seconds after turning the ignition switch from off
to ACC and hold them for 3 seconds or more. then the buzzer
sounds, all indicators of the preset switch illuminate, and the self-
diagnosis mode starts.
 The continuity of each switch at the on position can be checked by
pressing the switch. the buzzer sounds if the switch is normal.
NOTE:
The hazard switch and disk eject switch cannot be checked.
Finishing Self-diagnosis Mode
Self-diagnosis mode is canceled when turning the ignition switch off.
MULTI AV SYSTEM ON BOARD DIAGNOSIS FUNCTION
 The AV control unit diagnosis function starts up with multifunction switch operation and the AV control unit
performs a diagnosis for each unit in the system during the on board diagnosis.
 Perform a CONSULT-III diagnosis if the on board diagnosis does not start, e.g., the screen does not display
anything, the multifunction switch does not function. etc.
ON BOARD DIAGNOSIS
Description
 The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and
a confirmation/adjustment mode for operating manually.
 The self-diagnosis mode performs diagnoses on the AV control unit and NAVI control unit, connections
between system components as well as connections between NAVI control unit and GPS antenna and
between NAVI control unit and TEL antenna. Then it displays the diagnosis results on the display.
 The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and
set values, as well as to monitor the system error records and system communication status. The check,
modify or adjust actions generally require human intervention and judgment (the system cannot make judg-
ment automatically.
On Board Diagnosis Item
JSNIA1289GB
Mode Description
Self Diagnosis AV control unit diagnosis.
 NAVI control unit diagnosis.
 Diagnoses the connections across system components, between
NAVI control unit and GPS antenna and between NAVI control unit and
TEL antenna.

AV-420
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
NOTE:
*: On-board self-diagnosis is not supported. Only CONSULT-III is supported.
STARTING PROCEDURE
1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the “SETTING” button, turn the volume control
dial clockwise or counterclockwise for 40 clicks or more. (When
the self-diagnosis mode is started, a short beep will be heard.)
 Shifting from current screen to previous screen is performed
by pressing “BACK” button.
Confirmation/
AdjustmentDisplay DiagnosisThe confirmations of the tint with the color spectrum bar display and
shading of color with the gradation bar display can be performed.
Vehicle SignalsDiagnosis of signals can be performed for vehicle speed, parking brake,
lights, ignition switch, and reverse.
Navigation/PhoneHandsfree Voice Mi-
crophone TestMicrophone speaker check can be performed.
Color Spectrum Bar A color tone can be checked by the color bar display.
Gradation Bar A light and shade can be checked by the gray scale display.
Touch Panel Touch panel response check can be performed.
Vehicle SignalsDiagnosis of signals can be performed for vehicle speed, parking brake,
lights, and reverse.
Confirm/Change
Bluetooth PasskeyThe passkey can be checked and changed.
Confirm/Change
Bluetooth Device
NameThe device name can be checked and changed.
Handsfree Sound
Quality SetNot available.
Speaker Test The connection of a speaker can be confirmed by test tone.
Climate Control
*Not used.
Error HistoryThe system malfunction and the frequency when occurred in the past are
displayed. When the malfunctioning item is selected, the time and place
that the selected malfunction last occurred are displayed.
Camera Cont.The signal connected to camera control unit can be checked and the
guiding line position that overlaps rear view camera image can be adjust-
ed.
Vehicle CAN Diagnosis The transmitting/receiving of CAN communication can be monitored.
AV COMM DiagnosisThe communication condition of each unit of Multi AV system can be
monitored.
Delete Unit Connection Log Erase the connection history of unit and error history.
Initialize Settings Initializes the AV control unit memory.Mode Description
JSNIA1290GB

AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
AV-421
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
4. The trouble diagnosis initial screen is displayed, and then the
items of “Self Diagnosis” and “Confirmation/Adjustment” can be
selected.
SELF-DIAGNOSIS MODE
1. Start the self-diagnosis function and select “Self Diagnosis”.
- Self-diagnosis subdivision screen is displayed, and the self-diagnosis mode starts.
- The bar graph visible on the center of the self-diagnosis subdivision screen indicates progress of the trou-
ble diagnosis.
2. Diagnosis results are displayed after the self-diagnosis is com-
pleted. The unit names and the connection lines are color-coded
according to the diagnostic results.
NOTE:
 In case of connection malfunction of GPS or TEL antenna, diagnosis result follows “unit malfunction”
way to display.
 Replace AV control unit if “Self-Diagnosis did not run because of a control unit malfunction” is indicated.
The symptom is AV control unit internal error. Refer to AV-648, "
Exploded View".
- The comments of the self-diagnosis results can be viewed with a
component in the diagnosis result screen.
SELF-DIAGNOSIS RESULTS
 Check the applicable display at the following table, and then repair the malfunctioning parts.
 The self-diagnosis mode allows the technician to diagnose the connection in the communication line
between AV control unit and each unit and the internal operation of the AV control unit.
 Because the start condition of diagnosis function is a switch operation, the on board diagnosis function can-
not be started up if any malfunction is detected in the communication circuit between AV control unit and
multifunction switch.
Self-diagnosis Result Chart
JSNIA0512GB
Diagnosis results UnitCon-
nection
line
Normal Green Green
Connection malfunction Gray Yellow
Unit malfunction
NoteRed GreenJSNIA1291GB
JSNIA0514GB

AV-422
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
Area with yellow connection lines DescriptionPossible malfunction location / Action
to take
NOTE:
When a control unit malfunction is detected (red in
unit display), connection malfunctions with other
connection unit may be displayed.Malfunction is detected in AV control
unit power supply and ground circuits.Check AV control unit power supply
and ground circuits. When detecting
no malfunction in those components,
replace AV control unit.
“Self-Diagnosis did not run because of a control unit
malfunction”
NAVI control unit malfunction is detect-
ed.Replace NAVI control unit.
When either one of the following
items is detected:
 BOSE amp. malfunction is detected.
 sound signal circuits between BOSE
amp. and each speaker is malfunc-
tioning. Replace BOSE amp.
 Malfunctioning speaker circuits
When either one of the following
items is detected:
 DVD player power supply and
ground circuits are malfunctioning.
 AV communication circuits between
BOSE amp. and DVD player are
malfunctioning.
 AV communication signal between
AV control unit and DVD player is
malfunctioning. DVD player power supply and
ground circuits
 AV communication circuits between
BOSE amp. and DVD player
JSNIA1314GB
JSNIA1315GB
JPNIA1091GB
JSNIA1316GB

AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
AV-423
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
PCamera connection recognition signal
circuit is detected.Camera connection recognition signal
circuit
When either one of the following
items is detected:
 BOSE amp. power supply and
ground circuits are malfunctioning.
 AV communication signal between
AV control unit and BOSE amp. is
malfunctioning.BOSE amp. power supply and ground
circuits
When either one of the following
items is detected:
 rear control switch power supply and
ground circuits are malfunctioning.
 AV communication signal between
AV control unit and rear control
switch is malfunctioning.Rear control switch power supply and
ground circuits
Malfunction is detected in AV commu-
nication circuits between NAVI control
unit and BOSE amp.AV communication circuits between
NAVI control unit and BOSE amp. Area with yellow connection lines DescriptionPossible malfunction location / Action
to take
JSNIA1317GB
JSNIA1318GB
JSNIA1319GB
JSNIA1320GB

AV-424
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
With rear control switch
When either one of the following
items is detected:
 malfunction is detected in AV com-
munication circuits between rear
control switch and camera control
unit.
 malfunction is detected in AV com-
munication circuits between camera
control unit and NAVI control unit.  AV communication circuits between
rear control switch and camera con-
trol unit
 AV communication circuits between
camera control unit and NAVI control
unit
Without rear control switch
When either one of the following
items is detected:
 malfunction is detected in AV com-
munication circuits between multi-
function switch and camera control
unit.
 malfunction is detected in AV com-
munication circuits between camera
control unit and NAVI control unit. AV communication circuits between
multifunction switch and camera
control unit
 AV communication circuits between
camera control unit and NAVI control
unit
Malfunction is detected in AV commu-
nication circuits between multifunction
switch and rear control switch.AV communication circuits between
multifunction switch and rear control
switch
GPS antenna connection malfunction
is detected.Replace GPS antenna. Area with yellow connection lines DescriptionPossible malfunction location / Action
to take
JSNIA1321GB
JSNIA1322GB
JSNIA1323GB

AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
AV-425
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
CONFIRMATION/ADJUSTMENT MODE
1. Start the diagnosis function and select “Confirmation/Adjustment”. The confirmation/adjustment mode
indicates where each item can be checked or adjusted.
2. Select each switch on the “Confirmation/Adjustment Mode”
screen to display the relevant trouble diagnosis screen. Press
the “BACK” switch to return to the initial Confirmation/Adjust-
ment Mode screen.
Display Diagnosis
TEL antenna connection malfunction
is detected.Replace TEL antenna.
NAVI control unit power supply and
ground circuits are malfunctioning.NAVI control unit power supply and
ground circuits. Area with yellow connection lines DescriptionPossible malfunction location / Action
to take
JSNIA1324GB
JPNIA1106GB
JSNIA0489GB
JSNIA0148GB

AV-426
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
The tint of the color bar indication is as per the following list if RGB signal error is detected.
Vehicle Signals
A comparison check can be made of each actual vehicle signal and
the signals recognized by the AV control unit.
Navigation/Phone
Handsfree Voice Microphone Test
 Microphone speaker check can be performed. A microphone input
level is displayed.
Color Spectrum Bar
R (red) signal error : Light blue (Cyan) tint
G (green) signal error : Purple (Magenta) tint
B (blue) signal error : Yellow tint
JSNIA0149GB
Diagnosis item Display Vehicle status Remarks
Vehicle speed ONVehicle speed > 0 km/h (0 MPH)
Changes in indication may be delayed. This is normal. Vehicle speed = 0 km/h (0 MPH)
Parking brakeON Parking brake is applied.
OFF Parking brake is released.
LightsON Light switch ON.
—
OFF Light switch OFF.
IgnitionON Ignition switch ON.
—
OFF Ignition switch in ACC position.
ReverseON Selector lever in R position.
Changes in indication may be delayed. This is normal.
OFFSelector lever in any position other
than R.
JSNIA0490GB
