NISSAN TEANA 2008 Service Manual

AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
AV-427
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

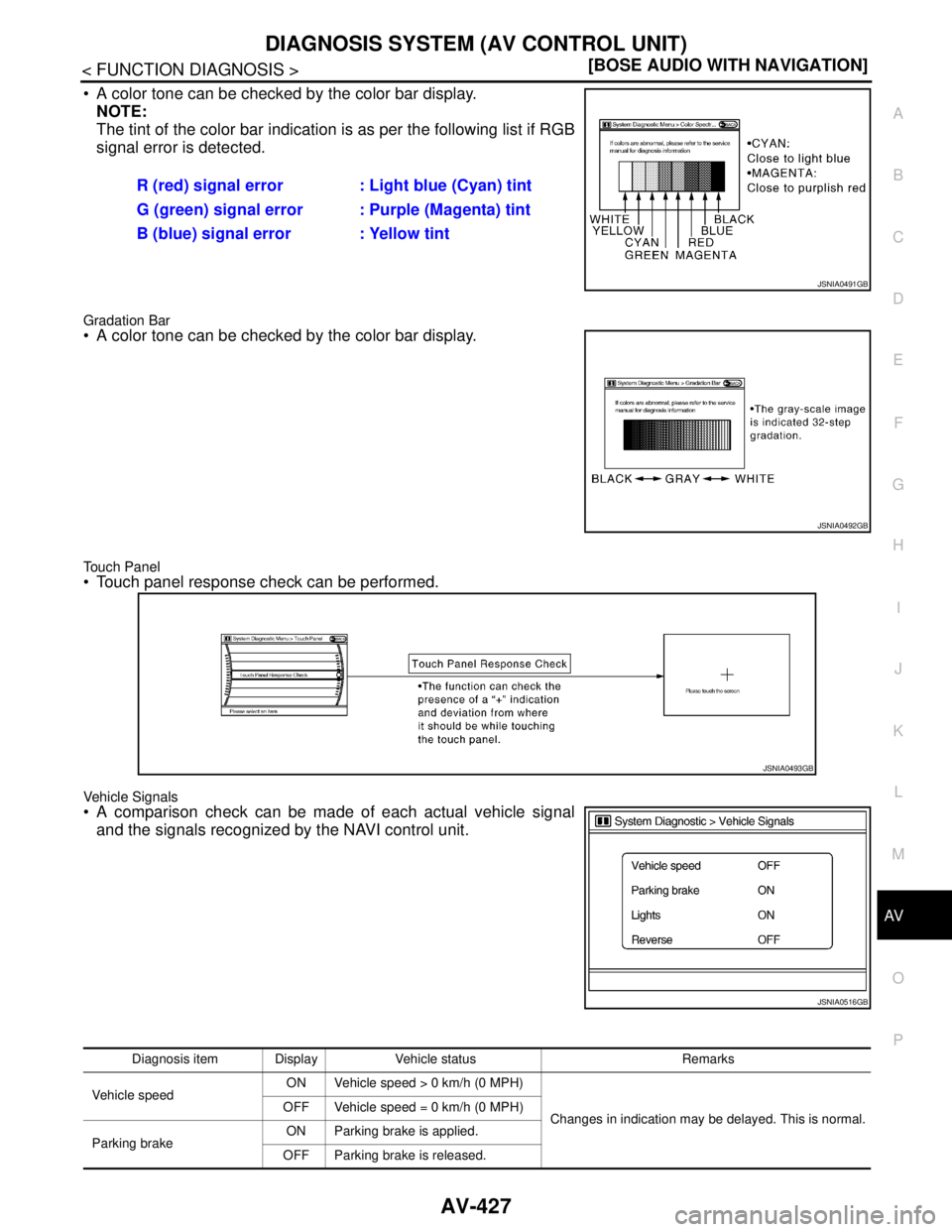

 A color tone can be checked by the color bar display.
NOTE:
The tint of the color bar indication is as per the following list if RGB
signal error is detected.
Gradation Bar A color tone can be checked by the color bar display.
Touch Panel Touch panel response check can be performed.
Vehicle Signals
 A comparison check can be made of each actual vehicle signal
and the signals recognized by the NAVI control unit.R (red) signal error : Light blue (Cyan) tint
G (green) signal error : Purple (Magenta) tint
B (blue) signal error : Yellow tint
JSNIA0491GB
JSNIA0492GB
JSNIA0493GB
JSNIA0516GB
Diagnosis item Display Vehicle status Remarks
Vehicle speedON Vehicle speed > 0 km/h (0 MPH)
Changes in indication may be delayed. This is normal. OFF Vehicle speed = 0 km/h (0 MPH)
Parking brakeON Parking brake is applied.
OFF Parking brake is released.

AV-428
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (AV CONTROL UNIT)

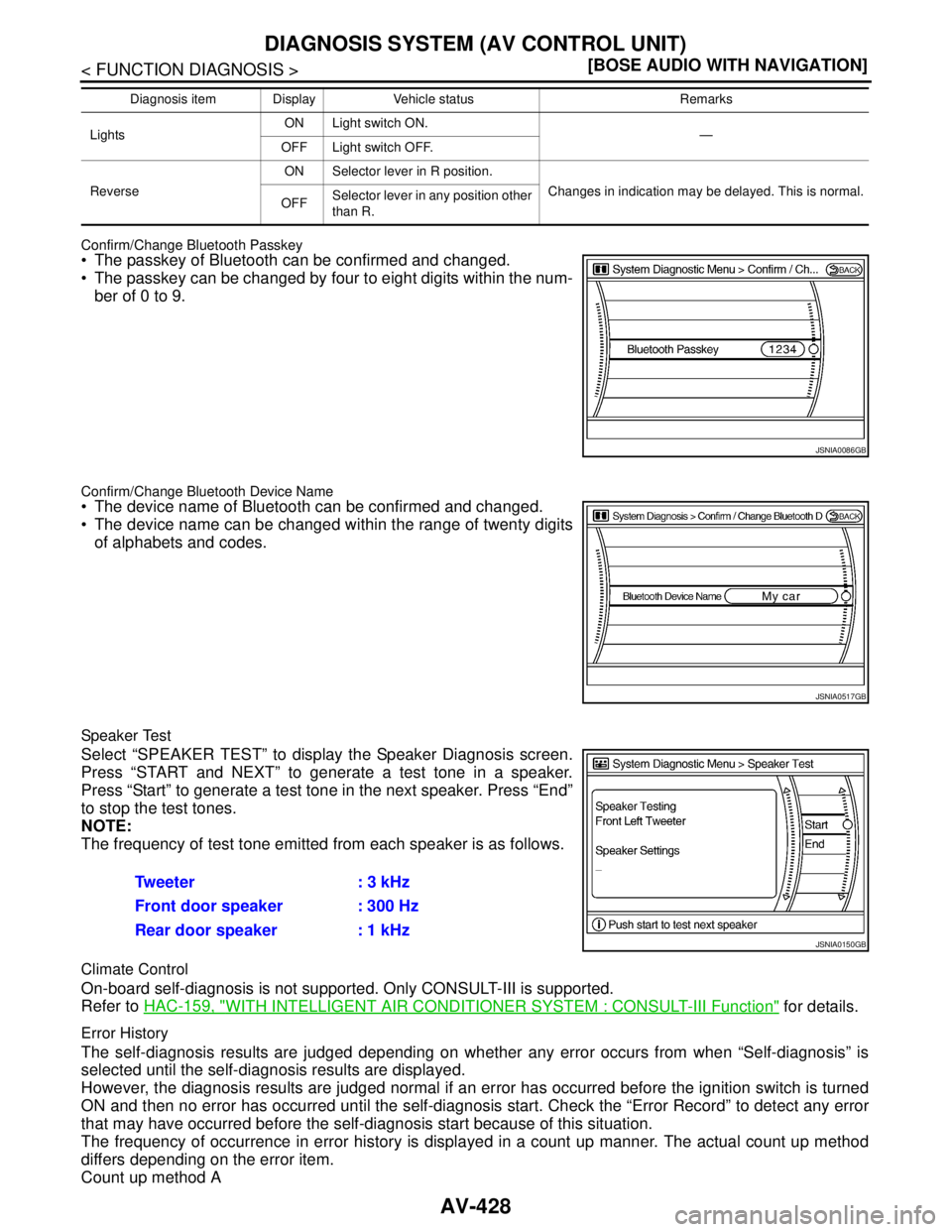

Confirm/Change Bluetooth Passkey
 The passkey of Bluetooth can be confirmed and changed.
 The passkey can be changed by four to eight digits within the num-
ber of 0 to 9.
Confirm/Change Bluetooth Device Name
 The device name of Bluetooth can be confirmed and changed.
 The device name can be changed within the range of twenty digits
of alphabets and codes.
Speaker Test
Select “SPEAKER TEST” to display the Speaker Diagnosis screen.
Press “START and NEXT” to generate a test tone in a speaker.
Press “Start” to generate a test tone in the next speaker. Press “End”
to stop the test tones.
NOTE:
The frequency of test tone emitted from each speaker is as follows.
Climate Control
On-board self-diagnosis is not supported. Only CONSULT-III is supported.
Refer to HAC-159, "
WITH INTELLIGENT AIR CONDITIONER SYSTEM : CONSULT-III Function" for details.
Error History
The self-diagnosis results are judged depending on whether any error occurs from when “Self-diagnosis” is
selected until the self-diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned
ON and then no error has occurred until the self-diagnosis start. Check the “Error Record” to detect any error
that may have occurred before the self-diagnosis start because of this situation.
The frequency of occurrence in error history is displayed in a count up manner. The actual count up method
differs depending on the error item.
Count up method A
LightsON Light switch ON.
—
OFF Light switch OFF.
ReverseON Selector lever in R position.
Changes in indication may be delayed. This is normal.
OFFSelector lever in any position other
than R. Diagnosis item Display Vehicle status Remarks
JSNIA0086GB
JSNIA0517GB
Tweeter : 3 kHz
Front door speaker : 300 Hz
Rear door speaker : 1 kHz
JSNIA0150GB

AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
AV-429
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

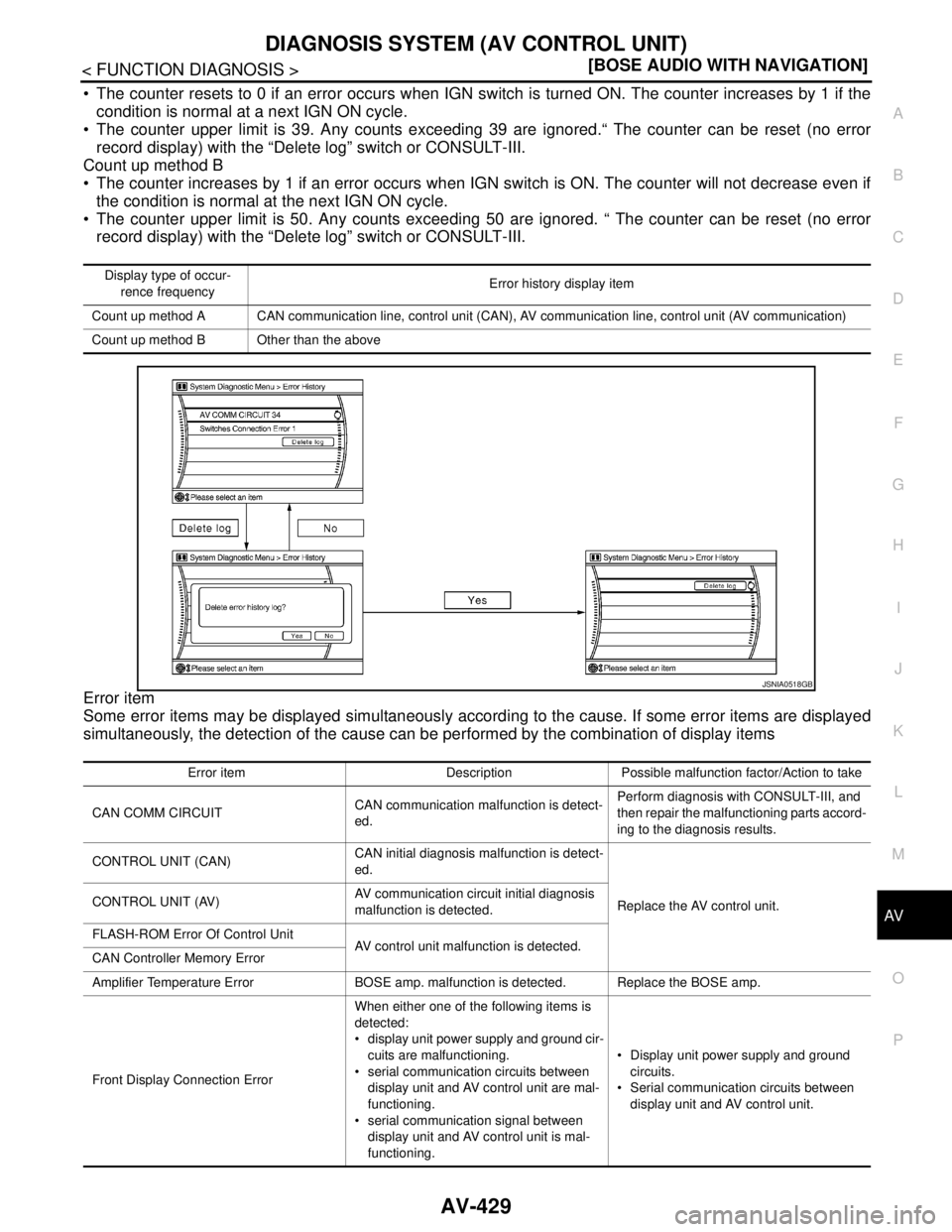

 The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the
condition is normal at a next IGN ON cycle.
 The counter upper limit is 39. Any counts exceeding 39 are ignored.“ The counter can be reset (no error
record display) with the “Delete log” switch or CONSULT-III.
Count up method B
 The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if
the condition is normal at the next IGN ON cycle.
 The counter upper limit is 50. Any counts exceeding 50 are ignored. “ The counter can be reset (no error
record display) with the “Delete log” switch or CONSULT-III.
Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed
simultaneously, the detection of the cause can be performed by the combination of display items
Display type of occur-
rence frequencyError history display item
Count up method A CAN communication line, control unit (CAN), AV communication line, control unit (AV communication)
Count up method B Other than the above
JSNIA0518GB
Error item Description Possible malfunction factor/Action to take
CAN COMM CIRCUITCAN communication malfunction is detect-
ed.Perform diagnosis with CONSULT-III, and
then repair the malfunctioning parts accord-
ing to the diagnosis results.
CONTROL UNIT (CAN)CAN initial diagnosis malfunction is detect-
ed.
Replace the AV control unit. CONTROL UNIT (AV)AV communication circuit initial diagnosis
malfunction is detected.
FLASH-ROM Error Of Control Unit
AV control unit malfunction is detected.
CAN Controller Memory Error
Amplifier Temperature Error BOSE amp. malfunction is detected. Replace the BOSE amp.
Front Display Connection ErrorWhen either one of the following items is
detected:
 display unit power supply and ground cir-
cuits are malfunctioning.
 serial communication circuits between
display unit and AV control unit are mal-
functioning.
 serial communication signal between
display unit and AV control unit is mal-
functioning. Display unit power supply and ground
circuits.
 Serial communication circuits between
display unit and AV control unit.

AV-430
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
Camera Cont. Unit Connection ErrorCamera connection recognition signal cir-
cuit is detected.Camera connection recognition signal cir-
cuit.
Center speaker OUT: openSound signal center speaker circuit is
open.Check sound signal center speaker circuit.
Center speaker OUT: shortSound signal center speaker circuit is
shorted between center speaker signal (+)
and center speaker signal (-).Check sound signal center speaker circuit.
Center speaker OUT: short to groundSound signal center speaker circuit to
ground is shorted.Check sound signal center speaker circuit.
Center speaker OUT: short to batterySound signal center speaker circuit to bat-
tery is shorted.Check sound signal center speaker circuit.
FR speaker OUT: openSound signal front speaker RH circuit is
open.Check sound signal front speaker RH cir-
cuit.
FR speaker OUT: shortSound signal front speaker RH circuit is
shorted between front speaker RH signal
(+) and front speaker RH signal (-).Check sound signal front speaker RH cir-
cuit.
FR speaker OUT: short to groundSound signal front speaker RH circuit to
ground is shorted.Check sound signal front speaker RH cir-
cuit.
FR speaker OUT: short to batterySound signal front speaker RH circuit to
battery is shorted.Check sound signal front speaker RH cir-
cuit.
RR speaker OUT: openSound signal rear speaker RH circuit is
open.Check sound signal rear speaker RH cir-
cuit.
RR speaker OUT: shortSound signal rear speaker RH circuit is
shorted between rear speaker LH signal (+)
and rear speaker LH signal (-).Check sound signal rear speaker RH cir-
cuit.
RR speaker OUT: short to groundSound signal rear speaker RH circuit to
ground is shorted.Check sound signal rear speaker RH cir-
cuit.
RR speaker OUT: short to batterySound signal rear speaker RH circuit to bat-
tery is shorted.Check sound signal rear speaker RH cir-
cuit.
RR Woofer OUT: open Sound signal woofer RH circuit is open. Check sound signal woofer RH circuit.
RR Woofer OUT: shortSound signal woofer RH circuit is shorted
between woofer RH signal (+) and woofer
RH signal (-).Check sound signal woofer RH circuit.
RR Woofer OUT: short to groundSound signal woofer RH circuit to ground is
shorted.Check sound signal woofer RH circuit.
RR Woofer OUT: short to batterySound signal woofer RH circuit to battery is
shorted.Check sound signal woofer RH circuit.
RL Woofer OUT: open Sound signal woofer LH circuit is open. Check sound signal woofer LH circuit.
RL Woofer OUT: shortSound signal woofer LH circuit is shorted
between woofer LH signal (+) and woofer
LH signal (-).Check sound signal woofer LH circuit.
RL Woofer OUT: short to groundSound signal woofer LH circuit to ground is
shorted.Check sound signal woofer LH circuit.
RL Woofer OUT: short to batterySound signal woofer LH circuit to battery is
shorted.Check sound signal woofer LH circuit.
RL speaker OUT: openSound signal rear speaker LH circuit is
open.Check sound signal rear speaker LH circuit.
RL speaker OUT: shortSound signal rear speaker LH circuit is
shorted between rear speaker LH signal (+)
and rear speaker LH signal (-).
Check sound signal rear speaker LH circuit.
RL speaker OUT: short to groundSound signal rear speaker LH circuit to
ground is shorted.Check sound signal rear speaker LH circuit.
RL speaker OUT: short to batterySound signal rear speaker LH circuit to bat-
tery is shorted.Check sound signal rear speaker LH circuit. Error item Description Possible malfunction factor/Action to take

AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
AV-431
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
FL speaker OUT: openSound signal front speaker LH circuit is
open.Check sound signal front speaker LH cir-
cuit.
FL speaker OUT: shortSound signal front speaker LH circuit is
shorted between front speaker LH signal
(+) and front speaker LH signal (-).Check sound signal front speaker LH cir-
cuit.
FL speaker OUT: short to groundSound signal front speaker LH circuit to
ground is shorted.Check sound signal front speaker LH cir-
cuit.
FL speaker OUT: short to batterySound signal front speaker LH circuit to
battery is shorted.Check sound signal front speaker LH cir-
cuit.
FL tweeter OUT: openSound signal front squawker LH circuit is
open.Check sound signal front squawker LH cir-
cuit.
FL tweeter OUT: shortSound signal front squawker LH circuit is
shorted between front squawker LH signal
(+) and front squawker LH signal (-).Check sound signal front squawker LH cir-
cuit.
FL tweeter OUT: short to groundSound signal front squawker LH circuit to
ground is shorted.Check sound signal front squawker LH cir-
cuit.
FL tweeter OUT: short to batterySound signal front squawker LH circuit to
battery is shorted.Check sound signal front squawker LH cir-
cuit.
FR tweeter OUT: openSound signal front squawker RH circuit is
open.Check sound signal front squawker RH cir-
cuit.
FR tweeter OUT: shortSound signal front squawker RH circuit is
shorted between front squawker RH signal
(+) and front squawker RH signal (-).Check sound signal front squawker RH cir-
cuit.
FR tweeter OUT: short to groundSound signal front squawker RH circuit to
ground is shorted.Check sound signal front squawker RH cir-
cuit.
FR tweeter OUT: short to batterySound signal front squawker RH circuit to
battery is shorted.Check sound signal front squawker RH cir-
cuit.
GPS Antenna ErrorGPS antenna connection malfunction is de-
tected.Replace the GPS antenna.
DVD Navi Internal Error NAVI control unit malfunction is detected. Replace the NAVI control unit.
Bluetooth module ErrorTEL antenna connection malfunction is de-
tected.TEL antenna.
AV COMM CIRCUITRear control switch power supply and
ground circuits malfunction are detected.Rear control switch power supply and
ground circuits.
 AV COMM CIRCUIT
 Switches Connection ErrorWhen either one of the following items is
detected:
 multifunction switch power supply and
ground circuits are malfunctioning.
 AV communication circuits between AV
control unit and multifunction switch are
malfunctioning.
 AV communication signal between AV
control unit and multifunction switch is
malfunctioning. Multifunction switch power supply and
ground circuits.
 AV communication circuits between AV
control unit and multifunction switch.
 AV COMM CIRCUIT
 DVD Navi Unit Connection ErrorNAVI control unit power supply and ground
circuits are malfunctioning.NAVI control unit power supply and ground
circuits.
 AV COMM CIRCUIT
 Amplifier Connection ErrorWhen either one of the following items is
detected:
 BOSE amp. power supply and ground
circuits are malfunctioning.
 AV communication signal between AV
control unit and BOSE amp is malfunc-
tioning.BOSE amp. power supply and ground cir-
cuits. Error item Description Possible malfunction factor/Action to take

AV-432
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
Camera Cont.
Refer to AV-419, "Diagnosis Description".
 AV COMM CIRCUIT
 Rear view Camera connection ErrorWhen either one of the following items is
detected:
 camera control unit power supply and
ground circuits are malfunctioning.
 AV communication signal between AV
control unit and camera control unit is
malfunctioning.Camera control unit power supply and
ground circuits.
 AV COMM CIRCUIT
 DVD Deck Connection ErrorWhen either one of the following items is
detected:
 DVD player power supply and ground cir-
cuits are malfunctioning.
 AV communication circuits between
BOSE amp. and DVD player are mal-
functioning.
 AV communication signal between AV
control unit and DVD player is malfunc-
tioning. DVD player power supply and ground cir-
cuits.
 AV communication circuits between
BOSE amp. and DVD player.
 AV COMM CIRCUIT
 DVD Deck Connection Error
 Amplifier Connection ErrorWhen either one of the following items is
detected:
 AV communication circuits between
NAVI control unit and BOSE amp. are
malfunctioning.
 AV communication signal between AV
control unit and BOSE amp. is malfunc-
tioning.AV communication circuits between NAVI
control unit and BOSE amp.
 AV COMM CIRCUIT
 DVD Deck Connection Error
 Amplifier Connection Error
 DVD Navi Unit Connection ErrorWhen either one of the following items is
detected:
 AV communication circuits between cam-
era control unit and NAVI control unit are
malfunctioning.
 AV communication signal between AV
control unit and NAVI control unit is mal-
functioning.AV communication circuits between cam-
era control unit and NAVI control unit.
 AV COMM CIRCUIT
 DVD Deck Connection Error
 Amplifier Connection Error
 Rear view Camera connection Error
 DVD Navi Unit Connection ErrorWith rear control switch
When either one of the following items is
detected:
 malfunction is detected in AV communi-
cation circuits between rear control
switch and camera control unit.
 malfunction is detected in AV communi-
cation circuits between camera control
unit and NAVI control unit.  AV communication circuits between mul-
tifunction switch and rear control switch.
 AV communication circuits between rear
control switch and camera control unit.
Without rear control switch
When either one of the following items is
detected:
 malfunction is detected in AV communi-
cation circuits between multifunction
switch and camera control unit.
 malfunction is detected in AV communi-
cation circuits between camera control
unit and NAVI control unit.AV communication circuits between multi-
function switch and camera control unit.
 AV COMM CIRCUIT
 Switches Connection Error
 DVD Deck Connection Error
 Amplifier Connection Error
 DVD Navi Unit Connection Error
 Rear view Camera connection ErrorWhen either one of the following items is
detected:
 AV communication circuits between AV
control unit and multifunction switch are
malfunctioning.
 AV communication signal between AV
control unit and multifunction switch are
malfunctioning.AV communication circuits between AV
control unit and multifunction switch. Error item Description Possible malfunction factor/Action to take

AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
AV-433
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O

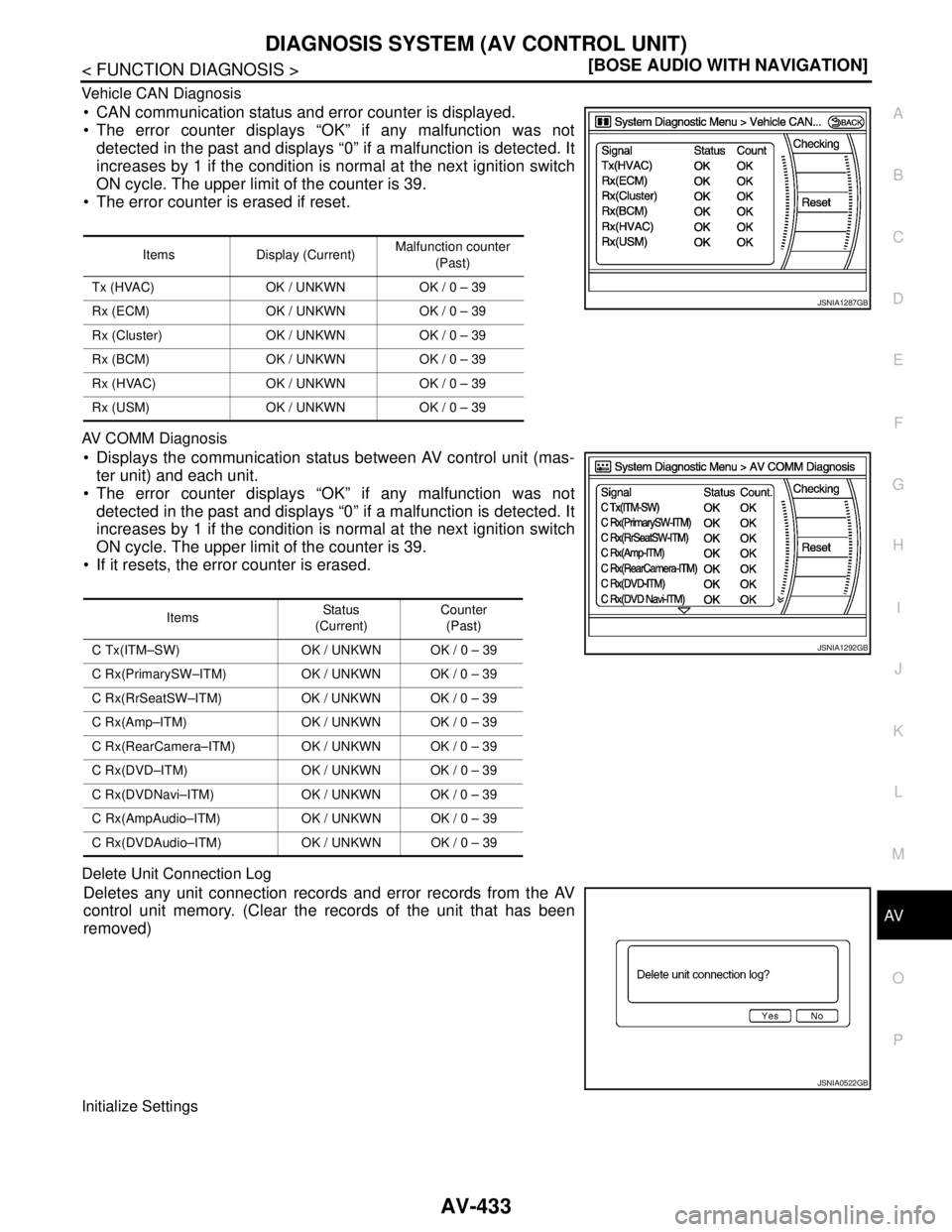

P Vehicle CAN Diagnosis
 CAN communication status and error counter is displayed.
 The error counter displays “OK” if any malfunction was not
detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.
 The error counter is erased if reset.
AV COMM Diagnosis
 Displays the communication status between AV control unit (mas-
ter unit) and each unit.
 The error counter displays “OK” if any malfunction was not
detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.
 If it resets, the error counter is erased.
Delete Unit Connection Log
Deletes any unit connection records and error records from the AV
control unit memory. (Clear the records of the unit that has been
removed)
Initialize Settings
Items Display (Current)Malfunction counter
(Past)
Tx (HVAC) OK / UNKWN OK / 0 – 39
Rx (ECM) OK / UNKWN OK / 0 – 39
Rx (Cluster) OK / UNKWN OK / 0 – 39
Rx (BCM) OK / UNKWN OK / 0 – 39
Rx (HVAC) OK / UNKWN OK / 0 – 39
Rx (USM) OK / UNKWN OK / 0 – 39
JSNIA1287GB
ItemsStatu s
(Current)Counter
(Past)
C Tx(ITM–SW) OK / UNKWN OK / 0 – 39
C Rx(PrimarySW–ITM) OK / UNKWN OK / 0 – 39
C Rx(RrSeatSW–ITM) OK / UNKWN OK / 0 – 39
C Rx(Amp–ITM) OK / UNKWN OK / 0 – 39
C Rx(RearCamera–ITM) OK / UNKWN OK / 0 – 39
C Rx(DVD–ITM) OK / UNKWN OK / 0 – 39
C Rx(DVDNavi–ITM) OK / UNKWN OK / 0 – 39
C Rx(AmpAudio–ITM) OK / UNKWN OK / 0 – 39
C Rx(DVDAudio–ITM) OK / UNKWN OK / 0 – 39
JSNIA1292GB
JSNIA0522GB

AV-434
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
Initializes the AV control unit memory.
CONSULT-III Function (MULTI AV)INFOID:0000000003765848
CONSULT-III FUNCTIONS
CONSULT-III performs the following functions via the communication with the AV control unit.
CAUTION:
Be sure to turn the ignition switch OFF once after using CONSULT-III. (Navigation system may mal-
function if normally used when the ignition switch is not turned OFF after using CONSULT-III.)
AV COMMUNICATION
When “AV communication” of “CAN Diag Support Monitor” is selected, the following function will be performed.
ECU IDENTIFICATION
The part number of AV control unit is displayed.
SELF DIAGNOSTIC RESULT
 In CONSULT-III self-diagnosis, self-diagnosis results and error history are displayed collectively.
 The timing is displayed as “0” if any of the error codes [U1000], [U1010], [U1300] and [U1310] is detected.
The counter increases by 1 if the condition is normal at the next ignition switch ON cycle.
Self-diagnosis Results Display Item
JSNIA0155GB
Diagnosis mode Description
Ecu Identification The part number of AV control unit can be checked.
Self Diagnostic ResultPerforms a diagnosis on the AV control unit and a connection diagnosis for the communication
circuit of the Multi AV system, and displays the current and past malfunctions collectively.
Data Monitor The diagnosis of vehicle signal that is input to the AV control unit can be performed.
AV communicationAV&NAVI C/UDisplays the communication status from AV control unit to each unit as well as the error
counter.
AUDIO Displays the AV control unit communication status and the error counter.
Error item Detection logic Possible malfunction factor/Action to take
CAN COMM CIRCUIT [U1000]CAN communication malfunction is detect-
ed.Refer to AV- 4 4 0 , "
DiagnosisProcedure".
CONTROL UNIT (CAN) [U1010]CAN initial diagnosis malfunction is detect-
ed.
Replace the AV control unit.
Refer to AV- 6 4 8 , "
Removal and Installa-
tion". CONTROL UNIT (AV) [U1310]AV communication circuit initial diagnosis
malfunction is detected.
Control Unit FLASH-ROM [U1200]
AV control unit malfunction is detected.
CAN CONT [U1216]
AMP TEMP [U1231] BOSE amp. is detected.Replace the BOSE amp.
Refer to AV- 6 5 7 , "
Removal and Installa-
tion".

AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
AV-435
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
FRONT DISP CONN [U1243]When either one of the following items is
detected:
 display unit power supply and ground cir-
cuits are malfunctioning.
 serial communication circuits between
display unit and AV control unit are mal-
functioning.
 serial communication signal between
display unit and AV control unit is mal-
functioning. Display unit power supply and ground
circuits.
Refer toAV- 4 6 5 , "DISPLAY UNIT : Diag-
nosis Procedure".
 Serial communication circuits between
display unit and AV control unit
CAMERA CONT. CONN [U1250]Camera connection recognition signal cir-
cuit malfunction is detected.Camera connection recognition signal cir-
cuit.
Refer to AV- 4 4 8 , "
Diagnosis Procedure".
CENTER SP OPEN [U1260]Sound signal center speaker circuit is
open.Check sound signal center speaker circuit.
CENTER SP SHORT [U1261]Sound signal center speaker circuit is
shorted between center speaker signal (+)
and center speaker signal (-).Check sound signal center speaker circuit.
CENTER SP GND-SHORT [U1262]Sound signal center speaker circuit to
ground is shorted.Check sound signal center speaker circuit.
CENTER SP VB-SHORT [U1263]Sound signal center speaker circuit to bat-
tery is shorted.Check sound signal center speaker circuit.
FR-DOOR SP OPEN [U1264]Sound signal front speaker RH circuit is
open.Check sound signal front speaker RH cir-
cuit.
FR-DOOR SP SHORT [U1265]Sound signal front speaker RH circuit is
shorted between front speaker RH signal
(+) and front speaker RH signal (-).Check sound signal front speaker RH cir-
cuit.
FR-DOOR SP GND-SHORT [U1266]Sound signal front speaker RH circuit to
ground is shorted.Check sound signal front speaker RH cir-
cuit.
FR-DOOR SP VB-SHORT [U1267]Sound signal front speaker RH circuit to
battery is shorted.Check sound signal front speaker RH cir-
cuit.
RR-SP/FR-WOOFER OPEN [U1268]Sound signal rear speaker LH circuit is
open.Check sound signal rear speaker LH circuit.
RR-SP/FR-WOOFER SHORT [U1269]Sound signal rear speaker LH circuit is
shorted between rear speaker LH signal (+)
and rear speaker LH signal (-).Check sound signal rear speaker LH circuit.
RR-SP/FR-WOOFER GND-SHORT
[U126A]Sound signal rear speaker LH circuit to
ground is shorted.Check sound signal rear speaker LH circuit.
RR-SP/FR-WOOFER VB-SHORT [U126B]Sound signal rear speaker LH circuit to bat-
tery is shorted.Check sound signal rear speaker LH circuit.
RR-SURROUND SP OPEN [U126C] Sound signal woofer RH circuit is open. Check sound signal woofer RH circuit.
RR-SURROUND SP SHORT [U126D]Sound signal woofer RH circuit is shorted
between woofer RH signal (+) and woofer
RH signal (-).Check sound signal woofer RH circuit.
RR-SURROUND SP GND-SHORT
[U126E]Sound signal woofer RH circuit to ground is
shorted.Check sound signal woofer RH circuit.
RR-SURROUND SP VB-SHORT [U126F]Sound signal woofer RH circuit to battery is
shorted.Check sound signal woofer RH circuit.
RL-SURROUND SP OPEN [U1274] Sound signal woofer LH circuit is open. Check sound signal woofer LH circuit.
RL-SURROUND SP SHORT [U1275]Sound signal woofer LH circuit is shorted
between woofer LH signal (+) and woofer
LH signal (-).Check sound signal woofer LH circuit.
RL-SURROUND SP GND-SHORT [U1276]Sound signal woofer LH circuit to ground is
shorted.Check sound signal woofer LH circuit. Error item Detection logic Possible malfunction factor/Action to take

AV-436
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (AV CONTROL UNIT)
RL-SURROUND SP VB-SHORT [U1277]Sound signal woofer LH circuit to battery is
shorted.Check sound signal woofer LH circuit.
RL-SP/FL-WOOFER OPEN [U1278]Sound signal rear speaker LH circuit is
open.Check sound signal rear speaker LH circuit.
RL-SP/FL-WOOFER SHORT [U1279]Sound signal rear speaker LH circuit is
shorted between rear speaker LH signal (+)
and rear speaker LH signal (-).Check sound signal rear speaker LH circuit.
RL-SP/FL-WOOFER GND-SHORT
[U127A]Sound signal rear speaker LH circuit to
ground is shorted.Check sound signal rear speaker LH circuit.
RL-SP/FL-WOOFER VB-SHORT [U127B]Sound signal rear speaker LH circuit to bat-
tery is shorted.Check sound signal rear speaker LH circuit.
FL-DOOR SP OPEN [U127C]Sound signal front speaker LH circuit is
open.Check sound signal front speaker LH cir-
cuit.
FL-DOOR SP SHORT [U127D]Sound signal front speaker LH circuit is
shorted between front speaker LH signal
(+) and front speaker LH signal (-).Check sound signal front speaker LH cir-
cuit.
FL-DOOR SP GND-SHORT [U127E]Sound signal front speaker LH circuit to
ground is shorted.Check sound signal front speaker LH cir-
cuit.
FL-DOOR SP VB-SHORT [U127F]Sound signal front speaker LH circuit to
battery is shorted.Check sound signal front speaker LH cir-
cuit.
FR-TWEETER OPEN [U1294]Sound signal front squawker RH circuit is
open.Check sound signal front squawker RH cir-
cuit.
FR-TWEETER SHORT [U1295]Sound signal front squawker RH circuit is
shorted between front squawker RH signal
(+) and front squawker RH signal (-).Check sound signal front squawker RH cir-
cuit.
FR-TWEETER GND-SHORT [U1296]Sound signal front squawker RH circuit to
ground is shorted.Check sound signal front squawker RH cir-
cuit.
FR-TWEETER VB-SHORT [U1297]Sound signal front squawker RH circuit to
battery is shorted.Check sound signal front squawker RH cir-
cuit.
FL-TWEETER OPEN [U1298]Sound signal front squawker LH circuit is
open.Check sound signal front squawker LH cir-
cuit.
FL-TWEETER SHORT [U1299]Sound signal front squawker LH circuit is
shorted between front squawker LH signal
(+) and front squawker LH signal (-).Check sound signal front squawker LH cir-
cuit.
FL-TWEETER GND-SHORT [U129A]Sound signal front squawker LH circuit to
ground is shorted.Check sound signal front squawker LH cir-
cuit.
FL-TWEETER VB-SHORT [U129B]Sound signal front squawker LH circuit to
battery is shorted.Check sound signal front squawker LH cir-
cuit.
GPS ANTENNA CONN [U12A0]GPS antenna connection malfunction is de-
tected.GPS antenna.
Refer to AV- 4 5 9 , "
Diagnosis Procedure".
NAVI INTERNAL ERR [U12A1] NAVI control unit malfunction is detected.Replace the NAVI control unit.
Refer to AV- 6 4 9 , "
Removal and Installa-
tion".
BT ANTENNA CONN [U12A2]TEL antenna connection malfunction is de-
tected.TEL antenna.
Refer to AV- 4 6 1 , "
Diagnosis Procedure".
 AV COMM CIRCUIT [U1300]
 SWITCH CONN [U1240]When either one of the following items is
detected:
 multifunction switch power supply and
ground circuits are malfunctioning.
 AV communication circuits between AV
control unit and multifunction switch are
malfunctioning.
 AV communication signal between AV
control unit and multifunction switch is
malfunctioning. Multifunction switch power supply and
ground circuits.
Refer to AV- 4 6 6 , "
MULTIFUNCTION
SWITCH : Diagnosis Procedure".
 AV communication circuits between AV
control unit and multifunction switch. Error item Detection logic Possible malfunction factor/Action to take
