NISSAN TERRANO 2004 Service Repair Manual

ZD30DDTi ENGINE MODELS
YEL096D
METER AND GAUGES
Wiring Diagram Ð METER Ð (Cont'd)EL-88
http://vnx.su/

ZD30DDTi ENGINE MODELS
YEL742E
METER AND GAUGES
Wiring Diagram Ð METER Ð (Cont'd)EL-89
http://vnx.su/

Combination Meter Self-Diagnosis
PERFORMING SELF-DIAGNOSIS MODE
1. Turn the ignition switch to the ªLOCKº position.
2. Press both reset buttons on the combination meter and keep them depressed.
3. Turn the ignition switch to the ªONº position, while keeping the reset buttons pressed.
4. Release both reset buttons within 5 seconds after ignition switch is ªONº, then self-diagnosis will start. Thesequence (A to I) is activated by press the either reset buttons.
NOTE:
If either reset button is not pressed for 20 seconds at each step or if the ignition switch is turned OFF, the
self-diagnosis mode is exited.
Check items Display Remarks
A) Odometer segment test All odo trip meter segments are ON.
B) Software code
NEL735
This information is not used for service. Please skip this
step.
C) EEPROM code
NEL736
This information is not used for service. Please skip this
step.
D) Hardware code
NEL737
This information is not used for service. Please skip this
step.
E) PCB code
NEL738
This information is not used for service. Please skip this
step.
F) Meter/gauge test
(Sweeping movement)
SEL440X
Tachometer, speedometer, fuel level gauge and water tem-
perature gauge have sweeping movement test.
(The meter/gauges operate MIN.
,MAX., MAX. ,MIN. for
2 times)
The odo trip meter segment flashes during the sweep move-
ment.
G) Error 1
(Bit 0 - Bit 3)
SEL441X
The segment of each bit displays ª0º, meaning no failure. If
the bit(s) displays figures other than ª0º, the item of the bit
has failed.
For details, refer to ªFailure chart for Error 1 and Error Eº
below.
H) Error E
(Bit 4 - Bit 7)
SEL442X
METER AND GAUGES
EL-90
http://vnx.su/

Check itemsDisplay Remarks
I) Fuel warning lamp test
SEL443X
Fuel warning lamp is on and odo trip meter segment ªFUELº
flashes.
Failure Chart for ªError 1º and ªError Eº
Bit Detectable items Description of the failureDisplayed figure on the
bit
Failure No failure
0 Speedometer input
signal
No input signal
When no signal is detected for 30 minutes continuously with
the ignition ON, it should be judged as signal failure.
(If input signal is detected later, then the judgement will be
canceled immediately.) 1
0
Abnormal input signal
When any signal of frequency which would not exist in normal
conditions is detected, it should be judged as signal failure. 2
1 Tachometer input
signal
No input signal
When no signal is detected for 30 minutes continuously with
the ignition ON, it should be judged as signal failure.
(If input signal is detected later, then the judgement will be
canceled immediately.) 1
0
Abnormal input signal
When any signal of frequency which would not exist in normal
conditions is detected, it should be judged as signal failure. 2
2 Fuel level input sig-
nal
Short circuit
When short circuit of the signal line is detected for 5 seconds
or more, it should be judged as short-circuit failure. 1
0
Open circuit
When open circuit of the signal line is detected for 5 seconds
or more, it should be judged as open-circuit failure. 2
3 Water temperature
input signal Short circuit
When short circuit of the signal line is detected for 5 seconds
or more, it should be judged as short-circuit failure. 10
4 Outside air tempera-
ture input signal
Short circuit
When short circuit of the signal line is detected for 5 seconds
or more, it should be judged as short-circuit failure. 1
0
Open circuit
When open circuit of the signal line is detected for 5 seconds
or more, it should be judged as open-circuit failure. 2
5 Reset buttons Short circuit for reset buttons
When the short circuit is continu-
ously detected for 5 minutes or
more, it should be judged as
short-circuit failure. Right side reset button has
failed.
1
0
Left side reset button has
failed. 2
Both reset buttons have
failed. 3
6Ð Ð 00
7 CPU EEPROM failure 1
0
CPU RAM failure 2
METER AND GAUGES
Combination Meter Self-Diagnosis (Cont'd)
EL-91
http://vnx.su/

Trouble Diagnoses
PRELIMINARY CHECK
*1: Combination Meter Self-Diagnosis(EL-90) *2: POWER SUPPLY AND GROUND
CIRCUIT CHECK (EL-83) *3: Symptom Chart 1 (EL-93)
*4:SymptomChart2(EL-93)
SEL361WB
METER AND GAUGES
EL-92
http://vnx.su/

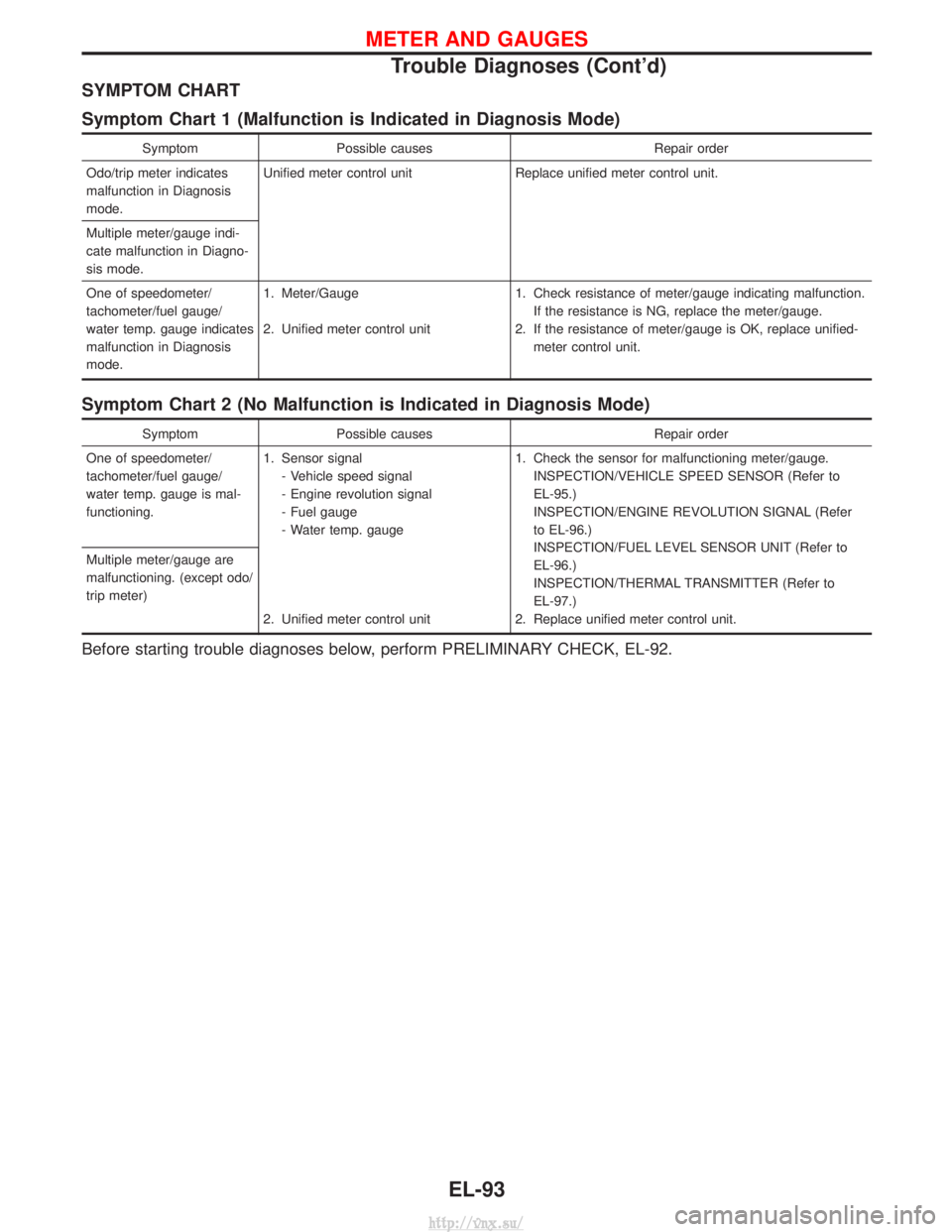

SYMPTOM CHART
Symptom Chart 1 (Malfunction is Indicated in Diagnosis Mode)
SymptomPossible causes Repair order
Odo/trip meter indicates
malfunction in Diagnosis
mode. Unified meter control unit
Replace unified meter control unit.
Multiple meter/gauge indi-
cate malfunction in Diagno-
sis mode.
One of speedometer/
tachometer/fuel gauge/
water temp. gauge indicates
malfunction in Diagnosis
mode. 1. Meter/Gauge
2. Unified meter control unit
1. Check resistance of meter/gauge indicating malfunction.
If the resistance is NG, replace the meter/gauge.
2. If the resistance of meter/gauge is OK, replace unified- meter control unit.
Symptom Chart 2 (No Malfunction is Indicated in Diagnosis Mode)
Symptom Possible causes Repair order
One of speedometer/
tachometer/fuel gauge/
water temp. gauge is mal-
functioning. 1. Sensor signal
- Vehicle speed signal
- Engine revolution signal
- Fuel gauge
- Water temp. gauge
2. Unified meter control unit 1. Check the sensor for malfunctioning meter/gauge.
INSPECTION/VEHICLE SPEED SENSOR (Refer to
EL-95.)
INSPECTION/ENGINE REVOLUTION SIGNAL (Refer
to EL-96.)
INSPECTION/FUEL LEVEL SENSOR UNIT (Refer to
EL-96.)
INSPECTION/THERMAL TRANSMITTER (Refer to
EL-97.)
2. Replace unified meter control unit.
Multiple meter/gauge are
malfunctioning. (except odo/
trip meter)
Before starting trouble diagnoses below, perform PRELIMINARY CHECK, EL-92.
METER AND GAUGES
Trouble Diagnoses (Cont'd)
EL-93
http://vnx.su/

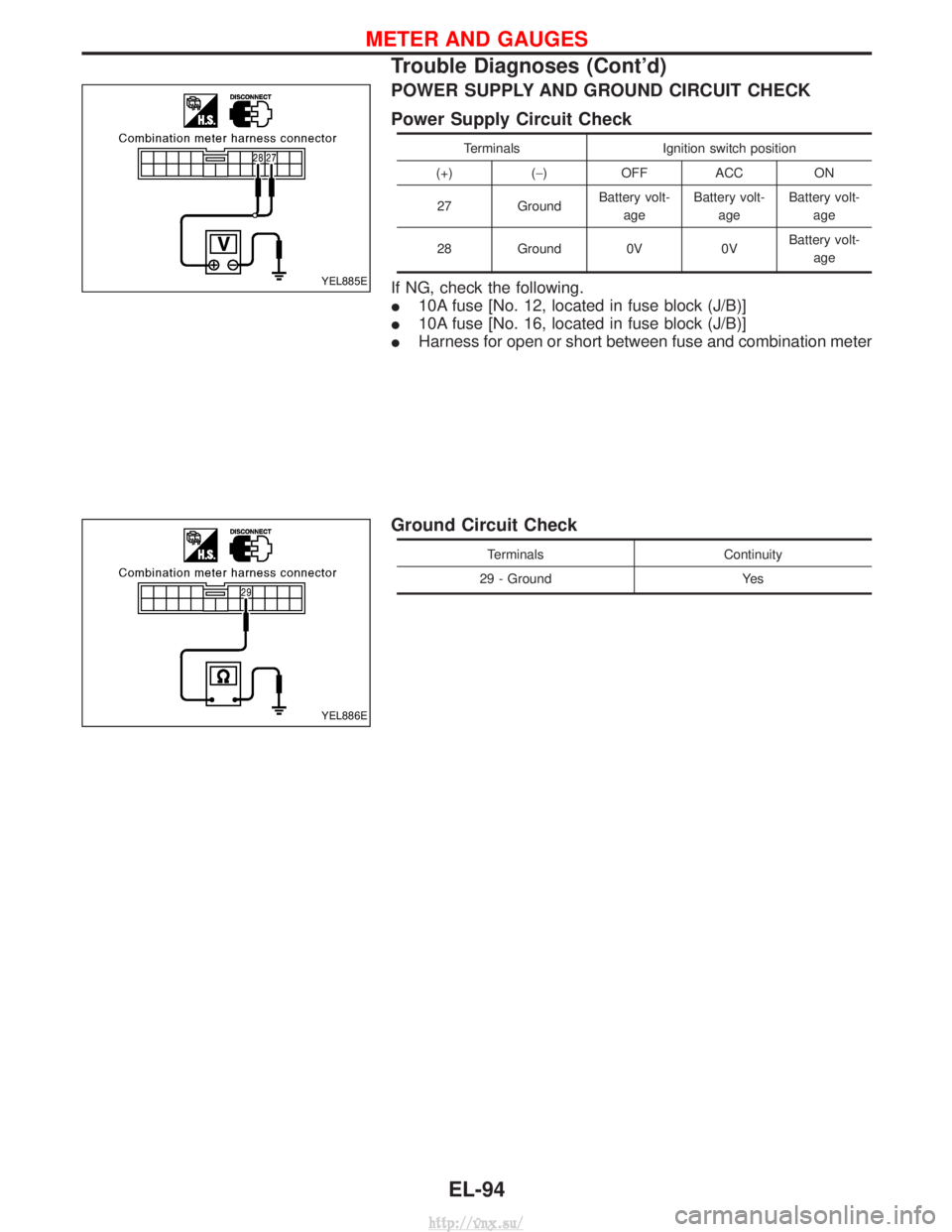

POWER SUPPLY AND GROUND CIRCUIT CHECK
Power Supply Circuit Check
TerminalsIgnition switch position
(+) (-) OFF ACC ON
27 Ground Battery volt-
age Battery volt-
age Battery volt-
age
28 Ground 0V 0V Battery volt-
age
If NG, check the following.
I10A fuse [No. 12, located in fuse block (J/B)]
I 10A fuse [No. 16, located in fuse block (J/B)]
I Harness for open or short between fuse and combination meter
Ground Circuit Check
Terminals Continuity
29 - Ground Yes
YEL885E
YEL886E
METER AND GAUGES
Trouble Diagnoses (Cont'd)
EL-94
http://vnx.su/

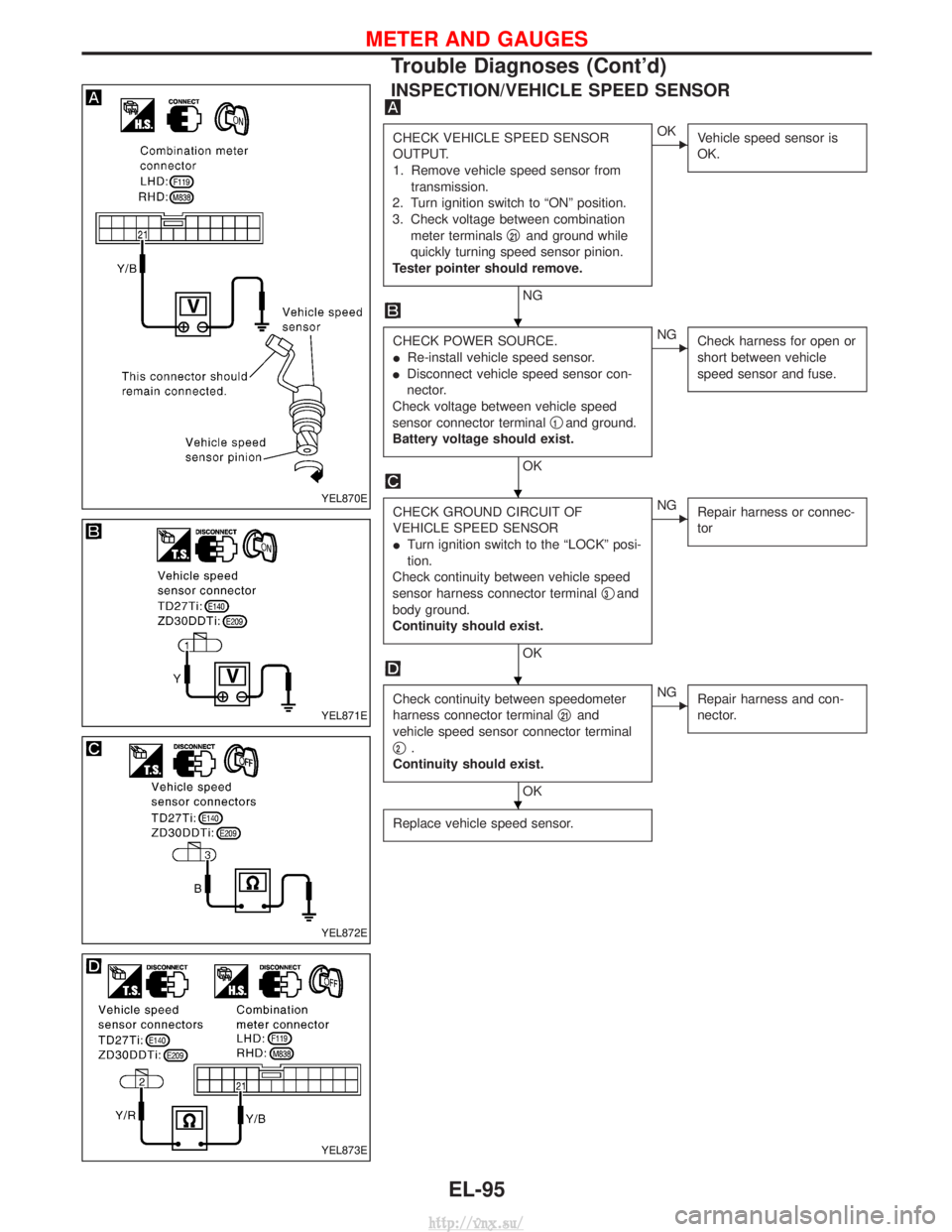

INSPECTION/VEHICLE SPEED SENSOR
CHECK VEHICLE SPEED SENSOR
OUTPUT.
1. Remove vehicle speed sensor fromtransmission.
2. Turn ignition switch to ªONº position.
3. Check voltage between combination meter terminals q
21and ground while
quickly turning speed sensor pinion.
Tester pointer should remove.
NG
EOK Vehicle speed sensor is
OK.
CHECK POWER SOURCE.
IRe-install vehicle speed sensor.
I Disconnect vehicle speed sensor con-
nector.
Check voltage between vehicle speed
sensor connector terminal q
1and ground.
Battery voltage should exist.
OK
ENG Check harness for open or
short between vehicle
speed sensor and fuse.
CHECK GROUND CIRCUIT OF
VEHICLE SPEED SENSOR
ITurn ignition switch to the ªLOCKº posi-
tion.
Check continuity between vehicle speed
sensor harness connector terminal q
3and
body ground.
Continuity should exist.
OK
ENG Repair harness or connec-
tor
Check continuity between speedometer
harness connector terminal q
21and
vehicle speed sensor connector terminal
q
2.
Continuity should exist.
OK
ENG Repair harness and con-
nector.
Replace vehicle speed sensor.
YEL870E
YEL871E
YEL872E
YEL873E
H
H
H
H
METER AND GAUGES
Trouble Diagnoses (Cont'd)
EL-95
http://vnx.su/

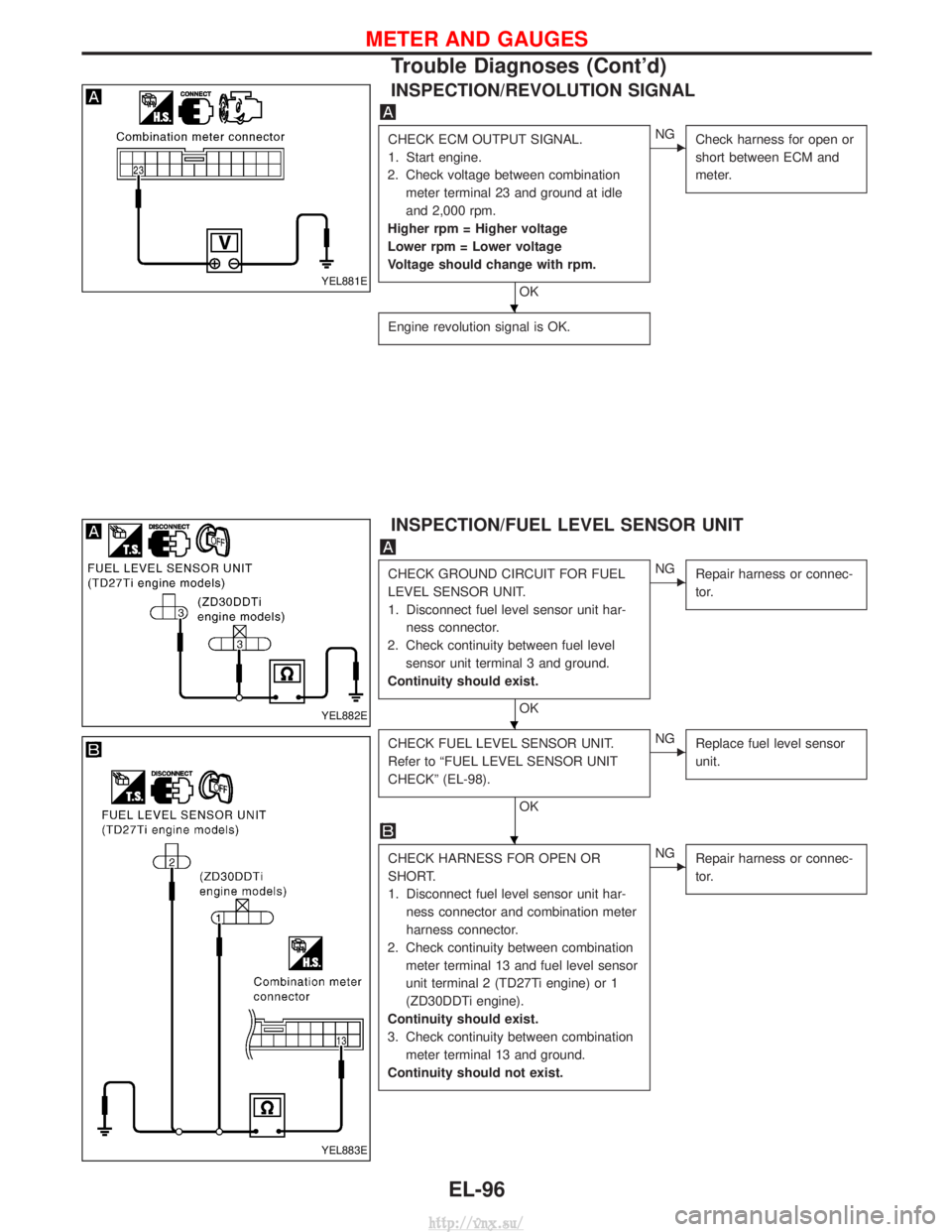

INSPECTION/REVOLUTION SIGNAL
CHECK ECM OUTPUT SIGNAL.
1. Start engine.
2. Check voltage between combination meter terminal 23 and ground at idle
and 2,000 rpm.
Higher rpm = Higher voltage
Lower rpm = Lower voltage
Voltage should change with rpm.
OK
ENG Check harness for open or
short between ECM and
meter.
Engine revolution signal is OK.
INSPECTION/FUEL LEVEL SENSOR UNIT
CHECK GROUND CIRCUIT FOR FUEL
LEVEL SENSOR UNIT.
1. Disconnect fuel level sensor unit har-
ness connector.
2. Check continuity between fuel level sensor unit terminal 3 and ground.
Continuity should exist.
OK
ENG Repair harness or connec-
tor.
CHECK FUEL LEVEL SENSOR UNIT.
Refer to ªFUEL LEVEL SENSOR UNIT
CHECKº (EL-98).
OK
ENGReplace fuel level sensor
unit.
CHECK HARNESS FOR OPEN OR
SHORT.
1. Disconnect fuel level sensor unit har-
ness connector and combination meter
harness connector.
2. Check continuity between combination meter terminal 13 and fuel level sensor
unit terminal 2 (TD27Ti engine) or 1
(ZD30DDTi engine).
Continuity should exist.
3. Check continuity between combination meter terminal 13 and ground.
Continuity should not exist.ENG Repair harness or connec-
tor.
YEL881E
YEL882E
YEL883E
H
H
H
METER AND GAUGES
Trouble Diagnoses (Cont'd)
EL-96
http://vnx.su/

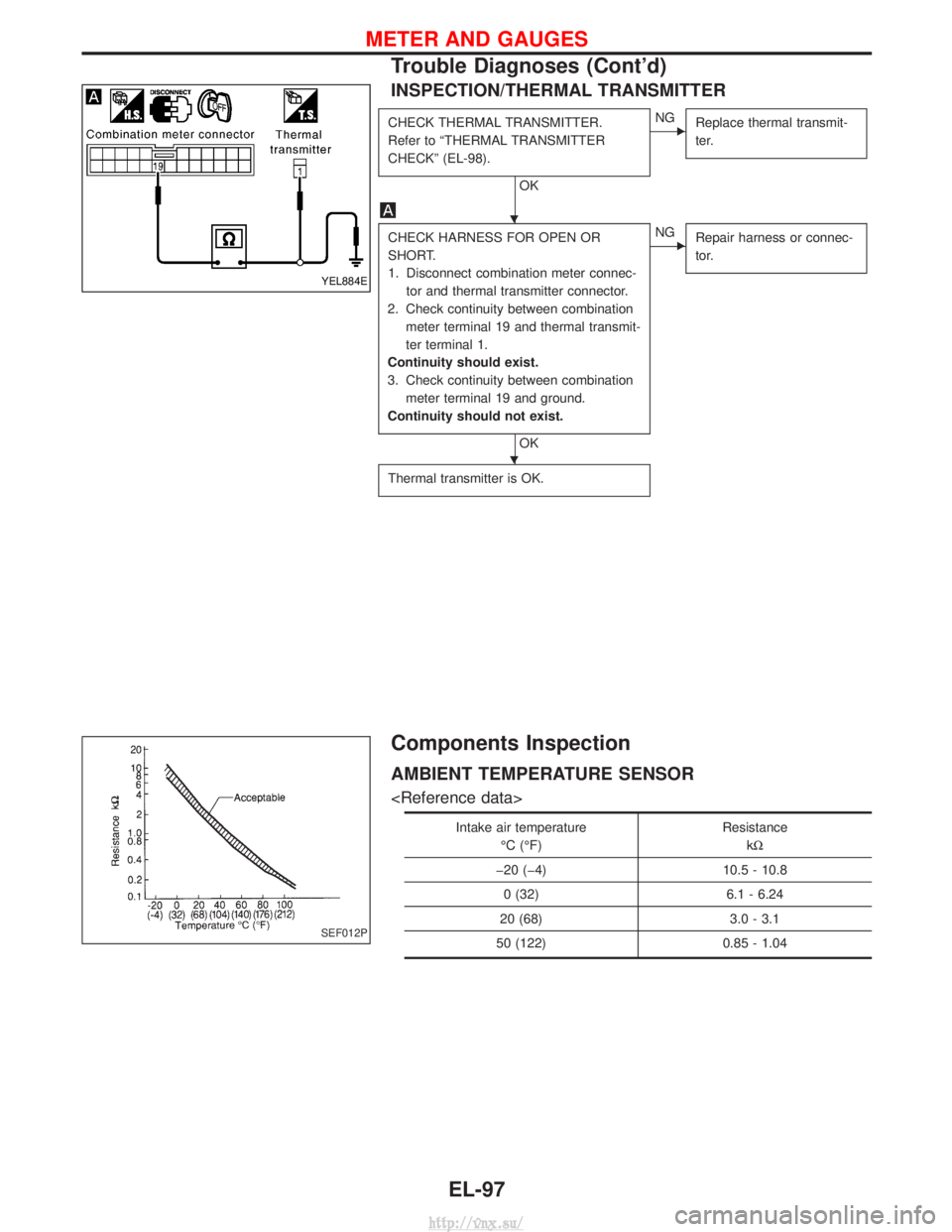

INSPECTION/THERMAL TRANSMITTER
CHECK THERMAL TRANSMITTER.
Refer to ªTHERMAL TRANSMITTER
CHECKº (EL-98).
OK
ENGReplace thermal transmit-
ter.
CHECK HARNESS FOR OPEN OR
SHORT.
1. Disconnect combination meter connec-
tor and thermal transmitter connector.
2. Check continuity between combination meter terminal 19 and thermal transmit-
ter terminal 1.
Continuity should exist.
3. Check continuity between combination meter terminal 19 and ground.
Continuity should not exist.
OK
ENG Repair harness or connec-
tor.
Thermal transmitter is OK.
Components Inspection
AMBIENT TEMPERATURE SENSOR

Intake air temperature
ÉC (ÉF) Resistance
kW
þ20 (þ4) 10.5 - 10.8 0 (32) 6.1 - 6.24
20 (68) 3.0 - 3.1
50 (122) 0.85 - 1.04
YEL884E
SEF012P
H
H
METER AND GAUGES
Trouble Diagnoses (Cont'd)
EL-97
