NISSAN TIIDA 2007 Service Repair Manual

EM-334
< SERVICE DATA AND SPECIFICATIONS (SDS) [K9K]
SERVICE DATA AND SPECIFICATIONS (SDS)
VALVE LIFTER
Unit: mm (in)
VALVE CLEARANCE
Unit: mm (in)
AVAILABLE VALVE LIFTER
Unit: mm (in)
Camshaft cam height “A”Intake 43.985 - 44.045 (1.7317 - 1.7341)
Exhaust 44.565 - 44.625 (1.7545 - 1.7569) Items Standard
SEM671
Items Standard
Valve lifter outer diameter 34.965 - 34.985 (1.3767 - 1.3774)
Valve lifter hole diameter 35.000 - 35.040 (1.3780 - 1.3795)
Valve lifter clearance 0.015 - 0.075 (0.0006 - 0.0030)
Items Cold
Intake0.125 - 0.250 (0.0049 - 0.0098)
Exhaust0.325 - 0.450 (0.0128 - 0.0177)
Part number Thickness
13229BN700 7.550 (0.2972)
13229BN701 7.575 (0.2982)
13229BN702 7.600 (0.2992)
13229BN703 7.625 (0.3002)
13229BN704 7.650 (0.3012)
13229BN705 7.675 (0.3022)
13229BN706 7.700 (0.3031)
13229BN707 7.725 (0.3041)
13229BN708 7.750 (0.3051)
13229BN709 7.775 (0.3061)
13229BN710 7.800 (0.3071)
13229BN711 7.825 (0.3081)
13229BN712 7.850 (0.3091)
13229BN713 7.875 (0.3100)
13229BN714 7.900 (0.3110)
13229BN715 7.925 (0.3120)
13229BN716 7.950 (0.3130)
13229BN717 7.975 (0.3140)

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-335
< SERVICE DATA AND SPECIFICATIONS (SDS) [K9K]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Cylinder HeadINFOID:0000000001381519
CYLINDER HEAD
Unit: mm (in)
VALVE DIMENSIONS
13229BN718 8.000 (0.3150)
13229BN719 8.025 (0.3159)
13229BN720 8.050 (0.3169)
13229BN721 8.075 (0.3179)
13229BN722 8.100 (0.3189)
13229BN723 8.125 (0.3199)
13229BN724 8.150 (0.3209)Part number Thickness
Items Standard
Cylinder head gasket thickness 0.68 - 0.74 (0.0269 - 0.0291)
Head surface distortion Less than 0.05 (0.002)
Normal cylinder head height “H” 127 (5.000)
E1BIA0063ZZ
Items Standard

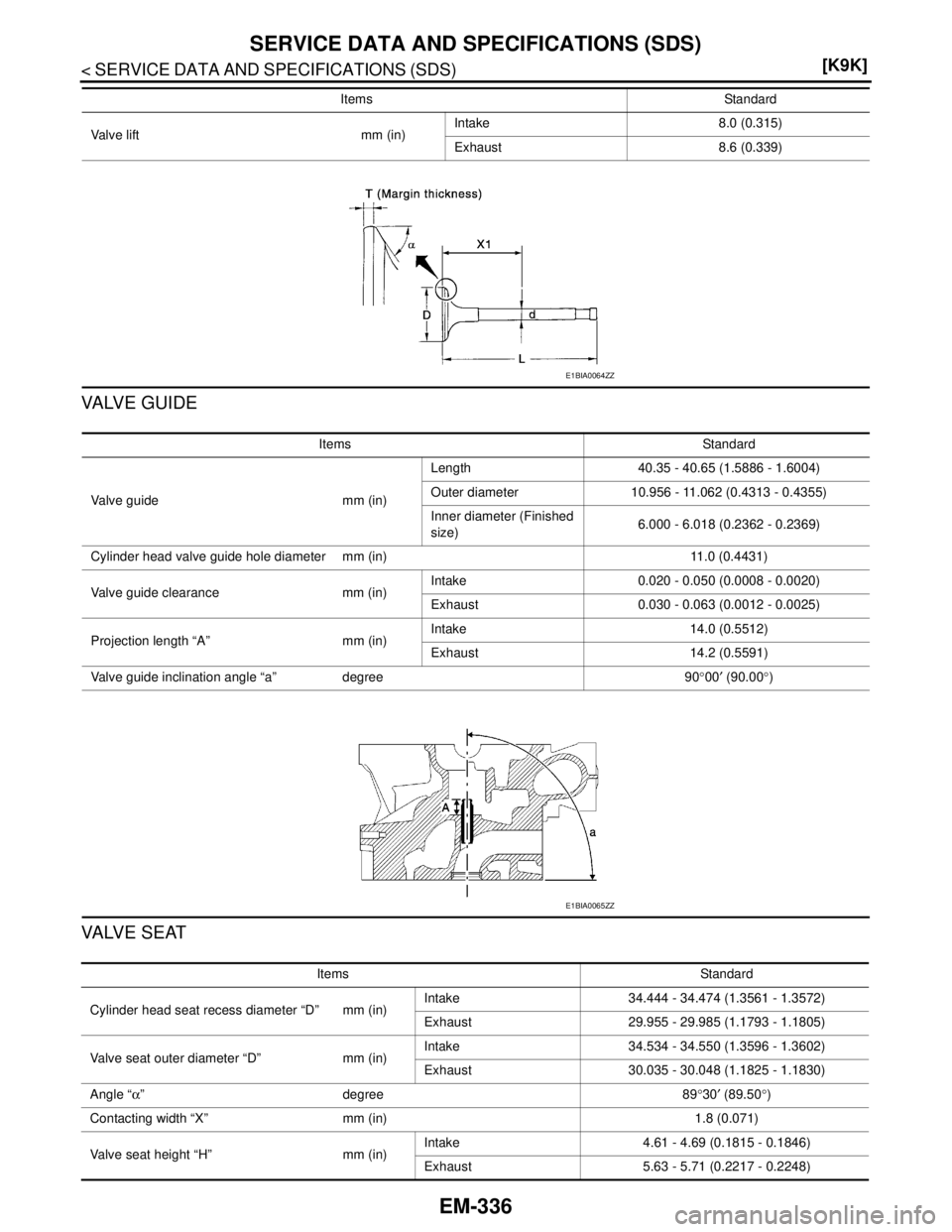

Valve head diameter “D” mm (in)Intake 33.38 - 33.62 (1.314 - 1.324)
Exhaust 28.88 - 29.12 (1.137 - 1.146)
Valve length “L” mm (in)Intake 100.74 - 101.16 (3.9661 - 3.9827)
Exhaust 100.54 - 100.96 (3.9583 - 3.9748)
Valve stem diameter “d” mm (in)Intake5.969 - 5.985 (0.2350 - 0.2356)
Measuring point (X1) is 41 (1.61)
Exhaust5.955 - 5.971 (0.2344 - 0.2351)
Measuring point (X1) is 41 (1.61)
Valve seat angle “α”degree 45°00′ (45.00°)
Valve margin “T” mm (in) 1.0 (0.039)

EM-336
< SERVICE DATA AND SPECIFICATIONS (SDS) [K9K]
SERVICE DATA AND SPECIFICATIONS (SDS)
VA LV E G U I D E
VALVE SEAT
Valve lift mm (in)Intake 8.0 (0.315)
Exhaust 8.6 (0.339) Items Standard
E1BIA0064ZZ
Items Standard
Valve guide mm (in)Length 40.35 - 40.65 (1.5886 - 1.6004)
Outer diameter 10.956 - 11.062 (0.4313 - 0.4355)
Inner diameter (Finished
size)6.000 - 6.018 (0.2362 - 0.2369)
Cylinder head valve guide hole diameter mm (in) 11.0 (0.4431)
Valve guide clearance mm (in)Intake 0.020 - 0.050 (0.0008 - 0.0020)
Exhaust 0.030 - 0.063 (0.0012 - 0.0025)
Projection length “A” mm (in)Intake 14.0 (0.5512)
Exhaust 14.2 (0.5591)
Valve guide inclination angle “a” degree 90°00′ (90.00°)
E1BIA0065ZZ
Items Standard

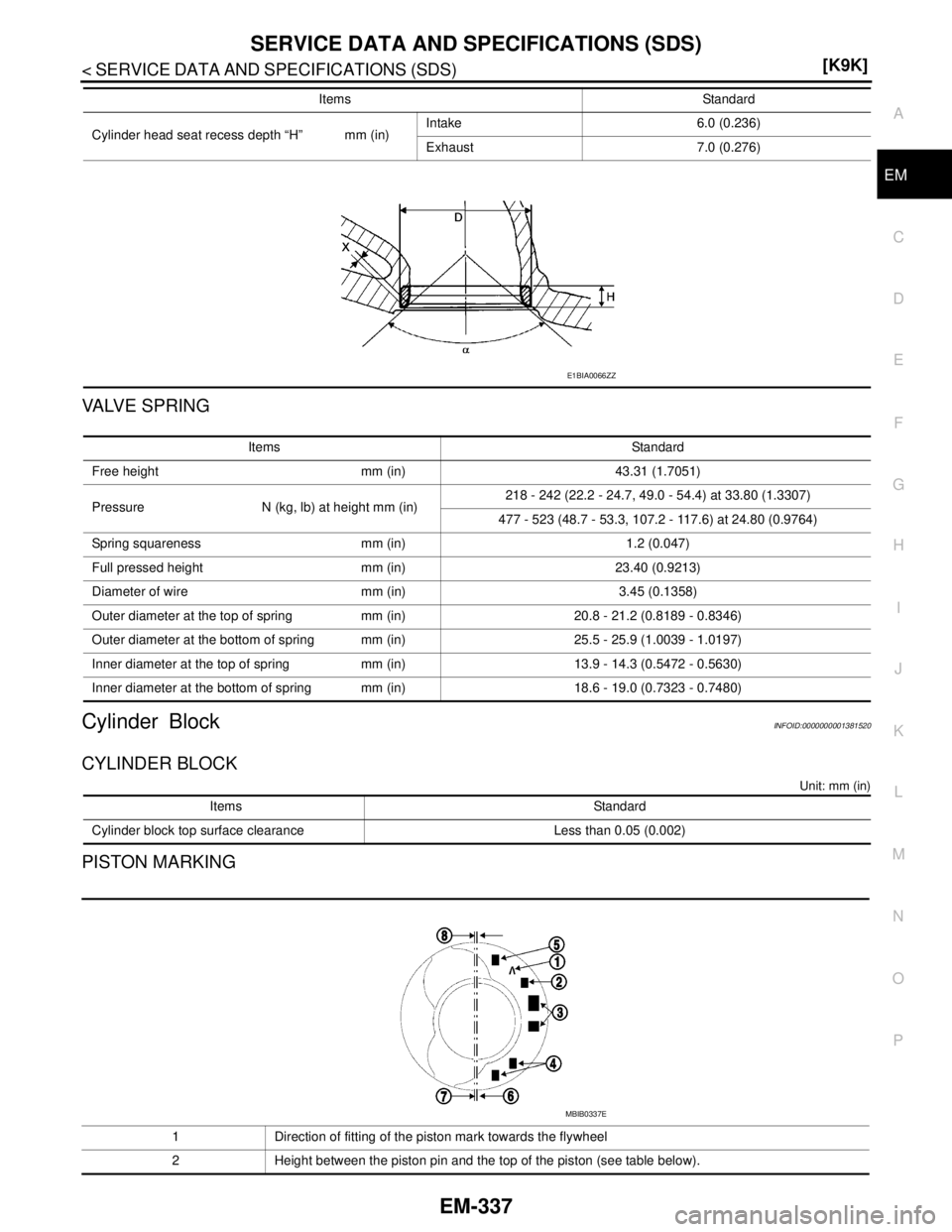

Cylinder head seat recess diameter “D” mm (in)Intake 34.444 - 34.474 (1.3561 - 1.3572)
Exhaust 29.955 - 29.985 (1.1793 - 1.1805)
Valve seat outer diameter “D” mm (in)Intake 34.534 - 34.550 (1.3596 - 1.3602)
Exhaust 30.035 - 30.048 (1.1825 - 1.1830)
Angle “α”degree 89°30′ (89.50°)
Contacting width “X” mm (in) 1.8 (0.071)
Valve seat height “H” mm (in)Intake 4.61 - 4.69 (0.1815 - 0.1846)
Exhaust 5.63 - 5.71 (0.2217 - 0.2248)

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-337
< SERVICE DATA AND SPECIFICATIONS (SDS) [K9K]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
VALVE SPRING
Cylinder BlockINFOID:0000000001381520
CYLINDER BLOCK
Unit: mm (in)
PISTON MARKING
Cylinder head seat recess depth “H” mm (in)Intake 6.0 (0.236)
Exhaust 7.0 (0.276) Items Standard
E1BIA0066ZZ
Items Standard
Free height mm (in) 43.31 (1.7051)
Pressure N (kg, lb) at height mm (in)218 - 242 (22.2 - 24.7, 49.0 - 54.4) at 33.80 (1.3307)
477 - 523 (48.7 - 53.3, 107.2 - 117.6) at 24.80 (0.9764)
Spring squareness mm (in) 1.2 (0.047)
Full pressed height mm (in) 23.40 (0.9213)
Diameter of wire mm (in) 3.45 (0.1358)
Outer diameter at the top of spring mm (in) 20.8 - 21.2 (0.8189 - 0.8346)
Outer diameter at the bottom of spring mm (in) 25.5 - 25.9 (1.0039 - 1.0197)
Inner diameter at the top of spring mm (in) 13.9 - 14.3 (0.5472 - 0.5630)
Inner diameter at the bottom of spring mm (in) 18.6 - 19.0 (0.7323 - 0.7480)
Items Standard
Cylinder block top surface clearance Less than 0.05 (0.002)
1 Direction of fitting of the piston mark towards the flywheel
2 Height between the piston pin and the top of the piston (see table below).
MBIB0337E

EM-338
< SERVICE DATA AND SPECIFICATIONS (SDS) [K9K]
SERVICE DATA AND SPECIFICATIONS (SDS)
PISTON
Unit: mm (in)
PISTON RING
Unit: mm (in)
PISTON PIN
Unit: mm (in)
3 Used by the supplier only
4 Used by the supplier only
5 Used by the supplier only
6 Piston axis of symmetry
7 Piston pin hole axis
8 Offset between the hole axis (7) and the piston's axis of symmetry (6) is 0.3 mm (0.012 in)
Items Standard
Piston skirt diameter “A” mm (in) 75.938 - 75.952 (2.9897 - 2.9902)
“a” dimension mm (in) 56.0 (2.205)
Piston pin hole diameter mm (in)Category J 41.605 - 41.646 (1.6380 - 1.6396)
Category K 41.647 - 41.688 (1.6396 - 1.6413)
Category L 41.689 - 41.730 (1.6413 - 1.6429)
Category M 41.731 - 41.772 (1.6429 - 1.6446)
Category N 41.773 - 41.814 (1.6446 - 1.6462)
“b” dimension mm (in) 26.0 (1.024)
Capacity of combustion chamber
m (Imp fl oz)19.71 - 20.21 (0.67 - 0.71)
Piston protrusion mm (in) 0.030 - 0.288 (0.0012 - 0.113)
SEM882E
Items Standard
ThicknessTop 1.97 - 1.99 (0.0776 - 0.0783)
2nd 1.97 - 1.99 (0.0776 - 0.0783)
Oil ring 2.47 - 2.49 (0.0972 - 0.0980)
Side clearanceTop 0.10 - 0.12 (0.0039 - 0.0047)
2nd 0.08 - 0.10 (0.0031 - 0.0039)
Oil ring 0.03 - 0.05 (0.0012 - 0.0020)
Piston ring end gapTop 0.20 - 0.35 (0.0079 - 0.0138)
2nd 0.70 - 0.90 (0.0276 - 0.0354)
Oil ring 0.25 - 0.50 (0.0098 - 0.0197)
Items Standard
Length59.7 - 60.0 (2.350 - 2.362)
Piston pin outer diameter 25.995 - 26.000 (1.0234 - 1.0236)

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-339
< SERVICE DATA AND SPECIFICATIONS (SDS) [K9K]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
CONNECTING ROD
Unit: mm (in)
CRANKSHAFT
Unit: mm (in)
TurbochargerINFOID:0000000001381521
Items Standard
Center distance133.75 (5.266)
Connecting rod small end diameter (with bush) 26.013 - 26.025 (1.0241 - 1.0246)
Connecting rod big end diameter 47.610 - 47.627 (1.8744 - 1.8751)
Big end longitudinal play 0.205 - 0.467 (0.0081 - 0.0184)
Big end radial play 0.010 - 0.064 (0.004 - 0.025)
Items Standard

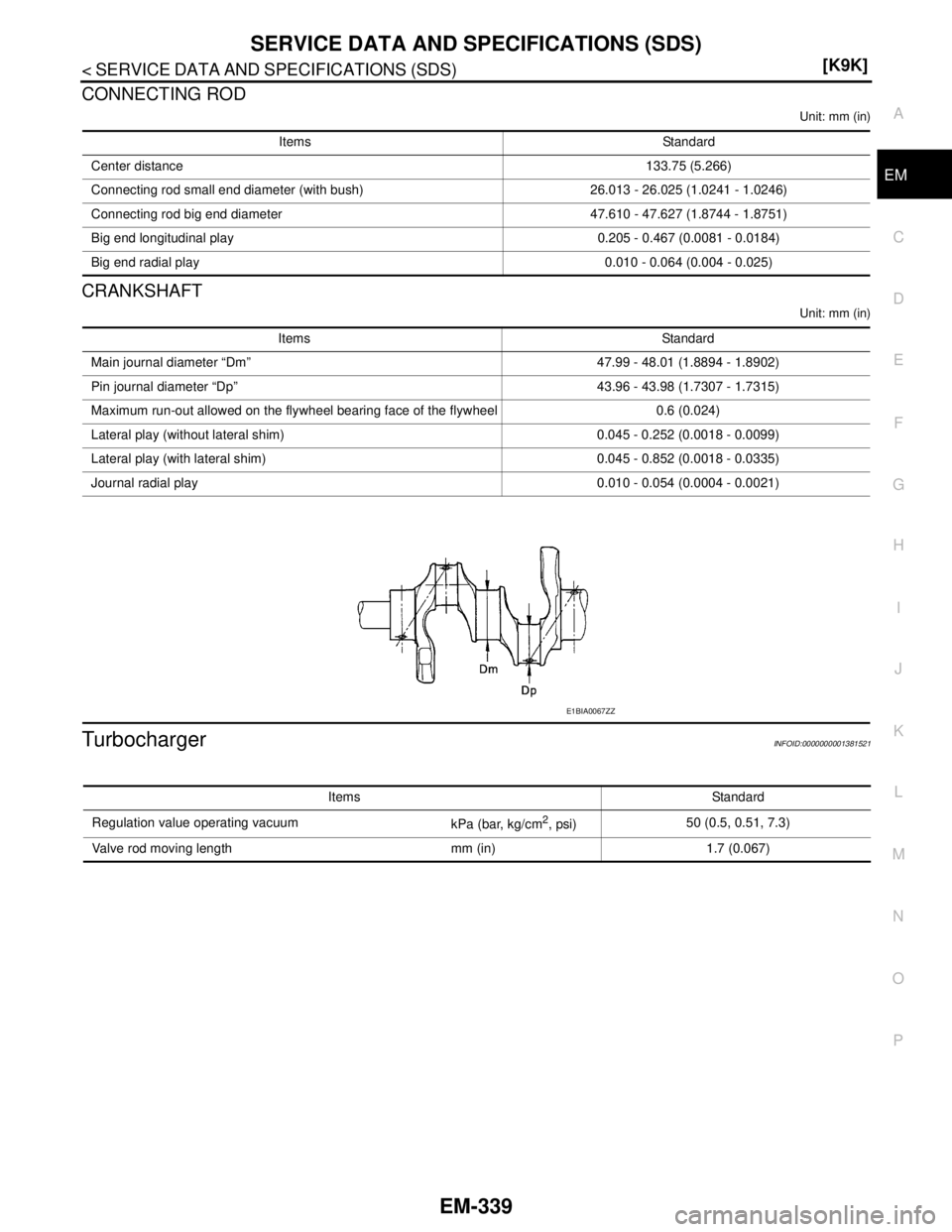

Main journal diameter “Dm” 47.99 - 48.01 (1.8894 - 1.8902)
Pin journal diameter “Dp” 43.96 - 43.98 (1.7307 - 1.7315)
Maximum run-out allowed on the flywheel bearing face of the flywheel 0.6 (0.024)
Lateral play (without lateral shim) 0.045 - 0.252 (0.0018 - 0.0099)
Lateral play (with lateral shim) 0.045 - 0.852 (0.0018 - 0.0335)
Journal radial play 0.010 - 0.054 (0.0004 - 0.0021)
E1BIA0067ZZ
Items Standard
Regulation value operating vacuum
kPa (bar, kg/cm
2, psi)50 (0.5, 0.51, 7.3)
Valve rod moving length mm (in) 1.7 (0.067)

EX-1
ENGINE
C
D
E
F
G
H
I
J
K
L
M
SECTION EX
A
EX
N
O
P
CONTENTS
EXHAUST SYSTEM
HR16DE
PRECAUTION ...............................................
2
PRECAUTIONS ...................................................2
General Precautions .................................................2
PREPARATION ............................................3
PREPARATION ...................................................3
Special Service Tool .................................................3
Commercial Service Tool ..........................................3
ON-VEHICLE MAINTENANCE .....................4
EXHAUST SYSTEM ............................................4
Checking Exhaust System ........................................4
ON-VEHICLE REPAIR ..................................5
EXHAUST SYSTEM ............................................5
Component ................................................................5
Removal and Installation ...........................................5
Inspection ..................................................................6
MR18DE
PRECAUTION ...............................................
7
PRECAUTIONS ...................................................7
Removal and Installation ...........................................7
PREPARATION ............................................8
PREPARATION ..................................................8
Special Service Tools ...............................................8
Commercial Service Tools ........................................8
ON-VEHICLE MAINTENANCE .....................9
EXHAUST SYSTEM ...........................................9
Checking Exhaust System ........................................9
ON-VEHICLE REPAIR .................................10
EXHAUST SYSTEM ..........................................10
Component ..............................................................10
Removal and Installation .........................................10
Inspection ................................................................11
K9K
PRECAUTION ..............................................
12
PRECAUTIONS .................................................12
Removal and Installation .........................................12
ON-VEHICLE MAINTENANCE ....................13
EXHAUST SYSTEM ..........................................13
Inspection ................................................................13
ON-VEHICLE REPAIR .................................14
EXHAUST SYSTEM ..........................................14
Component ..............................................................14
Removal and Installation .........................................14
Inspection ................................................................15

EX-2
< PRECAUTION >[HR16DE]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
General PrecautionsINFOID:0000000001728590
CAUTION:
• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat
resistance, corrosion resistance, and shape.
 Perform the operation with the exhaust system fully cooled down because the system will be hot
just after engine stops.
 Be careful not to cut your hand on the heat insulator edge.

PREPARATION
EX-3
< PREPARATION >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EX
N
P O
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000001337856
Commercial Service ToolINFOID:0000000001337857
Tool number
Tool nameDescription

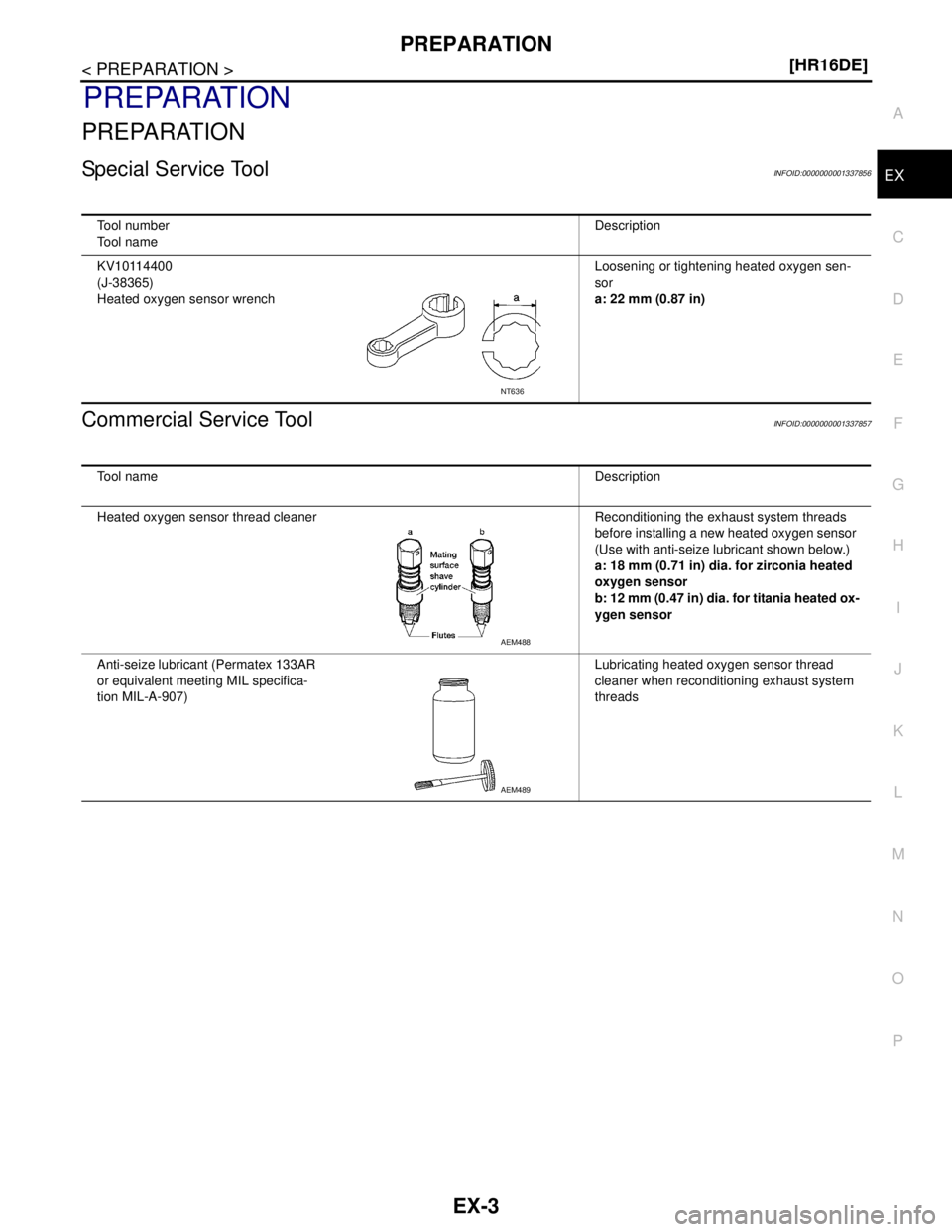

KV10114400
(J-38365)
Heated oxygen sensor wrenchLoosening or tightening heated oxygen sen-
sor
a: 22 mm (0.87 in)
NT636
Tool nameDescription
Heated oxygen sensor thread cleaner Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
a: 18 mm (0.71 in) dia. for zirconia heated
oxygen sensor
b: 12 mm (0.47 in) dia. for titania heated ox-
ygen sensor
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)Lubricating heated oxygen sensor thread
cleaner when reconditioning exhaust system
threads
AEM488
AEM489

EX-4
< ON-VEHICLE MAINTENANCE >[HR16DE]
EXHAUST SYSTEM
ON-VEHICLE MAINTENANCE
EXHAUST SYSTEM
Checking Exhaust SystemINFOID:0000000001337858
Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage or deterioration.
• If necessary, repair or replace damaged parts.

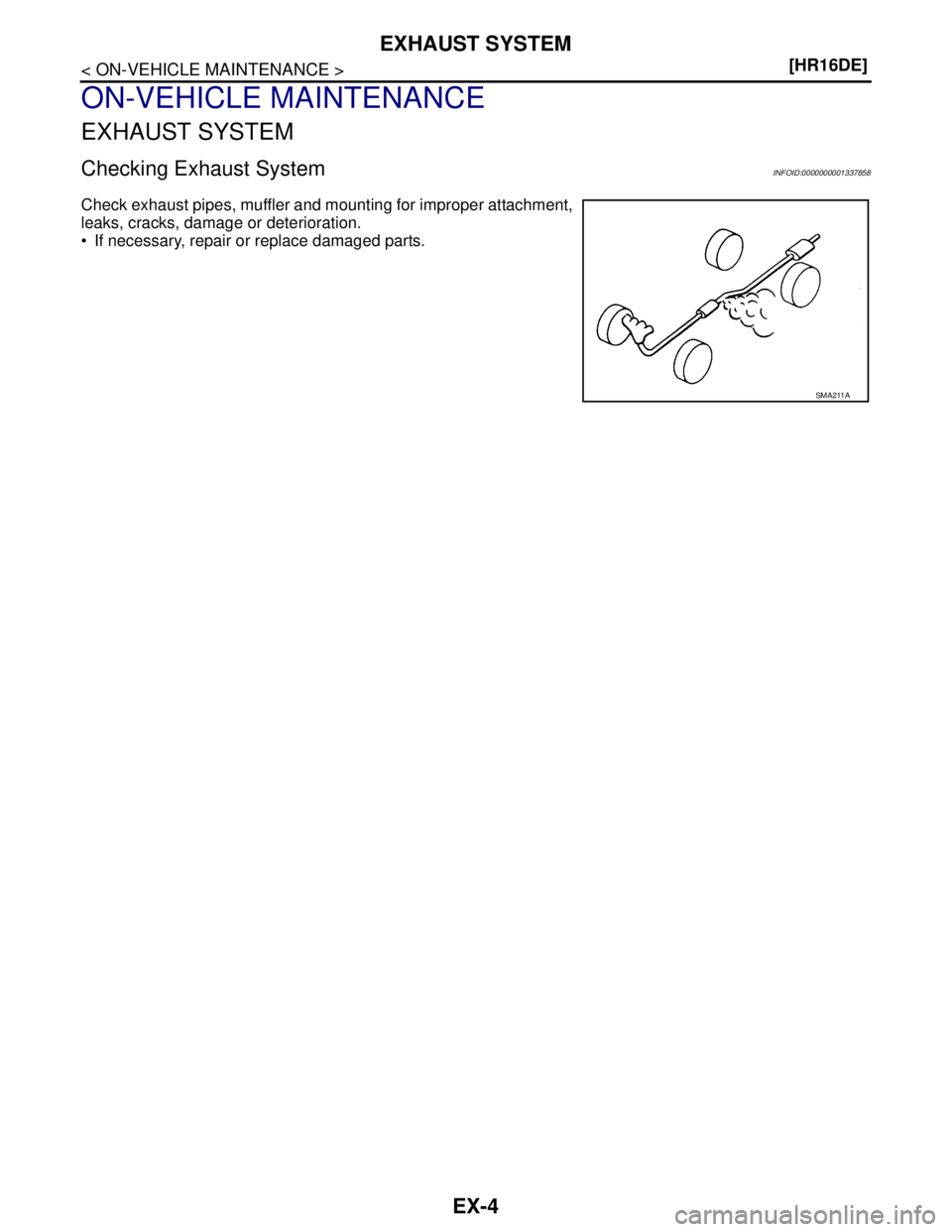

SMA211A
