NISSAN TIIDA 2007 Service Repair Manual

FRONT WIPER DOES NOT OPERATE
WW-59
< SYMPTOM DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
1. Disconnect front wiper motor.
2. Turn the ignition switch ON.
3. Select "FRONT WIPER" of IPDM E/R active test item.
4. With operating the test item, check voltage between IPDM E/R
harness connector and ground.
Is the measurement value normal?
YES >> Replace front wiper motor. Refer to WW-73, "Removal and Installation".
NO >> Replace IPDM E/R. Refer to xxx.
5. CHECK FRONT WIPER REQUEST SIGNAL INPUT
CONSULT-III DATA MONITOR
1. Select "FR WIP REQ" of IPDM E/R data monitor item.
2. Switch the front wiper switch to HI and LO.
3. With operating the front wiper switch, check the status of "FR WIP REQ".
Is the status of item normal?
YES >> Replace IPDM E/R. Refer to xxx.
NO >> GO TO 6
6. CHECK COMBINATION SWITCH
1. Perform the inspection of the combination switch. Refer to BCS-55, "
Symptom Table".
Is combination switch normal?
YES >> Replace BCM. Refer to BCS-57, "Removal and Installation of BCM".
NO >> Repair or replace the applicable parts.
Te r m i n a l s
Te s t i t e m
Voltage
(Approx.) (+) (−)
IPDM E/R
GroundFRONT WIP-
ER
Connector Terminal
E4532LOBattery
voltage
OFF 0 V
33HIBattery
voltage
OFF 0 V
ALLIA0368ZZ
Monitor item ConditionMonitor
status
FR WIP REQFront wiper switch HION HI
OFF STOP
Front wiper switch LOON 1LOW
OFF STOP

WW-60
< SYMPTOM DIAGNOSIS >
HEADLAMP WASHER DOES NOT OPERATE
HEADLAMP WASHER DOES NOT OPERATE
DescriptionINFOID:0000000001366644
Headlamp washer does not operate linked to front washer operation.
Diagnosis ProcedureINFOID:0000000001366645
1. CHECK IPDM E/R
CONSULT-III DATA MONITOR
1. Turn the lighting switch to the 2ND position.
2. Select "HL WASHER REQ" of IPDM E/R data monitor item.
3. Operate the headlamp washer.
4. Check the status of "HL WASHER REQ".
Is the status of item normal?
YES >> Refer to WW-33, "Component Function Check".
NO >> GO TO 2
2. CHECK COMBINATION SWITCH
1. Perform the inspection of the combination switch. Refer to BCS-55, "
Symptom Table".
Is combination switch normal?
YES >> Replace BCM. Refer to BCS-57, "Removal and Installation of BCM".
NO >> Repair or replace the applicable parts.
Monitor item Condition Monitor status
HL WASHER REQ Headlamp washer Operating ON
Stopped OFF

PRECAUTIONS
WW-61
< PRECAUTION >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001538893
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
 Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

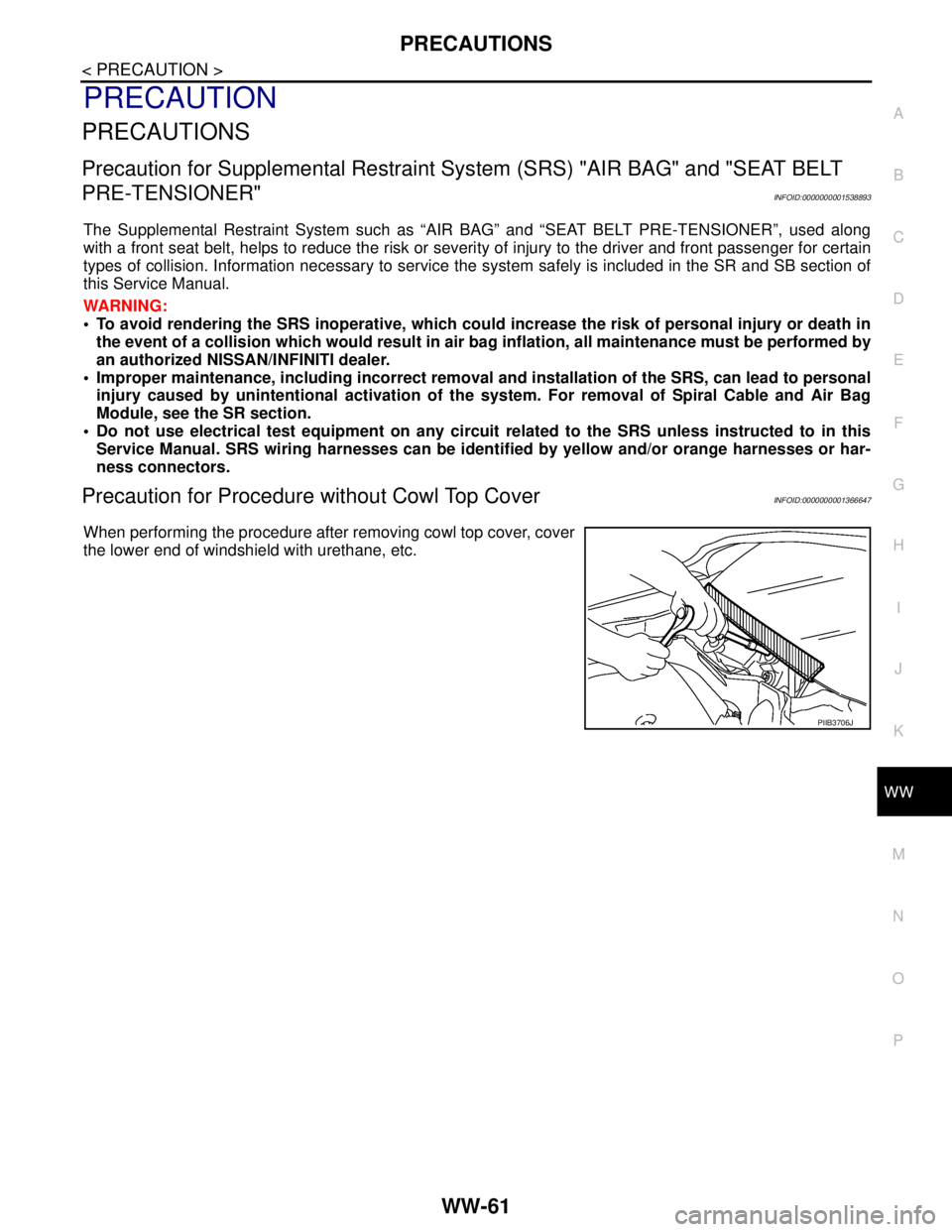

Precaution for Procedure without Cowl Top CoverINFOID:0000000001366647
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
PIIB3706J

WW-62
< ON-VEHICLE REPAIR >
HEADLAMP WASHER NOZZLE AND TUBE
ON-VEHICLE REPAIR

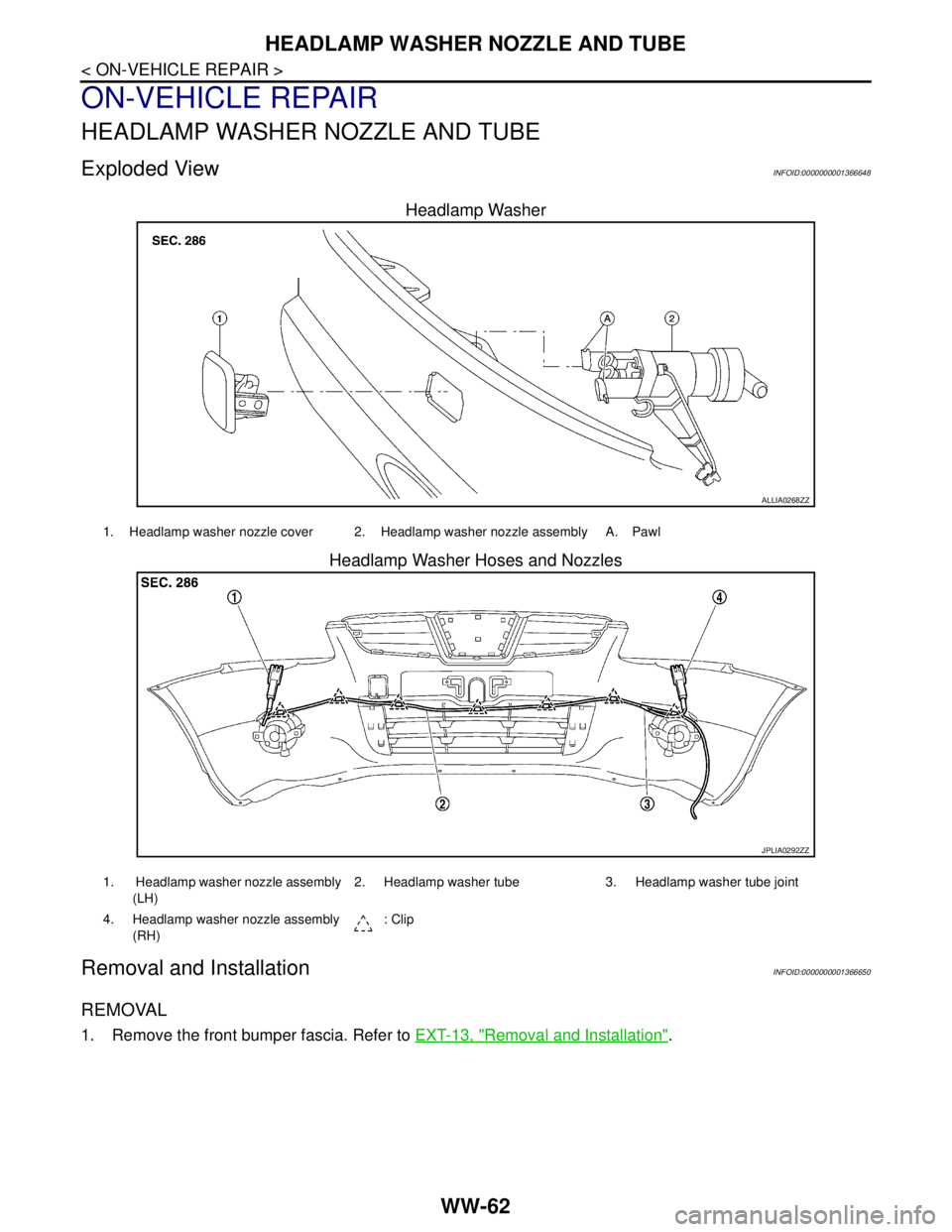

HEADLAMP WASHER NOZZLE AND TUBE
Exploded ViewINFOID:0000000001366648
Headlamp Washer
Headlamp Washer Hoses and Nozzles
Removal and InstallationINFOID:0000000001366650
REMOVAL
1. Remove the front bumper fascia. Refer to EXT-13, "Removal and Installation".
ALLIA0268ZZ
1. Headlamp washer nozzle cover 2. Headlamp washer nozzle assembly A. Pawl
JPLIA0292ZZ
1. Headlamp washer nozzle assembly
(LH)2. Headlamp washer tube 3. Headlamp washer tube joint
4. Headlamp washer nozzle assembly
(RH): Clip

HEADLAMP WASHER NOZZLE AND TUBE
WW-63
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P

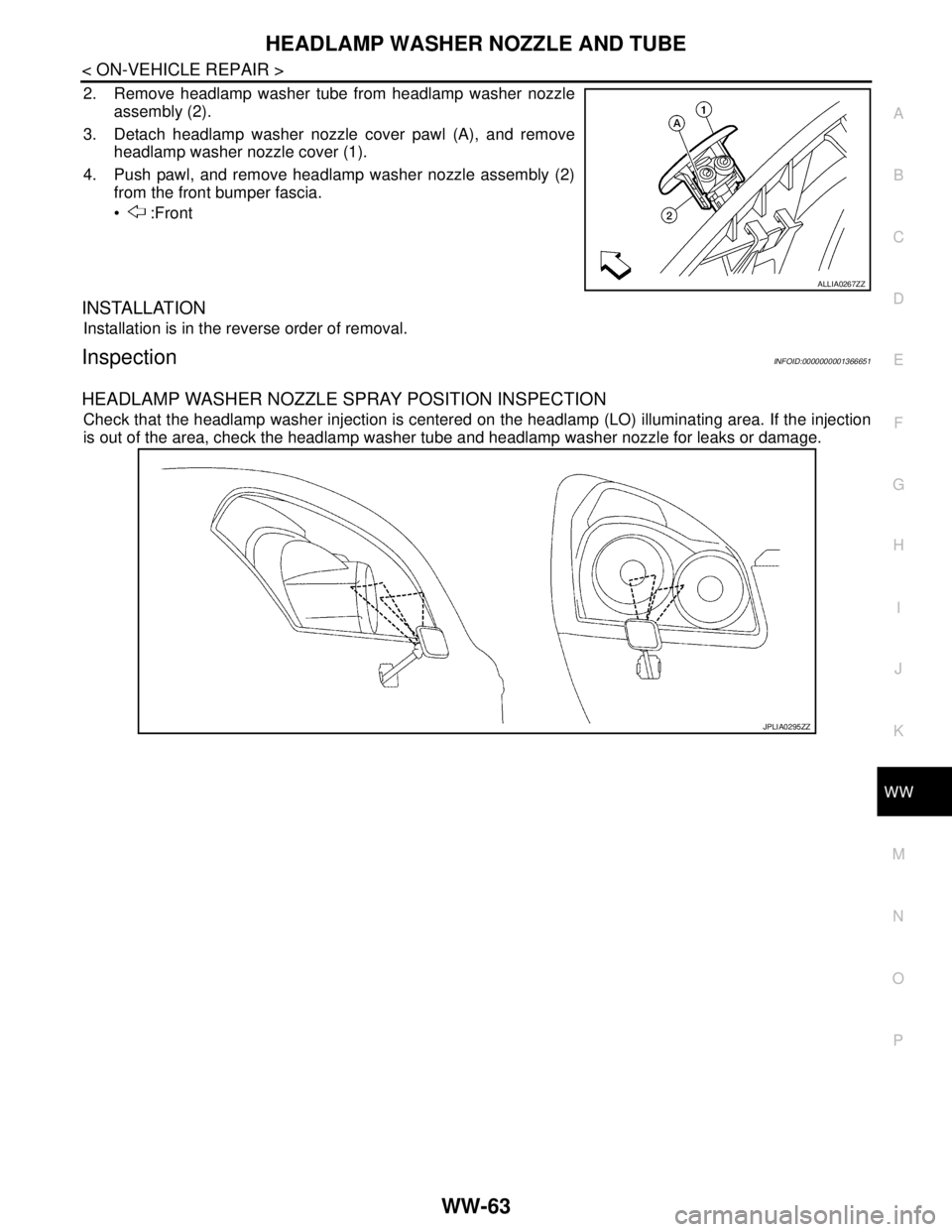

2. Remove headlamp washer tube from headlamp washer nozzle
assembly (2).
3. Detach headlamp washer nozzle cover pawl (A), and remove
headlamp washer nozzle cover (1).
4. Push pawl, and remove headlamp washer nozzle assembly (2)
from the front bumper fascia.
 :Front
INSTALLATION
Installation is in the reverse order of removal.
InspectionINFOID:0000000001366651
HEADLAMP WASHER NOZZLE SPRAY POSITION INSPECTION
Check that the headlamp washer injection is centered on the headlamp (LO) illuminating area. If the injection
is out of the area, check the headlamp washer tube and headlamp washer nozzle for leaks or damage.
ALLIA0267ZZ
JPLIA0295ZZ

WW-64
< ON-VEHICLE REPAIR >
WASHER TANK

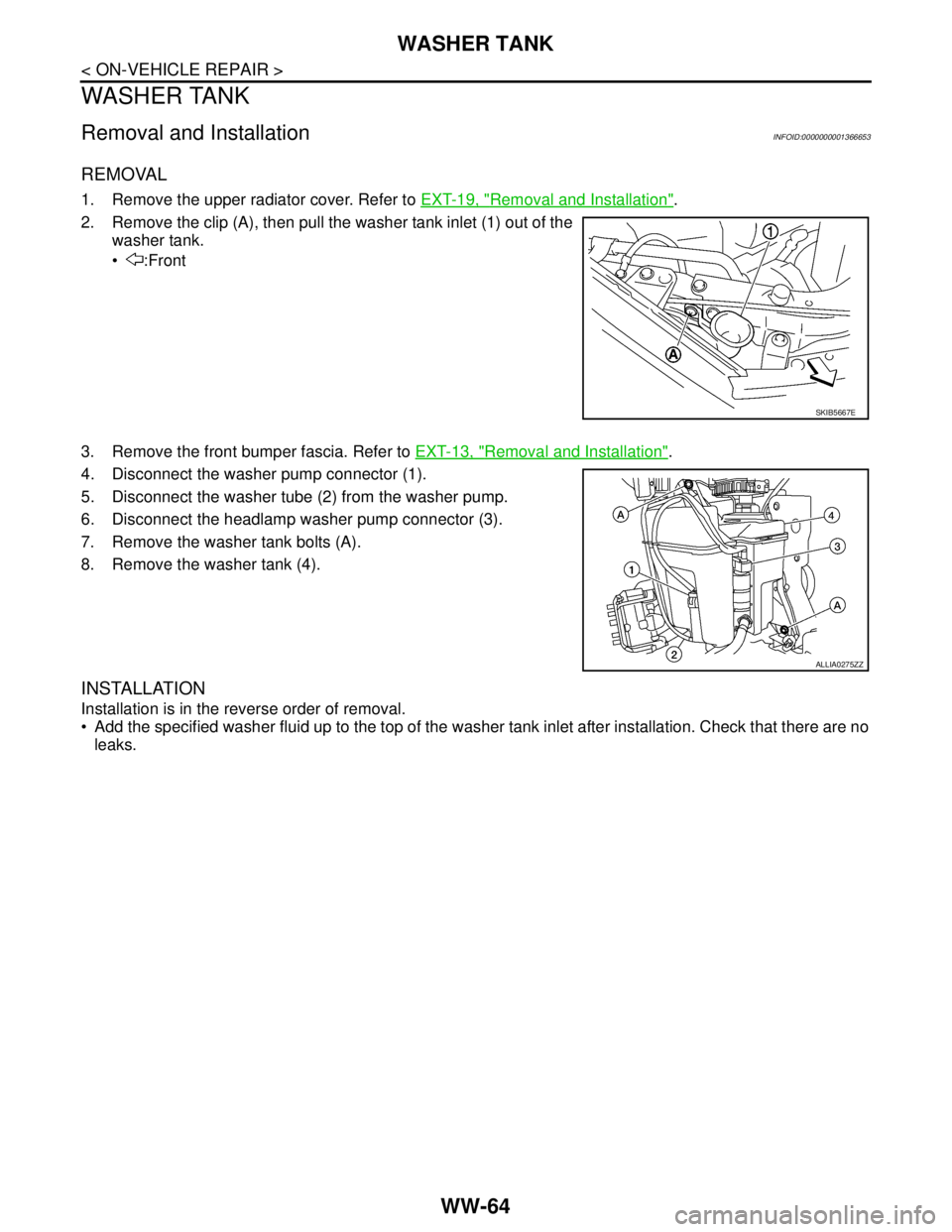

WASHER TANK
Removal and InstallationINFOID:0000000001366653
REMOVAL
1. Remove the upper radiator cover. Refer to EXT-19, "Removal and Installation".
2. Remove the clip (A), then pull the washer tank inlet (1) out of the
washer tank.
 :Front
3. Remove the front bumper fascia. Refer to EXT-13, "
Removal and Installation".
4. Disconnect the washer pump connector (1).
5. Disconnect the washer tube (2) from the washer pump.
6. Disconnect the headlamp washer pump connector (3).
7. Remove the washer tank bolts (A).
8. Remove the washer tank (4).
INSTALLATION
Installation is in the reverse order of removal.
 Add the specified washer fluid up to the top of the washer tank inlet after installation. Check that there are no
leaks.
SKIB5667E
ALLIA0275ZZ

WASHER PUMP
WW-65
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P

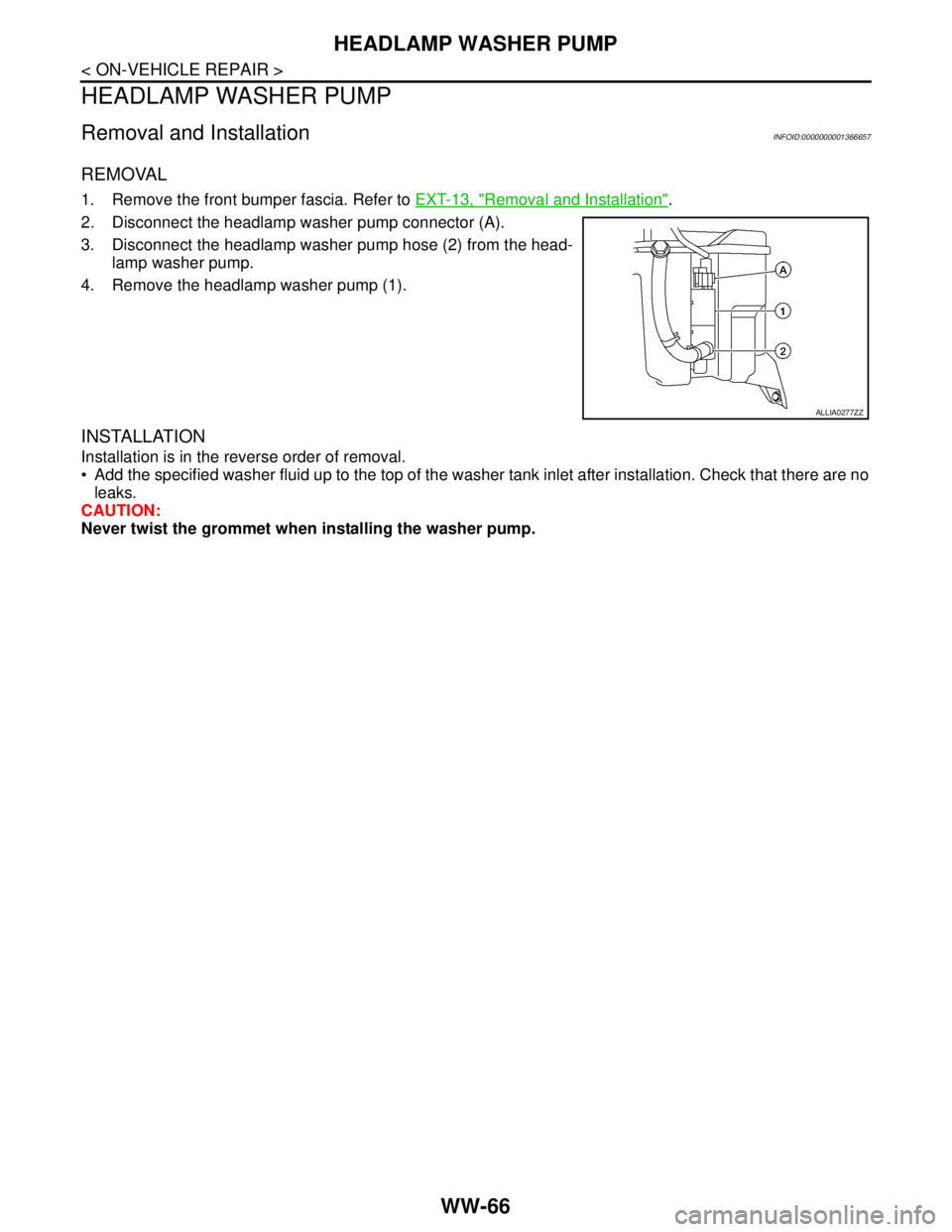

WASHER PUMP
Removal and InstallationINFOID:0000000001366655
REMOVAL
1. Remove the front bumper fascia. Refer to EXT-13, "Removal and Installation".
2. Disconnect the washer pump connector (A).
3. Disconnect the washer tube (2) from the washer pump.
4. Remove the washer pump (1) from the washer tank.
INSTALLATION
Installation is in the reverse order of removal.
 Add the specified washer fluid up to the top of the washer tank inlet after installation. Check that there are no
leaks.
CAUTION:
Never twist the grommet when installing the washer pump.
ALLIA0276ZZ

WW-66
< ON-VEHICLE REPAIR >
HEADLAMP WASHER PUMP
HEADLAMP WASHER PUMP
Removal and InstallationINFOID:0000000001366657
REMOVAL
1. Remove the front bumper fascia. Refer to EXT-13, "Removal and Installation".
2. Disconnect the headlamp washer pump connector (A).
3. Disconnect the headlamp washer pump hose (2) from the head-
lamp washer pump.
4. Remove the headlamp washer pump (1).
INSTALLATION
Installation is in the reverse order of removal.
 Add the specified washer fluid up to the top of the washer tank inlet after installation. Check that there are no
leaks.
CAUTION:
Never twist the grommet when installing the washer pump.
ALLIA0277ZZ

FRONT WASHER NOZZLE AND TUBE
WW-67
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P

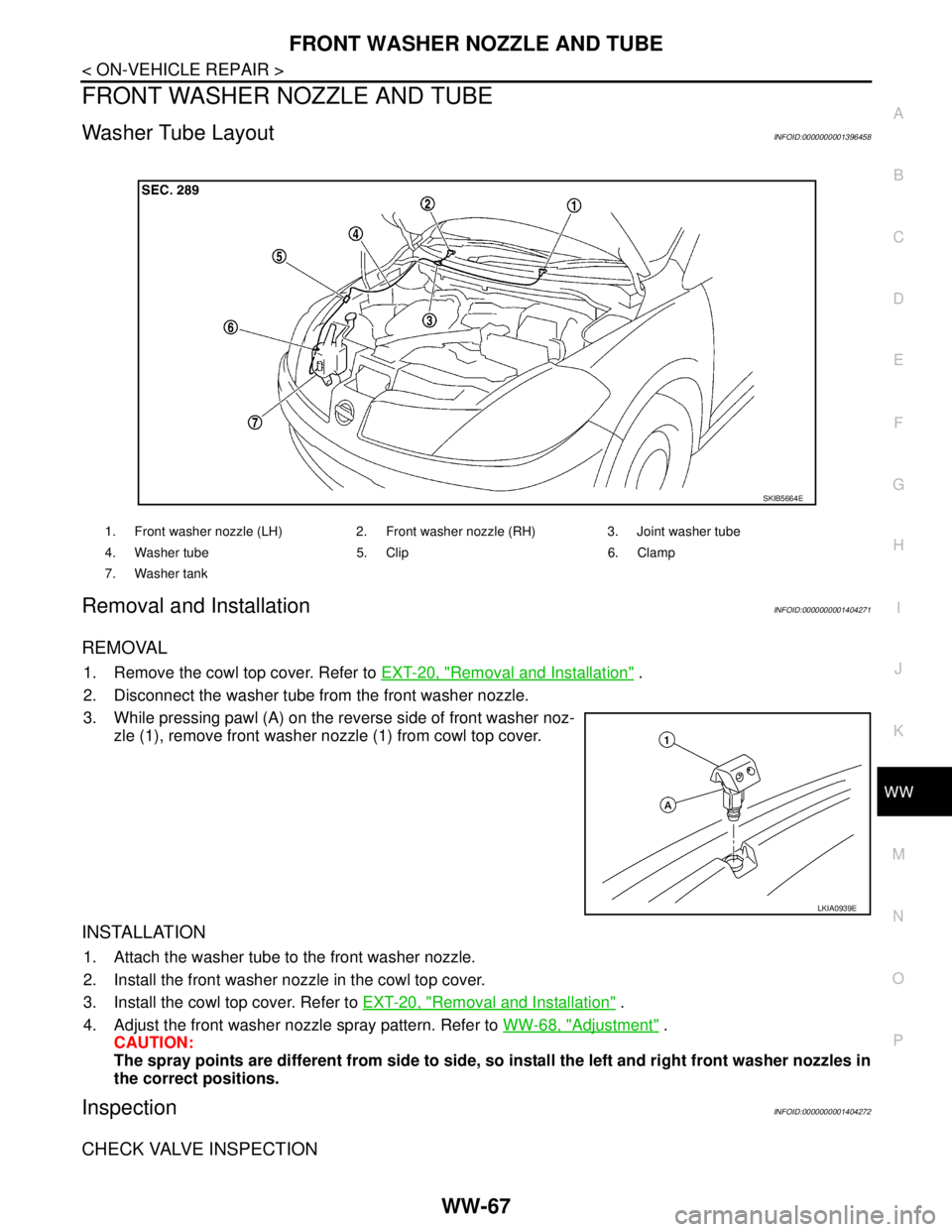

FRONT WASHER NOZZLE AND TUBE
Washer Tube LayoutINFOID:0000000001396458
Removal and InstallationINFOID:0000000001404271
REMOVAL
1. Remove the cowl top cover. Refer to EXT-20, "Removal and Installation" .
2. Disconnect the washer tube from the front washer nozzle.
3. While pressing pawl (A) on the reverse side of front washer noz-
zle (1), remove front washer nozzle (1) from cowl top cover.
INSTALLATION
1. Attach the washer tube to the front washer nozzle.
2. Install the front washer nozzle in the cowl top cover.
3. Install the cowl top cover. Refer to EXT-20, "
Removal and Installation" .
4. Adjust the front washer nozzle spray pattern. Refer to WW-68, "
Adjustment" .
CAUTION:
The spray points are different from side to side, so install the left and right front washer nozzles in
the correct positions.
InspectionINFOID:0000000001404272
CHECK VALVE INSPECTION
1. Front washer nozzle (LH) 2. Front washer nozzle (RH) 3. Joint washer tube
4. Washer tube 5. Clip 6. Clamp
7. Washer tank
SKIB5664E
LKIA0939E

WW-68
< ON-VEHICLE REPAIR >
FRONT WASHER NOZZLE AND TUBE

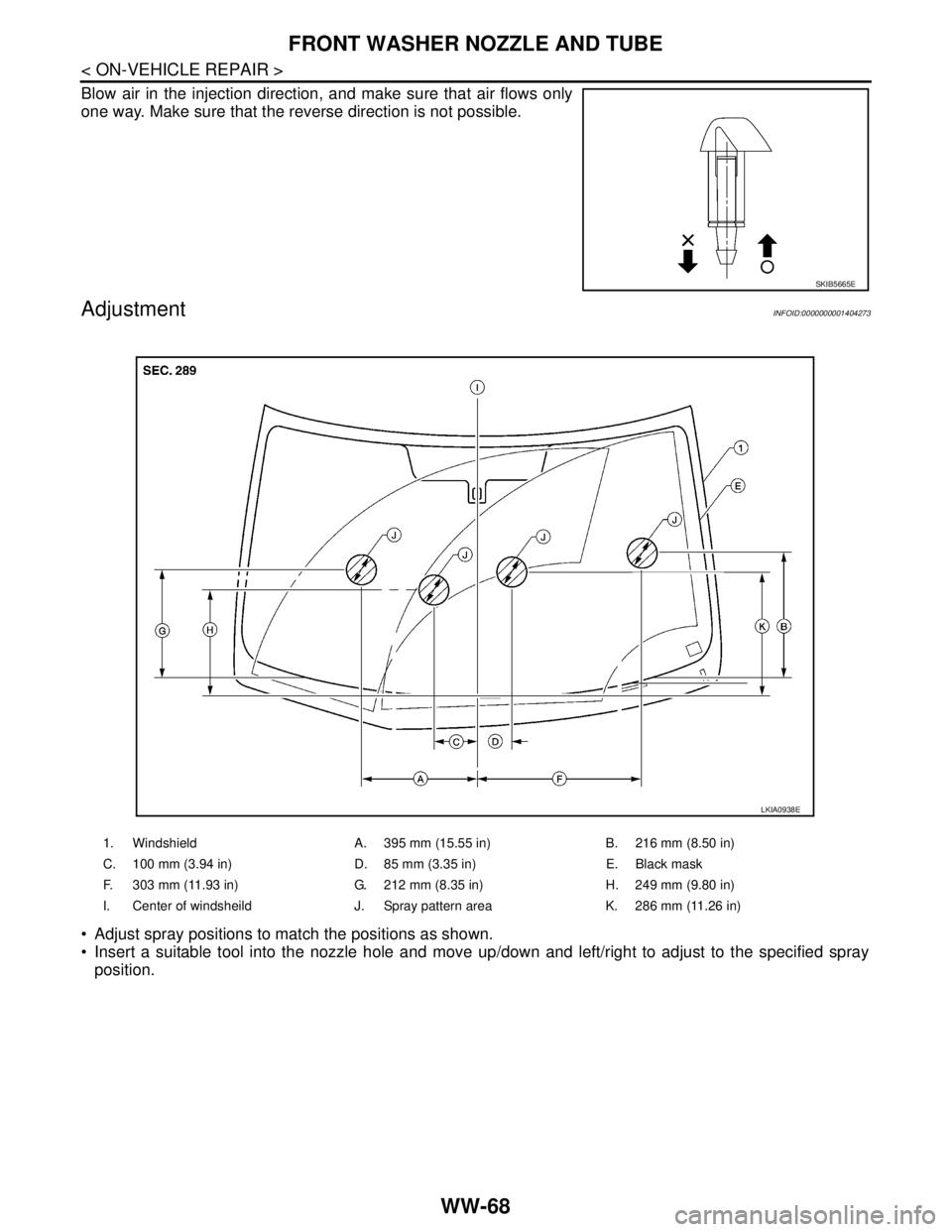

Blow air in the injection direction, and make sure that air flows only
one way. Make sure that the reverse direction is not possible.
AdjustmentINFOID:0000000001404273
 Adjust spray positions to match the positions as shown.
 Insert a suitable tool into the nozzle hole and move up/down and left/right to adjust to the specified spray
position.
SKIB5665E
1. Windshield A. 395 mm (15.55 in) B. 216 mm (8.50 in)
C. 100 mm (3.94 in) D. 85 mm (3.35 in) E. Black mask
F. 303 mm (11.93 in) G. 212 mm (8.35 in) H. 249 mm (9.80 in)
I. Center of windsheild J. Spray pattern area K. 286 mm (11.26 in)
LKIA0938E
