NISSAN X-TRAIL 2003 Electronic Repair Manual

DTC P1146 HO2S2
EC-297
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC Confirmation ProcedureEBS00BBZ
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
l"COMPLETED" will appear on CONSULT-II screen when all tests "COND1", "COND2" and
"COND3" are completed.
lIf "DTC confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and
wait at least 10 seconds before conducting the next test.
TESTING CONDITION:
Never stop engine during this procedure. If the engine is stopped, retry procedure from step 2 in "Pro-
cedure for COND1"
WITH CONSULT-II
Procedure for COND1
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch "OFF" and wait at least 10 seconds.
3. Turn ignition switch "ON" and select "HO2S2 (B1) P1146" of "HO2S2" in "DTC WORK SUPPORT" mode
with CONSULT-II.
4. Touch "START".
5. Start engine and let it idle for at least 30 seconds.
6. Rev engine up to 2,000 rpm 2 or 3 times quickly under no load.
If "COMPLETED" appears on CONSULT-II screen, go to step 2 in "Procedure for COND3".
If "COMPLETED" does not appear on CONSULT-II screen, go to the following step.
7. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
8. When the following conditions are met, "TESTING" will be displayed at "COND1" on the CONSULT-II
screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take
approximately 60 seconds.)
NOTE:
lIf "TESTING" is not displayed after 5 minutes, retry from step 2 in " Procedure for COND1".
lIf "COMPLETED" already appears at "COND2" on CONSULT-II screen before "Procedure for
COND2" is conducted, it is unnecessary to conduct step 1 in " Procedure for COND2".
ENG SPEED More than 1,000 rpm
B/FUEL SCHDL More than 1.0 msec
COOLANT TEMP/S 70 - 105°C
Selector lever Suitable position
PBIB0555E

EC-298
[QR (WITH EURO-OBD)]
DTC P1146 HO2S2
Procedure for COND2
1. While driving, release accelerator pedal completed with "OD"
OFF (A/T models only) from the above condition [step 8] until
"INCOMPLETE" at "COND2" on CONSULT-II screen has turned
to "COMPLETED" (It will take approximately 4 seconds.)
NOTE:
If "COMPLETE" already appears at "COND3" on CONSULT-
II screen before "Procedure for COND3" is conducted, it is
unnecessary to conduct step 1 in "Procedure for COND3".
Procedure for COND3
1. Stop vehicle and let it idle until "INCOMPLETE" of "COND3" on
CONSULT-II screen has turned to "COMPLETED". (It will take a
maximum of approximately 6 minutes.)
2. Make sure that "OK" is displayed after touching "SELF-DIAG
RESULTS".
If "NG" is displayed, refer toEC-300, "
Diagnostic Procedure".
Overall Function CheckEBS00BC0
Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a 1st
trip DTC might not be confirmed.
WITH GST
1. Start engine and drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
2. Stop vehicle with engine running.
3. Set voltmeter probes between ECM terminal 95 [HO2S2 (B1) signal] and engine ground.
4. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be below 0.50V at least once during this
procedure.
If the voltage can be confirmed in step 4, step 5 is not nec-
essary.
5. Keep vehicle at idling for 10 minutes, then check the voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in “D”
position with “OD” OFF (A/T), 3rd gear position (M/T).
The voltage should be below 0.50V at least once during this
procedure.
6. If NG, go toEC-300, "
Diagnostic Procedure".
PBIB0556E
SEC775C
PBIB0550E

DTC P1146 HO2S2
EC-299
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

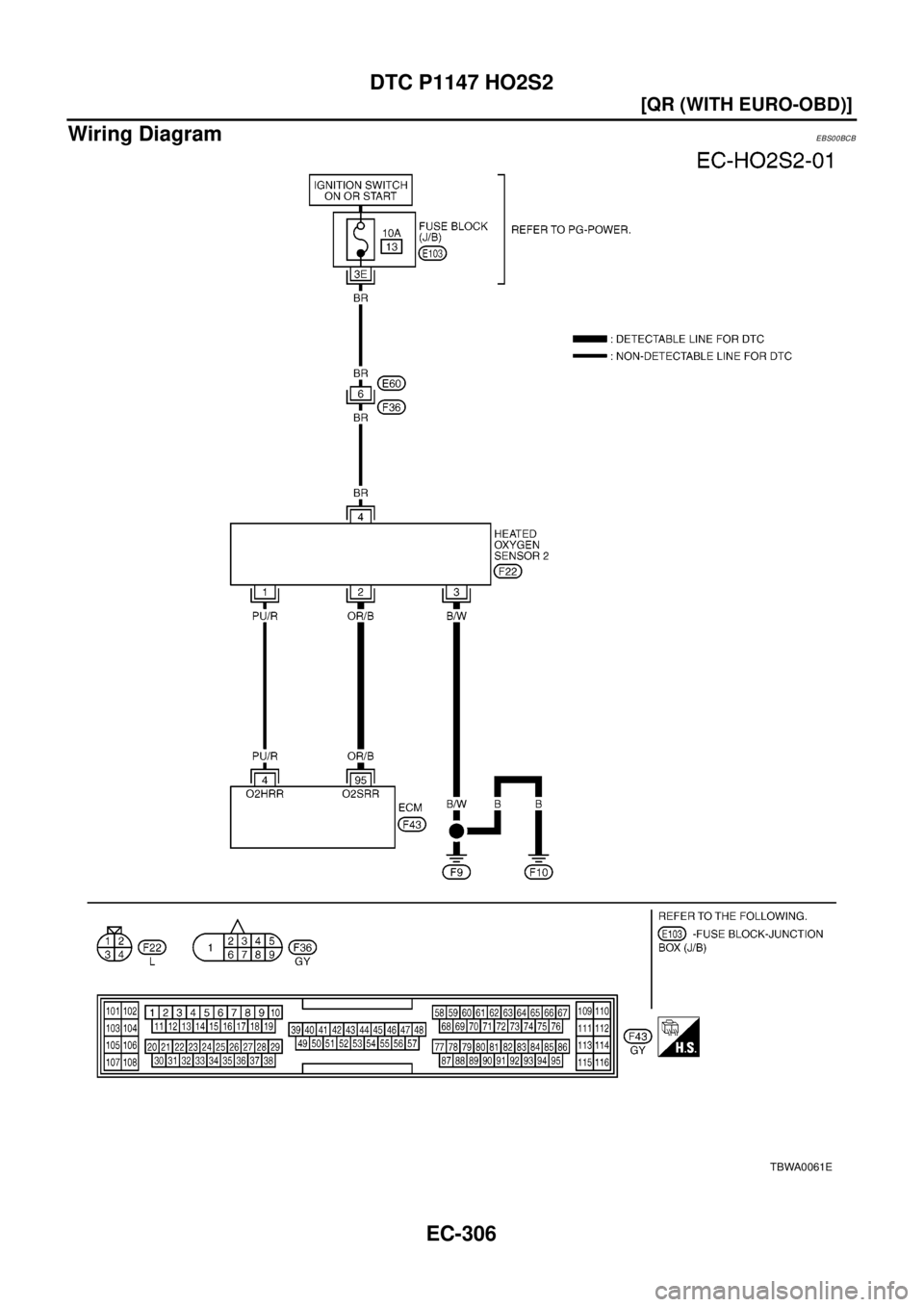

Wiring DiagramEBS00BC1
TBWA0061E

EC-300
[QR (WITH EURO-OBD)]
DTC P1146 HO2S2
Diagnostic Procedure
EBS00BC2
1.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
2.CLEAR THE SELF-LEARNING DATA
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode
with CONSULT-II.
3. Clear the self-learning control coefficient by touching “CLEAR”.
4. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0172 detected?
Is it difficult to start engine?
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch “OFF”.
3. Disconnect mass air flow sensor harness connector, and restart
and run engine for at least 5 seconds at idle speed.
4. Stop engine and reconnect mass air flow sensor harness con-
nector.
5. Make sure 1st trip DTC P0102 is displayed.
6. Erase the 1st trip DTC memory. Refer toEC-46, "
HOW TO
ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION".
7. Make sure DTC P0000 is displayed.
8. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0172 detected?
Is it difficult to start engine?
Ye s o r N o
Yes >> Perform trouble diagnosis for DTC P0172. Refer toEC-200.
No >> GO TO 3.
PBIB0494E
SEF215Z
PBIB0495E

DTC P1146 HO2S2
EC-301
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Check harness continuity between HO2S2 terminal 3 and
engine ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to power in harness or con-
nectors.
4.CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 95 and HO2S2 terminal 2.
Refer to Wiring Diagram.
3. Check harness continuity between ECM terminal 95 or HO2S2 terminal 2 and ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK HEATED OXYGEN SENSOR 2
Refer toEC-301, "
Component Inspection".
OK or NG
OK >> GO TO 6.
NG >> Replace heated oxygen sensor 2.
6.CHECK INTERMITTENT INCIDENT
Refer toEC-107, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS00BC3
HEATED OXYGEN SENSOR 2
With CONSULT-II
1. Start engine and drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
2. Stop vehicle with engine running.Continuity should exist.
PBIB0500E
Continuity should exist.
Continuity should not exist.

EC-302
[QR (WITH EURO-OBD)]
DTC P1146 HO2S2
3. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select
“HO2S2 (B1)” as the monitor item with CONSULT-II.
4. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to±25%.
“HO2S2 (B1)” should be above 0.68V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)” should be below 0.50V at least once when the “FUEL INJECTION” is-25%.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Without CONSULT-II
1. Start engine and drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
2. Stop vehicle with engine running.
3. Set voltmeter probes between ECM terminal 95 [HO2S2 (B1) signal] and engine ground.
4. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage is above 0.68V at step 4, step 5 is not neces-
sary.
5. Keep vehicle at idling for 10 minutes, then check voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in “D”
position with “OD” OFF (A/T), 3rd gear position (M/T).
The voltage should be below 0.50V at least once during this
procedure.
6. If NG, replace heated oxygen sensor 2.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in)
onto a hard surface such as a concrete floor; use a new one.
Removal and InstallationEBS00BC4
HEATED OXYGEN SENSOR 2
Refer toEX-2, "EXHAUST SYSTEM".
SEF662Y
PBIB0551E
PBIB0550E

DTC P1147 HO2S2
EC-303
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1147 HO2S2PFP:226A0
Component DescriptionEBS00BC5
The heated oxygen sensor 2, after three way catalyst, monitors the
oxygen level in the exhaust gas on each bank.
Evenifswitchingcharacteristicsoftheheatedoxygensensor1are
shifted, the air fuel ratio is controlled to stoichiometric, by the signal
from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1V in richer conditions to 0V in leaner condi-
tions.
Under normal conditions the heated oxygen sensor 2 is not used for
engine control operation.
CONSULT-II Reference Value in Data Monitor ModeEBS00BC6
Specification data are reference values.
ECM Terminals and Reference ValueEBS00BC7
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00BC8
The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the heated oxygen sensor 1. The oxygen
storage capacity before the three way catalyst causes the longer
switching time. To judge the malfunctions of heated oxygen sensor
2, ECM monitors whether the maximum voltage of the sensor is suf-
ficiently high during the various driving condition such as fuel-cut.
SEF327R
MONITOR ITEM CONDITION SPECIFICATION
HO2S2 (B1)
lEngine: After warming upRevvingenginefromidleto3,000
rpm quickly.0-0.3V¨Approx. 0.6 - 1.0V
HO2S2 MNTR (B1)
lEngine: After warming upRevvingenginefromidleto3,000
rpm quickly.LEAN¨RICH
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
95 OR/BHeated oxygen sen-
sor 2[Engineisrunning]
lWarm-up condition
lEngine speed is 2,000 rpm.0 - Approximately 1.0V
SEF259VA

EC-304
[QR (WITH EURO-OBD)]
DTC P1147 HO2S2

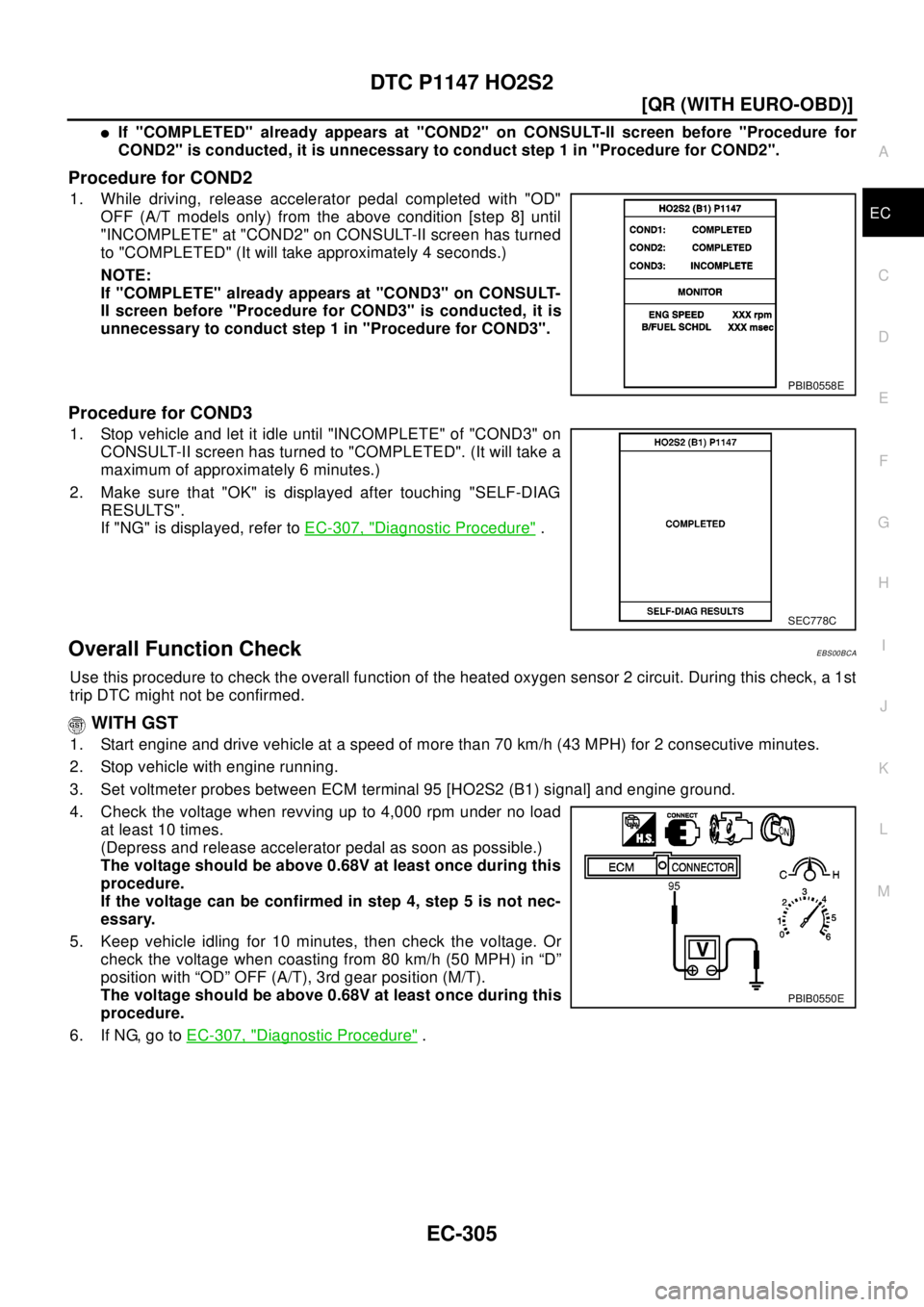

DTC Confirmation Procedure
EBS00BC9
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
l"COMPLETED" will appear on CONSULT-II screen when all tests "COND1", "COND2" and
"COND3" are completed.
lIf "DTC confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and
wait at least 10 seconds before conducting the next test.
TESTING CONDITION:
Never stop engine during this procedure. If the engine is stopped, retry procedure from step 2 in "Pro-
cedure for COND1"
WITH CONSULT-II
Procedure for COND1
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch "OFF" and wait at least 10 seconds.
3. Turn ignition switch "ON" and select "HO2S2 (B1) P1147" of "HO2S2" in "DTC WORK SUPPORT" mode
with CONSULT-II.
4. Touch "START".
5. Start engine and let it idle for at least 30 seconds.
6. Rev engine up to 2,000 rpm 2 or 3 times quickly under no load.
If "COMPLETED" appears on CONSULT-II screen, go to step 2 in "Procedure for COND3".
If "COMPLETED" does not appear on CONSULT-II screen, go to the following step.
7. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
8. When the following conditions are met, "TESTING" will be displayed at "COND1" on the CONSULT-II
screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take
approximately 60 seconds.)
NOTE:
lIf "TESTING" is not displayed after 5 minutes, retry from step 2 in "Procedure for COND1".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1147
11 4 7Heated oxygen sensor
2 maximum voltage
monitoringThe maximum voltage from the sensor is not
reached to the specified voltage.
lHarness or connectors
(The sensor circuit is open or shorted)
lHeated oxygen sensor 2
lFuel pressure
lInjectors
lIntake air leaks
ENG SPEED More than 1,000 rpm
B/FUEL SCHDL More than 1.0 msec
COOLANT TEMP/S 70 - 105°C
Selector lever Suitable position
PBIB0557E

DTC P1147 HO2S2
EC-305
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
lIf "COMPLETED" already appears at "COND2" on CONSULT-II screen before "Procedure for
COND2" is conducted, it is unnecessary to conduct step 1 in "Procedure for COND2".
Procedure for COND2
1. While driving, release accelerator pedal completed with "OD"
OFF (A/T models only) from the above condition [step 8] until
"INCOMPLETE" at "COND2" on CONSULT-II screen has turned
to "COMPLETED" (It will take approximately 4 seconds.)
NOTE:
If "COMPLETE" already appears at "COND3" on CONSULT-
II screen before "Procedure for COND3" is conducted, it is
unnecessary to conduct step 1 in "Procedure for COND3".
Procedure for COND3
1. Stop vehicle and let it idle until "INCOMPLETE" of "COND3" on
CONSULT-II screen has turned to "COMPLETED". (It will take a
maximum of approximately 6 minutes.)
2. Make sure that "OK" is displayed after touching "SELF-DIAG
RESULTS".
If "NG" is displayed, refer toEC-307, "
Diagnostic Procedure".
Overall Function CheckEBS00BCA
Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a 1st
trip DTC might not be confirmed.
WITH GST
1. Start engine and drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
2. Stop vehicle with engine running.
3. Set voltmeter probes between ECM terminal 95 [HO2S2 (B1) signal] and engine ground.
4. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage can be confirmed in step 4, step 5 is not nec-
essary.
5. Keep vehicle idling for 10 minutes, then check the voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in “D”
position with “OD” OFF (A/T), 3rd gear position (M/T).
The voltage should be above 0.68V at least once during this
procedure.
6. If NG, go toEC-307, "
Diagnostic Procedure".
PBIB0558E
SEC778C
PBIB0550E

EC-306
[QR (WITH EURO-OBD)]
DTC P1147 HO2S2
Wiring Diagram
EBS00BCB
TBWA0061E
