DTC P1217 ENGINE OVER TEMPERATURE
EC-317
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

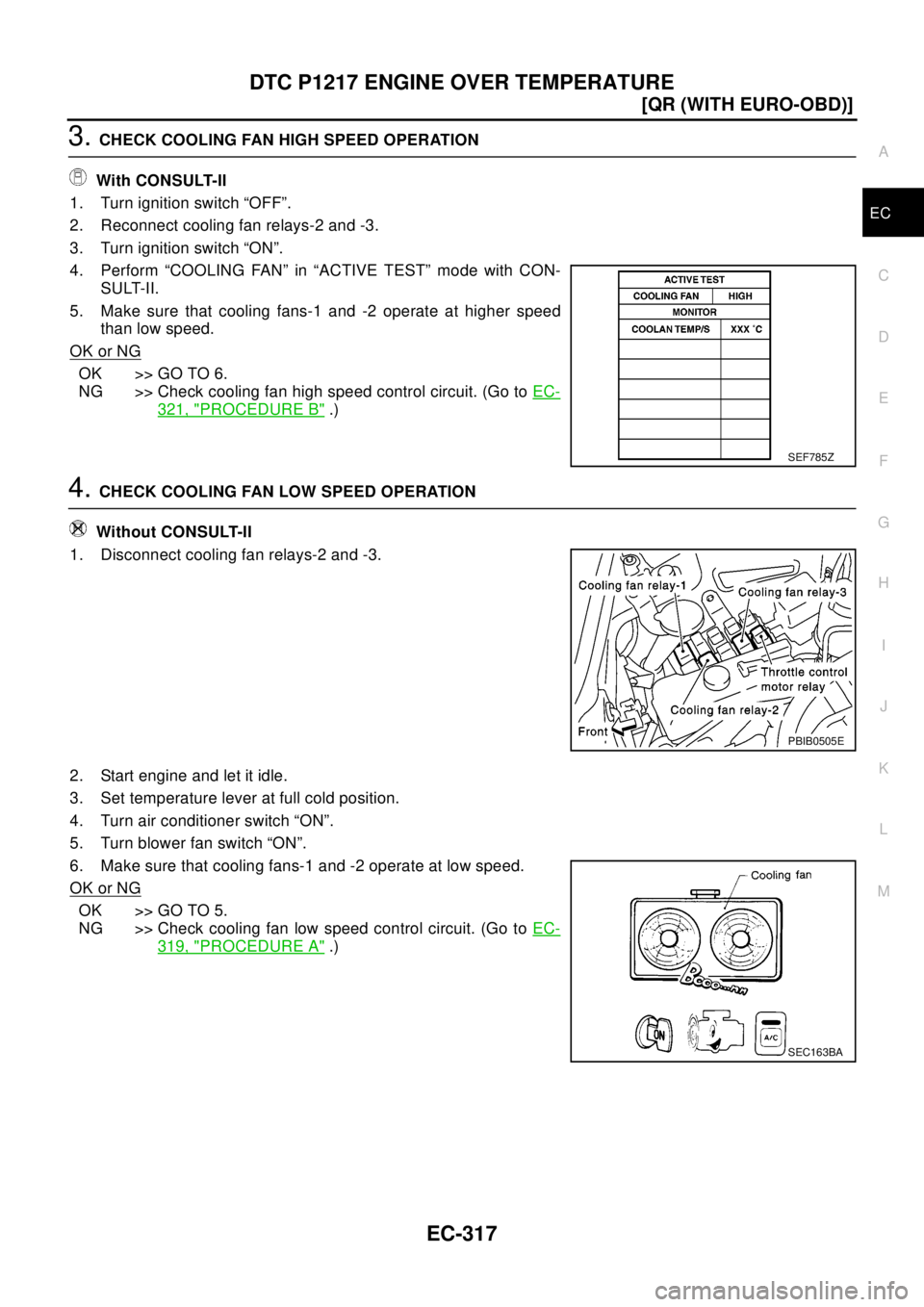

3.CHECK COOLING FAN HIGH SPEED OPERATION
With CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. Make sure that cooling fans-1 and -2 operate at higher speed
than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go toEC-
321, "PROCEDURE B".)
4.CHECK COOLING FAN LOW SPEED OPERATION
Wi th ou t C O N S U LT-I I
1. Disconnect cooling fan relays-2 and -3.
2. Start engine and let it idle.
3. Set temperature lever at full cold position.
4. Turn air conditioner switch “ON”.
5. Turn blower fan switch “ON”.
6. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 5.
NG >> Check cooling fan low speed control circuit. (Go toEC-
319, "PROCEDURE A".)
SEF785Z
PBIB0505E
SEC163BA

EC-318
[QR (WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
5.CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch “OFF”.
4. Disconnect engine coolant temperature sensor harness connector.
5. Connect 150Wresistor to engine coolant temperature sensor harness connector.
6. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go toEC-
321, "PROCEDURE B".)

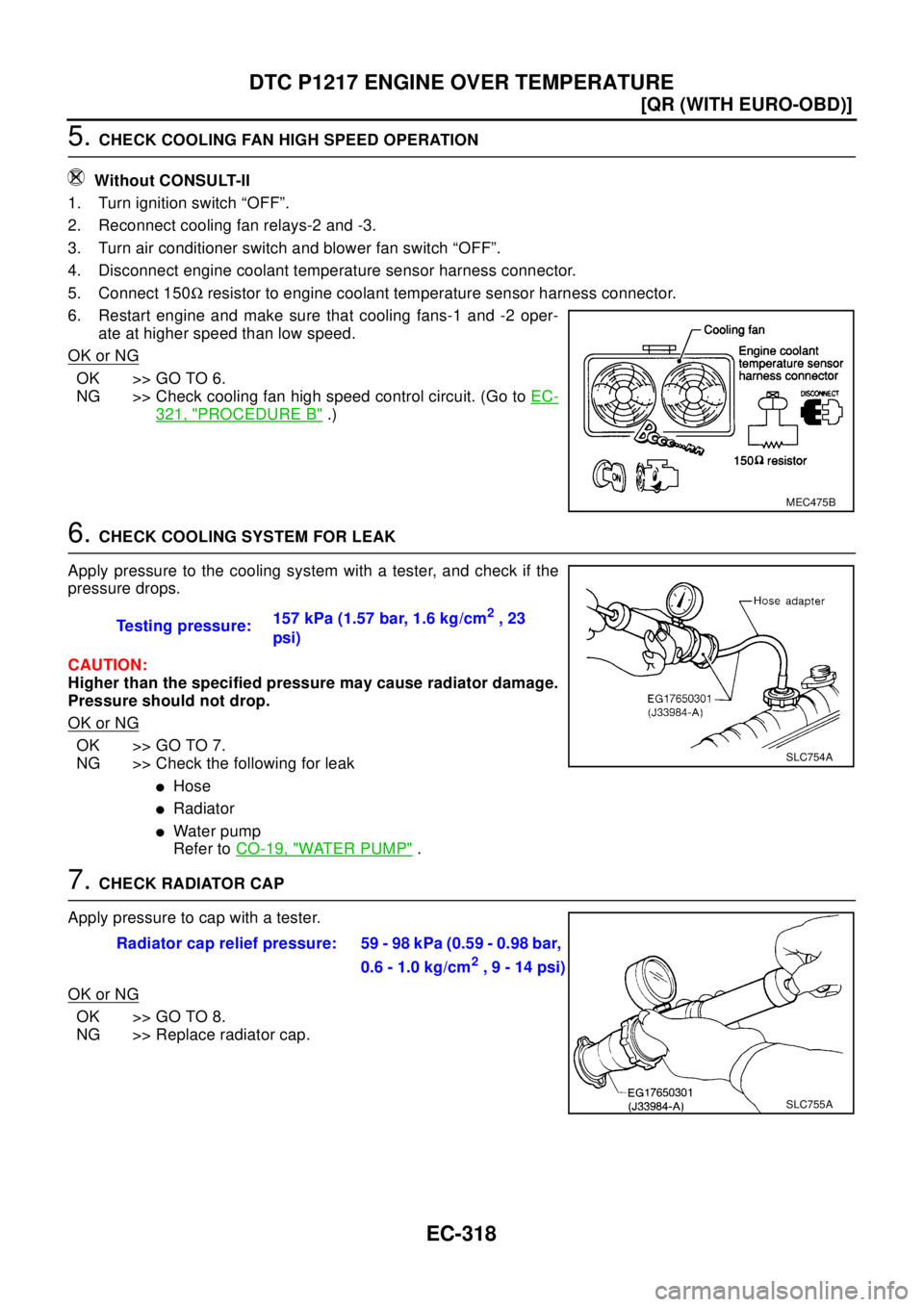

6.CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 7.
NG >> Check the following for leak
lHose
lRadiator
lWate r p ump
Refer toCO-19, "
WATER PUMP".
7.CHECK RADIATOR CAP
Apply pressure to cap with a tester.
OK or NG
OK >> GO TO 8.
NG >> Replace radiator cap.
MEC475B
Testing pressure:157 kPa (1.57 bar, 1.6 kg/cm2,23
psi)
SLC754A
Radiator cap relief pressure: 59 - 98 kPa (0.59 - 0.98 bar,
0.6 - 1.0 kg/cm
2,9-14psi)
SLC755A

DTC P1217 ENGINE OVER TEMPERATURE
EC-319
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

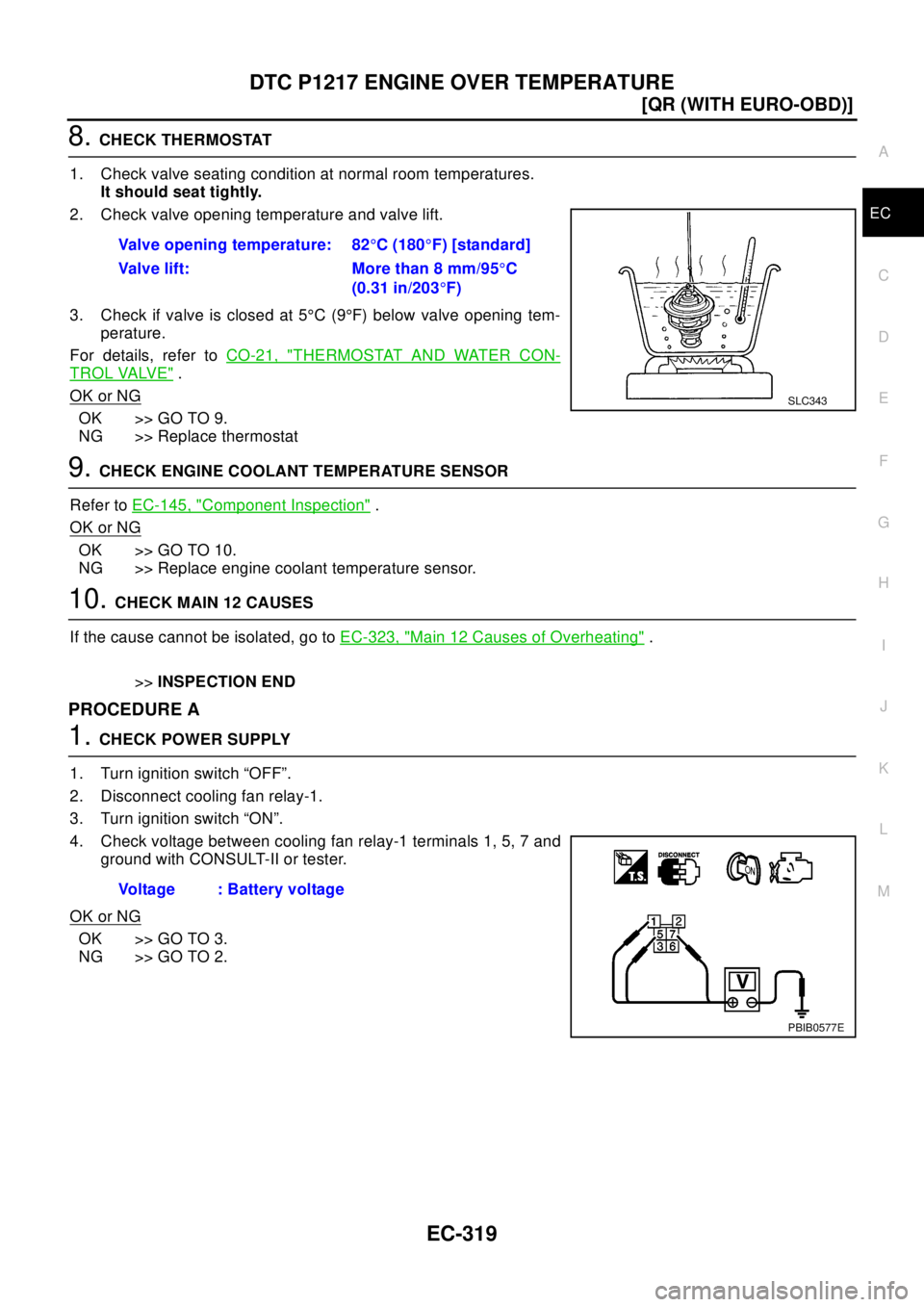

8.CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check valve opening temperature and valve lift.
3. Check if valve is closed at 5°C(9°F) below valve opening tem-
perature.
For details, refer toCO-21, "
THERMOSTAT AND WATER CON-
TROL VALVE".
OK or NG
OK >> GO TO 9.
NG >> Replace thermostat
9.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer toEC-145, "
Component Inspection".
OK or NG
OK >> GO TO 10.
NG >> Replace engine coolant temperature sensor.
10.CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go toEC-323, "
Main 12 Causes of Overheating".
>>INSPECTION END
PROCEDURE A
1.CHECK POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relay-1.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relay-1 terminals 1, 5, 7 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.Valve opening temperature: 82°C (180°F) [standard]
Valve lift: More than 8 mm/95°C
(0.31 in/203°F)
SLC343
Vo l ta g e : B a t t e r y v o l ta g e
PBIB0577E

EC-320
[QR (WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
2.DETECT MALFUNCTIONING PART
Check the following.
l10A fuse
lFuse block (J/B) connector E103
l40A fusible links
lHarness for open or short between cooling fan relay-1 and fuse
lHarness for open or short between cooling fan relay-1 and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK COOLING FAN MOTORS CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling
fan motor-2 harness connector.
3. Check harness continuity between cooling fan relay-1 terminal 3 and cooling fan motor-1 terminal 1, cool-
ing fan motor-1 terminal 4 and body ground.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-1 terminal 6 and cooling fan motor-2 terminal 1, cool-
ing fan motor-2 terminal 4 and body ground.
Refer to wiring diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK OUTPUT SIGNAL CIRCUIT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 37 and cooling fan relay-1 terminal 2.
Refer to wiring diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
PBIB0504E
Continuity should exist.
Continuity should exist.
Continuity should exist.

DTC P1217 ENGINE OVER TEMPERATURE
EC-321
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors E61, F38
lHarness for open or short between cooling fan relay-1 and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK COOLING FAN RELAY-1
Refer toEC-324, "
Component Inspection".
OK or NG
OK >> GO TO 7.
NG >> Replace cooling fan relay.

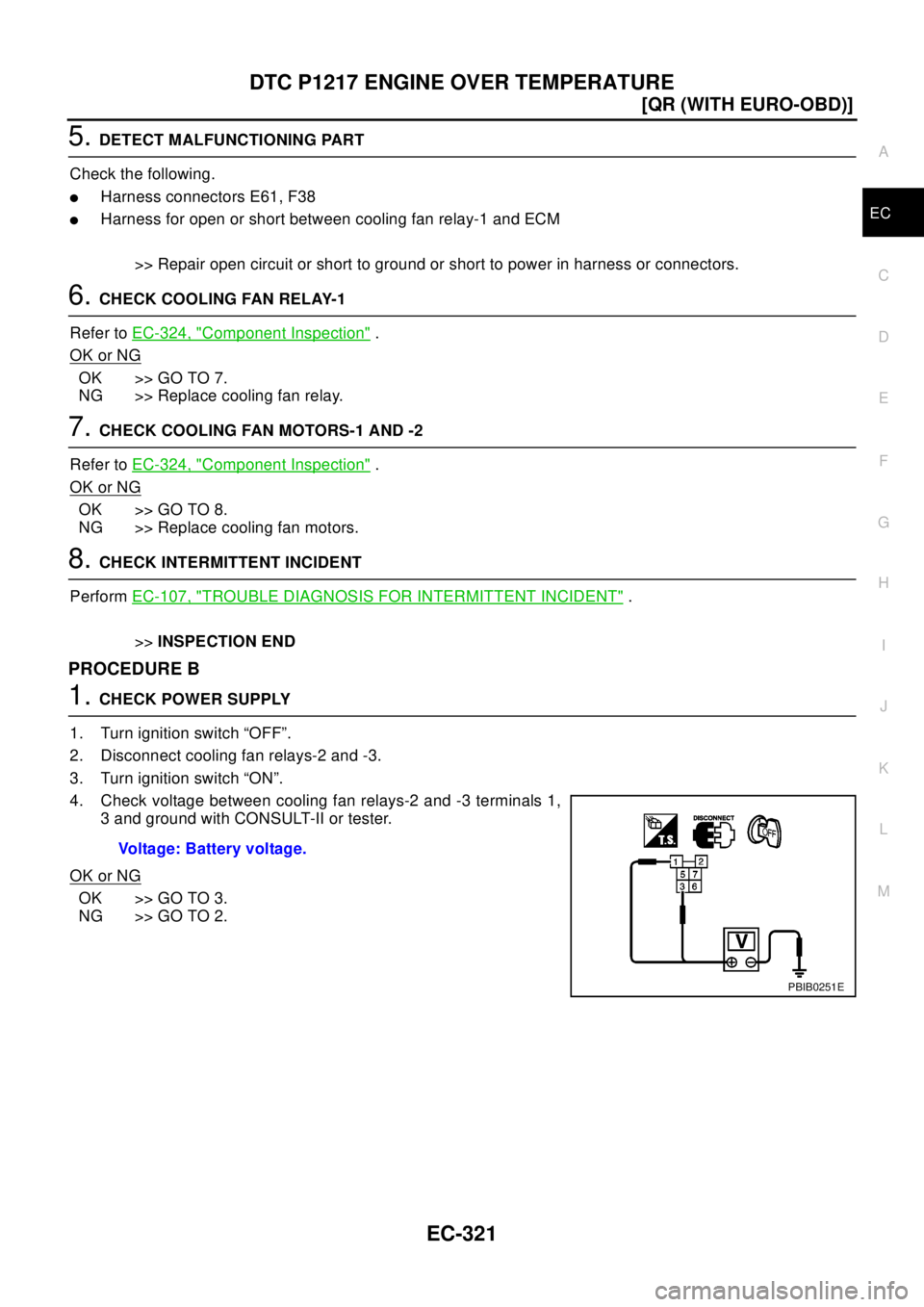

7.CHECK COOLING FAN MOTORS-1 AND -2
Refer toEC-324, "
Component Inspection".
OK or NG
OK >> GO TO 8.
NG >> Replace cooling fan motors.
8.CHECK INTERMITTENT INCIDENT
PerformEC-107, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
PROCEDURE B
1.CHECK POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relays-2 and -3.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relays-2 and -3 terminals 1,
3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.Voltage: Battery voltage.
PBIB0251E

EC-322
[QR (WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
2.DETECT MALFUNCTIONING PART
Check the following.
l10A fuse
lFuse block (J/B) connector E103
l40A fusible links
lHarness for open or short between cooling fan relays-2 and -3 and fuse
lHarness for open or short between cooling fan relays-2 and -3 and fusible links
>> Repair harness or connectors.
3.CHECK COOLING FAN MOTORS CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
3. Check harness continuity between the following;
cooling fan relay-2 terminal 5 and cooling fan motor-1 terminal 2,
cooling fan relay-2 terminal 6 and cooling fan motor-1 terminal 3,
cooling fan relay-2 terminal 7 and body ground.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between the following;
cooling fan relay-3 terminal 5 and cooling fan motor-2 terminal 2,
cooling fan relay-3 terminal 6 and cooling fan motor-2 terminal 3,
cooling fan relay-3 terminal 7 and body ground.
Refer to wiring diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK OUTPUT SIGNAL CIRCUIT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 27 and cooling fan relay-2 terminal 2, cooling fan relay-3
terminal 2.
Refer to wiring diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors E61, F38
lHarness for open or short between cooling fan relays-2, -3 and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.
Continuity should exist.
Continuity should exist.

DTC P1217 ENGINE OVER TEMPERATURE
EC-323
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.CHECK COOLING FAN RELAYS-2 AND -3
Refer toEC-324, "
COOLING FAN RELAYS-1, -2 AND -3".
OK or NG
OK >> GO TO 7.
NG >> Replace cooling fan relays.
7.CHECK COOLING FAN MOTORS
Refer toEC-324, "
COOLING FAN MOTORS-1 AND -2".
OK or NG
OK >> GO TO 8.
NG >> Replace cooling fan motors.
8.CHECK INTERMITTENT INCIDENT
PerformEC-107, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Main 12 Causes of OverheatingEBS00BCQ
Engine Step Inspection item Equipment Standard Reference page
OFF 1
lBlocked radiator
lBlocked condenser
lBlocked radiator grille
lBlocked bumper
lVisual No blocking —
2
lCoolant mixturelCoolant tester 50 - 50% coolant mixture SeeMA-19, "Engine
Coolant Mixture Ratio".
3
lCoolant levellVisual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckSeeCO-9, "Changing
Engine Coolant".
4
lRadiator caplPressure tester 59 - 98 kPa
(0.59 - 0.98 bar, 0.6 - 1.0
kg/cm
2,9-14psi)(Limit)SeeCO-13, "
CHECKING
RADIATOR CAP".
ON*
25lCoolant leakslVisual No leaks SeeCO-9, "LEAK
CHECK".
ON*
26lThermostatlTouch the upper and
lower radiator hosesBoth hoses should be hot SeeCO-21, "THERMO-
STAT AND WATER CON-
TROL VALVE",andCO-
12, "RADIATOR".
ON*
17lCooling fanlCONSULT-II Operating See trouble diagnosis for
DTC P1217 (EC-311
).
OFF 8
lCombustion gas leaklColor checker chemical
tester 4 Gas analyzerNegative —
ON*
39lCoolant temperature
gaugelVisual Gauge less than 3/4
when driving—
lCoolant overflow to
reservoir tanklVisual No overflow during driving
and idlingSeeCO-9, "Changing
Engine Coolant".
OFF*
410lCoolant return from
reservoir tank to radia-
torlVisual Should be initial level in
reservoir tankSeeCO-9, "LEVEL
CHECK".

EC-324
[QR (WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer toCO-5, "
OVERHEATING CAUSE ANALYSIS".
Component InspectionEBS00BCR
COOLING FAN RELAYS-1, -2 AND -3
Check continuity between terminals 3 and 5, 6 and 7.
If NG, replace relay.
COOLING FAN MOTORS-1 AND -2
1. Disconnect cooling fan motor harness connectors.
2. Supply cooling fan motor terminals with battery voltage and
check operation.
Cooling fan motor should operate.
If NG, replace cooling fan motor.
OFF 11lCylinder headlStraight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)SeeEM-52, "CYLINDER
HEAD".
12
lCylinder block and pis-
tonslVisual No scuffing on cylinder
walls or pistonSeeEM-52, "CYLINDER
HEAD". Engine Step Inspection item Equipment Standard Reference page
Conditions Continuity
12V direct current supply between terminals 1 and 2 Yes
No current supply No
SEF745U
SpeedTe r m i n a l s
(+) (-)
Cooling fan motorLow 1 4
High 1, 2 3, 4
SEF734W

DTC P1706 PNP SWITCH
EC-325
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionEBS00BCS
When the gear position is “P” (A/T models only) or “N”, park/neutral position (PNP) switch is “ON”.
ECM detects the position because the continuity of the line (the “ON” signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS00BCT
Specification data are reference values.
ECM Terminals and Reference ValueEBS00BCU
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00BCV
DTC Confirmation ProcedureEBS00BCW
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
lIgnition switch: ONShift lever:
PorN(A/Tmodel)
Neutral (M/T model)ON
Shift lever: Except above OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
43 G/OR PNP switch[Ignition switch “ON”]
lGear position is “P” or “N”.Approximately 0V
[Ignition switch “ON”]
lExcept the above gear positionA/T model
BATTERY VOLTAGE
(11 - 14v)
M/T model
Approximately 5V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1706
1706Park/neutral position
switchThe signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving.
lHarness or connectors
[The park/neutral position (PNP) switch
circuit is open or shorted.]
lPark/neutral position (PNP) switch

EC-326
[QR (WITH EURO-OBD)]
DTC P1706 PNP SWITCH

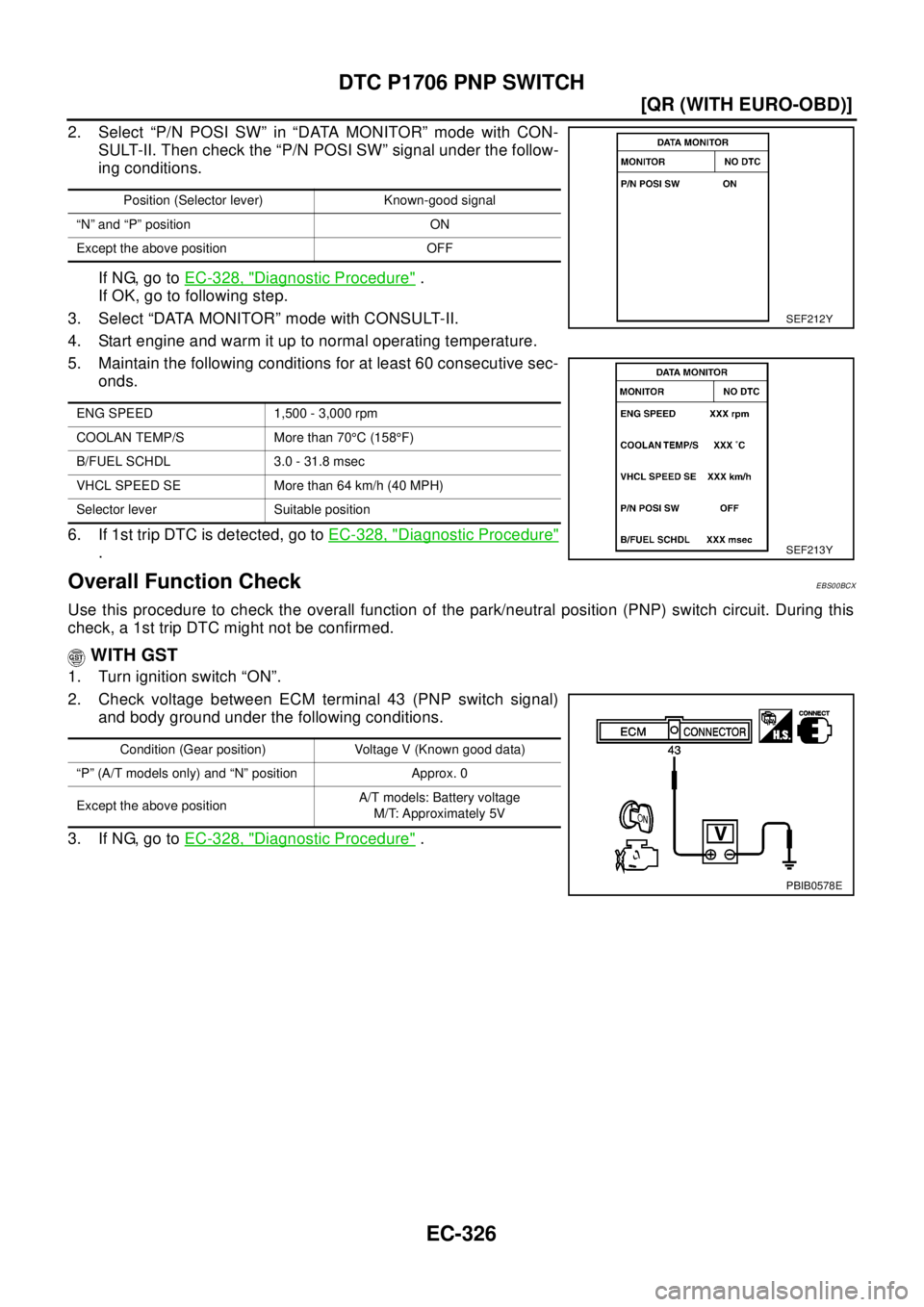

2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go toEC-328, "
Diagnostic Procedure".
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Start engine and warm it up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
6. If 1st trip DTC is detected, go toEC-328, "
Diagnostic Procedure"
.
Overall Function CheckEBS00BCX
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.
WITH GST
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 43 (PNP switch signal)
and body ground under the following conditions.
3. If NG, go toEC-328, "
Diagnostic Procedure".
Position (Selector lever) Known-good signal
“N” and “P” position ON
Except the above position OFF
ENG SPEED 1,500 - 3,000 rpm
COOLAN TEMP/S More than 70°C (158°F)
B/FUEL SCHDL 3.0 - 31.8 msec
VHCL SPEED SE More than 64 km/h (40 MPH)
Selector lever Suitable position
SEF212Y
SEF213Y
Condition (Gear position) Voltage V (Known good data)
“P” (A/T models only) and “N” position Approx. 0
Except the above positionA/T models: Battery voltage
M/T: Approximately 5V
PBIB0578E
