NISSAN X-TRAIL 2003 Electronic Repair Manual

INJECTOR CIRCUIT
EC-347
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors F1, F101
lHarness for open or short between injector and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK INJECTOR
Refer toEC-347, "
Component Inspection".
OK or NG
OK >> GO TO 8.
NG >> Replace injector.
8.CHECK INTERMITTENT INCIDENT
Refer toEC-107, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS00BDJ
INJECTOR
1. Disconnect injector harness connector.
2. Check resistance between terminals as shown in the figure.
Removal and InstallationEBS00BDK
INJECTOR
Refer toEM-29, "FUEL INJECTOR AND FUEL TUBE". Resistance: 13.5 - 17.5W[at 20°C(68°F)]
PBIB0181E

EC-348
[QR (WITH EURO-OBD)]
START SIGNAL
START SIGNAL
PFP:48750
CONSULT-II Reference Value in Data Monitor ModeEBS00B8E
Specification data are reference values.
ECM Terminals and Reference ValueEBS00B8F
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MONITOR ITEM CONDITION SPECIFICATION
START SIGNAL
lIgnition switch: ON®START®ON OFF®ON®OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
41 B/Y Start signal[Ignition switch “ON”]Approximately 0V
[Ignition switch “START”]9 - 14V

START SIGNAL
EC-349
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

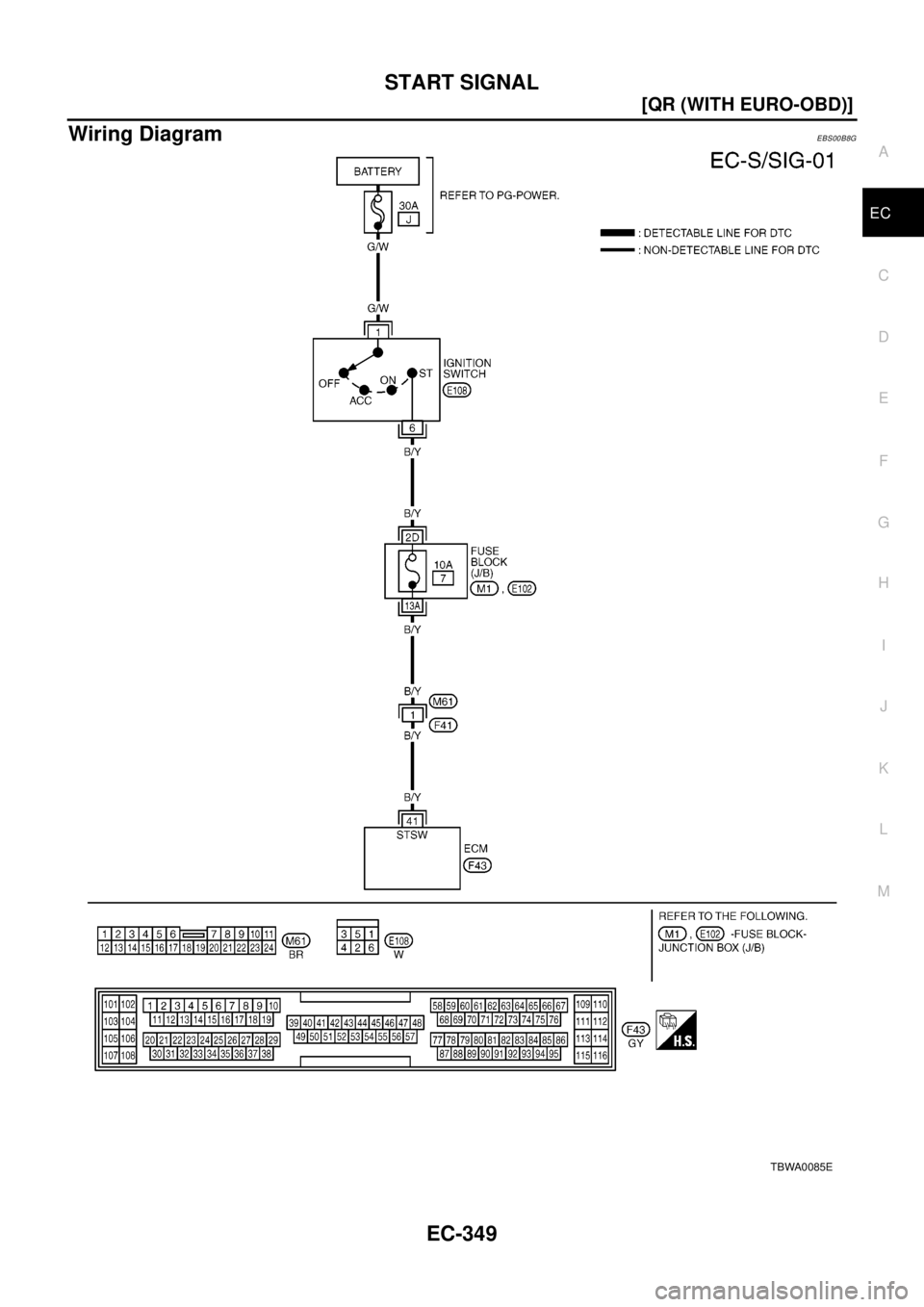

Wiring DiagramEBS00B8G
TBWA0085E

EC-350
[QR (WITH EURO-OBD)]
START SIGNAL
Diagnostic Procedure
EBS00B8H
1.INSPECTION START
DoyouhaveCONSULT-II?
Ye s o r N o
Yes >>GOTO2.
No >> GO TO 3.
2.CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch “ON”.
2. Check “START SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
3.CHECK OVERALL FUNCTION
Without CONSULT-II
Check voltage between ECM terminal 41 and ground under the fol-
lowing conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4.CHECK STARTING SYSTEM
Turn ignition switch “OFF”, then turn it to “START”.
Does starter motor operate?
Ye s o r N o
Yes >>GOTO5.
No >> Refer toSC-21, "
STARTING SYSTEM".
5.CHECK FUSE
1. Turn ignition switch “OFF”.
2. Disconnect 10A fuse.
3. Check if 10A fuse is OK.
OK or NG
OK >> GO TO 6.
NG >> Replace 10A fuse.
Condition START SIGNAL
Ignition switch "ON" OFF
Ignition switch "START" ON
PBIB0182E
Condition Voltage
Ignition switch "START" Battery voltage
Other positions Approximately 0V
PBIB0583E

START SIGNAL
EC-351
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.CHECK START SIGNAL INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Disconnect ignition switch harness connector.
3. Check harness continuity between ECM terminal 41 and fuse block (J/B), ignition switch and fuse block
(J/B). Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors
lFuse block (J/B) connectors M1, E102
lHarness for open or short between ignition switch and fuse block (J/B)
lHarness for open or short between ECM and fuse block (J/B)
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK INTERMITTENT INCIDENT
Refer toEC-107, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END Continuity should exist.

EC-352
[QR (WITH EURO-OBD)]
FUEL PUMP CIRCUIT
FUEL PUMP CIRCUIT
PFP:17042
DescriptionEBS00BDL
SYSTEM DESCRIPTION
The ECM activates the fuel pump for several seconds after the ignition switch is turned on to improve engine
startability. If the ECM receives a 180°signal from the camshaft position sensor (PHASE), it knows that the
engine is rotating, and causes the pump to operate. If the 180°signal is not received when the ignition switch
is ON, the engine stalls. The ECM stops pump operation and prevents battery discharging, thereby improving
safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump relay, which in turn
controls the fuel pump.
COMPONENT DESCRIPTION
A turbine type design fuel pump is used in the fuel tank.
CONSULT-II Reference Value in Data Monitor ModeEBS00BDM
Specification data are reference values.
ECM Terminals and Reference ValueEBS00BDN
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Sensor Input Signal to ECMECM
FunctionActuator
Crankshaft position sensor (POS) Engine speed
Fuel pump
controlFuel pump relay Camshaft position sensor (PHASE) Engine speed and cylinder number
Ignition switch Start signal
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and crankingOperates.
When engine is stoppedStops in 1.5 seconds.
Except as shown aboveStops.
PBIB0513E
MONITOR ITEM CONDITION SPECIFICATION
FUEL PUMP RLY
lFor 1 seconds after turning ignition switch ON
lEngine running or crankingON
lExcept above conditions OFF

FUEL PUMP CIRCUIT
EC-353
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
29 B/P Fuel pump relay[Ignition switch “ON”]
lFor 1 seconds after turning ignition switch “ON”
[Engineisrunning]0-1.0V
[Ignition switch “ON”]
lMore than 1 seconds after turning ignition switch
“ON”.BATTERY VOLTAGE
(11 - 14V)

EC-354
[QR (WITH EURO-OBD)]
FUEL PUMP CIRCUIT

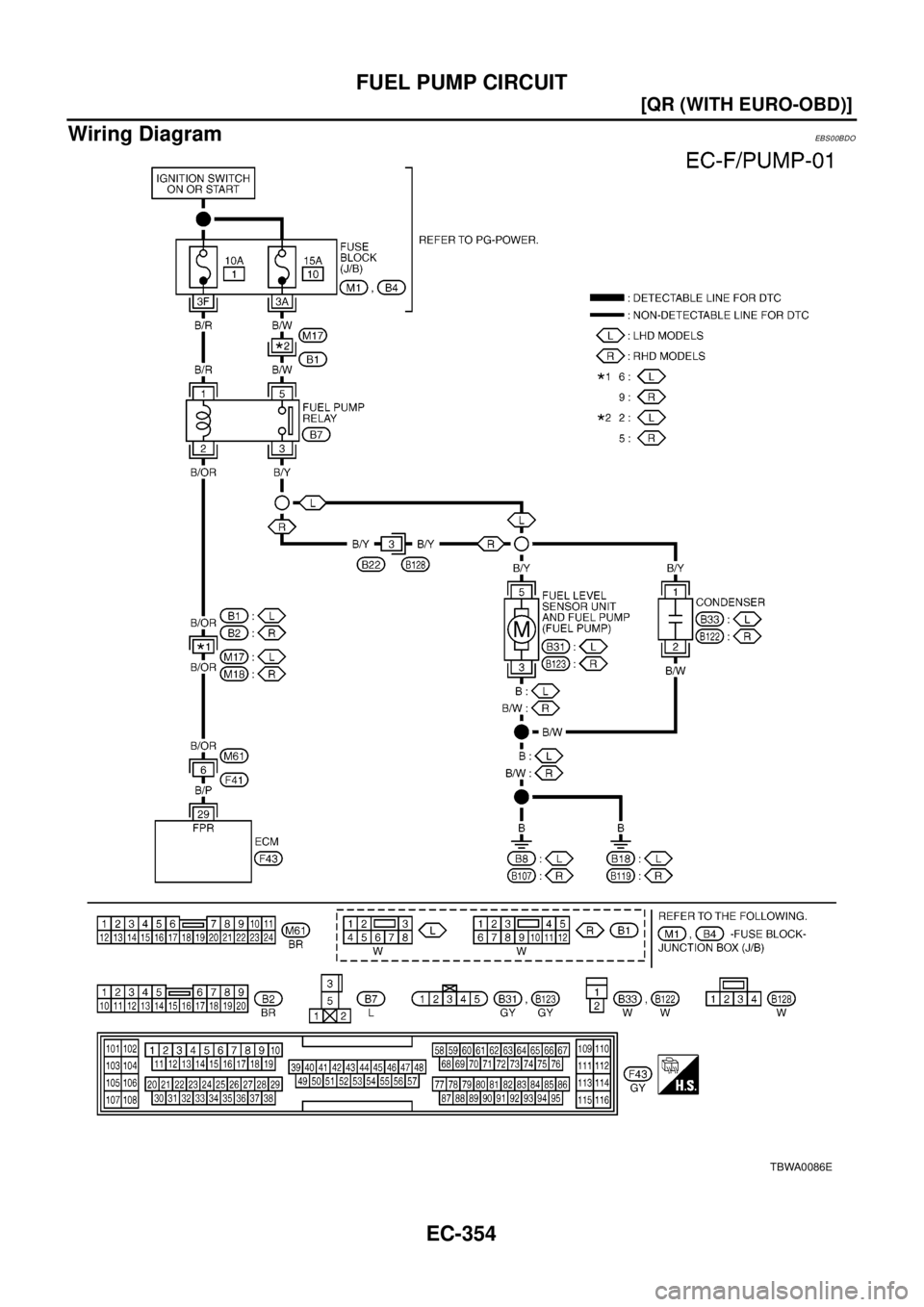

Wiring Diagram
EBS00BDO
TBWA0086E

FUEL PUMP CIRCUIT
EC-355
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00BDP
1.CHECK OVERALL FUNCTION
1. Turn ignition switch “ON”.
2. Pinch fuel feed hose with two fingers.
Fuel pressure pulsation should be felt on the fuel hose for 1
second after ignition switch is turned “ON”.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2.CHECK FUEL PUMP RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect fuel pump relay.
3. Turn ignition switch “ON”.
4. Check voltage between terminals 1, 5 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
lFuse block (J/B) connector M1, B4
lHarness or connectors M17, B1
l10A fuse
l15A fuse
lHarness for open or short between fuse and fuel pump relay
>> Repair harness or connectors.
PBIB0517E
PBIB0507E
PBIB0657E

EC-356
[QR (WITH EURO-OBD)]
FUEL PUMP CIRCUIT
4.CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch "OFF".
2. Disconnect condenser harness connector.
3. Check harness continuity between fuel pump relay terminal 3 and condenser terminal 1, condenser termi-
nal 2 and body ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors B22, B128 (RHD models)
lHarness for open or short between fuel pump relay and condenser
lHarness for open or short between condenser and body ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK CONDENSER
Refer toEC-357, "
Component Inspection".
OK or NG
OK >> GO TO 7.
NG >> Replace condenser.
7.CHECK FUEL PUMP POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect fuel level sensor unit and fuel pump harness con-
nector.
3. Check harness continuity between
fuel pump relay terminal 3 and fuel pump terminal 5,
fuel pump terminal 3 and body ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors B22, B128 (RHD models)
lHarness for open or short between fuel pump relay and fuel pump
lHarness for open or short between fuel pump and body ground
>> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.
Continuity should exist.
PBIB0506E
