NISSAN X-TRAIL 2003 Electronic Repair Manual

TROUBLE DIAGNOSIS
SRS-9
C
D
E
F
G
I
J
K
L
MA
B
SRS

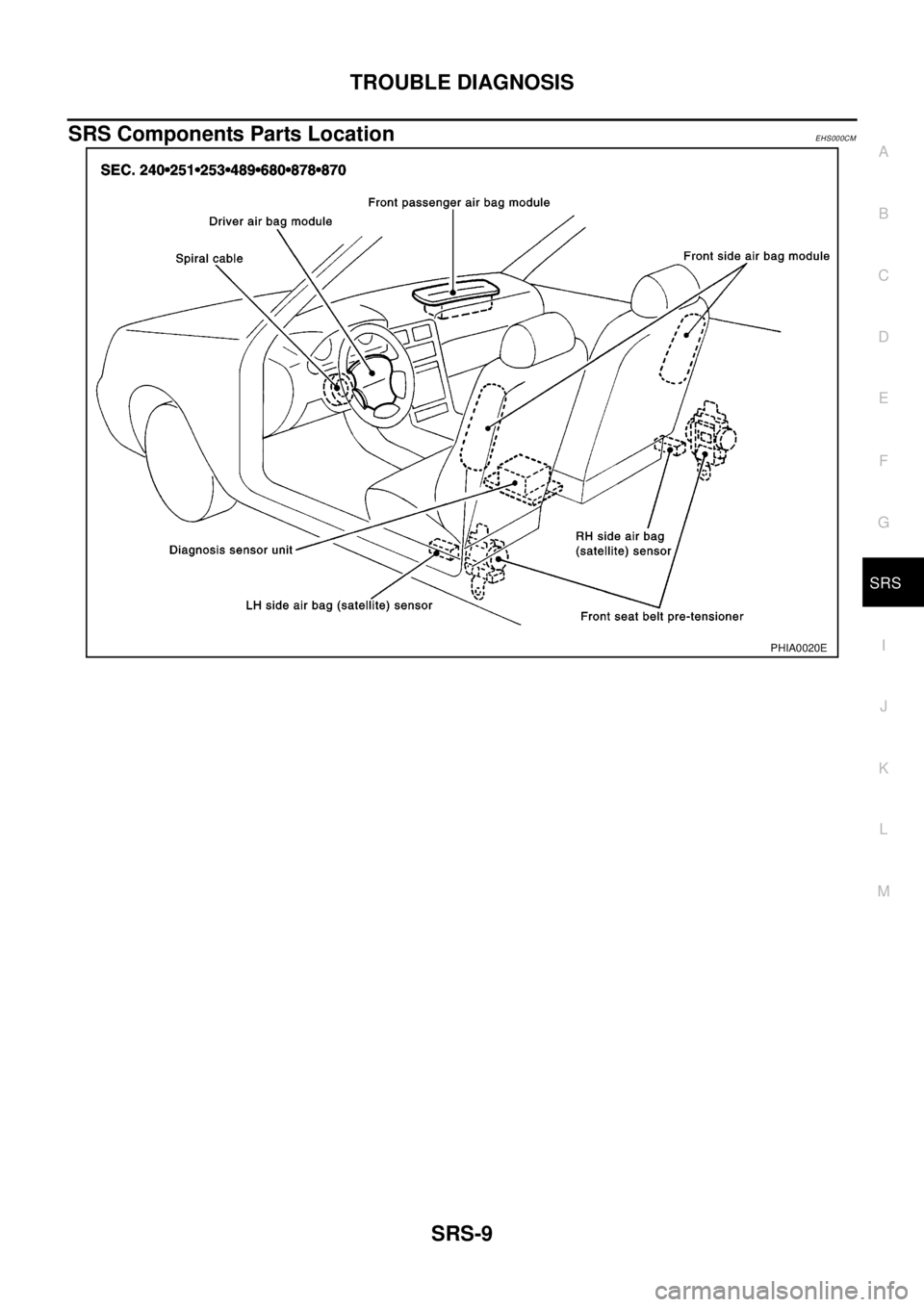

SRS Components Parts LocationEHS000CM
PHIA0020E

SRS-10
TROUBLE DIAGNOSIS
Wiring Diagram — SRS — /LHD models
EHS000CO
THWA0001E

TROUBLE DIAGNOSIS
SRS-11
C
D
E
F
G
I
J
K
L
MA
B
SRS

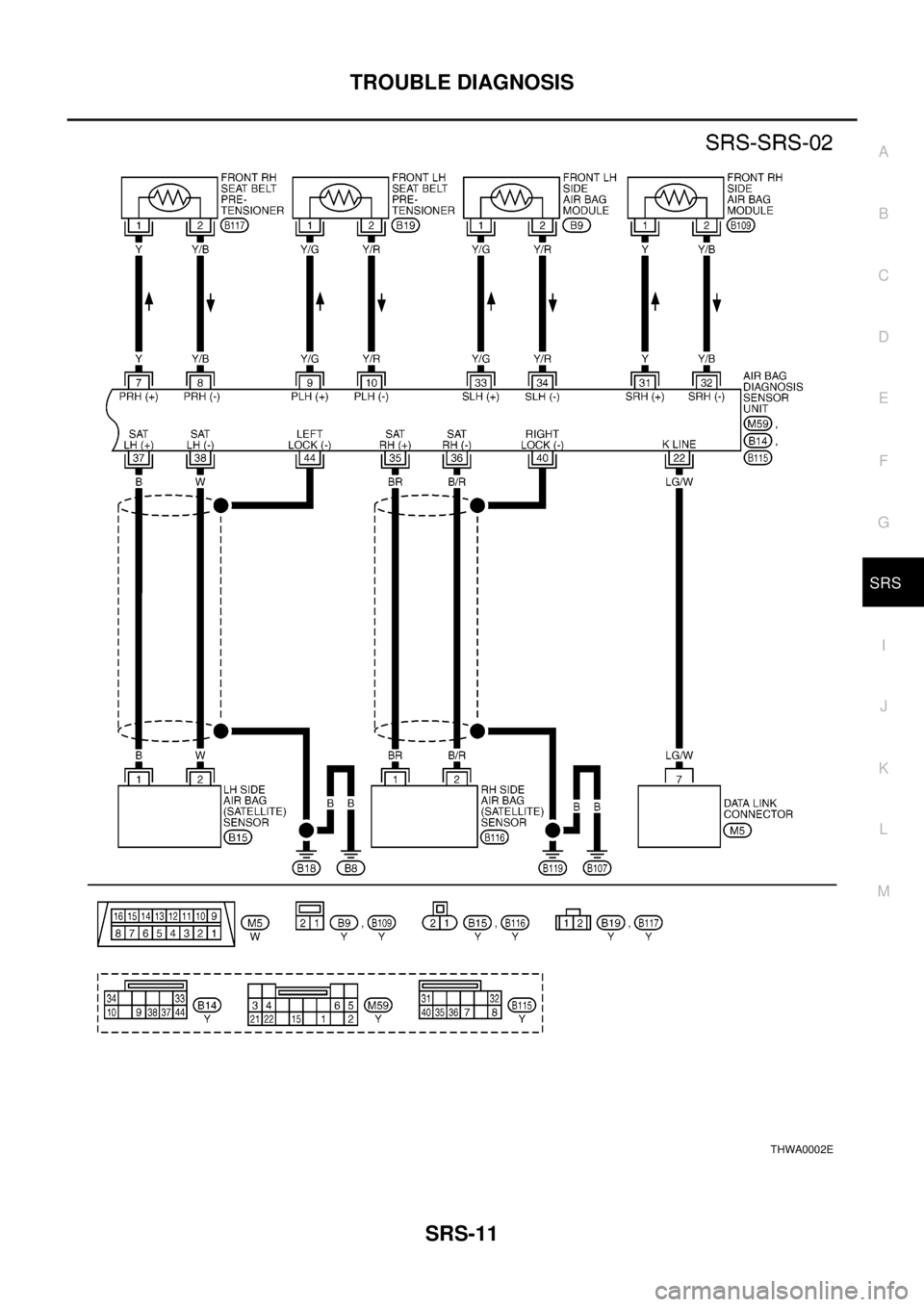

THWA0002E

SRS-12
TROUBLE DIAGNOSIS

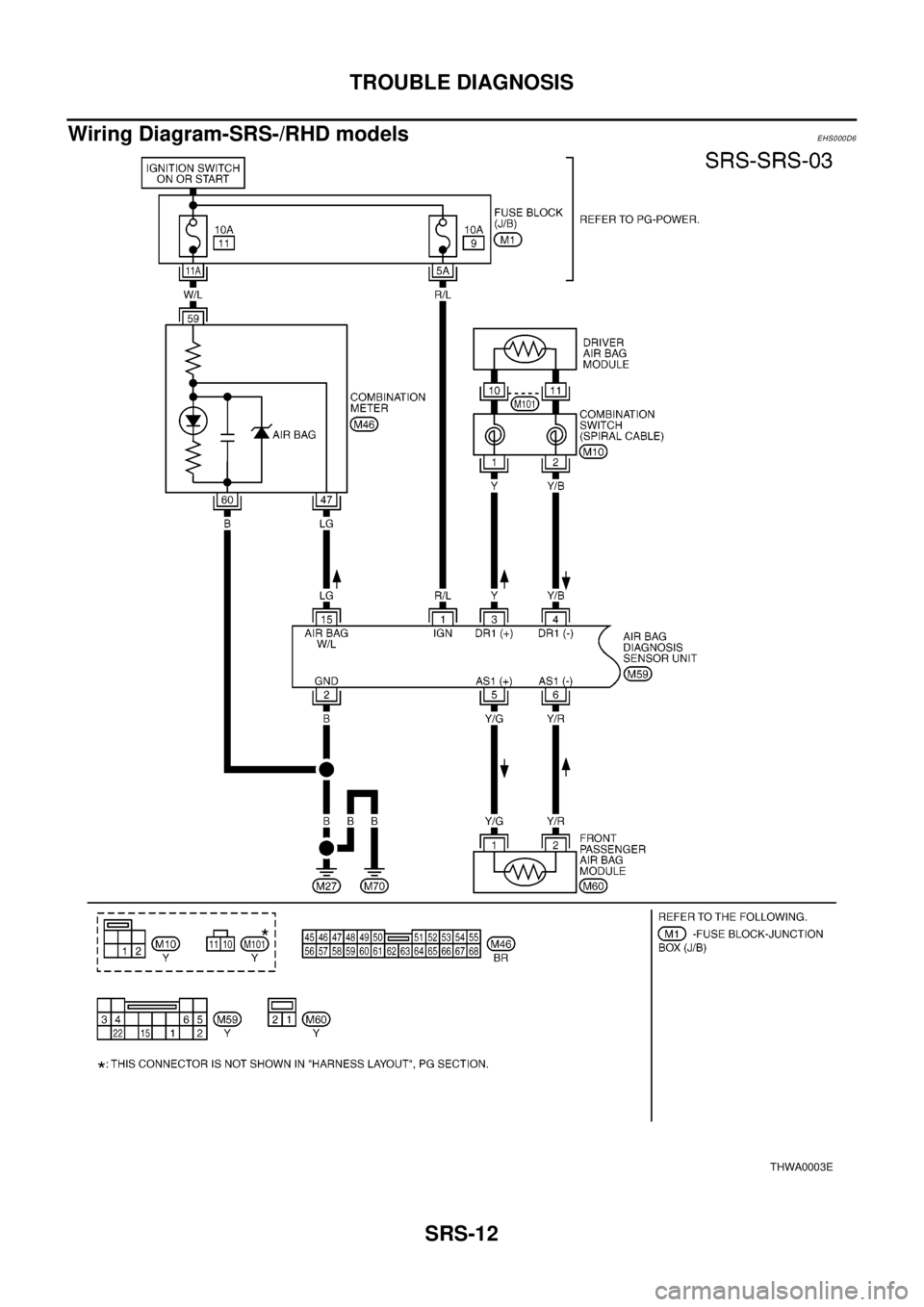

Wiring Diagram-SRS-/RHD models
EHS000D6
THWA0003E

TROUBLE DIAGNOSIS
SRS-13
C
D
E
F
G
I
J
K
L
MA
B
SRS

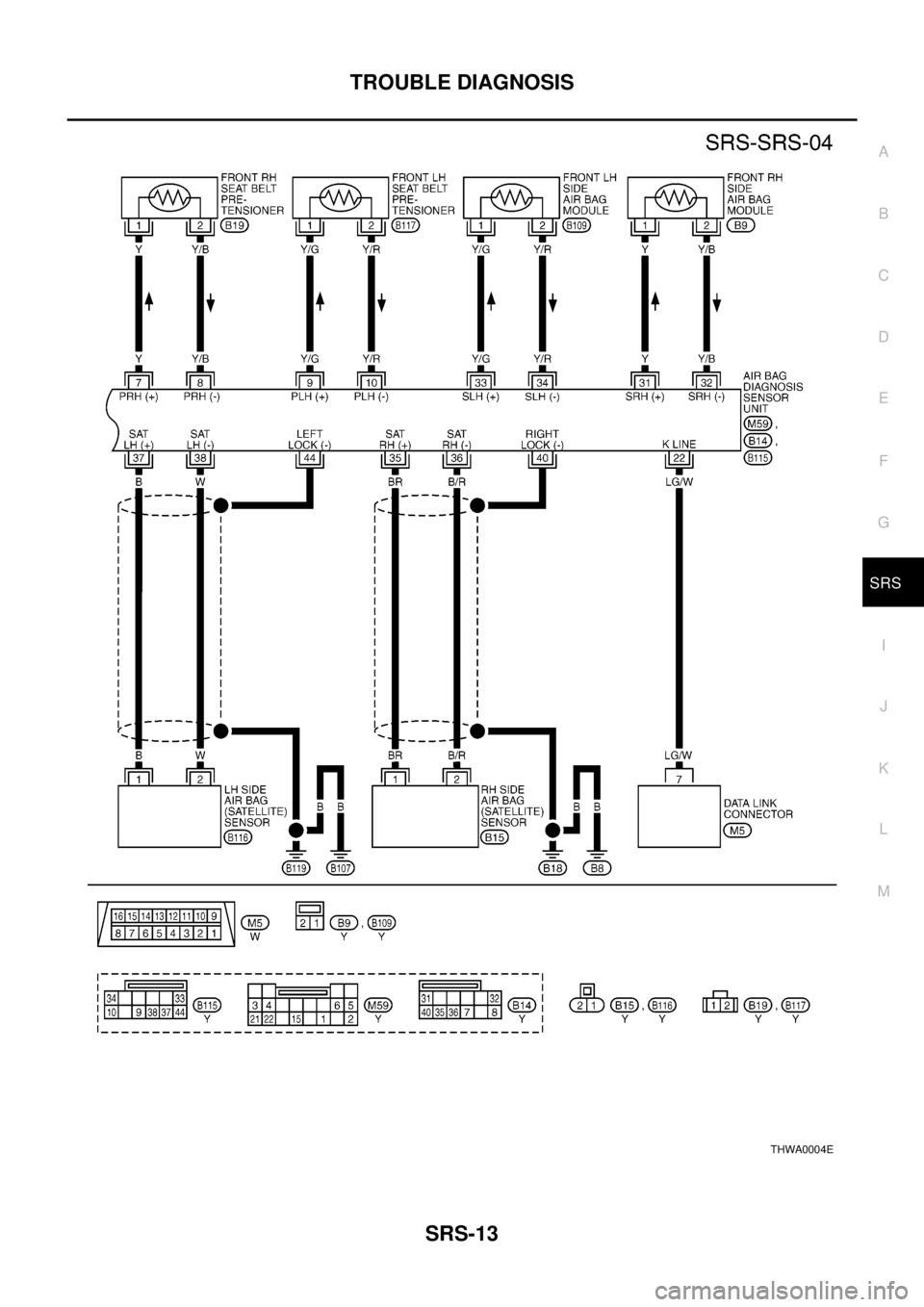

THWA0004E

SRS-14
TROUBLE DIAGNOSIS
CONSULT-II FUNCTION
EHS000CP
DIAGNOSIS MODE FOR CONSULT-II
l“SELF-DIAG [CURRENT]”
A current Self-diagnosis result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requiring
repairs.
l“SELF-DIAG [PAST]”
Diagnosis results previously stored in the memory are displayed on the CONSULT-II screen. The stored
results are not erased until memory erasing is executed.
l“TROUBLE DIAG RECORD”
With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be dis-
played on the CONSULT-II screen.
l“ECU DISCRIMINATED NO.”
The diagnosis sensor unit for each vehicle model is assigned with its own, individual classification num-
ber. This number will be displayed on the CONSULT-II screen, as shown below. When replacing the diag-
nosis sensor unit, refer to the part number for the compatibility. After installation, replacement with a
correct unit can be checked by confirming this classification number on the CONSULT-II screen.
HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II
From User Mode to Diagnosis Mode
After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagnosis
mode.
From Diagnosis Mode to User Mode
To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears, Diagnosis mode automatically changes to User mode.
HOW TO ERASE SELF-DIAGNOSIS RESULTS
l“SELF-DIAG [CURRENT]”
A current Self-diagnosis result is displayed on the CONSULT-II screen in real time.
After the malfunction is repaired completely, no malfunction is detected on “SELF-DIAG [CURRENT]”.
l“SELF-DIAG [PAST]”
SRS803
SRS804

TROUBLE DIAGNOSIS
SRS-15
C
D
E
F
G
I
J
K
L
MA
B
SRS
Return to the “SELF-DIAG [CURRENT]” CONSULT-II screen by touching “BACK” key of CONSULT-II and
select “SELF-DIAG [CURRENT]” in SELECT DIAG MODE. Touch “ERASE” in “SELF-DIAG [CURRENT]”
mode.
NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is not erased, the User mode shows the
system malfunction by the operation of the warning lamp even if the malfunction is repaired com-
pletely.
l“TROUBLE DIAG RECORD”
The memory of “TROUBLE DIAG RECORD” cannot be erased
SELF-DIAGNOSIS FUNCTION (WITHOUT CONSULT-II)EHS000CQ
lThe reading of these results is accomplished using one of two modes — “User mode” and “Diagnosis
mode”.
lAfter a malfunction is repaired, turn the ignition switch “OFF” for at least one second, then back “ON”.
Diagnosis mode returns to the User mode. At that time, the self-diagnostic result is cleared.
HOW TO CHANGE SELF-DIAGNOSIS MODE
HOW TO ERASE SELF-DIAGNOSIS RESULTS
After a malfunction is repaired, turn the ignition switch “OFF” for at least one second, then back “ON”. Diagno-
sis mode returns to the User mode. At that time, the self-diagnostic result is cleared.
SRS Operation CheckEHS000CR
DIAGNOSTIC PROCEDURE 1
Checking air bag operation by using “AIR BAG” warning lamp — USER MODE
1. Turn the ignition switch from OFF to ON, and check that the air bag warning lamp blinks.
SRS701
SHIA0183E

SRS-16
TROUBLE DIAGNOSIS
2. Compare the SRS air bag warning lamp blinking pattern with the
examples.
BF-1845D

TROUBLE DIAGNOSIS
SRS-17
C
D
E
F
G
I
J
K
L
MA
B
SRS
Warninglampexamples
Trouble Diagnoses with CONSULT–IIEHS000CS
DIAGNOSTIC PROCEDURE 2
“AIR BAG” warning lamp operation-User mode- SRS condition Reference item
lNo malfunction is detected.
lNo further action is necessary.—
lThe system is malfunctioning and
need to be repaired as indicated.Go toSRS-20, "DIAGNOSTIC
PROCEDURE 4".
lAir bag is deployed.
lSeat belt pre-tensioner is deployed.Go toSRS-46, "
COLLISION DIAG-
NOSIS".
lDiagnosis sensor unit is malfunction-
ing.
lAir bag power supply circuit is mal-
functioning.
lSRS air bag warning lamp circuit is
malfunctioning.Go toSRS-25, "
Trouble Diagnoses:
“AIR BAG”Warning Lamp Does Not
Tu rn O ff".
lDiagnosis sensor unit is malfunction-
ing.
lAir bag warning lamp circuit is mal-
functioning.Go toSRS-26, "
Trouble Diagnoses:
“AIR BAG”Warning Lamp Does Not
Tu rn O n".
SHIA0011E
SHIA0012E
SHIA0013E
SHIA0014E

SRS-18
TROUBLE DIAGNOSIS
1. Turn ignition switch OFF.
2. Connect CONSULT-II to the data link connector.
3. Turn ignition switch ON.
4. Touch “START”.
5. Touch “AIR BAG”.
6. On the “self-diagnosis mode selection” screen of CONSULT-II,
select the desired “self-diagnosis mode key”.
SIIA1249E
SRS695
SRS771
SRS697
