TOYOTA CAMRY V20 1986 Service Information

If the difference is about 2 mm (0.08 =n.):
(a) Remove the drive motor and shift the cable one notch
on the side with the larger clearance.
(b) Reinstall the motor. 4. TO ADJUST RIGHT OR LEFT
Adjust by loosening the sliding roof rear shoe installation
nuts, and move the sliding roof to the right and left. HINT: whe the sliding roof is fully closed, confirm that
the front shoes are in contact with the stopper.
If the difference is about 1 mm 10.04 in.):
Loosen the sliding roof rear shoe installation nuts and
readjust the sliding roof to the proper position. 5. TO ADJUST CLEARANCE
(Difference in left and right clearance)
± BODYSun RoofBO±55

REMOVAL OF SUN ROOF
(See page BO±53)
1. DISCONNECT BATTERY CABLE FROM NEGATIVE
TERMINAL
2. REMOVE CONTROL SWITCH
3. REMOVE FOLLOWING PARTS:
wFront pillar garnishr Assist grip
wRear view mirror
wSun visor and holder
wOpening trim moulding
4. REMOVE CENTER PILLAR LOWER GARNISH
(a) Remove the front and rear door opening trims.
(b) Remove the front and rear scuff plates.
(e) Pry out the clips and remove the center pillar lower
garnish.
6. REMOVE FRONT SIDE ROOF HEADLINING
Tear off the roof headlining portion stuck with double±stick
tape between front all center pillar. 5. REMOVE CENTER PILLAR UPPER GARNISH
(a) (CANADA)
Remove the front shoulder belt anchor.
(b) Using a screwdriver, pry out the clips.
HINT: Tape the screwdriver tip before use.
(c) Remove the center pillar upper garnish.
± BODYSun RoofBO±56

9. REMOVE GUIDE RAIL COVER
(a) Disconnect the front of roof headlining to make the
clearance between the roof headlining and glass.
HINT: Do not damage the roof headlining.
(b) Remove the screw and guide rail cover.
10. REMOVE SLIDING ROOF GLASS WITH GUIDE RAIL
(a) Apply adhesive tape to protect the body.
(b) Remove the four screws and sliding roof. 7. REMOVE DRIVE MOTOR
(a) Disconnect the drive motor connector.
(b) Remove the three bolts and drive motor.
8. REMOVE WIND DEFLECTOR
Remove the four screws and wind deflector.
± BODYSun RoofBO±57

DISASSEMBLY OF SUN ROOF
(See page BO±53)
1. REMOVE SUNSHADE TRIM
(a) Remove the screw and sunshade stopper.
(b) Pull the sunshade trim rearward to remove.
3. REMOVE SLIDING ROOF GLASS
Remove the eight nuts and sliding roof glass with the front
and rear shims.
HINT: Note the number of shims in the front and rear
shoes.
4. REMOVE CABLE GUIDE CASING FROM ROOF GUIDE
RAIL
(a) Remove the screw and weatherstrip.
(b) Pull the cable guide casing forward to remove. 2. REMOVE INNER PANEL SIDE GARNISH
Using a screwdriver, remove the side garnish.
HINT: Tape the screwdriver tip before use.
5. REMOVE DRIVE CABLE FROM CABLE GUIDE CASING
Pull the drive cable from the cable guide casing.
± BODYSun RoofBO±58

5. INSTALL SUNSHADE TRIM
(a) Run the sunshade trim through the guide rail.
HINT: Secure the headlining for adjustment after assembly.
(b) Install the sunshade stopper with the screw.
6. INSTALL INNER PANEL SIDE GARNISH3. INSTALL CABLE GUIDE CASING TO ROOF GUIDE
RAIL
(a) Insert the drive cable into the. rail, and afign it with the
guide casing.
(b) Install the guide rail and guide casing with the screw.
ASSEMBLY OF SUN ROOF
(See page BO±53)
1. APPLY NIP GREASE TO DRIVE CABLE
2. PLACE DRIVE CABLES INTO CABLE GUIDE CASING
4. ASSEMBLE SLIDING ROOF GLASS
Install the sliding roof glass, shims and shoes with the eight
nuts.
HINT: Install the same number of shims that were disas-
sembled.(e) Use butyl tape to cover the cut portion of the weather-
strip at the connection between the guide casing and
guide rail.
± BODYSun RoofBO±59

(d) Close the sliding roof panel by hand so the clearance
between the left and right sides of the sliding roof panel
and roof panel are equal.
(e) Contact the front shoes with the stopper, install it.
(f) Apply liquid sealer to 2 or 3 threads of the bolt end.
Sealant: Part No. 08833±Q0070, THREE BOND 1324, or
equivalent
(g) Install the drive motor with the three bolts.
(h) Connect the drive motor connector. 2. INSTALL GUIDE RAIL COVER
(a) Apply liquid sealer to 2 or 3 threads of the bolt end.
Sealant: Part No. 08833±00070, THREE BOND 1324, or
equivalent
(b) Install the rail cover with the screw.
HINT: Do not damage the roof headlining.
3. INSTALL WIND DEFLECTOR

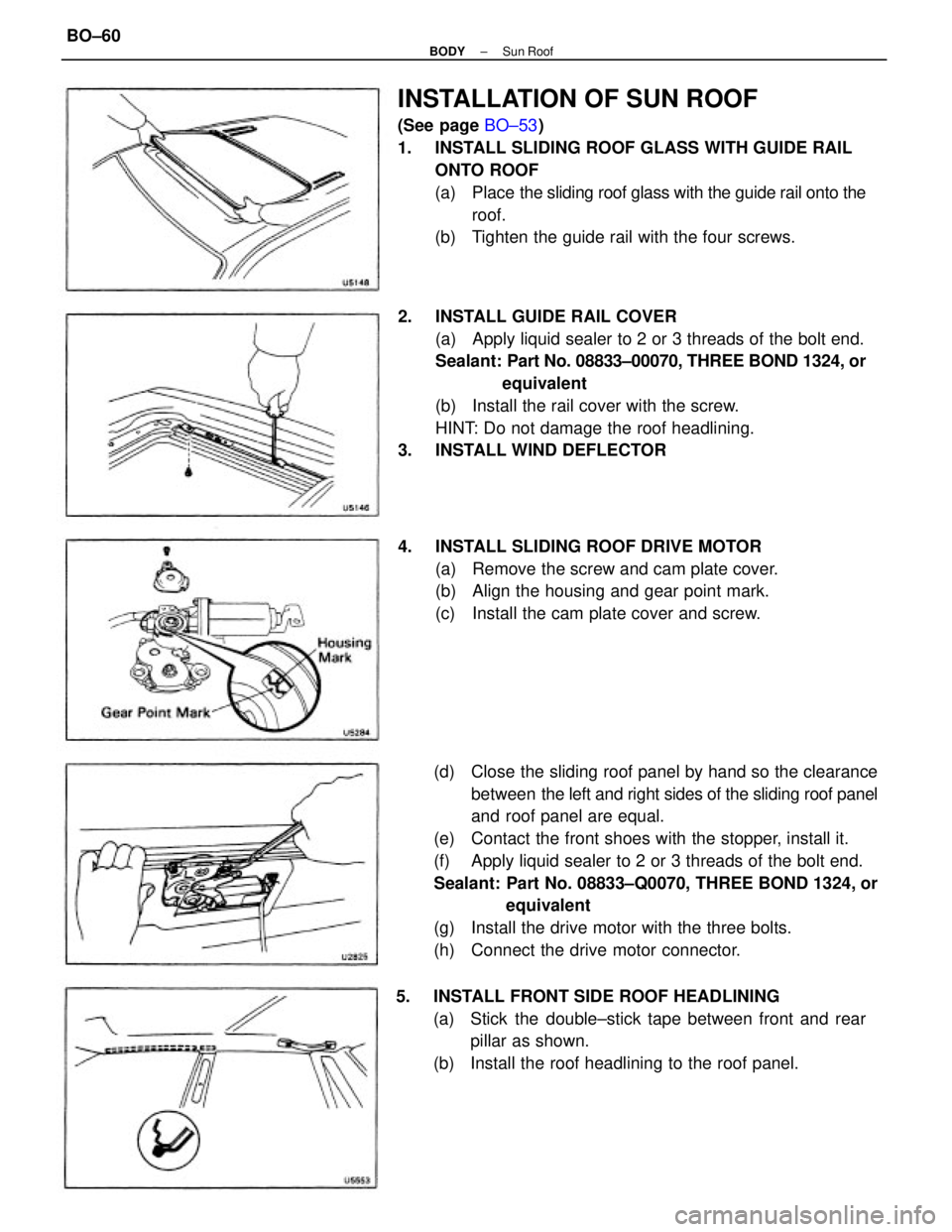

INSTALLATION OF SUN ROOF
(See page BO±53)
1. INSTALL SLIDING ROOF GLASS WITH GUIDE RAIL
ONTO ROOF
(a) Place the sliding roof glass with the guide rail onto the
roof.
(b) Tighten the guide rail with the four screws.
5. INSTALL FRONT SIDE ROOF HEADLINING
(a) Stick the double±stick tape between front and rear
pillar as shown.
(b) Install the roof headlining to the roof panel. 4. INSTALL SLIDING ROOF DRIVE MOTOR
(a) Remove the screw and cam plate cover.
(b) Align the housing and gear point mark.
(c) Install the cam plate cover and screw.
± BODYSun RoofBO±60

(b) (CANADA)
Install the shoulder belt anchor with the bolt.
Torque: 440 kg±cm (32 ft±Ib, 43 N±m)
7. INSTALL CENTER PILLAR LOWER GARNISH
8. INSTALL SCUFF PLATE
9. INSTALL FOLLOWING PARTS:
wFront pillar garnish
wRear view mirror
wSun visor and holder
wAssist grip
wOpening trim moulding
10. INSTALL CONTROL SWITCH
11. INSPECT AND ADJUST SLIDING ROOF
(See pages BO±54 and 55)
12. CONNECT BATTERY CABLE TO NEGATIVE
TERMINAL
REMOVAL OF SLIDING ROOF GLASS
(See page BO±53)
TO REMOVE ONLY SLIDING ROOF GLASS
(a) Slide the sunshade trim rearward.
(b) Remove the inner panel side garnish.
(e) Remove the front and rear shoe nuts.
(d) Remove the roof glass. 6. INSTALL CENTER PILLAR UPPER GARNISH
(a) Install the center pillar upper garnish¿¿ tapping.
± BODYSun RoofBO±61

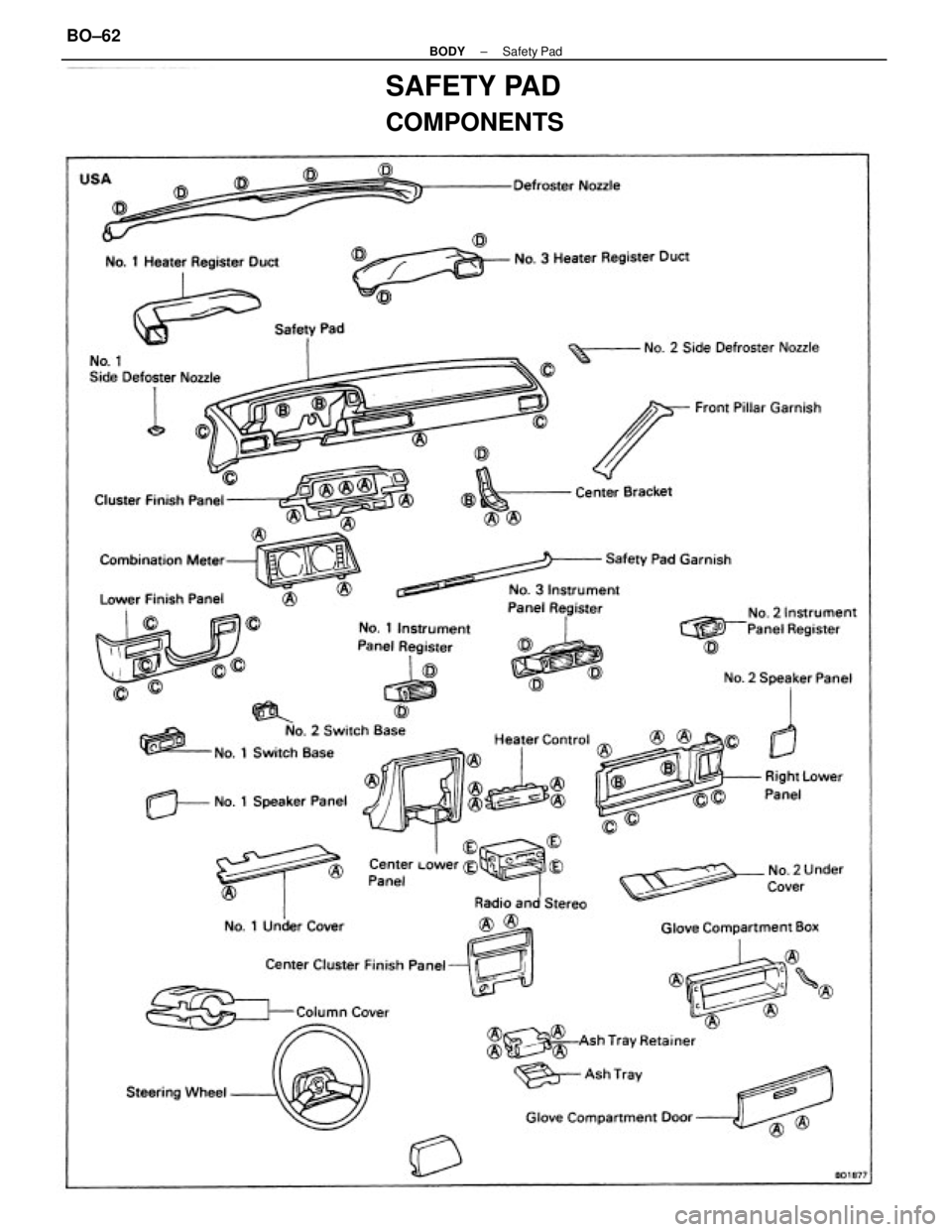

SAFETY PAD
COMPONENTS
± BODYSafety PadBO±62

COMPONENTS (Cont'd)
CANADA
± BODYSafety PadBO±63

REMOVAL OF SAFETY PAD
(See pages BO±62, 63)
1. DISCONNECT BATTERY CABLE FROM NEGATIVE
TERMINAL
2. REMOVE STEERING WHEEL
3. REMOVE FRONT PILLAR GARNISH
Pry out the clips and pull the front pillar garnish upward
to remove it by the hand.
4. REMOVE NO. 1 UNDER COVER
5. REMOVE LOWER FINISH PANEL
(a) Remove the two screws and the engine. hood re-

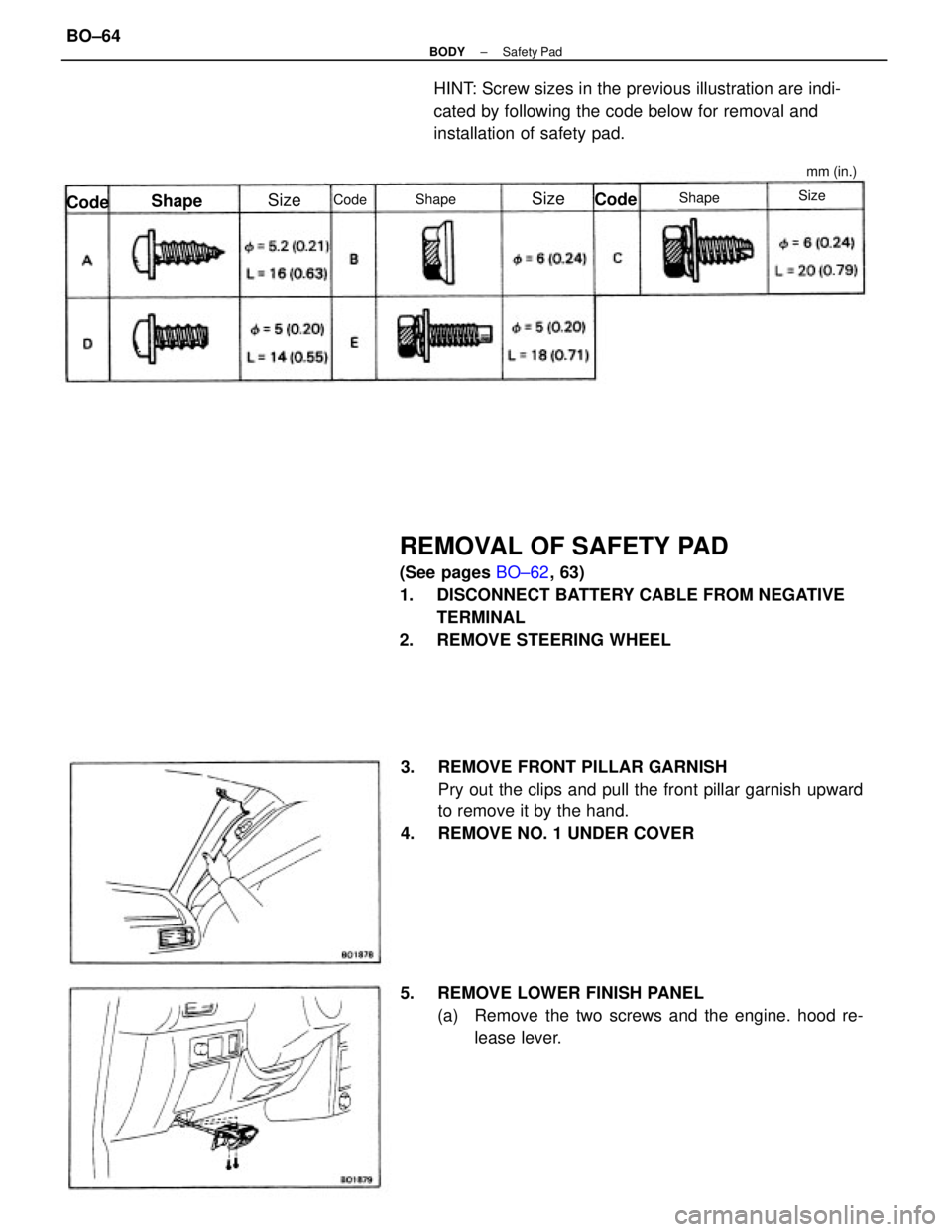

lease lever. HINT: Screw sizes in the previous illustration are indi-
cated by following the code below for removal and
installation of safety pad.
mm (in.)
Shape
ShapeShapeCode
CodeCodeSizeSizeSize
± BODYSafety PadBO±64
