Page 1561 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:57 AMPage 4 © 2005 Mitchell Repair Information Company, LLC.

Page 1562 of 1632

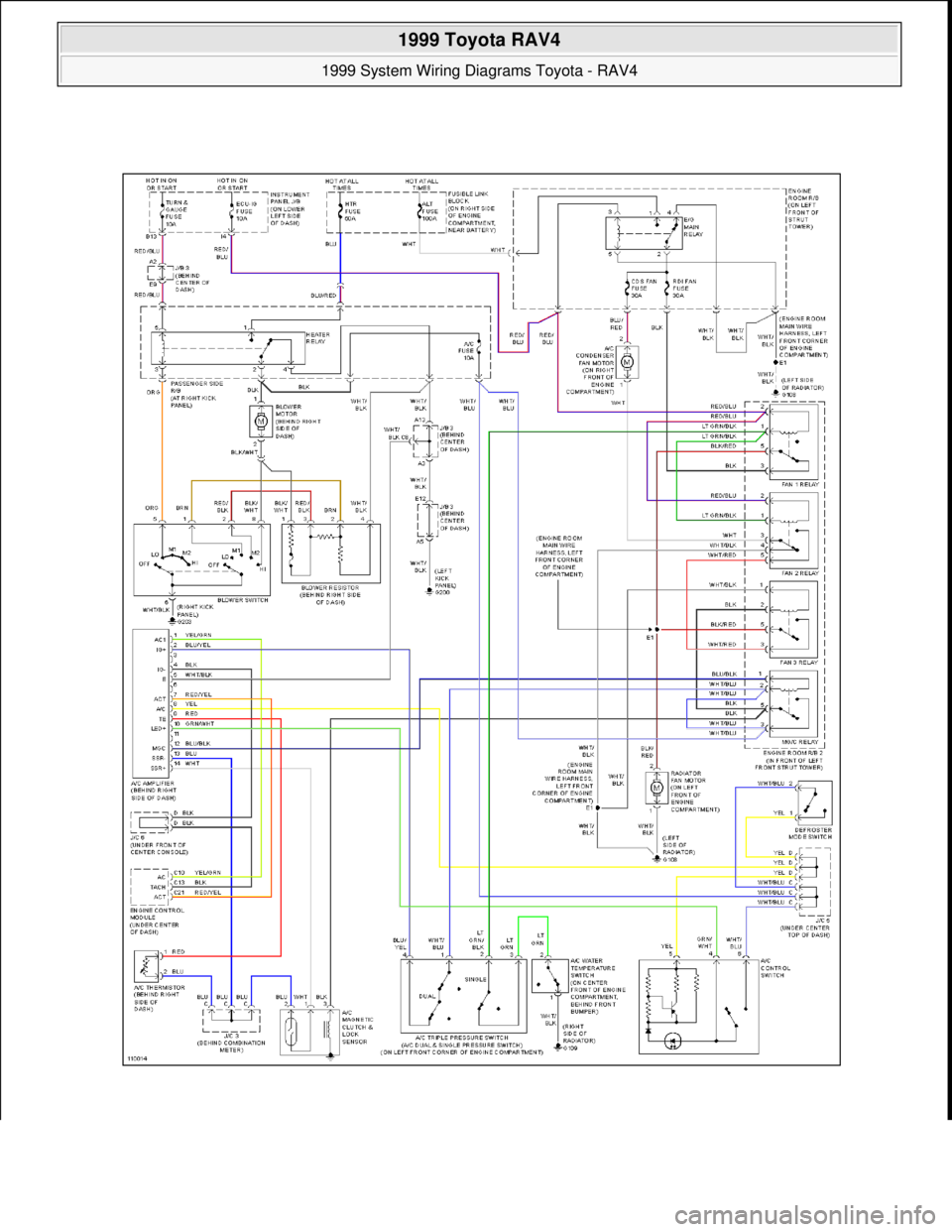

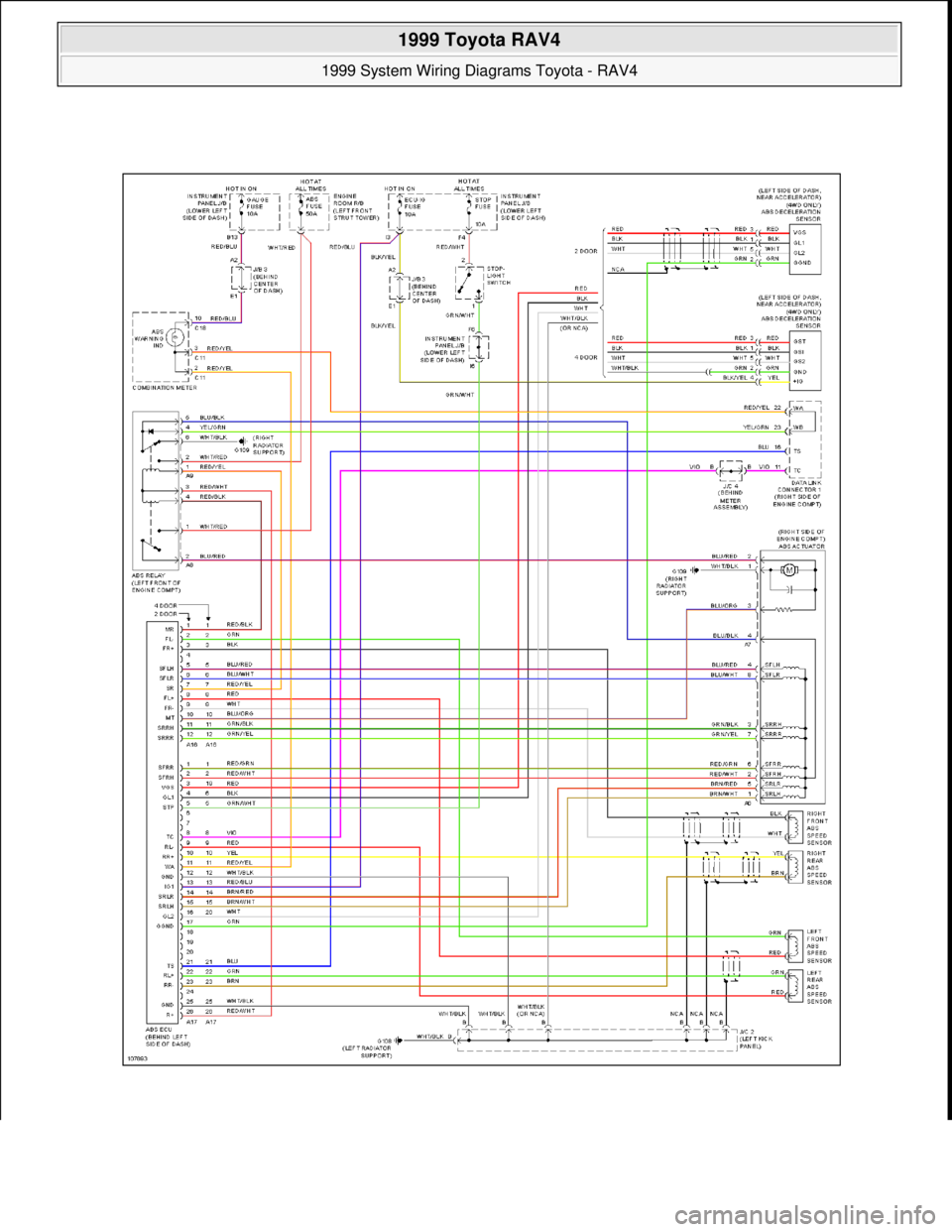

TOYOTA RAV4 1996 Service Repair Manual Fig. 2: Manual A/C Circuit ANTI-LOCK BRAKES 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:57 AMPage 5 © 2005 Mitchell Repair Informatio

Page 1563 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 6 © 2005 Mitchell Repair Information Company, LLC.

Page 1564 of 1632

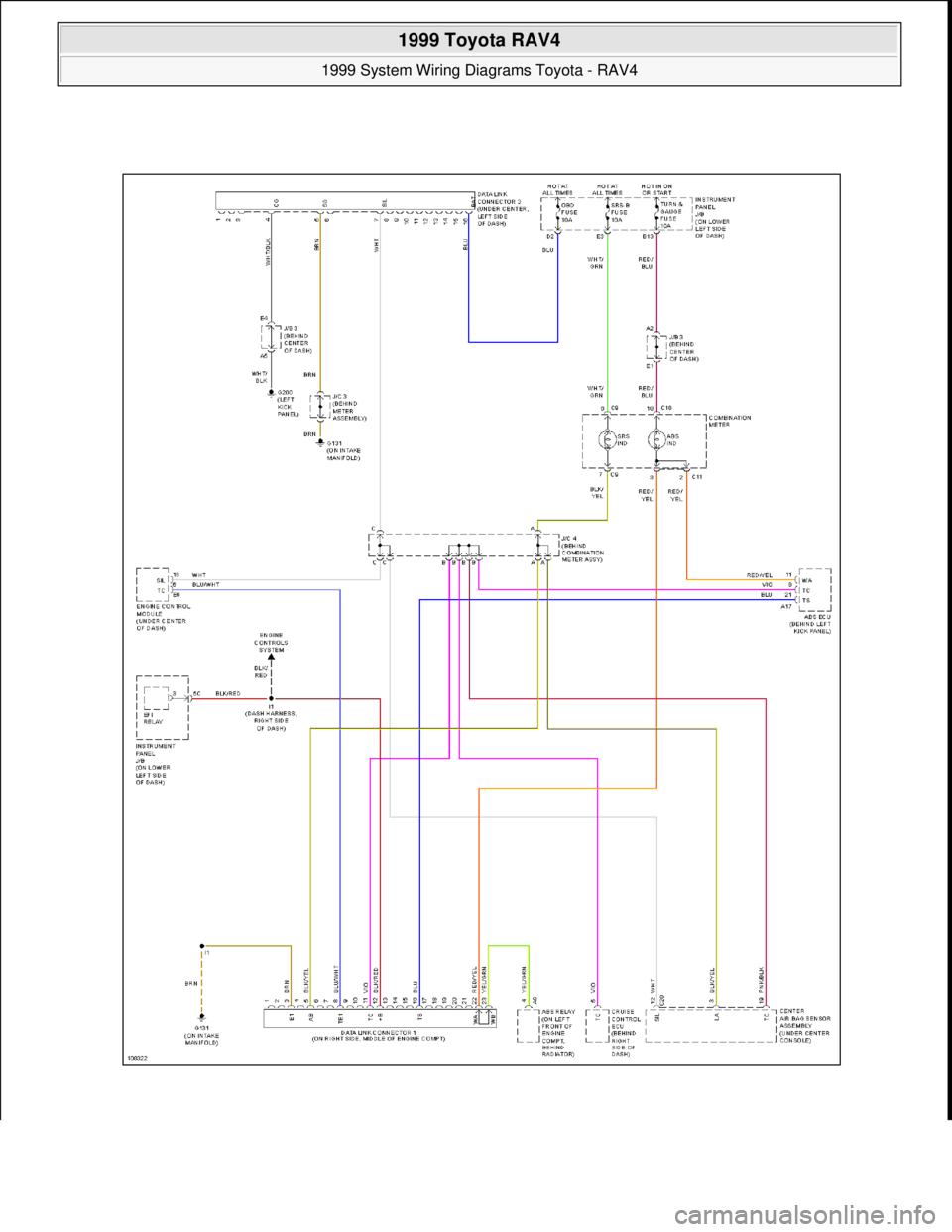

TOYOTA RAV4 1996 Service Repair Manual Fig. 3: Anti-lock Brake Circuits COMPUTER DATA LINES 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 7 © 2005 Mitchell Repair I

Page 1565 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 8 © 2005 Mitchell Repair Information Company, LLC.

Page 1566 of 1632

TOYOTA RAV4 1996 Service Repair Manual Fig. 4: Computer Data Lines COOLING FAN 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 9 © 2005 Mitchell Repair Information Com

Page 1567 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 10 © 2005 Mitchell Repair Information Company, LLC.

Page 1568 of 1632

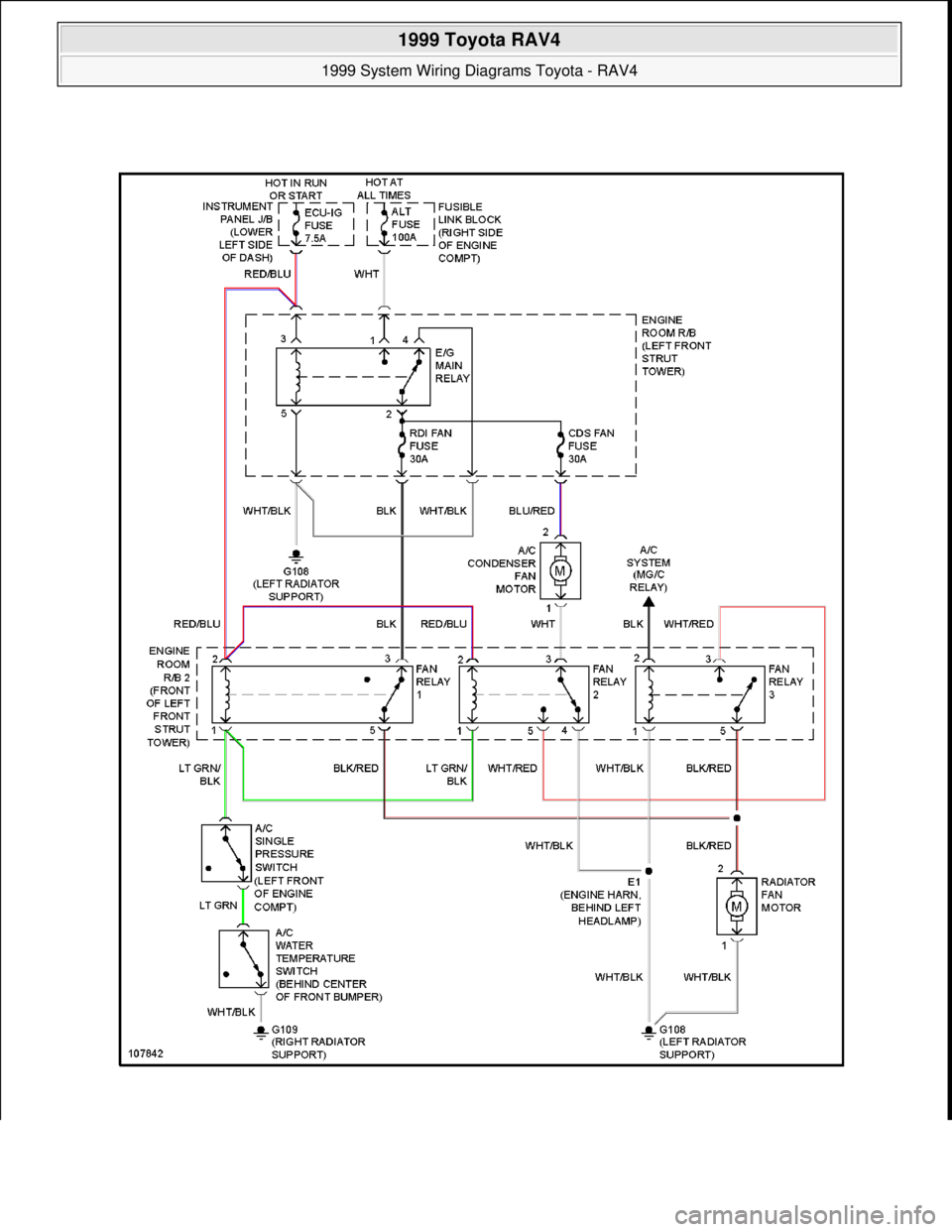

TOYOTA RAV4 1996 Service Repair Manual Fig. 5: Cooling Fan Circuit CRUISE CONTROL 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 11 © 2005 Mitchell Repair Informatio

Page 1569 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 12 © 2005 Mitchell Repair Information Company, LLC.

Page 1570 of 1632

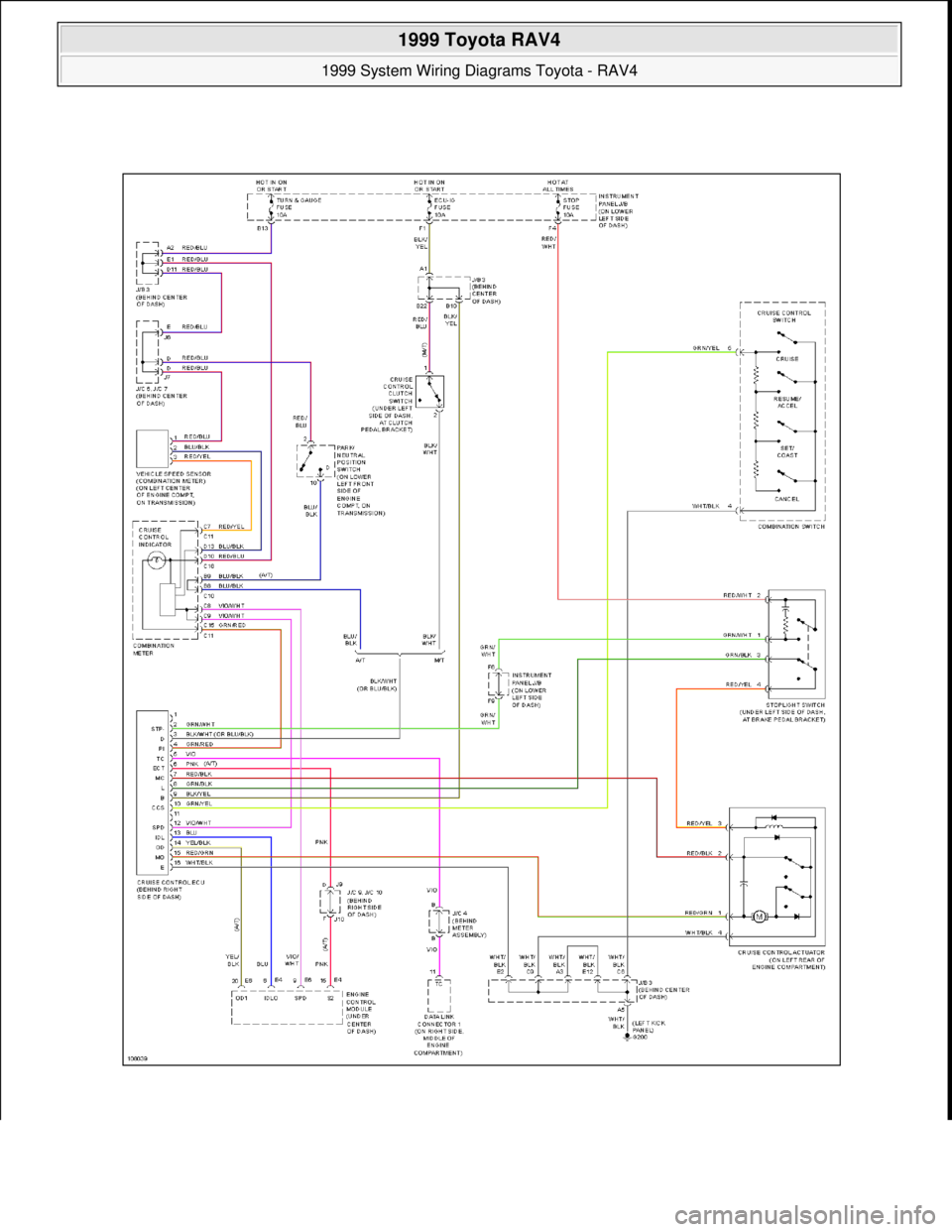

TOYOTA RAV4 1996 Service Repair Manual Fig. 6: Cruise Control Circuit DEFOGGERS 1999 Toyota RAV4 1999 System Wiring Diagrams Toyota - RAV4 Microsoft Sunday, November 22, 2009 10:50:58 AMPage 13 © 2005 Mitchell Repair Information
